Protected components

Fuse amp rating

Fuse or relay number

Engine control module 15.

5A

2

F23

Powertrain control module 15.
Transmission oil pump 15.

Relay coils.

5A

2

F24

Light switch module.

Motor electronic cooling pump.

10A

2

F25

Electronic power assist steering module
15.

5A

2

F26

Mass air flow sensor.

5A

2

F27

Powertrain control module.

15A

2

F28

Electronic air conditioning compressor.

10A

2

F29

Positive temperature coefficient heater.

Engine control module.

10A

2

F30

Powertrain control module.

Not used (spare).

5A

2

F31

Vehicle power 2.

20A

2

F32

Vehicle power 4.

15A

2

F33

Injectors.

10A

2

F34

Vehicle power 3.

10A

2

F35

Vehicle power 1.

20A

2

F36

Vacuum pump.

Micro relay

R1

Horn.

Micro relay

R2

Hybrid powertrain control.

Micro relay

R3

Front wiper.

Micro relay

R4

Vacuum pump.

Micro relay

R5

Front and rear wiper high-low.

Micro relay

R6

Not used.

—

R7

Protected components

Fuse amp rating

Fuse or relay number

Ignition feed.

Power relay

R8

Not used.

—

R9

Not used.

—

R10

Not used.

—

R11

Cooling fan.

Power relay

R12

Heater blower.

Mini relay

R13

Engine control relay.

Mini relay

R14

1

Cartridge fuse.

2

Mini fuse.

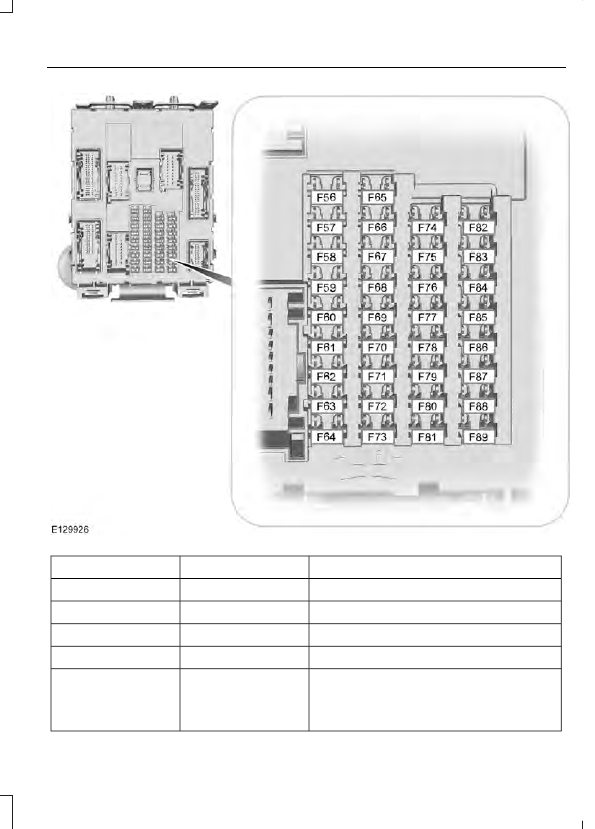

Passenger Compartment Fuse
Panel

The fuse panel is located on the right-hand
side below the glove box. You may need
to remove a trim panel to access it.

Protected components

Fuse amp rating

Fuse or relay number

Fuel pump supply.

20A

F56

Not used.

—

F57

Not used (spare).

5A

F58

Passive anti-theft system.

5A

F59

Interior light.

10A

F60

Driver door switch pack.
Glove box illumination.
Overhead console switch bank.

Protected components

Fuse amp rating

Fuse or relay number

Cigar lighter.

20A

F61

Second row power point.

Autowiper module.

5A

F62

Autodimming rear view mirror.

Not used (spare).

10A

F63

Not used.

—

F64

Liftgate release.

10A

F65

Driver door unlock supply.

20A

F66

Multi-function display.

7.5A

F67

GPS module.
Sync.

Not used (spare).

15A

F68

Instrument cluster.

5A

F69

Central lock and unlock supply.

20A

F70

Climate control module.

7.5A

F71

Steering wheel module.

7.5A

F72

Data link connector.

7.5A

F73

OBD II supply.

Headlamp supply.

15A

F74

Fog lamp supply.

15A

F75

Reversing lamp supply.

10A

F76

Washer pump.

20A

F77

Ignition switch, Start button.

5A

F78

Radio.

15A

F79

Hazard light switch.

Not used (spare).

20A

F80

Power sun shade.

5A

F81

Remote receiver antenna.

Washer pump ground.

20A

F82

Central locking ground.

20A

F83
