Ford F150 Pickup. Instruction - part 89

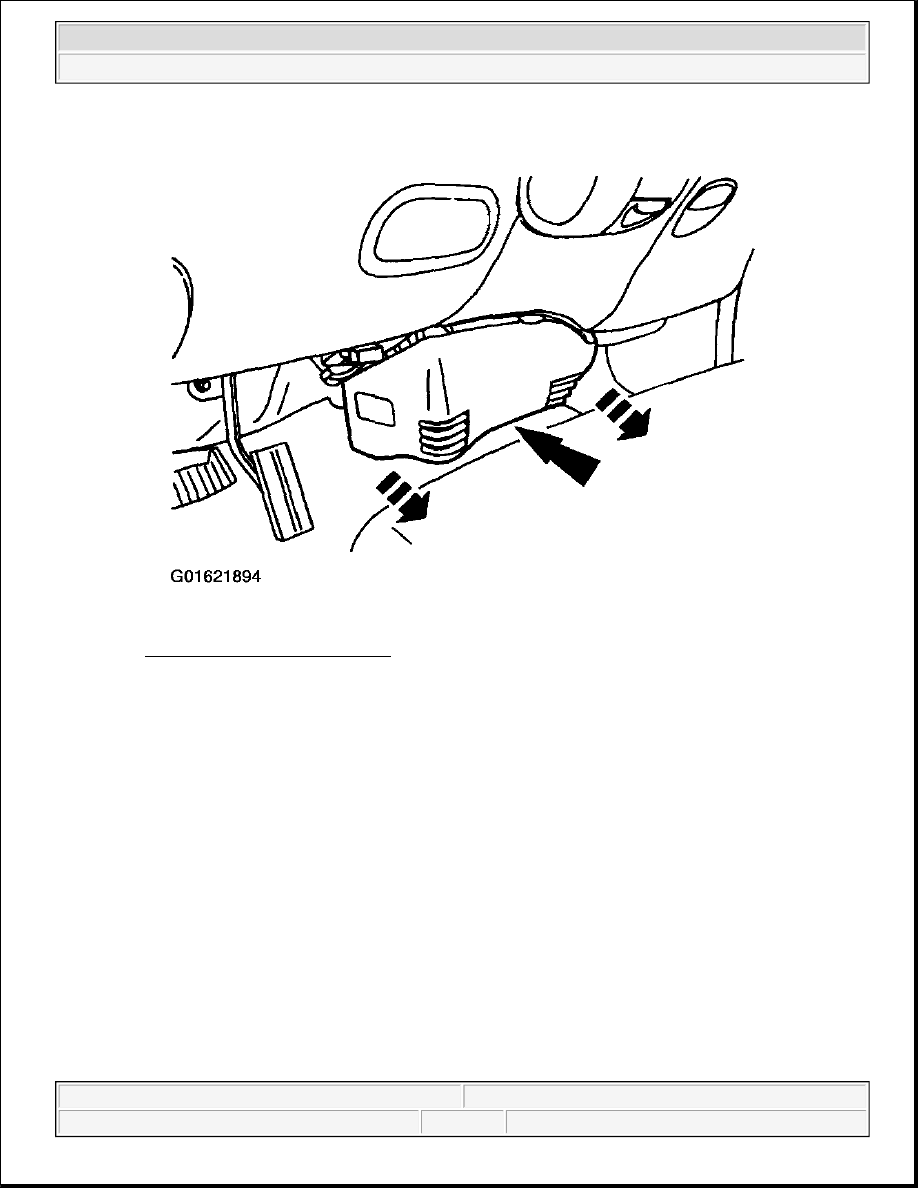

Fig. 7: Removing Valance Panel
Courtesy of FORD MOTOR CO.

11. Disconnect the restraint control module (RCM) electrical connector.

1. Release the locking tab.

2. Disconnect the RCM electrical connector.

z

Release the wiring harness locators.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

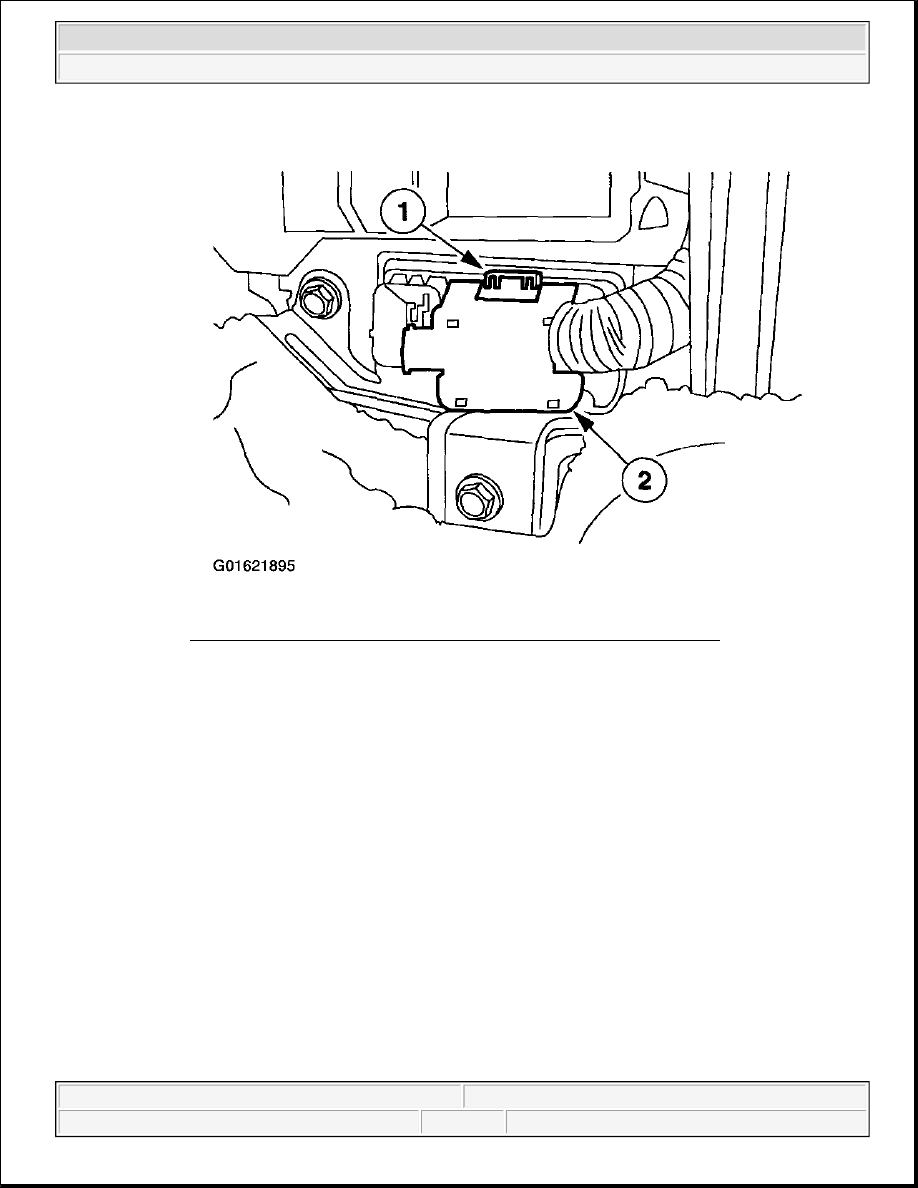

Fig. 8: Disconnecting Restraint Control Module Electrical Connector
Courtesy of FORD MOTOR CO.

12. Disconnect the electronic blend door actuator electrical connector.

z

Release the wiring harness locators.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

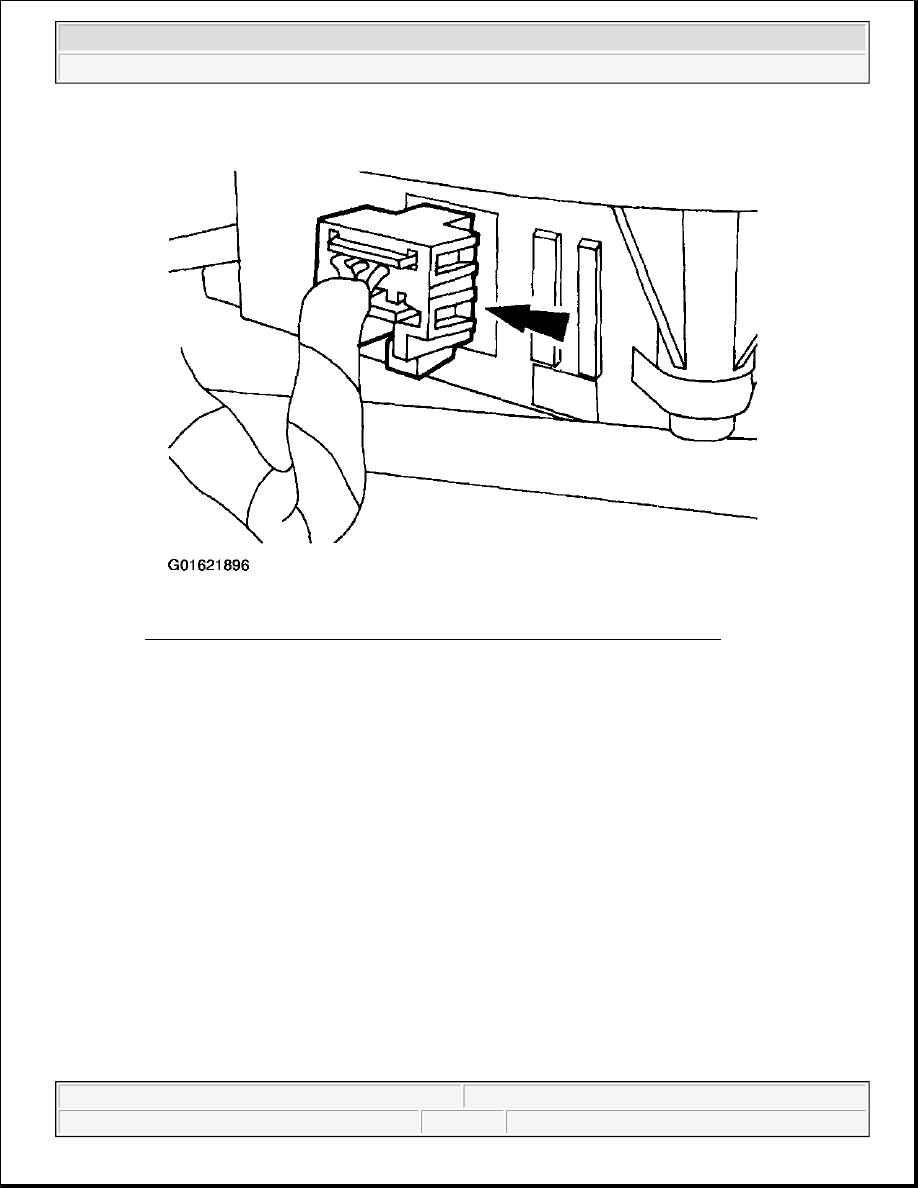

Fig. 9: Disconnecting Electronic Blend Door Actuator Electrical Connector
Courtesy of FORD MOTOR CO.

13. Disconnect the climate control head vacuum harness connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

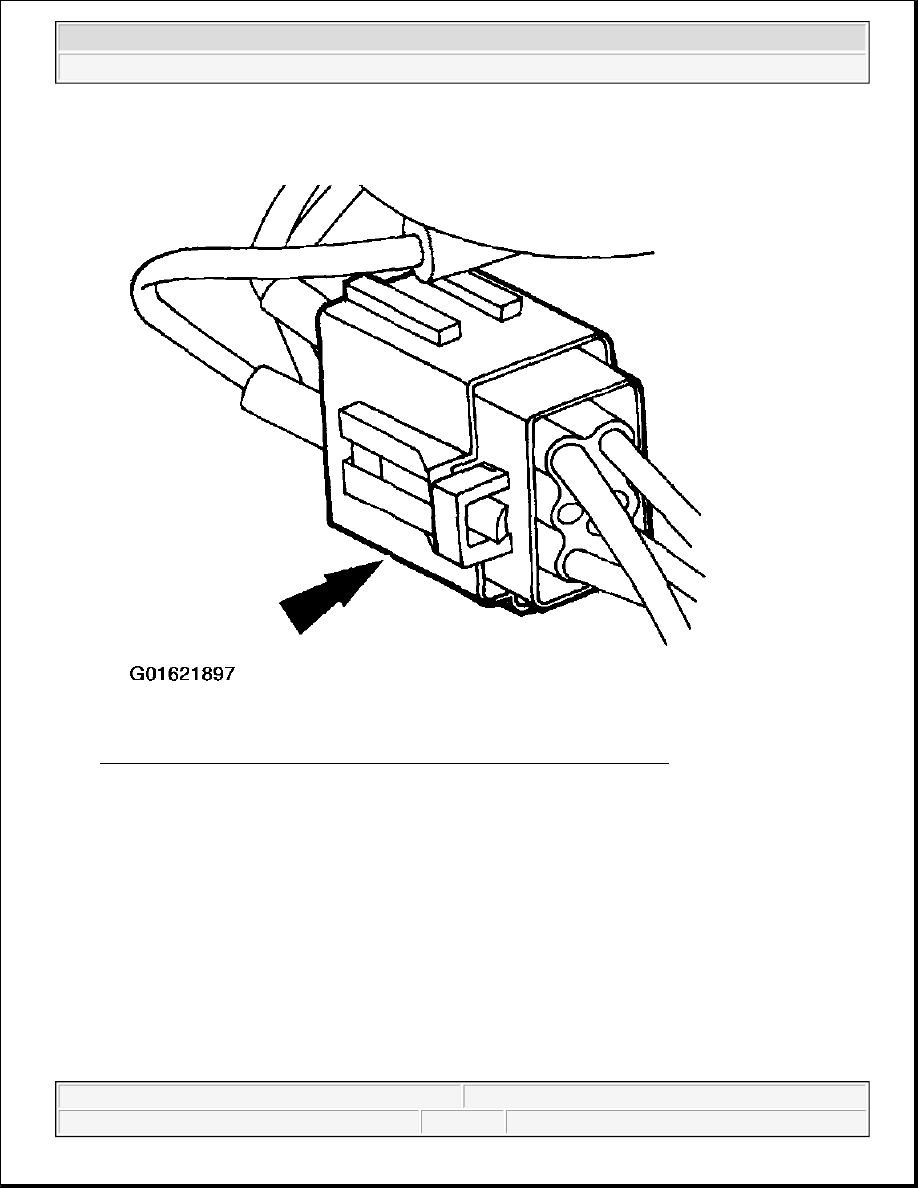

Fig. 10: Disconnecting Climate Control Head Vacuum Harness Connector
Courtesy of FORD MOTOR CO.

14. Remove the LH and RH front door scuff plates.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
