Overview

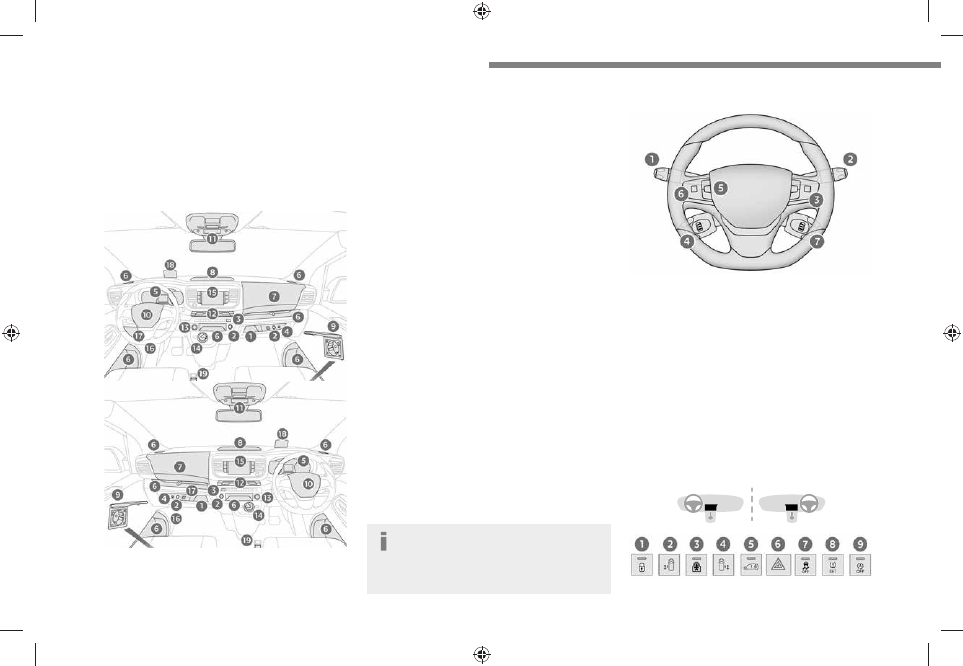

Presentation

Instruments and controls

These illustrations and descriptions are intended
as a guide. The presence and location of some
components varies according to the version or
trim level.





1.

Glove box
Deactivation of the front passenger airbag

2.

12 V (120 W) accessory sockets

3.

USB socket

4.

JACK socket

5.

Instrument panel

6.

Storage
Cup/can holder

7.

Storage compartment

8.

Upper storage compartment

9.

220 V (120 W) accessory socket

10.

Horn

11.

Courtesy lamp
Warning lamps display for seat belts and
front passenger airbag
Interior rear view mirror
Monitoring mirror
Emergency and assistance call buttons

12.

Heating/Air conditioning
Front demisting – de-icing
Rear screen demisting – de-icing

13.

"START/STOP" button

14.

Gearbox or drive selector
Choice of driving mode

15.

Monochrome screen with audio system
Touch screen

16.

Bonnet release

17.

Dashboard fuses

18.

Head-up display

19.

Electric parking brake

Depending on the vehicle's equipment,
the storage compartments may be open

or closed. This configuration is shown as an

example.

Steering-mounted controls





1.

Exterior lighting/Direction indicators control
stalks

2.

Wiper controls/Screenwash/Trip computer

3.

Audio system setting controls

4.

Controls for Cruise control/Speed limiter/
Adaptive cruise control

5.

Instrument panel display mode selection
wheel

6.

Voice synthesis control
Volume adjustment

7.

Audio system setting controls

Central control bar









14/02/2022   15:32:54

5

Overview

1.

Locking/unlocking from the inside

2.

Left-hand electric sliding side door

3.

Electric child lock

4.

Right-hand electric sliding side door

5.

Cab/loading area selectivity

6.

Hazard warning lamps

7.

DSC/ASR system

8.

Tyre under-inflation detection

9.

Stop & Start (Diesel)

Side control bar









1.

Advanced Grip Control

2.

Head-up display

3.

Parking sensors

4.

Additional heating/ventilation system (Diesel)

5.

Alarm (Diesel or Electric)

6.

Headlamp beam height adjustment

7.

Lane departure warning system

8.

Blind spot monitoring system

9.

Automatic headlamp dipping

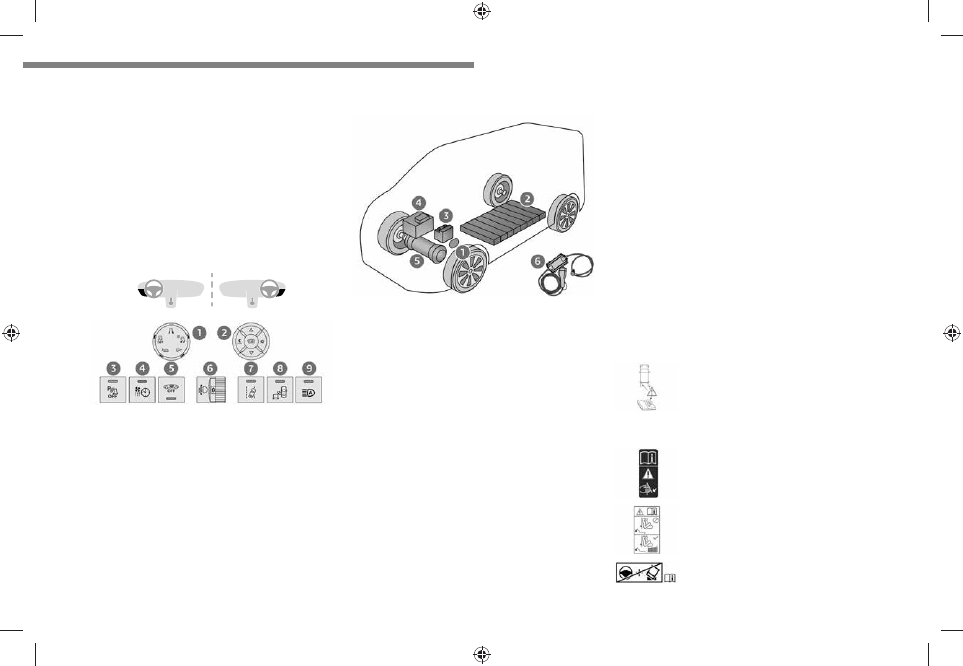

Electric motor





1.

Charging connectors

2.

Traction battery

3.

12 V accessory battery

4.

On-board charger

5.

Electric motor

6.

Charging cable

The charging connectors

1

 allow 3 types of

charging:
–  Domestic charging in mode 2 using a domestic
socket and associated charging cable

6

.

–  Accelerated charging in mode 3 using an
accelerated charging unit (Wallbox).
–  Superfast charging in mode 4 using a fast
public charger.
The 400 V traction battery

2

 uses Lithium-Ion

technology. It stores and supplies the energy
required for the operation of the electric motor,
air conditioning and heating. Its charge level is

represented by an indicator and a reserve power
warning lamp on the instrument panel.
The 12 V accessory battery

3

 powers the

vehicle’s conventional electrical system. It is
recharged automatically by the traction battery
via the on-board charger.
The on-board charger

4

 provides domestic

charging (mode 2) and accelerated charging
(mode 3) of the traction battery as well as
recharging of the 12 V accessory battery.
The electric motor

5

 provides propulsion in

accordance with the selected driving mode and
driving conditions. It recovers energy during
vehicle braking and deceleration phases.

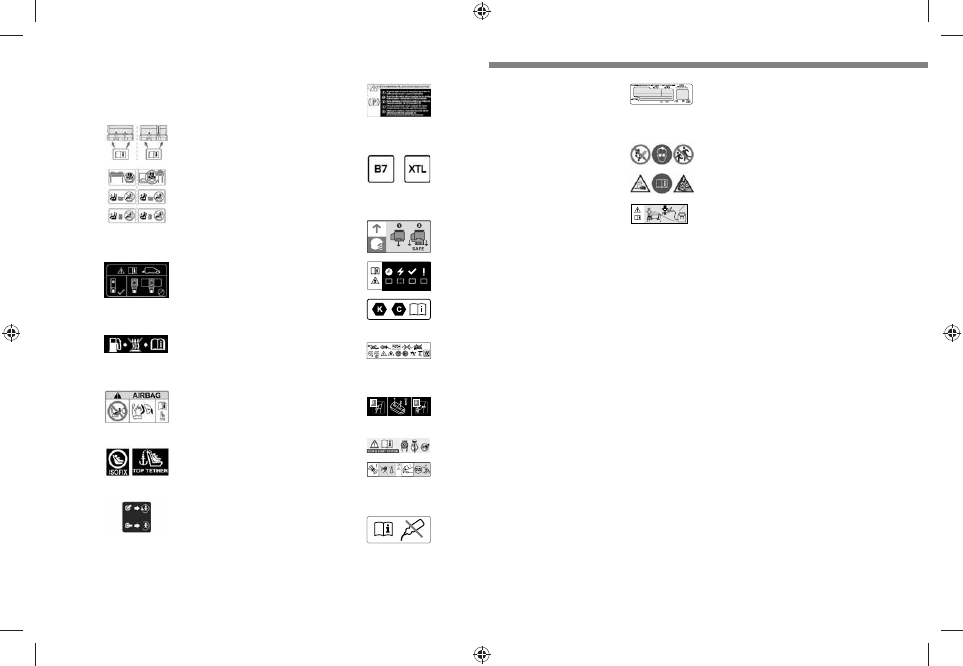

Labels

"Access - Side-hinged rear doors" section:





"Ease of use and comfort - Moduwork"

section:













14/02/2022   15:32:54

6

Overview

"Ease of use and comfort - Precautions for

seats and bench seats" section:









"Ease of use and comfort - Retractable

sliding table" section:





"Ease of use and comfort - Additional

heating/ventilation" section:





"Safety - Deactivating the front passenger

airbag" section:





"Safety - ISOFIX child seats" section:





"Safety - Manual child lock" section:





"Driving - Electric parking brake" section:





"Practical information - Compatibility of

fuels" section:





"Practical information - Charging system

(Electric)" section:

















"Practical information - Charging the traction

battery (Electric)" section:





"Practical information - Bonnet" section:









"Practical information - Checking levels"

section:





"In the event of a breakdown - Spare wheel"

section:





"In the event of a breakdown - 12 V battery/

Accessory battery" section:











24V

12V



14/02/2022   15:32:55

7

Eco-driving

Eco-driving

Eco-driving refers to a range of everyday
practices that allow the motorist to optimise
the vehicle's energy consumption (fuel and/or
electricity) and CO

2

 emissions.

Optimise your use of the gearbox

With a manual gearbox, move off gently and

change up promptly. While accelerating, change
up early.
With an automatic gearbox, favour automatic
mode. Do not depress the accelerator pedal
heavily or suddenly.
The gear shift indicator prompts you to engage
the most suitable gear. Whenever this indication
is displayed on the instrument panel, follow it
straight away.
With an automatic gearbox, this indicator
appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal and
press the accelerator gradually. These practices
help to save on energy consumption, reduce
CO

2

 emissions and decrease general traffic

noise.

When the traffic is flowing smoothly, select the

cruise control.

Control the use of electrical equipment

Before moving off, if the passenger compartment

is too warm, ventilate it by opening the windows
and air vents before using the air conditioning.
At speeds above 31 mph (50 km/h), close the
windows and leave the air vents open.
Consider using equipment that can help keep
the temperature in the passenger compartment
down (e.g. sunroof blind, window blinds).

Unless automatically regulated, switch off the air

conditioning as soon as the desired temperature
has been reached.

Switch off the demisting and defrosting functions,

if they are not managed automatically.

Switch off the heated seat as soon as possible.

Adapt your use of the headlamps and/or
foglamps to the level of visibility, in accordance
with current legislation in the country in which
you are driving.

Avoid running the engine before moving off,

particularly in winter (other than in severe wintry
conditions: temperature below -23°C). The
vehicle will warm up much faster while driving.
As a passenger, avoid connecting your

multimedia devices (e.g. film, music, video

game) to help reduce the consumption of energy.
Disconnect all portable devices before leaving
the vehicle.

Limit the causes of excess consumption

Spread loads throughout the vehicle. Place the
heaviest items in the boot as close as possible to
the rear seats.

Limit the loads carried in the vehicle and
minimise wind resistance (e.g. roof bars, roof
rack, bicycle carrier, trailer). Preferably, use a
roof box.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit

summer tyres.

Comply with the servicing instructions

Check tyre pressures regularly, with the tyres
cold, referring to the label in the door aperture on
the driver's side.
Carry out this check in particular:
–  before a long journey.
–  at each change of season.
–  after a long period out of use.
Do not forget the spare wheel and, where
applicable, the tyres on your trailer or caravan.
Have your vehicle serviced regularly (e.g. engine

oil, oil filter, air filter, passenger compartment

filter, etc.). Observe the schedule of operations in

the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system
has a fault, your vehicle will emit pollution. Visit a

Fiat Dealership or a qualified workshop as soon

as possible to restore your vehicle's nitrogen
oxide emissions to legal levels.

When filling the fuel tank, do not continue after

the third cut-out of the nozzle, to avoid overflow.

You will only see the fuel consumption of your
new vehicle settle down to a consistent average

after the first 1,900 miles (3,000 kilometres).

14/02/2022   15:32:55

8

Eco-driving

Optimising the driving range (Electric)

The vehicle's consumption of electrical energy
greatly depends on the route, speed and driving
style, as well as the use of the heating/air
conditioning.
Try to remain in the "

ECO

" zone on the power

indicator, by driving smoothly and maintaining a
steady speed.
Anticipate the need to slow down, and brake
smoothly, whenever possible using engine
braking with the regenerative braking function,
which will move the power indicator into the
"

CHARGE

" zone.

Use the air conditioning rather than the heating
to demist the passenger compartment.

14/02/2022   15:32:55

9

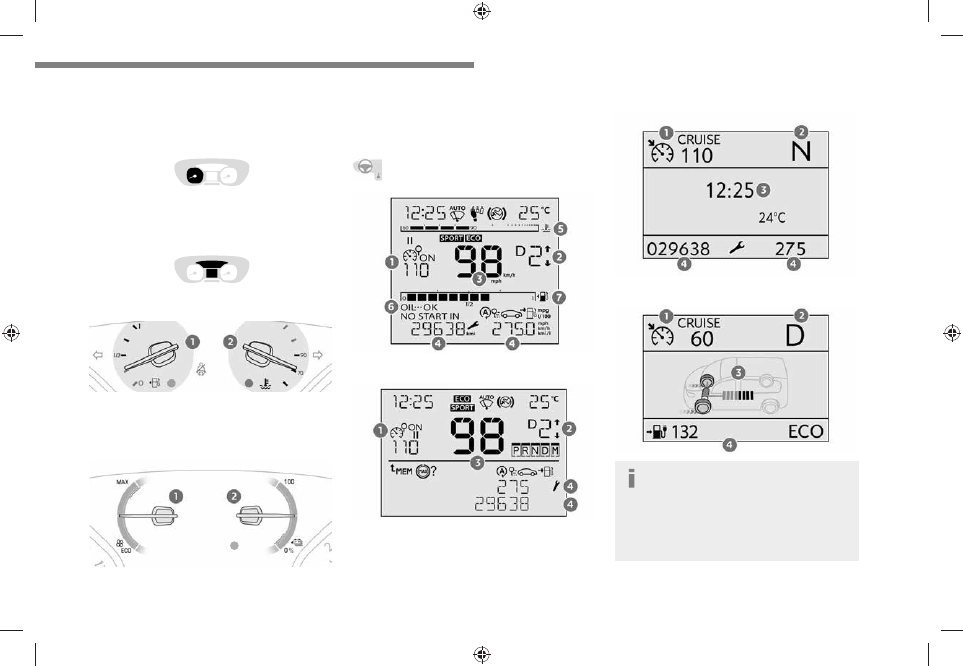

Dashboard instruments

1

Instrument panel

Speedometer





Analogue speedometer (mph or km/h).

Indicators and displays





With LCD text or matrix display





1.

Fuel gauge

2.

Engine coolant temperature indicator

With matrix display (Electric)





1.

Thermal comfort consumption indicator

2.

Charge level indicator

With LCD display









With LCD text display





With matrix display





With matrix display (Electric)





When travelling abroad, you may need to
change the distance unit: the speed must

be displayed in the country’s official unit (mph

or km/h). The unit is changed via the screen's

configuration menu, with the vehicle

stationary.

14/02/2022   15:32:56

10

Dashboard instruments

1.

Cruise control or speed limiter settings
Display of speed limit signs

2.

Gear shift indicator (Diesel)
Gear with an automatic gearbox (Diesel) or
Drive selector position (Electric)

3.

Digital speedometer (mph or km/h) with LCD
and LCD text instrument panel (Diesel)
Display area with matrix instrument panel:
alert or function status message, trip
computer, digital speedometer (mph or km/h),

power flow/vehicle charge state (Electric),

etc.

4.

Service indicator, then total distance recorder
(miles or km)
Trip distance recorder (miles or km) (Diesel)
Remaining range/Driving mode selected
(Electric)
Display area with LCD text instrument
panel: alert or function status message, trip
computer, etc.

5.

Engine coolant temperature gauge

6.

Engine oil level indicator

7.

Fuel gauge

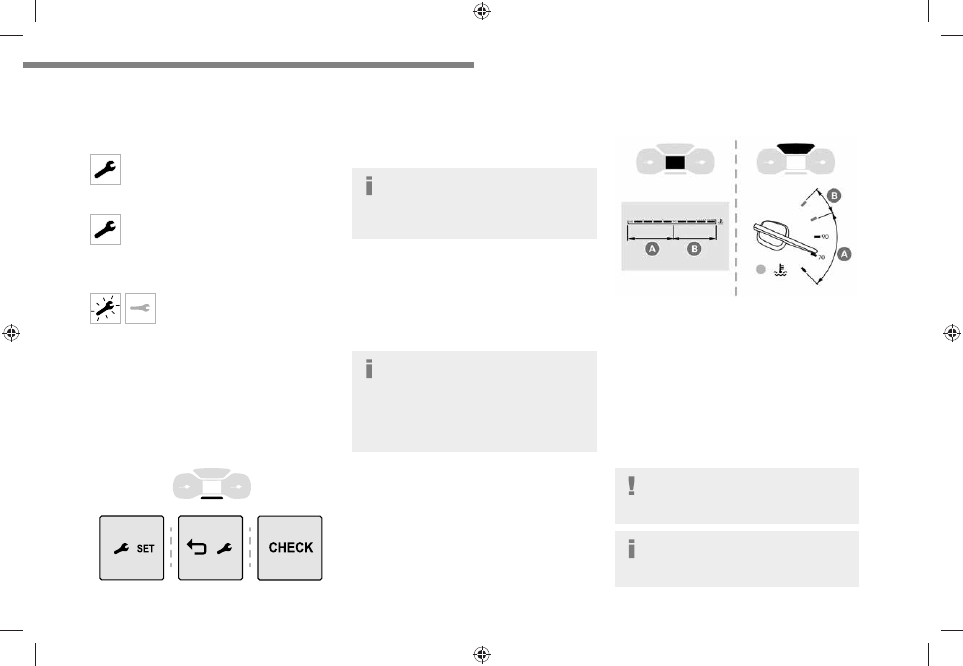

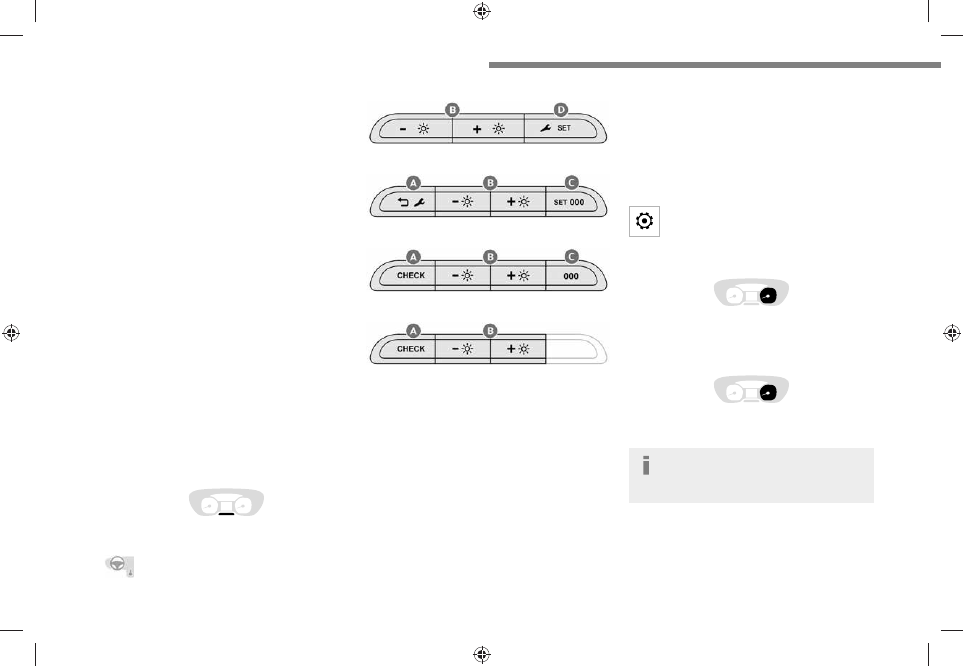

Control buttons





With LCD display









With LCD text display





With matrix display





With matrix display (Electric)





A.

Resetting the service indicator.
Temporary reminder of servicing information.
Reminder of driving range with the AdBlue

®



system.
Depending on version: go back up a level or
cancel the current operation.

B.

General lighting dimmer.
Depending on version: browse a menu or list,
or change a value.

C.

Resetting the trip distance recorder.

Depending on version: enter the configuration

menu (long press), confirm a choice (short

press).

D.

Reminder of servicing information or driving
range with the SCR system and the AdBlue

®

.

Resetting the selected function (service
indicator or trip distance recorder).

Depending on version: enter the configuration

menu (long press), confirm a choice (short

press).

With the touch screen, it is also possible
to adjust the lighting dimmer.

Rev counter





Rev counter (x 1000 rpm).

Power indicator (Electric)





Power indicator

CHARGE

,

ECO

,

POWER

 or

NEUTRAL

.

For more information on the

Indicators

,

please refer to the corresponding

section.

14/02/2022   15:32:56

11

Dashboard instruments

1

Warning and indicator
lamps

Displayed as symbols, the warning and indicator
lamps inform the driver of the occurrence of a
malfunction (warning lamps) or of the operating
status of a system (operation or deactivation
indicator lamps). Certain lamps light up in two

ways (fixed or flashing) and/or in several colours.

Associated warnings

The illumination of a lamp may be accompanied
by an audible signal and/or a message displayed
in a screen.
Relating the type of alert to the operating status
of the vehicle allows you to determine whether
the situation is normal or whether a fault has
occurred: refer to the description of each lamp
for further information.

When the ignition is switched on

Certain red or orange warning lamps come on
for a few seconds when the ignition is switched

on. These warning lamps should go off as soon

as the engine is started.
For more information on a system or a function,
refer to the corresponding section.

Persistent warning lamp

If a red or orange warning lamp comes on, there
may be fault which needs further investigation.

If a lamp remains lit

The references

(1)

,

(2)

 and

(3)

 in the warning

and indicator lamp description indicate whether

you should contact a qualified professional in

addition to the immediate recommended actions.

(1)

:

You must stop the vehicle

.

Stop as soon as it is safe to do so and switch off

the ignition.

(2)

: Contact a Fiat Dealership or a qualified

workshop.

(3)

: Visit a Fiat Dealership or a qualified

workshop.

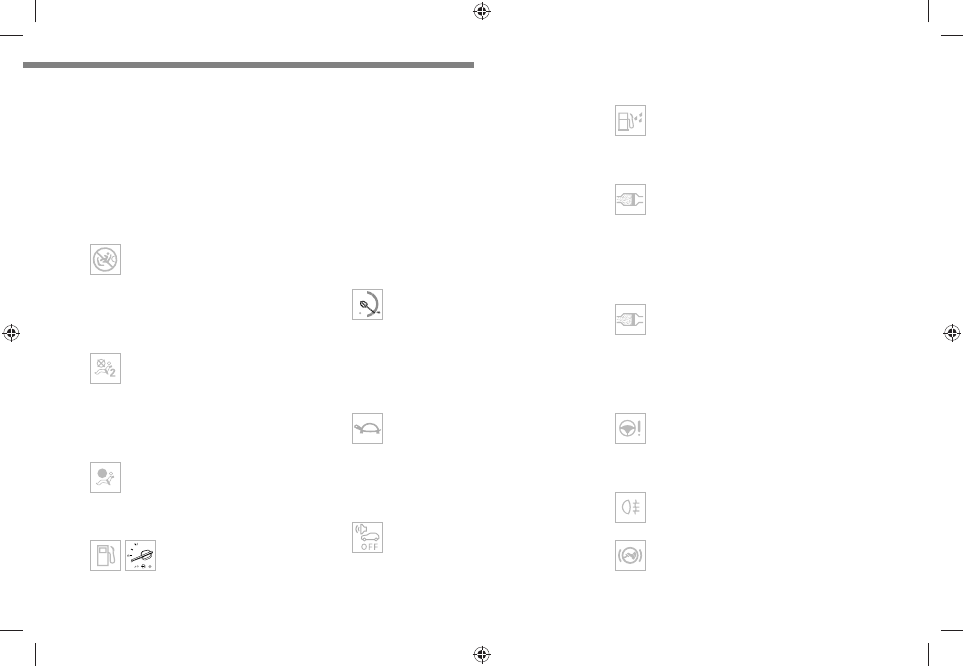

List of warning and

indicator lamps

Red warning/indicator lamps

STOP

Fixed, associated with another warning
lamp, accompanied by the display of a

message and an audible signal.
A serious fault with the engine, braking system,
power steering or automatic gearbox or a major
electrical fault has been detected.
Carry out (1) and then (2).

Maximum engine coolant temperature

Fixed (warning lamp or LED), with
the needle in the red zone

(depending on version).
The temperature of the cooling system is too
high.

Carry out (1), then wait until the engine has
cooled down before topping up the level, if
necessary (Diesel). If the problem persists, carry
out (2).

Engine oil pressure

Fixed.
There is a fault with the engine lubrication

system.
Carry out (1) and then (2).

System malfunction (Electric)

Fixed.
A fault involving the electric motor or

traction battery has been detected.
Carry out (1) and then (2).

Cable connected (Electric)

Fixed when the ignition is switched on.
The charging cable is connected to the

vehicle's connector.

Fixed when the ignition is switched on,
accompanied by a message.

It is not possible to start the vehicle while the
charging cable is connected to the vehicle’s
connector.
Disconnect the charging cable and close the

flap.

Battery charge

Fixed.
The battery charging circuit has a fault

(dirty terminals, slack or cut alternator belt, etc.).
Clean and retighten the lugs. If the warning lamp

does not go off when the engine is started, carry

out (2).

14/02/2022   15:32:57

12

Dashboard instruments

Seat belts not fastened/unfastened

Fixed or flashing, accompanied by

an increasing audible signal.

A seat belt has not been fastened or has been
unfastened (depending on version).

Door open

Fixed, associated with a message
indicating which access is open.

An audible signal supplements the alert if the
speed is higher than 6 mph (10 km/h).
A door, the boot, the tailgate or the opening rear
screen is still open (depending on version).
Close whichever access is open.
If your vehicle is equipped with a right-hand side-
hinged door, this warning lamp will

not

 indicate

that it is open.

Electric parking brake

Fixed.
The electric parking brake is applied.
Flashing.
Application/release is faulty.

Carry out (1): park on flat ground (on a level

surface).
With a manual gearbox, engage a gear.
With an automatic gearbox or drive selector,
select mode

P

.

Switch off the ignition and carry out (2).

Manual parking brake

Fixed.
The parking brake is applied or not

properly released.

Braking

Fixed.

The brake fluid level in the braking circuit

has dropped significantly.

Carry out (1), then top up with fluid that complies

with the manufacturer's recommendations. If the
problem persists, carry out (2).

Fixed.
The electronic brake force

distribution (EBFD) system is faulty.
Carry out (1) and then (2).

Orange warning/indicator lamps
Service

Temporarily on, accompanied by the
display of a message.

One or more minor faults, for which there is/are

no specific warning lamp(s), have been detected.

Identify the cause of the fault using the message
displayed on the instrument panel.
You may be able to deal with some faults
yourself, such as changing the battery in the
remote control.
For other faults, such as with the tyre under-

inflation detection system, carry out (3).

Fixed, accompanied by the display of a
message.

One or more major faults, for which there is/are

no specific warning lamp(s), have been detected.

Identify the cause of the fault using the message
displayed on the instrument panel, then carry
out (3).

Fixed, accompanied by the message
"

Parking brake fault

".

Automatic release of the electric parking brake is
unavailable.
Carry out (2).

Service warning lamp fixed and

service spanner flashing then

fixed.

The servicing interval has been exceeded.
The vehicle must be serviced as soon as
possible.
Only with BlueHDi Diesel engines.

Anti-lock braking system (ABS)

Fixed.
The anti-lock braking system has a fault.

The vehicle retains conventional braking.
Drive carefully at moderate speed, then carry
out (3).

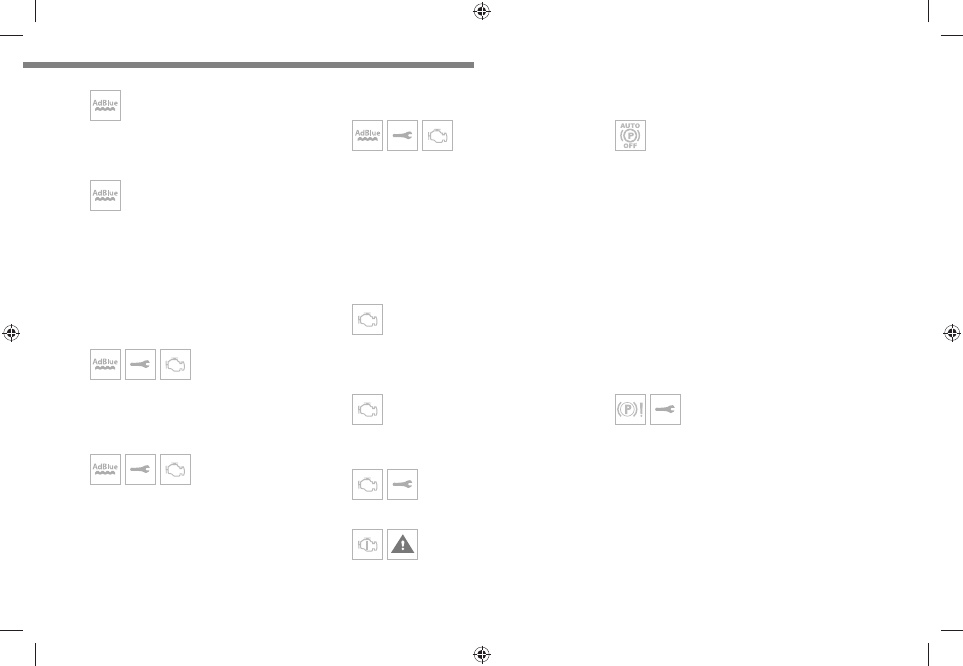

AdBlue

®

 (Euro 6.2/6.3)

On for around 30 seconds when starting
the vehicle, accompanied by a message

indicating the driving range.
The driving range is between 1,500 and 500
miles (2,400 and 800 km).
Top up the AdBlue

®

.

Fixed, on switching on the ignition,
accompanied by an audible signal and a

message indicating the driving range.
The driving range is between 500 and 62 miles
(800 and 100 km).

Promptly

 top up the AdBlue

®

, or carry out (3).

14/02/2022   15:32:58

13

Dashboard instruments

1

Flashing, accompanied by an audible
signal and a message indicating the

driving range.
The driving range is less than 62 miles (100 km).
You

must

 top up the AdBlue

®

 to

avoid engine

starting being prevented

, or carry out (3).

Flashing, accompanied by an audible
signal and a message indicating that

starting is prevented.
The AdBlue

®

 tank is empty: the legally required

engine immobiliser system prevents the engine
from starting.
To restart the engine, top up the AdBlue

®

 or carry

out (2).
It is

essential

 to add at least 5 litres of AdBlue

®



to the tank.

SCR emissions control system (BlueHDi)

Fixed when the ignition is
switched on, accompanied

by an audible signal and a message.
A malfunction of the SCR emissions control
system has been detected.
This alert disappears once the exhaust
emissions return to normal levels.

Flashing AdBlue

®

 warning

lamp on switching on the

ignition, with the Service and Engine self-

diagnostics warning lamps on fixed,

accompanied by an audible signal and a
message indicating the driving range.
Depending on the message displayed, it is
possible to drive for up to 685 miles (1,100 km)
before the engine immobiliser is triggered.

Carry out (3) without delay, to

avoid starting

being prevented

.

Flashing AdBlue

®

 warning

lamp on switching on the

ignition, with the Service and Engine self-

diagnostics warning lamps on fixed,

accompanied by an audible signal and a
message indicating that starting is prevented.
The engine immobiliser prevents the engine from
restarting (the permitted driving limit has been

exceeded after confirmation of a malfunction of

the emissions control system).
To start the engine, carry out (2).

Engine self-diagnosis system

Flashing.
The engine management system has a

fault.
There is a risk that the catalytic converter will be
destroyed.
Carry out (2)

without fail

.

Fixed.
The emission control system has a fault.

The warning lamp should go off when the engine

is started.
Carry out (3) quickly.

Fixed.
A minor engine fault has been

detected.
Carry out (3).

Fixed.
A major engine fault has been

detected.
Carry out (1) and then (2).

Automatic functions deactivated (electric

parking brake)

Fixed.
The "automatic application" (on switching

off the engine) and "automatic release" (on

acceleration) functions are deactivated.
If automatic application/release is no longer
possible:

►  Start the engine.

►  Use the control to apply the electric parking

brake.

►  Take your foot fully off the brake pedal.

►  Hold the control pressed in the release

direction for between 10 and 15 seconds.

►  Release the control.

►  Depress and hold the brake pedal.

►  Pull the control in the application direction for

2 seconds.

►  Release the control and the brake pedal.

Malfunction (with electric parking brake)

Fixed, accompanied by the
message "

Parking brake fault

".

The vehicle cannot be immobilised with the
engine running.
If manual application and release commands are
not working, the electric parking brake control is
faulty.
The automatic functions must be used at all
times and are automatically reactivated in the
event of a fault with the control.
Carry out (2).

14/02/2022   15:32:58

14

Dashboard instruments

Fixed, accompanied by the
message "

Parking brake

fault

".

The electric parking brake is faulty: manual and
automatic functions may not be working.
When stationary, to immobilise the vehicle:

►  Pull the electric parking brake control and

hold it for approximately 7 to 15 seconds, until
the indicator lamp lights up on the instrument
panel.
If this procedure does not work, secure the
vehicle:

►  Park on a level surface.

►  With a manual gearbox, engage a gear.

►  With an automatic gearbox or drive selector,

select

P

, then place the supplied chock against

one of the wheels.
Then carry out (2).

Braking

Fixed.
A minor fault with the braking system has

been detected.
Drive carefully.
Carry out (3).

Collision Risk Alert/Active Safety Brake

Flashing.
The system activates and brakes the

vehicle momentarily to reduce the speed of
collision with the vehicle in front.
For more information, refer to the

Driving



section.

Fixed, accompanied by a message and
an audible signal.

The system has a fault.
Carry out (3).

Fixed, accompanied by the display of a
message.

The system has been deactivated via the vehicle

configuration menu.

Dynamic stability control (DSC)/Anti-slip

regulation (ASR)

Flashing.
DSC/ASR system regulation is activated

in the event of a loss of grip or trajectory.

Fixed.
The DSC/ASR system has a fault.

Carry out (3).

Emergency brake malfunction (with

electric parking brake)

Fixed, accompanied by the
message "

Parking brake fault

".

Emergency braking does not deliver optimal
performance.
If automatic release is not available, use manual
release or carry out (3).

Hill start assist

Fixed, accompanied by the
message "

Anti roll-back system

fault

".

The system has a fault.
Carry out (3).

Dynamic stability control (DSC)/Anti-slip

regulation (ASR)

Fixed.
The system is deactivated.

The DSC/ASR system is reactivated
automatically when the vehicle is restarted,
and at speeds above approximately 31 mph
(50 km/h).
At speeds below 31 mph (50 km/h), it can be
reactivated manually.

Under-inflation

Fixed, accompanied by an audible signal
and a message.

The pressure in one or more tyres is too low.
Check the pressure of the tyres as soon as
possible.
Reinitialise the detection system after adjusting
the pressure.

Under-inflation warning lamp

flashing then fixed and Service

warning lamp fixed.

The tyre pressure monitoring system is faulty.

Under-inflation detection is no longer monitored.

Check the tyre pressures as soon as possible
and carry out (3).

Engine preheating (Diesel)

Temporarily on
(up to approximately 30 seconds in

severe weather conditions).
When switching on the ignition, if the weather
conditions and the engine temperature make it
necessary.

14/02/2022   15:32:59

15

Dashboard instruments

1

Wait until the warning lamp goes off before

starting.

When the warning lamp goes off, starting will

occur immediately if you press and hold:
–  the clutch pedal with a manual gearbox.
–  the brake pedal with an automatic gearbox.
If the engine does not start, make the engine
starting request again, while keeping your foot
on the pedal.

Front passenger airbag (ON)

Fixed.
The front passenger airbag is activated.

The control is in the "

ON

" position.

In this case, do NOT install a "rearward

facing" child seat on the front passenger seat

- Risk of serious injury!

Front passenger airbag (OFF)

Fixed.
The front passenger airbag is deactivated.

The control is set to the “

OFF

” position.

A "rearward facing" child seat can be installed,
unless there is a fault with the airbags (Airbags
warning lamp on).

Airbags

Fixed.
One of the airbags or seat belt

pyrotechnic pretensioners is faulty.
Carry out (3).

Low fuel level (Diesel)

Fixed (warning lamp or LED) and
needle in the red zone (depending

on version), accompanied by an audible signal
and a message.

When it first comes on, there remains

less than

8 litres

 of fuel in the tank.

Until the fuel level is topped up, this alert will
be repeated every time the ignition is switched
on, with increasing frequency as the fuel level
decreases and approaches zero.
Refuel without delay to avoid running out of fuel.

Never drive until completely empty

, as

this could damage the emissions control and
injection systems.

Low traction battery level (Electric)

0 %

100

Fixed LED and needle in the red zone,
accompanied by an audible signal and a

message.
The state of charge of the traction battery is low.
View the remaining range.
Put the vehicle on charge as soon as possible.

Tortoise mode with limited driving range

(Electric)

Fixed.
The state of charge of the traction battery

is critical.
The engine power gradually decreases.
You must put the vehicle on charge.
If the warning lamp remains lit, carry out (2).

Pedestrian horn (Electric)

Fixed.
Horn fault detected.

Carry out (3).

Water in Diesel fuel filter (Diesel)

Fixed (with LCD instrument panel).

The Diesel fuel filter contains water.

Carry out (2) without delay. Risk of damaging the
fuel injection system!

Particle filter (Diesel)

Fixed, accompanied by an audible signal
and a message about the risk of particle

filter blockage.

The particle filter is nearing saturation.

As soon as traffic conditions allow, regenerate

the filter by driving at a speed of at least 37 mph

(60 km/h), with an engine speed of above 2,500

rpm, until the warning lamp goes off.

Fixed, accompanied by an audible signal
and a message indicating that the

additive level in the particle filter is too low.

The low level in the additive tank has been
reached.
Top up without delay: carry out (3).

Power steering

Fixed.
The power steering has a fault.

Drive carefully at moderate speed, then carry
out (3).

Rear foglamp

Fixed.
The lamp is on.

Foot on the brake

Fixed.

Insufficient or no pressure on the brake

pedal.

14/02/2022   15:33:00

16

Dashboard instruments

With the automatic gearbox or the drive selector,
it may be necessary to depress the brake pedal
to unlock the gearbox from mode

N

.

Foot on the clutch

Fixed.
Stop & Start: the change to START mode

is rejected because the clutch pedal is not fully
depressed.
Fully depress the clutch pedal.

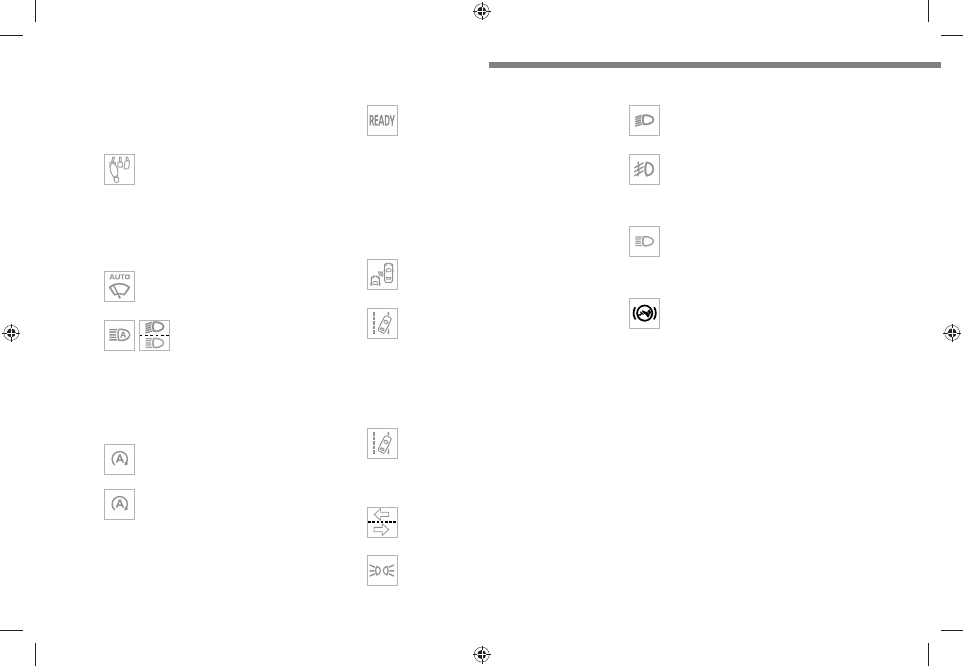

Green warning/indicator lamps
Automatic wiping

Fixed.
Automatic windscreen wiping is activated.

Automatic headlamp dipping

Fixed.
The function has been activated

via the vehicle’s configuration menu.

The lighting control stalk is in the "AUTO"
position.
For more information, refer to the

Lighting and

visibility

 section.

Stop & Start

Fixed.
When the vehicle stops, the Stop & Start

system puts the engine into STOP mode.

Flashing temporarily.
STOP mode is momentarily unavailable

or START mode is automatically triggered.
For more information, refer to the

Driving



section.

Vehicle ready to drive (Electric)

Fixed, accompanied by an audible signal
when it comes on.

The vehicle is ready to drive and the thermal
comfort systems are available.
The indicator lamp goes out upon reaching a
speed of approximately 3 mph (5 km/h) and
lights up again when the vehicle stops moving.

The lamp will go out when you switch off the

motor and exit the vehicle.

Blind spot monitoring

Fixed.
The function has been activated.

Lane departure warning system

Flashing, accompanied by an audible
signal.

A lane marking has been crossed on the left or
right.
Turn the steering wheel in the opposite direction
to return to the correct trajectory.
For more information, refer to the

Driving



section.

Fixed, accompanied by an onscreen
message.

The system has a fault.
Stay alert and drive carefully, then carry out (3).

Direction indicators

Flashing with audible signal.
The direction indicators are on.

Sidelamps

Fixed.
The lamps are on.

Dipped beam headlamps

Fixed.
The lamps are on.

Front foglamps

Fixed.
The front foglamps are on.

Blue warning/indicator lamps
Main beam headlamps

Fixed.
The lamps are on.

Black/white warning lamps
Foot on the brake

Fixed.

Insufficient or no pressure on the brake

pedal.
With an automatic gearbox, with the engine
running, before releasing the parking brake, to
move out of position

P

.

Indicators

Service indicator

The service indicator is displayed on the
instrument panel. Depending on the vehicle
version:
–  the distance recorder display line indicates
the distance remaining before the next service
is due, or the distance travelled since it was due
preceded by the sign “-”.

14/02/2022   15:33:01

17

Dashboard instruments

1

–  an alert message indicates the distance
remaining, as well as the period before the next
service is due or how long it is overdue.

Service spanner

On temporarily when the ignition is
switched on.

Between 620 and 1,860 miles (1,000 and 3,000
km) remain before the next service is due.

Fixed, when the ignition is switched on.
The next service is due in less than 620

miles (1,000 km).
Have your vehicle serviced very soon.

Service spanner flashing

Flashing then fixed, when the

ignition is switched on.

(With BlueHDi Diesel engines, associated with
the Service warning lamp.)
The servicing interval has been exceeded.
Have your vehicle serviced as soon as possible.

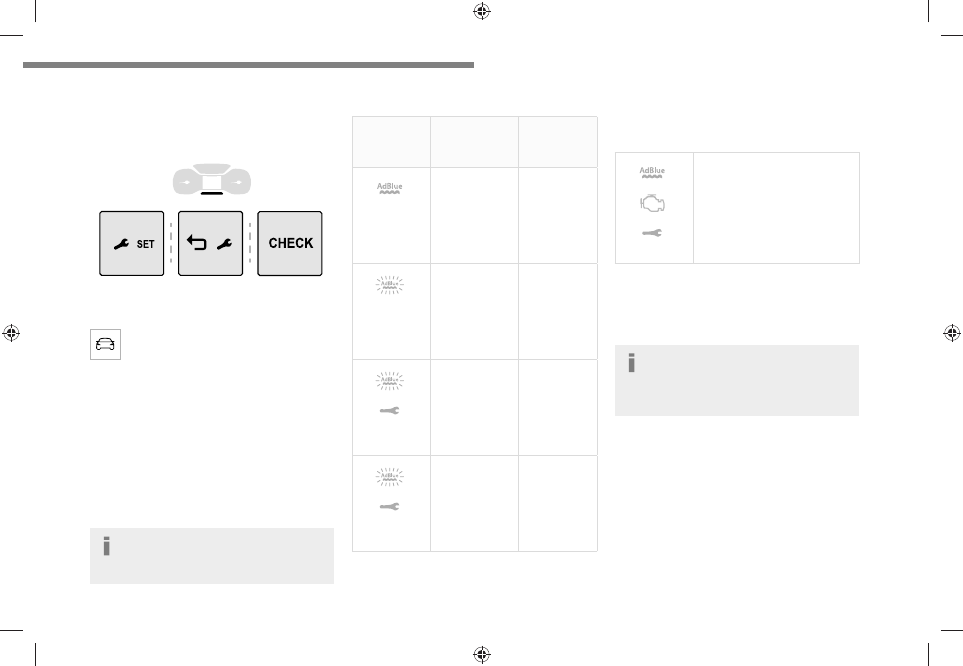

Resetting the service indicator

The service indicator must be reset after each
service.

►  Switch the ignition off.









►  Press and hold this button.

►  Switch on the ignition; the distance recorder

display begins a countdown.

►  Release the button when

=0

 is displayed; the

spanner disappears.

If you have to disconnect the battery
following this operation, lock the vehicle

and wait at least 5 minutes for the reset to be
registered.

Retrieving the service information

The service information can be accessed at any
time.

►  Press this button.

The service information is displayed for a few
seconds, then disappears.

The distance indicated (in miles or
kilometres) is calculated according to the

distance covered and the time elapsed since
the last service.
The alert may be triggered close to a due
date.

Coolant temperature

indicator (Diesel)





With the engine running:
–  In zone

A

, the temperature is correct.

–  In zone

B

, the temperature is too high.

The associated warning lamp and the

STOP

 warning lamp light up in red on the

instrument panel, accompanied by the display of
a message and an audible signal.

You must stop the vehicle as soon as it is

safe to do so.

Wait a few minutes before switching off the

engine.

After switching off the ignition, carefully

open the bonnet and check the coolant

level.

For more information on

Checking

levels

, refer to the corresponding

section.

14/02/2022   15:33:01

18

Dashboard instruments

Checking

After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:

►  wait at least one hour for the engine to cool,

►  unscrew the cap by two turns to allow the

pressure to drop,

►  when the pressure has dropped, remove the

cap,

►  top up the level to the "MAX" mark.

For more information on

Checking levels

, refer

to the corresponding section.

Be aware of the risk of scalding when

topping up the coolant. Do not fill above

the maximum level (indicated on the
reservoir).

Engine oil level indicator

(Depending on version)

On versions fitted with an electric gauge, the

engine oil level status is displayed on the
instrument panel for a few seconds when the
ignition is switched on, at the same time as the
servicing information.

The level read will only be correct if the
vehicle is on level ground and the engine

has been off for more than 30 minutes.

Oil level correct





This is indicated by a message on the instrument
panel.

Low oil level





This is indicated by a message on the instrument
panel.

If a low oil level is confirmed by a check using

the dipstick, the level must be topped up to avoid
damage to the engine.
For more information on

Checking levels

, refer

to the corresponding section.

Oil gauge malfunction





This is indicated by the display of a message on
the instrument panel.

Contact a Fiat Dealership or a qualified

workshop.

In the event of a malfunction of the
electric gauge, the oil level is no longer

monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located in the engine compartment.
For more information on

Checking levels

,

refer to the corresponding section.

AdBlue

®

 range indicators

(BlueHDi)

The Diesel BlueHDi engines are equipped with
a system that associates the SCR (Selective
Catalytic Reduction) emissions control system

and the Diesel particle filter (DPF) for the

treatment of exhaust gases. They cannot
function without AdBlue

®

 fluid.

When the level of AdBlue

®

 falls below the

reserve level (between 1,500 and 0 miles (2,400
and 0 km)), a warning lamp lights up when
the ignition is switched on and an estimate
of the distance that can be travelled before
engine starting is prevented is displayed in the
instrument panel.

The engine starting prevention system
required by regulations is activated

automatically once the AdBlue

®

 tank is empty.

It is then no longer possible to start the
engine until the minimum level of AdBlue

®

 has

been topped up.

14/02/2022   15:33:02

19

Dashboard instruments

1

Manual display of driving range

While the driving range is greater than
1,500 miles (2,400 km), it is not displayed
automatically.









►  Press this button to temporarily display the

driving range.

With touch screen

You can view the range information in the
"

Driving/Vehicle

" menu.

Actions required related to a lack of

AdBlue

®

The following warning lamps light up when the
quantity of AdBlue

®

 is below the reserve level:

driving range of 1,500 miles (2,400 km).
Together with the warning lamps, messages
regularly remind you of the need to top up to
avoid engine starting being prevented. Refer to
the

Warning and indicator lamps

 section for

details of the messages displayed.

For more information on

AdBlue

®



(BlueHDi)

 and in particular on topping

up, refer to the corresponding section.

With BlueHDi (Euro 6.2/6.3) engines

Warning/

indicator

lamps on

Action

Remaining

range





Top up.

Between
1,500 miles
and 500
miles (2,400
km and 800
km)





Top up as
soon as
possible.

Between
500 miles
and 62
miles (800
km and
100 km)





A top-up is

vital

, there is

a risk that the
engine will
be prevented
from starting.

Between 62
miles and 0
miles (100
km and 0
km)





To be able
to restart the
engine, add at
least 5 litres of
AdBlue

®

 to the

tank.

0 miles (km)

Malfunction of the SCR emissions

control system

Malfunction detection





If a malfunction is detected,
these warning lamps come
on, accompanied by an
audible signal and the
display of an "

Emissions

control fault

" or "

NO START

IN

" message.

The alert is triggered while driving when the

fault is detected for the first time, and thereafter

when switching on the ignition for subsequent
journeys, for as long as the cause of the fault
persists.

If the fault is temporary, the alert
disappears during the next journey, after

self-diagnostic checks of the SCR emissions
control system.

Malfunction confirmed during the

permitted driving phase (between 685

miles and 0 miles (1,100 km and 0 km))

If the fault indication is still displayed
permanently after 31 miles (50 km) of driving, the

fault in the SCR system is confirmed.

The AdBlue warning lamp flashes and

a message is displayed ("

Emissions

control fault: starting prevented in X miles

(kms)

" or "

NO START IN X miles (kms)

"),

14/02/2022   15:33:02
