Fiat 124 Spider (2020 year). Manual in english

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you are changing the left bulb, turn the

5. Turn the socket and bulb assembly coun-

steering wheel to the left.

terclockwise and remove it.

Make sure the ignition is placed in the

6. Disconnect the bulb from the socket.

OFF mode, and the headlight switch is

off.

7. Install the new bulb in the reverse order

of the removal procedure.

Remove the fasteners in the seven loca-

tions and partially peel back the mud

Headlights (High Beam) With Daytime Running

guard.

Lights (If Equipped With LED Lamps)

Abarth Rear Lights

Proceed as follows:

4 — Position Light/Stop Light/Rear Direc-

If you are changing the right bulb, start

tion Indicator Light

the engine, turn the steering wheel all

5 — Reverse Light — If Equipped

the way to the right, and turn off engine.

6 — Third Stop Light

If you are changing the left bulb, turn the

steering wheel to the left.

Replacing Exterior Lights

Make sure the ignition is placed in the

OFF mode, and the headlight switch is

Headlights

(low beam)

(If Equipped with

off.

halogen bulb)

Mud Guard

Remove the fasteners in the seven loca-

Proceed as follows:

1 — Fasteners

tions and partially peel back the mud

2 — Mud Guard

guard.

1. If you are changing the right bulb, start

the engine, turn the steering wheel all

Turn the socket and bulb assembly coun-

the way to the right, and turn off engine.

4. Turn the cover counterclockwise

and

terclockwise and remove it.

remove it, disconnect the connector from

the unit by pressing the tab on the

connector with your finger and pulling

the connector.

200

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Turn the cover counterclockwise and

remove it, disconnect the connector from

the unit by pressing the tab on the

connector with your finger and pulling

the connector.

Turn the socket and bulb assembly coun-

terclockwise and remove it.

Disconnect the bulb from the socket.

Head Lamp Assembly

Mud Guard

Install the new bulb in the reverse order

of the removal procedure.

1 — High Beam Lamp

Front Direction Indicator Lights

2 — Position Lamp

Proceed as follows:

3 — Daytime Running Lamp

1. If you are changing the right bulb, start

the engine, turn the steering wheel all

the way to the right, and turn off engine.

If you are changing the left bulb, turn the

steering wheel to the left.

2. Make sure the ignition is placed in the

OFF mode, and the headlight switch is

off.

Head Lamp Assembly

3. Remove the fasteners in the five loca-

1 — High Beam Lamp

tions and partially peel back the mud

2 — Position Lamp

Abarth Mud Guard

guard.

3 — Daytime Running Lamp

201

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Disconnect the connector from the unit

Fog Lights

by pressing the tab on the connector with

Proceed as follows:

your finger and pulling the connector

rearward.

If you are changing the right bulb, start

the engine, turn the steering wheel all

Turn the socket and bulb assembly coun-

the way to the right, and turn off engine.

terclockwise and remove it.

If you are changing the left bulb, turn the

steering wheel to the left.

Make sure the ignition is switched off,

Abarth Direction Indicator Lamp Connector

and the headlight switch is off.

Remove the fasteners in the five loca-

tions and partially peel back the mud

guard.

Disconnect the connector from the unit

by pressing the tab on the connector with

Front Direction Indicator Housing

your finger and pulling the connector.

1 — Socket Assembly

Turn the socket and bulb assembly coun-

2 — Bulb

terclockwise, extract the bulb and

Direction Indicator Lamp Connector

remove it.

6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverse order

Disconnect the bulb from the socket.

of the removal procedure.

Install the new bulb in the reverse order

of the removal procedure.

202

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Brake lights / Tail lights

Remove the lens assembly by pressing

the tab on the unit with your finger and

Go to an authorized dealer when the replace-

pulling the unit forward to compress in

ment of this lights is necessary.

the internal catch, then pull the cluster

Side Direction Indicator Lights

outwards.

Proceed as follows:

Lift up the lens assembly, and then

remove the cluster and install the new

Make sure the ignition is placed in the

side direction indicator lens assembly in

OFF mode, and the headlight switch is

the reverse order of the removal proce-

off.

dure.

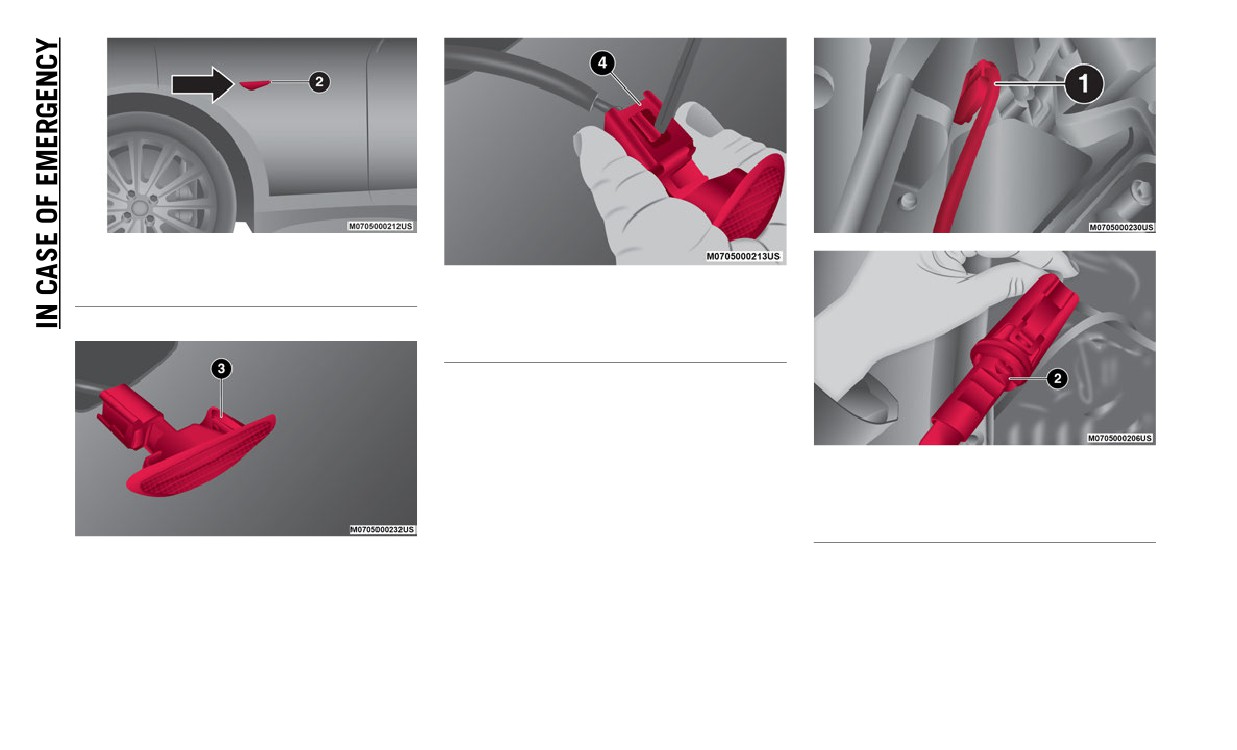

Side Direction Indicator

If you are changing the right bulb, start

1 — Fasteners

the engine, turn the steering wheel all

the way to the right, and turn off engine.

If you are changing the left bulb, turn the

steering wheel to the left.

Remove the fasteners in the five loca-

tions and partially peel back the mud

guard.

Disconnect the electrical connector from

Abarth Side Direction Indicator

the bulb by pressing the tab on the

connector with your finger and pulling

1 — Fasteners

the connector.

Abarth Side Direction Indicator

2 — Lens Assembly

203

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Side Direction Indicator

2 — Lens Assembly

Side Direction Indicator

3 — Lens Assembly

4 — Internal Catch

Front Side Marker (If Equipped With Halogen

Bulb)

Proceed as follows:

Front Side Marker

1. Remove the fasteners in the seven loca-

1 — Socket

tions and partially peel back the upper

2 — Bulb Assembly

side of the mud guard.

2. Turn the socket counterclockwise,

3. Install the new bulb in the reverse order

remove socket assembly then remove the

of the removal procedure.

bulb.

204

-------------------------------------------------------------------------------------------------------------------------------------------------------------

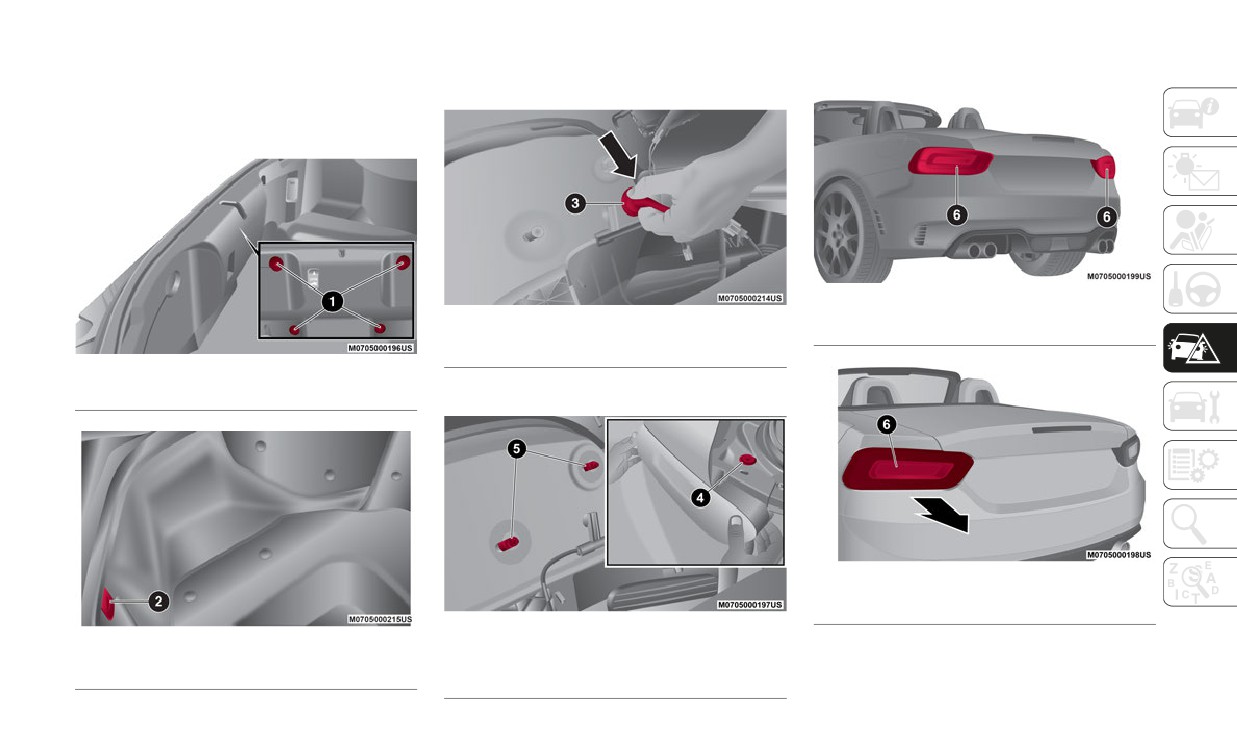

Rear Direction Indicator Lights

2. Disconnect the connector from the unit

4. Pull the taillight housing rearward to

by pressing the tab on the connector with

remove it.

Proceed as follows:

your finger.

1. Remove the retainers and the trunk lid

end trim.

Abarth Rear of Vehicle

Rear Direction Indicator Socket

6 — Taillight Housing

3 — Connector

Trunk Trim

1 — Retainers

3. Remove the screw and nuts.

Rear of Vehicle

6 — Taillight Housing

Taillight Housing Fasteners

Trunk Trim

4 — Screw

2 — Connector

5 — Nuts

205

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Turn the socket and bulb assembly coun-

Reverse Light

Rear Side Marker

terclockwise to remove from taillight

Proceed as follows:

housing, and remove bulb.

1. Make sure the ignition is placed in the

1. Push the lens assembly rearward to

OFF mode, and the headlight switch is

compress the internal catch, then pull

off.

the lens assembly outwards.

2. Turn the socket assembly counterclock-

wise to remove, and remove bulb.

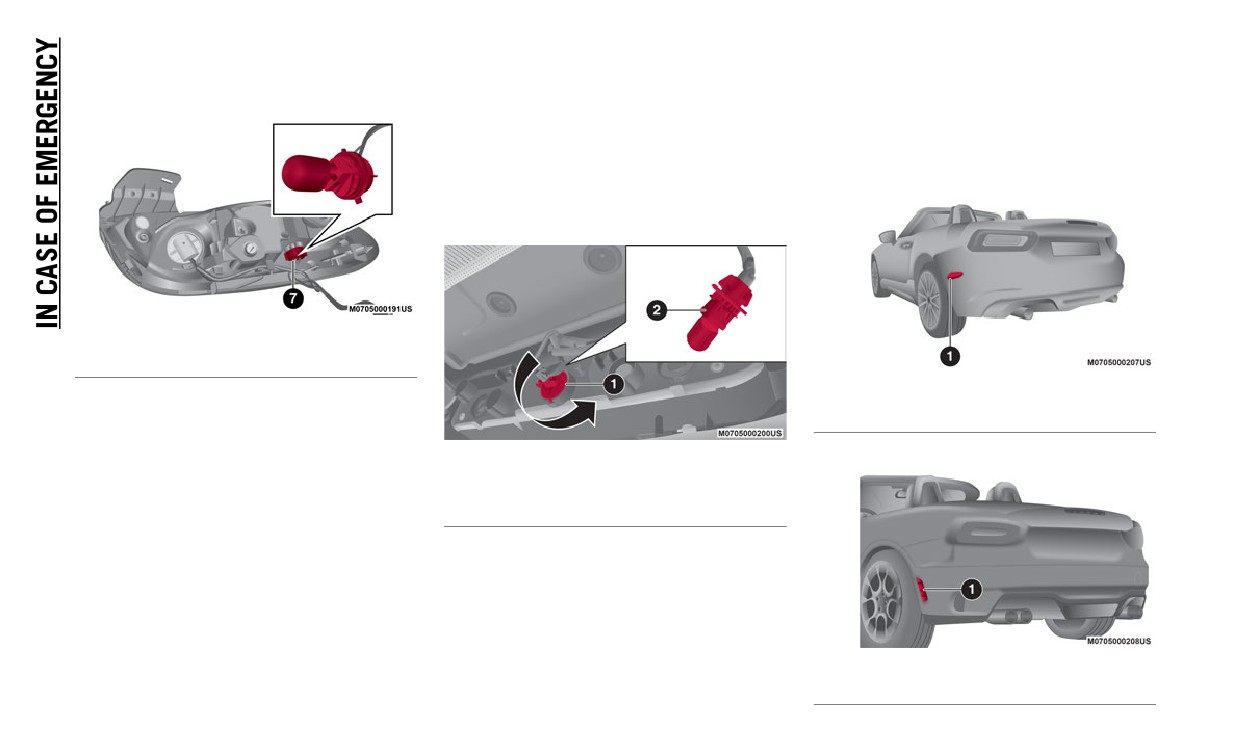

Taillight Housing

7 — Socket and Bulb Assembly

Rear Side Marker

6. Install the new bulb in the reverse order

1 — Rear Side Marker Lens Assembly

of the removal procedure.

Reverse Light

1 — Socket Assembly

2 — Bulb

3. Install the new bulb in the reverse order

of the removal procedure.

Abarth Rear Side Marker

1 — Rear Side Marker Lens Assembly

206

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Turn the socket and bulb assembly coun-

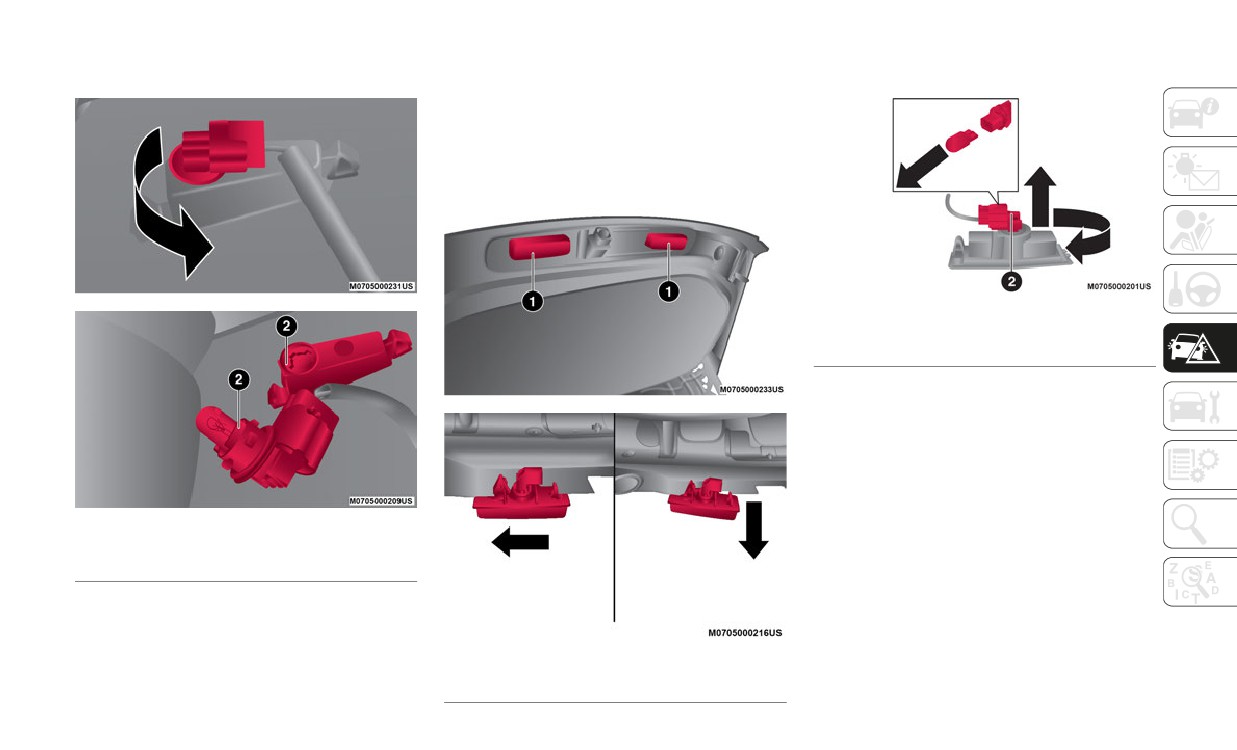

License Plate Lights

3. Turn the socket and bulb assembly coun-

terclockwise to remove, and remove bulb.

Proceed as follows:

terclockwise and remove bulb.

1. Make sure the ignition is placed in the OFF

mode, and the headlight switch is off.

2. Slide the unit as shown in the figure to

remove it.

License Plate Light Housing

2 — Socket and Bulb Assembly

4. Install the new bulb in the reverse order

of the removal procedure. Insert catch

and push the housing back into place.

Side Marker Housing

2 — Socket and Bulb Assembly

3. Install the new bulb and then reinstall

the socket in the reverse order of the

removal procedure.

Trunk Lid

1 — License Plate Light Assembly

207

-------------------------------------------------------------------------------------------------------------------------------------------------------------

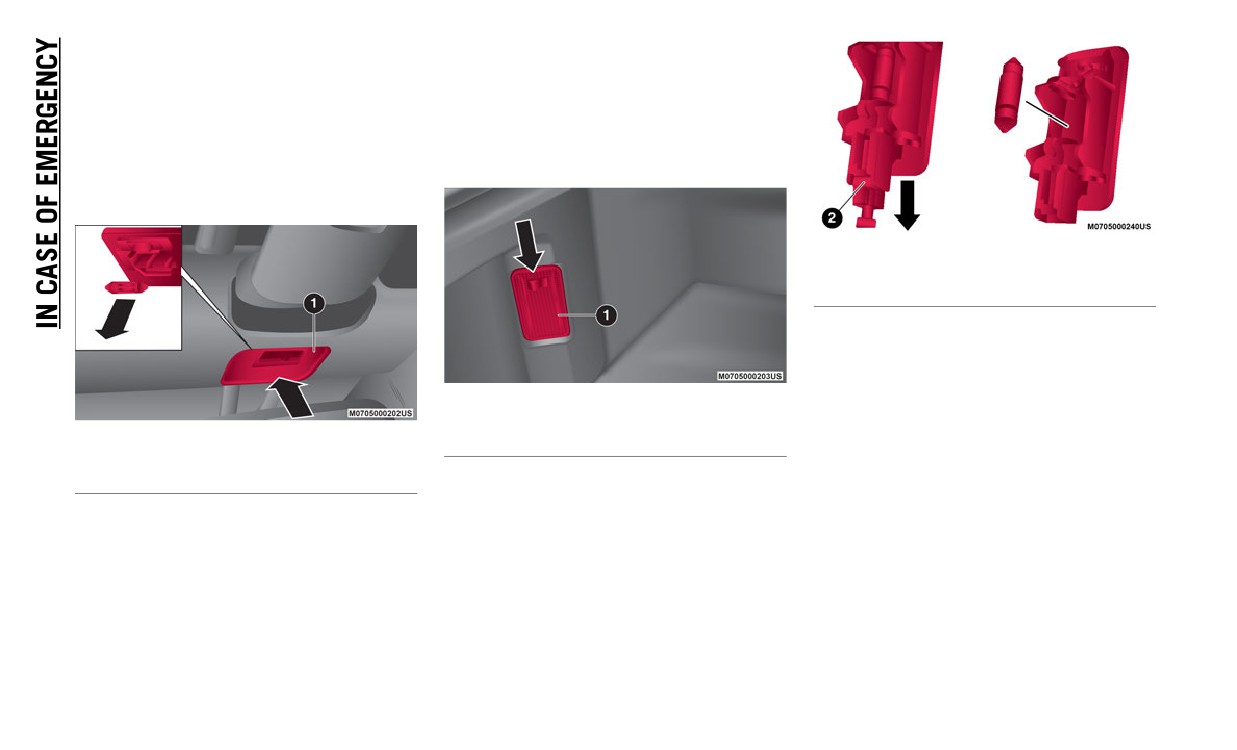

Replacing Interior Light Bulbs

Trunk Light

Overhead Light

Proceed as follows:

1. Using a suitable tool to prevent damage

to the lens, remove the trunk light lens by

1. Using a suitable tool to prevent damage

carefully prying on the edge of the lens.

to the lens, remove the overhead light by

carefully prying on the edge of the lens.

Trunk Light Housing

2 — Connector

3. Disconnect the bulb by pulling it out.

4. Install the new bulb in the reverse order

Trunk Light

of the removal procedure.

Overhead Light Location

1 — Trunk Light Lens

1 — Overhead Light Lens

2. Disconnect the connector from the trunk

light lens.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order

of the removal procedure.

208

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REPLACING FUSES

Your vehicle's electrical system is protected

by fuses.

General Information

If any lights, accessories, or controls do not

work, inspect the appropriate circuit

WARNING!

protector. If a fuse has blown, the inside

element will be melted. If the same fuse

When replacing a blown fuse, always use

blows again, go to an authorized dealer as

an appropriate replacement fuse with

soon as possible.

the same amp rating as the original fuse.

Never replace a fuse with another fuse of

Fuse location

Fuse Panel Cover

higher amp rating. Never replace a blown

fuse with metal wires or any other mate-

Fuses are grouped together in two fuse boxes

Press retaining clip and remove protec-

rial. Do not place a fuse inside a circuit

located in the interior on the left side of the

tion cover.

breaker cavity or vice versa. Failure to

vehicle and under the hood.

use proper fuses may result in serious

Pull the fuse straight out with the fuse

Interior Fuses

personal injury, fire and/or property

puller provided on the fuse block located

damage.

If the electrical system does not work, first

in the engine compartment.

Before replacing a fuse, make sure that

inspect the fuses on the vehicle's left side.

the ignition is off and that all the other

Proceed as follows:

services are switched off and/or disen-

gaged.

1. Make sure the ignition is placed in the

OFF mode, and other switches are turned

If the replaced fuse blows again, contact

off.

an authorized dealer.

2. Open the fuse panel cover (located near

If a general protection fuse for safety

systems

(air bag system, braking

the door).

system), power unit systems

(engine

system, transmission system) or steering

Fuse Puller

system blows, contact an authorized

dealer.

209

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Inspect the fuse and replace it if it is

Underhood Fuses

Remove the front tab while slightly lifting

blown.

the front of the cover.

If the headlights or other electrical compo-

nents do not work and the fuses in the cabin

Remove the cover while lifting it and

are normal, inspect the fuse block in the

sliding it to the rear.

engine compartment. If a fuse is blown, it

must be replaced.

If any fuse but the main fuse is blown,

replace it with a new one of the same

Make sure the ignition is placed in the OFF

amperage rating.

mode, and other switches are turned off and

remove the fuse block cover. If the lock is

forcefully opened, the fuse block cover may

come in contact with the frame when it is

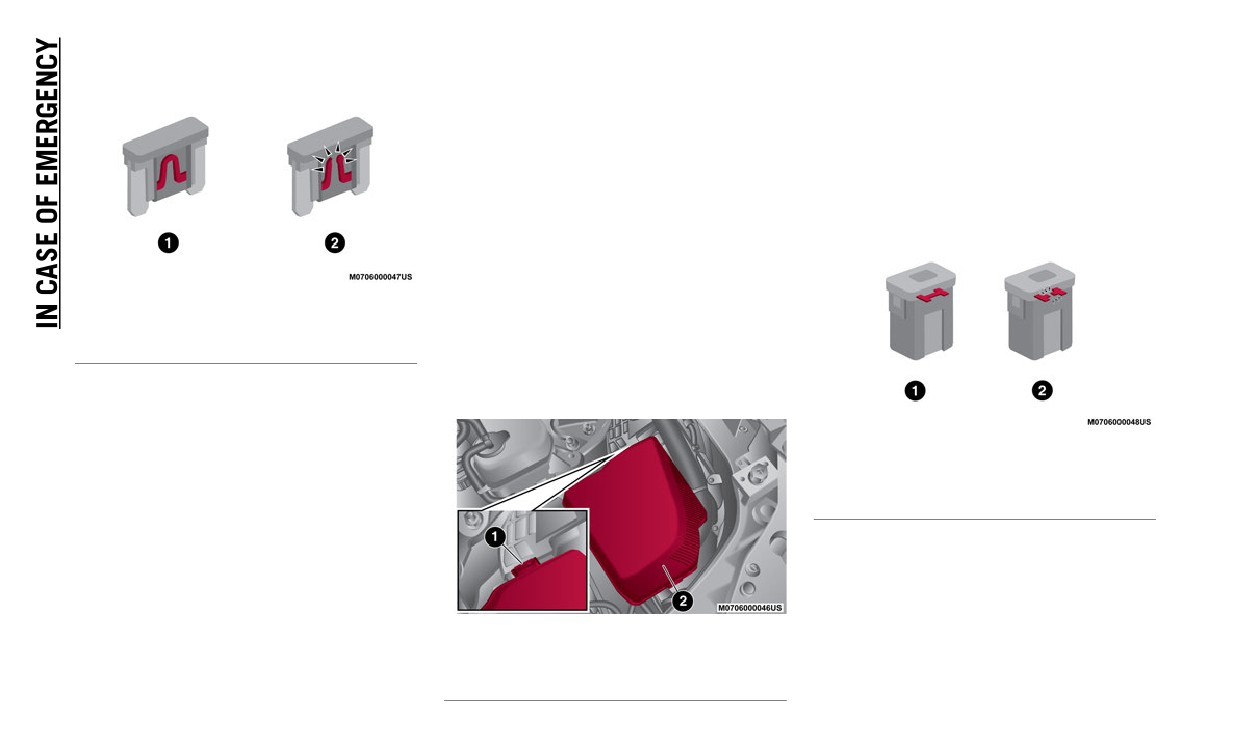

Fuses

removed and become scratched.

1 — Normal Fuse

When removing the cover, remove it slowly

2 — Blown Fuse

according to the following procedure:

1. Disengage the rear lock by pressing down

6. Insert a new fuse of the same amperage

on the front tab with your fingers.

rating, and make sure it fits tightly. If it

does not fit tightly, contact an authorized

dealer. If you have no spare fuses, borrow

Fuses

one of the same rating from a circuit not

1 — Normal Fuse

essential to vehicle operation, such as

2 — Blown Fuse

the audio or outlet circuit.

5. Reinstall the cover and make sure that it

7. Reinstall the cover and make sure that it

is securely installed.

NOTE:

Underhood Fuse Block

Always replace a fuse with a genuine FCA

fuse or equivalent of the same rating. Other-

1 — Lock

wise you may damage the electric system.

2 — Cover

210

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

F05

ENG IG1

7.5 Amp

Engine Control System

F06

—

F07

INTERIOR

15 Amp

Overhead Light

F08

—

F09

AUDIO2

15 Amp

Audio System

F10

METER1

10 Amp

Instrument Cluster

F11

SRS1

7.5 Amp

Air Bag

F12

—

F13

RADIO

7.5 Amp

Audio System

F14

ENGINE3

20 Amp

Engine Control System

F15

ENGINE1

10 Amp

Engine Control System

F16

ENGINE2

15 Amp

Engine Control System

F17

AUDIO1

25 Amp

Audio System

F18

A/C MAG

7.5 Amp

Air Conditioner

F19

AT PUMP H/L HI

20 Amp

Transmission Control System (If Equipped)

F20

15 Amp

Transmission Control System (If Equipped)

F21

D LOCK

25 Amp

Power Door Locks

F22

H/L RH

20 Amp

Headlight (RH)

F23

ENG + B2

7.5 Amp

Engine Control System

F24

TAIL

20 Amp

Taillights/Number Plate Lights/Position Lights

F25

—

F26

ROOM

25 Amp

Overhead Light

F27

FOG

15 Amp

Fog Lights

F28

H/CLEAN

20 Amp

Headlight Washer (If Equipped)

212

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

F29

STOP

10 Amp

Stop Lights/Rear Fog Light (If Equipped)

F30

HORN

15 Amp

Horn

F31

H/L LH

20 Amp

Headlight (LH)

F32

ABS/DSC S

30 Amp

ABS/DSC System

F33

HAZARD

15 Amp

Hazard Warning Flashers/Direction Indicators Lights

F34

FUEL PUMP

15 Amp

Fuel System

F35

ENG + B3

5 Amp

Engine Control System

F36

WIPER

20 Amp

Windshield Wipers

F37

CABIN + B

50 Amp

For Protection Of Various Circuits

F38

—

F39

—

F40

ABS/DSC M

50 Amp

ABS/DSC System

F41

EVVT A/R PUMP

20 Amp

Engine Control System

F42

—

F43

—

F44

FAN2

40 Amp

Cooling Fan

F45

ENG.MAIN

40 Amp

Engine Control System

F46

EPS

60 Amp

Power Steering System

F47

DEFOG

30 Amp

Rear Window Defogger

F48

IG2

30 Amp

For Protection Of Various Circuits

F49

—

F50

HEATER

40 Amp

Air Conditioner

F51

—

F52

—

213

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

F05

F.OUTLET

15 Amp

Accessory Sockets

F06

—

F07

AT IND

7.5 Amp

AT Shift Indicator — If Equipped

F08

MIRROR

7.5 Amp

Power Control Mirror

F09

R_DECK R

30 Amp

—

F10

R_DECK L

30 Amp

—

F11

F.WASHER

15 Amp

Windshield Washer

F12

P.WINDOW

30 Amp

Power Windows

F13

—

F14

SRS2/ESCL

15 Amp

—

F15

SEAT WARM

20 Amp

Heated Seats — If Equipped

F16

M.DEF

7.5 Amp

—

JACKING AND TIRE

WARNING! (Continued)

CHANGING

Being under a jacked-up vehicle is

The jack is designed to be used as a tool

dangerous. The vehicle could slip off the

for changing tires only. The jack should

WARNING!

jack and fall on you. You could be

not be used to lift the vehicle for service

crushed. Never put any part of your body

purposes. The vehicle should be jacked

Do not attempt to change a tire on the

under a vehicle that is on a jack. If you

on a firm level surface only. Avoid ice or

side of the vehicle close to moving

need to get under a raised vehicle, take

slippery areas.

traffic. Pull far enough off the road to

it to a service center where it can be

avoid the danger of being hit when oper-

raised on a lift.

ating the jack or changing the wheel.

(Continued)

215

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tools Location

Preparations For Jacking

Your vehicle may be equipped with a spare

To Remove The Jack

tire, jack, lug wrench and tow eyes. For

Proceed as follows:

details, contact an authorized dealer.

1. In the right side of the trunk, pull the

Tools are stored in the trunk.

cover tab to remove cover.

Jack Components

3 — Wing Bolt

4 — Jack Screw

To Secure The Jack

Jack Tools

Proceed as follows:

Jack Location

1. Insert the wing bolt into the jack with the

1 — Jack Lever

1 — Cover Tab

jack screw pointing back, and turn the

2 — Lug Wrench (If Equipped)

2 — Jack And Tools Cover

wing bolt clockwise to temporarily

3 — Tow Eyes (If Equipped)

tighten it.

2. Turn the wing bolt and jack screw coun-

2. Turn the jack screw clockwise.

terclockwise.

3. Turn the wing bolt completely to secure

the jack.

4. Insert the cover tabs and install the

cover.

216

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Jacking Instructions

Stop the engine. The motor must be kept

WARNING!

off as long as the vehicle is lifted off the

NOTE:

A loose tire or jack thrown forward in a

ground.

Make sure the jack is well lubricated before

collision or hard stop could endanger the

using it.

Remove the jack and tools.

occupants of the vehicle. Always stow the

jack parts and the spare tire in the places

Block both the front and rear of the wheel

provided. Have the deflated

(flat) tire

WARNING!

diagonally opposite of the jacking posi-

repaired or replaced immediately.

Do not attempt to change a tire on the side

tion. For example, if changing the right

of the vehicle close to moving traffic. Pull

front tire, block the left rear wheel.

Maintenance

far enough off the road to avoid being hit

when operating the jack or changing the

Always keep the jack clean.

wheel.

Make sure the moving parts are kept free

from dirt or rust.

Proceed as follows:

Make sure the screw thread is adequately

Stop the vehicle in a position that does

lubricated.

not cause any danger to traffic and lets

Conditions Of Non-Use

you change the tire in safety, as far as

possible from the edge of the driving

Temperatures below -40°F (−40°C).

lane. The ground must be flat and suffi-

On sandy or muddy ground.

ciently compact.

Blocking Right Front Tire And Left Rear Tire

On uneven ground.

Turn on the Hazard Warning Lights and

Removing A Tire

engage the parking brake.

On steep roads.

WARNING!

For vehicles with automatic transmis-

In extreme weather conditions.

Carefully follow these tire changing

sion, place the gear selector in PARK (P).

warnings to help prevent personal injury or

In direct contact with the engine or for

For vehicles with manual transmission,

damage to your vehicle:

repairs under the vehicle.

place gear selector in REVERSE (R) and

(Continued)

cycle the engine to OFF.

On boats.

217

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Continue raising the jack head gradually

WARNING! (Continued)

by rotating the screw with your hand until

Always park on a firm, level surface as

the jack head is inserted into the lift

far from the edge of the roadway as

point.

possible before raising the vehicle.

Turn on the Hazard Warning flasher.

CAUTION!

Block the wheel diagonally opposite the

Do not attempt to raise the vehicle by

wheel to be raised.

jacking on locations other than those

indicated in the Jacking Instructions for

Apply the parking brake firmly and set

Loosen Lug Nuts Counterclockwise

this vehicle.

the transmission in PARK.

Place the jack under the lift point closest

Do not let any passenger sit in the

vehicle when it is on a jack.

to the tire being changed with the jack

head squarely under the jacking location.

Do not get under the vehicle when it is

on a jack. If you need to get under a

Turn the jack screw in the direction

raised vehicle, take it to a service center

shown and adjust the jack head so that it

where it can be raised on a lift.

is close to the jacking location.

Only use the jack in the positions indi-

cated and for lifting this vehicle during a

tire change.

If working on or near a roadway, be

Front Jacking Location

extremely careful of motor traffic.

Proceed as follows:

1. Loosen the lug nuts by turning them

counterclockwise one turn each, but do

Raising The Jack

not remove any lug nuts until the tire has

been raised off the ground.

1 — Jack Head

218

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Insert the jack lever and attach the lug

To Remove An Anti-theft Lug Nut

WARNING!

wrench to tire jack.

Proceed as follows:

Raising the vehicle higher than necessary

can make the vehicle less stable. It could

1. Obtain the special key for the anti-theft

slip off the jack and hurt someone near it.

lug nut.

Raise the vehicle only enough to remove

the tire.

2. Place the special key on top of the

anti-theft lug nut, and be sure to hold the

7. Remove the lug nuts by turning them

key square to it. If you hold the key at an

counterclockwise, then remove the wheel.

angle, you may damage both key and nut.

Do not use a power impact wrench.

Locking Lug Nuts — If Equipped

3. Place the lug wrench on top of the key

If your vehicle has optional anti-theft wheel

Jack With Lug Wrench Attached

and apply pressure. Turn the wrench

lug nuts, one on each wheel will lock the tires

counterclockwise.

and you must use a special key to unlock

WARNING!

them. This key will attach to the lug wrench.

To Install The Anti-theft Lug Nut

Being under a jacked-up vehicle

Proceed as follows:

dangerous. The vehicle could slip off the

filling out the card provided in the glove

jack and fall on you. You could be crushed.

compartment and mailing it in the accompa-

1. Place the special key on top of the nut,

Never get any part of your body under a

nying envelope. If you lose this key, contact

and be sure to hold the key square to it.

vehicle that is on a jack. If you need to get

an authorized dealer or use the lock manu-

If you hold the key at an angle, you may

under a raised vehicle, take it to a service

facturer's order form, which is with the regis-

damage both key and nut. Do not use a

center where it can be raised on a lift.

tration card.

power impact wrench.

Accessory wheel locks cannot be used on

2. Place the lug wrench on top of the

6. Turn the jack handle clockwise and raise

steel wheels. This includes situations when

special key, apply pressure, and turn it

the vehicle high enough so that the tire is

the spare tire is installed. If the spare tire is

clockwise.

just raised off the ground and can be

removed. Before removing the lug nuts,

installed, one of the original lug nuts (which

make sure your vehicle is firmly in posi-

should still be in the vehicle) must be

tion and that it cannot slip or move.

installed in place of the wheel lock.

219

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Mounting The Tire

Turn the lug wrench counterclockwise

5. Remove the tire blocks and store the

and lower the vehicle. Use the lug

tools and jack.

Proceed as follows:

wrench to tighten the nuts in the order

6. Check the inflation pressure. Refer to

Remove dirt and grime from the

shown.

“Recommended Tire Inflation Pressure”

mounting surfaces of the wheel and hub,

in Technical Specifications” for more

including the hub bolts, with a cloth.

information.

With TPMS

Do not push the tire pressure monitoring

system set switch after installing the spare

tire. The switch is only to be pushed after

installing the repaired flat tire or installing a

replacement tire.

Lug Nut Tightening Order

NOTE:

To prevent the jack and tool from rattling,

Clean Mounting Surface

WARNING!

store them properly.

Mount the tire and install the lug nuts

To avoid the risk of forcing the vehicle off

WARNING!

with the beveled edge inward, then

the jack, do not tighten the wheel nuts

tighten them by hand.

fully until the vehicle has been lowered.

A loose tire or jack thrown forward in a

Failure to follow this warning may result in

collision or hard stop could endanger the

serious injury.

occupants of the vehicle. Always stow the

CAUTION!

jack parts and the spare tire in the places

Be sure to mount the spare tire with the

4. After tightening the lug nuts, have them

provided. Have the deflated

(flat) tire

valve stem facing outward. The vehicle

checked with a torque wrench by an

repaired or replaced immediately.

could be damaged if the spare tire is

authorized dealer or service station to

mounted incorrectly.

verify correct tightness.

220

Fiat 124 Spider (2020 year). Manual in english - page 10
