4. Refer to the auto lock/unlock function

† Door Unlock (Control) System With Collision

power windows do not open or close, the

setting table. Determine the function

Detection — If Equipped: this system auto-

automatic open/close mechanism for the

number for the desired setting. Push the

matically unlocks the doors, trunk lid, and

windows must be reset.

unlock side of the driver's door-lock

the fuel filler door in the event the vehicle

switch the same number of times as the

is involved in an accident to allow passen-

SEATS

selected function number (example: if

gers to get out of the vehicle immediately

function 2 is selected, push the unlock

and prevent being trapped inside. While

Manual Adjustment

side of the switch only two times).

the ignition is being placed in the ON posi-

tion and in the event the vehicle receives

Forward / Rearward

5. Three seconds after the function setting

an impact strong enough to inflate the air

has been changed, a beep sound will

To move the seat forward or rearward, pull

bags, both the doors, the trunk lid, and

beep in the amount of the selected func-

the adjustment bar. Release the bar once the

tion number (example: Function number

fuel filler door are automatically unlocked

desired position is reached. Using body pres-

3 = three beep sounds).

after about six seconds have elapsed from

sure, move forward and rearward on the seat

the time of the accident. The doors, trunk

to be sure that the seat adjusters

have

Automatic Transmission Vehicles

lid, and the fuel filler door may not unlock

latched.

depending on how an impact is applied,

The doors cannot be locked or unlocked while

the force of the impact, and other condi-

the setting function is being performed.

tions of the accident. If door-related

The procedure can be cancelled by pushing

systems or the battery is malfunctioning,

the lock side of the door-lock switch.

the doors, trunk lid, and the fuel filler door

will not unlock.

NOTE:

† When opening a door, the power windows

† The vehicle lock-out prevention feature

open a little automatically. When closing

prevents you from locking yourself out of the

the door, the power windows close auto-

vehicle. Both doors, trunk lid, and the fuel

matically. This is a function for improving

filler door will automatically unlock if they

the sealing of the window, and it does not

Manual Seat Adjustment

are locked using the power door locks with

mean there is a problem. If the vehicle

any door open. If both the doors are closed

1 — Adjustment Bar

battery is disconnected for vehicle mainte-

even though the trunk lid is open, both the

nance or other reasons, the power windows

2 — Height Dial

doors and the fuel filler door will lock.

will not open or close automatically. If the

3 — Recline Lever

32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Height

NOTE:

WARNING! (Continued)

To adjust the height for front edge of the seat

† If the ignition is placed in the OFF position

† Do not ride with the seatback reclined so

bottom, rotate the dial to the desired posi-

while the seat warmer is operating (High,

that the shoulder belt is no longer resting

tion.

Mid or Low), and then cycled ON again,

against your chest. In a collision you

the seat warmer will automatically operate

Seat Recline

could slide under the seat belt, which

at the temperature set before the engine

could result in serious injury or death.

To recline the seatback, lift up the recline

was turned off.

lever and lean back until the desired position

Heated Seats

† Use the seat warmer when the engine is

has been reached, then release the lever.

running. Leaving the seat warmer on for

Make sure the lever returns to its original

On some models, the front driver and

long periods with the engine not running

position and the seatback is locked in place

passenger seats may be equipped with

could deplete the battery.

by attempting to push it forward and rear-

heaters in both the seat cushions and seat-

ward.

backs. The controls for the front heated seats

† The temperature of the seat warmer

are located on the center instrument panel

cannot be adjusted beyond High, Medium

WARNING!

below the climate controls.

and Low.

† Adjusting a seat while driving may be

The heated seats have three settings: High,

† Once a heat setting is selected, heat will

dangerous. Moving a seat while driving

Medium, and Low. Push the switch once to

be felt within two to five minutes.

could result in loss of control which

turn the heated seats on High, twice for

could cause a collision and serious injury

Medium, and three times for Low. Pushing

or death.

the switch a fourth time will turn the heated

†

Seats should be adjusted before

seat off.

fastening the seat belts and while the

vehicle is parked. Serious injury or death

could result from a poorly adjusted seat

belt.

(Continued)

Heated Seat Switches

33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NON-ADJUSTABLE HEAD

The non-adjustable head restraints consist of

WARNING!

a trimmed foam covering over the upper

RESTRAINTS

† Persons who are unable to feel pain to

structure of the seatbacks and are intended

the skin because of advanced age,

to help protect occupants from neck injury.

The non-adjustable head restraints are form

chronic illness, diabetes, spinal cord

fitted into the upper structure of the seat-

Adjust the seatbacks to their upright,

injury, medication, alcohol use, exhaus-

back, and are designed to reduce the risk of

on-road positions so that the head restraint is

tion or other physical condition must

injury by restricting head movement in the

positioned as close as possible to the back of

exercise care when using the seat heater.

event of a rear impact. The seatback should

the occupant’s head.

It may cause burns even at low tempera-

be properly adjusted to an upright position

tures, especially if used for long periods

where the head restraint is positioned as

WARNING!

of time.

close as possible to the back of the occu-

† All occupants, including the driver,

† Do not place anything on the seat or

pant’s head.

should not operate a vehicle or sit in a

seatback that insulates against heat,

vehicle’s seat until the head restraints

such as a blanket or cushion. This may

WARNING!

are placed in their proper positions in

cause the seat heater to overheat. Sitting

Be certain that the seatback is locked

order to minimize the risk of neck injury

in a seat that has been overheated could

securely into position. Otherwise, the seat

in the event of a crash.

cause serious burns due to the increased

will not provide the proper stability for

surface temperature of the seat.

† Be certain that the seatback is securely

passengers. An improperly latched

locked into position. If the seatback is

seatback could cause serious injury.

not securely locked into position the seat

CAUTION!

will not provide the proper stability for

Driver And Passenger Head Restraints

child seats and/or passengers. An

Do not use organic solvents to clean the

improperly latched seat could cause

seat. It may damage the seat surface and

This vehicle is equipped with non-adjustable

serious injury.

the heater.

head restraints on the driver's and

passenger's seatbacks.

34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STEERING WHEEL

NOTE:

WARNING!

The passenger side convex outside mirror

Steering Wheel Adjustment

Do not adjust the steering column while

will give a much wider view toward the rear

driving. Adjusting the steering column

of the vehicle, and especially of the adjacent

To change the angle of the steering wheel:

while driving or driving with the steering

lane.

column unlocked could cause the driver to

1.

With the gear selector in the PARK posi-

The perceived distance of objects in the

lose control of the vehicle. Be sure the

tion, pull the lock release lever (located

outer and inner regions of the wide angle

steering column is locked before driving

under the steering column) downward.

mirror is different.

your vehicle. Failure to follow this warning

2.

Tilt the steering wheel to the desired

may result in serious injury or death.

WARNING!

position.

Vehicles and other objects seen in the

MIRRORS

3.

Push the lock release lever upward to

passenger side convex mirror will look

lock the steering column.

smaller and farther away than they really

Outside Mirrors

are. Relying too much on your passenger

4.

Attempt to push the steering wheel

side mirror could cause you to collide with

Be sure that all inside and outside mirrors

upward and downward to ensure it is

another vehicle or other object. Use your

are adjusted to the desired position prior to

locked before driving.

inside mirror when judging the size or

driving the vehicle.

distance of a vehicle seen in the passenger

Mirror Types:

side mirror.

† Flat Type (Driver Side): flat surface mirror

† Convex Type (Passenger Side): this mirror

has a slight curve

Manual Tilt Adjustment

1 — Lock Release Lever

35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Inside Day / Night Mirror

Reducing Glare From Headlights

Rear View Mirror Adjustment

1. Push the lever forward for day driving.

Before driving, adjust the rear view mirror to

2. Pull the lever rearward to reduce glare of

center on the view through the rear window.

headlights from vehicles at the rear.

Automatic Dimming Mirror Buttons

1 — Light Sensor

2 — On

3 — Off

Manual Mirror Adjustment

Mirror Adjustment Lever

CAUTION!

NOTE:

Automatic Dimming Mirror — If Equipped

To avoid damage to the mirror during

Before adjusting the manual mirror, place

The automatic dimming mirror automatically

cleaning, never spray any cleaning solution

the mirror in the “day driving position” (lever

reduces glare of headlights from vehicles at

directly onto the mirror. Apply the solution

positioned forward, toward the windshield).

the rear when the ignition is placed in the ON

onto a clean cloth and wipe the mirror

position.

clean.

36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Push the off button (O) at the base of the

Power Mirrors

Folding Mirrors

mirror to cancel the automatic dimming

The ignition must be in the ACC or ON posi-

Manually fold the outside mirror rearward

function. The indicator light will turn off.

tion to adjust the outside power mirrors.

until it is flush with the vehicle.

To reactivate the automatic dimming func-

Rotate the mirror switch to the left (L) or

tion, push the on button (I) at the base of the

right (R) to select which mirror to adjust.

mirror. The indicator light will illuminate.

Push the mirror control switch in the direc-

tion of the desired position.

Outside Folding Mirror

If equipped with a driver side automatic

Light/Rain Sensor Locations

dimming mirror, it is linked with the auto-

matic dimming rearview mirror inside the

NOTE:

vehicle to automatically reduce headlight

Power Mirror Switch

glare from vehicles at the rear. Refer to

† Do not use glass cleaner or suspend

1 — Left Position

“Automatic Dimming Mirror” in this section

objects on or around the light sensor.

2 — Center Position

for further information.

Otherwise, light sensor sensitivity will be

affected and may not operate normally.

3 — Right Position

NOTE:

The passenger door mirror does not have the

† The automatic dimming function is

automatic dimming feature.

canceled when the ignition is placed in

After adjusting the mirror, lock the control by

the ON position and the gear selector is in

rotating the switch to the center position to

REVERSE.

prevent accidental movements.

37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

With Auto-Light Control

Daytime Running

Switch Position

OFF

AUTO

High Beams

Lights

ACC Or

ACC Or

ACC Or

ACC Or

Ignition Position

ON

ON

ON

ON

OFF

OFF

OFF

OFF

Headlights

Off

Off

Auto (*)

Off

Off

Off

On

Off

Daytime Running Lights

On

Off

Auto (*)

Off

Off

Off

Off

Off

Tail Lights / Position Lights / License Plate

On (**)/

Off

Off

Auto

On

On

On

On (****)

Lights / Instrument Panel Illumination

Off (***)

(*) The headlights and other light settings adjust automatically depending on the surrounding brightness detected by the sensor.

(**) While the lights are turned on, they will remain on even if the ignition is cycled to a position other than ON. If the driver’s door is opened, or

30 seconds have elapsed with the lights turned on, the lights turn off.

(***) When the ignition is placed in a position other than ON, the lights will not turn on even if the headlight switch is turned to AUTO.

(****) If the driver’s door is opened, or 30 seconds have elapsed with the lights turned on, the lights turn off.

Daytime Running Lights (DRLs)

NOTE:

When the headlight high beams are on, the

In some markets, the daytime running lights

high beam indicator is illuminated in the

The Daytime Running Lights (DRLs) turn on

can be deactivated. Refer to “Settings” in

instrument cluster display.

automatically when the vehicle starts

“Multimedia” in the User Guide for more

moving.

Flash To Pass

information.

They turn off when the parking brake is

You can signal another vehicle with your

High Beams

engaged or the gear selector is shifted to the

headlights by partially pulling the headlight

PARK position (if equipped with automatic

The headlights can be switched between

lever toward the steering wheel. This will

transmission).

high and low beams by pushing the headlight

cause the high beam headlights to turn on

switch lever forward for high beams, and

until the lever is released.

pulling the lever rearward to return to low

beams.

39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The

high beam indicator in the instru-

The light sensor also works as a rain sensor

† The dashboard lights can be adjusted by

ment cluster display illuminates while the

for the auto-wiper control. Keep hands and

rotating the knob in the instrument cluster

high beams are active.

scrapers clear of the windshield when the

display. The day/night mode can be

wiper lever is in the AUTO position and the

changed by rotating the knob until a beep

Automatic Lighting

ignition is placed in the ON position, as

sound is heard.

fingers could be pinched or the wipers and

When the headlight switch is in the AUTO

† The sensitivity of the automatic lights may

wiper blades damaged when the wipers acti-

position and the ignition is placed in the ON

be changed by an authorized dealer.

vate automatically. When cleaning the wind-

position, the light sensor will detect the

shield, be sure the wipers are turned off

surrounding light levels and automatically

Follow Me Home

completely when the engine is running.

turns the headlights, other exterior lights and

The Follow Me Home Light System turns on

dashboard illumination on or off.

NOTE:

the headlights (low beams) for a period of

NOTE:

† The headlights, other exterior lights and

time after the ignition is placed in the OFF

Do not shade the light sensor by placing a

instrument panel lights may not turn off

position.

sticker or a label on the windshield. Other-

immediately even if the surrounding area

System Activation

wise, the

light sensor will

not

operate

becomes well-lit. This is because the light

correctly.

sensor determines that it is night time if

With the ignition placed in the ACC or OFF

the surrounding area is continuously dark

position, pull the headlight control lever rear-

for several minutes such as inside long

ward and the low beam headlights will turn on.

tunnels, traffic jams inside tunnels, or in

The headlights turn off after a period of time

indoor parking lots. In this case, the lights

after all doors are closed.

turn off if the light switch is turned to the

OFF position.

The time until the headlights turn off after all

of the doors are closed can be changed

† When the headlight switch is in the AUTO

through the Connect system.

position and the ignition is placed in the

ACC or OFF position, the headlights, other

The headlights turn off if the lever is pulled

exterior lights, and dashboard illumination

again while the headlights are on, or after

Light Sensor

will turn off.

three minutes of no further action after the

first pull of the lever.

40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front Fog Lights

Deactivation

If the indicator light continues to flash after

a turn, manually return the lever to its orig-

The front fog light can be activated when the

Perform one of the following operations to

inal position.

ignition is in the ON position and the head-

turn off the front fog lights:

lights or parking lights are on.

The turn signal indicators in the instrument

† Rotate the fog light switch to the OFF posi-

cluster display will flash according to the

tion.

Activation

operation of the turn signal lever to show

† Turn the headlight switch to the OFF posi-

which signal is active.

Turn the headlight switch to the

or

tion.

position.

NOTE:

† Place the ignition in a position other than

If an indicator light stays on without flashing

Rotate the fog light switch to the

position.

ON.

or if it flashes abnormally, one of the turn

signal bulbs may be burned out.

The fog light indicator in the instrument

cluster goes off when the front fog light is

Lane Change Assist

turned off.

Move the lever halfway toward the direction

With Auto-Light Control

of the lane change

(until the indicator

When the fog light switch is in the

posi-

flashes), and hold it there. It will return to

the off position when released.

tion and the headlight switch is in AUTO

position, the front fog lights will stay on.

Three-Flash Turn Signal

Headlight Switch

Turn Signals

After releasing the turn signal lever, the turn

signal indicator flashes three times.

The ignition must be in the ON position to

1 — Headlight Switch

use the turn signals and lane change assist.

The operation can be cancelled by moving

2 — Fog Light Switch

the lever in the direction opposite to which it

Move the signal lever down (for a left turn) or

was operated.

up

(for a right turn). The signal will

The fog light indicator in the instrument

self-cancel after the turn is completed.

The three-flash turn signal function can be

cluster illuminates while the front fog lights

turned on or off using the personalization

are on.

function in the radio.

41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

With Auto-Wiper Control

WARNING!

When the wiper lever is in the AUTO position,

Keep hands and scrapers clear of the

the rain sensor will sense the amount of rain-

windshield when the wiper lever is in the

fall on the windshield and turns the wipers

AUTO position and the ignition is cycled

on or off automatically (off/intermittent/low

ON, as fingers could be pinched or the

speed/high speed).

wipers and wiper blades damaged when

Switch positions:

the wipers activate automatically.

†

or MIST: operation while pulling up

lever

If the windshield is going to be cleaned, be

Rain Sensor Adjustment

sure the wipers are turned off. This is

† OFF: stop

NOTE:

important when clearing ice and snow.

† AUTO: auto control operation

Do not shade the rain sensor by placing a

Turning the auto-wiper lever from the OFF to

sticker or a label on the windshield. Other-

the AUTO position while driving activates the

† — or LO: low speed operation

wise the rain sensor will not operate

windshield wipers once, after which they

correctly.

† = or HI: high speed operation

operate according to the rainfall amount.

When the wiper lever is in the AUTO position

Adjusting Rain Sensor Sensitivity

The auto-wiper control may not operate when

and the ignition is placed in the ON position,

the rain sensor temperature is about 14°F

The sensitivity of the rain sensor can be

the wipers may move automatically in the

(-10°C) or lower, or about 185°F (85°C) or

adjusted by rotating the switch on the wiper

following cases:

higher.

lever.

† If the windshield above the rain sensor is

touched or wiped with a cloth

If the windshield is coated with water repel-

From the center position (normal), rotate the

lent, the rain sensor may not be able to sense

switch downward for higher sensitivity (+)

† If the windshield is struck with a hand or

the amount of rainfall correctly and

(faster response) or rotate it upward for less

other object from either outside or inside

auto-wiper control may not operate properly.

sensitivity (-) (slower response).

the vehicle

43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If dirt or debris

(such as ice or debris

Windshield Washer

CLIMATE CONTROL

containing salt water) adheres to the wind-

Pull the wiper/washer lever rearward and hold

SYSTEM

shield above the rain sensor or if the wind-

it to spray washer fluid onto the windshield.

shield is iced, it could cause the wipers to

Operating Tips

move automatically.

With the wiper lever in the OFF, intermittent,

or AUTO position, the wipers will operate

The air conditioning system will only operate

However, if the wipers cannot remove this

continuously until the lever is released.

with the engine running.

ice, dirt or debris, the auto-wiper control will

stop operation. In this case, set the wiper

To prevent the battery from being discharged

WARNING!

lever to the low speed position or high speed

while the engine is off, do not leave the

position for manual operation, or remove the

Sudden loss of visibility through the

Blower Control Knob on for extended periods

ice, dirt or debris by hand to restore the

windshield could lead to a collision. You

of time.

auto-wiper operation.

might not see other vehicles or other

obstacles. To avoid sudden icing of the

To improve system efficiency, clear all

If the auto-wiper lever is left in the AUTO

windshield during freezing weather, warm

obstructions (leaves, snow and ice) from the

position, the wipers could operate automati-

hood and the air inlet in the grille.

the windshield with defroster before and

cally from the effect of strong light sources,

during windshield washer use.

electromagnetic waves, or infrared light

Use the air conditioning system to defog the

because the rain sensor uses an optical

windows and dehumidify the air.

If the fluid level is normal and the washer

sensor.

does not work, contact an authorized dealer.

Recirculation mode should be used when

It is recommended that the auto-wiper lever

driving through tunnels, while in a traffic

be turned to the OFF position other than

jam, or when you would like to quickly cool

when driving the vehicle under rainy condi-

the interior.

tions.

Use the outside air position for ventilation or

The auto-wiper control functions can be

windshield defrosting.

turned off.

If the vehicle has been parked in direct

sunlight during hot weather, open the

windows to let warm air escape, and then run

the air conditioning system.

Windshield Washer Nozzles

44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To keep the internal parts lubricated and the

Center Vents (Driver) and Side Vents

CAUTION!

system running smoothly, run the air condi-

Center and side vents are located on the

tioner about ten minutes at least once a

The system uses a coolant that is

dashboard.

month.

compatible with the laws in force in the

countries where the vehicle is sold, R134a

† Air vent open/close: the air vents can be

Have the air conditioner checked before the

or R1234yf (indicated on a specific plate

fully opened and closed by rotating the air

weather gets hot. A lack of refrigerant may

in the engine compartment). The use of

vent knob.

make the air conditioner less efficient. The

other coolants affects the efficiency and

refrigerant specifications are indicated on a

† Air flow direction adjustment: use the air

condition of the system. Also the

label

(1 or

2 depending on the market)

vent knob to adjust the center vents to the

compressor coolants used must be

attached to the inside of the engine compart-

desired position.

compatible with the indicated coolant.

ment. Check the label before refilling the

refrigerant. If the wrong type of refrigerant is

Vent Operation

used, it could result in a serious malfunction

of the air conditioner. For details, contact an

Adjusting The Vents

authorized dealer.

To adjust the direction of air flow, move the

vent adjustment knob.

NOTE:

When using the air conditioner in humid

conditions, fog may blow from the vents.

Side Air Vents

This is a result of humid air being suddenly

cooled and does not indicate a system

malfunction.

Label Location

1 — Option 1

2 — Option 2

45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Center Vents (Front Passenger)

Center vents are located on the dashboard.

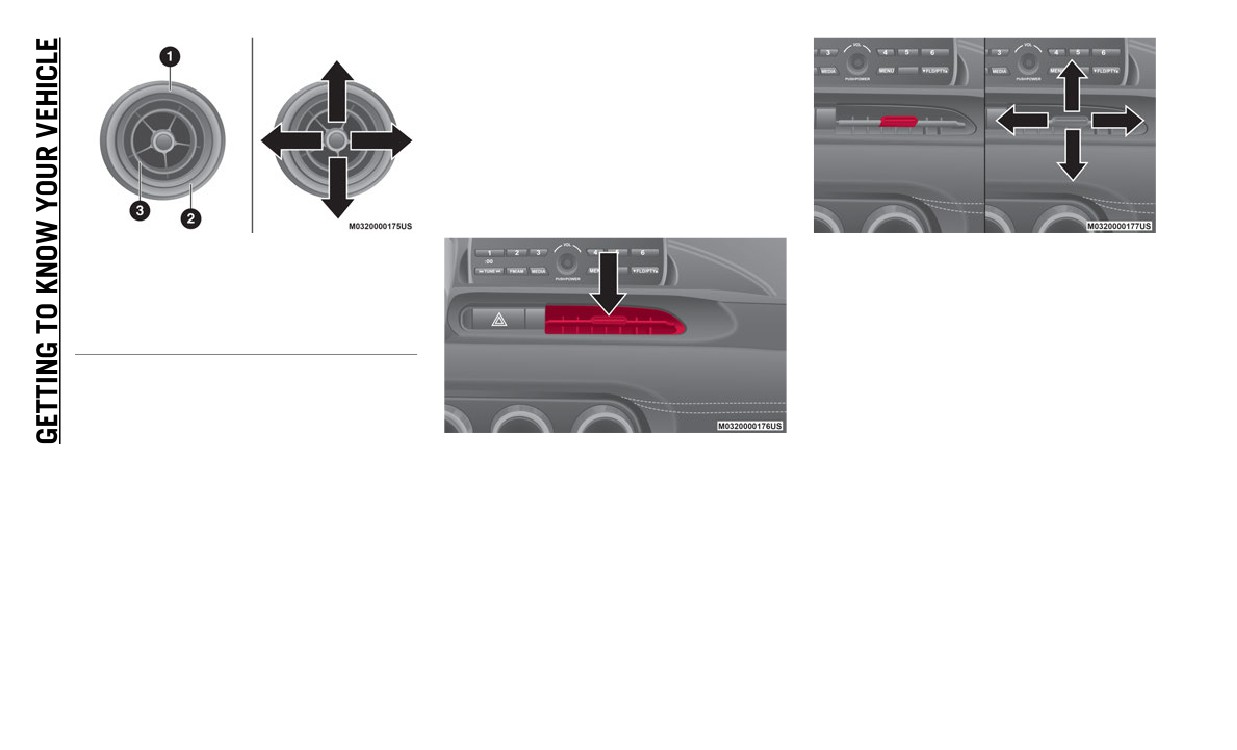

† Air vent open/close: use the Center Vent

tab to open/close the center vents.

† Air flow direction adjustment: use the

Center Vent tab to adjust the center vents

to the desired position.

Operating the Side Air Vents

Central Air Vent Tab And Vent Directions

1 — Open Position

2 — Closed Position

3 — Air Vent Knob

Central Air Vent

46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Airflow Mode

Airflow Locations

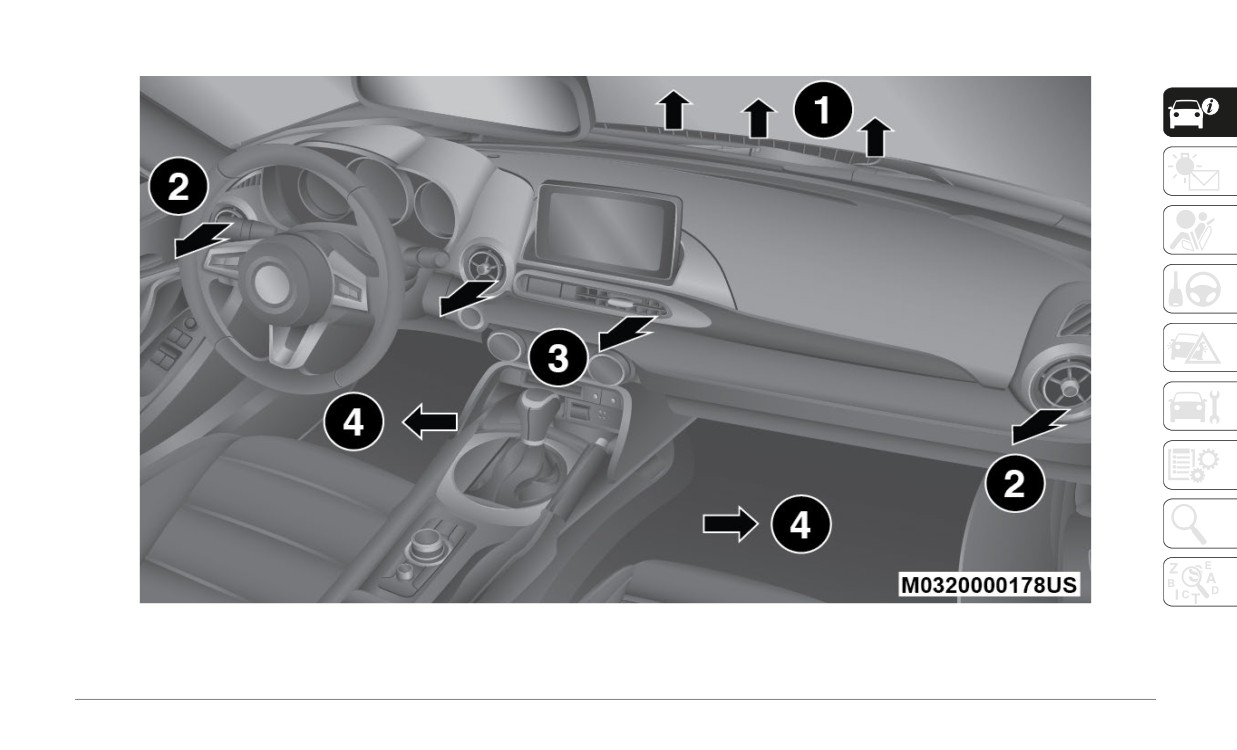

1 — Fixed Upper Air Diffuser

3 — Adjustable Center Air Vent

2 — Adjustable Side Air Vents

4 — Floor Vents

47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Manual Climate Control System

With MAX A/C Function

Manual Climate Controls With MAX A/C

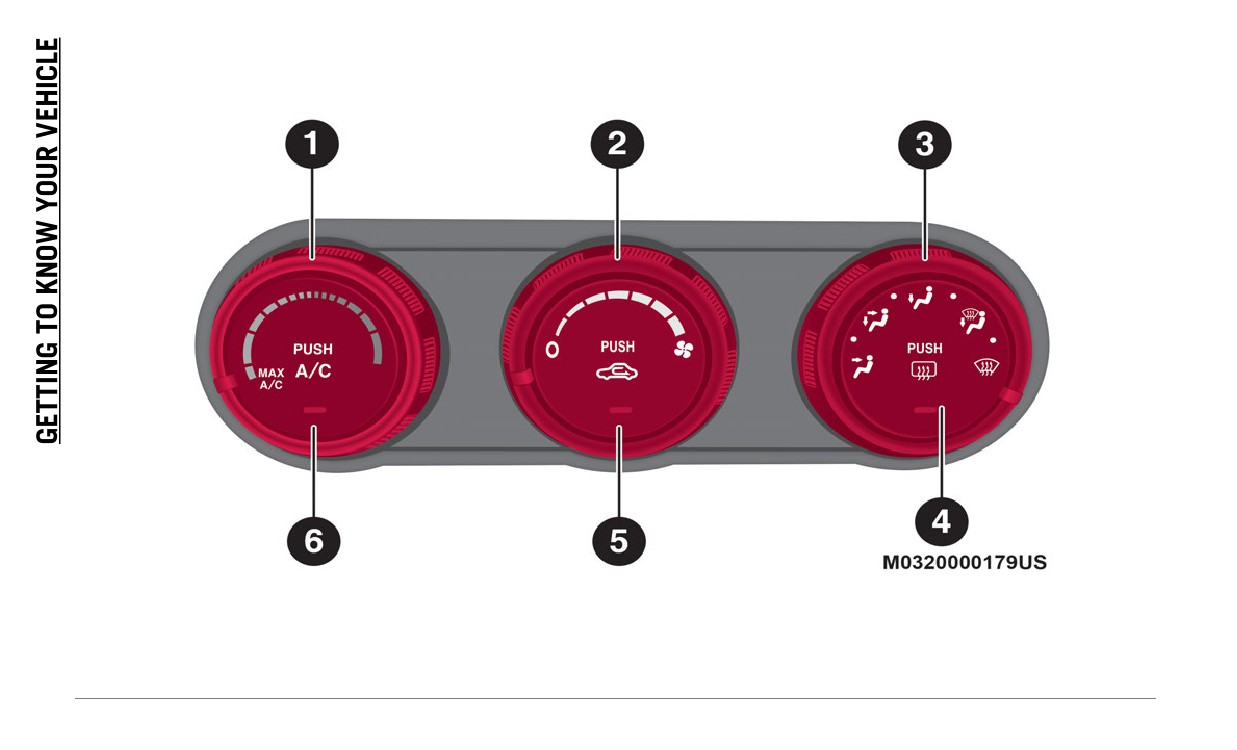

1 — Temperature Control Knob

4 — Rear Window Defrost Button

2 — Blower Control Knob

5 — Air Recirculation Button

3 — Mode Selector Knob

6 — A/C Button

48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Controls

Set the knob to an intermediate position if

CAUTION!

you want to split the air flow between the two

1 - Temperature Control Knob

modes.

Failure to follow these cautions can cause

damage to the heating elements:

This dial controls the interior temperature of

For example, when the Mode Selector Knob

the vehicle.

† Use care when washing the inside of the

is at the intermediate position (?) between

the

and

positions, air flow from the

rear window. Do not use abrasive window

Turn it clockwise for hotter temperatures and

floor vents is less than that of the

posi-

cleaners on the interior surface of the

counterclockwise for colder temperatures.

tion.

window. Use a soft cloth and a mild

MAX A/C

(If Equipped): When the Mode

washing solution, wiping parallel to the

4 - Rear Window Defrost Button

Selector Knob is set to

or

, the Blower

heating elements. Labels can be peeled

Control Knob is in a position other than 0, and

off after soaking with warm water.

The Rear Window Defrost Button clears fog

the temperature control knob is in the

and frost from the rear window. The ignition

† Do not use scrapers, sharp instruments,

maximum cold position, the Recirculation

must be on to use the defroster.

or abrasive window cleaners on the inte-

Button will activate and the A/C (Air Condi-

rior surface of the window.

tioner) will turn on automatically. If A/C is not

Push the button to turn on the Rear Window

desired, press the A/C Button to turn it off.

Defroster. The Rear Window Defroster oper-

† Keep all objects a safe distance from the

ates for about 15 minutes and then turns off

window.

2 - Blower Control Knob

automatically. The button LED will illumi-

nate when the defroster is operating.

NOTE:

The blower has seven speeds. Turn the knob

clockwise to increase blower speed or coun-

To turn off the Rear Window Defroster before

† Before opening the convertible top, make

terclockwise to decrease blower speed.

the end of

15 minutes, push the button

sure the Rear Window Defrost Button is

again.

turned off. Otherwise, the heat generated

3 - Mode Selector Knob

from the defroster could damage the

Turn the Mode Selector Knob to select the

convertible top and the internal material.

air flow mode.

† This defroster is not designed for melting

The mode selector dial can be set at the

snow. If there is an accumulation of snow

intermediate positions

(?) between each

on the rear window, remove it before using

mode.

the defroster.

49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

Ventilation

WARNING!

† If the air conditioner is used while driving

Proceed as follows:

Set the temperature control to the hot or

up large hills or in heavy traffic, monitor

warm position when defogging

(Front

1. Set the Mode Selector Knob to the

the Engine Coolant Temperature Warning

Defrost position). Using the Front Defrost

position.

Light to see if it is illuminated or flashing.

position with the temperature control set

The air conditioner may cause engine

2. Set the Air Recirculation Button to the

to the cold position is dangerous as it will

overheating in these situations. If the

outside air position.

cause the outside of the windshield to fog

warning light is illuminated or flashing,

up. Your vision will be hampered, which

turn the air conditioning off immediately.

3. Set the Temperature Control Knob to the

could lead to a serious accident.

desired position.

† When maximum cooling is desired, set the

Temperature Control Knob to the extreme

NOTE:

4. Set the Blower Control Knob to the

cold position, push the Air Recirculation

desired speed.

† For maximum defrosting, turn on the air

Button to activate the recirculated air

conditioner, set the Temperature Control

position, and then turn the fan control dial

Windshield Defrosting And Defogging

Knob to the extreme hot position, and turn

fully clockwise.

Proceed as follows:

the Blower Control Knob fully clockwise.

† If warmer air is desired at floor level, set

1. Set the Mode Selector Knob to the Front

† If warm air is desired from the floor vents,

the Mode Selector Knob to the

posi-

Defrost

position.

set the Mode Selector Knob to the posi-

tion, and adjust the Temperature Control

tion.

Knob to maintain comfort.

2. Set the Temperature Control Knob to the

desired position.

† If equipped with MAX A/C, the Recircula-

† The floor vents will blow warmer air while

tion Button can be set to the Recirculated

the side air vents will blow cooler air

3. Set the Blower Control Knob to the desired

Air position, when the Blower Control

(except when the temperature control dial

speed.

Knob is on, and the Mode Selector Knob is

is set at the maximum hot or cold posi-

4. If dehumidified heating is desired, turn on

set to the Front Defrost position.

tion).

the air conditioner.

51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content      ..      1      2      3      ..
