Fiat 500 Gucci (2012 year). Manual

Carbon Monoxide Warnings

WARNING!

Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
• Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas which can
kill. Never run the engine in a closed area, such as
a garage, and never sit in a parked vehicle with the
engine running for an extended period of time. If
the vehicle is stopped in an open area with the
engine running for more than a short period,
adjust the ventilation system to force fresh, out-
side air into the vehicle.

(Continued)

WARNING! (Continued)

• Guard against carbon monoxide with proper

maintenance. Have the exhaust system inspected
every time the vehicle is raised. Have any abnor-
mal conditions repaired promptly. Until repaired,
drive with all side windows fully open.

• Keep the liftgate closed when driving your vehicle

to prevent carbon monoxide and other poisonous
exhaust gases from entering the vehicle.

STARTING AND OPERATING

261

ADDING FUEL

Fuel Filler Cap (Gas Cap)

The gas cap is located on the passenger side of the
vehicle. If the gas cap is lost or damaged, be sure the
replacement cap is the correct one for this vehicle.

CAUTION!

• Damage to the fuel system or emission control

system could result from using an improper fuel
cap (gas cap). A poorly fitting cap could let impu-
rities into the fuel system. Also, a poorly fitting
aftermarket cap can cause the “Malfunction Indi-
cator Light (MIL)” to illuminate, due to fuel vapors
escaping from the system.

• To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

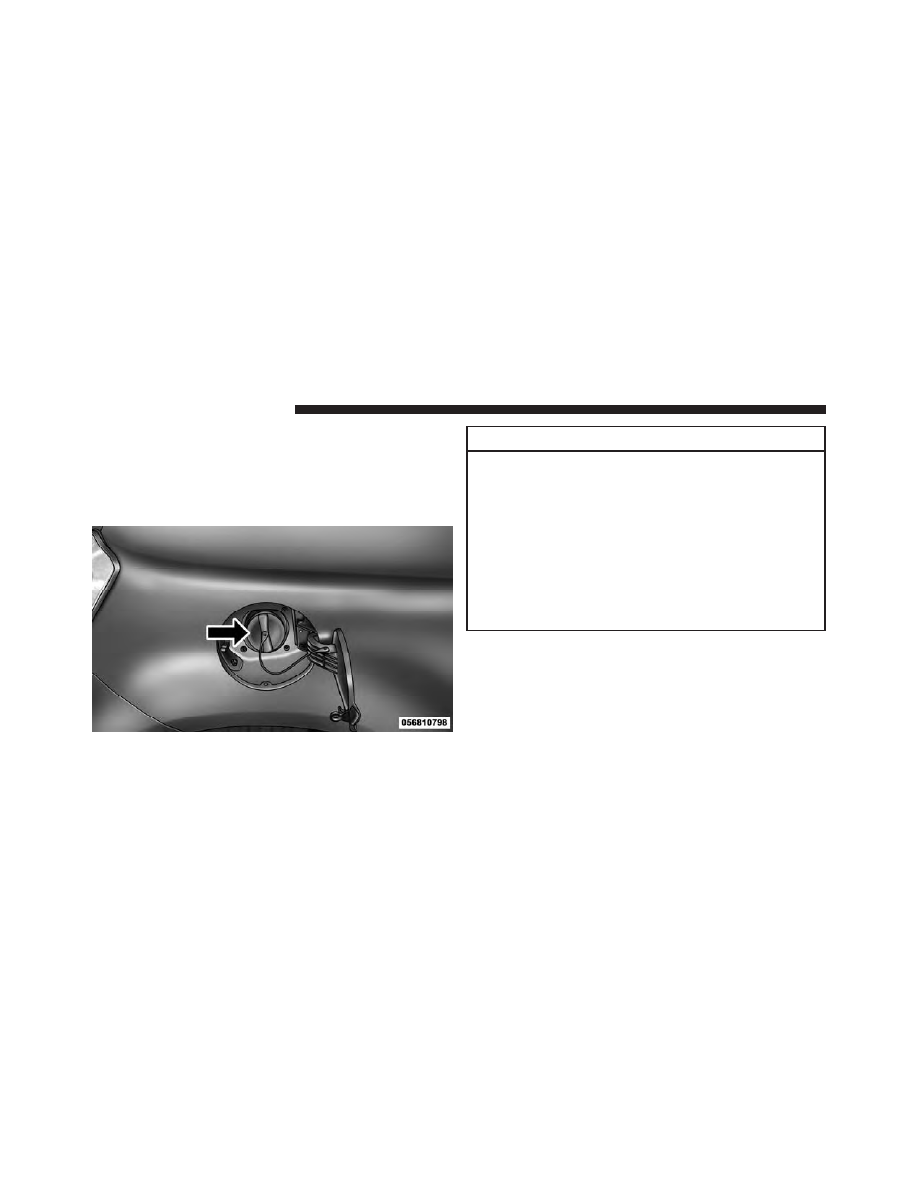

Fuel Filler Cap

262

STARTING AND OPERATING

WARNING!

• Never have any smoking materials lit in or near

the vehicle when the gas cap is removed or the
tank is being filled.

• Never add fuel when the engine is running. It may

cause the MIL to turn on and could cause a fire.

• A fire may result if gasoline is pumped into a

portable container that is inside of a vehicle. You
could be burned. Always place gas containers on
the ground while filling.

NOTE:

• When the fuel nozzle “clicks” or shuts off, the fuel

tank is full.

• Tighten the gas cap about 1/4 turn until you hear one

click. This is an indication that the cap is properly
tightened.

• If the gas cap is not tightened properly, the MIL will

come on. Be sure the gas cap is tightened every time
the vehicle is refueled.

Loose Fuel Filler Cap Message

After fuel has been added, the vehicle diagnostic system
can determine if the fuel filler cap is possibly loose,
improperly installed, or damaged. If the system detects a
malfunction, the “gASCAP” message will display in the
odometer display. Tighten the gas cap until a

⬙clicking⬙

sound is heard. This is an indication that the gas cap is
properly tightened. Press the odometer reset button to
turn the message off. If the problem persists, the message
will appear the next time the vehicle is started. This
might indicate a damaged cap. If the problem is detected
twice in a row, the system will turn on the MIL. Resolving
the problem will turn the MIL off.

TRAILER TOWING

Trailer towing with this vehicle is not allowed.

STARTING AND OPERATING

263

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle

Towing Condition

Wheels OFF the

Ground

Manual Transmission

Automatic Transmission

Flat Tow

NONE

Transmission in NEUTRAL

NOT ALLOWED

Dolly Tow

Front

Rear

NOT ALLOWED

On Trailer

ALL

NOTE:

Vehicles equipped with manual transmissions

may be recreationally towed (flat towed) at any legal
highway speed, for any distance, if the manual transmis-
sion is in NEUTRAL.

CAUTION!

Do not flat tow any vehicle equipped with an auto-
matic transmission. Damage to the drivetrain will
result. If these vehicles require towing, make sure all
drive wheels are OFF the ground.

NOTE:

This vehicle may be towed on a flatbed or

vehicle trailer provided all four wheels are OFF the
ground.

CAUTION!

Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.

264

STARTING AND OPERATING

WHAT TO DO IN EMERGENCIES

CONTENTS

䡵 Hazard Warning Flashers . . . . . . . . . . . . . . . . 267
䡵 If Your Engine Overheats . . . . . . . . . . . . . . . . 267
䡵 TIREFIT Kit . . . . . . . . . . . . . . . . . . . . . . . . . 268

▫ TIREFIT Storage . . . . . . . . . . . . . . . . . . . . . 269
▫ TIREFIT Kit Components And Operation . . . 269
▫ TIREFIT Usage Precautions . . . . . . . . . . . . . 270
▫ Sealing A Tire With TIREFIT . . . . . . . . . . . . 273

䡵 Jacking And Tire Changing — If Equipped . . . 278

▫ Jack Location . . . . . . . . . . . . . . . . . . . . . . . 279

▫ Spare Tire Removal . . . . . . . . . . . . . . . . . . . 280
▫ Preparations For Jacking . . . . . . . . . . . . . . . 283
▫ Jacking Instructions . . . . . . . . . . . . . . . . . . . 283
▫ Spare Tire Stowage . . . . . . . . . . . . . . . . . . . 289

䡵 Jump-Starting Procedure . . . . . . . . . . . . . . . . 289

▫ Preparations For Jump-Start . . . . . . . . . . . . . 290
▫ Jump-Starting Procedure . . . . . . . . . . . . . . . 291

䡵 Freeing A Stuck Vehicle . . . . . . . . . . . . . . . . . 293
䡵 Shift Lever Override . . . . . . . . . . . . . . . . . . . 294

䡵 Towing A Disabled Vehicle . . . . . . . . . . . . . . . 295

▫ With Ignition Key . . . . . . . . . . . . . . . . . . . . 295

▫ Without The Ignition Key . . . . . . . . . . . . . . 296

䡵 Enhanced Accident Response System . . . . . . . 297

266

WHAT TO DO IN EMERGENCIES

HAZARD WARNING FLASHERS

The Hazard Warning flasher switch is located on the
instrument panel below the radio.

Press the switch to turn on the Hazard Warning
flashers. When the switch is activated, all direc-
tional turn signals will flash on and off to warn

oncoming traffic of an emergency. Press the switch a
second time to turn off the Hazard Warning flashers.

Do not use this emergency warning system when the
vehicle is in motion. Use it when your vehicle is disabled
and it is creating a safety hazard for other motorists.

If it is necessary to leave the vehicle to go for service, the
Hazard Warning flashers will continue to operate with
the ignition key removed and the vehicle locked.

NOTE:

With extended use, the Hazard Warning flashers

may wear down your battery.

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.

• On the highways — slow down.
• In city traffic — while stopped, place the transmission

in NEUTRAL, but do not increase engine idle speed.

NOTE:

There are steps that you can take to slow down

an impending overheat condition:

• If your air conditioner (A/C) is on, turn it off. The A/C

system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum

heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.

WHAT TO DO IN EMERGENCIES

267

CAUTION!

Driving with a hot cooling system could damage
your vehicle. If the pointer rises to the H (red) mark,
the instrument cluster will sound a chime. When
safe, pull over and stop the vehicle with the engine at
idle. Turn off the air conditioning and wait until the
pointer drops back into the normal range. If the
pointer remains on the H (red) mark for more than a
minute, turn the engine off immediately and call for
service.

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.

TIREFIT KIT

Small punctures up to 1/4 in (6 mm) in the tire tread can
be sealed with TIREFIT. Foreign objects (e.g., screws or
nails) should not be removed from the tire. TIREFIT can
be used in outside temperatures down to approximately
-4°F (-20°C).

This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to 100 miles (160 km) with a
maximum speed of 55 mph (88 km/h).

268

WHAT TO DO IN EMERGENCIES

TIREFIT Storage

The TIREFIT kit is located under the front driver’s seat.

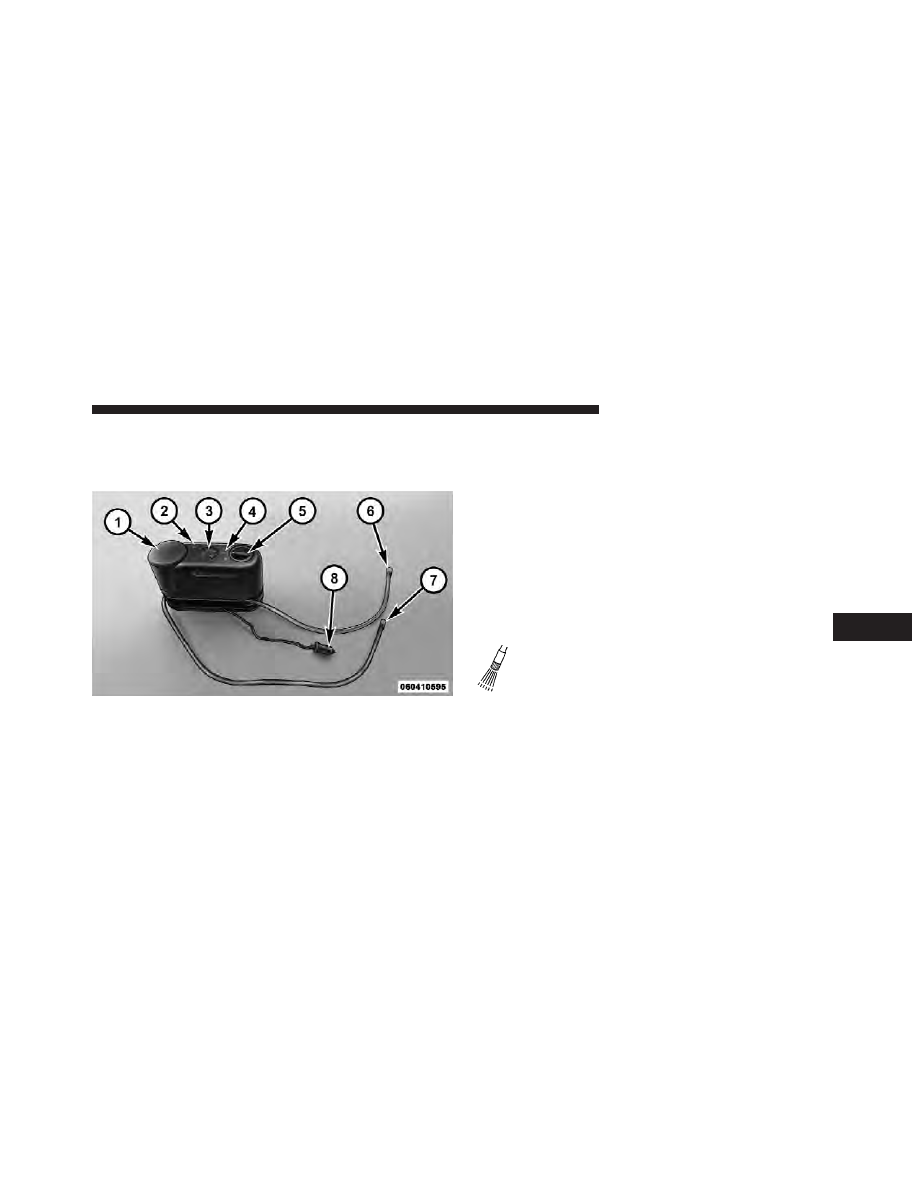

TIREFIT Kit Components And Operation

1. Sealant Bottle

2. Deflation Button

3. Pressure Gauge

4. Power Button

5. Mode Select Knob

6. Sealant Hose (Clear)

7. Air Pump Hose (Black)

8. Power Plug

Using The Mode Select Knob And Hoses
Your TIREFIT kit is equipped with the following symbols
to indicate the air or sealant mode.

Selecting Air Mode

Turn the Mode Select Knob (5) to this position
for air pump operation only. Use the Black Air
Pump Hose (7) when selecting this mode.

WHAT TO DO IN EMERGENCIES

269

Selecting Sealant Mode

Turn the Mode Select Knob (5) to this
position to inject the TIREFIT Sealant
and to inflate the tire. Use the Sealant
Hose (clear hose) (6) when selecting
this mode.

Using The Power Button

Push and release the Power Button (4) once to
turn On the TIREFIT kit. Push and release the
Power Button (4) again to turn Off the TIREFIT
kit.

Using The Deflation Button

Press the Deflation Button (2) to reduce the air
pressure in the tire if it becomes over-inflated.

TIREFIT Usage Precautions

• Replace the TIREFIT Sealant Bottle (1) and Sealant

Hose (6) prior to the expiration date (printed on the
bottle label) to assure optimum operation of the sys-
tem. Refer to “Sealing a Tire with TIREFIT” section (F)
“Sealant Bottle and Hose Replacement”.

• The Sealant Bottle (1) and Sealant Hose (6) are a one

tire application use. After each use, always replace
these components immediately at an authorized
dealer.

• When the TIREFIT sealant is in a liquid form, clean

water, and a damp cloth will remove the material from
the vehicle or tire and wheel components. Once the
sealant dries, it can easily be peeled off and properly
discarded.

270

WHAT TO DO IN EMERGENCIES

• For optimum performance, make sure the valve stem

on the wheel is free of debris before connecting the
TIREFIT kit.

• You can use the TIREFIT air pump to inflate bicycle

tires. The kit also comes with two needles, located in
the Accessory Storage Compartment (on the bottom of
the air pump) for inflating sport balls, rafts, or similar
inflatable items. However, use only the Air Pump
Hose (7) and make sure the Mode Select Knob (5) is in
the Air Mode when inflating such items to avoid
injecting sealant into them. The TIREFIT Sealant is
only intended to seal punctures less than

⁄

in (6 mm)

diameter in the tread of your vehicle.

• Do not lift or carry the TIREFIT kit by the hoses.

WARNING!

• Do not attempt to seal a tire on the side of the

vehicle closest to traffic. Pull far enough off the
road to avoid the danger of being hit when using
the TIREFIT kit.

• Do not use TIREFIT or drive the vehicle under the

following circumstances:
− If the puncture in the tire tread is approximately
1/4 in. (6 mm) or larger.
− If the tire has any sidewall damage.
− If the tire has any damage from driving with
extremely low tire pressure.
− If the tire has any damage from driving on a flat
tire.
− If the wheel has any damage.

(Continued)

WHAT TO DO IN EMERGENCIES

271

WARNING! (Continued)

− If you are unsure of the condition of the tire or the
wheel.
• Keep TIREFIT away from open flames or heat

source.

• A loose TIREFIT kit thrown forward in a collision

or hard stop could endanger the occupants of the
vehicle. Always stow the TIREFIT kit in the place
provided. Failure to follow these warnings can
result in injuries that are serious or fatal to you,
your passengers, and others around you.

(Continued)

WARNING! (Continued)

• Take care not to allow the contents of TIREFIT to

come in contact with hair, eyes, or clothing. TIRE-
FIT is harmful if inhaled, swallowed, or absorbed
through the skin. It causes skin, eye, and respira-
tory irritation. Flush immediately with plenty of
water if there is any contact with eyes or skin.
Change clothing as soon as possible, if there is any
contact with clothing.

• TIREFIT Sealant solution contains latex. In case of

an allergic reaction or rash, consult a physician
immediately. Keep TIREFIT out of reach of chil-
dren. If swallowed, rinse mouth immediately with
plenty of water and drink plenty of water. Do not
induce

vomiting!

Consult

physician

immediately.

272

WHAT TO DO IN EMERGENCIES

Sealing A Tire With TIREFIT

(A) Whenever You Stop To Use TIREFIT:

1. Pull over to a safe location and turn on the vehicle’s
Hazard Warning flashers.

2. Verify that the valve stem (on the wheel with the
deflated tire) is in a position that is near to the ground.
This will allow the TIREFIT Hoses (6) and (7) to reach the
valve stem and keep the TIREFIT kit flat on the ground.
This will provide the best positioning of the kit when
injecting the sealant into the deflated tire and running the
air pump. Move the vehicle as necessary to place the
valve stem in this position before proceeding.

3. Place the transmission in PARK (auto transmission) or
in Gear (manual transmission) and turn Off the ignition.

4. Set the parking brake.

(B) Setting Up To Use TIREFIT:

1. Turn the Mode Select Knob (5) to the Sealant Mode
position.

2. Uncoil the Sealant Hose (6) and then remove the cap
from the fitting at the end of the hose.

3. Place the TIREFIT kit flat on the ground next to the
deflated tire.

4. Remove the cap from the valve stem and then screw
the fitting at the end of the Sealant Hose (6) onto the
valve stem.

5. Uncoil the Power Plug (8) and insert the plug into the
vehicle’s 12 Volt power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.

WHAT TO DO IN EMERGENCIES

273

• Always start the engine before turning ON the TIRE-

FIT kit.

NOTE:

Manual transmission vehicles must have the

parking brake engaged and the shift lever in NEUTRAL.

• After pressing the Power Button (4), the sealant (white

fluid) will flow from the Sealant Bottle (1) through the
Sealant Hose (6) and into the tire.

NOTE:

Sealant may leak out through the puncture in

the tire.

If the sealant (white fluid) does not flow

within 0 –

10 seconds through the Sealant Hose (6):

1. Press the Power Button (4) to turn Off the TIREFIT kit.
Disconnect the Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of debris. Reconnect the

Sealant Hose (6) to the valve stem. Check that the Mode
Select Knob (5) is in the Sealant Mode position and not
Air Mode. Press the Power Button (4) to turn On the
TIREFIT kit.

2. Connect the Power Plug (8) to a different 12 Volt
power outlet in your vehicle or another vehicle, if avail-
able. Make sure the engine is running before turning ON
the TIREFIT kit.

3. The Sealant Bottle (1) may be empty due to previous
use. Call for assistance.

NOTE:

If the Mode Select Knob (5) is on Air Mode and

the pump is operating, air will dispense from the Air
Pump Hose (7) only, not the Sealant Hose (6).

If the sealant (white fluid) does flow

through the

Sealant Hose (6):

274

WHAT TO DO IN EMERGENCIES

1. Continue to operate the pump until sealant is no
longer flowing through hose (typically takes 30 - 70 sec-
onds). As the sealant flows through the Sealant Hose (6),
the Pressure Gauge (3) can read as high as 70 psi (5 Bar).
The Pressure Gauge (3) will decrease quickly from ap-
proximately 70 psi (5 Bar) to the actual tire pressure when
the Sealant Bottle (1) is empty.

2. The pump will start to inject air into the tire immedi-
ately after the Sealant Bottle (1) is empty. Continue to
operate the pump and inflate the tire to the pressure
indicated on the tire pressure label on the driver-side
latch pillar (recommended pressure). Check the tire pres-
sure by looking at the Pressure Gauge (3).

If the tire does not inflate to at least 26 psi (1.8 Bar)
pressure within 15 minutes:

• The tire is too badly damaged. Do not attempt to drive

the vehicle further. Call for assistance.

NOTE:

If the tire becomes over-inflated, press the

Deflation Button to reduce the tire pressure to the recom-
mended inflation pressure before continuing.

If the tire inflates to the recommended pressure or is at
least 26 psi (1.8 Bar) pressure within 15 minutes:

1. Press the Power Button (4) to turn off the TIREFIT kit.

2. Remove the Speed Limit sticker from the top of the
Sealant Bottle (1) and place the sticker on the instrument
panel.

3. Immediately disconnect the Sealant Hose (6) from the
valve stem, reinstall the cap on the fitting at the end of the
hose, and place the TIREFIT kit in the vehicle storage
location. Quickly proceed to (D) “Drive Vehicle”.

WHAT TO DO IN EMERGENCIES

275

CAUTION!

• The metal end fitting from Power Plug (8) may get

hot after use, so it should be handled carefully.

• Failure to reinstall the cap on the fitting at the end

of the Sealant Hose (6) can result in sealant con-
tacting your skin, clothing, and the vehicle’s inte-
rior. It can also result in sealant contacting internal
TIREFIT kit components which may cause perma-
nent damage to the kit.

(D) Drive Vehicle:
Immediately after injecting sealant and inflating the tire,
drive the vehicle 5 miles (8 km) or 10 minutes to ensure
distribution of the TIREFIT Sealant within the tire. Do not
exceed 55 mph (88 km/h).

WARNING!

TIREFIT is not a permanent flat tire repair. Have the
tire inspected and repaired or replaced after using
TIREFIT. Do not exceed 55 mph (88 km/h) until the
tire is repaired or replaced. Failure to follow this
warning can result in injuries that are serious or fatal
to you, your passengers, and others around you.

(E) After Driving:
Pull over to a safe location. Refer to “Whenever You Stop
to Use TIREFIT” before continuing.

1. Turn the Mode Select Knob (5) to the Air Mode
position.

2. Uncoil the power plug and insert the plug into the
vehicle’s 12 Volt power outlet.

276

WHAT TO DO IN EMERGENCIES

Fiat 500 Gucci (2012 year). Manual - part 17
