3

9

E371794

Your vehicle has a maintenance-free battery.
It does not require additional water during
service.

If the vehicle battery has a cover and vent
hose, make sure you correctly install it after
cleaning or replacing the battery.

For longer, trouble-free operation, keep the
top of the battery clean and dry and the
battery cables tightly fastened to the battery
terminals. If any corrosion is present on the
battery or terminals, remove the cables from
the terminals and clean with a wire brush.
You can neutralize the acid with a solution
of baking soda and water.

We recommend that you disconnect the
negative battery cable terminal from the
battery if you plan to store your vehicle for
an extended period.

Note:

If you only disconnect the negative

battery cable terminal, make sure it is
isolated or placed away from the battery
terminal to avoid unintended connection or
arcing.

If you replace the battery make sure it
matches the electrical requirements of your
vehicle.

If you disconnect or replace the battery and
your vehicle has an automatic transmission,
it must relearn its adaptive strategy. Because
of this, the transmission may shift firmly when
first driven. This is normal operation while
the transmission fully updates its operation
to optimum shift feel.

Battery Sensor Reset

When you install a new battery, reset the
battery sensor by doing the following:

1.

Switch the ignition on, and leave the
engine off.

Note:

Complete Steps 2 and 3 within 10

seconds.

2. Flash the high beam headlamps five

times, ending with the high beams off.

3. Press and release the brake pedal three

times.

The battery warning lamp flashes three times
to confirm that the reset is successful.

414

Maintenance

Battery Management System

 (If Equipped)

The system monitors battery conditions and
takes actions to extend battery life. If
excessive battery drain is detected, the
system temporarily disables some electrical
systems to protect the battery.

Systems included are:

•

Heated rear window.

•

Heated seats.

•

Climate control.

•

Heated steering wheel.

•

Audio unit.

•

Navigation system.

A message may appear in the information
display to alert you that battery protection
actions are active. This message is only for
notification that an action is taking place, and
not intended to indicate an electrical problem
or that the battery requires replacement.

After battery replacement, or in some cases
after charging the battery with an external
charger, the battery management system
requires eight hours of vehicle sleep time to
relearn the battery state of charge. During
this time, your vehicle must remain fully
locked with the ignition switched off.

Note:

Prior to relearning the battery state of

charge, the battery management system
may temporarily disable some electrical
systems.

Electrical Accessory Installation

To make sure the battery management
system works correctly, do not connect an
electrical device ground connection directly
to the battery negative post. This can cause
inaccurate measurements of the battery
condition and potential incorrect system
operation.

Note:

If you add electrical accessories or

components to the vehicle, it may adversely
affect battery performance and durability.
This may also affect the performance of
other electrical systems in the vehicle.

Remove and Reinstall the Battery

Install a battery approved for use by our
specifications.  See

Capacities and

Specifications

 (page 460).

To disconnect or remove the battery, do the
following:

1.

Apply the parking brake and switch the
ignition off.

2. Switch all electrical equipment off, for

example lights and radio.

3. Wait a minimum of two minutes before

disconnecting the battery.

Note:

The engine management system has

a power hold function and remains powered
for a period of time after you switch the
ignition off. This is to allow the system to
store diagnostic and adaptive tables.
Disconnecting the battery without waiting
can cause damage not covered by the
vehicle warranty.

4. Disconnect the negative battery cable

terminal.

5. Disconnect the positive battery cable

terminal.

415

Maintenance

6. Remove the battery securing clamp.

7.

Remove the battery.

8. To install, reverse the removal procedure.

Note:

Before reconnecting the battery, make

sure the ignition remains switched off.

Note:

Make sure to fully tighten the battery

cables.

If you disconnect or replace the vehicle
battery, you must reset the following
features:

•

Window bounce-back.  See

Power

Windows

 (page 121).

•

Clock Settings.

•

Pre-set radio stations.

Battery Disposal

E107998

Make sure that you dispose of old
batteries in an environmentally
friendly way.  Seek advice from

your local authority about recycling old
batteries.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam checked
by an authorized dealer.

E142592

8 ft (2.4 m).

A

Ground to the center of the
headlamp high beam bulb.

B

25 ft (7.6 m).

C

Horizontal reference line.

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall or
screen.

2. Measure the distance from the ground

to the center of the headlamp high beam
bulb and mark an 8 ft (2.4 m) long
horizontal reference line on the wall or
screen at this height.

Note:

There may be an identifying mark on

the lens to help you locate the center line of
the headlamp high beam bulb.

Note:

To see a clearer light pattern for

adjusting, you may want to block the light
from one headlamp while adjusting the
other.

3. Switch on the low beam headlamps and

open the hood.

416

Maintenance

E142465

4. On the wall or screen you will observe a

flat zone of high intensity light located at
the top of the beam pattern. If the top
edge of the flat zone of high intensity
light is not on the horizontal reference
line, adjust the aim of the headlamp
beam.

E292163

5. Use a suitable tool, for example a

screwdriver or socket wrench, to turn the
adjuster clockwise or counterclockwise
to adjust the vertical aim of the
headlamp.  The horizontal edge of the
brighter light should touch the horizontal
reference line.

6. Close the hood and switch off the lamps.

WASHER FLUID CHECK

WARNING:

If you operate your

vehicle in temperatures below 41.0°F (5°C),
use washer fluid with antifreeze protection.
Failure to use washer fluid with antifreeze
protection in cold weather could result in
impaired windshield vision and increase
the risk of injury or accident.

Note:

The front and rear washer systems

are supplied from the same reservoir.

Add fluid to fill the reservoir if the level is low.
Only use a washer fluid that meets our
specifications.  See

Capacities and

Specifications

 (page 460).

417

Maintenance

State or local regulations on volatile organic
compounds may restrict the use of methanol,
a common windshield washer antifreeze
additive. Washer fluids containing
non-methanol antifreeze agents should be
used only if they provide cold weather
protection without damaging the vehicle’s
paint finish, wiper blades or washer system.

FUEL FILTER

Your vehicle is equipped with a lifetime fuel
filter that is integrated with the fuel tank.
Regular maintenance or replacement is not
needed.

CHECKING THE WIPER BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

Clean the wiper blades with washer fluid or
water applied with a soft sponge or cloth.

CHANGING THE FRONT WIPER
BLADES - VEHICLES WITHOUT:
HEATED WIPER BLADES

You can improve poor wiper quality by
cleaning the wiper blades and the
windshield.

Replace the wiper blades at least annually
for optimum performance.

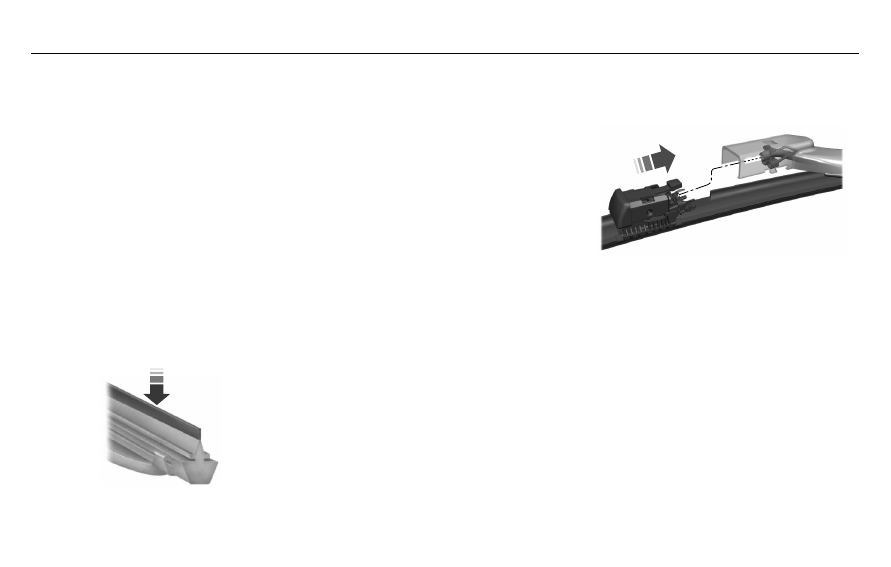

Removing the Front Wiper Blades

E292280

1.

Lift the wiper blade from the windshield
by holding the middle of the retainer.

Note:

Do not hold the wiper blade to lift the

wiper arm.

2. Rotate the blade toward the windshield

by gripping it under the connector until
a “click” sound is heard and the wiper
blade position is fixed.

3. Push the blade release button on top of

the connector and pull the blade from
the arm.

418

Maintenance

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

Installing the Front Wiper Blades

1.

Line up the wiper blade, water and
electrical connectors with the receptors
on the wiper arm by lifting the arm from
the windshield.

2. Slide the blade into the connector until

a “click” sound is heard.

3. Rotate the blade toward the wiper arm

by gripping it under the connector until
a “click” sound is heard. Verify that the
blade has rotation.

Note:

Make sure that the wiper blade locks

into place.

CHANGING THE FRONT WIPER
BLADES - VEHICLES WITH:
HEATED WIPER BLADES

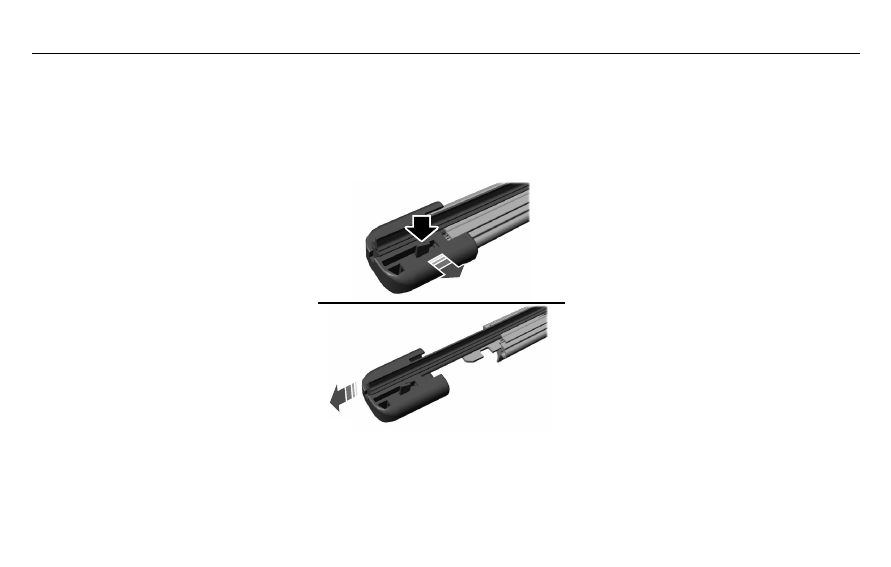

Replacing the Rubber Insert

E292277

1.

Remove the wiper blade.

2. Use a suitable tool, for example a

screwdriver, to carefully move the tab on
the end cap.

3. Pull the end cap to release the rubber

insert

4. To install, reverse the removal procedure.

CHANGING THE REAR WIPER
BLADES

You can improve poor wiper quality by
cleaning the wiper blades and the
windshield.

Replace the wiper blades at least annually
for optimum performance.

419

Maintenance

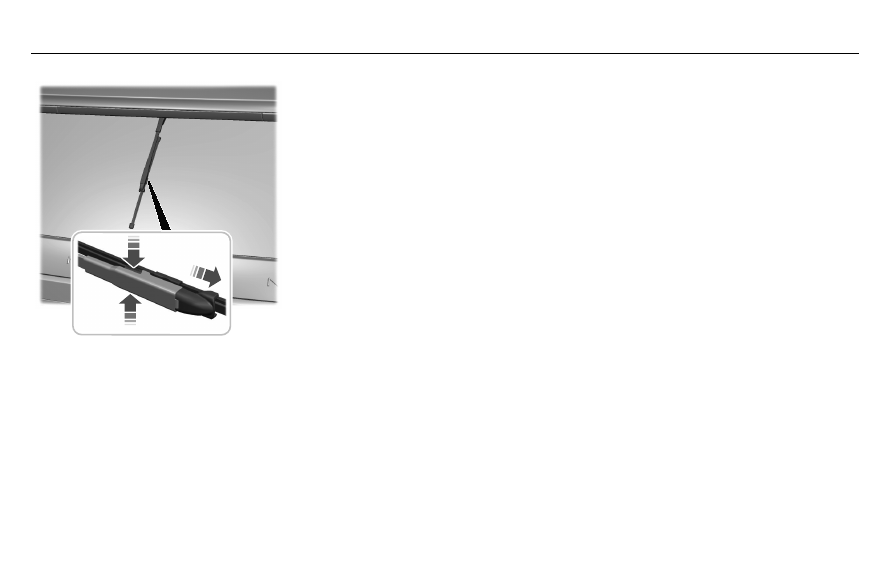

E292279

1.

Switch your vehicle ignition on and off to
move the wiper arm to the service
position.

2. Lift the wiper arm and then press the

wiper blade locking buttons together.

Note:

Do not hold the wiper blade to lift the

wiper arm.

3. Slightly rotate the wiper blade.

4. Remove the wiper blade.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

5. To install, reverse the removal procedure.

Note:

Make sure that the wiper blade locks

into place.

CHANGING A BULB

LED Lamps

LED lamps are not serviceable. See an
authorized dealer if they fail.

420

Maintenance

GENERAL INFORMATION

Your dealer has many quality products
available to clean your vehicle and protect
its finishes.

CLEANING PRODUCTS

Materials

For best results, use the following products
or products of equivalent quality:

For additional information and assistance,
we recommend that you contact an
authorized dealer.

Specification

Name

Motorcraft® Bug and Tar Remover, ZC-42 (U.S. & Canada)

ESR-M5B194-B

Motorcraft® Custom Bright Metal Cleaner, ZC-15 (U.S. & Canada)

ESR-M14P4-A

Motorcraft® Detail Wash, ZC-3-A (U.S. & Canada)

ESR-M14P3-A

Motorcraft® Engine Shampoo and Degreaser, ZC-20 (U.S.)

Motorcraft® Engine Shampoo, CXC-66-A (Canada)

Motorcraft® Premium Leather and Vinyl Cleaner, ZC-56 (U.S. & Canada)

Motorcraft® Multi-Purpose Cleaner, CXC-101 (Canada)

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with Bitterant, ZC-32-B2 (U.S.)

WSS-M14P19-A

Motorcraft® Premium Quality Windshield Washer Fluid, CXC-37-F/M (Canada)

Motorcraft® Professional Strength Carpet & Upholstery Cleaner, ZC-54 (U.S. & Canada)

ESR-M14P5-A

Motorcraft® Premium Glass Cleaner, CXC-100 (Canada)

421

Vehicle Care

Specification

Name

Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)

ESR-M14P5-A

Motorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)

Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)

CLEANING THE EXTERIOR

Wash your vehicle regularly with cool or
lukewarm water and a neutral pH shampoo,
we recommend Motorcraft Detail Wash.

•

Never use strong household detergents
or soap, for example dish washing or
laundry liquid. These products can
discolor and spot painted surfaces.

•

Never wash your vehicle when it is hot
to the touch, or during strong or direct
sunlight.

•

Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.

•

Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle’s paintwork or trim over time. We
recommend Motorcraft Bug and Tar
Remover.

•

Remove any exterior accessories, for
example antennas, before entering a car
wash.

•

When filling with AdBlue®, remove any
residue on painted surfaces immediately.

Note:

Suntan lotions and insect repellents

can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.

Cleaning the Exterior Precautions

Immediately remove fuel spillages, AdBlue
residuals, bird droppings, insect deposits
and road tar. These may cause damage to
your vehicle’s paintwork or trim over time.

Remove any exterior accessories, for
example antennas, before entering a car
wash.

Cleaning the Exterior Lamps

Note:

Do not scrape the exterior lamps

lenses or use abrasives, alcoholic solvents
or chemical solvents to clean them.

Note:

Do not wipe the exterior lamps when

they are dry.

422

Vehicle Care

Exterior Chrome Parts

•

Apply a high quality-cleaning product to
bumpers and other chrome parts. Follow
the manufacturer’s instructions. We
recommend Motorcraft Custom Bright
Metal Cleaner.

•

Do not apply the cleaning product to hot
surfaces. Do not leave the cleaning
product on chrome surfaces longer than
the time recommended.

•

Using non-recommended cleaners can
result in severe and permanent cosmetic
damage.

Note:

Never use abrasive materials, for

example steel wool or plastic pads as they
can scratch the chrome surface.

Note:

Do not use chrome cleaner, metal

cleaner or polish on wheels or wheel covers.

Exterior Plastic Parts

For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease spots
are present, we recommend Motorcraft Bug
and Tar Remover.

Stripes or Graphics

 (If Equipped)

Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:

•

Do not use water pressure higher than
2,000 psi (14,000 kPa).

•

Do not use water hotter than 179°F (82°C).

•

Use a spray with a 40 degree wide spray
angle pattern.

•

Keep the nozzle at a 12 in (305 mm)
distance and 90 degree angle to your
vehicle's surface.

Note:

Holding the pressure washer nozzle

at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.

Underbody

Regularly clean the entire underside of your
vehicle. This includes the chassis, body floor
sheet metal and wheel wells using fresh
water. Keep body and door drain holes free
of debris or foreign material.

Under Hood

For removing black rubber marks from under
the hood we recommend Motorcraft Wheel
and Tire Cleaner or Motorcraft Bug and Tar
Remover.

WAXING

Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.

When washing and waxing, park your vehicle
in a shaded area out of direct sunlight.
Always wash your vehicle before applying
wax.

•

Use a quality wax that does not contain
abrasives.

•

Follow the manufacturer’s instructions to
apply and remove the wax.

•

Apply a small amount of wax in a
back-and-forth motion, not in circles.

423

Vehicle Care

•

Do not allow wax to come in contact with
any non-body (low-gloss black) colored
trim. The wax will discolor or stain the
parts over time.

•

Roof racks.

•

Bumpers.

•

Grained door handles.

•

Side moldings.

•

Mirror housings.

•

Windshield cowl area.

•

Do not apply wax to glass areas.

•

After waxing, your car's paint should feel
smooth, and be free of streaks and
smudges.

CLEANING THE ENGINE

Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal.

When washing:

•

Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.

•

Do not spray a hot engine with cold water
to avoid cracking the engine block or
other engine components.

•

Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine Shampoo.

Note:

If your vehicle has an engine cover

remove the cover before application of
Motorcraft Engine Shampoo and Degreaser.
Immediately rinse away any over spray.

•

Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.

•

Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or the
area in and around these locations.

•

Cover the battery, power distribution box,
and air filter assembly to prevent water
damage when cleaning the engine.

CLEANING THE WINDOWS AND
WIPER BLADES

Car wash chemicals and environmental
fallout can result in windshield and wiper
blade contamination. Dirty windshield and
wipers will result in poor windshield wiper
operation. Keep the windshield and wiper
blades clean to maintain windshield wiper
performance.

To clean the windshield and wiper blades:

•

Clean the windshield with a non-abrasive
glass cleaner. When cleaning the interior
of the windshield, avoid getting any glass
cleaner on the instrument panel or door
panels. Wipe any glass cleaner off these
surfaces immediately.

•

For windshields contaminated with tree
sap, chemicals, wax or bugs, clean the
entire windshield using steel wool (no
greater than 0000 grade) in a circular
motion and rinse with water.

•

Clean the wiper blades with isopropyl
rubbing alcohol or windshield washer
concentrate.

424

Vehicle Care

Note:

 Do not use razor blades or other

sharp objects to clean or remove decals from
the inside of the heated rear window.  The
vehicle warranty does not cover damage
caused to the heated rear window grid lines.

CLEANING THE INTERIOR

WARNING:

Do not use cleaning

solvents, bleach or dye on the vehicle's
seatbelts, as these actions may weaken
the belt webbing.

WARNING:

On vehicles equipped

with seat-mounted airbags, do not use
chemical solvents or strong detergents.
Such products could contaminate the side
airbag system and affect performance of
the side airbag in a crash.

For fabric, carpets, cloth seats and seats
equipped with side airbags:

•

Remove dust and loose dirt with a
vacuum cleaner.

•

Remove light stains and soil with
Motorcraft Professional Strength Carpet
& Upholstery Cleaner.

•

If grease or tar is present on the material,
spot-clean the area first with Motorcraft
Spot and Stain Remover. In Canada, use
Motorcraft Multi-Purpose Cleaner.

•

If a ring forms on the fabric after spot
cleaning, clean the entire area
immediately (but do not oversaturate) or
the ring will set.

•

Do not use household cleaning products
or glass cleaners, which can stain and
discolor the fabric and affect the flame
retardant abilities of the seat materials.

Mirrors

Do not clean the housing or glass of any
mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.

CLEANING THE INSTRUMENT
PANEL AND INSTRUMENT
CLUSTER LENS

WARNING:

Do not use chemical

solvents or strong detergents when
cleaning the steering wheel or instrument
panel to avoid contamination of the airbag
system.

Note:

Follow the same procedure as

cleaning leather seats for cleaning leather
instrument panels and leather interior trim
surfaces.  See

Cleaning Leather Seats

 (page

426).

Clean the instrument panel and cluster lens
with a clean, damp and soft cloth, then use
a clean, dry and soft cloth to dry these areas.

425

Vehicle Care

•

Avoid cleaners or polishes that increase
the gloss of the upper portion of the
instrument panel. The dull finish in this
area helps protect you from undesirable
windshield reflection.

•

Do not use any household cleaning
products or glass cleaners as these may
damage the finish of the instrument
panel, interior trim and cluster lens.

•

Wash or wipe your hands clean if you
have been in contact with certain
products such as insect repellent and
suntan lotion to avoid possible damage
to the interior painted surfaces.

•

Do not allow air fresheners and hand
sanitizers to spill onto interior surfaces.
If a spill occurs, wipe off immediately.
Your warranty may not cover these
damages.

If a staining liquid like coffee or juice has
been spilled on the instrument panel or on
interior trim surfaces:

1.

Wipe up spilled liquid using a clean, soft
cloth as quickly as possible.

2. Use Motorcraft Premium Leather and

Vinyl Cleaner or a commercially available
leather cleaning product for automotive
interiors. Test any cleaner or stain
remover on an inconspicuous area.

3. Alternatively, wipe the surface with a

clean, soft cloth and a mild soap and
water solution. Dry the area with a clean,
soft cloth.

4. If necessary, apply more soap and water

solution or cleaning product to a clean,
soft cloth and press it onto the soiled
area. Allow this to set at room
temperature for 30 minutes.

5. Remove the soaked cloth, then with a

clean, damp cloth, use a rubbing motion
for 60 seconds on the soiled area.

6. Dry the area with a clean, soft cloth.

CLEANING LEATHER SEATS

Note:

Follow the same procedure as

cleaning leather seats for cleaning leather
instrument panels and leather interior trim
surfaces.

For routine cleaning, wipe the surface with
a soft, damp cloth and a mild soap and water
solution. Dry the area with a clean, soft cloth.

For cleaning and removing stains such as
dye transfer, use Motorcraft Premium Leather
and Vinyl Cleaner or a commercially available
leather cleaning product for automotive
interiors.

Note:

Test any cleaner or stain remover on

an inconspicuous area.

You should:

•

Remove dust and loose dirt with a
vacuum cleaner.

•

Clean and treat spills and stains as soon
as possible.

Do not use the following products as these
may damage the leather:

•

Oil and petroleum or silicone-based
leather conditioners.

•

Household cleaners.

•

Alcohol solutions.

•

Solvents or cleaners intended specifically
for rubber, vinyl and plastics.

426

Vehicle Care

REPAIRING MINOR PAINT
DAMAGE

Authorized dealers have touch-up paint to
match your vehicle’s color.  Your vehicle
color code is printed on a sticker on the front,
left-hand side door jamb.  Take your color
code to your authorized dealer to make sure
you get the correct color.

Before repairing minor paint damage, use a
cleaner to remove particles such as bird
droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout.

Read the instructions before using cleaning
products.

CLEANING THE WHEELS

1.

Regularly clean them with a wheel
cleaner. We recommend that you use
Ford approved wheel cleaner if available.

2. Remove dirt and brake dust with a

sponge.

3. Remove tar and grease with a bug and

tar remover. We recommend that you use
Ford approved bug and tar remover if
available.

4. Thoroughly rinse the wheels with water

after cleaning.

If you intend on parking your vehicle for an
extended period after cleaning the wheels
with a wheel cleaner, drive your vehicle for
a few minutes before doing so. This reduces
the risk of corrosion of the brake discs, brake
pads and linings.

Do not clean the wheels when they are hot.

Note:

 Some car washes could damage

wheel rims and covers.

Note:

 Using non-recommended cleaners,

harsh cleaning products, chrome wheel
cleaners or abrasive materials could
damage wheel rims and covers.

VEHICLE STORAGE

If you plan on storing your vehicle for 30
days or more, read the following
maintenance recommendations to make sure
your vehicle stays in good operating
condition.

We engineer and test all motor vehicles and
their components for reliable, regular driving.
Under various conditions, long-term storage
may lead to degraded engine performance
or failure unless you use specific precautions
to preserve engine components.

General

•

Store all vehicles in a dry, ventilated
place.

•

Protect from sunlight, if possible.

•

If vehicles are stored outside, they
require regular maintenance to protect
against rust and damage.

427

Vehicle Care

Body

•

Wash your vehicle thoroughly to remove
dirt, grease, oil, tar or mud from exterior
surfaces, rear-wheel housing and the
underside of front fenders.

•

Periodically wash your vehicle if it is
stored in exposed locations.

•

Touch-up exposed or primed metal to
prevent rust.

•

Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration.  Re-wax as necessary when
you wash your vehicle.

•

Lubricate all hood, door and luggage
compartment hinges and latches with a
light grade oil.

•

Cover interior trim to prevent fading.

•

Keep all rubber parts free from oil and
solvents.

Engine

•

Change the engine oil and filter prior to
storage because used engine oil contains
contaminates which may cause engine
damage.

•

Start the engine every 15 days for a
minimum of 15 minutes.  Run at fast idle
with the climate controls set to defrost
until the engine reaches normal
operating temperature.

•

With your foot on the brake, shift through
all the gears while the engine is running.

•

We recommend that you change the
engine oil before you use your vehicle
again.

Fuel system

•

Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the fuel
pump nozzle.

Cooling system

•

Protect against freezing temperatures.

•

When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling system
leaks and that fluid is at the
recommended level.

Disconnecting Your 12 Volt Battery

•

Check and recharge as necessary. Keep
connections clean.

•

If storing your vehicle for more than 30
days without recharging the battery, we
recommend that you disconnect the
battery cables to maintain battery charge
for quick starting.

Note:

It is necessary to reset memory

features if you disconnect the battery cables.

428

Vehicle Care

Plugging in Your HYBRID

We recommend the following options for
your plug-in vehicle (PHEV) :

•

Leave your vehicle plugged in. The 12
volt battery maintains power if left
plugged in. However, this periodically
uses electricity from the household
outlet.

•

Connect a battery charger to your 12 volt
battery and leave it on a continuous, slow
charge.

•

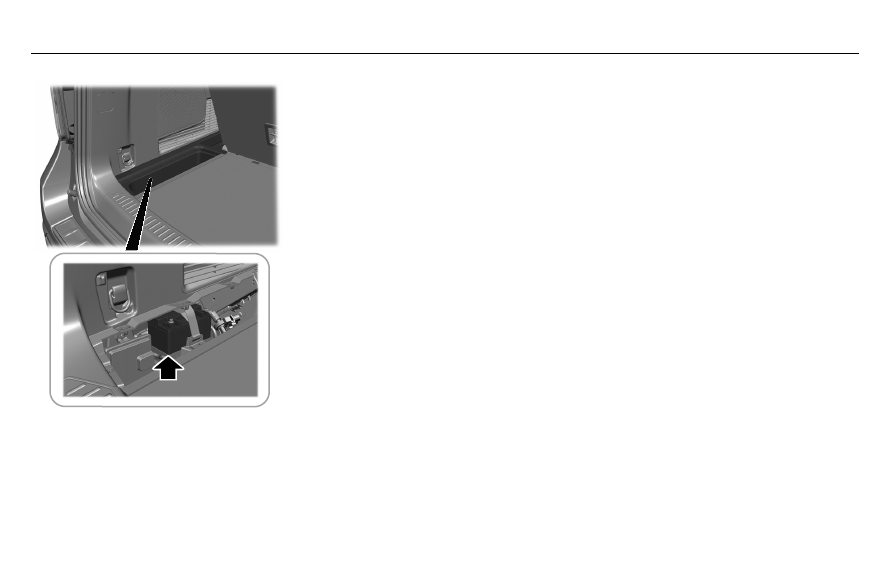

Disconnect the 12 volt battery. If your 12
volt battery is located in the luggage
compartment, do not fully shut the
luggage compartment after
disconnecting the 12 volt battery. Only
leave the luggage compartment open if
your vehicle is stored in a locked
location.

Brakes

•

Make sure the brakes and parking brake
release fully.

Tires

•

Maintain recommended air pressure.

Miscellaneous

•

Make sure all linkages, cables, levers and
pins under your vehicle are covered with
grease to prevent rust.

•

Move vehicles at least 25 ft (7.5 m) every
15 days to lubricate working parts and
prevent corrosion.

Removing Vehicle From Storage

When your vehicle is ready to come out of
storage, do the following:

•

Wash your vehicle to remove any dirt or
grease film build-up on window surfaces.

•

Check windshield wipers for any
deterioration.

•

Check under the hood for any foreign
material that may have collected during
storage such as mice or squirrel nests.

•

Check the exhaust for any foreign
material that may have collected during
storage.

•

Check tire pressures and set tire inflation
per the Tire Label.

•

Check brake pedal operation. Drive your
vehicle 15 ft (4.5 m) back and forth to
remove rust build-up.

•

Check fluid levels (including coolant, oil
and gas) to make sure there are no leaks,
and fluids are at recommended levels.

•

If you remove the battery, clean the
battery cable ends and check for
damage.

Contact an authorized dealer if you have any
concerns or issues.

BODY STYLING KITS

 (IF EQUIPPED)

The distance between the underside of your
vehicle and the ground is less than that of
other models.  Drive with extreme care to
avoid damage to your vehicle.

429

Vehicle Care
