FUSE SPECIFICATION CHART

Engine Compartment Fuse Box

WARNING:

Always disconnect the

battery before servicing high current fuses.

WARNING:

To reduce risk of

electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs.

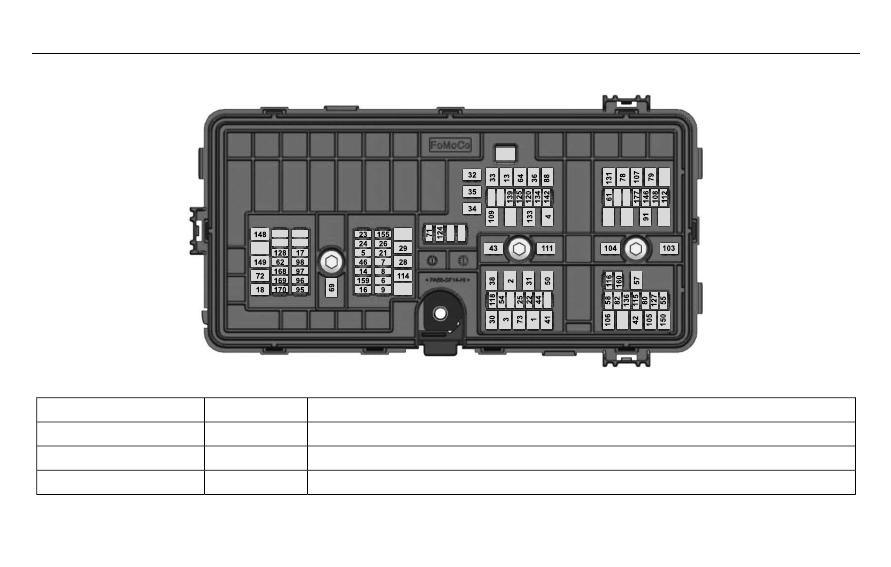

The engine compartment fuse box is under
the driver side leaf screen in the engine
compartment. It has high-current fuses that
protect the vehicle's main electrical systems
from overloads.

If you disconnect and reconnect the battery,
you need to reset some features.  See

Changing the 12V Battery

 (page 410).

Note:

 Replace fuses with the same type and

rating.  See

Changing a Fuse

 (page 395).

382

Fuses

E288347

Protected Component

Fuse Rating

Fuse or Relay Number

Body control module - battery power in feed 1.

40A

1

Not used (spare).

20A

2

Body control module - battery power in feed 2.

40A

3

383

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Fuel pump.

30A

4

Powertrain control module keep alive power.

5A

5

Powertrain control module power.

20A

6

Canister vent solenoid.

20A

7

Evaporative leak control module.
Exhaust gas heat recovery.
Tank pressure control valve.
Refueling valve.
Vapor blocking valve.
Universal exhaust gas oxygen 11.
Universal exhaust gas oxygen 21.
Catalyst monitor sensor 12.
Catalyst monitor sensor 22.
Canister purge valve.

Cooling fan relay coil.

20A

8

Battery interrupt box.
Transmission oil pump.
Auxiliary coolant pump.
Fuel flap door.
Engine coolant bypass valve.
Active grille shutters.

Ignition coils.

20A

9

384

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front blower motor relay.

40A

13

Transmission oil pump.

15A

14

A/C compressor variable clutch.
Engine mounts.
Auxiliary pumps.

Windshield and rear window washer pump relay power.

15A

16

Charge status indicator.

5A

17

Starter motor.

30A

18

Headlamp leveling motors.

10A

21

Adaptive headlamps.

Electric power assisted steering module.

10A

22

Anti-lock brake system module with integrated park brake.

10A

23

Powertrain control module.

10A

24

Hybrid powertrain control module.

Air quality sensor.

10A

25

Particulate matter sensor.
360 degree camera with park aid.
Rear view camera.
Blind spot information system.
Adaptive cruise control module.

385

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Transmission control module.

15A

26

Anti-lock brake system valves with integrated park brake.

40A

28

Anti-lock brake system pump with integrated park brake.

60A

29

Driver seat module.

30A

30

Passenger seat module.

30A

31

Not used (spare).

20A

32

Rear cargo area power point.

20A

33

Main console bin power point.

20A

34

Not used (spare).

20A

35

Power inverter.

40A

36

Climate controlled seat module.

30A

38

Power liftgate module.

30A

41

Trailer brake control module.

30A

42

Body control module.

60A

43

Brake on and off switch.

10A

44

Battery charger control module.

15A

46

386

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Heated backlite.

40A

50

Heated steering wheel.

20A

54

Trailer tow park lamps.

20A

55

Trailer tow battery charge.

30A

57

Trailer tow backup lamps.

10A

58

Multi-contour seat module.

15A

61

Headlamp washer pump.

15A

62

Four-wheel drive module.

40A

64

Front window wiper motor.

30A

69

Rear window wiper motor.

15A

71

Air suspension module.

20A

72

Driver door module.

30A

73

Not used.

—

78

Not used.

—

79

Left-hand front electronic door.

20A

80

Right-hand front electronic door.

20A

82

387

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Rear blower motor.

20A

88

Trailer tow lighting module.

20A

91

Integrated spark control.

15A

95

Not used (spare).

15A

96

Electric A/C.

10A

97

High voltage positive temperature coefficient heater.

Traction battery coolant proportional valve.

10A

98

Not used (spare).

50A

103

Not used (spare).

50A

104

Not used (spare).

40A

105

Not used (spare).

40A

106

Not used (spare).

40A

107

Not used (spare).

20A

108

Passenger door module.

30A

109

Body control module voltage quality monitor feed.

30A

111

Left-hand rear electronic door.

20A

112

388

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Air suspension compressor.

50A

114

Amplifier.

20A

115

Not used (spare).

5A

116

Second row heated seats.

30A

118

Port fuel injectors.

15A

120

Rain sensor.

5A

124

USB smart charger 1.

5A

125

Amplifier.

20A

127

Illuminated badge.

15A

128

Power folding seat module.

40A

131

Left-hand heated wiper blade.

15A

133

Right-hand heated wiper blade.

Family entertainment system.

10A

134

Right-hand rear electronic door.

20A

136

USB smart charger 2.

5A

139

Traffic cam.

5A

142

389

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Battery electronic control module.

15A

146

Left-hand headlamp module.

30A

148

Right-hand headlamp module.

30A

149

Not used (spare).

40A

150

Transmission control module.

25A

155

DC/DC converter.

15A

159

Not used (spare).

10A

160

Low voltage service disconnect.

20A

168

Coolant pump.

10A

169

Traction battery coolant pump.

10A

170

Pedestrian sounder.

Center console blower.

10A

177

Note:

 Spare fuse amperage may vary.

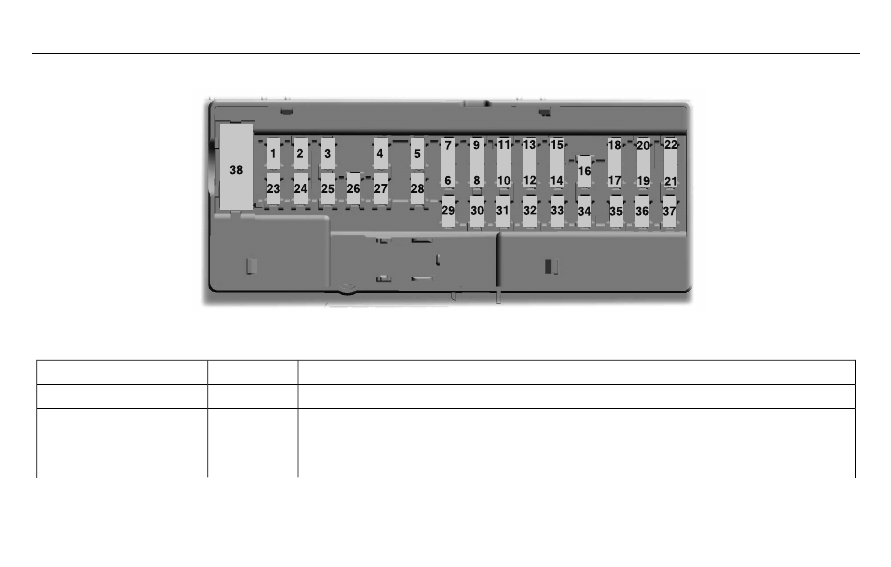

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

Note:

It may be easier to access the fuse

panel if you remove the finish trim piece.

390

Fuses

598

E145984

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

1

Moonroof.

10A

2

eCall.
Telematics control unit module.
Inverter.

391

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Driver door switch pack.

Memory seat switch.

7.5A

3

Wireless accessory charger module.
Seat switches.

Not used (spare).

20A

4

Not used.

—

5

Not used (spare).

10A

6

Smart data link connector power.

10A

7

Telematics control unit module.

5A

8

Hands-free liftgate actuation module.
Power liftgate module.

Combined sensor module.

5A

9

Keypad switch.
Rear climate control.

Not used.

—

10

Not used.

—

11

Remote climate control module.

7.5A

12

Gear shift module.

Steering column control module.

7.5A

13

392

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Switch interface module A.
Smart datalink connector.
Instrument cluster.

Not used (spare).

15A

14

SYNC.

15A

15

Electronic finish panel.

Not used.

—

16

Headlamp control module.

7.5A

17

Not used (spare).

7.5A

18

Headlamp switch.

5A

19

Push button ignition switch.

Telematics control unit module.

5A

20

eCall.
Bluetooth low energy module.

Not used (spare).

5A

21

Not used (spare).

5A

22

Not used (spare).

30A

23

Moonroof.

30A

24

393

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used (spare).

20A

25

Not used (spare).

30A

26

Not used (spare).

30A

27

Not used (spare).

30A

28

Head up display.

15A

29

Trailer brake connector.

5A

30

Terrain management switch.

10A

31

Transceiver module.

Audio control module.

20A

32

Not used.

—

33

Run/Start relay.

30A

34

Not used (spare).

5A

35

Park assist module.

15A

36

Electrochromic mirror.
Suspension module.
Image processing module A.

394

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used (spare).

20A

37

Not used.

—

38

Note:

 Spare fuse amperage may vary.

CHANGING A FUSE

Fuses

WARNING:

Always replace a fuse

with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire.

E217331

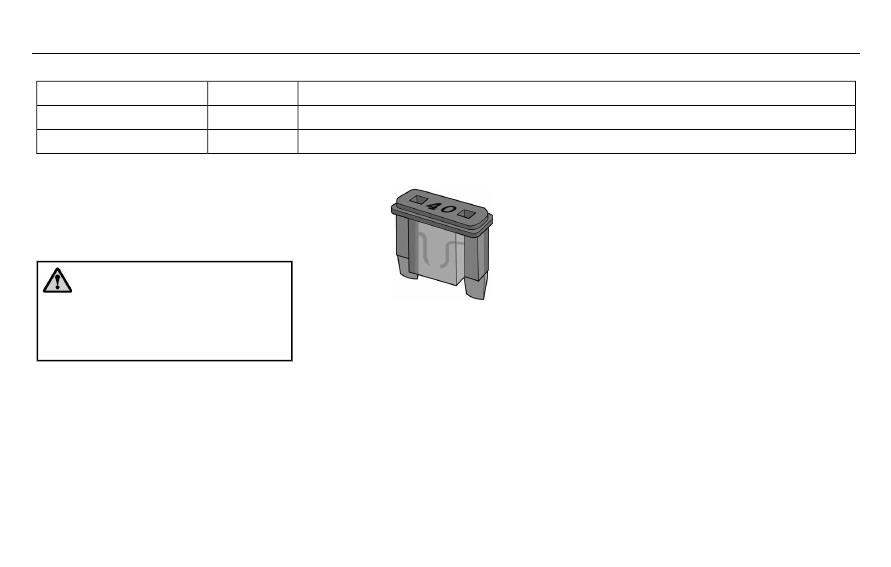

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

395

Fuses

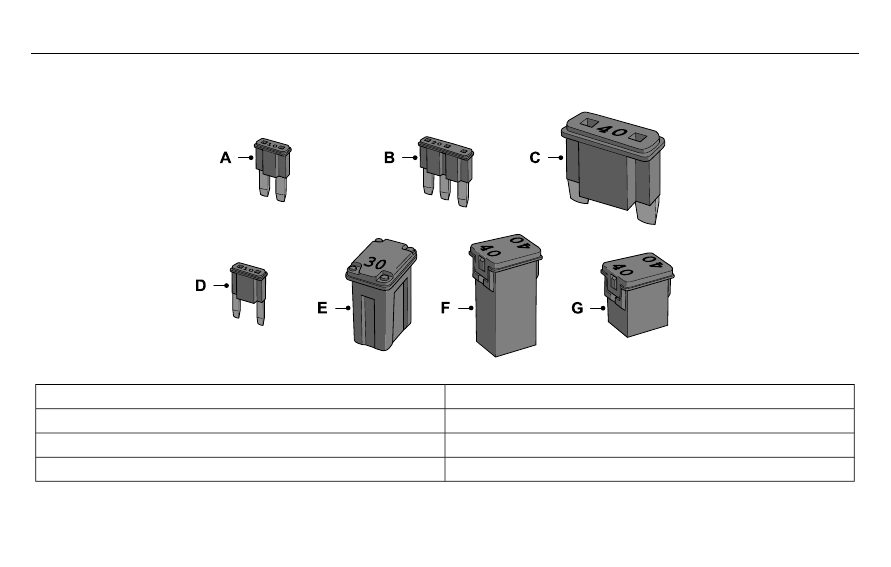

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

396

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

397
