HOW DOES TRACTION CONTROL
WORK

If your vehicle begins to slide, the system
applies the brakes to individual wheels and,
when needed, reduces power at the same
time. If the wheels spin when accelerating
on slippery or loose surfaces, the system
reduces power in order to increase traction.

SWITCHING TRACTION CONTROL
ON AND OFF

WARNING: Operating your vehicle

with the traction control disabled could
lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death.

When you switch the system off or on, a
message appears in the information display
showing system status.

You can switch the system off with the
traction control switch.

Using a Switch

Use the traction control switch on the
instrument panel to switch the system off or
on.

TRACTION CONTROL INDICATOR

E138639

E130458

TRACTION CONTROL –
TROUBLESHOOTING

TRACTION CONTROL – WARNING
LAMPS

System Messages

E138639

The traction control light
temporarily illuminates on start-up
and flashes when activated by a

driving condition.

The traction control off light temporarily
illuminates on start-up and stays on:

•

When you switch the traction control
system off.

•

When you select an alternative stability
control mode.

•

If a problem occurs in the system.

230

Traction Control

HOW DOES STABILITY CONTROL
WORK

WARNING: Vehicle modifications

involving braking system, aftermarket roof
racks, suspension, steering system, tire
construction and wheel and tire size may
change the handling characteristics of your
vehicle and may adversely affect the
performance of the electronic stability
control system. In addition, installing any
stereo loudspeakers may interfere with
and adversely affect the electronic stability
control system. Install any aftermarket
stereo loudspeaker as far as possible from
the front center console, the tunnel, and
the front seats in order to minimize the risk
of interfering with the electronic stability
control sensors. Reducing the
effectiveness of the electronic stability
control system could lead to an increased
risk of loss of vehicle control, vehicle
rollover, personal injury and death.

WARNING: Remember that even

advanced technology cannot defy the laws
of physics. It's always possible to lose
control of a vehicle due to inappropriate
driver input for the conditions. Aggressive
driving on any road condition can cause
you to lose control of your vehicle
increasing the risk of personal injury or
property damage. Activation of the
electronic stability control system is an
indication that at least some of the tires
have exceeded their ability to grip the
road; this could reduce the operator's
ability to control the vehicle potentially
resulting in a loss of vehicle control, vehicle
rollover, personal injury and death. If your
electronic stability control system activates,
SLOW DOWN.

If a driving condition activates either the
stability control or the traction control system
you may experience the following conditions:

•

The stability and traction control light
flashes.

•

Your vehicle slows down.

•

Reduced engine power.

The stability control system has several
features built into it to help you maintain
control of your vehicle:

Electronic Stability Control

Electronic stability control enhances your
vehicle’s ability to prevent skids or lateral
slides by applying brakes to one or more of
the wheels individually and, if necessary,
reducing engine power.

Roll Stability Control

Roll stability control enhances your vehicle’s
ability to prevent rollovers by detecting your
vehicle’s roll motion and the rate at which it
changes by applying the brakes to one or
more wheels individually.

231

Stability Control

Curve Control

Curve control enhances your vehicle’s ability
to follow the road when cornering severely
or avoiding objects in the roadway. Curve
control operates by reducing engine power
and, if necessary, applying brakes to one or
more of the wheels individually.

Traction Control

Traction control enhances your vehicle’s
ability to maintain traction of the wheels by
detecting and controlling wheel spin.  See
How Does Traction Control Work (page 230).

E72903

Vehicle without stability control
skidding off its intended route.

A

Vehicle with stability control
maintaining control on a slippery
surface.

B

SWITCHING STABILITY CONTROL
ON AND OFF

The system turns on each time you switch
the ignition on.

You can switch the electronic stability control
system off by pressing and holding the ESC
off button for over 15 seconds, or you can
press the button again to switch the system
on.

E130458

Shifting the transmission into
reverse (R) disables the system.

You can switch the traction control system
off or on independently. See Switching
Traction Control On and Off (page 230).

STABILITY CONTROL INDICATOR

E138639

If it does not illuminate when you
switch the power on, or remains
on, this indicates a malfunction.

Have your vehicle checked by an authorized
dealer as soon as possible.

232

Stability Control

STABILITY CONTROL –
TROUBLESHOOTING

STABILITY CONTROL – INFORMATION
MESSAGES

Displayed when the

system has detected

a condition that

requires service.

Contact your author-

ized dealer as soon

as possible.

Service Advan-

ceTrac

The traction control

has been disabled or

enabled by the

driver

AdvanceTrac Off On

233

Stability Control

ELECTRIC POWER STEERING

ELECTRIC POWER STEERING
PRECAUTIONS

WARNING: The electric power

steering system has diagnostic checks that
continuously monitor the system. If a fault
is detected, a message displays in the
information display. Stop your vehicle as
soon as it is safe to do so. Switch the

vehicle off. After at least 10 seconds, switch
the vehicle on and watch the information
display for a steering system warning
message. If a steering system warning
message returns, have the system checked
as soon as possible.

WARNING: If the system detects an

error, you may not feel a difference in the
steering, however a serious condition may
exist. Have your vehicle checked as soon
as possible. Failure to do so may result in
loss of steering control.

Adapt your speed and driving behavior
according to reduced steering assist.

Extreme continuous steering may increase
the effort to steer. This occurs to prevent
internal overheating and damage to the
steering system. If this occurs, you will not
lose the ability to steer your vehicle manually
nor will it cause damage to the system.
Normal steering and driving allows the
system to cool down and steering assist
returns to normal.

Note: There is no fluid reservoir to check or
fill.

234

Steering

STEERING – TROUBLESHOOTING

STEERING – INFORMATION MESSAGES

Action

Message

The power steering system has detected a condition that requires

service.  Have your vehicle checked as soon as possible.

Steering Fault Service Now

The power steering system is not working.  Stop your vehicle in a safe

place.  Have your vehicle checked as soon as possible.

Steering Loss Stop Safely

The power steering system has detected a condition that requires

service.  Have your vehicle checked as soon as possible.

Steering Assist Fault Service Required

235

Steering

PARKING AID PRECAUTIONS

WARNING: To help avoid personal

injury, always use caution when in reverse
(R) and when using the sensing system.

WARNING: The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care and
attention. Failure to take care may result
in a crash.

WARNING: Traffic control systems,

fluorescent lamps, inclement weather, air
brakes, external motors and fans may
affect the correct operation of the sensing
system. This may cause reduced
performance or false alerts.

WARNING: The system may not

detect small or moving objects, particularly
those close to the ground.

WARNING: The parking aid system

can only assist you to detect objects when
your vehicle is moving at parking speeds.
To help avoid personal injury you must
take care when using the parking aid
system.

WARNING: The system may not

function if the sensor is blocked.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

Note: If your vehicle sustains damage
leaving the sensors misaligned, this will
cause inaccurate measurements or false
alerts.

When you connect a trailer to your vehicle,
the rear parking aid detects the trailer and
provides an alert. Disable the parking aid
when you connect a trailer to prevent the
alert.

Note: Certain add-on devices installed
around the bumper or fascia may create
false alerts, for example, large trailer hitches,
bike or surfboard racks, license plate
brackets, bumper covers or any other device
that could block the normal detection zone
of the parking aid system. Aftermarket spare
tires or spare tire covers mounted to the rear
tailgate could cause false alerts from the
park aid system. Remove the add-on device
to prevent false alerts.

Note:  Keep the sensors free from snow, ice
and large accumulations of dirt.  If the
sensors are covered, the system's accuracy
can be affected.

Do not clean the sensors with sharp objects.

Note:  When using a programmed MyKey,
you cannot switch the parking aids off.   See
MyKey™ (page 85).

236

Parking Aids

SWITCHING PARKING AID ON AND
OFF

E326188

P

Press the parking aid button and
use the menu to turn the system
on and off.

The system can also be turned off using the
pop-up message that appears when you are
in reverse (R).

REAR PARKING AID

WHAT IS THE REAR PARKING AID

Rear parking sensors detect objects behind
your vehicle when in reverse (R).

REAR PARKING AID LIMITATIONS

There is a decreased coverage area at the
outer corners.

When using a programmed MyKey, you
cannot switch the rear parking aid off.

The rear parking aid sensors are active when
your vehicle is in reverse (R) and the vehicle
speed is less than 5 mph (8 km/h).

The sensor coverage area is up to 71 in
(180 cm) from the rear bumper.

The rear parking aid detects large objects
when you shift into reverse (R) and any of
the following occur:
•

Your vehicle is moving backward at a low
speed.

•

Your vehicle is stationary but an object
is approaching the rear of your vehicle
at a low speed.

•

Your vehicle is moving backward at a low
speed and an object is moving towards
your vehicle, for example another vehicle
at a low speed.

The system shall provide no audible warning
for the object behind the vehicle when in
neutral (N) gear.

LOCATING THE REAR PARKING AID
SENSORS

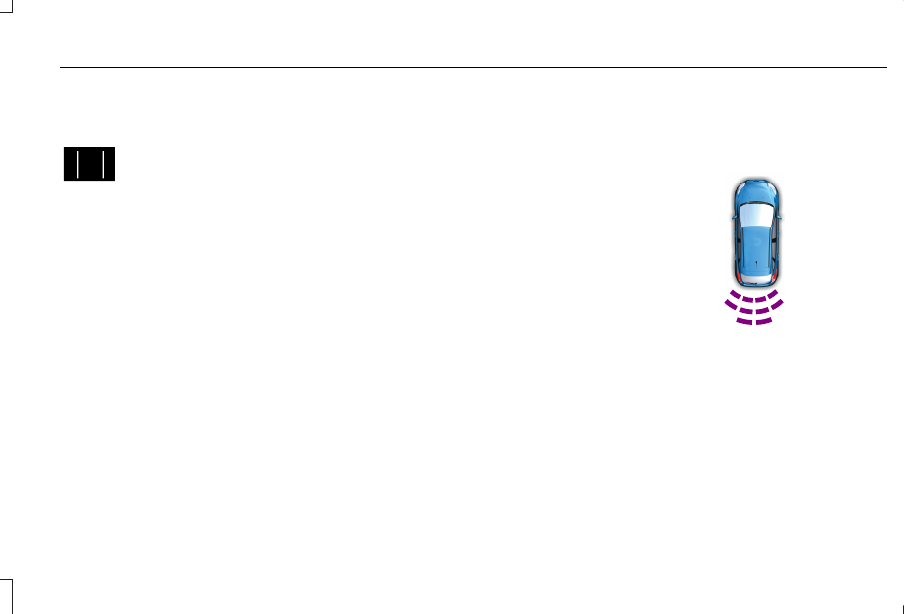

E130178

The rear parking aid sensors are in the rear
bumper.

237

Parking Aids

REAR PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when your vehicle
approaches an object.  As your vehicle
moves closer to an object, the rate of the
tone increases.  The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the rear bumper.

If your vehicle remains stationary for a few
seconds, the audible warning turns off. If your
vehicle moves backward the tone sounds
again.

Note: When the parking aid system sounds
a tone, the audio system could reduce the
set volume.

FRONT PARKING AID

 (IF EQUIPPED)

WHAT IS THE FRONT PARKING AID

Front parking sensors detect objects in front
of your vehicle.

FRONT PARKING AID LIMITATIONS

The front parking aid sensors are active
when your vehicle is in any position other
than park (P) and the vehicle speed is less
than 5 mph (8 km/h).

The sensor coverage area is up to 28 in
(70 cm) from the bumper.

If your vehicle is in reverse (R), the front
parking aid detects objects when your
vehicle is moving at a low speed or an object
is moving toward your vehicle and provides
an audible warning, for example another
vehicle at a low speed. If your vehicle
remains stationary for a few seconds, the
audible warning turns off. Visual indication
is always active in reverse (R).

If your vehicle is in any forward gear, the
front parking aid provides audible warnings
and visual indication when your vehicle is
moving at a speed of 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. If your vehicle
remains stationary for a few seconds, the
visual indication and audible warning turns
off.

If your vehicle is in neutral (N), the front and
rear sensors provide visual indication only
when your vehicle is moving below a speed
of 5 mph (8 km/h) and obstacles are detected
inside the detection areas. Once your vehicle
stops, the visual indication and audible
warning stops after a few seconds.

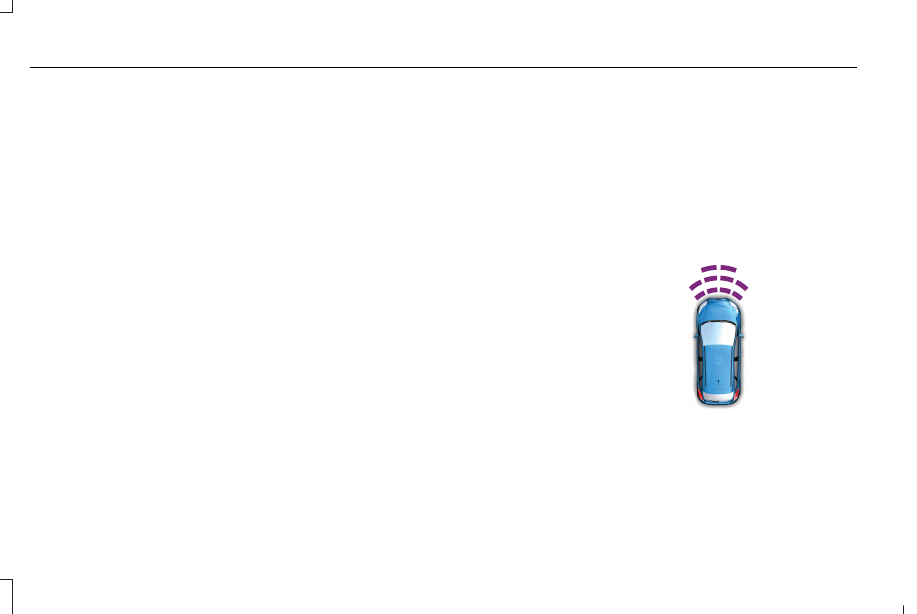

LOCATING THE FRONT PARKING AID
SENSORS

E187330

The front parking aid sensors are in the front
bumper.

238

Parking Aids

FRONT PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when there is an
object within 28 in (70 cm) from the front
bumper. As your vehicle moves closer to an
object, the rate of the tone increases.

The warning tone continuously sounds when
an object is 12 in (30 cm) or less from the
front bumper.

Note: If the detected object is 12 in (30 cm)
or less from your vehicle, visual indication
remains on.

SIDE PARKING AID

WHAT IS THE SIDE PARKING AID

The front and rear outermost parking aid
sensors map objects that are near to the
sides of your vehicle.

SIDE PARKING AID LIMITATIONS

The sensor coverage is up to 24 in (60 cm)
from the sides of your vehicle.

The side parking aid may not function if:
•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

•

Your vehicle is in park (P).

•

The steering wheel angle information is
not available. You must drive at least
492 ft (150 m) above 19 mph (30 km/h) to
reset the steering wheel angle
information.

Note: If you switch traction control off, the
side sensing system also turns off.

To reinitialize the system, drive the length of
your vehicle.

The side parking aid does not detect an
object that is moving toward the side of your
vehicle, for example another vehicle moving
at a low speed, if it does not pass a front or
rear parking aid sensor.

If the transmission is in reverse (R), the side
sensing system provides audible warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in (60 cm)
and are inside the driving path of your
vehicle. If your vehicle remains stationary for
a few seconds, the audible warning turns off.
Visual indication is always present in reverse
(R).

If your vehicle is in neutral (N), the side
sensing system provides visual indication
only when your vehicle is moving slowly and
there is a front or rear parking aid obstacle
detected, and the side obstacle is within
24 in (60 cm) from the side of your vehicle.
If your vehicle remains stationary for a few
seconds, the visual indication turns off.

If the transmission is in drive (D) or any other
forward gear, the side sensing system
provides audible and visual warnings. When
your vehicle is moving slowly, obstacles are
detected within 24 in (60 cm) and are inside
the driving path of your vehicle. If your
vehicle remains stationary for a few seconds,
the visual indication and audible warning
turns off.

239

Parking Aids

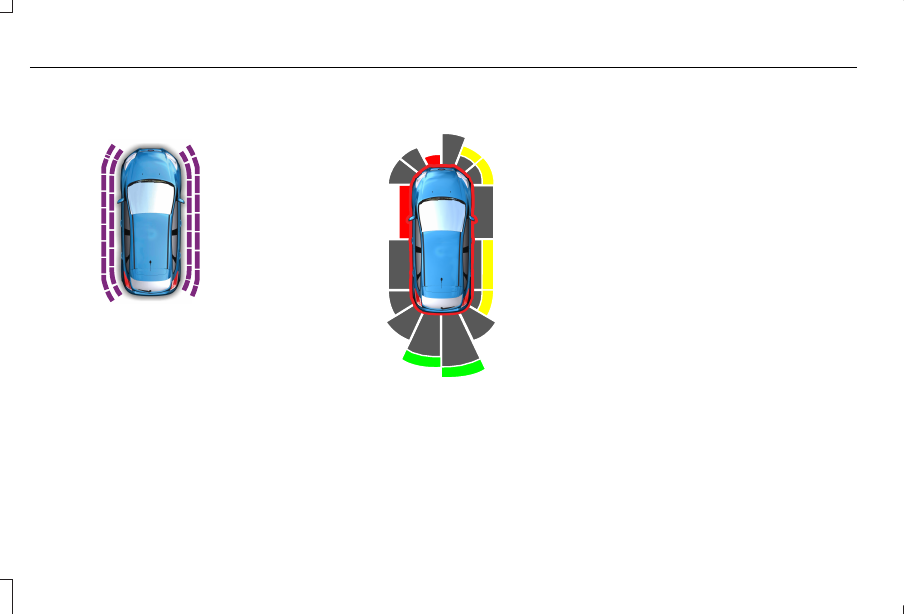

LOCATING THE SIDE PARKING AID
SENSORS

E187810

The side parking sensors are in the front and
rear bumpers on both sides of the vehicle.

SIDE PARKING AID AUDIBLE
WARNINGS

When the side parking aid detects an object
within the coverage area and the driving path
of your vehicle, an audible warning sounds.
As your vehicle moves closer to the object,
the rate of the tone increases.

PARKING AID INDICATORS

E190459

The system provides object distance
indication through the information and
entertainment display.

•

As the distance to the object decreases,
the indicator waves and the lines move
toward the vehicle icon.

•

If there is no object detected, the
distance indicator lines are grey.

Visual indication remains on when your
vehicle is in reverse (R). In any other gear,
when you stop your vehicle, visual indication
turns off after four seconds.

If the parking aids are not available, the side
distance indicator lines do not display.

PARKING AIDS – TROUBLESHOOTING

PARKING AIDS – INFORMATION
MESSAGES

If a fault is present in the parking aids, a
warning message appears in the instrument
cluster or the information and entertainment
display.

240

Parking Aids

Action

Message

The system detects a condition that requires service.  Have your

vehicle checked as soon as possible.

Check Front Park Aid

The system detects a condition that requires service.  Have your

vehicle checked as soon as possible.

Check Rear Park Aid

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

241

Parking Aids

WHAT IS THE REAR VIEW CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

REAR VIEW CAMERA
PRECAUTIONS

WARNING: The rear view camera

system is a reverse aid supplement device
that still requires the driver to use it in
conjunction with the interior and exterior
mirrors for maximum coverage.

WARNING: Objects that are close to

either corner of the bumper or under the
bumper, might not be seen on the screen
due to the limited coverage of the camera
system.

WARNING: Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING: Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to follow
this instruction could result in personal
injury.

WARNING: Use caution when turning

camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

Note:  When towing, the camera only sees
what you are towing.  This might not provide
adequate coverage and you might not see
some objects.  In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

The rear view camera is located on the cargo
door. It provides a video image of the area
behind your vehicle.

REAR VIEW CAMERA GUIDE LINES

Note: Active guide lines and fixed guide lines
are only available when the transmission is
in reverse (R).

Note: The centerline is only available if the
active or fixed guide lines are on.

242

Rear View Camera

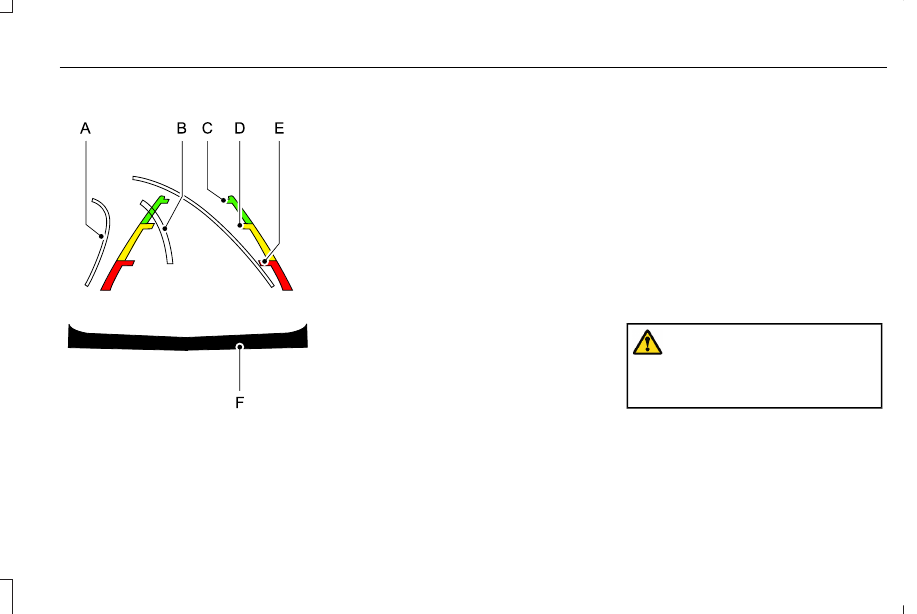

E306774

A. Active guide lines.
B. Centerline.
C. Fixed guide line: Green zone.

D. Fixed guide line: Yellow zone.
E. Fixed guide line: Red zone.
F. Rear bumper.

Active guide lines only show with fixed guide
lines. To use active guide lines, turn the
steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing, your
vehicle might deviate from the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position is
straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and rear
view mirror to get better coverage on both
sides and rear of your vehicle.

REAR VIEW CAMERA OBJECT
DISTANCE INDICATORS

The system provides an image of your
vehicle and the sensor zones. The zones
highlight green, yellow, and red when the
parking aid sensors detect an object in the
coverage area.

REAR VIEW CAMERA SETTINGS

ZOOMING THE REAR VIEW CAMERA
IN AND OUT

WARNING: When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are zoom
in (+) and zoom out (-). Press the symbol on
the camera screen to change the view. The
default setting is zoom off.

243

Rear View Camera

This allows you to get a closer view of an
object behind your vehicle.  The zoomed
image keeps the bumper in the image to
provide a reference.  The zoom is only active
while the transmission is in reverse (R).

Note: Manual zoom is only available when
the transmission is in reverse (R).

Note: Only the centerline shows when you
enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

1. Press Settings.

2. Press Vehicle Settings.

3. Press Rear View Camera.

4. Switch Rear View Camera Delay on or

off.

When shifting the transmission out of reverse
(R) and into any gear other than park (P), the
camera image remains in the display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

244

Rear View Camera

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system consists of
front, side and rear cameras which provide
visibility around your vehicle.

HOW DOES THE 360 DEGREE
CAMERA WORK

The 360 Degree Camera system:

•

Allows you to see what is directly in front
of or behind your vehicle.

•

Provides a cross traffic view in front of
and behind your vehicle.

•

Allows you to see a top-down view of the
area outside your vehicle, including the
blind spots and obstacles near your
vehicle.

360 DEGREE CAMERA
PRECAUTIONS

WARNING: The 360 degree camera

system still requires the driver to use it in
conjunction with looking out of the
windows, and checking the interior and
exterior mirrors for maximum coverage.

WARNING: Objects that are close to

either corner of the bumper or under the
bumper, might not be seen on the screen
due to the limited coverage of the camera
system.

WARNING: Use caution when turning

camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to follow
this instruction could result in personal
injury.

WARNING: When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

245

360 Degree Camera

 (If Equipped)
