PRINCIPLE OF OPERATION

The traction control system helps avoid drive
wheel spin and loss of traction.

If your vehicle begins to slide, the system
applies the brakes to individual wheels and,
when needed, reduces engine power at the
same time. If the wheels spin when
accelerating on slippery or loose surfaces,
the system reduces engine power in order
to increase traction.

USING TRACTION CONTROL

WARNING: Operating your vehicle

with the traction control disabled could
lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death.

The system automatically turns on each time
you switch the ignition on.

If your vehicle is stuck in mud or snow,
switching traction control off may be
beneficial as this allows the wheels to spin.

Note: When you switch traction control off,
stability control remains fully active.

Switching the System Off

When you switch the system off or on, a
message appears in the information display
showing system status.

You can switch the system off by either using
the information display controls or the switch.

Using the Information Display Controls

You can switch this feature off or on in the
information display. See General Information
(page 136).

Using a Switch

 (If Equipped)

Use the traction control switch on the
instrument panel to switch the system off or
on.

System Indicator Lights and Messages

E138639

The stability and traction control
light:

•

Temporarily illuminates on engine
start-up.

•

Flashes when a driving condition
activates either of the systems.

•

Illuminates if a problem occurs in either
of the systems.

E130458

The stability and traction control
off light temporarily illuminates on
engine start-up and stays on when

you switch the traction control system off.

280

Traction Control

PRINCIPLE OF OPERATION

WARNING: Vehicle modifications

involving braking system, aftermarket roof
racks, suspension, steering system, tire
construction and wheel and tire size may
change the handling characteristics of your
vehicle and may adversely affect the
performance of the electronic stability
control system. In addition, installing any
stereo loudspeakers may interfere with
and adversely affect the electronic stability
control system. Install any aftermarket
stereo loudspeaker as far as possible from
the front center console, the tunnel, and
the front seats in order to minimize the risk
of interfering with the electronic stability
control sensors. Reducing the
effectiveness of the electronic stability
control system could lead to an increased
risk of loss of vehicle control, vehicle
rollover, personal injury and death.

WARNING: Remember that even

advanced technology cannot defy the laws
of physics. It’s always possible to lose
control of a vehicle due to inappropriate
driver input for the conditions. Aggressive
driving on any road condition can cause
you to lose control of your vehicle
increasing the risk of personal injury or
property damage. Activation of the
electronic stability control system is an
indication that at least some of the tires
have exceeded their ability to grip the
road; this could reduce the operator’s
ability to control the vehicle potentially
resulting in a loss of vehicle control, vehicle
rollover, personal injury and death. If your
electronic stability control system activates,
SLOW DOWN.

The system automatically turns on each time
you switch the ignition on.

If a fault occurs in either the stability control
or the traction control system, you may
experience the following conditions:

•

The stability and traction control light
illuminates steadily.

•

The stability control and traction control
systems do not enhance your vehicle's
ability to maintain traction of the wheels.

If a driving condition activates either the
stability control or the traction control system
you may experience the following conditions:

•

The stability and traction control light
flashes.

•

Your vehicle slows down.

•

Reduced engine power.

•

A vibration in the brake pedal.

•

The brake pedal is stiffer than usual.

•

If the driving condition is severe and your
foot is not on the brake, the brake pedal
may move as the system applies higher
brake force.

The stability control system has several
features built into it to help you maintain
control of your vehicle:

281

Stability Control

Electronic Stability Control

The system enhances your vehicle’s ability
to prevent skids or lateral slides by applying
brakes to one or more of the wheels
individually and, if necessary, reducing
engine power.

Roll Stability Control

The system enhances your vehicle’s ability
to prevent rollovers by detecting your
vehicle’s roll motion and the rate at which it
changes by applying the brakes to one or
more wheels individually.

Traction Control

The system enhances your vehicle’s ability
to maintain traction of the wheels by
detecting and controlling wheel spin. See
Using Traction Control (page 280).

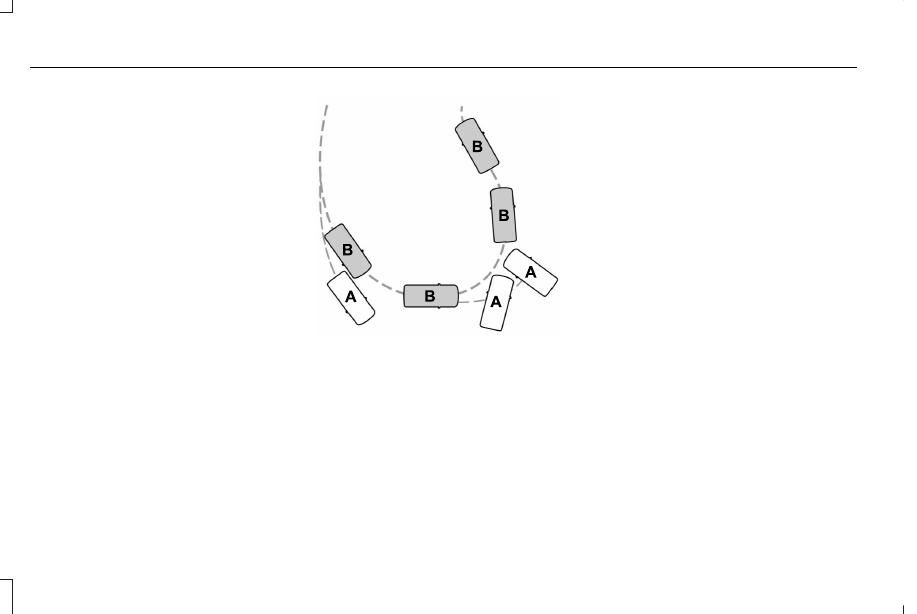

E72903

Vehicle without stability control
skidding off its intended route.

A

Vehicle with stability control
maintaining control on a slippery
surface.

B

USING STABILITY CONTROL

The system automatically turns on each time
you switch the ignition on.

You cannot switch the stability control and
roll stability control systems off, but when
you shift into reverse (R), the systems turn
off.

You can switch the traction control system
off or on.  See Using Traction Control (page
280).

282

Stability Control

PRINCIPLE OF OPERATION

WARNING: To help avoid personal

injury, always use caution when in reverse
(R) and when using the sensing system.

WARNING: The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care and
attention. Failure to take care may result
in a crash.

WARNING: Traffic control systems,

inclement weather, air brakes, external
motors and fans may affect the correct
operation of the sensing system. This may
cause reduced performance or false alerts.

WARNING: The system may not

detect small or moving objects, particularly
those close to the ground.

Note: If your vehicle has MyKey™, the sensing
system cannot be switched off when a
MyKey™ is present. See What Is MyKey
(page 73).

Note: Keep the sensors on the bumper or
fascia free from snow, ice and large
accumulations of dirt. If the sensors are
covered, the system’s accuracy can be
affected. Do not clean the sensors with sharp
objects.

Note: If your vehicle sustains damage to the
bumper or fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of
obstacles or false alerts.

Note: Certain add-on devices installed
around the bumper or fascia may create
false alerts. For example, large trailer
hitches, bike or surfboard racks, license plate
brackets, bumper covers or any other device
that may block the normal detection zone
of the system. Remove the add-on device to
prevent false alerts.

Note: When you connect a trailer to your
vehicle, the rear parking aid may detect the
trailer and therefore provide an alert. Disable
the rear parking aid when you connect a
trailer to prevent the alert.

The sensing system warns the driver of
obstacles within a certain range of your
vehicle. The system turns on automatically
whenever you switch the ignition on.

You can switch the system off through the
touchscreen, information display or from the
pop-up message that appears once you shift
the transmission into reverse (R). If your
vehicle has a parking aid button, you can
switch the system off by pressing the button.

If a fault is present in the system, a warning
message appears in the information display.
See Information Messages (page 142).

REAR PARKING AID

WARNING: The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care and
attention. Failure to take care may result
in a crash.

WARNING: The system may not

detect small or moving objects, particularly
those close to the ground.

283

Parking Aids

WARNING: To help avoid personal

injury, always use caution when in reverse
(R) and when using the sensing system.

WARNING: The parking aid system

can only assist you to detect objects when
your vehicle is moving at parking speeds.
To help avoid personal injury you must
take care when using the parking aid
system.

The sensors are on the rear bumper.

The sensors are active when the
transmission is in reverse (R) and the vehicle
speed is less than 5 mph (8 km/h).  When the
parking aid system sounds a tone, the audio
system may reduce the set volume.

A warning tone sounds when your vehicle
approaches an object.  As your vehicle
moves closer to an object, the rate of the
tone increases.  The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the center of the rear
bumper.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover up the sensors.

Note: Do not clean the sensors with sharp
objects.

Note: If your vehicle sustains damage
leaving the sensors misaligned, this could
cause inaccurate measurements or false
alerts.

Note: Some accessories, for example, large
trailer hitches, bike or surfboard racks, can
cause reduced performance or false alerts.

E130178

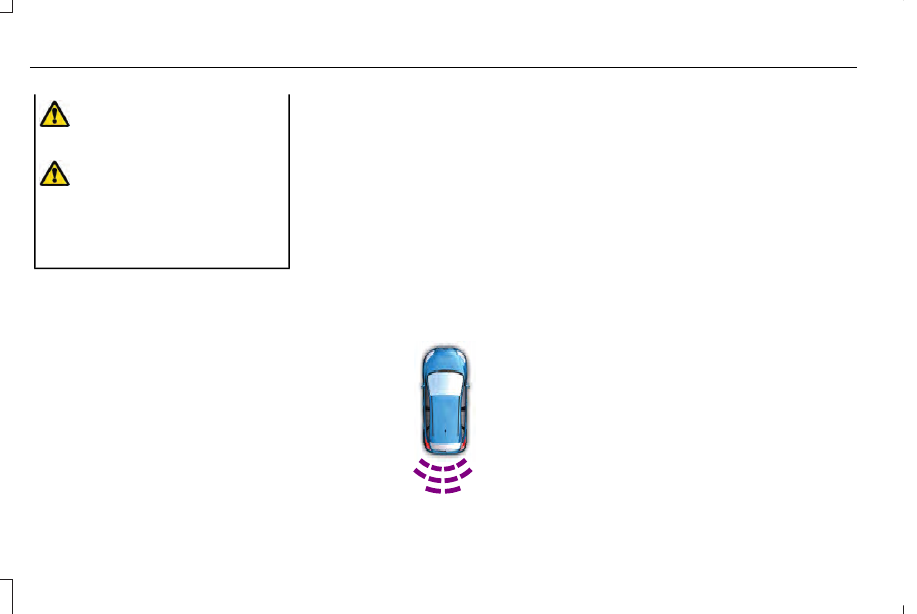

The sensor coverage area is up to 70 in
(180 cm) from the rear bumper.

Note: There is a decreased coverage area
at the outer corners.

If the system detects a fault, a warning
message appears in the information display.

The system detects large objects when you
shift into reverse (R) and any of the following
occur:
•

Your vehicle is moving backward at low
speed.

•

Your vehicle is stationary, but an object
is approaching the rear of your vehicle
at low speed.

•

Your vehicle is moving backward at low
speed and an object is moving toward
your vehicle, for example another vehicle
at low speed.

If your vehicle remains stationary for two
seconds, the audible warning turns off. If your
vehicle moves backward, the tone sounds
again.

Note: If the detected object is 12 in (30 cm)
or less from the rear bumper, the audible
warning does not turn off.

284

Parking Aids

Object Distance Indicator

 (If Equipped)

E190459

The system provides object distance
indication through the information display.

•

As the distance to the object decreases,
the indicator blocks illuminate and move
toward the vehicle icon.

•

If the system does not detect an object,
the distance indicator blocks are gray.

When you shift into reverse (R), the system
provides audible warnings and visual
indication when your vehicle is moving, and
the detected object is moving toward your
vehicle. When you stop your vehicle, the
audible warnings stop after two seconds.
Visual indication remains on when the
transmission is in reverse (R).

FRONT PARKING AID

 (IF EQUIPPED)

WARNING: The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care and
attention. Failure to take care may result
in a crash.

WARNING: The system may not

detect small or moving objects, particularly
those close to the ground.

WARNING: To help avoid personal

injury, always use caution when in reverse
(R) and when using the sensing system.

WARNING: The parking aid system

can only assist you to detect objects when
your vehicle is moving at parking speeds.
To help avoid personal injury you must
take care when using the parking aid
system.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover up the sensors.

Note: Do not clean the sensors with sharp
objects.

Note: If your vehicle sustains damage
leaving the sensors misaligned, this may
cause inaccurate measurements or false
alerts.

Note: Some accessories, for example large
trailer hitches or bike or surfboard racks can
cause reduced performance or false alerts.

The sensors are on the front bumper.

285

Parking Aids

The sensors are active when the
transmission is in any position other than
park (P).  When the parking aid system
sounds a tone, the audio system may reduce
the set volume.

A warning tone sounds when your vehicle
approaches an object.  As your vehicle
moves closer to an object, the rate of the
tone increases.  The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the front bumper.

Note: There is a decreased coverage area
at the outer corners.

The system turns off when the vehicle speed
reaches 5 mph (8 km/h).

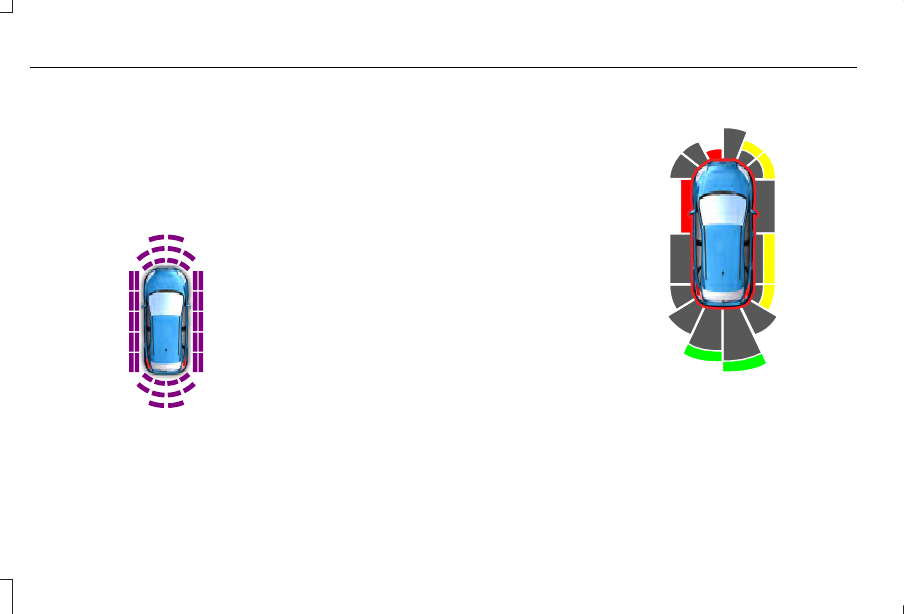

E187330

The sensor coverage area is up to 28 in
(70 cm) from the center of the bumper.

If the transmission is in reverse (R), the
system detects objects when your vehicle is
moving at low speed or an object is moving
toward your vehicle, for example another
vehicle at low speed. When you stop your
vehicle, the audible warning turns off after
two seconds.

If the transmission is in any forward gear, the
system provides audible warnings when your
vehicle is moving and an object is within the
detection area. When you stop your vehicle,
the audible warning turns off after two
seconds and the visual warning turns off after
four seconds.

If the system detects a fault, a warning
message appears in the information display.

Object Distance Indicator

 (If Equipped)

E190459

The system provides object distance
indication through the information display.

•

As the distance to the object decreases,
the indicator blocks illuminate and move
toward the vehicle icon.

•

If there is no object detected, the
distance indicator blocks are gray.

286

Parking Aids

When you shift into any forward gear, the
system provides audible warnings and visual
indication when your vehicle is moving at a
speed of approximately 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. When you stop
your vehicle, the audible warnings stop after
two seconds and visual indication stops after
four seconds.

Note: If the detected object is 12 in (30 cm)
or less from your vehicle, visual indication
remains on.

When you shift into neutral (N), the system
only provides visual indication if your vehicle
is moving at a speed of approximately 5 mph
(8 km/h) or below, for example, your vehicle
is moving on a slope, and the system detects
an object moving toward your vehicle. When
you stop your vehicle, visual indication stops
after four seconds.

SIDE SENSING SYSTEM

 (IF EQUIPPED)

WARNING: The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care and
attention. Failure to take care may result
in a crash.

WARNING: The system may not

detect small or moving objects, particularly
those close to the ground.

WARNING: To help avoid personal

injury, always use caution when in reverse
(R) and when using the sensing system.

WARNING: The parking aid system

can only assist you to detect objects when
your vehicle is moving at parking speeds.
To help avoid personal injury you must
take care when using the parking aid
system.

The system uses the front and rear
outermost parking aid sensors to detect
objects that are near to the sides of your
vehicle. The system displays them on a
virtual map in the information display as your
vehicle moves past them.

The sensors are on the front and rear
bumpers.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover up the sensors.

Note: Do not clean the sensors with sharp
objects.

Note: If your vehicle sustains damage
leaving the sensors misaligned, this may
cause inaccurate measurements or false
alerts.

The system may not function if:
•

You switch the ignition on, off and back
on within a few seconds.

•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

287

Parking Aids

Note: If you switch traction control off, the
side sensing system also turns off.

Note: Some accessories, for example large
trailer hitches or bike or surfboard racks can
cause reduced performance or false alerts.

To reinitialize the system, you may have to
drive your vehicle approximately 10 ft (3 m).

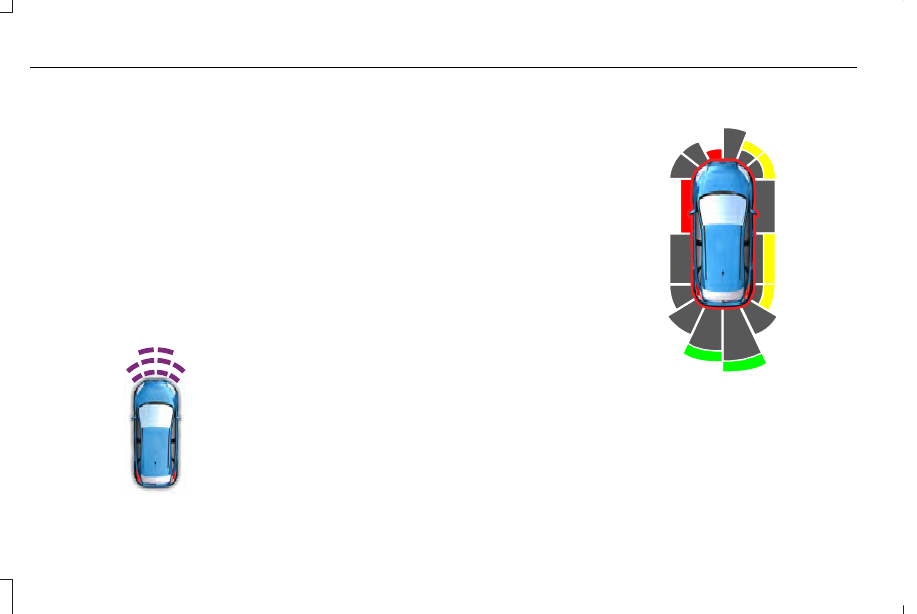

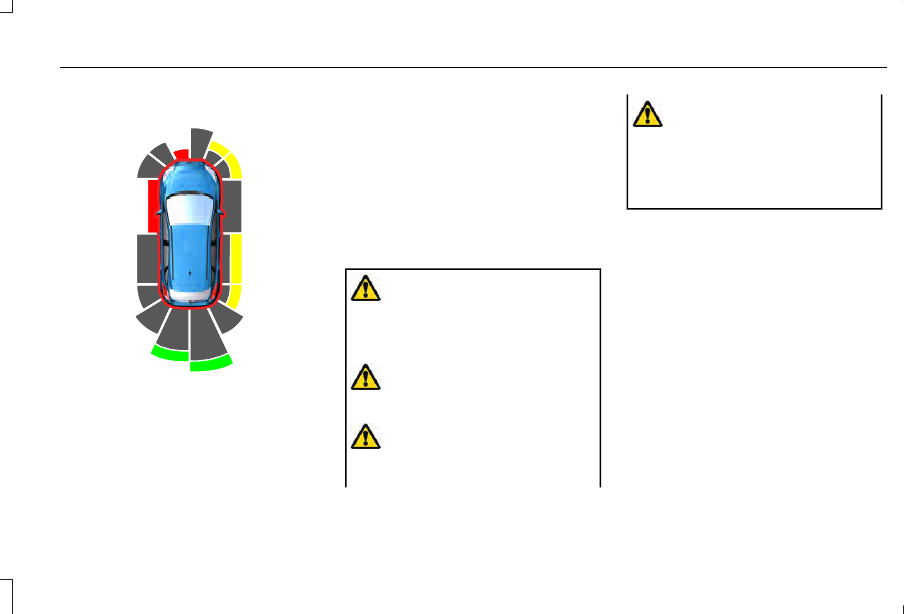

E190458

The sensor coverage area is up to 24 in
(60 cm) from the side of your vehicle.

When the system detects an object within
the coverage area and the driving path of
your vehicle, an audible warning sounds. As
your vehicle moves closer to the object, the
rate of the tone increases.

Note: The system does not detect an object
that is moving toward the side of your
vehicle, for example another vehicle moving
at low speed, if it does not pass a front or
rear sensor.

Object Distance Indicator

 (If Equipped)

E190459

The system provides object distance
indication through the information display.

•

As the distance to the object decreases,
the indicator blocks illuminate and move
toward the vehicle icon.

•

If there is no object detected, the
distance indicator blocks are gray.

288

Parking Aids

When you shift into reverse (R), the system
provides audible warnings and a visual
indication when detected objects are within
24 in (60 cm) and are inside the driving path
of your vehicle. When you stop your vehicle,
the audible warnings turn off after two
seconds.

When you shift into any forward gear, the
system provides audible warnings and a
visual indication when your vehicle is moving
at a speed of approximately 5 mph (8 km/h)
or below and the system detects an object
within the detection zone. When you stop
your vehicle, the audible warnings turn off
after two seconds and the visual indication
turns off after four seconds.

When you shift into neutral (N), the system
only provides a visual indication if your
vehicle is moving at a speed of
approximately 5 mph (8 km/h) or below. For
example, your vehicle is moving on a slope,
and the system detects an object moving
toward your vehicle. When you stop your
vehicle, the visual indication turns off after
four seconds.

If the system is not available, the side
distance indicator blocks do not display.

289

Parking Aids

WHAT IS THE REAR VIEW CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

REAR VIEW CAMERA
PRECAUTIONS

WARNING: The rear view camera

system is a reverse aid supplement device
that still requires the driver to use it in
conjunction with the interior and exterior
mirrors for maximum coverage.

WARNING: Objects that are close to

either corner of the bumper or under the
bumper, might not be seen on the screen
due to the limited coverage of the camera
system.

WARNING: Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING: Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to follow
this instruction could result in personal
injury.

WARNING: Use caution when turning

camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

Note:  When towing, the camera only sees
what you are towing.  This might not provide
adequate coverage and you might not see
some objects.  In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

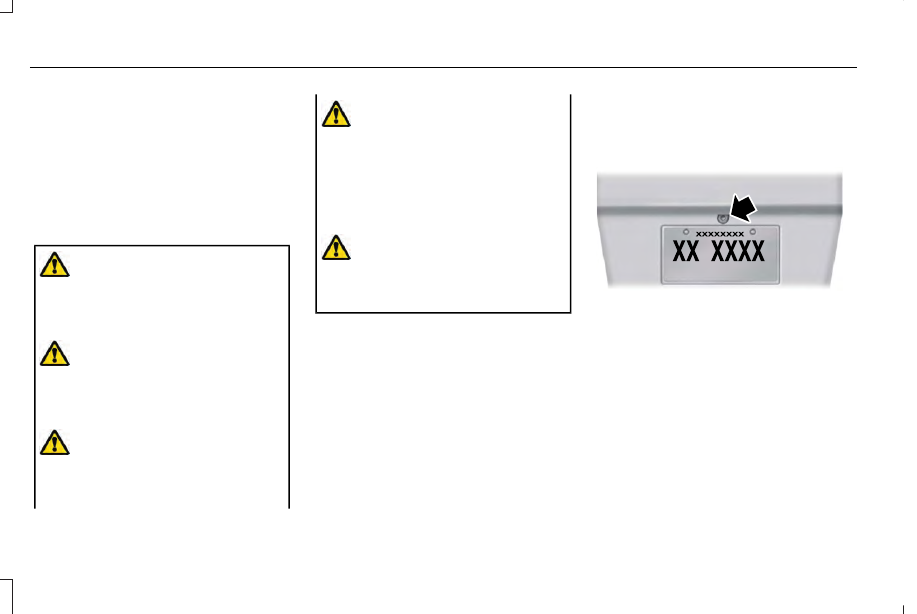

E142435

The rear view camera is on the tailgate.

REAR VIEW CAMERA GUIDE LINES

Note: Active guide lines and fixed guide lines
are only available when the transmission is
in reverse (R).

Note: The centerline is only available if the
active or fixed guide lines are on.

290

Rear View Camera

E306774

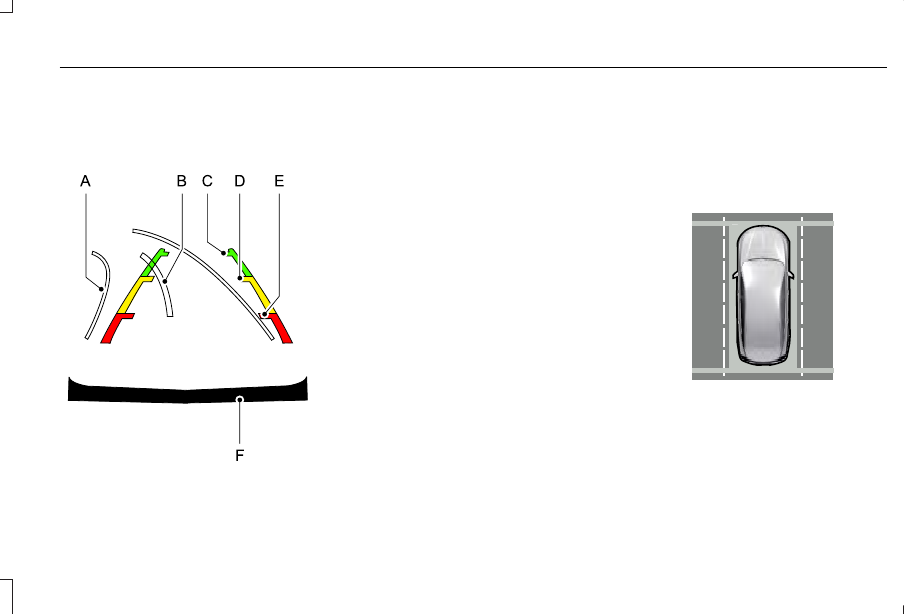

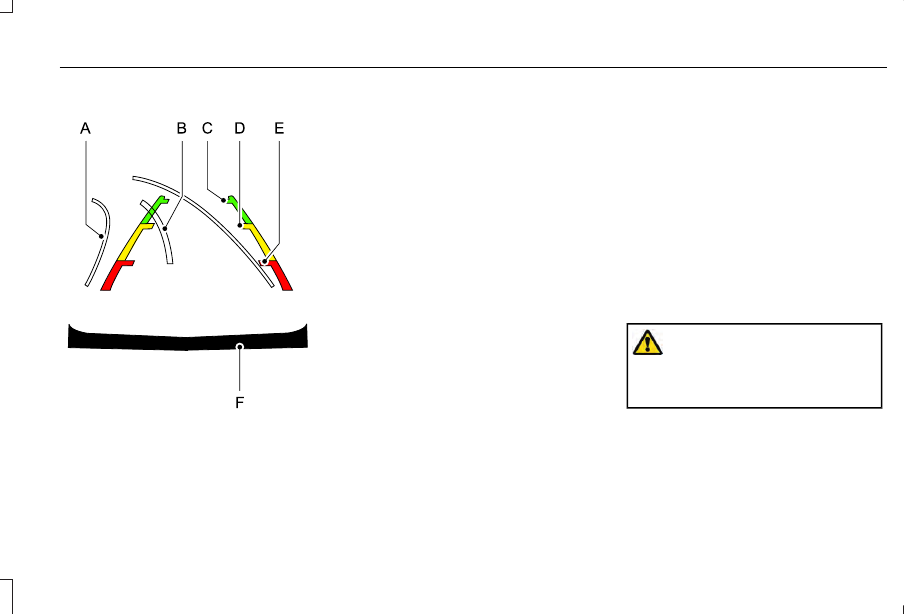

A. Active guide lines.
B. Centerline.
C. Fixed guide line: Green zone.

D. Fixed guide line: Yellow zone.
E. Fixed guide line: Red zone.
F. Rear bumper.

Active guide lines only show with fixed guide
lines. To use active guide lines, turn the
steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing, your
vehicle might deviate from the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position is
straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and rear
view mirror to get better coverage on both
sides and rear of your vehicle.

REAR VIEW CAMERA OBJECT
DISTANCE INDICATORS

The system provides an image of your
vehicle and the sensor zones. The zones
highlight green, yellow, and red when the
parking aid sensors detect an object in the
coverage area.

REAR VIEW CAMERA SETTINGS

ZOOMING THE REAR VIEW CAMERA
IN AND OUT

WARNING: When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are zoom
in (+) and zoom out (-). Press the symbol on
the camera screen to change the view. The
default setting is zoom off.

291

Rear View Camera

This allows you to get a closer view of an
object behind your vehicle.  The zoomed
image keeps the bumper in the image to
provide a reference.  The zoom is only active
while the transmission is in reverse (R).

Note: Manual zoom is only available when
the transmission is in reverse (R).

Note: Only the centerline shows when you
enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

1. Press Features on the touchscreen.
2. Press Driver Assistance.

3. Press Rear View Camera.

4. Switch Rear View Camera Delay on or

off.

When shifting the transmission out of reverse
(R) and into any gear other than park (P), the
camera image remains in the display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

292

Rear View Camera

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system provides
visibility around your vehicle in parking
maneuvers such as:

•

Centering in a parking space.

•

Obstacles near your vehicle.

•

Parallel parking.

The 360 degree camera system consists of
front, side and rear cameras.

360 DEGREE CAMERA
PRECAUTIONS

WARNING: The 360 degree camera

system still requires the driver to use it in
conjunction with looking out of the
windows, and checking the interior and
exterior mirrors for maximum coverage.

WARNING: Objects that are close to

either corner of the bumper or under the
bumper, might not be seen on the screen
due to the limited coverage of the camera
system.

WARNING: Use caution when turning

camera features on or off when the
transmission is not in park (P). Make sure
your vehicle is not moving.

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to follow
this instruction could result in personal
injury.

WARNING: When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

360 DEGREE CAMERA
LIMITATIONS

Note: Use caution if a door is ajar. The 360
degree camera could be out of position and
the image could be incorrect.

293

360 Degree Camera

 (If Equipped)

360 DEGREE CAMERA CAMERAS

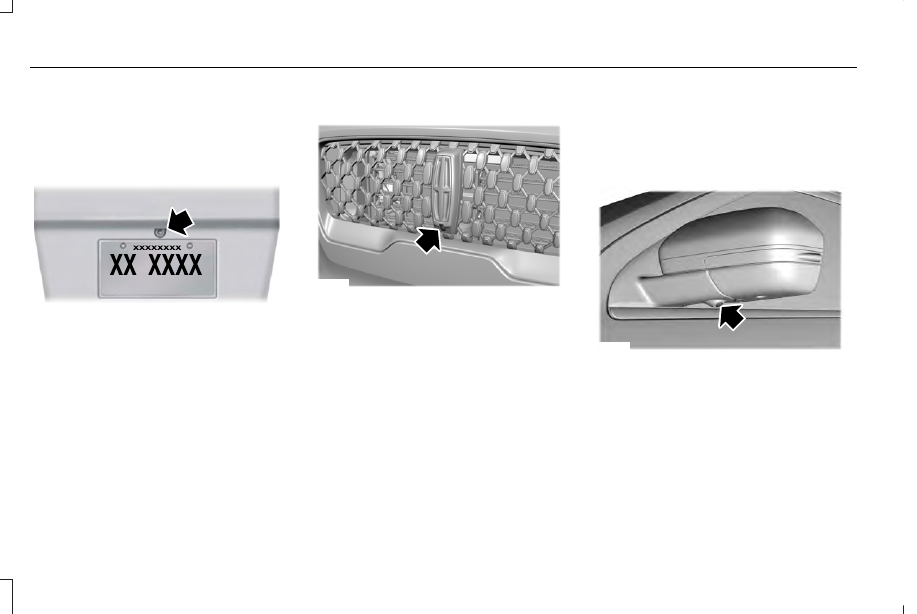

LOCATING THE REAR VIEW CAMERA

E142435

The rear view camera is on the tailgate.

LOCATING THE FRONT VIEW CAMERA

E288873

The front video camera, located in the grille,
provides a video image of the area in front
of your vehicle. It adds assistance to the
drive while driving at low speeds.

To use the front camera system, place the
transmission in any gear except reverse (R)
and press the small icon in the corner of the
screen.

Note: The front camera system turns on
when you are in mud/sand, rock crawl, or
baja mode and your speed is less than
14.9 mph (24 km/h).

The area displayed on the screen could vary
according to your vehicle's orientation and
road conditions.

LOCATING THE SIDE VIEW CAMERA

E250816

The side view camera, that is in the outside
mirror, provides a video image of the area
on the sides of your vehicle as part of the
front 360 + normal view and rear 360 +
normal view. It aids you while parking your
vehicle either forward or backward.

294

360 Degree Camera

 (If Equipped)

360 DEGREE CAMERA GUIDE
LINES

E306774

A. Active guide lines.
B. Centerline.
C. Fixed guide line: Green zone.
D. Fixed guide line: Yellow zone.
E. Fixed guide line: Red zone.
F. Rear bumper.

Active guide lines only show with fixed guide
lines. Turn the steering wheel to point the
guide lines toward an intended path. If the
steering wheel position changes when
reversing, your vehicle could deviate from
the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position is
straight.

Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects get closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side view
mirrors and rear view mirror to get better
coverage on both sides and rear of your
vehicle.

Note: Active guide lines and fixed guide lines
are only available when the transmission is
in reverse (R).

Note: The centerline is only available if the
active or fixed guide lines are on.

Keep Out Zone

E225016

The yellow dotted lines running parallel to
your vehicle represent the keep out zone.

295

360 Degree Camera

 (If Equipped)
