Hill Start Assist

Details

Message

Hill start assist is not available. Contact an authorized dealer.  See Hill Start Assist (page 273).

Hill Start Assist Not Available

Keys and Intelligent Access

Details

Message

A reminder to press the brake while starting your vehicle.

To START Press Brake

The system does not detect the key. You need to have the intelligent access key inside your

vehicle to restart the engine.

No Key Detected

When you press the Start Stop button to shut the engine off, you need to have the intelligent

access key inside your vehicle to restart the engine.

Restart Now or Key is Needed

Your vehicle is in the accessory ignition state.

Full Accessory Power Active

There is a problem with your vehicle’s starting system. See an authorized dealer for service.

Starting System Fault

This message appears after you program a spare key to the system.

Key Program Successful

This message appears after you program the maximum number of keys to the system.

Max Number of Keys Learned

This message appears when your attempt to program a spare key fails.

Key Program Failure

152

Information Displays

Details

Message

Displays during spare key programming when you have not programmed enough keys.

Not Enough Keys Learned

Displays when the key battery is low. Change the battery as soon as possible.

Key Battery Low Replace Soon

Displays when you switch the vehicle off.

Vehicle Switched Off

Lane Keeping System

Details

Message

The system has malfunctioned. Have the system checked as soon as possible.

Lane Keeping Sys. Malfunction Service

Required

The system detects a condition and temporarily disables the front camera. Check to make

sure the area around the camera is clean and free of objects.

Front Camera Temporarily Not Available

Clean the windshield to improve visibility and allow the front camera to properly operate.

Front Camera Low Visibility Clean Screen

The system has malfunctioned. Have the system checked as soon as possible.

Front Camera Malfunction Service Required

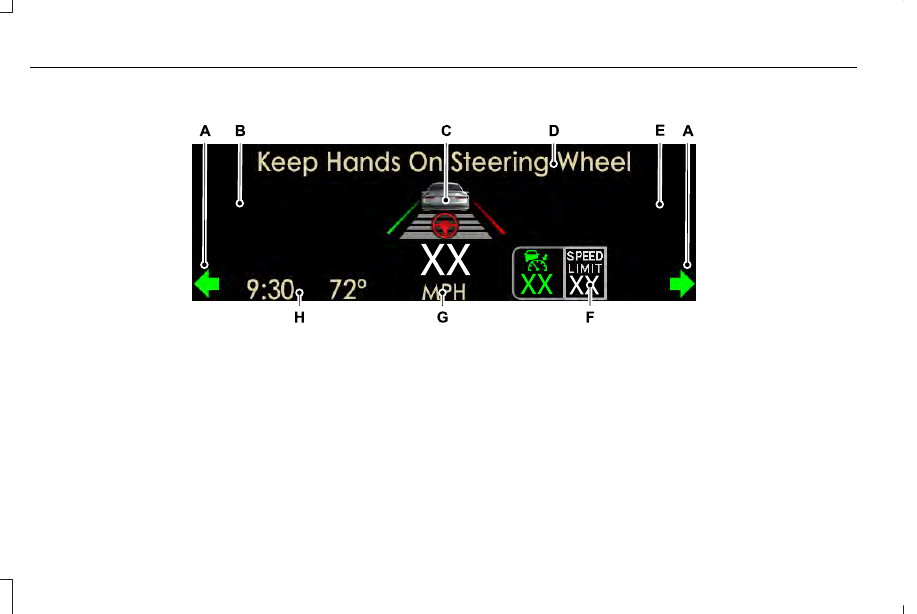

The system requests that you keep your hands on the steering wheel.

Keep Hands on Steering Wheel

153

Information Displays

Maintenance

Details

Message

Stop your vehicle as soon as safely possible and turn off the engine. Check the oil level. If

the warning stays on or continues to come on with your engine running, have the system

checked as soon as possible.

Low Engine Oil Pressure

The engine oil life remaining is 10% or less.

Change Engine Oil Soon

The oil life left reaches 0%.

Oil Change Required

The brake fluid level is low, have the brake system inspected immediately.  See Brake Fluid

Check (page 405).

Brake Fluid Level Low

The brake system needs servicing. Stop the vehicle in a safe place. Have the system checked

as soon as possible.

Check Brake System

The engine coolant temperature is excessively high.  See Engine Coolant Check (page 400).

Engine Coolant Over Temperature

Refill the washer fluid to clear message.

Washer Fluid Level Low

Indicates that your vehicle is still in Transport mode. This may not allow some features to

properly operate. Have the system checked as soon as possible.

Transport Mode Contact Dealer

Indicates that your vehicle is still in Factory mode. This may not allow some features to

properly operate. Have the system checked as soon as possible.

Factory Mode Contact Dealer

154

Information Displays

Details

Message

Informs you that the powertrain needs service due to a powertrain malfunction.

See Manual

The engine reduces power to help lower high engine temperature.

Power Reduced to Lower Engine Temp

The brake system reduces stopping power.

Brake Applied Power Reduced

MyKey

Details

Message

You cannot program a MyKey.

MyKey not Created

MyKey is active.

MyKey Active Drive Safely

With a MyKey in use, the system displays the programmed speed limit for your vehicle.

Speed Limited to XX MPH/km/h

With a MyKey in use, the system indicates that the programmed vehicle speed is approaching

the top speed limit of 80 mph (130 km/h).

Near Vehicle Top Speed

You have reached the speed limit set for your MyKey.

Vehicle at Top Speed of MyKey Setting

You have an active MyKey with a programmed set speed limit.

Check Speed Drive Safely

Belt-Minder turns on with a MyKey in use.

Buckle Up to Unmute Audio

With a MyKey in use, AdvanceTrac turns on.

AdvanceTrac On - MyKey Setting

155

Information Displays

Details

Message

With a MyKey in use, traction control turns on.

Traction Control On - MyKey Setting

With a MyKey in use, park aid is always on.

MyKey Park Aid Cannot be Deactivated

With a MyKey in use, lane keeping alert turns on.

Lane Keeping Alert On MyKey Setting

Park Aid

Details

Message

The system detects a fault that requires service. Have the system checked as soon as possible.

Check Front Park Aid

The system detects a fault that requires service. Have the system checked as soon as possible.

Check Rear Park Aid

Inclement weather conditions; ice, mud or water are blocking the sensor, causing poor radar

visibility. You can typically clean the sensor to resolve.

Rear Park Aid Not Available Sensor Blocked

See Manual

Inclement weather conditions; ice, mud or water are blocking the sensor, causing poor radar

visibility. You can typically clean the sensor to resolve.

Front Park Aid Not Available Sensor Blocked

See Manual

Inclement weather conditions; ice, mud or water are blocking the sensor, causing poor radar

visibility. You can typically clean the sensor to resolve.

Park Aid Not Available Sensor Blocked See

Manual

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

156

Information Displays

Park Brake

Details

Message

The parking brake is set, the engine is running and you drive your vehicle more than 3 mph

(5 km/h). If the warning stays on after you release the parking brake, have the system checked

as soon as possible.

Park Brake Engaged

The electric parking brake is set and you attempt a manual release without pressing both the

brake pedal and switch.

To Release: Press Brake and Switch

The electric parking brake is set and you attempt an automatic release. Perform a manual

release.

Park Brake Use Switch to Release

The electric parking brake is set and your vehicle speed exceeds 3 mph (5 km/h). Release

the park brake before continuing to drive.

Release Park Brake

Fully press the parking brake.

Park Brake Not Applied

Fully press both the switch and the parking brake to release.

Park Brake Not Released

The electric parking brake system is in a special mode to allow service of the rear brakes.

Have the system checked as soon as possible.

Park Brake Maintenance Mode

157

Information Displays

Details

Message

The electric park brake system detects a condition that requires service. Some functionality

may still be available. Have the system checked as soon as possible.

Park Brake Limited Function Service Required

The electric parking brake system detects a condition that requires service. Have the system

checked as soon as possible.

Park Brake Malfunction Service Now

Applying the park brake numerous times has overheated the system. Wait 2 minutes before

attempting to apply again.

Park Brake System Overheated

Power Steering

Details

Message

The power steering system detects a condition that requires service. Have the system checked

as soon as possible.

Steering Fault Service Now

The power steering system is not working.  Stop your vehicle in a safe place.  Have the system

checked as soon as possible.

Steering Loss Stop Safely

The power steering system detects a condition within the power steering system or passive

entry or passive start system that requires service. Have the system checked as soon as

possible.

Steering Assist Fault Service Required

The steering lock system detects a condition that requires service. Have the system checked

as soon as possible.

Steering Lock Malfunction Service Now

158

Information Displays

Pre-Collision Assist

Details

Message

Inclement weather conditions; ice, mud or water are blocking the sensor, causing poor radar
visibility. You can typically clean the sensor to resolve.

Pre-Collision Assist Not Available Sensor

Blocked

A fault with the system has occurred. Have the system checked as soon as possible.

Pre-Collision Assist Not Available

Remote Start

Details

Message

Displays after a remote start to remind you to apply the brake and push the gear shift button

to drive your vehicle.

To Drive: Press Brake and Gear Shift Button

Seats

Details

Message

Move objects away from the seat. If the warning stays on or continues to come on, contact

an authorized dealer as soon as possible.

Occupant Sensor BLOCKED Remove Objects

Near Passenger Seat

Displays as a reminder that memory seats are not available while driving.

Memory Recall Not Permitted While Driving

Displays to show you where you saved your memory setting.

Memory {0} Saved

159

Information Displays

Starting System

Details

Message

Displays when starting the vehicle as a reminder to apply the brake.

To START Press Brake

Displays when the starter exceeds its cranking time when attempting to start the vehicle.

Cranking Time Exceeded

Displays when the starter attempts to start the vehicle.

Engine Start Pending Please Wait

Displays when the system cancels the pending start.

Pending Start Cancelled

Tire Pressure Monitoring System

Details

Message

One or more tires on your vehicle have low tire pressure.   See Tire Pressure Monitoring

System (page 446).

Tire Pressure Low

The tire pressure monitoring system is malfunctioning. If the warning stays on or continues

to come on, have the system checked as soon as possible.  See Tire Pressure Monitoring

System (page 446).

Tire Pressure Monitor Fault

A tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on

how the system operates under these conditions,  See Tire Pressure Monitoring System

(page 446).  If the warning stays on or continues to come on, have the system checked as soon

as possible.

Tire Pressure Sensor Fault

160

Information Displays

Transmission

Details

Message

You switched the engine off and the gear selector is in any position other than park (P).

Shift to Park

The transmission is too cold. Wait for it to warm up before you drive.

Transmission Warming Up Please Wait

Displays when you need to press the brake pedal.

Press Brake Pedal

The transmission is overheating and needs to cool.  Stop in a safe place as soon as possible.

Transmission Over Temperature Stop Safely

Have the system checked as soon as possible.

Transmission Service Required

The transmission is overheating and needs to cool.  Stop in a safe place as soon as possible.

Transmission Too Hot Press Brake

The transmission has limited functionality.  Have the system checked as soon as possible.

Transmission Limited Function See Manual

A reminder to shift into park. In addition, this message is typical after reconnecting or

recharging the battery until you switch the ignition to the on mode.  See Changing the 12V

Battery (page 406).

Transmission Not in Park

Displays when there is a system fault and the park brake needs to be depressed before

exiting the vehicle. Have the system checked as soon as possible.

SHIFT SYS FAULT Confirm Park Brake Apply

Before Exiting the Vehicle

Have the system checked as soon as possible.

SHIFT SYS FAULT Service Required

Displays when there is a system fault while the vehicle is shifting to park. Have the system

checked as soon as possible.

SHIFT SYS FAULT Vehicle is Shifting to Park

Displays when there is a system fault while the vehicle is shifting to reverse. Have the system

checked as soon as possible.

SHIFT SYS FAULT Reverse Unavailable

Service Required

161

Information Displays

Details

Message

Have the system checked as soon as possible.

SHIFT SYS FAULT Drive Unavailable Select

S for Drive Service Required

Have the system checked as soon as possible.

SHIFT SYS FAULT Neutral Unavailable Service

Required

Have the system checked as soon as possible.

SHIFT SYS FAULT Sport Unavailable Service

Required

Displays when you select an invalid gear.

Invalid Gear Selection

Displays when you need to press the brake pedal to enable the transmission to shift from

park.

Depress Brake to Shift from Park

HEAD UP DISPLAY

 (IF EQUIPPED)

The head up display (HUD) is a visual system
that shows information in your field of view
as you drive. The information comes from
various vehicle systems and includes vehicle
speed, speed limit, navigation, and advanced
driver assistance systems such as adaptive
cruise control and the lane keeping system.
This system projects the information off the
windshield, and focuses the image near the

end of the hood approximately 7 ft (2 m) in
front of the driver. Viewing this information
does not require you to significantly move
your head, allowing you to keep your eyes
on the road while having quick and easy
access to information.

Configuring The Head Up Display

You can control the system's options through
the information display by using the 4-way
toggle on the right-hand side of your steering
wheel.  See General Information (page 136).
You can adjust the display according to your
height to make viewing the content easier.
You can also adjust what content displays
and the brightness of the content. The
system's options appear in the instrument
cluster while the updates happen in the head
up display.

162

Information Displays

Note: If HUD On is unchecked, other options
of the system are hidden.

Note: The head up display menu
automatically closes after a certain period
of inactivity.

Note: The head up display image brightness
automatically adjusts to the brightness of
the ambient environment. You have the
ability to adjust the brightness further
according to your preference.

Note: In some instances, sunlight can cause
some reflections in and around the head up
display image.

Head-Up Display (HUD)

Turns the head up display on and off.

HUD On

Follow onscreen directions to confirm or modify your settings.

Brightness

Follow onscreen directions to confirm or
modify your settings.

Vertical Position

HUD Position

Image Rotation

Turns the distance to empty, time and temperature on and off.

HUD Content

Select Your Setting

Cruise and Lane Control

Note: When you save a memory preset position, your current head up display settings are also saved to that memory preset position.  See
Memory Function (page 183).

163

Information Displays

Head Up Display Overview

E307581

Signaling and traffic indication.

A

Navigation display area.

B

Advanced driver assistance systems display area.

C

System message display area.

D

Advanced driver assistance systems message display area.

E

Speed limit display area.

F

Speedometer display area.

G

Status bar.

H

164

Information Displays

Signaling and Traffic Indication

Displays direction indicators and blind spot
information (if direction indicators are active).

Navigation Display Area

Displays navigation next turn instructions.

Advanced Driver Assistance Systems
Display Area

Displays adaptive cruise control, lane
centering aid and lane keeping system status
and warnings.

System Message Display Area

Displays system messages and notifications
including an incoming phone call.

Advanced Driver Assistance Systems
Message Display Area

Displays advanced driver assistance systems
messages and image adjustment prompts.

Speed Limit Display Area

Displays your speed limit information if it is
available in the map database or is detected
by the camera.

Speedometer Display Area

Displays your current vehicle speed and your
transmission gear selection.

Status Bar

Displays Distance To Empty (DTE), time and
outside air temperature. Next to DTE, the
fuel gauge fill color changes to yellow in low
fuel conditions. You can switch off the status
bar in the head up display settings menu.

Maintaining Your Head Up Display

•

Do not place objects onto the transparent
cover, as they may block you from seeing
portions of the image. These objects
could also damage the cover and affect
the quality of the projected image.

•

The system uses a special windshield
designed to provide the optimum image
quality. You must replace the windshield
in a vehicle with this system with a
certified original equipment
manufactured (OEM) head up display
windshield. Replacing this system's
windshield with a non-head up display
windshield causes a double image or
distorted image. Have an authorized
dealer or authorized repair facility replace
the windshield.

•

Light conditions such as oncoming
headlamps, sunrise, sunset or reflections
off road surfaces can affect the driver's
ability to see the head up display image.

•

Clean the windshield often for optimal
head up display performance.  See
Cleaning the Windows and Wiper
Blades (page 416).

165

Information Displays

WHAT IS REMOTE START

The system allows you to remotely start your
vehicle and therefore to heat or cool the
interior to a predetermined temperature.

REMOTE START LIMITATIONS

Remote start does not work if:

•

The alarm horn is sounding.

•

The hood is open.

•

The transmission is not in park (P).

•

Remote start is not enabled.

•

The ignition is on.

Note: Do not use remote start if your fuel
level is low.

ENABLING REMOTE START

1. Press Settings on the touchscreen.

2. Press Vehicle Settings.

3. Press Remote Start Setup.

4. Switch System on or off.

Note: To use remote start, make sure that
the modem is enabled. See Enabling and
Disabling the Modem (page 491).

REMOTELY STARTING THE ENGINE

WARNING: Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start the
engine. Failure to follow this instruction
could result in personal injury or death.

To start the engine, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

Note: You can also use the Lincoln Way App
to start the engine.

Note: The turn signals flash twice.

Note: The parking lamps turn on when the
engine is running.

Note: The horn sounds if the system fails to
start.

Note: All other vehicle systems remain off
when you remotely started the engine.

Note: The vehicle remains secure when you
remotely start the engine. Make sure a valid
key is inside your vehicle to switch the
ignition on and drive your vehicle.

EXTENDING THE REMOTE START
DURATION

To extend the engine running duration
during remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

166

Remote Start

Note: You can extend the engine running
duration to a maximum of 30 minutes.

REMOTELY STOPPING THE
ENGINE

E138625

Press the button on the remote
control to stop the engine.

Note: You can also use the Lincoln Way App
to stop the engine.

REMOTE START REMOTE
CONTROL INDICATORS

Remote Control Feedback

An LED on the remote control provides status
feedback of remote start or stop commands.

Status

LED

Remote start

successful.

Solid green.

Remote stop

successful.

Solid red.

Request failed or

status not received.

Blinking red.

Status incomplete.

Blinking green.

REMOTE START SETTINGS

SWITCHING CLIMATE CONTROL
AUTO MODE ON AND OFF

1. Using the information display controls on

the steering wheel, select Settings.

2. Select Vehicle.

3. Select Remote Start.

4. Select Climate Control.

5. Switch Auto on and off.

Note: If you switch the auto mode on, the
system attempts to heat or cool the interior
to 72°F (22°C).

Note: When you switch the ignition on, the
climate control system returns to the last
used settings.

Note: The heated windshield, heated rear
window, heated mirrors, heated seats and
heated steering wheel could turn on in cold
weather.

SWITCHING CLIMATE CONTROL LAST
SETTINGS ON AND OFF

1. Using the information display controls on

the steering wheel, select Settings.

2. Select Vehicle.

3. Select Remote Start.

4. Select Climate Control.
5. Switch Last settings on or off.

Note: If you switch the last settings on, the
system remembers the last used settings.

167

Remote Start
