Sunshade open. Press and release
to open the sunshade. The
sunshade opens automatically with
the moonroof. You can also open
the sunshade with the moonroof
closed.

C

Sunshade close. Press and release
to close the sunshade.

D

Note: The sunshade stops short of its fully
opened position for the comfort of rear
passengers. To open the sunshade fully,
press the control again.

Note: When closing the sunshade stops at
the first panel for the dual panel moonroof.
Press and release again to continue to fully
close sunshade.

Bounce-Back

The moonroof will stop automatically and
reverse some distance if an obstacle is
detected while closing.

Press and hold (B) for glass bounce-back or
(D) for shade bounce-back within two
seconds of a bounce-back event to override
this function.

120

Windows and Mirrors

GAUGES - PLUG-IN HYBRID
ELECTRIC VEHICLE (PHEV),
VEHICLES WITH: 12.3 INCH
INSTRUMENT CLUSTER DISPLAY
SCREEN

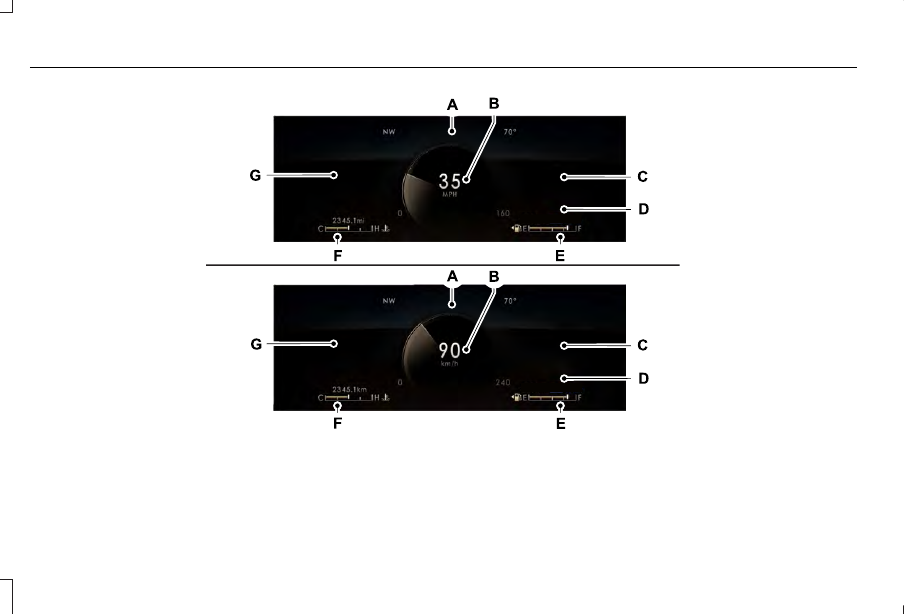

Single Gauge View

Note: Displays may appear slightly different
depending on region.

121

Instrument Cluster

E307726

Status Bar.

A

Speedometer.

B

Right information group.

C

122

Instrument Cluster

Vehicle driving range.

D

Fuel and battery gauges.

E

Engine coolant temperature gauge.

F

Left information group.

G

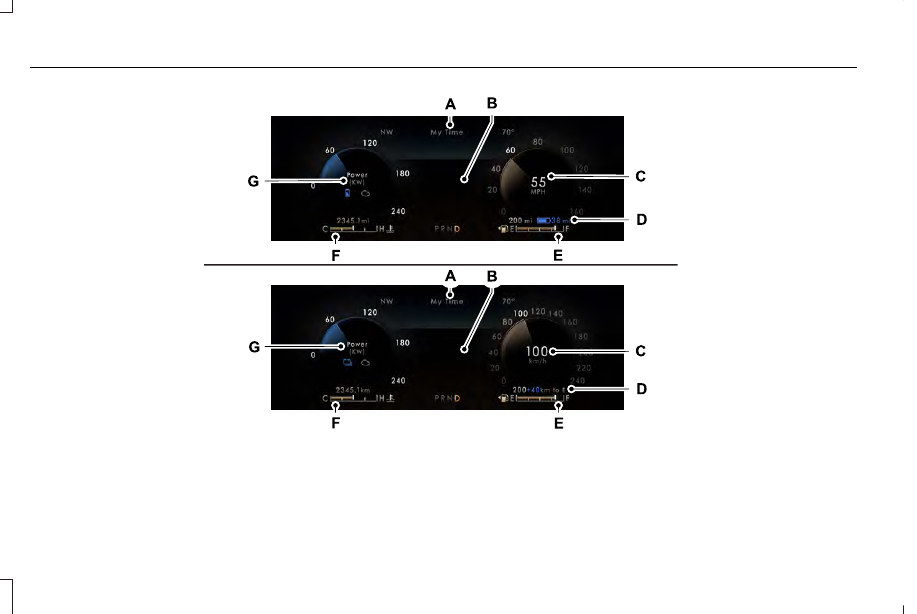

Dual Gauge View

Note: Displays may appear slightly different
depending on region.

123

Instrument Cluster

E355765

Status Bar.

A

Information group.

B

Speedometer.

C

124

Instrument Cluster

Vehicle driving range.

D

Fuel and battery gauges.

E

Engine coolant temperature gauge.

F

Power gauge.

G

Status Bar

Displays information related to the current
audio source, compass direction and outside
air temperature.

Left and Right Information Group

Information that appears depends on current
gauge view and personalized settings.  See
General Information (page 136).

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

High Voltage Battery Gauge

The high voltage battery gauge displays the
total amount of charge associated with your
available electric only driving range. A full fill
represents the total amount of energy you
can get from an external charge, plugging
your vehicle in. When the fill reaches empty,
the powertrain system switches to hybrid
operation.  See Plug-In Hybrid Vehicle
Operation (page 215).

125

Instrument Cluster

Power Gauge

The power gauge displays power to the
wheels when accelerating or maintaining
speed. The high voltage battery power and
engine power contributions are distinguished
by color and added together to indicate total
power to the wheels. When slowing down
by lifting your foot off the accelerator pedal
or pressing the brake, the gauge displays
the power captured by the regenerative
braking system and returned to the high
voltage battery.

Vehicle Driving Range

E320830

Vehicle range indicates the estimated
distance your vehicle will travel with the
energy currently onboard. Estimates will vary
based on the energy used while driving.

Changes in driving pattern can cause the
values to not only decrease but also increase
or stay constant for periods of time.

The amount of energy being used while
driving is affected by:

•

Mild or aggressive acceleration or
braking.

•

Your vehicle speed.

•

Use of accessories such as climate
control.

•

Ambient temperature and other weather
conditions.

•

Driving in a city or on a highway.

•

Driving on hilly road conditions.

Note: It is normal for vehicle range estimates
to vary due to changes in average energy
usage. This is why you typically see different
range estimates each time you fill up your
fuel tank or fully charge your battery.

Gasoline Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank.

Electric Range

Indicates the approximate distance your
vehicle can travel on electric power only with
the engine off.

Engine Coolant Temperature Gauge

WARNING: Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap with
a thick cloth to prevent the possibility of
scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator is in the normal range. If the engine
coolant temperature exceeds the normal
range, stop your vehicle as soon as safely
possible, switch off the engine and let the
engine cool.

126

Instrument Cluster

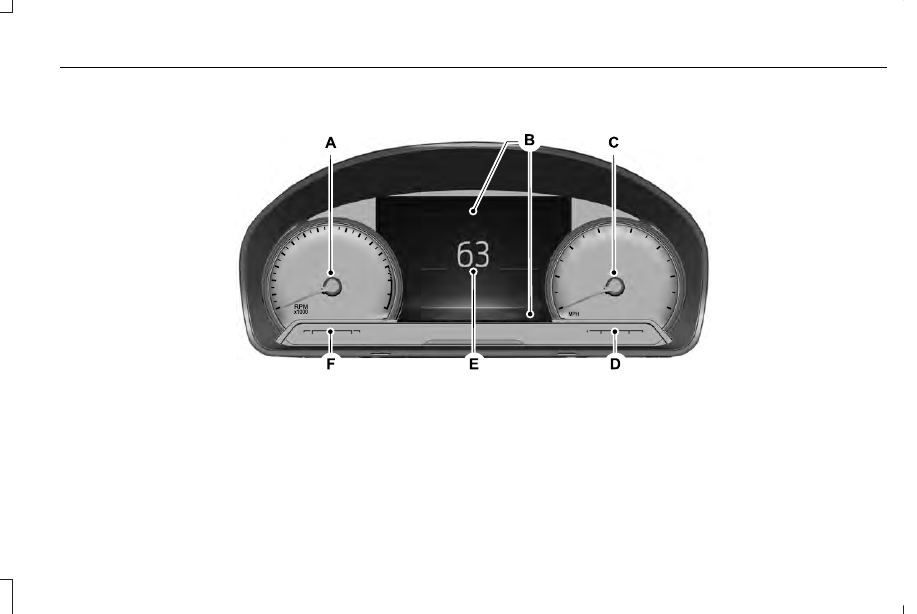

GAUGES - VEHICLES WITH: 6.5 INCH INSTRUMENT CLUSTER DISPLAY SCREEN

E282067

Tachometer.

A

Information bar.

B

Speedometer.

C

Fuel gauge.

D

127

Instrument Cluster

Information display.

E

Engine coolant temperature gauge.

F

Information Bar

Displays information related to the
navigation, outside air temperature,
odometer and distance to empty.

Distance to Empty - Indicates the
approximate distance your vehicle can travel
on the fuel remaining in the tank. Changes
in driving pattern can cause the value to not
only decrease but also increase or stay
constant for periods of time.

Information Display

Information that appears depends on your
vehicle settings.  See General Information
(page 136).

Engine Coolant Temperature Gauge

Shows the temperature of the engine
coolant.  At normal operating temperature,
the needle remains in the center section.  If
the needle enters the red section, the engine
is overheating.  Stop the engine, switch the
ignition off and determine the cause once
the engine has cooled down.

Note: Do not restart the engine until the
cause of the overheating has been resolved.

WARNING: Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap with
a thick cloth to prevent the possibility of
scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

128

Instrument Cluster

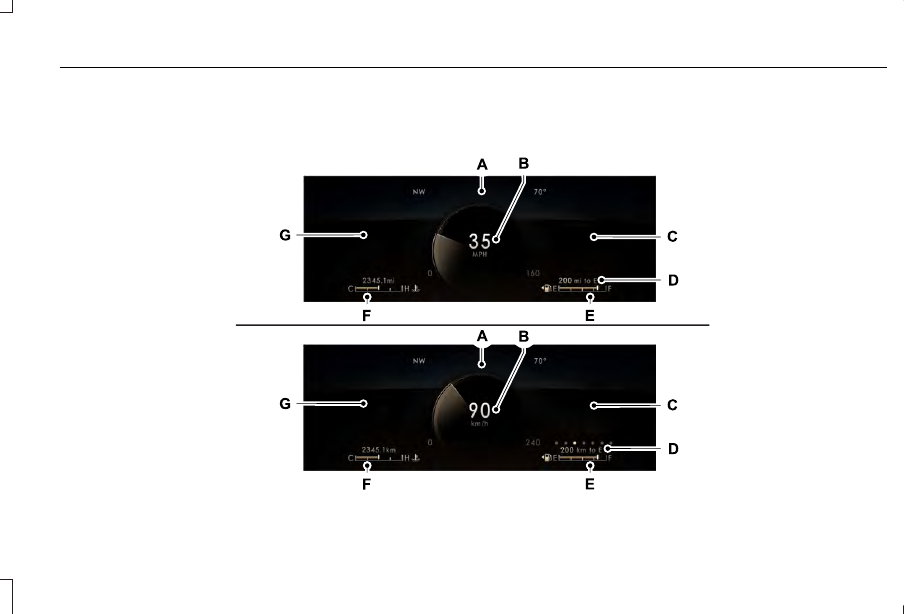

GAUGES - VEHICLES WITH: 12.3
INCH INSTRUMENT CLUSTER
DISPLAY SCREEN

Note: Clusters shown in single gauge view.

E297320

129

Instrument Cluster

Status bar.

A

Speedometer.

B

Right information group.

C

Vehicle driving range.

D

Fuel gauge.

E

Engine coolant temperature gauge.

F

Left information group.

G

Status Bar

Displays information related to the current
audio source, compass direction and outside
air temperature.

Left and Right Information Group

Information that appears depends on current
gauge view and personalized settings.  See
General Information (page 136).

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but also
increase or stay constant for periods of time

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

130

Instrument Cluster

Engine Coolant Temperature Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and let
the engine cool.

WARNING: Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap with
a thick cloth to prevent the possibility of
scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

WARNING LAMPS AND
INDICATORS

The following warning lamps and indicators
alert you to a vehicle condition that may
become serious.  Some lamps illuminate
when you start your vehicle to make sure
they work.  If any lamps remain on after
starting your vehicle, refer to the respective
system warning lamp for further information.

Note: Some warning indicators appear in
the information display and function the
same as a warning lamp, but do not display
when you start your vehicle.

Adaptive Cruise Control

 (If Equipped)

E144524

The speed control system indicator
light changes color to indicate
what mode the system is in.  See

Adaptive Cruise Control Indicators (page
311).

On (white light): Illuminates when you switch
on the adaptive cruise control system. Turns
off when the speed control system is turned
off.

Engaged (green light): Illuminates when you
engage the adaptive cruise control system.
Turns off when you disengage the speed
control system.

Anti-Lock Brake System

If it illuminates when you are
driving, this indicates a system
error.  You continue to have the

normal braking (without ABS) unless the
brake system warning lamp also illuminates.
Have the system checked immediately.

Automatic High Beam Control

 (If Equipped)

Illuminates when this feature is on.
See Automatic High Beam
Control Indicators (page 114).

Auto Hold Active

E197933

Illuminates when the system holds
your vehicle stationary.

131

Instrument Cluster

Auto Hold Unavailable

E197934

Illuminates when the system is on,
but unavailable to hold your
vehicle stationary.

Auto Start-Stop

 (If Equipped)

Illuminates to inform you when the
engine shuts down or in
conjunction with a message.

Battery

If it illuminates while driving, it
indicates a system error. Switch off
all unnecessary electrical

equipment and have the system checked
immediately.

Blind Spot Monitor

E151262

Illuminates when you switch this
feature off or in conjunction with a
message.  See Blind Spot

Information System (page 324).

Brake System Warning Lamp

WARNING: Driving your vehicle with

the warning lamp on is dangerous. A
significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

This lamp is a dual function lamp and
illuminates when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have your
vehicle checked as soon as
possible if the lamp continues to

illuminate.

Note: Indicator varies depending on region.

Cruise Control

 (If Equipped)

E71340

Illuminates when you switch this
feature on.

Direction Indicator

Illuminates when you switch on the
left-hand or right-hand direction
indicator or the hazard flasher. If

the indicators stay on or flash faster, check
for a burned out bulb.  See Changing a Bulb
(page 412).

Distance Alert

E281485

Flashes when your vehicle is
rapidly approaching another
vehicle or a pedestrian within your

driving path.  See Pre-Collision Assist (page
331).

132

Instrument Cluster

Door Ajar

Illuminates when the ignition is on
and any door is not completely
closed.

Electric Parking Brake

E146190

Illuminates or flashes when the
electric parking brake has a system
error.  See Electric Parking Brake
(page 271).

Note: Indicators vary depending on region.

Engine or Motor Coolant Temperature

Illuminates when your vehicle
coolant temperature is high. Stop
your vehicle as soon as possible,

switch off the engine and let it cool.  See
Engine Coolant Check (page 400).

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a system error.  Stop

your vehicle as soon as it is safe to do so
and switch the engine off.  Check the engine
oil level.   See Engine Oil Check (page 396).

Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked immediately.

Fasten Seatbelt

E71880

Illuminates and a tone sounds to
remind you to fasten your seatbelt.
See Seatbelt Reminder (page 47).

Fasten Rear Seatbelt

 (If Equipped)

E206718

Illuminates and a tone sounds to
signal the rear seatbelts are not
fastened.

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

there is a system error. Have the system
checked as soon as possible.

Front Fog Lamps

 (If Equipped)

Illuminates when you switch the
front fog lamps on.

High Beam

Illuminates when you switch the
high beam headlamps on. It flashes
when you use the headlamp

flasher.

Hood Ajar

E246598

Illuminates when the ignition is on
and the hood is not completely
closed.

133

Instrument Cluster

Lamps On

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Liftgate Ajar

E162453

Illuminates when the liftgate is not
completely closed.

Low Beam Warning

E181350

Illuminates when the low beam
headlamp bulb is not functioning
properly.

Low Fuel Level

Illuminates when the fuel level is
low or the fuel tank is nearly
empty.  Refuel as soon as possible.

Low Tire Pressure Warning

Illuminates when your tire pressure
is low. If the lamp remains on with
the engine running or when

driving, check your tire pressure as soon as
possible.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp is
functional. If it does not illuminate when you
switch the ignition on, or begins to flash at
any time, have the system checked as soon
as possible.

Low Washer Fluid

E132353

Illuminates when the windshield
washer fluid is low.

Powertrain Fault

Illuminates when the system
detects a powertrain or a
4WD/AWD fault.  Have your vehicle

checked as soon as possible.

Ready to Drive

 (If Equipped)

E224090

Illuminates when you switch on
your vehicle and it is ready to
drive. A corresponding message

may appear in the information display.

Service Engine Soon

Illuminates when you switch the
ignition on prior to engine start to
check the bulb and to indicate

whether your vehicle is ready for Inspection
and Maintenance (I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
system errors are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See Catalytic Converter (page 232).

If it illuminates when the engine is running
this indicates a system error. The On Board
Diagnostics system has detected an error in
the vehicle emission control system.

134

Instrument Cluster

If it flashes, engine misfire may be occurring.
Continuing to drive your vehicle may cause
reduced power or the engine to stop.  Failure
to respond to the warning lamp may cause
component damage not covered by the
vehicle Warranty.  Have your vehicle
checked as soon as possible.

Stability Control

E138639

It flashes when the system is
active. If it remains illuminated or
does not illuminate when you

switch the ignition on, this indicates a system
error. During a system error, the system
switches off. Have the system checked
immediately.  See Using Stability Control
(page 282).

Stability Control Off

E130458

Illuminates when you switch the
system off. It goes out when you
switch the system back on or when

you switch the ignition off.  See Using
Stability Control (page 282).

Stop Safely Now

E144693

Illuminates if your vehicle has an
electrical component fault or failure
that will cause your vehicle to

shutdown or enter into a limited operating
mode. A message may also display.

Tow Haul Indicator

 (If Equipped)

E246592

Illuminates when the system
switches on.

Vehicle Plugged In

 (If Equipped)

E228962

Illuminates when your vehicle is
plugged in. A corresponding
message may display after

attempting to start your vehicle.

AUDIBLE WARNINGS AND
INDICATORS

Keyless Warning Alert

The horn will sound twice when you exit your
vehicle with the intelligent access key and
your vehicle is in RUN, indicating your vehicle
is still on.

Headlamps On Warning Chime

Sounds when you have left the headlamps
or parking lamps on and open the driver door
with the vehicle off.

Parking Brake On Warning Chime

Sounds when you have left the parking brake
on and drive your vehicle. If the warning
chime remains on after you have released
the parking brake, have the system checked
by your authorized dealer immediately.

135

Instrument Cluster
