Protected Component

Fuse Rating

Fuse or Relay Number

Front heated seat.

20A

1

65

Not used (spare).

15A

2

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used.

-

71

Transmission oil pump.

20A

1

72

Not used (spare).

20A

2

73

Driver seat module.

30A

1

74

Wiper motor 1.

25A

1

75

Power decklid module.

30A

1

76

291

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front climate controlled seats.

30A

1

77

Not used.

-

78

Blower motor.

40A

2

79

Wiper motor 2.

25A

1

80

Inverter.

40A

1

81

Not used.

–

82

Transmission Range Control Module shifter.

20A

1

83

Starter solenoid.

30A

1

84

Wide open panoramic roof 2.

30A

1

85

Anti-lock brake system pump.

60A

2

87

1

M case fuse.

2

J case fuse.

292

Fuses

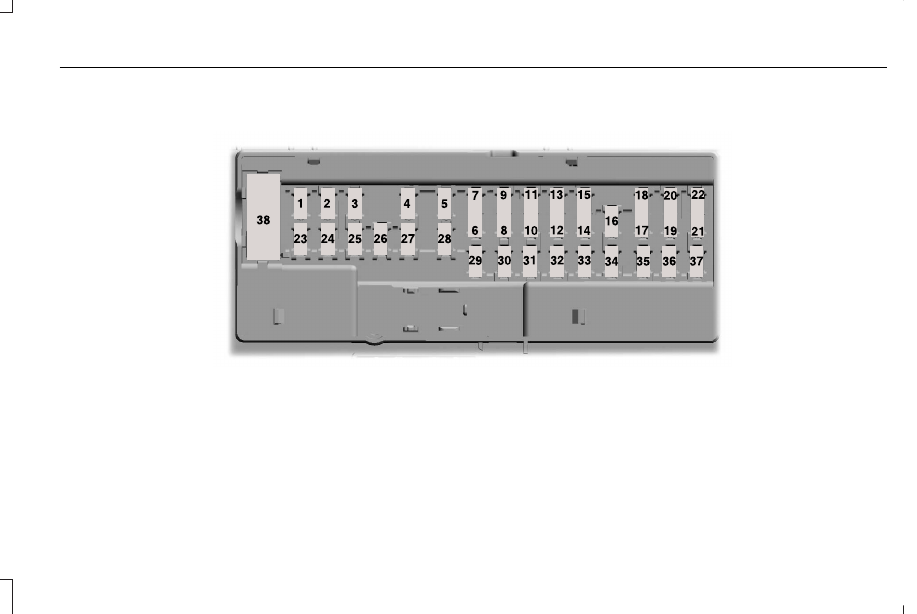

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

E145984

293

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

-

1

Lumbar.

7.5A

1

2

Driver door unlock.

20A

1

3

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Not used (spare).

10A

2

9

Power trunk logic.

5A

2

10

Keypad.
Cellphone passport module.

Not used (spare).

5A

2

11

294

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Climate control.

7.5A

2

12

Gear shift.

Steering wheel column.

7.5A

2

13

Cluster.
Datalink logic.

Extended power module.

10A

2

14

Datalink-Gateway module.

10A

2

15

Trunk release.

15A

1

16

Not used (spare).

5A

2

17

Push button stop-start.

5A

2

18

Extended power module.

7.5A

2

19

Adaptive headlamps.

7.5A

2

20

Humidity and in-car temperature sensor.

5A

2

21

Not used (spare).

5A

2

22

295

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Delayed accessory (power inverter logic all smart window
logic, driver window switch).

10A

1

23

Rear sunshade.
Moonroof.
Panoramic roof.

Central lock-unlock.

20A

1

24

Driver door (window, mirror).

30A

1

25

Front passenger door (window, mirror).

30A

1

26

Moonroof.

30A

1

27

Amplifier.

20A

1

28

Rear driver side door (window).

30A

1

29

Rear passenger side door (window).

30A

1

30

Not used (spare).

15A

1

31

Voice control.

10A

1

32

Radio frequency receiver.
Display.

296

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Radio.

20A

1

33

Active noise control.
CD changer.

Run-start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).

30A

1

34

Not used (spare).

5A

1

35

Continuous control damping suspension module.

15A

1

36

Auto dimming rear view mirror.
Rear heated seats.

Heated steering wheel.

20A

1

37

Not used.

-

38

1

Micro 2 fuse.

2

Micro 3 fuse.

297

Fuses

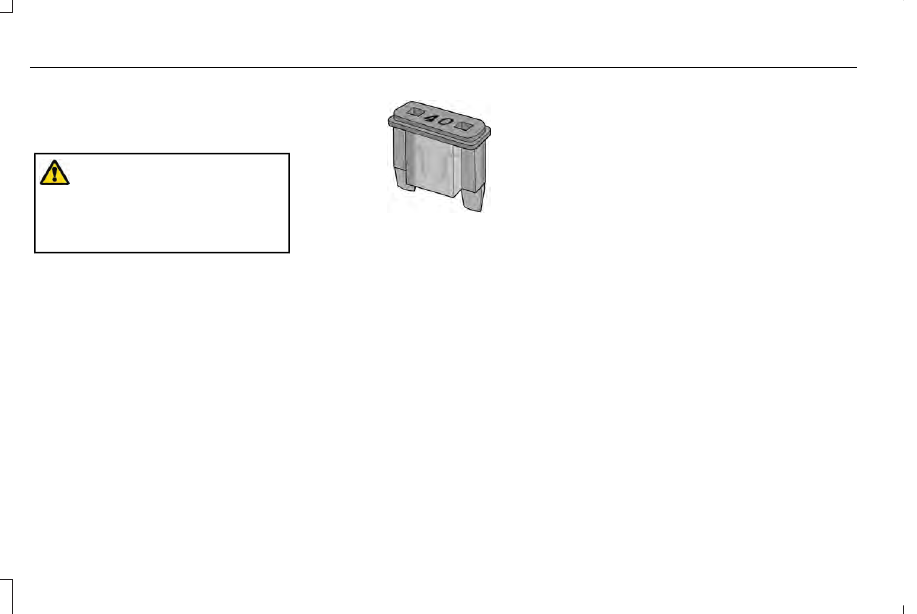

CHANGING A FUSE

Fuses

WARNING: Always replace a fuse

with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

298

Fuses

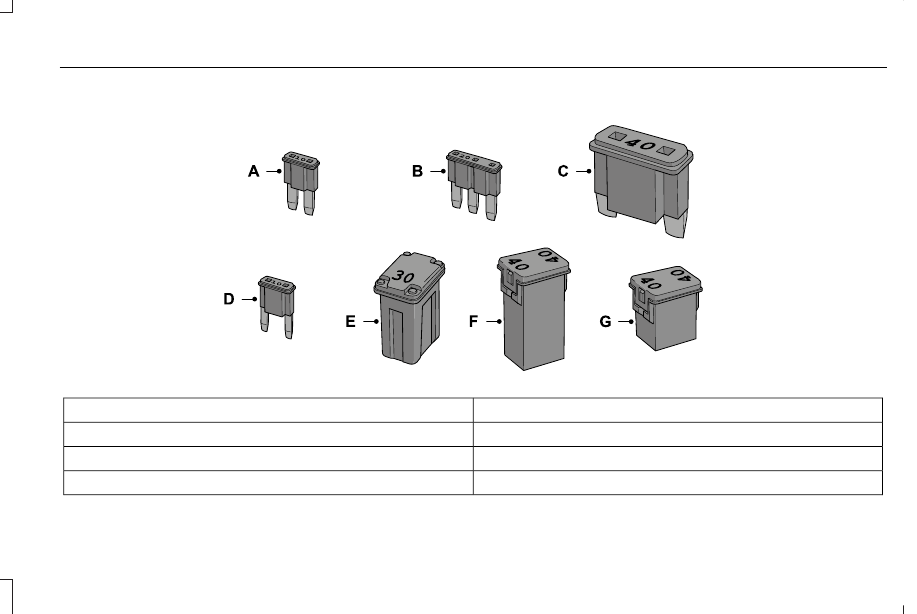

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

299

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

300

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service.  Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications.  Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1. Set the parking brake and shift the

transmission to park (P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING: To reduce the risk of

vehicle damage and personal burn injuries,
do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.

1. Set the parking brake and shift the

transmission to park (P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

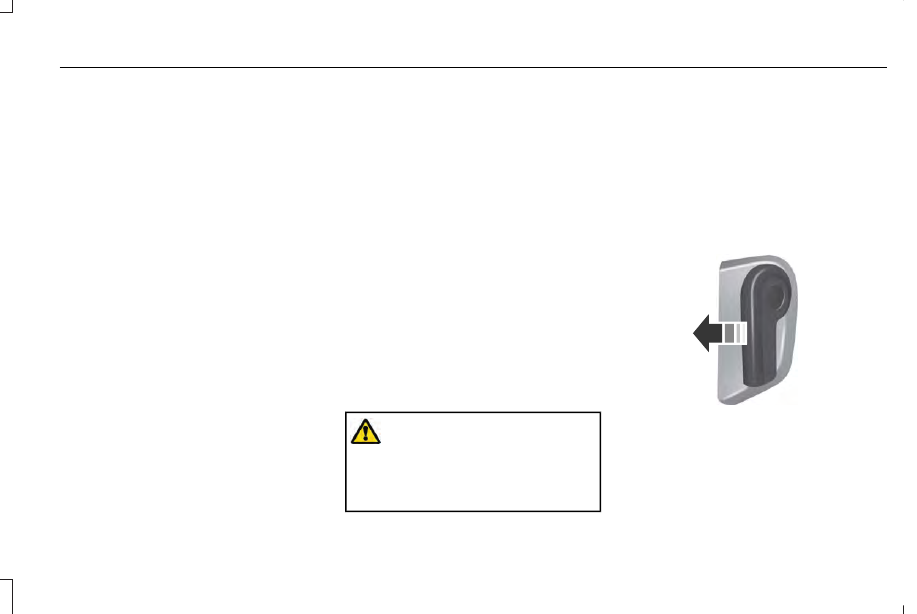

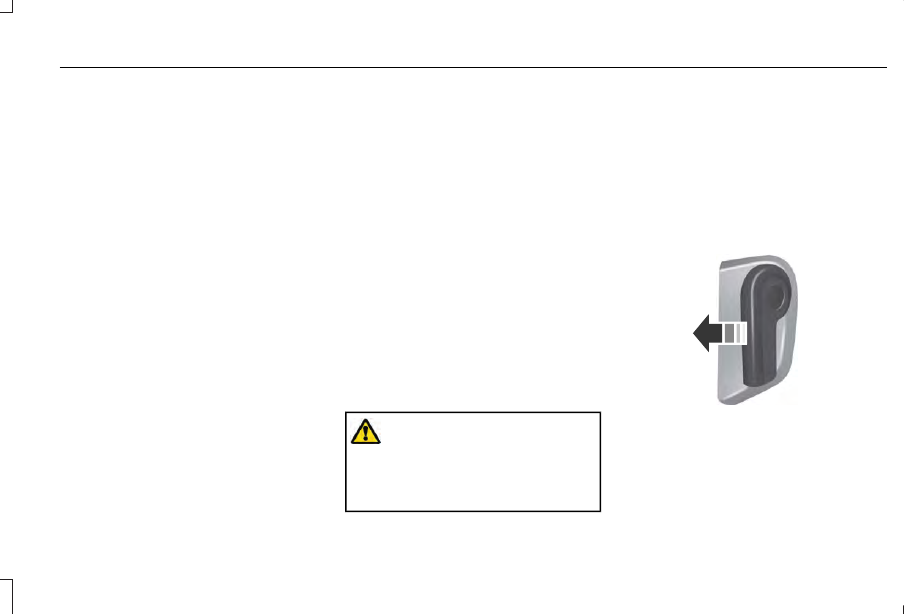

Opening the Hood

E142457

1. Inside the vehicle, pull the hood release

handle under the left-hand side of the
instrument panel.

301

Maintenance

E269403

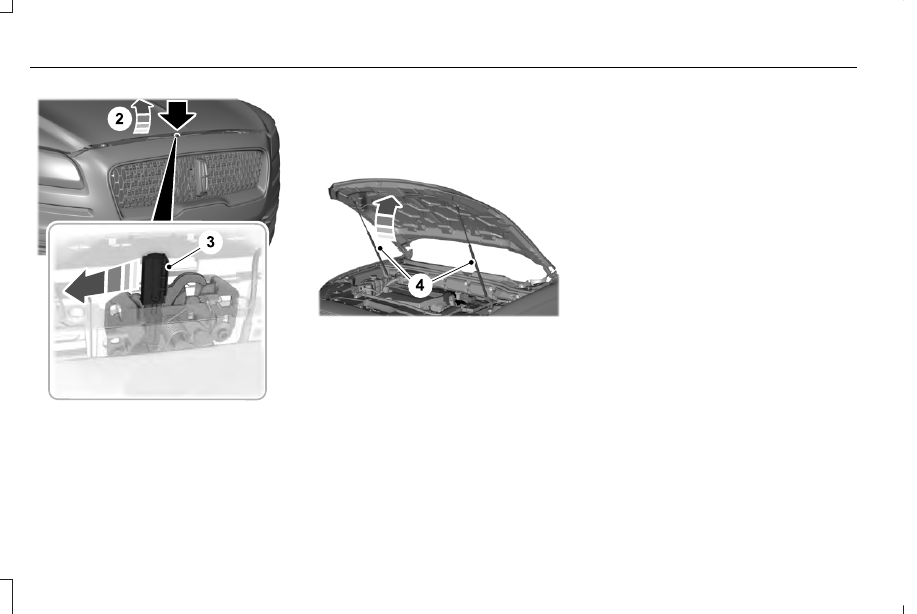

2. Slightly lift the hood.

3. Release the hood latch by pushing the

secondary release lever to your left-hand
side.

E269400

4. Open the hood.  The hood strut supports

the hood.

Closing the Hood

1. Lower the hood and allow it to drop

under its own weight for the last 8–12 in
(20–30 cm).

Note: Make sure that the hood is correctly
closed.

302

Maintenance

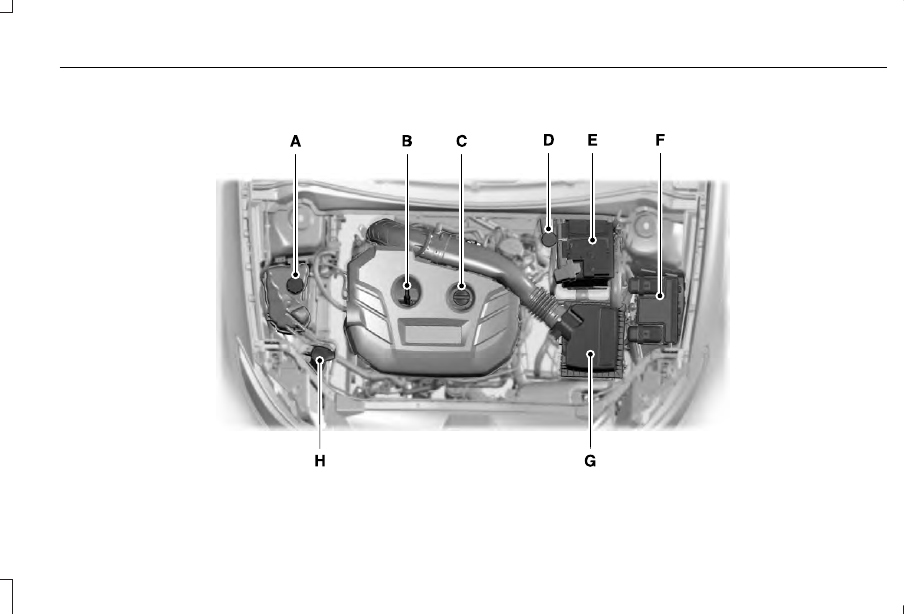

UNDER HOOD OVERVIEW - 2.0L

E179024

303

Maintenance

Engine coolant reservoir.  See Engine Coolant Check (page 308).

A

Engine oil dipstick.  See Engine Oil Dipstick (page 306).

B

Engine oil filler cap.  See Engine Oil Check (page 306).

C

Brake fluid reservoir.  See Brake Fluid Check (page 317).

D

Battery.  See Changing the 12V Battery (page 318).

E

Engine compartment fuse box.  See Fuses (page 281).

F

Air filter.  See Changing the Engine Air Filter (page 322).

G

Washer system fluid reservoir.  See Washer Fluid Check (page 318).

H

304

Maintenance

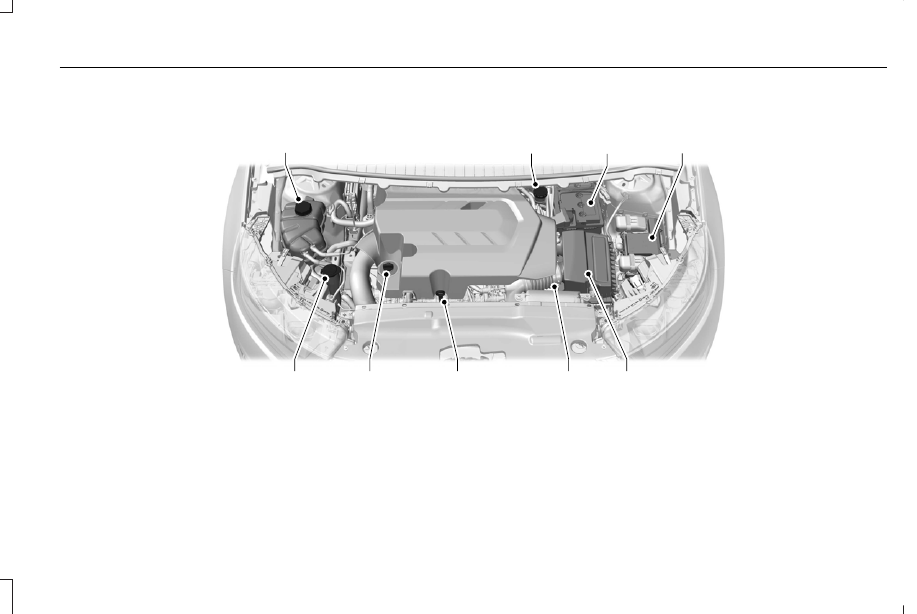

UNDER HOOD OVERVIEW - 3.0L

A

I

E

F

G

H

B

C

D

E188730

Engine coolant reservoir.  See Engine Coolant Check (page 308).

A

Brake fluid reservoir.  See Brake Fluid Check (page 317).

B

Battery.  See Changing the 12V Battery (page 318).

C

Power distribution box.  See Fuses (page 281).

D

305

Maintenance

Air filter assembly.  See Changing the Engine Air Filter (page 322).

E

Automatic transmission fluid dipstick.  See Automatic Transmission Fluid Check (page 313).

F

Engine oil dipstick.  See Engine Oil Dipstick (page 306).

G

Engine oil filler cap.  See Engine Oil Check (page 306).

H

Windshield washer fluid reservoir.  See Washer Fluid Check (page 318).

I

ENGINE OIL DIPSTICK - 2.0L

E142462

MIN

A

MAX

B

ENGINE OIL DIPSTICK - 3.0L

E170468

A

B

MIN

A

MAX

B

ENGINE OIL CHECK

To check the engine oil level consistently
and accurately, do the following:

1. Make sure the parking brake is on. Make

sure the transmission is in park (P) or
neutral (N).

2. Run the engine until it reaches normal

operating temperature.

3. Make sure that your vehicle is on level

ground.

4. Switch the engine off and wait 15 minutes

for the oil to drain into the oil pan.
Checking the engine oil level too soon
after you switch the engine off may result
in an inaccurate reading.

306
