State or local regulations on volatile organic
compounds may restrict the use of methanol,
a common windshield washer antifreeze
additive. Washer fluids containing
non-methanol antifreeze agents should be
used only if they provide cold weather
protection without damaging the vehicle’s
paint finish, wiper blades or washer system.

FUEL FILTER - 2.7L/3.7L

Your vehicle has a lifetime fuel filter that is
integrated with the fuel tank, regular
maintenance or replacement is not required.

FUEL FILTER - 3.0L

The fuel filter on your vehicle must be
replaced at the specified service interval.
Refer to your scheduled maintenance
information.

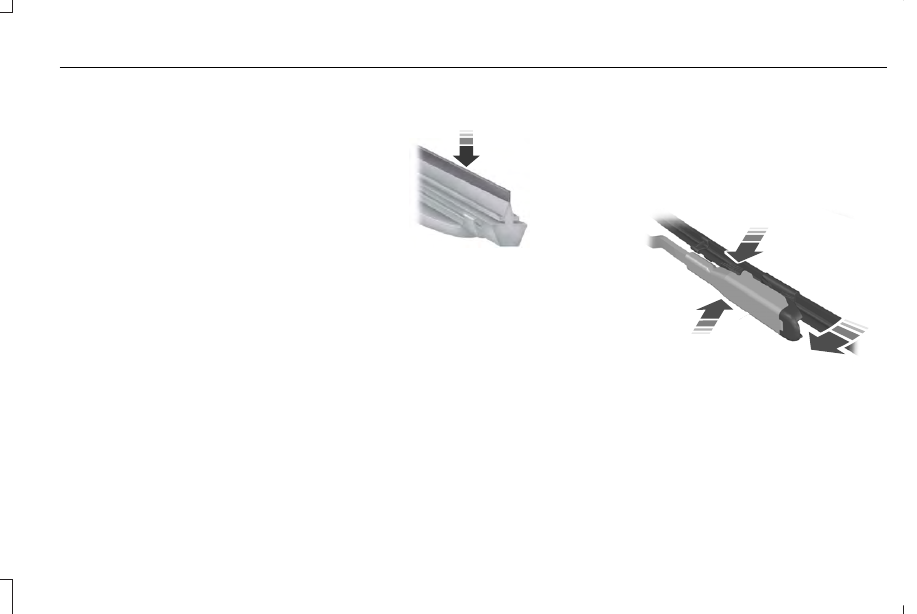

CHECKING THE WIPER BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

Clean the wiper blades with washer fluid or
water applied with a soft sponge or cloth.

CHANGING THE WIPER BLADES

Replace the wiper blades at least annually
for optimum performance.

You can improve poor wiper quality by
cleaning the wiper blades and the
windshield.  See Cleaning the Windows and
Wiper Blades (page 344).

Changing the Windshield Wiper Blades

Note: Do not hold the wiper blade when
lifting the wiper arm.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

E129990

1

1

2

1. Lift the wiper arm and then press the

wiper blade locking buttons together.

2. Slightly rotate the wiper blade.

3. Remove the wiper blade.

4. Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

339

Maintenance

CHANGING A BULB

WARNING: Bulbs can become hot.

Let the bulb cool down before removing
it. Failure to do so could result in personal
injury.

WARNING: Switch the lamps and the

ignition off. Failure to follow this warning
could result in serious personal injury.

Use the correct specification bulb.  See Bulb
Specification Chart (page 424).

Install in the reverse order unless otherwise
stated.

High-Intensity Discharge Headlamps

These lamps operate at a high voltage. See
an authorized dealer if they fail.

Front Direction Indicator

E163826

1. Switch all of the lamps and the ignition

off.

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

4. Remove the bulb by pulling it straight out.

LED Lamps

LED lamps are not serviceable items. See an
authorized dealer if they fail.

The following lamps are LED:
•

Front parking lamps.

•

Front side marker lamps.

•

Side direction indicators.

•

Rear side marker lamps.

•

Brake and rear lamps.

•

Central high mounted brake lamp.

•

Rear direction indicators.

•

Reversing lamps.

•

License plate lamps.

340

Maintenance

GENERAL INFORMATION

Your dealer has many quality products
available to clean your vehicle and protect
its finishes.

CLEANING PRODUCTS

Materials

For best results, use the following products
or products of equivalent quality:

Specification

Name

Motorcraft® Bug and Tar Remover, ZC-42 (U.S. & Canada)

ESR-M5B194-B

Motorcraft® Custom Bright Metal Cleaner, ZC-15 (U.S. & Canada)

ESR-M14P4-A

Motorcraft® Detail Wash, ZC-3-A (U.S. & Canada)

ESR-M14P3-A

Motorcraft® Engine Shampoo and Degreaser, ZC-20 (U.S.)

Motorcraft® Engine Shampoo, CXC-66-A (Canada)

Motorcraft® Premium Leather and Vinyl Cleaner, ZC-56 (U.S. & Canada)

Motorcraft® Multi-Purpose Cleaner, CXC-101 (Canada)

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with Bitterant, ZC-32-B2 (U.S.)

WSS-M14P19-A

Motorcraft® Premium Quality Windshield Washer Fluid, CXC-37-A/B/D/F (Canada)

Motorcraft® Professional Strength Carpet & Upholstery Cleaner, ZC-54 (U.S. & Canada)

ESR-M14P5-A

Motorcraft® Premium Glass Cleaner, CXC-100 (Canada)

341

Vehicle Care

Specification

Name

Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)

ESR-M14P5-A

Motorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)

Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)

CLEANING THE EXTERIOR

Wash your vehicle regularly with cool or
lukewarm water and a neutral pH shampoo,
we recommend Motorcraft Detail Wash.

•

Never use strong household detergents
or soap, for example dish washing or
laundry liquid. These products can
discolor and spot painted surfaces.

•

Never wash your vehicle when it is hot
to the touch, or during strong or direct
sunlight.

•

Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.

•

Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle’s paintwork or trim over time. We
recommend Motorcraft Bug and Tar
Remover.

•

Remove any exterior accessories, for
example antennas, before entering a car
wash.

•

When filling with AdBlue®, remove any
residue on painted surfaces immediately.

Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.

Cleaning the Headlamps

Note: Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.

Note: Do not wipe the headlamps when they
are dry.

342

Vehicle Care

Exterior Chrome Parts

•

Apply a high quality-cleaning product to
bumpers and other chrome parts. Follow
the manufacturer’s instructions. We
recommend Motorcraft Custom Bright
Metal Cleaner.

•

Do not apply the cleaning product to hot
surfaces. Do not leave the cleaning
product on chrome surfaces longer than
the time recommended.

•

Using non-recommended cleaners can
result in severe and permanent cosmetic
damage.

Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface.

Note: Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.

Exterior Plastic Parts

For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease spots
are present, we recommend Motorcraft Bug
and Tar Remover.

Stripes or Graphics

 (If Equipped)

Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:

•

Do not use water pressure higher than
2,000 psi (14,000 kPa).

•

Do not use water hotter than 179°F (82°C).

•

Use a spray with a 40° wide spray angle
pattern.

•

Keep the nozzle at a 12 in (305 mm)
distance and 90° angle to your vehicle's
surface.

Note: Holding the pressure washer nozzle
at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.

Underbody

Regularly clean the underside of your vehicle
using water. Keep body and door drain holes
free of debris or foreign material.

Under Hood

For removing black rubber marks from under
the hood we recommend Motorcraft Wheel
and Tire Cleaner or Motorcraft Bug and Tar
Remover.

WAXING

Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.

When washing and waxing, park your vehicle
in a shaded area out of direct sunlight.
Always wash your vehicle before applying
wax.

•

Use a quality wax that does not contain
abrasives.

•

Follow the manufacturer’s instructions to
apply and remove the wax.

•

Apply a small amount of wax in a
back-and-forth motion, not in circles.

343

Vehicle Care

•

Do not allow wax to come in contact with
any non-body (low-gloss black) colored
trim. The wax will discolor or stain the
parts over time.
•

Roof racks.

•

Bumpers.

•

Grained door handles.

•

Side moldings.

•

Mirror housings.

•

Windshield cowl area.

•

Do not apply wax to glass areas.

•

After waxing, your car's paint should feel
smooth, and be free of streaks and
smudges.

CLEANING THE ENGINE

Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal.

When washing:
•

Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.

•

Do not spray a hot engine with cold water
to avoid cracking the engine block or
other engine components.

•

Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine Shampoo.

Note: If your vehicle has an engine cover
remove the cover before application of
Motorcraft Engine Shampoo and Degreaser.
Immediately rinse away any over spray.

•

Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.

•

Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or the
area in and around these locations.

•

Cover the battery, power distribution box,
and air filter assembly to prevent water
damage when cleaning the engine.

CLEANING THE WINDOWS AND
WIPER BLADES

Car wash chemicals and environmental
fallout can result in windshield and wiper
blade contamination. Dirty windshield and
wipers will result in poor windshield wiper
operation. Keep the windshield and wiper
blades clean to maintain windshield wiper
performance.

To clean the windshield and wiper blades:
•

Clean the windshield with a non-abrasive
glass cleaner. When cleaning the interior
of the windshield, avoid getting any glass
cleaner on the instrument panel or door
panels. Wipe any glass cleaner off these
surfaces immediately.

•

For windshields contaminated with tree
sap, chemicals, wax or bugs, clean the
entire windshield using steel wool (no
greater than 0000 grade) in a circular
motion and rinse with water.

•

Clean the wiper blades with isopropyl
rubbing alcohol or windshield washer
concentrate.

344

Vehicle Care

Note:  Do not use razor blades or other
sharp objects to clean or remove decals from
the inside of the heated rear window.  The
vehicle warranty does not cover damage
caused to the heated rear window grid lines.

CLEANING THE INTERIOR

WARNING: Do not use cleaning

solvents, bleach or dye on the vehicle's
seatbelts, as these actions may weaken
the belt webbing.

WARNING: On vehicles equipped

with seat-mounted airbags, do not use
chemical solvents or strong detergents.
Such products could contaminate the side
airbag system and affect performance of
the side airbag in a crash.

Note: Follow the same procedure for
cleaning leather seats when cleaning leather
interior.  See Cleaning Leather Seats (page
347).

Note: Do not use household cleaning
products or glass cleaners, which can stain
and discolor the fabric and affect the flame
retardant abilities of the seat materials.

For fabric, carpets, cloth seats, safety belts
and seats equipped with side airbags:
•

Remove dust and loose dirt with a
vacuum cleaner.

•

Remove light stains and soil with
Motorcraft® Professional Strength Carpet
& Upholstery Cleaner.

For grease or tar stains:
•

Spot clean the area with Motorcraft® Spot
and Stain Remover. In Canada, use
Motorcraft® Multi-Purpose Cleaner.

•

If a ring forms on the fabric after spot
cleaning, clean the entire area
immediately, but do not oversaturate or
the ring will set.

Cleaning Black Label or Presidential
Interior

 (If Equipped)

Note: Alcantara microfiber cloth fabric is
made of polyester microfiber with
micro-porous polyurethane. Using
commercially available fabric cleaners can
cause permanent damage.

Note: Do not use commercially available
leather and vinyl cleaning products on
Alcantara microfiber cloth fabric.

Note: Lincoln Black Label or Presidential
vehicles may have Alcantara microfiber cloth
fabric on the seats, headliner, floor mats and
door panels.

Depending on the type of stain, use water,
lemon juice or pure ethyl alcohol when
cleaning. For cleaning Alcantara microfiber
cloth, refer to the following chart:

345

Vehicle Care

Cleaning Procedure

Type of Stain

Use lukewarm water and rinse by dabbing with clean water.

Fruit juice, jam, jelly, syrup or ketchup.

Use cold water and rinse by dabbing with clean water. Avoid warm
water because it makes these substances coagulate.

Blood, egg, excrement or urine.

Use lukewarm water. If the color remains, treat with lemon juice and
then rinse.

Liquor, alcoholic beverages, wine, beer, cola and tea.

Use lukewarm water and rinse by dabbing with clean water.

Indelible pencil, cocoa, chocolate, pastry with cream or chocolate, ice
cream or mustard.

Use lemon juice, wipe with lukewarm water and rinse by dabbing with
clean water.

Vinegar, hair gel, tomato sauce or coffee with sugar.

Use ethyl alcohol, then dab with water.

Dye transfer and all other stains.

346

Vehicle Care

CLEANING THE INSTRUMENT
PANEL AND INSTRUMENT
CLUSTER LENS

WARNING: Do not use chemical

solvents or strong detergents when
cleaning the steering wheel or instrument
panel to avoid contamination of the airbag
system.

Note: Follow the same procedure as
cleaning leather seats for cleaning leather
instrument panels and leather interior trim
surfaces.  See Cleaning Leather Seats (page
347).

Clean the instrument panel and cluster lens
with a clean, damp and soft cloth, then use
a clean, dry and soft cloth to dry these areas.

•

Avoid cleaners or polishes that increase
the gloss of the upper portion of the
instrument panel. The dull finish in this
area helps protect you from undesirable
windshield reflection.

•

Do not use any household cleaning
products or glass cleaners as these may
damage the finish of the instrument
panel, interior trim and cluster lens.

•

Wash or wipe your hands clean if you
have been in contact with certain
products such as insect repellent and
suntan lotion to avoid possible damage
to the interior painted surfaces.

•

Do not allow air fresheners and hand
sanitizers to spill onto interior surfaces.
If a spill occurs, wipe off immediately.
Your warranty may not cover these
damages.

If a staining liquid like coffee or juice has
been spilled on the instrument panel or on
interior trim surfaces:

1. Wipe up spilled liquid using a clean, soft

cloth as quickly as possible.

2. Use Motorcraft Premium Leather and

Vinyl Cleaner or a commercially available
leather cleaning product for automotive
interiors. Test any cleaner or stain
remover on an inconspicuous area.

3. Alternatively, wipe the surface with a

clean, soft cloth and a mild soap and
water solution. Dry the area with a clean,
soft cloth.

4. If necessary, apply more soap and water

solution or cleaning product to a clean,
soft cloth and press it onto the soiled
area. Allow this to set at room
temperature for 30 minutes.

5. Remove the soaked cloth, then with a

clean, damp cloth, use a rubbing motion
for 60 seconds on the soiled area.

6. Dry the area with a clean, soft cloth.

CLEANING LEATHER SEATS

Note: Follow the same procedure as
cleaning leather seats for cleaning leather
instrument panels and leather interior trim
surfaces.

347

Vehicle Care

For routine cleaning, wipe the surface with
a soft, damp cloth and a mild soap and water
solution.  Dry the area with a clean, soft cloth.

Note: Test any cleaner or stain remover on
an inconspicuous area.

You should:
•

Remove dust and loose dirt with a
vacuum cleaner.

•

Clean and treat spills and stains as soon
as possible.

Do not use the following products as these
may damage the leather:
•

Oil and petroleum or silicone-based
leather conditioners.

•

Household cleaners.

•

Alcohol solutions.

•

Solvents or cleaners intended specifically
for rubber, vinyl and plastics.

REPAIRING MINOR PAINT
DAMAGE

Authorized dealers have touch-up paint to
match your vehicle’s color. Your vehicle color
code is printed on a sticker on the front,
left-hand side door jamb. Take your color
code to your authorized dealer to make sure
you get the correct color.

Before repairing minor paint damage, use a
cleaner such as Motorcraft Bug and Tar
Remover to remove particles such as bird
droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout.

Always read the instructions before using
cleaning products.

CLEANING THE WHEELS

Note: Do not apply a cleaning chemical to
warm or hot wheel rims and covers.

Note: Industrial-strength (heavy-duty)
cleaners, or cleaning chemicals, in
combination with brush agitation to remove
brake dust and dirt, could wear away the
clear coat finish over a period of time.

Note: Do not use hydrofluoric acid-based or
high caustic-based wheel cleaners, steel
wool, fuels or strong household detergent.

Note: If you intend to park your vehicle for
an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so.
This reduces the risk of increased corrosion
of the brake discs, brake pads and linings.

Note: Some automatic car washes could
cause damage to the finish on your wheel
rims and covers.

348

Vehicle Care

Alloy wheels and wheel covers are coated
with a clear coat paint finish. To maintain
their condition we recommend that you:
•

Clean them weekly with the
recommended wheel and tire cleaner.

•

Use a sponge to remove heavy deposits
of dirt and brake dust accumulation.

•

Rinse them thoroughly with a pressurized
stream of water when you complete the
cleaning process.

We recommend that you use our surface
wheel cleaner. Make sure that you read and
follow the manufacturer’s instructions.

Using other non-recommended cleaning
products can result in severe and permanent
damage.

VEHICLE STORAGE

If you plan on storing your vehicle for 30
days or more, read the following
maintenance recommendations to make sure
your vehicle stays in good operating
condition.

We engineer and test all motor vehicles and
their components for reliable, regular driving.
Under various conditions, long-term storage
may lead to degraded engine performance
or failure unless you use specific precautions
to preserve engine components.

General

•

Store all vehicles in a dry, ventilated
place.

•

Protect from sunlight, if possible.

•

If vehicles are stored outside, they
require regular maintenance to protect
against rust and damage.

Body

•

Wash your vehicle thoroughly to remove
dirt, grease, oil, tar or mud from exterior
surfaces, rear-wheel housing and the
underside of front fenders.

•

Periodically wash your vehicle if it is
stored in exposed locations.

•

Touch-up exposed or primed metal to
prevent rust.

•

Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration.  Re-wax as necessary when
you wash your vehicle.

•

Lubricate all hood, door and luggage
compartment hinges and latches with a
light grade oil.

•

Cover interior trim to prevent fading.

•

Keep all rubber parts free from oil and
solvents.

Engine

•

Change the engine oil and filter prior to
storage because used engine oil contains
contaminates which may cause engine
damage.

•

Start the engine every 15 days for a
minimum of 15 minutes.  Run at fast idle
with the climate controls set to defrost
until the engine reaches normal
operating temperature.

•

With your foot on the brake, shift through
all the gears while the engine is running.

•

We recommend that you change the
engine oil before you use your vehicle
again.

349

Vehicle Care

Fuel system

•

Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the fuel
pump nozzle.

Cooling system

•

Protect against freezing temperatures.

•

When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling system
leaks and that fluid is at the
recommended level.

Disconnecting Your 12 Volt Battery

•

Check and recharge as necessary. Keep
connections clean.

•

If storing your vehicle for more than 30
days without recharging the battery, we
recommend that you disconnect the
battery cables to maintain battery charge
for quick starting.

Note: It is necessary to reset memory
features if you disconnect the battery cables.

Brakes

•

Make sure the brakes and parking brake
release fully.

Tires

•

Maintain recommended air pressure.

Miscellaneous

•

Make sure all linkages, cables, levers and
pins under your vehicle are covered with
grease to prevent rust.

•

Move vehicles at least 25 ft (7.5 m) every
15 days to lubricate working parts and
prevent corrosion.

Removing Vehicle From Storage

When your vehicle is ready to come out of
storage, do the following:
•

Wash your vehicle to remove any dirt or
grease film build-up on window surfaces.

•

Check windshield wipers for any
deterioration.

•

Check under the hood for any foreign
material that may have collected during
storage such as mice or squirrel nests.

•

Check the exhaust for any foreign
material that may have collected during
storage.

•

Check tire pressures and set tire inflation
per the Tire Label.

•

Check brake pedal operation. Drive your
vehicle 15 ft (4.5 m) back and forth to
remove rust build-up.

•

Check fluid levels (including coolant, oil
and gas) to make sure there are no leaks,
and fluids are at recommended levels.

•

If you remove the battery, clean the
battery cable ends and check for
damage.

Contact an authorized dealer if you have any
concerns or issues.

350

Vehicle Care

BODY STYLING KITS

The distance between the underside of your
vehicle and the ground is less than that of
other models.  Drive with extreme care to
avoid damage to your vehicle.

351

Vehicle Care

GENERAL INFORMATION

The recommended tire inflation pressures
are on the tire information label on the driver
side B-pillar.

Check and set the tire pressure at the
ambient temperature in which you are
intending to drive your vehicle and when the
tires are cold.  See Technical Specifications
(page 379).

Note: Check your tire pressures regularly to
optimize fuel economy.

Only use approved wheel and tire sizes.
Using other sizes could damage your vehicle
and could make the National Type Approval
invalid.

Installation of any tires that are not the
original equipment tire size can cause the
speedometer to display incorrect vehicle
speed.

TIRE CARE

Important Information About Low-
Profile Tires

If your vehicle is equipped with
245/40R20 tires, they are low-profile
tires. These tires and wheels are
designed to give your vehicle a sport
appearance. With low-profile tires, you
may notice an increase in road noise
and faster tire wear, depending on road
conditions and driving styles. Due to
their design, low-profile tires and wheels
are more prone to road damage from
potholes, rough or unpaved roads, car
wash rails and curb contact than
standard tires and wheels.

Note: Your vehicle's warranty does not
cover these types of damages. Extra
caution should be taken when operating
on rough roads to avoid impacts that

could cause wheel and tire damage.

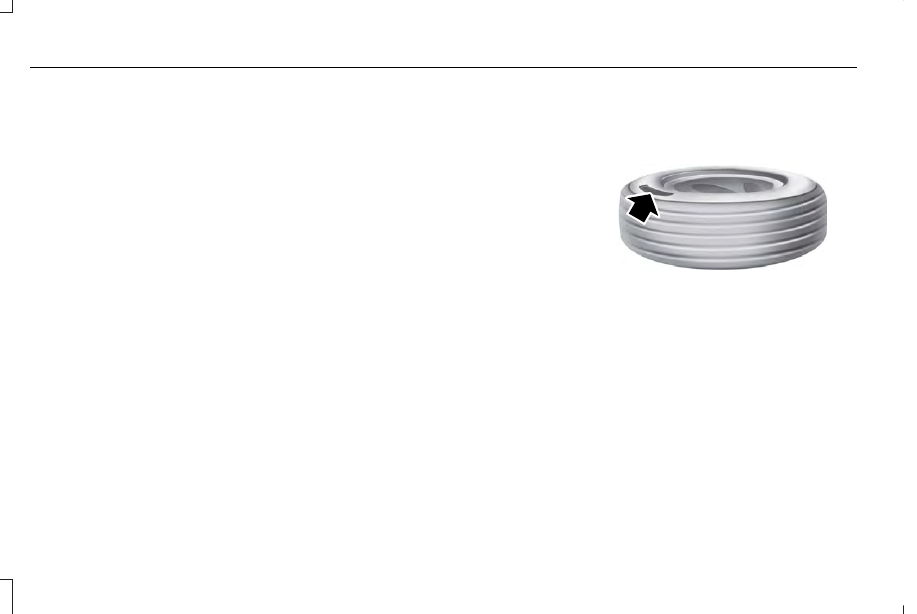

Information About Uniform Tire Quality
Grading

E142542

Tire Quality Grades apply to new
pneumatic passenger car tires. The
Quality grades can be found where
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example: Treadwear 200
Traction AA Temperature A.

These Tire Quality Grades are
determined by standards that the United
States Department of Transportation has
set.

352

Wheels and Tires

Tire Quality Grades apply to new
pneumatic passenger car tires. They do
not apply to deep tread, winter-type
snow tires, space-saver or temporary
use spare tires, light truck or LT type
tires, tires with nominal rim diameters of
10 to 12 inches or limited production tires
as defined in Title 49 Code of Federal
Regulations Part 575.104 ©)(2).

U.S. Department of Transportation Tire
quality grades:  The U.S. Department of
Transportation requires Ford Motor
Company to give you the following
information about tire grades exactly as
the government has written it.

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course.
For example, a tire graded 150 would
wear 1 ½ times as well on the
government course as a tire graded 100.
The relative performance of tires

depends upon the actual conditions of
their use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.

Traction AA A B C

WARNING: The traction grade

assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning or peak
traction characteristics.

The traction grades, from highest to
lowest are AA, A, B, and C. The grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction
performance.

Temperature A B C

WARNING: The temperature

grade for this tire is established for a
tire that is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.

The temperature grades are A (the
highest), B and C, representing the tire’s
resistance to the generation of heat and
its ability to dissipate heat when tested
under controlled conditions on a
specified indoor laboratory test wheel.
Sustained high temperature can cause
the material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden tire
failure. The grade C corresponds to a
level of performance which all

353

Wheels and Tires

passenger car tires must meet under the
Federal Motor Vehicle Safety Standard
No. 139. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the minimum
required by law.

Glossary of Tire Terminology

•

Tire label: A label showing the
original equipment tire sizes,
recommended inflation pressure and
the maximum weight the vehicle can
carry.

•

Tire Identification Number: A
number on the sidewall of each tire
providing information about the tire
brand and manufacturing plant, tire
size and date of manufacture. Also
referred to as DOT code.

•

Inflation pressure: A measure of the
amount of air in a tire.

•

Standard load: A class of P-metric or
Metric tires designed to carry a
maximum load at set pressure. For
example: For P-metric tires 35 psi
(2.4 bar) and for Metric tires 36 psi
(2.5 bar). Increasing the inflation
pressure beyond this pressure will
not increase the tire’s load carrying
capability.

•

Extra load: A class of P-metric or
Metric tires designed to carry a
heavier maximum load at 42 psi
(2.9 bar). Increasing the inflation
pressure beyond this pressure will
not increase the tire’s load carrying
capability.

•

kPa: Kilopascal, a metric unit of air
pressure.

•

PSI: Pounds per square inch, a

standard unit of air pressure.

•

Cold tire pressure: The tire pressure
when the vehicle has been stationary
and out of direct sunlight for an hour
or more and prior to the vehicle
being driven for 1 mile (1.6 km).

•

Recommended inflation pressure:
The cold inflation pressure found on
the Safety Compliance Certification
Label (affixed to either the door
hinge pillar, door-latch post, or the
door edge that meets the door-latch

post, next to the driver's seating
position), or Tire Label located on the
B-Pillar or the edge of the driver’s
door.

•

B-pillar: The structural member at
the side of the vehicle behind the
front door

•

Bead area of the tire: Area of the tire
next to the rim.

•

Sidewall of the tire: Area between
the bead area and the tread.

•

Tread area of the tire: Area of the

perimeter of the tire that contacts the
road when mounted on the vehicle.

•

Rim: The metal support (wheel) for a
tire or a tire and tube assembly upon
which the tire beads are seated.

354

Wheels and Tires
