Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

64

Fuel pump 2.

30A

2

65

Passenger power seat.

30A

2

66

Power point 1B.

20A

2

67

Auxiliary blower.

15A

2

68

Power point 1A.

20A

2

69

Not used.

—

70

Not used.

—

71

Driver power seat module.

30A

2

72

Not used.

—

73

Wiper motor.

25A

2

74

Not used.

—

75

Not used (spare).

20A

2

76

Not used.

—

77

307

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Starter.

30A

2

78

Auxiliary transmission pump (2.0L engine with
start-stop).

20A

2

79

Not used.

—

80

USB smart charge - passenger side.

5A

1

81

USB smart charge - console.

5A

1

82

Electronic door latch (left-hand rear).

20A

1

83

USB smart charge - driver side.

5A

1

84

Electronic door latch (right-hand front).

20A

1

85

Electronic door latch (right-hand rear).

20A

1

86

Transmission range control module.

15A

1

87

Rear recline.

5A

1

88

Electronic door latch (left-hand front).

20A

1

89

308

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Powertrain control module relay.

10A

1

90

Brake on/off switch.

10A

1

91

Front multi-contour seat module.

15A

1

92

Rear multi-contour seats.

15A

1

93

Right-hand side high intensity discharge
headlamp.

20A

1

94

Left-hand side high intensity discharge
headlamp.

20A

1

95

Wiper park heater.

10A

1

96

Alternator sense line.

10A

1

97

Rain sensor.

5A

1

98

Not used.

—

99

1

Micro fuse.

2

M-type fuse.

3

J-type fuse.

309

Fuses

Note:  Spare fuse amperage could vary.

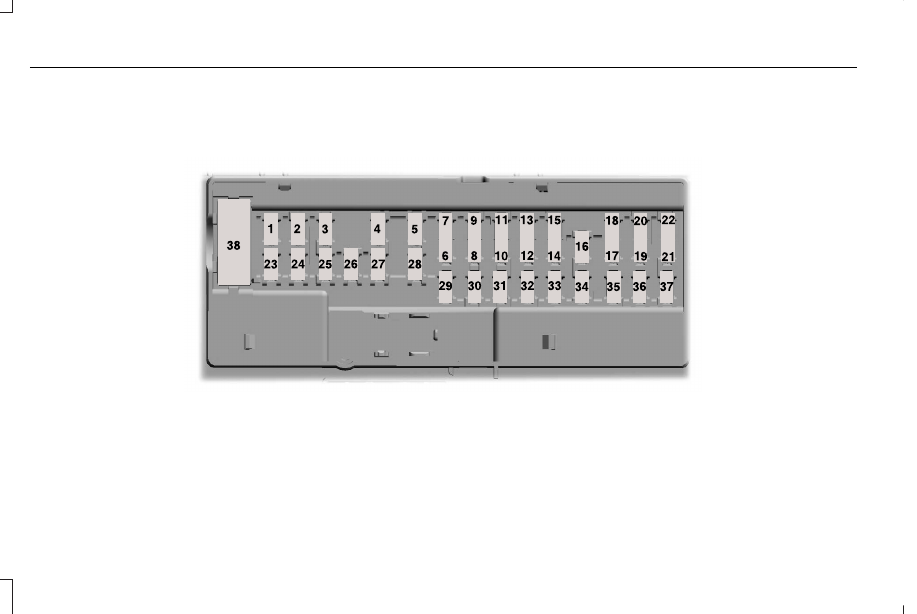

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

E145984

310

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

1

Driver seat switch.

7.5A

1

2

Passenger seat switch.

Driver unlock relay.

20A

1

3

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Revel digital signal processing amplifier.

Not used.

—

6

Not used.

—

7

Security horn.

10A

1

8

Not used.

10A

1

9

Telematics module.

5A

2

10

Power decklid module.

Keypad.

5A

2

11

Outside lock switch.
Combined security sensor module.

311

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front control interface module (climate control).

7.5A

2

12

Gear shift module.
Rear climate control module.

Instrument cluster.

7.5A

2

13

Smart data link.
Steering column control module.

Restraints control module.

10A

1

14

Smart datalink connector power.

10A

2

15

Decklid release relay.

5A

2

16

Power decklid.

15A

2

Not used (spare).

5A

2

17

Push button start switch.

5A

2

18

Not used.

7.5A

2

19

Headlamp control module.

7.5A

1

20

Humidity sensor.

5A

2

21

312

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

5A

2

22

Delayed accessory power.

10A

1

23

Left front window switch.
Moonroof.
Rear window power sunshade module.
DC inverter.

Central lock relay.

30A

1

24

Left-hand front door zone module.

30A

1

25

Right-hand front door zone module.

30A

1

26

Moonroof.

30A

1

27

Revel digital signal processing amplifier.

20A

1

28

Left-hand rear door zone module.

30A

1

29

Right-hand rear door zone module.

30A

1

30

Column memory module.

15A

1

31

Advanced heads up display.

313

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

SYNC.

10A

1

32

Radio frequency receiver.

20A

1

33

Rear Seat Entertainment.

Run/start relay.

30A

1

34

Restraint control module.

5A

1

35

Lane keeping system module.

15A

1

36

Auto high beam.
Electrochromic mirrors.
Rear heated seats.
Vehicle dynamics module.

Heated steering wheel.

20A

1

37

Steering effort control module.
Steering angle control module.

Not used.

30A

3

38

1

Micro fuse.

2

Dual micro fuse.

3

Circuit breaker.

Note:  Spare fuse amperage could vary.

314

Fuses

CHANGING A FUSE

Fuses

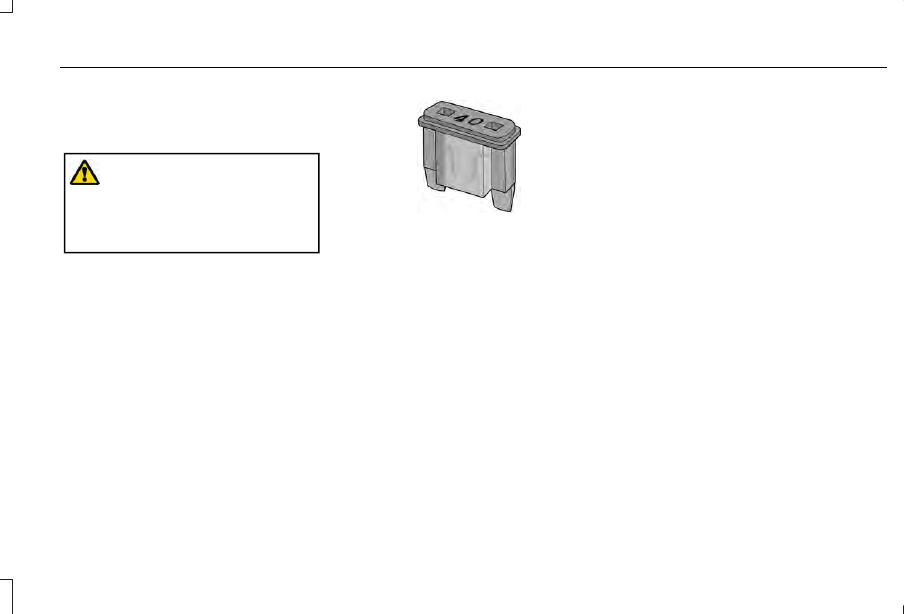

WARNING: Always replace a fuse

with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

315

Fuses

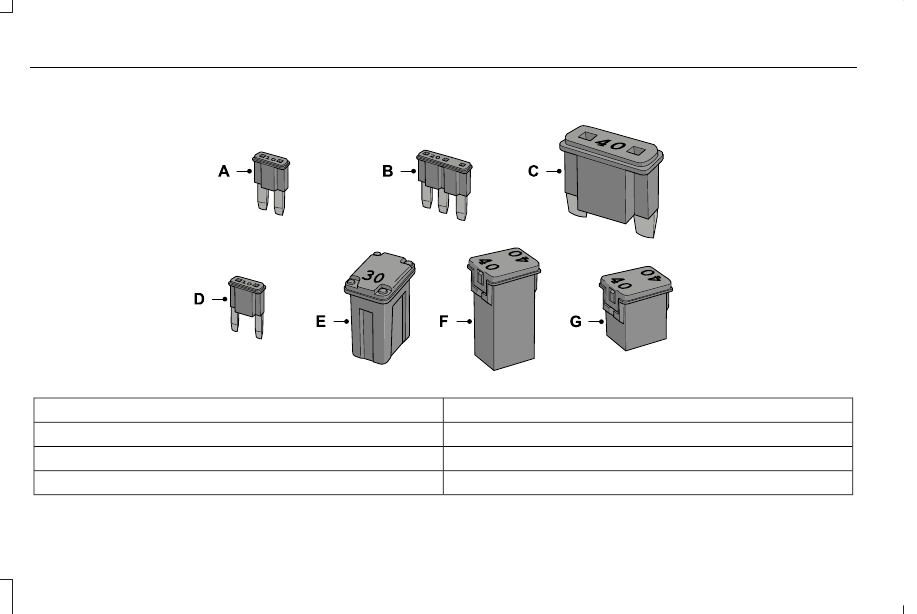

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

316

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

317

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service.  Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications.  Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1. Set the parking brake and shift the

transmission to park (P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING: To reduce the risk of

vehicle damage and personal burn injuries,
do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.

1. Set the parking brake and shift the

transmission to park (P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

Opening the Hood

E142457

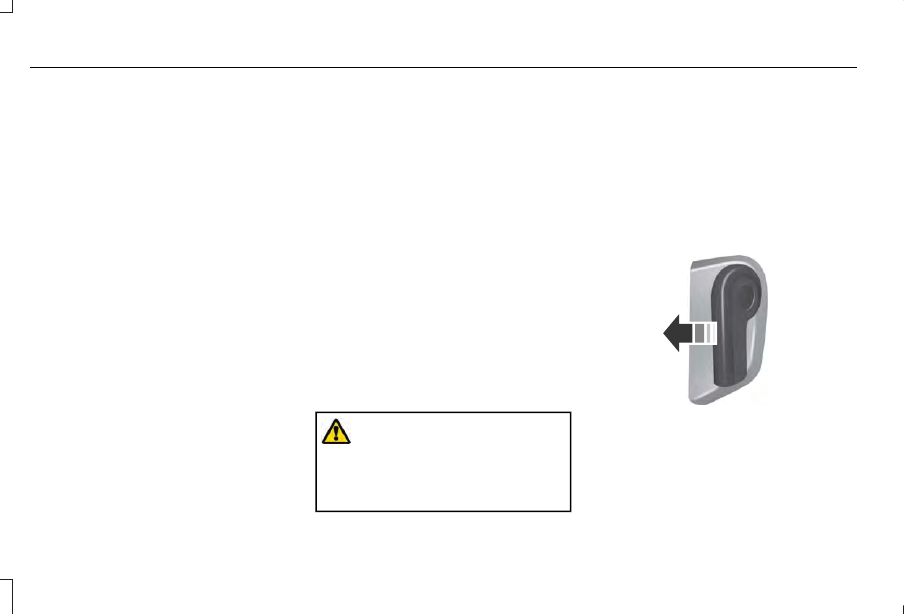

1. Inside the vehicle, pull the hood release

handle located under the left-hand side
of the instrument panel.

2. Slightly lift the hood.

3. Lift and release the hood latch.

318

Maintenance

E191432

4

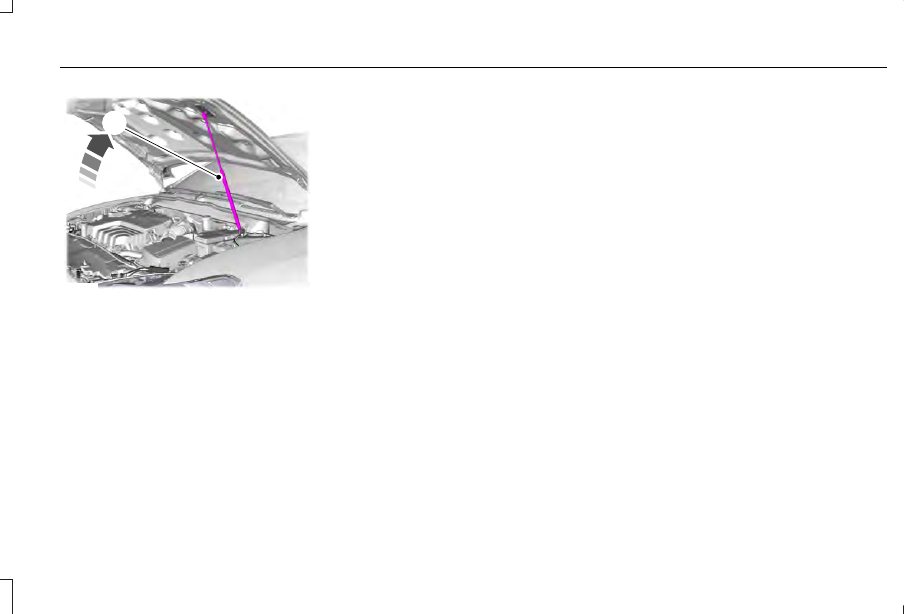

4. Open the hood.  The hood strut

automatically supports the hood.

Closing the Hood

1. Lower the hood until it engages on to the

secondary latch.

2. Firmly push down on the front of the

hood to close it fully.

Note: Make sure that the hood is correctly
closed.

319

Maintenance

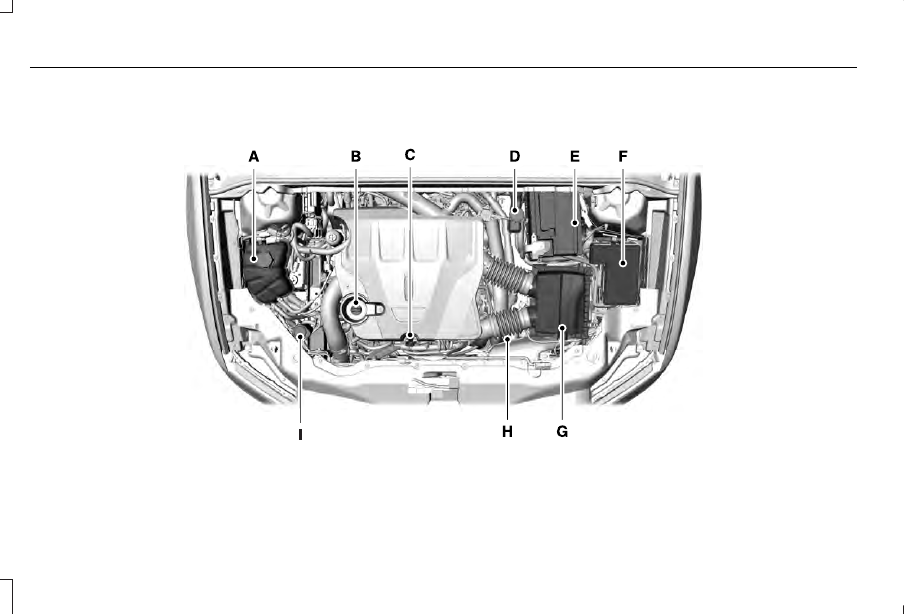

UNDER HOOD OVERVIEW - 2.7L/3.0L

E259226

320

Maintenance

Engine coolant reservoir.  See Engine Coolant Check (page 328).

A.

Engine oil filler cap.  See Engine Oil Check (page 324).

B.

Engine oil dipstick.  See Engine Oil Dipstick (page 324).

C.

Brake fluid reservoir.  See Brake Fluid Check (page 333).

D.

Battery.  See Changing the 12V Battery (page 334).

E.

Engine compartment fuse box.  See Changing a Fuse (page 315).

F.

Air filter assembly.  See Changing the Engine Air Filter (page 327).

G.

Automatic transmission dipstick.  See Automatic Transmission Fluid Check (page 333).

H.

Washer fluid reservoir.  See Washer Fluid Check (page 338).

I.

321

Maintenance

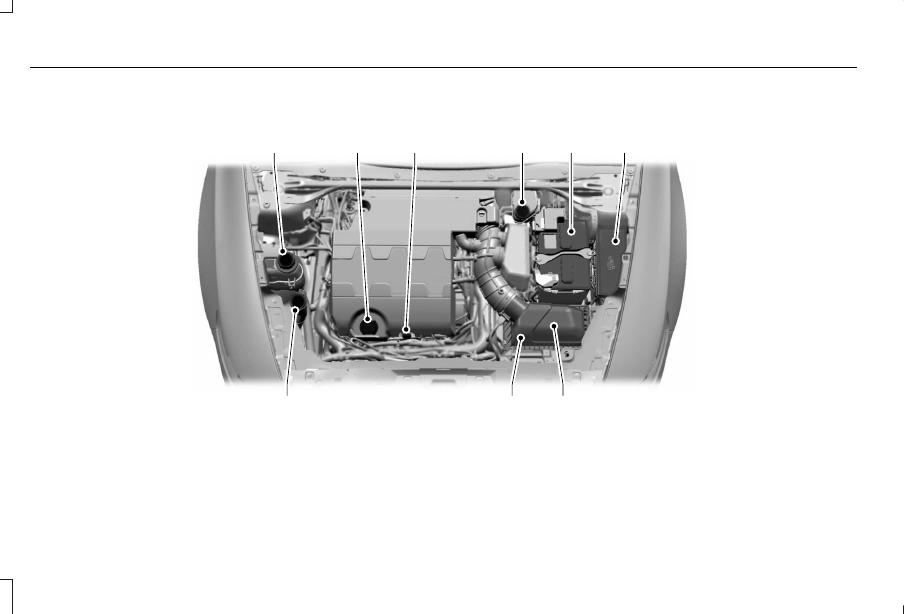

UNDER HOOD OVERVIEW - 3.7L

A

B

C

D

G

H

I

E

F

E173333

Engine coolant reservoir.  See Engine Coolant Check (page 328).

A.

Engine oil filler cap.  See Engine Oil Check (page 324).

B.

Engine oil dipstick.  See Engine Oil Dipstick (page 324).

C.

322

Maintenance
