SAFETY

(Continued)

Lights

Have someone observe the operation of brake

lights and exterior lights while you work the

controls. Check turn signal and high beam

indicator lights on the instrument panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight

parking for fuel, coolant, oil, or other fluid leaks.

Also, if gasoline fumes are detected or if fuel or

brake fluid leaks are suspected, the cause should

be located and corrected immediately.

XHAUST

The best protection against carbon monoxide entry

into the vehicle body is a properly maintained

engine exhaust system.
Whenever a change is noticed in the sound of the

exhaust system, when exhaust fumes can be

detected inside the vehicle, or when the underside

or rear of the vehicle is damaged, have an

authorized dealer inspect the complete exhaust

system and adjacent body areas for broken,

damaged, deteriorated, or mispositioned parts.

Open seams or loose connections could permit

exhaust fumes to seep into the passenger

compartment. In addition, inspect the exhaust

system each time the vehicle is raised for

lubrication or oil change. Replace as required.

ARBON

ONOXIDE

ARNINGS

WARNING!

Exhaust gases can injure or kill. They contain

carbon monoxide (CO), which is colorless and

odorless. Breathing it can make you

unconscious and can eventually poison you.

To avoid breathing (CO), follow these safety tips:



Do not run the engine in a closed garage or in

confined areas any longer than needed to

move your vehicle in or out of the area.



If you are required to drive with the trunk/lift

gate/rear doors open, make sure that all

windows are closed and the climate control

BLOWER switch is set at high speed. DO NOT

use the recirculation mode.



If it is necessary to sit in a parked vehicle with

the engine running, adjust your heating or

cooling controls to force outside air into the

vehicle. Set the blower at high speed.

WARNING!

Carbon monoxide (CO) in exhaust gases is

deadly. Follow the precautions below to prevent

carbon monoxide poisoning:



Do not inhale exhaust gases. They contain

carbon monoxide, a colorless and odorless

gas, which can kill. Never run the engine in a

closed area, such as a garage, and never sit in

a parked vehicle with the engine running for

an extended period. If the vehicle is stopped in

an open area with the engine running for more

than a short period, adjust the ventilation

system to force fresh, outside air into the

vehicle.



Guard against carbon monoxide with proper

maintenance. Have the exhaust system

inspected every time the vehicle is raised.

Have any abnormal conditions repaired

promptly. Until repaired, drive with all side

windows fully open.

235

IN CASE OF EMERGENCY

HAZARD WARNING FLASHERS

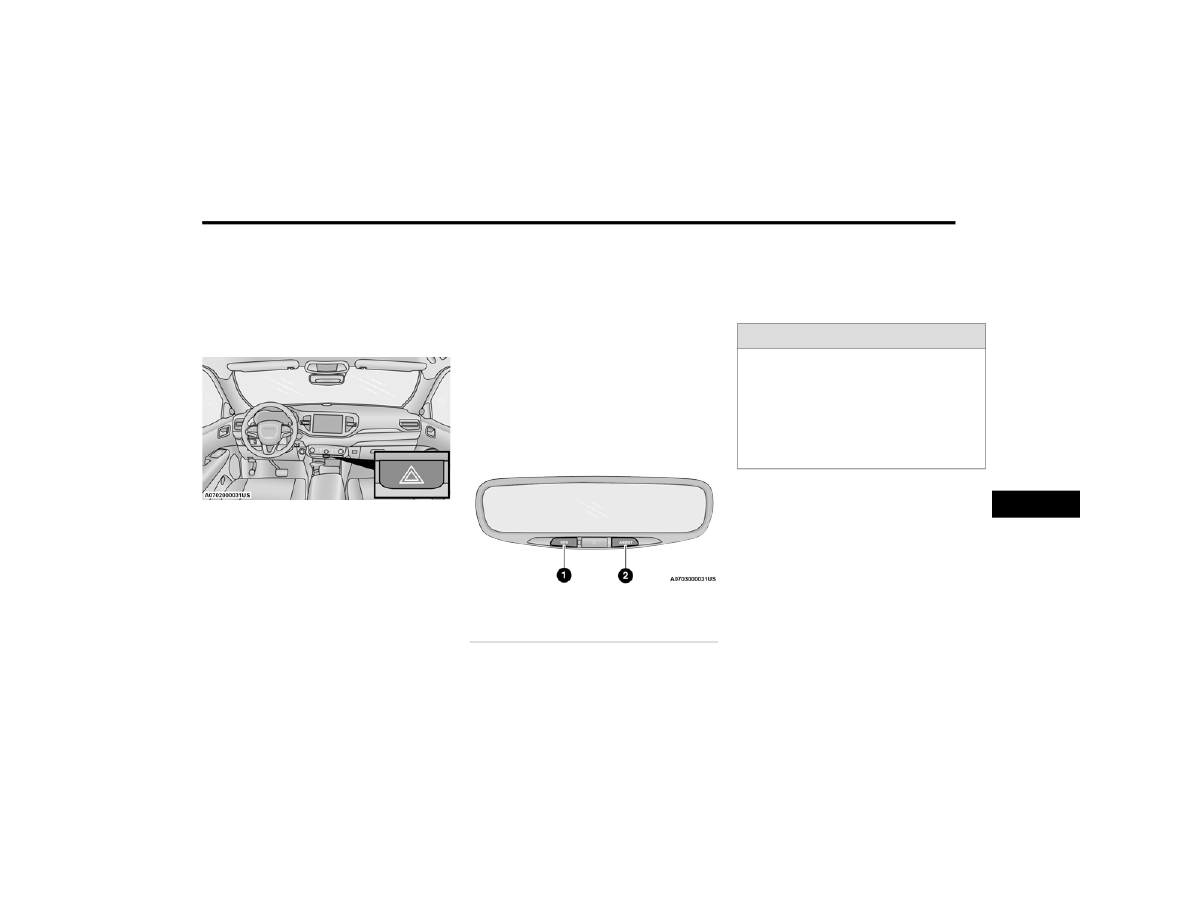

The Hazard Warning Flashers button is located on

the switch bank just below the climate controls.

Hazard Warning Flashers Button

Push the button to turn on the Hazard Warning

Flashers. When the button is activated, all

directional turn signals will flash on and off to warn

oncoming traffic of an emergency. Push the button

a second time to turn off the Hazard Warning

Flashers.
This is an emergency warning system and it should

not be used when the vehicle is in motion. Use it

only when your vehicle is disabled or signaling a

safety hazard warning for other motorists.

When you must leave the vehicle to seek

assistance, the Hazard Warning Flashers will

continue to operate even though the ignition is

placed in the OFF position.
NOTE:

With extended use, the Hazard Warning Flashers

may discharge the battery.

SOS AND ASSIST MIRROR — IF EQUIPPED

Assist And SOS Mirror

If equipped, the rearview mirror contains an SOS

and ASSIST button.

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber

page 316.



The SOS and ASSIST buttons will only function if

you are connected to an operable LTE (voice/

data), 3G or 4G (data) network, which comes as

a built in function. Other Uconnect services will

only be operable if your SiriusXM Guardian™

service is active and you are connected to an

operable LTE (voice/data), 3G or 4G (data)

network.

1 — SOS Button
2 — ASSIST Button

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

236

IN CASE OF EMERGENCY

ASSIST Call
The ASSIST Button is used to automatically

connect you to any one of the following support

centers:



Roadside Assistance – If you get a flat tire, or

need a tow, just push the ASSIST button and you

will be connected to a representative for assis

tance. Roadside Assistance will know what

vehicle you’re driving and its location. Additional

fees may apply for roadside assistance.



SiriusXM Guardian™ Customer Care – In-vehicle

support for SiriusXM Guardian™.



Vehicle Customer Care – Total support for all

other vehicle issues.



Uconnect Customer Care - Total support for

Radio, Phone and NAV issues.

SOS Call
1. Push the SOS Call button on the Rearview

Mirror.

NOTE:

In case the SOS Call button is pushed in error,

there will be a 10 second delay before the SOS Call

system initiates a call to a SOS operator. To cancel

the SOS Call connection, push the SOS call button

on the Rearview Mirror or press the cancellation

button on the Device Screen. Termination of the

SOS Call will turn off the green LED light on the

Rearview Mirror.

2. The LED light located between the SOS and

ASSIST buttons on the Rearview Mirror will

turn green once a connection to a SOS

operator has been made.

3. Once a connection between the vehicle and a

SOS operator is made, the SOS Call system

may transmit the following important vehicle

information to a SOS operator:



Indication that the occupant placed a

SOS Call



The vehicle brand



The last known GPS coordinates of the

vehicle

4. You should be able to speak with the SOS

operator through the vehicle audio system to

determine if additional assistance is needed.

NOTE:



Your vehicle may be transmitting data as

authorized by the subscriber.



Once a connection is made between the

vehicle’s SOS Call system and the SOS oper

ator, the SOS operator may be able to open

a voice connection with the vehicle to deter

mine if additional assistance is needed.

Once the SOS operator opens a voice

connection with the vehicle’s SOS Call

system, the operator should be able to

speak with you or other vehicle occupants

and hear sounds occurring in the vehicle.

The vehicle’s SOS Call system will attempt

to remain connected with the SOS operator

until the SOS operator terminates the

connection.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

IN CASE OF EMERGENCY

237

(Continued)

5. The SOS operator may attempt to contact

appropriate emergency responders and

provide them with important vehicle

information and GPS coordinates.

SOS Call System Limitations
Vehicles sold in Mexico DO NOT have SOS Call

system capabilities.
SOS or other emergency line operators in Mexico

may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any

of the following may occur at the time the

malfunction is detected, and at the beginning of

each ignition cycle:



The Rearview Mirror light located between the

SOS and ASSIST buttons will continuously illumi

nate red.



The Device Screen will display the following

message “Vehicle device requires service.

Please contact an authorized dealer.”



An In-Vehicle Audio message will state “Vehicle

device requires service. Please contact an

authorized dealer.”

WARNING!



If anyone in the vehicle could be in danger

(e.g., fire or smoke is visible, dangerous road

conditions or location), do not wait for voice

contact from an Emergency Services Agent. All

occupants should exit the vehicle immediately

and move to a safe location.



Never place anything on or near the vehicle’s

operable network and GPS antennas. You

could prevent operable network and GPS

signal reception, which can prevent your

vehicle from placing an emergency call. An

operable network and GPS signal reception is

required for the SOS Call system to function

properly.



The SOS Call system is embedded into the

vehicle’s electrical system. Do not add after

market electrical equipment to the vehicle’s

electrical system. This may prevent your

vehicle from sending a signal to initiate an

emergency call. To avoid interference that can

cause the SOS Call system to fail, never add

aftermarket equipment (e.g., two-way mobile

radio, CB radio, data recorder, etc.) to your

vehicle’s electrical system or modify the

antennas on your vehicle. IF YOUR VEHICLE

LOSES BATTERY POWER FOR ANY REASON

(INCLUDING DURING OR AFTER AN ACCI

DENT), THE UCONNECT FEATURES, APPS AND

SERVICES, AMONG OTHERS, WILL NOT

OPERATE.



Modifications to any part of the SOS Call

system could cause the air bag system to fail

when you need it. You could be injured if the

air bag system is not there to help protect you.

WARNING!

238

IN CASE OF EMERGENCY

Even if the SOS Call system is fully functional,

factors beyond FCA US LLC’s control may prevent

or stop the SOS Call system operation. These

include, but are not limited to, the following

factors:



The ignition is in the OFF position



The vehicle’s electrical systems are not intact



The SOS Call system software and/or hardware

are damaged during a crash



The vehicle battery loses power or becomes

disconnected during a vehicle crash



LTE (voice/data), 3G or 4G (data) network and/

or Global Positioning Satellite signals are

unavailable or obstructed



Equipment malfunction at the SOS operator

facility



Operator error by the SOS operator



LTE (voice/data), 3G or 4G (data) network

congestion



Weather



Buildings, structures, geographic terrain, or

tunnels

NOTE:



Your vehicle may be transmitting data as autho

rized by the subscriber.



Never place anything on or near the vehicle’s

LTE (voice/data), 3G or 4G (data) and GPS

antennas. You could prevent LTE (voice/data),

3G or 4G (data) and GPS signal reception, which

can prevent your vehicle from placing an emer

gency call. An operable LTE (voice/data), 3G or

4G (data) network connection and a GPS signal

is required for the SOS Call system to function

properly.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.

Automatic SOS — If Equipped
Automatic SOS is a hands-free safety service that

can immediately connect you with help in the event

that your vehicle’s airbags deploy. Please refer to

your provided radio supplement for complete

information.

WARNING!



Ignoring the Rearview Mirror light could mean

you will not have SOS Call services. If the Rear

view Mirror light is illuminated, have an autho

rized dealer service the SOS Call system

immediately.



The Occupant Restraint Control module turns

on the air bag Warning Light on the instrument

panel if a malfunction in any part of the

system is detected. If the Air Bag Warning

Light is illuminated, have an authorized dealer

service the Occupant Restraint Control system

immediately.

WARNING!

ALWAYS obey traffic laws and pay attention to

the road. ALWAYS drive safely with your hands on

the steering wheel. You have full responsibility

and assume all risks related to the use of the

features and applications in this vehicle. Only

use the features and applications when it is safe

to do so. Failure to do so may result in an

accident involving serious injury or death.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

IN CASE OF EMERGENCY

239

JACKING AND TIRE CHANGING

REPARATIONS

ACKING

1. Park the vehicle on a firm, level surface as far

from the edge of the roadway as possible.

Avoid icy or slippery areas.

2. Turn on the Hazard Warning Flashers.
3. Apply the parking brake.
4. Place the gear selector into PARK (P).
5. Turn OFF the ignition.

6. Block both the front and rear of the wheel

diagonally opposite the jacking position. For

example, if changing the driver’s front tire,

block the passenger’s rear tire.

Wheel Blocked

NOTE:

Passengers should not remain in the vehicle when

the vehicle is being raised or lifted.

WARNING!



Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid the danger of

being hit when operating the jack or changing

the wheel.



Being under a jacked-up vehicle is dangerous.

The vehicle could slip off the jack and fall on

you. You could be crushed. Never put any part

of your body under a vehicle that is on a jack.

If you need to get under a raised vehicle, take

it to a service center where it can be raised on

a lift.



Never start or run the engine while the vehicle

is on a jack.



The jack is designed to be used as a tool for

changing tires only. The jack should not be

used to lift the vehicle for service purposes.

The vehicle should be jacked on a firm level

surface only. Avoid ice or slippery areas.

WARNING!

Do not attempt to change a tire on the side of

the vehicle close to moving traffic. Pull far

enough off the road to avoid being hit when

operating the jack or changing the wheel.

240

IN CASE OF EMERGENCY

ACK

OCATION

The scissor-type jack and tire changing tools are

located in rear cargo area, below the load floor.

Load Floor Handle

Lift up on the load floor handle to access the jack

and tools in the cargo area.

Jack And Tools Storage Cover

To remove, press down firmly on the upper tabs of

the jack storage cover to release.

Thumb Screw Location

Rotate the plastic thumb screw on the end of the

jack to loosen the jack and remove from the

bracket.

Jack Removal

PARE

IRE

TOWAGE

The spare tire is stowed under the rear of the

vehicle by means of a cable winch mechanism. To

remove or stow the spare, use the jack handle/lug

wrench connected to the square socket extension

to rotate the “spare tire drive” nut. The nut is

located under a plastic cover at the center-rear of

the cargo floor area, just inside the liftgate

opening.

Spare Tire Location

CAUTION!

The winch mechanism is designed for use with

the jack wrench extension tool only. Use of air

wrench or power tool may damage the winch.

IN CASE OF EMERGENCY

241

PARE

IRE

EMOVAL

Remove the spare tire before attempting to jack up

the vehicle. The spare tire is stowed underneath

the rear cargo area on the outside of the vehicle.
For spare tire removal, see the following steps:
1. Remove the jack tools from the bag.
2. Raise the rubber mat and remove the plug

from storage compartment floor.

Winch Plug Location

3. Fit the jack handle extension over the drive

nut. Use the lug wrench handle and extension

to completely lower the spare tire. Keep

turning the handle counterclockwise until the

winch stops.

Winch Location

Wrench Rotation

4. Slide the tire out from under the vehicle and

rotate it vertically behind the rear fascia/

bumper.

Spare Tire

NOTE:

Depending on the vehicle trim, the vehicle may

come equipped with both, a metal retainer and

plastic plate or a metal retainer only when

removing the spare

page 297.

CAUTION!

The winch mechanism is designed for use with

the jack wrench extension tool only. Use of air

wrench or power tool may damage the winch.

242

IN CASE OF EMERGENCY

(Continued)

5. Pull the metal stamping toward you to release

it from the plastic plate (if equipped).

Spare Tire Retainer

6. Slide the metal stamping up the steel

extension tube and winch cable. Rotate the

metal stamping and push it through the hole in

the plastic plate (if applicable) and wheel.

Sleeve And Cable

7. If your vehicle is equipped with a spare tire

retainer and plastic plate. Pinch the three

short and two long tubes to remove the

protective plate from the steel spare wheel.

Releasing Protective Plate

ACKING

NSTRUCTIONS

WARNING!

Carefully follow these tire changing warnings to

help prevent personal injury or damage to your

vehicle:



Always park on a firm, level surface as far from

the edge of the roadway as possible before

raising the vehicle.



Turn on the Hazard Warning Flashers.



Apply the parking brake firmly and set the

transmission in PARK.



Block the wheel diagonally opposite the wheel

to be raised.



Never start or run the engine with the vehicle

on a jack.



Do not let anyone sit in the vehicle when it is

on a jack.



Do not get under the vehicle when it is on a

jack. If you need to get under a raised vehicle,

take it to a service center where it can be

raised on a lift.



Only use the jack in the positions indicated

and for lifting this vehicle during a tire change.



If working on or near a roadway, be extremely

careful of motor traffic.



To assure that spare tires, flat or inflated, are

securely stowed, spares must be stowed with

the valve stem facing the ground.

WARNING!

IN CASE OF EMERGENCY

243

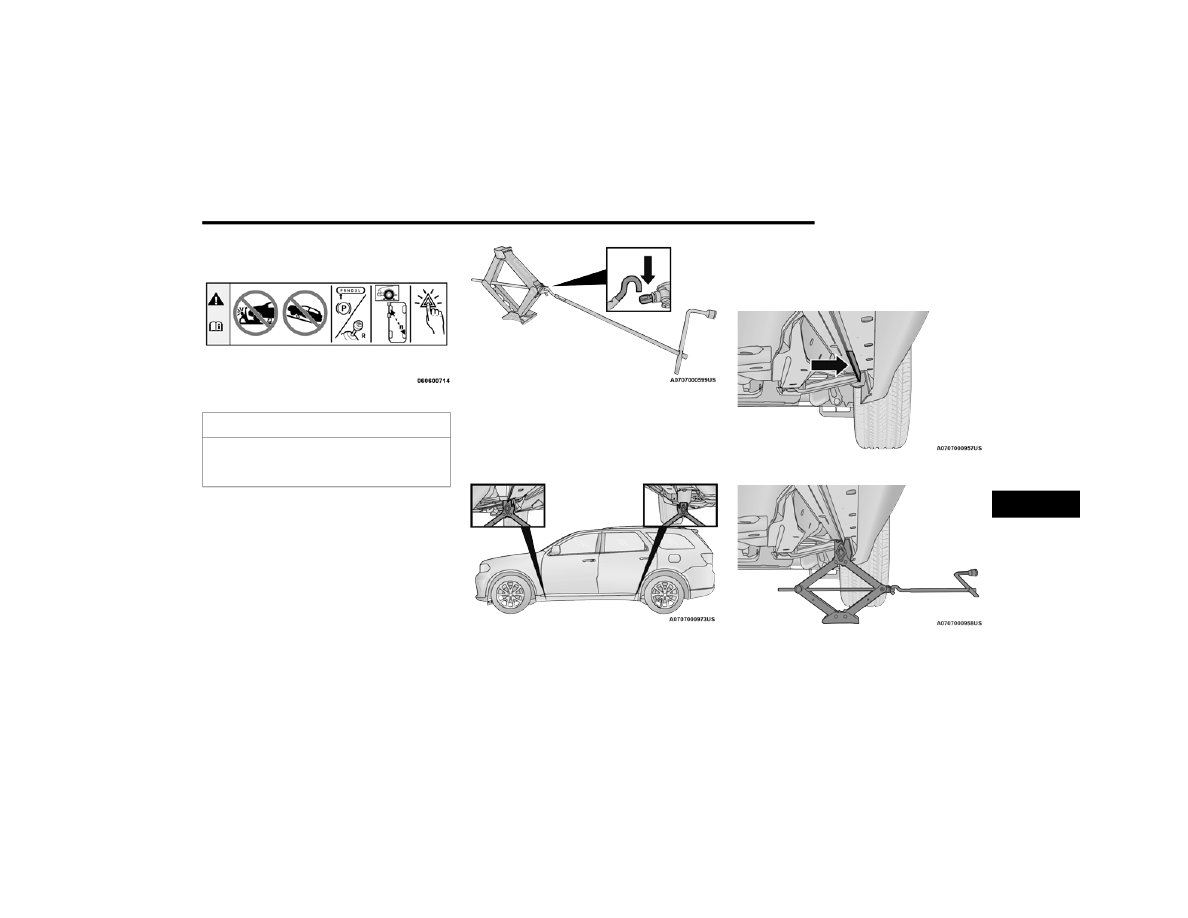

Jack Warning Label

1. Loosen (but do not remove) the wheel lug

nuts by turning them to the left, one turn,

while the wheel is still on the ground.

2. Assemble the jack and jacking tools.

Jack And Tool Assembly

NOTE:

Placement for the front and rear jacking locations

are critical. See the following images for proper

jacking locations.

Jacking Locations

3. For the front tire, place the jack on the body

flange just behind the front tire. Do not raise

the vehicle until you are sure the jack is fully

engaged.

Front Lifting Point

Front Jacking Location

CAUTION!

Do not attempt to raise the vehicle by jacking on

locations other than those indicated in the

Jacking Instructions for this vehicle.

244

IN CASE OF EMERGENCY

4. For a rear tire, place the jack in the slot on the

rear tie-down bracket, just forward of the rear

tire. Do not raise the vehicle until you are sure

the jack is fully engaged.

Rear Lifting Point

Rear Jacking Location

5. Raise the vehicle by turning the jack screw

clockwise. Raise the vehicle just enough to

remove the flat tire.

6. Remove the lug nuts and wheel.
7. Install the spare wheel/tire on the vehicle and

install the lug nuts with the cone-shaped end

toward the wheel. Lightly tighten the nuts.

Mounting Spare Tire

8. Lower the vehicle by turning the jack screw

counterclockwise, and remove the jack and

wheel blocks.

9. Finish tightening the wheel bolts. Push down

on the wrench while at the end of the handle

for increased leverage. Tighten the wheel bolts

in a star pattern until each wheel bolt has been

tightened twice. If in doubt about the correct

tightness, have them checked with a torque

wrench by an authorized dealer or at a service

station

page 307.

WARNING!

Raising the vehicle higher than necessary can

make the vehicle less stable. It could slip off the

jack and hurt someone near it. Raise the vehicle

only enough to remove the tire.

WARNING!

To avoid the risk of forcing the vehicle off the

jack, do not tighten the wheel nuts fully until the

vehicle has been lowered. Failure to follow this

warning may result in serious injury.

CAUTION!

Be sure to mount the spare tire with the valve

stem facing outward. The vehicle could be

damaged if the spare tire is mounted incorrectly.

IN CASE OF EMERGENCY

245

10. Push out the small center cap using the jack

tool from inside the aluminum road wheel and

position the wheel behind the rear fascia/

bumper with the protective plate facing

outward.

Installing Protective Plate On Damaged Wheel

NOTE:

The plastic plate will prevent the road wheel from

being scratched when sliding it under the vehicle.
11. Insert the two long tubes on the plastic

protective plate in the lug holes of the road

wheel. Push the end of the winch’s cable,

spring, steel sleeve and stamped cone shape

wheel plate though the road wheel and

protective plate.

Installing Winch

12. Slide the road wheel on the ground using the

protective plate until it is directly under the

winch and between the rear fascia/bumper

and exhaust system heat shields. Raise the

tire by turning the lug wrench on the winch

extension clockwise until it clicks/ratchets

three times to make sure the cable is tight.

Wrench Rotation

NOTE:

Double check to ensure the tire is snug against the

underbody of the vehicle. Damage to the winch

cable may result if the vehicle is driven with the

tire loose.

Road Wheel Installed In Spare Location

13. After 25 miles (40 km), check the lug nut

torque with a torque wrench to ensure that all

lug nuts are properly seated against the wheel.

CAUTION!

The winch mechanism is designed for use with

the jack wrench extension tool only. Use of air

wrench or power tool may damage the winch.

246

IN CASE OF EMERGENCY

14. Lower the jack to the fully closed position.

Return the tools to the proper positions in the

tool bag. Fold the flap on the tool bag under

the tools and roll the tools in the bag

underneath the others. Use the hook and loop

fasteners to secure the tool bag to the jack

with the lug wrench on the forward side of the

jack. Expand the jack on the bracket by turning

the thumb screw clockwise until it is tight to

prevent rattles.

15. Reinstall the plastic plug into the floor of the

cargo area. Roll up and store the Jack, Tool Kit

and Tire Changing Instructions. Reinstall the

cover for the jack in the rear storage bin.

16. Have the aluminum road wheel and tire

repaired as soon as possible and properly

secure the spare tire, jack and tool kit.

JUMP STARTING

If your vehicle has a discharged battery, it can be

jump started using a set of jumper cables and a

battery in another vehicle, or by using a portable

battery booster pack. Jump starting can be

dangerous if done improperly, so please follow the

procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer's operating instructions and

precautions.

REPARATIONS

UMP

TART

The battery in your vehicle is located under the

passenger's front seat. There are remote terminals

located under the hood to assist in jump starting.

Under Hood Jump Starting Location

NOTE:

Be sure that the disconnected cable ends do not

touch each other, or either vehicle, before properly

connected for jump starting.

WARNING!

A loose tire or jack thrown forward in a collision

or hard stop, could endanger the occupants of

the vehicle. Always stow the jack parts and the

spare tire in the places provided.

WARNING!

Do not attempt jump starting if the battery is

frozen. It could rupture or explode and cause

personal injury.

CAUTION!

Do not use a portable battery booster pack or

any other booster source with a system voltage

greater than 12 Volts or damage to the battery,

starter motor, alternator or electrical system

may occur.

Remote Positive (+) Post

(Covered With Protective Cap)
Remote Negative (-) Post

(Covered With Protective Cap)

IN CASE OF EMERGENCY

247

See the following steps to prepare for jump

starting:
1. Apply the parking brake, shift the automatic

transmission into PARK (P) and turn the

ignition OFF.

2. Turn off the heater, radio, and all electrical

accessories.

3. Remove the protective cover over the remote

positive (+) battery post. Pull upward on the

cover to remove it.

4. Remove the protective cover over the remote

negative (-) battery post.

5. If using another vehicle to jump start the

battery, park the vehicle within the jumper

cable’s reach, apply the parking brake and

make sure the ignition is OFF.

UMP

TARTING

ROCEDURE

NOTE:

Make sure at all times that unused ends of jumper

cables are not contacting each other or either

vehicle while making connections.
Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper

cable to the remote positive (+) post of the

discharged vehicle.

2. Connect the opposite end of the positive (+)

jumper cable to the positive (+) post of the

booster battery.

3. Connect the negative (-) end of the jumper

cable to the negative (-) post of the booster

battery.

4. Connect the opposite end of the negative (-)

jumper cable to the remote negative (-) post

(exposed metallic/unpainted post of the

discharge vehicle) located on the right hand

side next to the underhood fuse box.

WARNING!

Do not allow vehicles to touch each other as this

could establish a ground connection and

personal injury could result.

WARNING!



Take care to avoid the radiator cooling fan

whenever the hood is raised. It can start

anytime the ignition switch is ON. You can be

injured by moving fan blades.



Remove any metal jewelry such as rings,

watch bands and bracelets that could make

an inadvertent electrical contact. You could be

seriously injured.



Batteries contain sulfuric acid that can burn

your skin or eyes and generate hydrogen gas

which is flammable and explosive. Keep open

flames or sparks away from the battery.

WARNING!

Failure to follow this jump starting procedure

could result in personal injury or property

damage due to battery explosion.

CAUTION!

Failure to follow these procedures could result in

damage to the charging system of the booster

vehicle or the discharged vehicle.

WARNING!

Do not connect the jumper cable to the

negative (-) post of the discharged battery.

The resulting electrical spark could cause the

battery to explode and could result in personal

injury.

248

IN CASE OF EMERGENCY

5. Start the engine in the vehicle that has the

booster battery, let the engine idle a few

minutes, and then start the engine in the

vehicle with the discharged battery.

6. Once the engine is started, follow the discon

necting procedure.

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper

cable from the remote negative (-) post of the

discharged vehicle.

2. Disconnect the opposite end of the negative (-)

jumper cable from the negative (-) post of the

booster battery.

3. Disconnect the positive (+) end of the jumper

cable from the positive (+) post of the booster

battery.

4. Disconnect the opposite end of the positive (+)

jumper cable from the remote positive (+) post

of the discharged vehicle.

5. Reinstall the protective covers over the remote

positive (+) and negative (-) posts of the

discharged vehicle.

If frequent jump starting is required to start your

vehicle have the battery and charging system

tested at an authorized dealer.

REFUELING IN EMERGENCY – IF EQUIPPED

The vehicle is equipped with a refueling funnel for

a Cap-Less Fuel System. The fuel funnel can be

found in the rear cargo area with the jack and

tools. If refueling is necessary, while using an

approved gas can, insert the refueling funnel into

the filler neck opening. Take care to open both

flappers with the funnel to avoid spills.

CAUTION!

Do not run the booster vehicle engine above

2,000 RPM since it provides no charging benefit,

wastes fuel, and can damage booster vehicle

engine.

CAUTION!

Accessories plugged into the vehicle power

outlets draw power from the vehicle’s battery,

even when not in use (i.e., cellular devices, etc.).

Eventually, if plugged in long enough without

engine operation, the vehicle’s battery will

discharge sufficiently to degrade battery life

and/or prevent the engine from starting.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

IN CASE OF EMERGENCY

249

NOTE:

In certain cold conditions, ice may prevent the fuel

door from opening. If this occurs, lightly push on

the fuel door to break the ice buildup and

re-release the fuel door using the inside release

button. Do not pry on the door.

Refueling Funnel

Emergency Gas Can Refueling
Most gas cans will not open the flapper doors.

A funnel is provided to allow emergency refueling

with a gas can.

See the following steps for refueling:
1. Retrieve funnel from the rear cargo storage

area.

Refueling Funnel Location

2. Insert funnel into same filler pipe opening as

the fuel nozzle.

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper

doors open.

4. Pour fuel into funnel opening.

5. Remove funnel from filler pipe, clean off prior

to putting back in the spare tire storage area.

IF YOUR ENGINE OVERHEATS

If the vehicle is overheating, it will need to be

serviced by an authorized dealer.
Potential signs of vehicle overheating can be:



Temperature gauge is at HOT (H)



Strong smell of coolant



White smoke coming from engine or exhaust



Coolant bottle coolant has bubbles present

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

Dodge Durango (2022 year). Manual in english - page 15
