GETTING TO KNOW YOUR VEHICLE

25

Passive Entry Unlock initiates illuminated

approach (low beams, license plate lamp, posi

-

tion lamps) for whichever time duration is set

between 0, 30, 60 or 90 seconds. Passive Entry

Unlock also initiates two flashes of the turn

signal lamps.

If wearing gloves, or if it has been raining/

snowing on the Passive Entry door handle, the

unlock sensitivity can be affected, resulting in a

slower response time.

If the vehicle is unlocked by Passive Entry and

no door is opened within 60 seconds, the

vehicle will relock and (if equipped) will arm the

Vehicle Security system.

To Unlock From The Driver Or Passenger Side
With a Passive Entry key fob within 5 ft (1.5 m) of

the door handle, grab the handle to unlock the

vehicle. Grabbing the driver’s door handle will

unlock the driver door automatically. Grabbing the

passenger door handle will unlock both doors

automatically. The interior door panel lock knob

will raise when the door is unlocked.

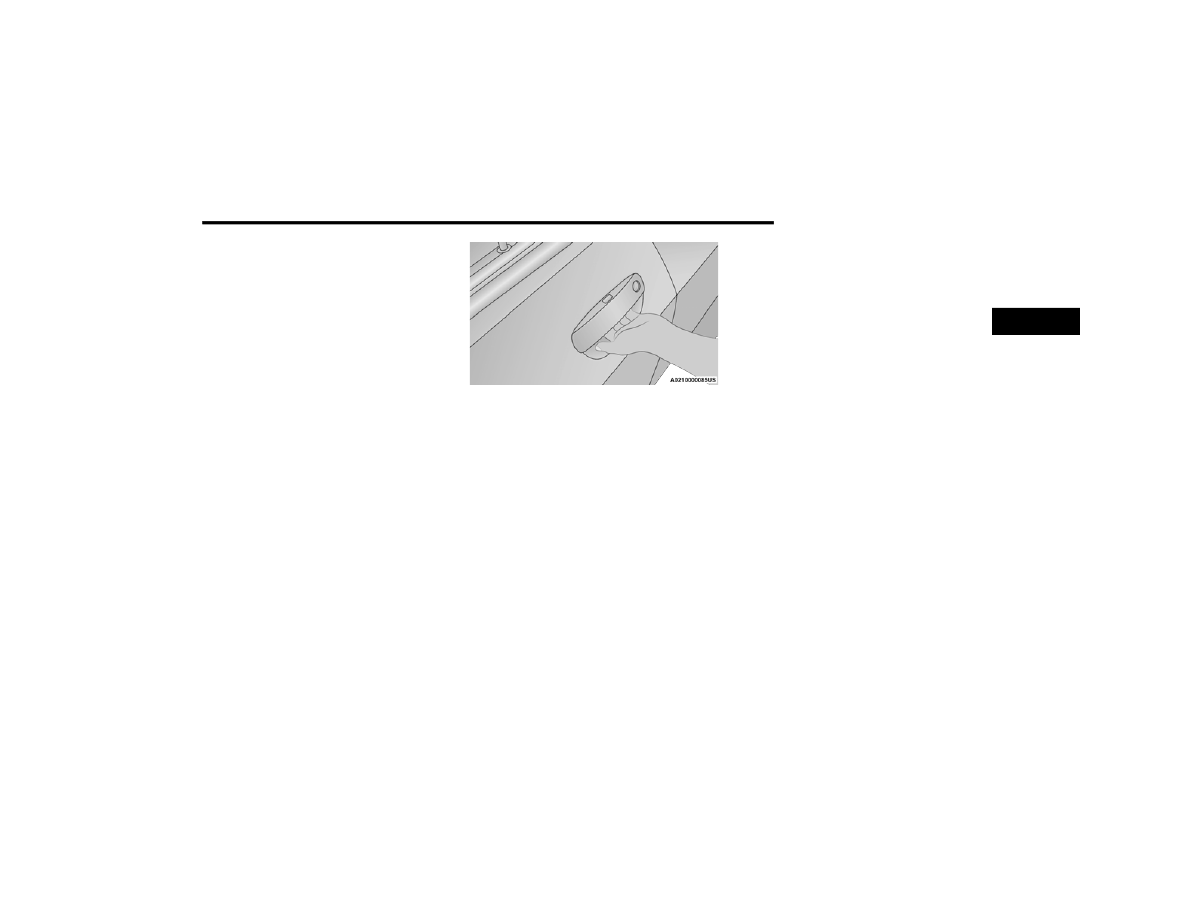

Grab The Door Handle To Unlock

NOTE:

Either the driver door only or all doors will unlock

when you grab hold of the front driver’s door

handle, depending on the selected setting in the

Uconnect system

Ú

page 123.

All doors will unlock when the front passenger

door handle is grabbed regardless of the

driver’s door unlock preference setting.

Frequency Operated Button Integrated Key

(FOBIK-Safe)
To minimize the possibility of unintentionally

locking a Passive Entry key fob inside your vehicle,

the Passive Entry system is equipped with an

automatic door unlock feature which will function if

the ignition is in the OFF position.
There are three situations that trigger a

FOBIK-Safe search in any Passive Entry vehicle.
1. A lock request is made by a valid Passive

Entry key fob while a door is open.

2. A lock request is made by the Passive Entry

door handle while a door is open.

3. A lock request is made by the door panel

switch while the door is open.

When any of these situations occur, after all open

doors are shut, the FOBIK-Safe search will be

executed. If it detects a Passive Entry key fob

inside the car, and it does not detect any Passive

Entry key fobs outside the car, the car will unlock

and alert the customer.

2

26

GETTING TO KNOW YOUR VEHICLE



NOTE:

The vehicle will only unlock the doors when a valid

Passive Entry key fob is detected inside the

vehicle, and no valid Passive Entry key fob is

detected outside the vehicle. The vehicle will not

unlock the doors when any of the following condi

-

tions are true:

The doors are manually locked using the door

lock knobs.

Three attempts are made to lock the doors

using the door panel switch and then the doors

are closed.

There is a valid Passive Entry key fob outside the

vehicle and within 5 ft (1.5 m) of either Passive

Entry door handle.

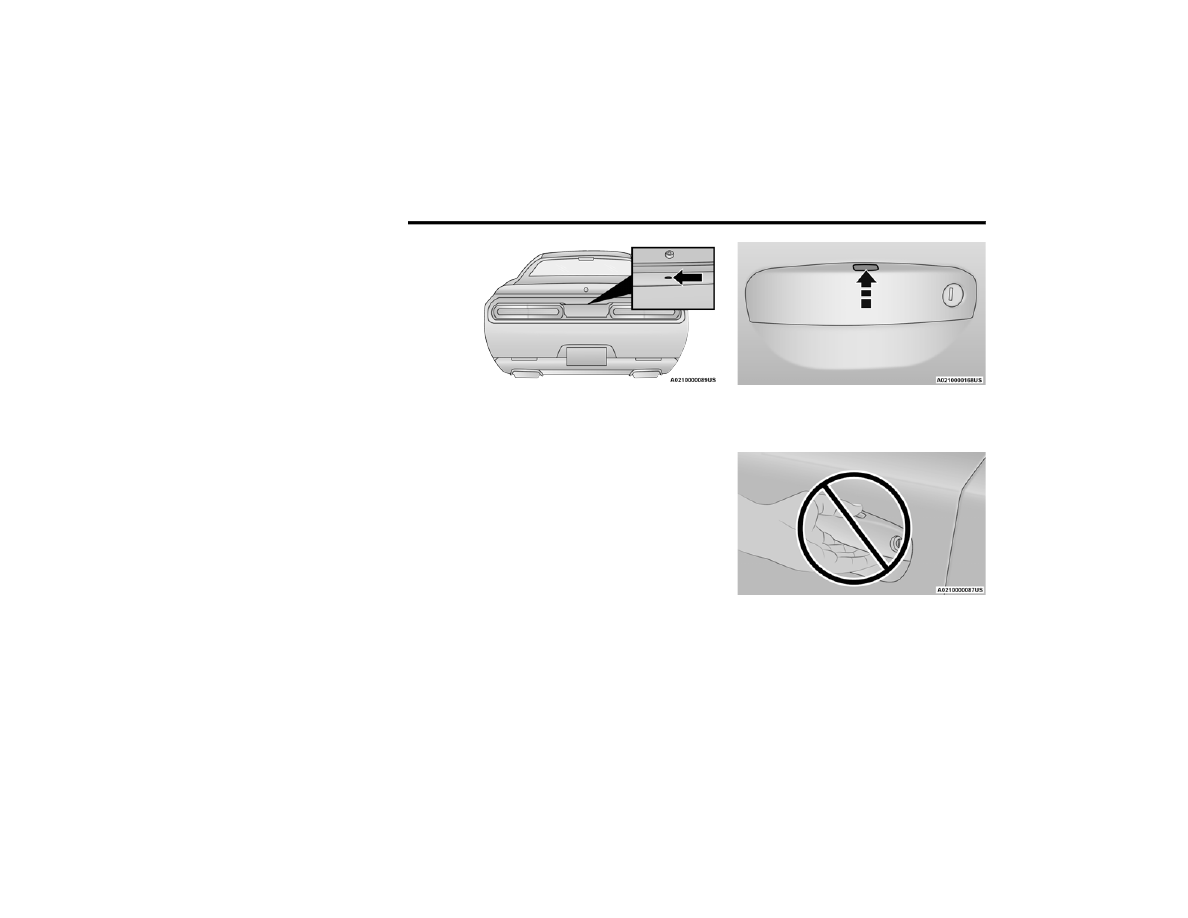

To Enter The Trunk:
With a Passive Entry key fob within 5 ft (1.5 m) of

the deck lid, push the button located on the center

of the light bar which is located on the deck lid

above the license plate.

Trunk Passive Entry Button

NOTE:

If you inadvertently leave your vehicle's Passive

Entry key fob in the trunk and try to close the deck

lid, the deck lid will automatically unlatch, unless

another one of the vehicle’s Passive Entry key fobs

is outside the vehicle and within 5 ft (1.5 m) of the

deck lid.
To Lock The Vehicle’s Doors:
With one of the vehicle’s Passive Entry key fobs

within 5 ft (1.5 m) of either door handle, pushing

the Passive Entry lock button will lock both doors.

Push The Door Handle Button To Lock

Do NOT grab the door handle, when pushing the

door handle button. This could unlock the door(s).

Do NOT Grab The Handle When Locking

GETTING TO KNOW YOUR VEHICLE

27

NOTE:

After pushing the door handle button, you must

wait two seconds before you can lock or unlock

the doors, using either Passive Entry door

handle. This is done to allow you to check if the

vehicle is locked by pulling the door handle,

without the vehicle unlocking.

The Passive Entry system will not operate if the

key fob battery is depleted.

The vehicle doors can also be locked by using the

key fob lock button or the lock button located on

the vehicle’s interior door panel

Ú

page 322.

A

UTOMATIC

 U

NLOCK

 D

OORS

 O

N

 E

XIT



The doors will unlock automatically on vehicles

with power door locks if:

The Automatic Unlock Doors On Exit feature is

enabled within Uconnect Settings

Ú

page 123.

The driver door is opened.

The doors were not previously unlocked.

NOTE:

The doors will also unlock automatically when

the gear selector was not previously in the PARK

position, then is placed into the PARK position.

Use the Automatic Unlock Doors On Exit feature

in accordance with local laws.

A

UTOMATIC

 D

OOR

 L

OCKS

 —

I

F

 E

QUIPPED



The auto door lock feature default condition is

enabled. When enabled, the door locks will lock

automatically when the vehicle's speed exceeds

15 mph (24 km/h). The auto door lock feature can

be enabled or disabled by an authorized dealer per

written request of the customer. Please see an

authorized dealer for service.

STEERING WHEEL

M

ANUAL

 T

ILT

/T

ELESCOPING

 S

TEERING



C

OLUMN

 — I

F

 E

QUIPPED



This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The tilt/

telescoping lever is located below the steering

wheel at the end of the steering column.

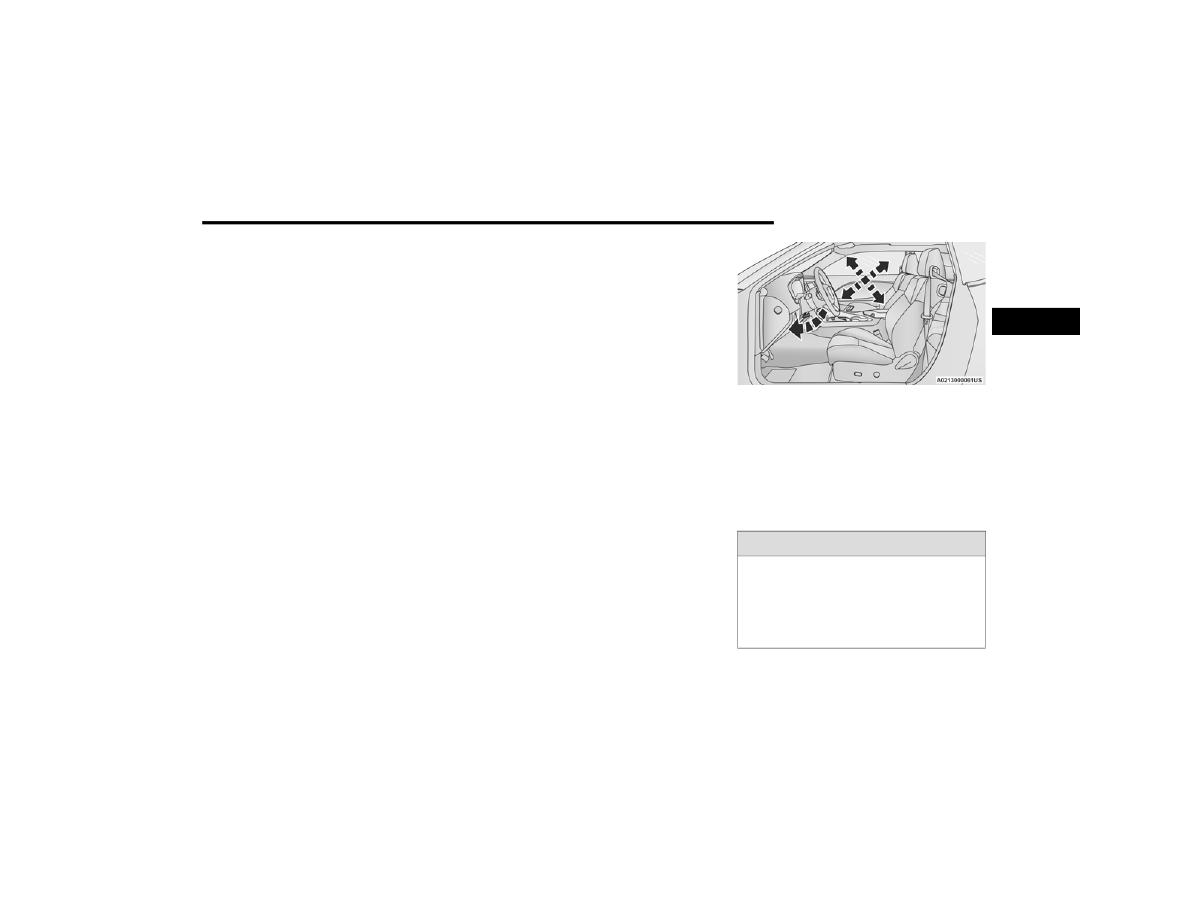

Manual Tilt/Telescoping Control Handle

To unlock the steering column, pull the lever

downward (toward the floor). To tilt the steering

column, move the steering wheel upward or

downward as desired. To lengthen or shorten the

steering column, pull the steering wheel outward

or push it inward as desired. To lock the steering

column in position, push the lever upward until

fully engaged.

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

2

28

GETTING TO KNOW YOUR VEHICLE



P

OWER

 T

ILT

/T

ELESCOPING

 S

TEERING



C

OLUMN

 — I

F

 E

QUIPPED



This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The power tilt/

telescoping steering column control is located

below the multifunction lever on the steering

column.

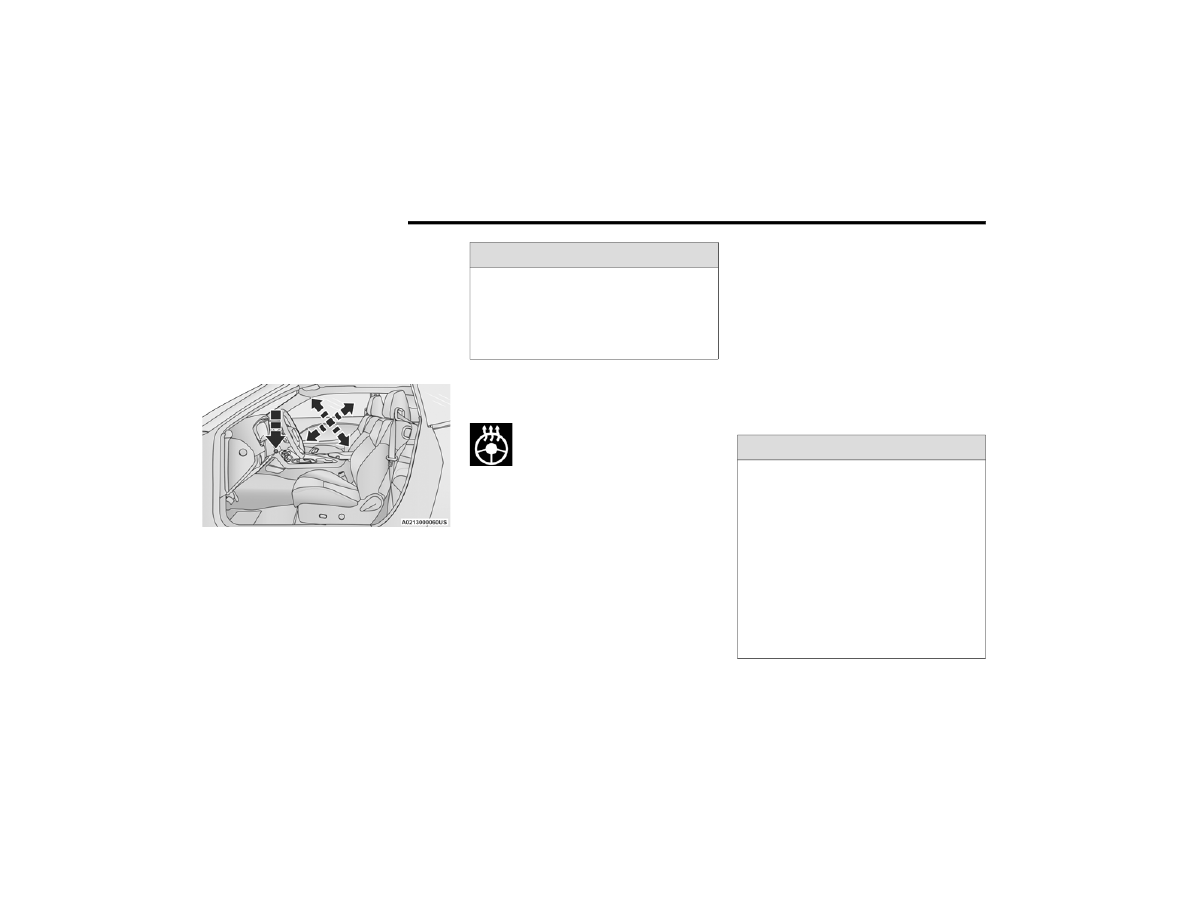

Power Tilt/Telescoping Steering Column Control

Use the four-way control to adjust the steering

column.

NOTE:

For vehicles equipped with Driver Memory

Settings, use the key fob or the memory switch on

the driver's door trim panel to return the tilt/tele

-

scopic steering column to saved positions

Ú

page 30.

H

EATED

 S

TEERING

 W

HEEL

 —

I

F

 E

QUIPPED

The steering wheel contains a heating

element that helps warm your hands in

cold weather. The heated steering wheel

has only one temperature setting. Once

the heated steering wheel has been turned on, it

will stay on for an average of 80 minutes before

automatically shutting off. This time will vary based

on environmental temperatures. The heated

steering wheel can shut off early or may not turn on

when the steering wheel is already warm.

The heated steering wheel button is located within

the Uconnect system. You can access the button

through the climate screen or the controls screen.

Press the heated steering wheel button once to

turn the heating element on.

Press the heated steering wheel button a

second time to turn the heating element off.

NOTE:

The engine must be running for the heated

steering wheel to operate.
For information on use with the Remote Start

system, see

Ú

page 20.

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion, or other physical

conditions must exercise care when using the

steering wheel heater. It may cause burns

even at low temperatures, especially if used

for long periods.

Do not place anything on the steering wheel

that insulates against heat, such as a blanket

or steering wheel covers of any type and mate

-

rial. This may cause the steering wheel heater

to overheat.

GETTING TO KNOW YOUR VEHICLE

29

UCONNECT VOICE RECOGNITION

I

NTRODUCING

 V

OICE

 R

ECOGNITION

Start using Uconnect Voice Recognition with these

helpful quick tips. It provides the key Voice

Commands and tips you need to know to control

your vehicle’s Voice Recognition (VR) system.

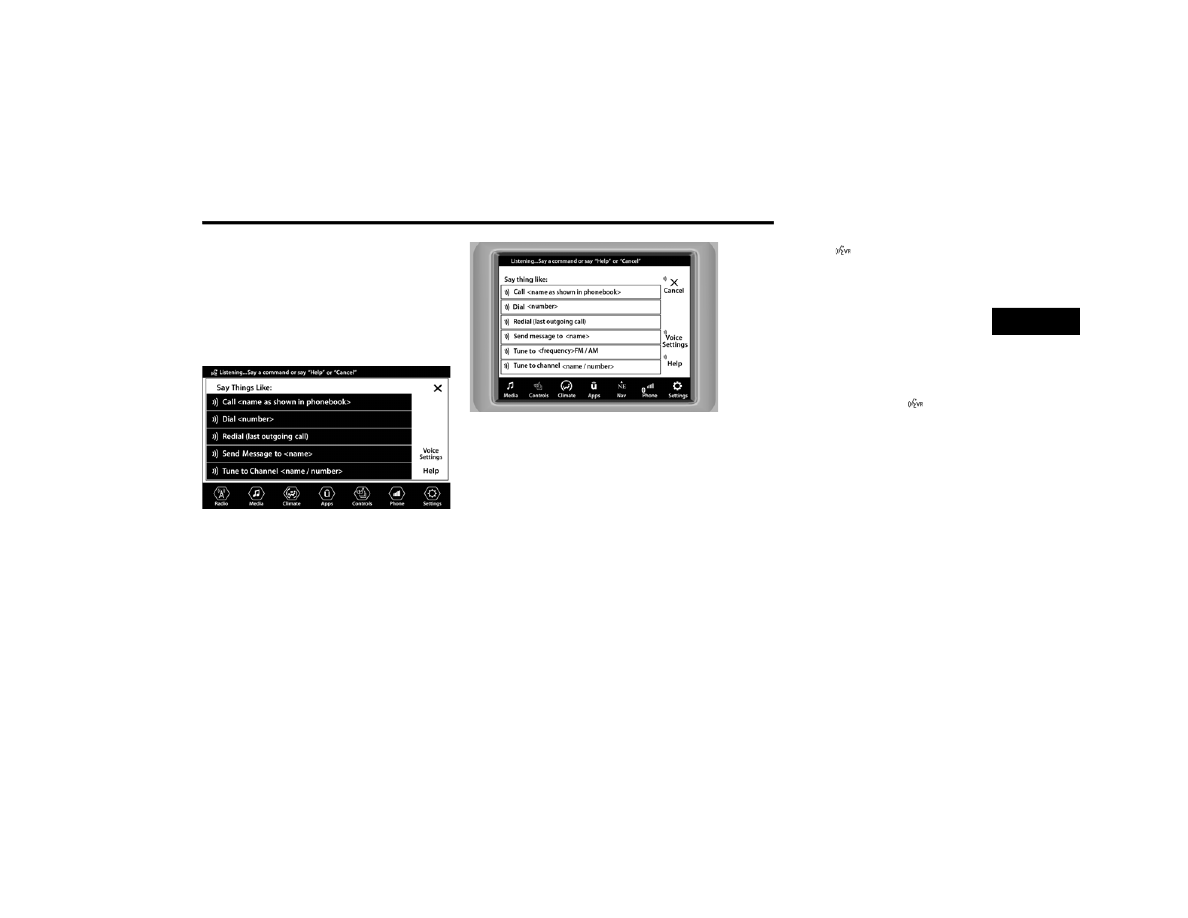

Uconnect 4 With 7-inch Display

Uconnect 4C NAV With 8.4-inch Display

If you see the NAV icon on the bottom bar or in the

Apps menus of your 8.4-inch touchscreen, you

have the Uconnect 4C NAV system. If not, you have

a Uconnect 4C with 8.4-inch display system.

B

ASIC

 V

OICE

 C

OMMANDS

The basic Voice Commands below can be given at

any point while using your Uconnect system.

Push the VR button  . After the beep, say:

“Cancel” to stop a current voice session

“Help” to hear a list of suggested Voice

Commands

“Repeat” to listen to the system prompts again

Notice the visual cues that inform you of your VR

system’s status. Cues appear on the touchscreen.

G

ET

 S

TARTED

The Voice Recognition (VR) button   is used to

activate/deactivate your Voice Recognition

system.
Helpful hints for using Voice Recognition:

Reduce background noise. Wind and passenger

conversations are examples of noise that may

impact recognition.

Speak clearly at a normal pace and volume

while facing straight ahead.

2

30

GETTING TO KNOW YOUR VEHICLE



Each time you give a Voice Command, you must

first push the Voice Recognition (VR) button,

wait until after the beep, then say your Voice

Command.

You can interrupt the help message or system

prompts by pushing the VR button and saying a

Voice Command from the current category.

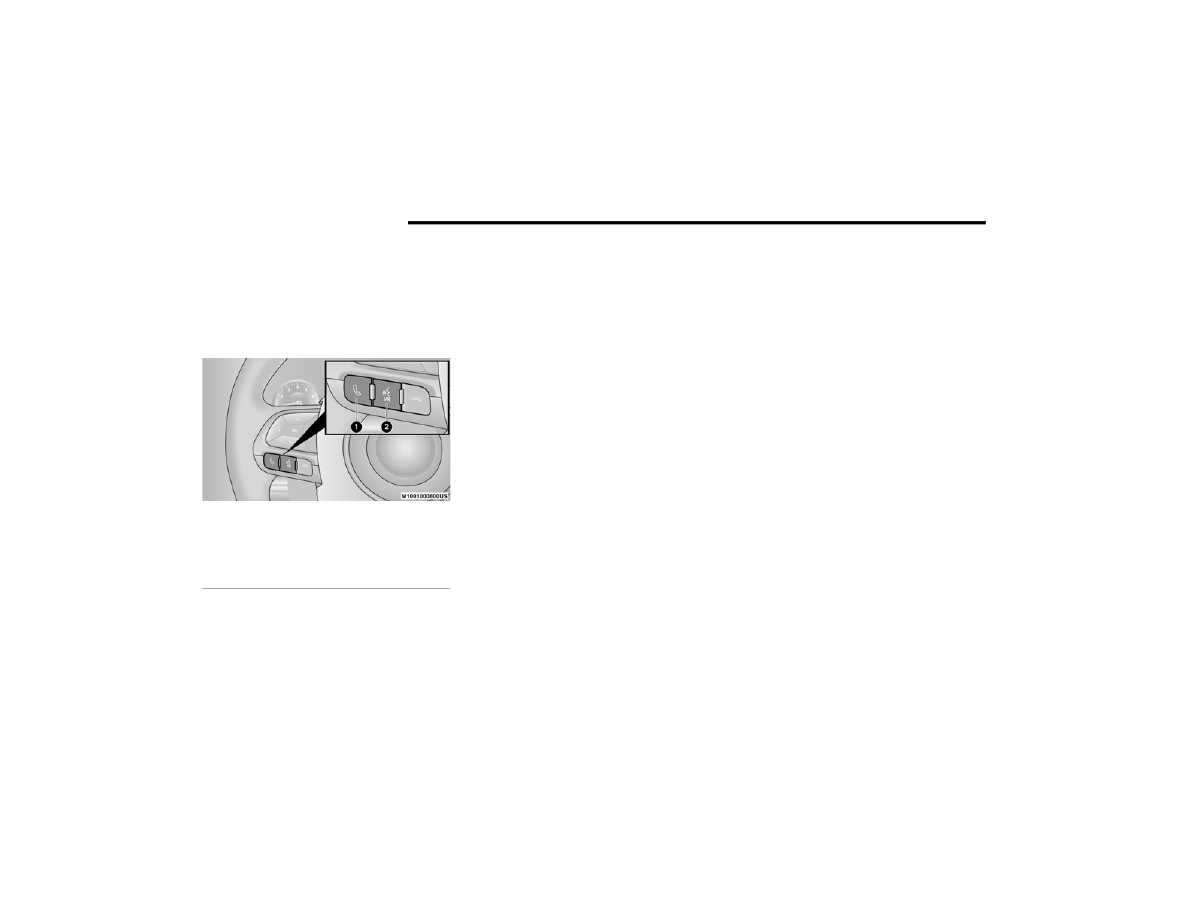

Uconnect Voice Command Buttons

A

DDITIONAL

 I

NFORMATION

Uconnect are registered trademarks and Mopar

Owner Connect is a trademark of FCA US LLC.

SiriusXM® and all related marks and logos are

trademarks of SiriusXM® Radio Inc.

Ú

page 322.

Uconnect System Support:

US residents visit

www.DriveUconnect.com

 or

call: 1-877-855-8400 (24 hours a day 7 days a

week)

Canadian residents visit

www.DriveUcon

-

nect.ca

 or call: 1-800-465-2001 (English) or

1-800-387-9983 (French)

SiriusXM Guardian™ services support:

US residents visit

www.driveuconnect.com/

sirius-xm-guardian

 or call: 1-844-796-4827

Canadian residents visit

https://www.driveu

-

connect.ca/en/sirius-xm-guardian

 or call:

1-877-324-9091

DRIVER MEMORY SETTINGS — IF EQUIPPED

This feature allows the driver to save up to two

different memory profiles for easy recall through a

memory switch. Each memory profile saves

desired position settings for the following features:

Driver seat cushion

Easy Entry/Exit seat operation (if equipped)

Side mirrors

Power tilt/telescoping steering column

(if equipped)

A set of desired radio station presets

NOTE:

Your vehicle is equipped with two key fobs, each

can be linked to either memory position 1 or 2.

Be sure to program the radio presets prior to

programming the memory settings.

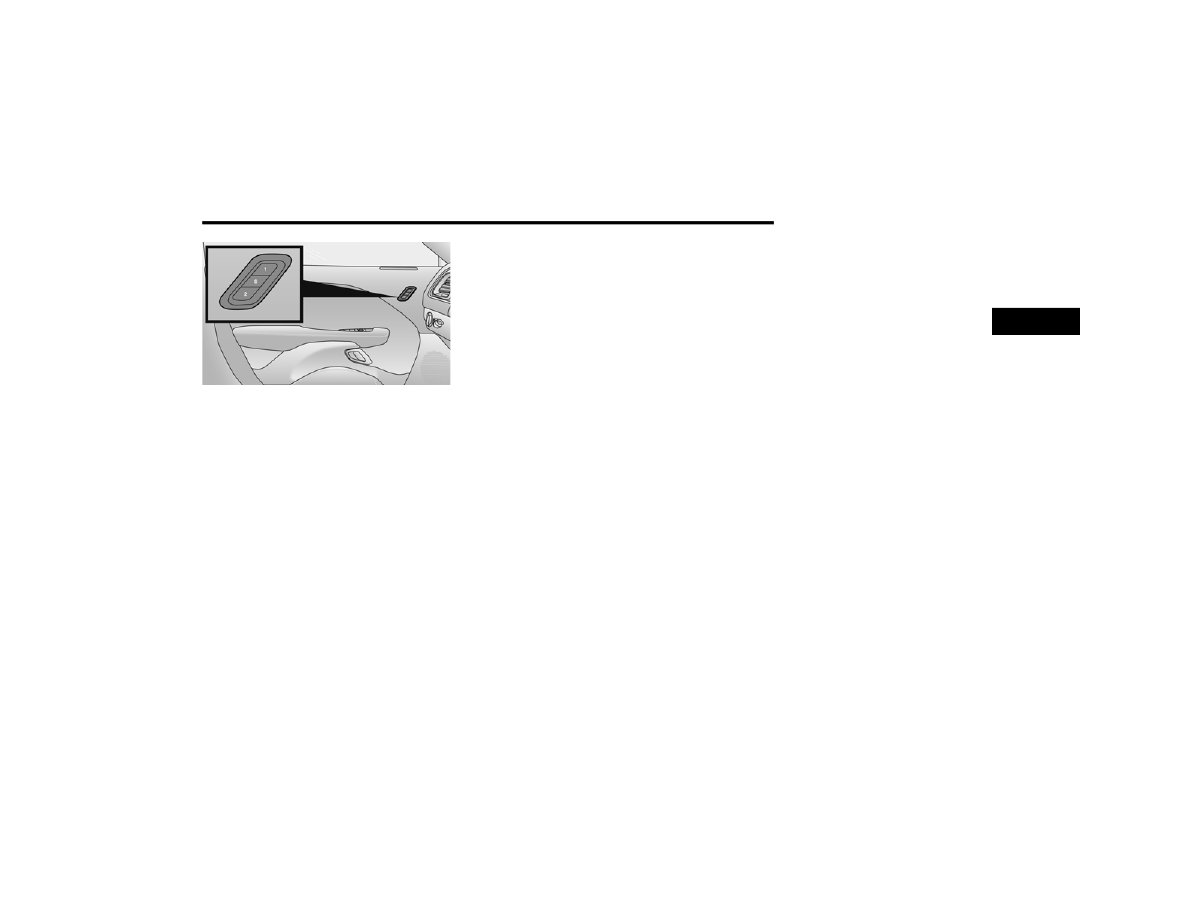

The memory settings switch is located on the

driver’s door trim panel. The switch consists of

three buttons:

The set (S) button, which is used to activate the

memory save function.

The (1) and (2) buttons which are used to recall

either of two saved memory profiles.

1 — Push To Start Or Answer A Phone Call And

Send Or Receive A Text
2 — Push The Voice Recognition Button To Begin

Radio, Media, Navigation, And Climate Functions

GETTING TO KNOW YOUR VEHICLE

31

Memory Settings Switch

P

ROGRAMMING

 T

HE

 M

EMORY

 F

EATURE

To create a new memory profile, perform the

following:

NOTE:

Saving a new memory profile will erase the

selected profile from memory.
1. Place the vehicle’s ignition in the ON/RUN

position (do not start the engine).

2. Adjust all memory profile settings to desired

preferences (i.e., seat, side mirror, power tilt

and telescopic steering column [if equipped],

and radio station presets).

3. Push and release the set (S) button on the

memory switch, and then push the desired

memory button (1 or 2) within five seconds.

The instrument cluster display will display

which memory position has been set.

NOTE:

Memory profiles can be set without the vehicle in

PARK, but the vehicle must be in PARK to recall a

memory profile.

L

INKING

 A

ND

 U

NLINKING

 T

HE

 K

EY

 F

OB



T

O

 M

EMORY

Your key fobs can be programmed to recall one of

two saved memory profiles.

NOTE:

Before programming your key fobs you must select

the “Personal Settings Linked To Key Fob” feature

through the Uconnect system

Ú

page 123.

To program your key fobs, perform the following:
1. Place the vehicle’s ignition in the OFF

position.

2. Select a desired memory profile, 1 or 2.
3. Once the profile has been recalled, push and

release the set (S) button on the memory

switch.

4. Within five seconds, push and release button

(1) or (2) accordingly. “Memory Profile Set”

(1 or 2) will display in the instrument cluster.

5. Push and release the lock button on the key

fob within 10 seconds.

NOTE:

Your key fob can be unlinked from your memory

settings by pushing the set (S) button, followed

by pushing the unlock button on the key fob within

10 seconds.

M

EMORY

 P

OSITION

 R

ECALL

NOTE:

If a recall is attempted when the vehicle is not in

PARK, a message will be displayed in the

instrument cluster display.
To recall the memory settings for driver one or two,

push the desired memory button number (1 or 2)

or the unlock button on the key fob linked to the

desired memory position.
A recall can be canceled by pushing any of the

memory buttons (S, 1, or 2) during a recall. When

a recall is canceled, the driver seat will stop

moving. A delay of one second will occur before

another recall can be selected.

NOTE:

If the vehicle is equipped with Passive Entry, the

memory settings are recalled when using Passive

Entry to unlock the driver's door with a linked key

fob.

2

32

GETTING TO KNOW YOUR VEHICLE



(Continued)

SEATS

Seats are a part of the Occupant Restraint system of

the vehicle.

M

ANUAL

 A

DJUSTMENT

 (F

RONT

 S

EATS

) —

I

F

 E

QUIPPED

Manual Front Seat Forward/Rearward

Adjustment

The seat can be adjusted forward or rearward by using

a bar located by the front of the seat cushion, near the

floor.

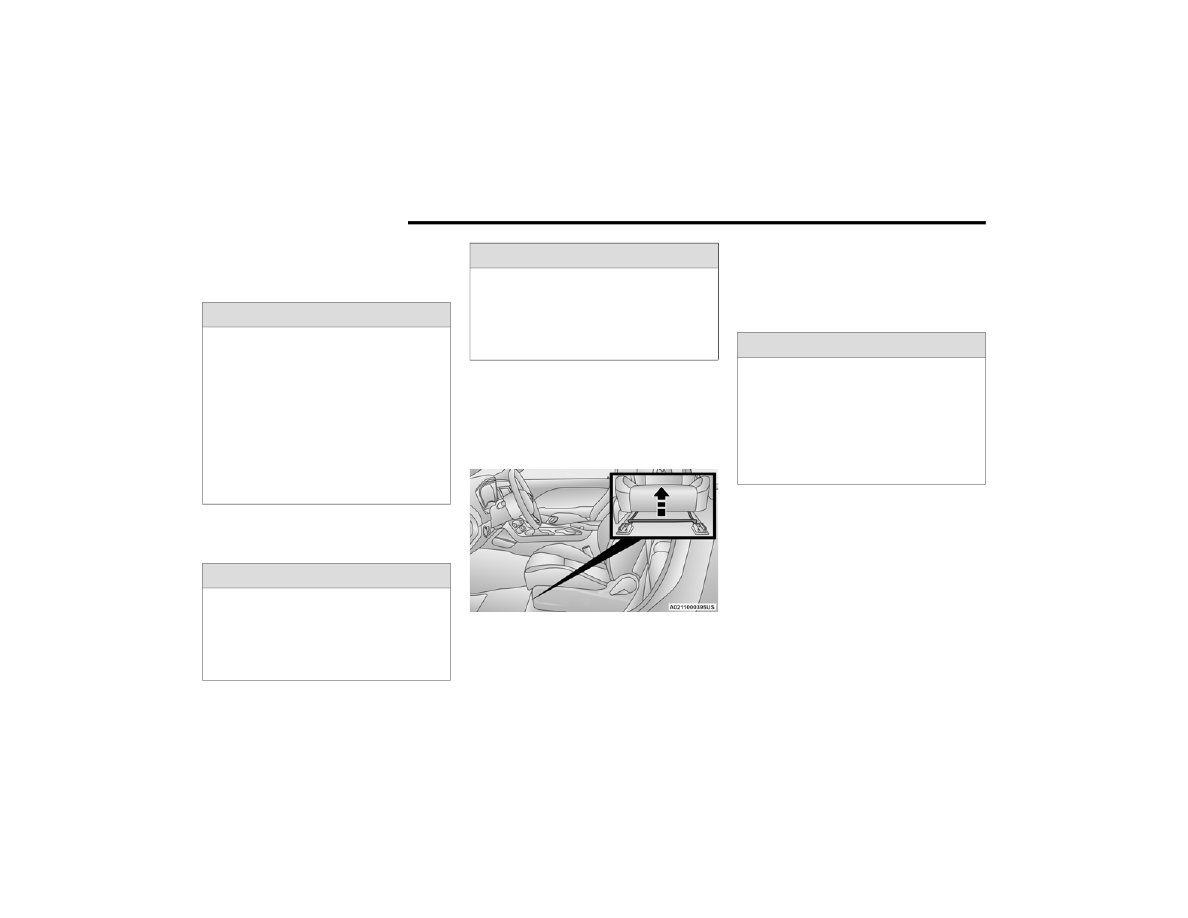

Adjusting Bar Location

While sitting in the seat, lift up on the bar located

under the seat cushion and move the seat forward or

rearward. Release the bar once you have reached the

desired position. Then, using body pressure, move

forward and rearward on the seat to be sure that the

seat adjusters have latched.

Manual Front Seat Recline

To adjust the seatback, lift the lever located on the

outboard side of the seat, lean back to the desired

position and release the lever. To return the seatback,

lift the lever, lean forward and release the lever.

WARNING!

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seri

-

ously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts. In a collision, people riding in these

areas are more likely to be seriously injured or

killed.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

WARNING!

Adjusting a seat while the vehicle is moving is

dangerous. The sudden movement of the seat

could cause you to lose control. The seat belt

might not be adjusted properly and you could

be injured. Adjust the seat only while the

vehicle is parked.

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt and be seriously or even fatally

injured. Use the recliner only when the vehicle

is parked.

WARNING!

WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.

GETTING TO KNOW YOUR VEHICLE

33

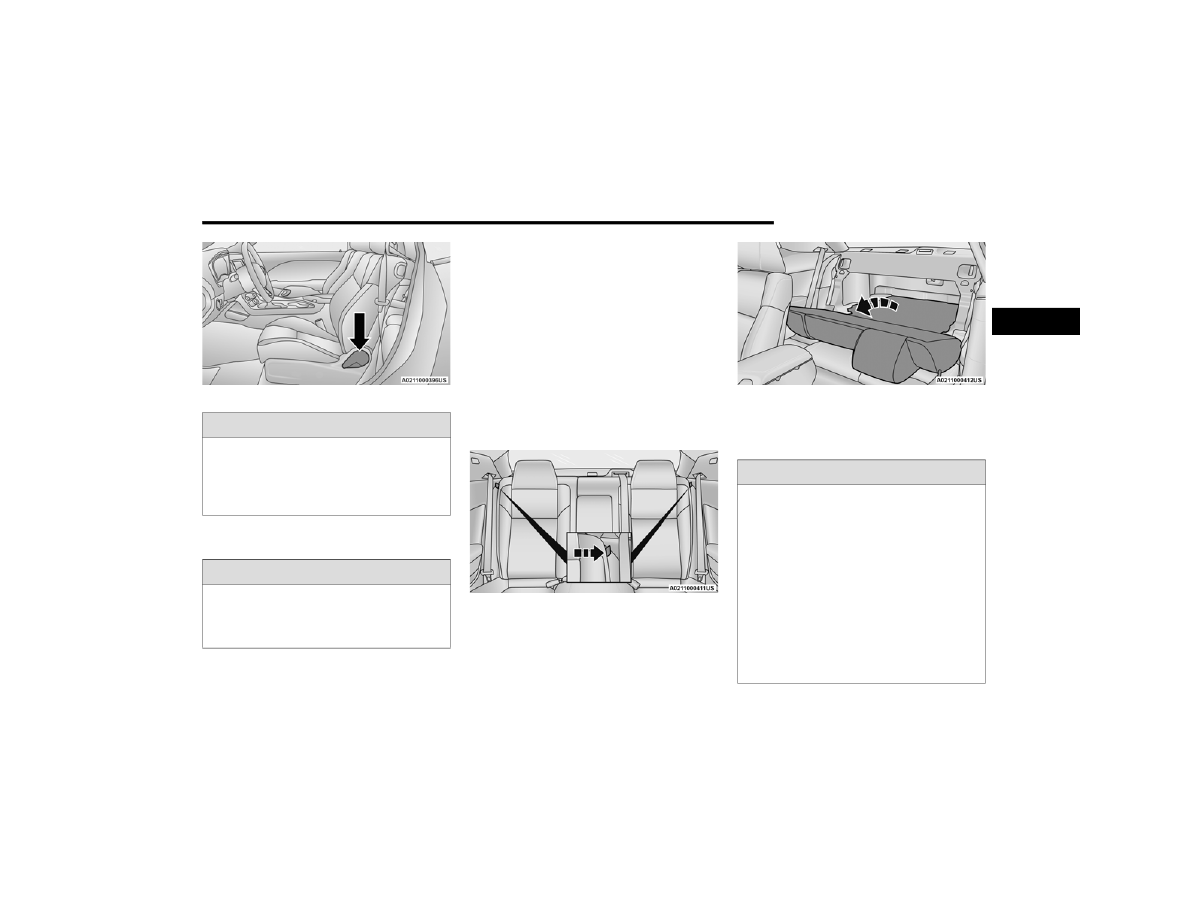

Recline Lever

M

ANUAL

 A

DJUSTMENT

 (R

EAR

 S

EATS

)

Folding Rear Seat

The rear seatbacks can be folded forward to

provide additional storage area. Pull on the loops

located on the upper part of the rear seatback to

fold down either or both seatbacks. These loops

can be tucked away when not in use.

NOTE:

You may experience deformation in the seat

cushion from the seat belt buckles if the seats are

left folded for an extended period of time. This is

normal and, by simply unfolding the seats to the

open position, over time the seat cushion will

return to its normal shape.

Folding Rear Seatback Loop Locations

Folded Rear Seat

When the seatback is folded to the upright

position, make sure it is latched by strongly pulling

on the top of the seatback above the seat strap.

WARNING!

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious injury

or death.

WARNING!

Do not pile luggage or cargo higher than the top

of the seatback. This could impair visibility or

become a dangerous projectile in a sudden stop

or collision.

WARNING!

Be certain that the seatback is securely

locked into position. If the seatback is not

securely locked into position, the seat will not

provide the proper stability for child seats

and/or passengers. An improperly latched

seat could cause serious injury.

The cargo area in the rear of the vehicle (with

the rear seatbacks in the locked-up or folded

down position) should not be used as a play

area by children when the vehicle is in motion.

They could be seriously injured in a collision.

Children should be seated and using the

proper restraint system.

2

34

GETTING TO KNOW YOUR VEHICLE



P

OWER

 A

DJUSTMENT

 (F

RONT

 S

EATS

) —

I

F

 E

QUIPPED

The power seat switches are located on the

outboard side of the front seats. The power seat

switches control the movement of the seat.

Vehicles equipped with power seat controls, will

have a manual recline lever.

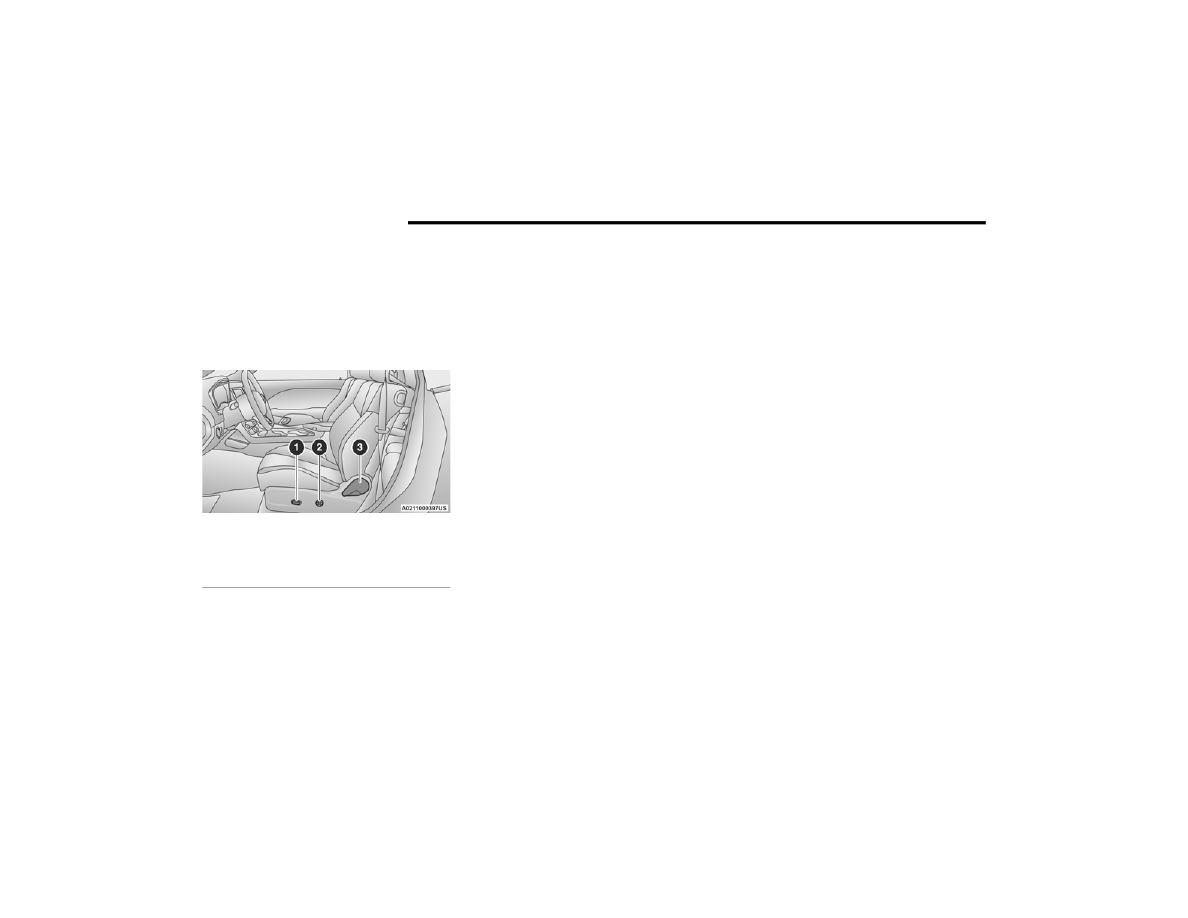

Power Seat Controls

Adjusting The Seat Forward Or Rearward

The seat can be adjusted both forward and

rearward by using the power seat switch. The seat

will move in the direction of the switch. Release the

switch when the desired position has been

reached.

Adjusting The Seat Up Or Down

The height of the seats can be adjusted up or down

by using the power seat switch. The seat will move

in the direction of the switch. Release the switch

when the desired position has been reached.

Tilting The Seat Up Or Down

The angle of the seat cushion can be adjusted up

or down using the power seat switch. The front of

the seat cushion will move in the direction of the

switch. Release the switch when the desired

position has been reached.

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger

seats may also be equipped with power lumbar.

The power lumbar switch is located on the

outboard side of the power seat. Push the switch

forward or rearward to increase or decrease the

lumbar support.

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat

positioning to enhance driver mobility when

entering and exiting the vehicle.
The distance the driver seat moves depends on

where you have the driver seat positioned when

you place the vehicle’s ignition in the OFF position.

When you place the vehicle’s ignition in the OFF

position, the driver seat will move about

2.4 inches (60 mm) rearward if the driver seat

position is greater than or equal to 2.7 inches

(67.7 mm) forward of the rear stop. The seat will

return to its previously set position when you

place the vehicle’s ignition in the ACC or RUN

position.

The Easy Entry/Exit feature is disabled when the

driver seat position is less than 0.9 of an inch

(22.7 mm) forward of the rear stop. At this posi

-

tion, there is no benefit to the driver by moving

the seat for Easy Exit or Easy Entry.

When enabled in Uconnect Settings, Easy Entry

and Easy Exit positions are stored in each memory

setting profile

Ú

page 30.

NOTE:

The Easy Entry/Exit feature is enabled or disabled

through the programmable features in the

Uconnect system

Ú

page 123.

1 — Power Seat Switch
2 — Power Lumbar Switch
3 — Manual Recline Lever

GETTING TO KNOW YOUR VEHICLE

35

H

EATED

 S

EATS

 — I

F

 E

QUIPPED



On some models, the front seats may be equipped

with heaters located in the seat cushions and

seatbacks.

Front Heated Seats

The front heated seats control buttons

are located within the Uconnect system.

You can gain access to the control

buttons through the climate screen and

the controls screen.
You can choose from HI, LO, or OFF heat settings.

The indicator arrows in touchscreen buttons

indicate the level of heat in use. Two indicator

arrows will illuminate for HI, and one for LO.

Turning the heating elements off will return the

user to the radio screen.

Press the heated seat button once to turn the HI

setting on.

Press the heated seat button a second time to

turn the LO setting on.

Press the heated seat button a third time to turn

the heating elements off.

NOTE:

Once a heat setting is selected, heat will be felt

within two to five minutes.

The engine must be running for the heated

seats to operate.

If the HI-level setting is selected, the system will

automatically switch to LO-level after approxi

-

mately 60 minutes of continuous operation. At

that time, the display will change from HI to LO,

indicating the change. The LO-level setting will

turn off automatically after approximately

45 minutes.

For information on use with the Remote Start

system, see

Ú

page 20.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

2

36

GETTING TO KNOW YOUR VEHICLE



(Continued)

F

RONT

 V

ENTILATED

 S

EATS

 —

I

F

 E

QUIPPED

The ventilated seats are equipped with

fans that can be controlled through the

climate and control screen in the

Uconnect system. The fans operate at

two speeds, HI and LO.

Press the ventilated seat button once to

choose HI.

Press the ventilated seat button a second time

to choose LO.

Press the ventilated seat button a third time to

turn the ventilated seat off.

NOTE:

The engine must be running for the ventilated

seats to operate.
For information on use with the Remote Start

system, see

Ú

page 20.

V

EHICLES

 W

ITHOUT

 P

ASSENGER



S

EATING

 I

NSTALLED

All passenger occupants within the vehicle must be

in a seat equipped with a Seat Belt System and

Head Restraint for the safety of the passenger. If

the passenger and/or rear seats have been

removed, do not ride in those areas.

This vehicle has been designed to maximize total

performance. In doing so, the deletion of

passenger seats and/or rear seat may affect the

Noise, Vibration, and Harshness (NVH)

characteristics. As a result, the interior will be

louder overall.

WARNING!

If the passenger and/or rear seats have been

removed, do not ride in those areas. In a colli

-

sion, people riding in these areas are more

likely to be seriously injured or killed.

If this vehicle was not factory equipped with a

passenger seat, NEVER attempt to install a

passenger seat because the safety systems,

including the air bags and seat belt, may not

properly protect you.

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in this area are more likely to be seri

-

ously injured or killed.

Only ride in available seating positions

equipped with seat belt systems. Always prop

-

erly wear your seat belt. Failure to do so could

result in an increased risk of serious injury or

death in the event of an accident.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly. Occupants,

including the driver, should always wear their

seat belts whether or not an air bag is also

provided at their seating positions to minimize

the risk of severe injury or death in the event

of a crash.

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat if the

head restraints are not in place of their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

WARNING!

GETTING TO KNOW YOUR VEHICLE

37

P

ASSENGER

 S

EAT

 E

ASY

 E

NTRY



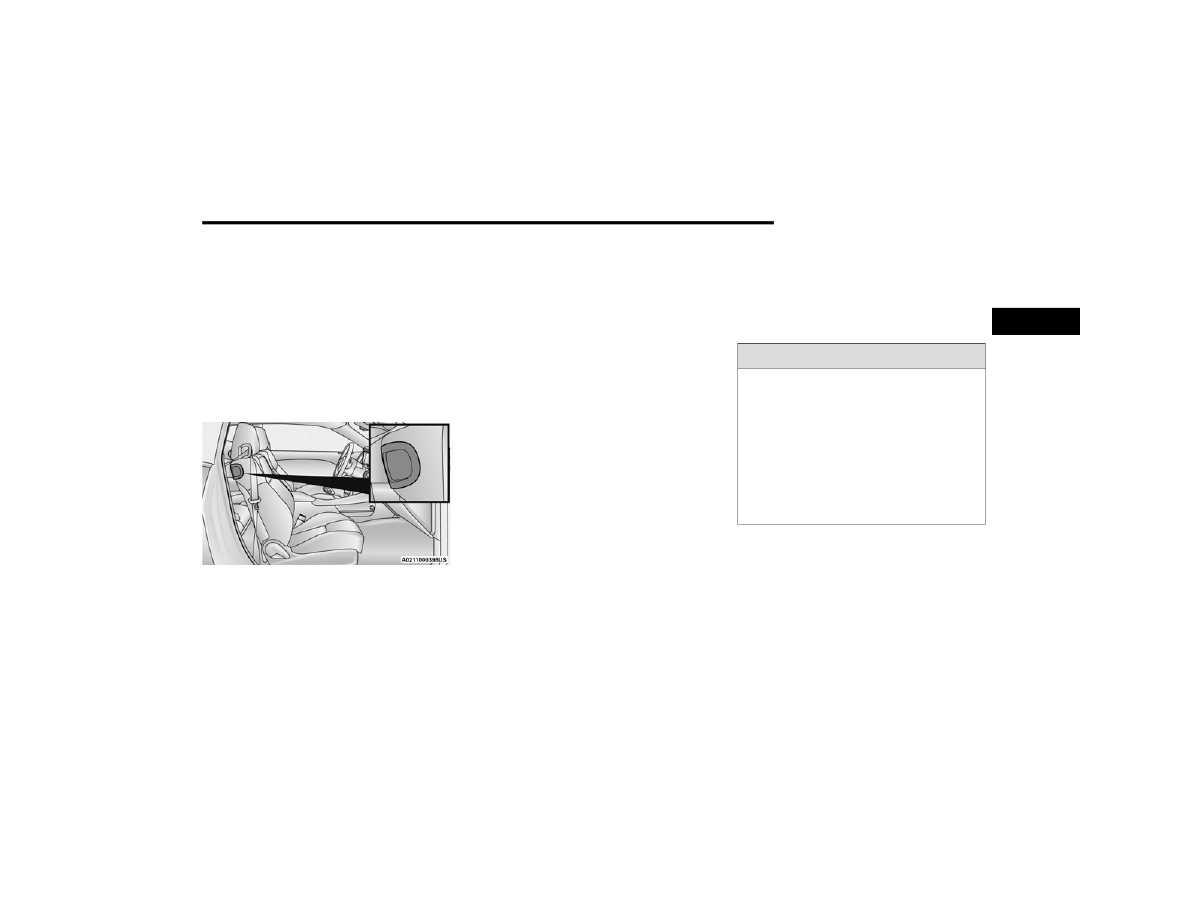

On the passenger seat, pull forward on the lever

located on the side of the seatback in order to

dump the seatback and slide the seat forward. You

can also temporarily remove the seat belt from the

guide loop on the seat and allow the seat belt to

retract out of the way. This allows for easier access

to the rear seat. To return the seat to a normal

seating position, first return the seatback to its

original recline location and then slide the entire

seatback to the preset lock position.

Easy Entry Lever

NOTE:

The front passenger seat needs to slide back to

a preset position for the fore/aft adjuster to be

properly locked. For example, if the front

passenger has the seat adjusted full rear and

exits the vehicle to let a rear passenger enter

using the easy entry handle, the fore/aft

adjuster needs to slide back about 2/3 of the

way rearward to hit the lock position. If the

adjuster is not returned to this preset position,

the seat will appear to be loose.

If the front passenger uses the easy entry

handle and then lifts up the recliner handle

without moving the seatback to its original

preset position, the recliner will not lock until it

is moved to the full recline position.

Driver’s Side Easy Entry
The easy entry lever on the outboard side of the

driver’s seatback will dump the seatback forward

to allow for easier access to the rear seats. The

seat bottom will not slide forward as the passenger

side easy entry will. If needed, use the driver’s side

seat control to slide forward.
To return the seat to the normal position, push the

seatback up and it will lock into the previously set

recline position. Then if needed, use the seat

control to adjust the forward/rearward position.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of

injury by restricting head movement in the event of

a rear impact. Head restraints should be adjusted

so that the top of the head restraint is located

above the top of your ear.

NOTE:

Do not reverse the head restraints (making the

rear of the head restraint face forward) in an

attempt to gain additional clearance to the back of

your head.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

2

38

GETTING TO KNOW YOUR VEHICLE



(Continued)

Reactive Head Restraints — Front Seats

The front driver and passenger seats are equipped

with Reactive Head Restraints (RHR). In the event

of a rear impact, the RHR will automatically extend

forward minimizing the gap between the back of

the occupants head and the RHR.
The RHR will automatically return to their normal

position following a rear impact. If the RHR do not

return to their normal position, see an authorized

dealer immediately.

Head Restraint

To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button located at the base of the

head restraint and push downward on the head

restraint.
To remove the head restraint, remove the seat belt

from the seat belt loop. Raise the head restraint as

far as it can go. Then, push the adjustment button

and the release button at the base of each post

while pulling the head restraint up. To reinstall the

head restraint, put the head restraint posts into

the holes while pushing the adjustment button and

release button. Then, adjust it to the appropriate

height.

NOTE:

It may be necessary to recline the front seat before

removing the head restraint to provide enough

clearance from the roof.

Rear Head Restraints

The rear outboard head restraints are

non-adjustable and are designed to reduce the risk

of injury by restricting head movement in the event

of a rear impact.

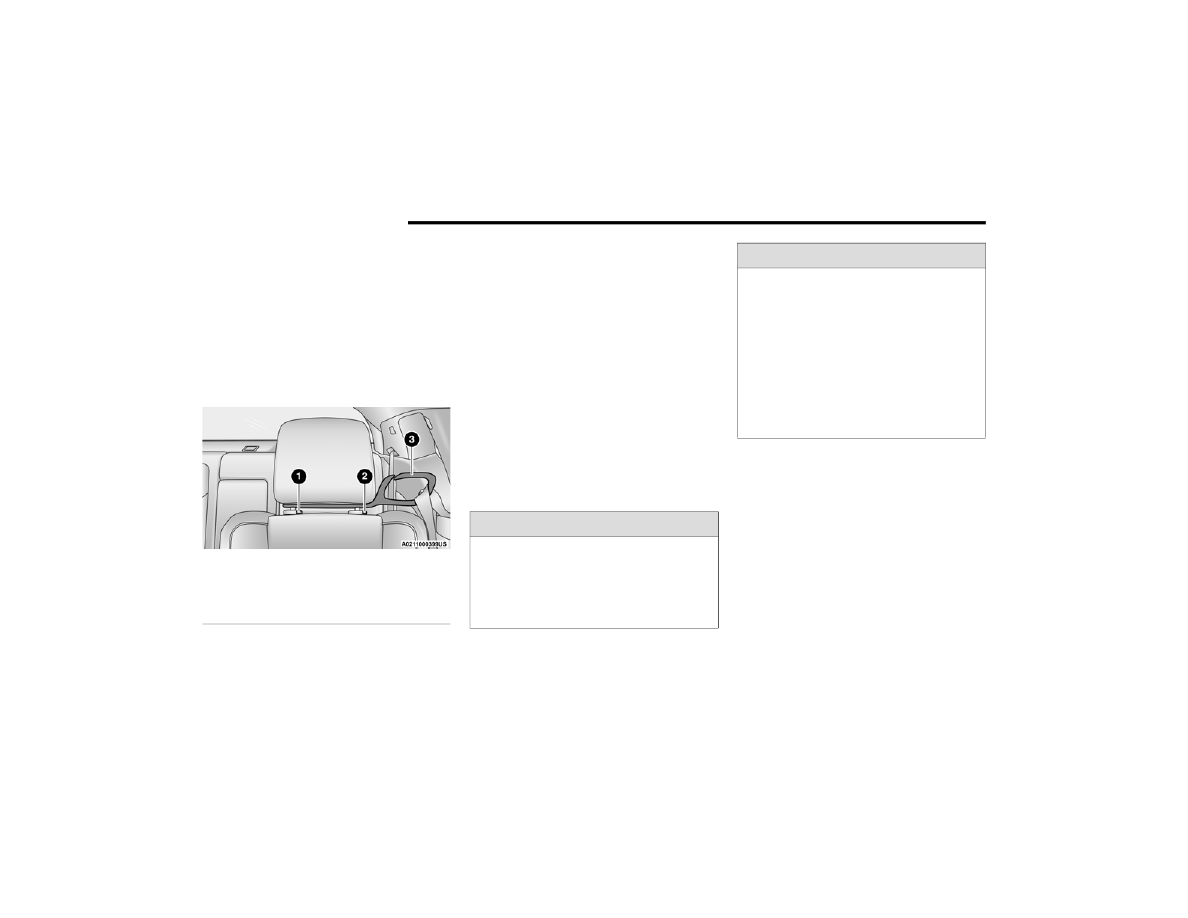

1 — Release Button
2 — Adjustment Button
3 — Seat Belt Loop

WARNING!

A loose head restraint thrown forward in a

collision or hard stop could cause serious

injury or death to occupants of the vehicle.

Always securely stow removed head restraints

in a location outside the occupant compart

-

ment.

ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

Follow the reinstallation instructions above

prior to operating the vehicle or occupying a

seat.

Do not place items over the top of the Reac

-

tive Head Restraint, such as coats, seat

covers or portable DVD players. These items

may interfere with the operation of the Reac

-

tive Head Restraint in the event of a collision

and could result in serious injury or death.

WARNING!

GETTING TO KNOW YOUR VEHICLE

39

MIRRORS

I

NSIDE

 R

EARVIEW

 M

IRROR

Automatic Dimming Mirror

The rearview mirror can be adjusted up, down, left,

and right. The mirror should be adjusted to center

on the view through the rear window.
This mirror automatically adjusts for headlight

glare from vehicles behind you.

NOTE:

The Automatic Dimming Mirror feature is disabled

when the vehicle is in REVERSE to improve the

driver’s rear view.
The Automatic Dimming feature can be turned on

or off through the touchscreen.

Automatic Dimming Mirror

I

LLUMINATED

 V

ANITY

 M

IRRORS



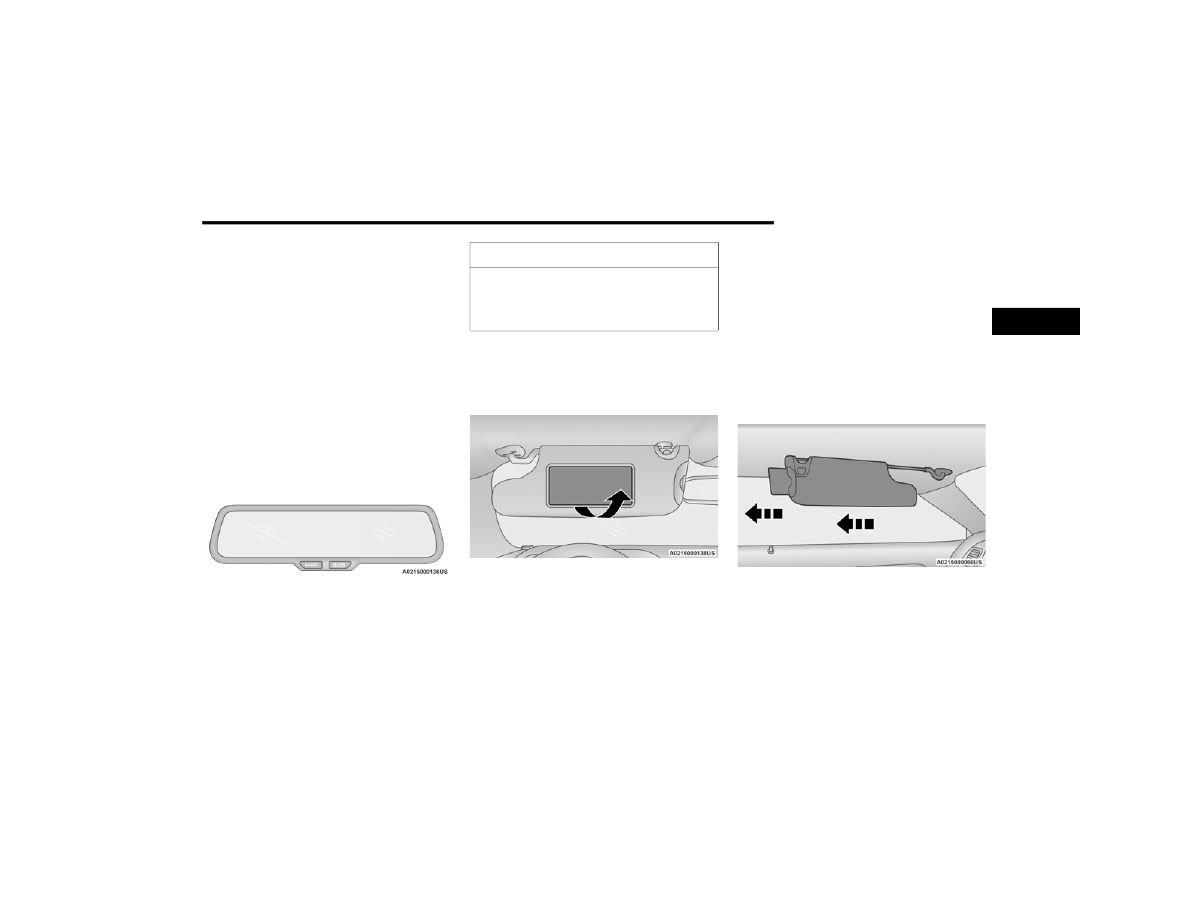

To access an illuminated vanity mirror, flip down

one of the visors and lift the cover.

Illuminated Vanity Mirror

Sun Visor “Slide-On-Rod” And Extender

Feature

The sun visor “Slide-On-Rod” feature allows for

additional flexibility in positioning the sun visor to

block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the corner clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor for additional sun

blockage.

Slide-On-Rod Extender

To use the extender feature of the sun visor, grab

the extender which is located at the rear of the

visor and pull rearward.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

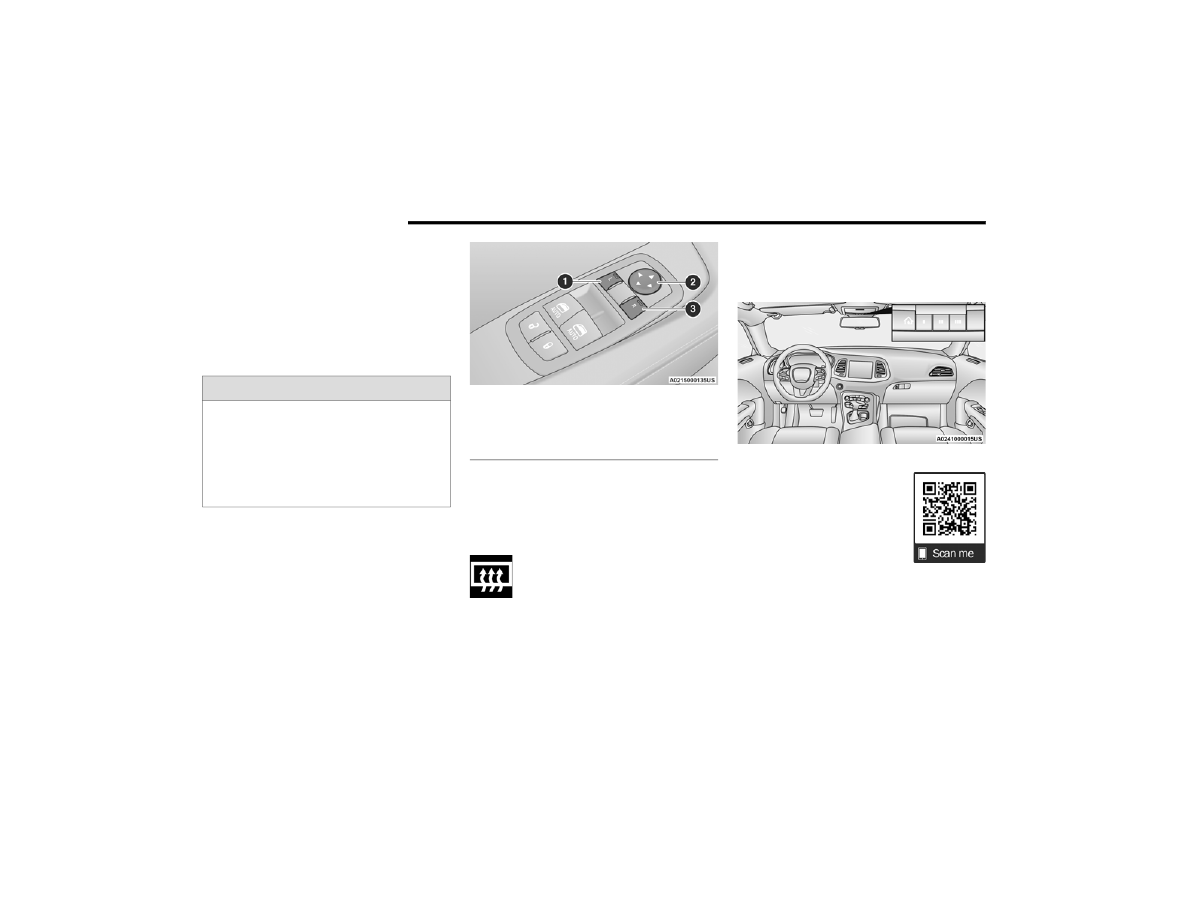

2

40

GETTING TO KNOW YOUR VEHICLE



O

UTSIDE

 M

IRRORS



The outside mirror(s) can be adjusted to the center

of the adjacent lane of traffic to achieve the

optimal view.

NOTE:

The passenger side convex outside mirror will give

a much wider view to the rear, and especially of the

lane next to your vehicle.

P

OWER

 M

IRRORS



The power mirror switch is located on the driver's

side door trim panel.
The power mirror controls consist of mirror select

buttons and a four-way mirror control switch. To

adjust a mirror, push the mirror select button for

the mirror that you want to adjust. Using the mirror

control switch, push on any of the four arrows for

the direction that you want the mirror to move.

Power Mirror Control

NOTE:

A light in the select button will illuminate indicating

the mirror is activated and can be adjusted.

H

EATED

 M

IRRORS

 — I

F

 E

QUIPPED



These mirrors are heated to melt frost or

ice. This feature will be activated

whenever you turn on the rear window

defroster (if equipped)

Ú

page 51.

UNIVERSAL GARAGE DOOR OPENER

(HOMELINK®)

HomeLink® Buttons And Indicator Light

Use this QR code to access your

digital experience.

HomeLink® replaces up to

three hand-held transmitters

that operate devices such as

garage door openers, motor

-

ized gates, lighting, or home

security systems. The HomeLink® unit is

powered by your vehicle’s 12 Volt battery.

The HomeLink® buttons that are located in the

overhead console or sunvisor designate the

three different HomeLink® channels.

WARNING!

Vehicles and other objects seen in an outside

convex mirror will look smaller and farther away

than they really are. Relying too much on side

convex mirrors could cause you to collide with

another vehicle or other object. Use your inside

mirror when judging the size or distance of a

vehicle seen in a side convex mirror.

1 — Left Mirror Selection
2 — Mirror Adjustment
3 — Right Mirror Selection















Content      ..      1      2      3      ..
