UNDERSTANDING YOUR INSTRUMENT PANEL

241

3. Press and release the DOWN button until “Compass

Distance To Empty (DTE)

Variance” and the current Variance Value displays in

Shows the estimated distance that can be traveled with

the EVIC.

the fuel remaining in the tank. This estimated distance is

4. Press and release the SELECT button to increment the

determined by a weighted average of the instantaneous

Variance Value by one, (one button press per update),

and average fuel economy, according to the current fuel

until the proper variance zone is selected according to

tank level. DTE cannot be reset.

the map.

NOTE: Significant changes in driving style or vehicle

NOTE: The Variance Values will wrap around from 15

loading will greatly affect the actual drivable distance of

back to 1. The Default Variance is Zone 8.

the vehicle, regardless of the DTE display value.

Average Fuel Economy

When the DTE value is less than 30 miles (48 km)

estimated driving distance, the DTE display will change

Shows the average fuel economy since the last reset.

to a text display of LOW FUEL”. This display will

Average Fuel Economy can be reset by pressing and

continue until the vehicle runs out of fuel. Adding a

holding the SELECT button (as prompted in the EVIC

significant amount of fuel to the vehicle will turn off the

display). Upon reset, the history information will be

LOW FUEL text and a new DTE value will display.

erased, and the averaging will continue from the last fuel

average reading before the reset.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

242

UNDERSTANDING YOUR INSTRUMENT PANEL

Tire PSI

Elapsed Time

Press and release the MENU button until Tire PSI is

Shows the total elapsed time of travel since the last reset.

displayed.

Elapsed time will increment when the ignition switch is

in the RUN or START position.

Tire pressure information is displayed as follows:

Elapsed time is displayed as follows:

• If tire pressure is OK for all tires, TIRE and a vehicle

graphic are displayed with tire pressure values in each

• Hours

corner or the graphic.

• Minutes

• If one or more tires have low pressure, LOW TIRE,

• Seconds

Inflate to XX” and a vehicle graphic are displayed

with tire pressure values in each corner of the graphic.

Elapsed time can be reset by pressing and holding the

Tire pressure values that are too low will be flashing.

SELECT button (as prompted in the EVIC display). Upon

reset all digits will change to zeros and time will start

• If the Tire Pressure System requires service, Check

incrementing again if the ignition switch is in RUN or

TPM System is displayed. Tire PSI is an information

START.

only function and cannot be reset.

EVIC Units Selection (UNITS IN Display)

Displays the units used for the Outside Temperature,

Average Fuel Economy, Distance to Empty and Tire

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

243

Pressure features. Press and Release the SELECT button

Press and release the MENU button until “Personal

to toggle units between U.S. and METRIC .

Settings” displays in the EVIC.

System Status

Press and release the DOWN button to display the

following programmable features:

Displays SYSTEM OK if there are no active Warning

Messages stored. Pressing and releasing the DOWN

Language

button when SYSTEM OK is displayed will do nothing.

When in this display you may select different languages

Displays SYSTEM WARNINGS PRESENT if there are

for all display nomenclature, including the trip functions.

active Warning Messages stored. Pressing and releasing

Pressing the SELECT button while in this display selects

the DOWN button when SYSTEM WARNINGS PRES-

English, Spanish, French, German, Italian, or Dutch de-

ENT is displayed will display each stored warning for

pending on availability. As you continue, the displayed

each button press. Press and Release the MENU button to

information will be shown in the selected language.

return to the Main Menu.

Auto Unlock On Exit

Personal Settings (Customer-Programmable

Features)

When ON is selected and the transaxle is in the PARK or

NEUTRAL position, all doors will unlock when the

Personal Settings allows the driver to set and recall

driver’s door is opened. To make your selection, press the

features when the automatic transaxle is in PARK.

SELECT button until ON or OFF appears.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

244

UNDERSTANDING YOUR INSTRUMENT PANEL

RKE Unlock

Flash Lamp With Lock

When “Driver Door 1st Press” is selected, only the

When ON is selected, the front and rear turn signals will

driver’s door will unlock on the first press of the Remote

flash when the doors are locked or unlocked with the

Keyless Entry (RKE) transmitter UNLOCK button. When

RKE transmitter. This feature may be selected with or

Driver Door 1st Press is selected, you must press the RKE

without the Sound Horn on lock feature selected. To

transmitter UNLOCK button twice to unlock the passen-

make your selection, press and release the SELECT

ger’s doors. When “All Doors 1st Press” is selected, all of

button until ON or OFF appears.

the doors will unlock on the first press of the RKE

Headlamp Off Delay

transmitter UNLOCK button. To make your selection,

press and release the SELECT button until “Driver Door

When this feature is selected, the driver can choose to

1st Press” or “All Doors 1st Press” appears.

have the headlights remain on for 0, 30, 60, or 90 seconds

when exiting the vehicle. To make your selection, press

Sound Horn With Lock

the SELECT button until 0, 30, 60, or 90 seconds appears.

When ON is selected, a short horn sound will occur when

Headlamps With Wipers (Available With Auto

the RKE transmitter LOCK button is pressed. This feature

Headlights Only)

may be selected with or without the Flash Lamp with

Lock feature. To make your selection, press and release

When ON is selected, and the headlight switch is in the

the SELECT button until ON or OFF appears.

AUTO position, the headlights will turn on approxi-

mately 10 seconds after the wipers are turned on. The

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

245

headlights will also turn off when the wipers are turned

Illumin. Approach

off if they were turned on by this feature. To make your

When this feature is selected, the headlights will activate

selection, press the SELECT button until ON or OFF

and remain on for up to 90 seconds when the doors are

appears.

unlocked with the remote keyless entry transmitter. To

NOTE: Turning the headlights on during the daytime

make your selection, press the SELECT button until

causes the instrument panel lights to dim. To increase the

“OFF,” “30 sec,” “60 sec,” or “90 sec” appears.

brightness, refer to

“Lights” in

“Understanding The

Display Units In

Features Of Your Vehicle.”

The EVIC and odometer can be changed between English

Key-Off Power Delay

and Metric units of measure. To make your selection,

When this feature is selected, the power window

press and release the SELECT button until “U.S.” or

switches, radio, Uconnect® phone (if equipped), and

“METRIC” appears.

power outlets will remain active for up to 10 minutes

Compass Variance

after the ignition switch is turned to the LOCK position.

Opening either front vehicle door will cancel this feature.

Refer to “Compass Display” for more information.

To make your selection, press the SELECT button until

Calibrate Compass

Off, 45 sec., 5 min., or 10 min. appears.

Refer to “Compass Display” for more information.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

246

UNDERSTANDING YOUR INSTRUMENT PANEL

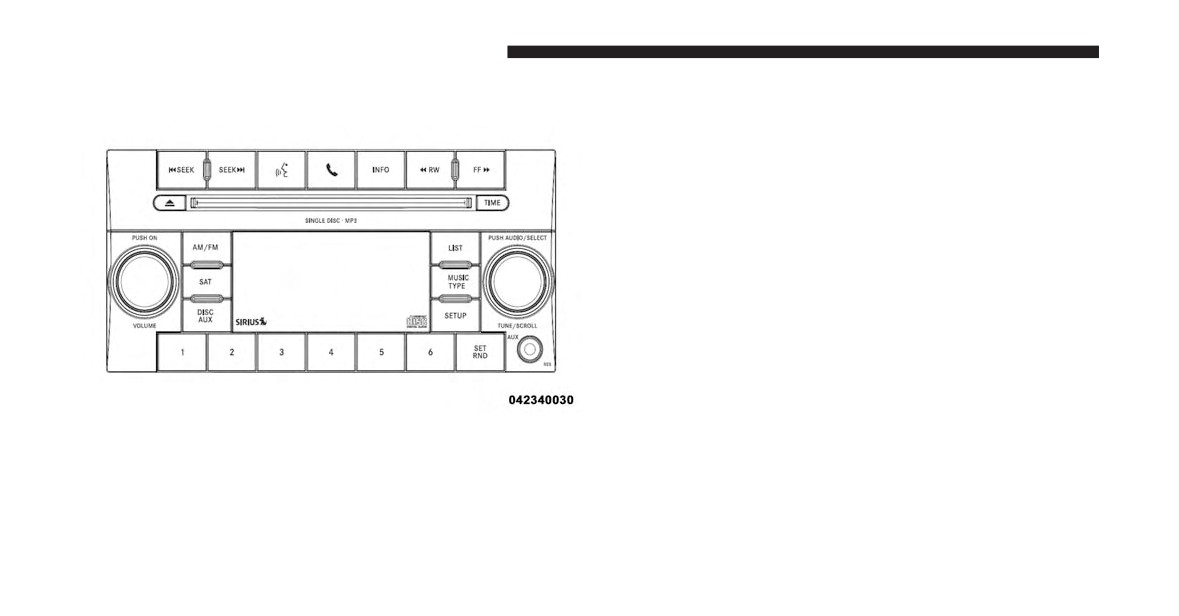

Uconnect® 730N/430/430N CD/DVD/HDD/NAV —

Uconnect® 130

IF EQUIPPED

Refer to your Uconnect® 730N, 430 or 430N user’s

manual for detailed operating instructions.

Operating Instructions (Voice Command System)

— If Equipped

Refer to “Voice Command” for further details.

Operating Instructions (Uconnect® Phone) — If

Equipped

Refer to “Uconnect® Phone” for further details.

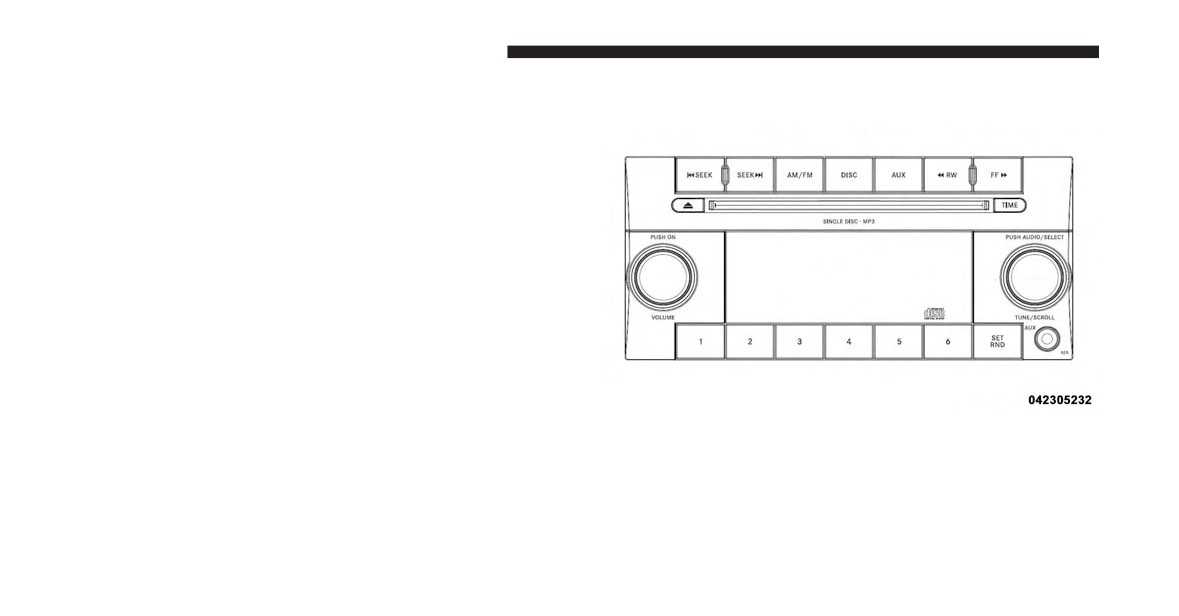

Uconnect® 130

Operating Instructions — Radio Mode

NOTE: The ignition switch must be in the ON or ACC

position to operate the radio.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

247

Power Switch/Volume Control (Rotary)

another selection. Holding either button will bypass

stations without stopping, until you release it.

Push the ON/VOLUME control knob to turn on the

radio. Push the ON/VOLUME control knob a second

TIME Button

time to turn off the radio.

Press the TIME button to alternate display of the time

Electronic Volume Control

and radio frequency.

The electronic volume control turns continuously (360

Clock Setting Procedure

degrees) in either direction, without stopping. Turning

1. Press and hold the TIME button until the hours blink.

the ON/VOLUME control knob to the right increases the

volume, and to the left decreases it.

2. Adjust the hours by turning the right side TUNE/

SCROLL control knob.

When the audio system is turned on, the sound will be

set at the same volume level as last played.

3. After adjusting the hours, press the right side TUNE/

SCROLL control knob to set the minutes. The minutes

SEEK Buttons

will begin to blink.

Press and release the SEEK buttons to search for the next

4. Adjust the minutes using the right side TUNE/

listenable station in AM/FM mode. Press the right switch

SCROLL control knob. Press the TUNE/SCROLL con-

to seek up and the left switch to seek down. The radio

trol knob to save time change.

will remain tuned to the new station until you make

-------------------------------------------------------------------------------------------------------------------------------------------------------------

248

UNDERSTANDING YOUR INSTRUMENT PANEL

5. To exit, press any button/knob, or wait five seconds.

Push the rotary TUNE/SCROLL control knob a second

time and MID will display. Turn the TUNE/SCROLL

RW/FF

control knob to the right or left to increase or decrease the

Pressing the RW (Rewind) or FF (Fast Forward) buttons

mid-range tones.

causes the tuner to search for the next frequency in the

Push the rotary TUNE/SCROLL control knob a third

direction of the arrows. This feature operates in either

time and TREBLE will display. Turn the TUNE/SCROLL

AM or FM frequencies.

control knob to the right or left to increase or decrease the

TUNE Control

treble tones.

Turn the rotary TUNE/SCROLL control knob clockwise

Push the rotary TUNE/SCROLL control knob a fourth

to increase or counterclockwise to decrease the frequency.

time and BALANCE will display. Turn the TUNE/

SCROLL control knob to the right or left to adjust the

Setting The Tone, Balance And Fade

sound level from the right or left side speakers.

Push the rotary TUNE/SCROLL control knob and BASS

Push the rotary TUNE/SCROLL control knob a fifth time

will display. Turn the TUNE/SCROLL control knob to

and FADE will display. Turn the TUNE/SCROLL control

the right or left to increase or decrease the bass tones.

knob to the left or right to adjust the sound level between

the front and rear speakers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

249

Push the rotary TUNE/SCROLL control knob again to

display window. Each button can be set for SET 1 and

exit setting tone, balance, and fade.

SET 2 in both AM and FM. This allows a total of 12 AM

and 12 FM stations to be stored into pushbutton memory.

AM/FM Button

The stations stored in SET 2 memory can be selected by

Press the buttons to select either AM or FM mode.

pressing the pushbutton twice.

SET/RND Button — To Set The Pushbutton

Every time a preset button is used, a corresponding

Memory

button number will display.

When you are receiving a station that you wish to

Buttons 1 - 6

commit to pushbutton memory, press the SET/RND

These buttons tune the radio to the stations that you

button. The symbol SET 1 will now show in the display

commit to pushbutton memory (12 AM and 12 FM

window. Select the button (1 to 6) you wish to lock onto

stations).

this station and press and release that button. If a button

is not selected within five seconds after pressing the

DISC Button

SET/RND button, the station will continue to play but

Pressing the DISC button will allow you to switch from

will not be stored into pushbutton memory.

AM/FM modes to Disc modes.

You may add a second station to each pushbutton by

repeating the above procedure with this exception: Press

the SET/RND button twice and SET 2 will show in the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

250

UNDERSTANDING YOUR INSTRUMENT PANEL

Operation Instructions — CD MODE For CD And

If you insert a disc with the ignition ON and the radio ON,

MP3 Audio Play

the unit will switch from radio to CD mode and begin to

play when you insert the disc. The display will show the

NOTE:

track number, and index time in minutes and seconds. Play

• The ignition switch must be in the ON or ACC position

will begin at the start of track 1.

to operate the radio.

CAUTION!

• This radio is capable of playing compact discs (CD),

recordable compact discs (CD-R), rewritable compact

• This CD player will accept 4-3/4 in (12 cm) discs

discs (CD-RW), compact discs with MP3 tracks and

only. The use of other sized discs may damage the

multisession compact discs with CD and MP3 tracks.

CD player mechanism.

• Do not use adhesive labels. These labels can peel

Inserting Compact Disc(s)

away and jam the player mechanism.

Gently insert one CD into the CD player with the CD

• The Uconnect® 130 is a single CD player. Do not

label facing up. The CD will automatically be pulled into

attempt to insert a second CD if one is already loaded.

the CD player and the CD icon will illuminate on the

• Dual-media disc types (one side is a DVD, the

radio display. If a CD does not go into the slot more than

other side is a CD) should not be used, and they can

1.0 in (2.5 cm), a disc may already be loaded and must be

cause damage to the player.

ejected before a new disc can be loaded.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

251

EJECT Button — Ejecting A CD

the current selection. Pressing and holding the SEEK

button will allow faster scrolling through the tracks in

CD and MP3 modes.

Press the EJECT button to eject the CD.

TIME Button

Press this button to change the display from a large CD

If you have ejected a disc and have not removed it within

playing time display to a small CD playing time display.

10 seconds, it will be reloaded. If the CD is not removed,

RW/FF

the radio will reinsert the CD but will not play it.

Press and hold the FF (Fast Forward) button and the CD

A disc can be ejected with the radio and ignition OFF.

player will begin to fast forward until FF is released, or

NOTE: Ejecting with the ignition OFF is not allowed on

RW or another CD button is pressed. The RW (Reverse)

convertible or soft-top models (if equipped).

button operates in a similar manner.

SEEK Button

AM/FM Button

Press the right SEEK button for the next selection on the

Press the button to select either AM or FM mode.

CD. Press the left SEEK button to return to the beginning

of the current selection, or return to the beginning of the

previous selection if the CD is within the first second of

-------------------------------------------------------------------------------------------------------------------------------------------------------------

252

UNDERSTANDING YOUR INSTRUMENT PANEL

SET/RND Button (Random Play Button)

Supported Media (Disc Types)

Press this button while the CD is playing to activate

The MP3 file recording media supported by the radio are

Random Play. This feature plays the selections on the

CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.

compact disc in random order to provide an interesting

Supported Medium Formats (File Systems)

change of pace.

The medium formats supported by the radio are ISO 9660

Press the right SEEK button to move to the next ran-

Level 1 and Level 2 and includes the Joliet extension.

domly selected track.

When reading discs recorded using formats other than

Press the RND button a second time to stop Random

ISO 9660 Level 1 and Level 2, the radio may fail to read

Play.

files properly and may be unable to play the file nor-

mally. UDF and Apple HFS formats are not supported.

Notes On Playing MP3 Files

The radio uses the following limits for file systems:

The radio can play MP3 files; however, acceptable MP3

file recording media and formats are limited. When

• Maximum number of folder levels: 8

writing MP3 files, pay attention to the following restric-

• Maximum number of files: 255

tions.

• Maximum number of folders. (The radio display of file

names and folder names is limited. For large numbers

of files and/or folders, the radio may be unable to

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

253

display the file name and folder name, and will assign

Supported MP3 File Formats

a number instead. With a maximum number of files,

The radio will recognize only files with the *.MP3 exten-

exceeding 20 folders will result in this display. With

sion as MP3 files. Non-MP3 files named with the *.MP3

200 files, exceeding 50 folders will result in this dis-

extension may cause playback problems. The radio is

play.)

designed to recognize the file as an invalid MP3 and will

• Maximum number of characters in file/folder names:

not play the file.

• Level 1: 12 (including a separator

. and a three-

When using the MP3 encoder to compress audio data to

character extension)

an MP3 file, the bit rate and sampling frequencies in the

• Level 2: 31 (including a separator

. and a three-

following table are supported. In addition, variable bit

character extension)

rates (VBR) are also supported. The majority of MP3 files

use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or

Multisession disc formats are supported by the radio.

VBR bit rate.

Multisession discs may contain combinations of normal

CD audio tracks and computer files (including MP3 files).

Discs created with an option such as keep disc open after

writing are most likely multisession discs. The use of

multisession for CD audio or MP3 playback may result in

longer disc loading times.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

254

UNDERSTANDING YOUR INSTRUMENT PANEL

Playback Of MP3 Files

MPEG

Sampling Fre-

Bit Rate (kbps)

Specification

quency (kHz)

When a medium containing MP3 data is loaded, the

MPEG-1 Audio

48, 44.1, 32

320, 256, 224,

radio checks all files on the medium. If the medium

Layer 3

192, 160, 128,

contains a lot of folders or files, the radio will take more

112, 96, 80, 64,

time to start playing the MP3 files.

56, 48, 40, 32

Loading times for playback of MP3 files may be affected

MPEG-2 Audio

24, 22.05, 16

160, 128, 144,

by the following:

Layer 3

112, 96, 80, 64,

• Media - CD-RW media may take longer to load than

56, 48, 40, 32,

CD-R media

24, 16, 8

• Medium formats - Multisession discs may take longer

ID3 Tag information for artist, song title, and album title

to load than non-multisession discs

are supported for version 1 ID3 tags. ID3 version 2 is not

supported by the radios.

• Number of files and folders - Loading times will

increase with more files and folders

Playlist files are not supported. MP3 Pro files are not

supported.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

255

UNDERSTANDING YOUR INSTRUMENT PANEL

To increase the speed of disc loading, it is recommended

Pressing the DISC/AUX button will change the mode to

to use CD-R media and single-session discs. To create a

auxiliary device if the AUX jack is connected.

single-session disc, enable the “Disc at Once” option

NOTE: The AUX device must be turned on and the

before writing to the disc.

device’s volume set to proper level. If the AUX audio is

Operation Instructions — Auxiliary Mode

not loud enough, turn the device’s volume up. If the AUX

audio sounds distorted, turn the device’s volume down.

The auxiliary (AUX) jack is an audio input jack, which

allows the user to plug in a portable device, such as an

TIME Button (Auxiliary Mode)

MP3 player, or iPod®, and utilize the vehicle’s audio

Press this button to change the display to time of day. The

system to amplify the source and play through the

time of day will display for five seconds (when ignition is

vehicle speakers.

OFF).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

256

UNDERSTANDING YOUR INSTRUMENT PANEL

Uconnect® 130 WITH SATELLITE RADIO

Power Switch/Volume Control (Rotary)

Push the ON/VOLUME control knob to turn on the

radio. Push the ON/VOLUME control knob a second

time to turn off the radio.

Electronic Volume Control

The electronic volume control turns continuously (360

degrees) in either direction, without stopping. Turning

the ON/VOLUME control knob to the right increases the

volume, and to the left decreases it.

When the audio system is turned on, the sound will be

set at the same volume level as last played.

SEEK Buttons

Uconnect® 130

Press and release the SEEK buttons to search for the next

Operating Instructions — Radio Mode

listenable station in AM/FM mode. Press the right switch

NOTE: The ignition switch must be in the ON/RUN or

to seek up and the left switch to seek down. The radio

ACC position to operate the radio.

will remain tuned to the new station until you make

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

257

another selection. Holding either button will bypass

Clock Setting Procedure

stations without stopping, until you release it.

1. Press and hold the TIME button until the hours blink.

Voice Command System (Radio) — If Equipped

2. Adjust the hours by turning the right side TUNE/

Refer to “Voice Command” for further details.

SCROLL control knob.

Voice Command Button Uconnect® Phone — If

3. After adjusting the hours, press the right side TUNE/

Equipped

SCROLL control knob to set the minutes. The minutes

will begin to blink.

Press this button to operate the Uconnect® Phone feature

(if equipped). Refer to “Voice Command” for further

4. Adjust the minutes using the right side TUNE/

details.

SCROLL control knob. Press the TUNE/SCROLL con-

trol knob to save time change.

If your vehicle is not equipped with or this feature is not

available on your vehicle, a

“Not Equipped With

5. To exit, press any button/knob or wait five seconds.

Uconnect Phone” message will display on the radio

The clock can also be set by pressing the SETUP button.

screen.

For vehicles equipped with satellite radio, press the

TIME Button

SETUP button, use the TUNE/SCROLL control to select

SET CLOCK, and then follow the above procedure,

Press the TIME button to alternate display of the time

and radio frequency.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

258

UNDERSTANDING YOUR INSTRUMENT PANEL

starting at step 2. For vehicles not equipped with satellite

Setting The Tone, Balance And Fade

radio, press the SETUP button and then follow the above

Push the rotary TUNE/SCROLL control knob and BASS

procedure, starting at step 2.

will display. Turn the TUNE/SCROLL control knob to

INFO Button

the right or left to increase or decrease the bass tones.

Press the INFO button for an RDS station (one with call

Push the rotary TUNE/SCROLL control knob a second

letters displayed). The radio will return a Radio Text

time and MID will display. Turn the TUNE/SCROLL

message broadcast from an FM station (FM mode only).

control knob to the right or left to increase or decrease the

mid-range tones.

RW/FF

Push the rotary TUNE/SCROLL control knob a third

Pressing the RW (Rewind) or FF (Fast Forward) buttons

time and TREBLE will display. Turn the TUNE/SCROLL

causes the tuner to search for the next frequency in the

control knob to the right or left to increase or decrease the

direction of the arrows. This feature operates in either

treble tones.

AM or FM frequencies.

Push the rotary TUNE/SCROLL control knob a fourth

TUNE Control

time and BALANCE will display. Turn the TUNE/

Turn the rotary TUNE/SCROLL control knob clockwise

SCROLL control knob to the right or left to adjust the

to increase or counterclockwise to decrease the frequency.

sound level from the right or left side speakers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

259

Push the rotary TUNE/SCROLL control knob a fifth time

16-Digit Character Dis-

Program Type

and FADE will display. Turn the TUNE/SCROLL control

play

knob to the left or right to adjust the sound level between

No program type or un-

None

the front and rear speakers.

defined

Push the rotary TUNE/SCROLL control knob again to

Adult Hits

Adlt Hit

exit setting tone, balance, and fade.

Classical

Classicl

MUSIC TYPE Button

Classic Rock

Cls Rock

Pressing this button once will turn on the Music Type

College

mode for five seconds. Pressing the MUSIC TYPE button

Country

or turning the TUNE/SCROLL control knob within five

Foreign Language

Language

seconds will allow the program format type to be se-

Information

Inform

lected. Many radio stations do not currently broadcast

Jazz

Music Type information.

News

Toggle the MUSIC TYPE button to select the following

Nostalgia

Nostalga

format types:

Oldies

Personality

Persnlty

-------------------------------------------------------------------------------------------------------------------------------------------------------------

260

UNDERSTANDING YOUR INSTRUMENT PANEL

station with the same selected Music Type name. The

16-Digit Character Dis-

Program Type

Music Type function only operates when in the FM

play

mode.

Public

Rhythm and Blues

R&B

If a preset button is activated while in the Music Type

(Program Type) mode, the Music Type mode will be

Religious Music

Rel Musc

exited and the radio will tune to the preset station.

Religious Talk

Rel Talk

SETUP Button

Rock

Soft

Pressing the SETUP button allows you to select between

the following items:

Soft Rock

Soft Rck

Soft Rhythm and Blues

Soft R&B

• Set Clock — Pressing the SELECT button will allow

you to set the clock. Adjust the hours by turning the

Sports

TUNE/SCROLL control knob. After adjusting the

Talk

hours, press the TUNE/SCROLL control knob to set

Top 40

the minutes. The minutes will begin to blink. Adjust

Weather

the minutes using the right side TUNE/SCROLL con-

trol knob. Press the TUNE/SCROLL control knob to

By pressing the SEEK button when the Music Type icon

save time change.

is displayed, the radio will be tuned to the next frequency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

261

AM/FM Button

and 12 FM stations to be stored into pushbutton memory.

The stations stored in SET 2 memory can be selected by

Press the button to select either AM or FM mode.

pressing the pushbutton twice.

SET/RND Button — To Set The Pushbutton

Every time a preset button is used, a corresponding

Memory

button number will display.

When you are receiving a station that you wish to

Buttons 1 - 6

commit to pushbutton memory, press the SET/RND

button. The symbol SET 1 will now show in the display

These buttons tune the radio to the stations that you

window. Select the button (1-6) you wish to lock onto this

commit to pushbutton memory (12 AM and 12 FM

station and press and release that button. If a button is

stations).

not selected within five seconds after pressing the SET/

DISC/AUX Button

RND button, the station will continue to play but will not

be stored into pushbutton memory.

Pressing the DISC/AUX button will allow you to switch

from AM/FM modes to DISC/AUX mode.

You may add a second station to each pushbutton by

repeating the above procedure with this exception: Press

the SET/RND button twice and SET 2 will show in the

display window. Each button can be set for SET 1 and

SET 2 in both AM and FM. This allows a total of 12 AM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

262

UNDERSTANDING YOUR INSTRUMENT PANEL

Operation Instructions — CD MODE For CD And

If you insert a disc with the ignition ON and the radio

MP3 Audio Play

ON, the unit will switch from radio to CD mode and

begin to play when you insert the disc. The display will

NOTE:

show the track number, and index time in minutes and

• The ignition switch must be in the ON/RUN or ACC

seconds. Play will begin at the start of track 1.

position to operate the radio.

CAUTION!

• This radio is capable of playing compact discs (CD),

recordable compact discs (CD-R), rewritable compact

• This CD player will accept 4-3/4 in (12 cm) discs

discs (CD-RW), compact discs with MP3 tracks and

only. The use of other sized discs may damage the

multisession compact discs with CD and MP3 tracks.

CD player mechanism.

• Do not use adhesive labels. These labels can peel

Inserting Compact Disc(s)

away and jam the player mechanism.

Gently insert one CD into the CD player with the CD

• The Uconnect® 130 is a single CD player. Do not

label facing up. The CD will automatically be pulled into

attempt to insert a second CD if one is already loaded.

the CD player and the CD icon will illuminate on the

• Dual-media disc types (one side is a DVD, the

radio display. If a CD does not go into the slot more than

other side is a CD) should not be used, and they can

1.0 in (2.5 cm), a disc may already be loaded and must be

cause damage to the player.

ejected before a new disc can be loaded.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

263

EJECT Button — Ejecting A CD

the current selection. Pressing and holding the SEEK

button will allow faster scrolling through the tracks in

CD and MP3 modes.

Press the EJECT button to eject the CD.

TIME Button

Press this button to change the display from a large CD

If you have ejected a disc and have not removed it within

playing time display to a small CD playing time display.

10 seconds, it will be reloaded. If the CD is not removed,

RW/FF

the radio will reinsert the CD but will not play it.

Press and hold FF (Fast Forward) and the CD player will

A disc can be ejected with the radio and ignition OFF.

begin to fast forward until FF is released or RW or

NOTE: Ejecting with the ignition OFF is not allowed on

another CD button is pressed. The RW (Reverse) button

convertible or soft-top models (if equipped).

works in a similar manner.

SEEK Button

AM/FM Button

Press the right SEEK button for the next selection on the

Press the button to select either AM or FM mode.

CD. Press the left SEEK button to return to the beginning

of the current selection, or return to the beginning of the

previous selection if the CD is within the first second of

Dodge Avenger (2020 year). Manual in english - page 11
