Protected Component

Fuse Rating

Fuse Number

Horn.

25A

1

1

Fan 1.

50A

2

2

Front wiper motor.

30A

2

3

Not used.

—

4

Starter relay.

30A

2

5

Power point #1.

20A

2

6

Power point #2.

20A

2

8

Rain sensor.

5A

1

10

Not used.

—

12

4X4 module.

10A

1

13

Heated backlite.
Heated mirror relay coil.
Heated wiper park relay coil.
Transmission isolation relay coil.

Transmission coil module.

15A

1

14

343

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

RH-LDM, LH-LDM.

15A

1

15

Voltage quality module.
Blindspot information system.
Cruise control module.
Tailgate applique.
Image processing module B.

Powertrain control module (PCM) run/start feed.

10A

1

16

Anti-lock brake system (ABS) run/start feed.

10A

1

17

Electronic power assist steering, run/start feed.

10A

1

18

Not used.

—

19

Front blower.

40A

2

20

Passenger seat motors.

40A

2

21

Not used.

—

22

Alternator A-line.

10A

1

23

Trailer brake control module.

30A

2

24

Body control module power 1.

50A

2

25

344

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

Electronic fan 3.

50A

2

26

Driver seat motors.

40A

2

27

Rear heated seats.

15A

1

28

4x4 integrated wheel end solenoid.

10A

1

29

Trailer tow class II-IV battery charge.

25A

2

30

Power folding seat module.

50A

2

31

A/C clutch.

10A

1

32

Not used.

—

33

Not used.

—

34

Vehicle power 4.

20A

1

35

Vehicle power 3.

10A

1

36

Vehicle power 2.

25A

1

37

Vehicle power 1.

25A

1

38

345

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

Not used.

—

39

Inverter.

50A

2

41

Trailer tow light module class II-IV.

20A

2

43

Front/rear washer pump.

20A

2

45

Family entertainment system.

7.5A

1

46

Not used.

—

47

Not used.

—

48

Not used.

—

49

Fuel pump.

30A

2

50

Power point #3.

20A

2

51

Body control module (BCM) voltage quality monitor (VQM).

50A

2

52

Trailer tow park lamps relay.

25A

2

53

Electronic limited slip differential (ELSD) relay.

40A

2

54

346

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

Auxiliary blower.

40A

2

55

Power point #4.

20A

2

56

Front driver and passenger seats - belt tension reducer

5A

1

58

Not used.

—

59

Lincoln start lamp

5A

1

60

Right-hand enhanced exterior lighting (EEL) module (R64).

25A

1

61

Left-hand enhanced exterior lighting (EEL) module (R64)

25A

1

62

4X4 module.

25A

1

63

Not used.

—

64

Not used.

—

65

Not used.

—

66

Not used.

—

67

Not used.

—

69

Anti-lock brake system (ABS) / park brake module.

40A

2

70

347

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

4X4 module

25A

2

71

Not used.

—

72

Not used.

—

73

Trailer tow backup lamps.

10A

1

74

Not used.

—

75

Body control module (BCM) run power 2.

50A

2

76

Climate control (heated/vented) seat module.

30A

2

77

Not used.

—

78

Not used.

—

79

Heated wiper park.

10A

1

80

Not used.

—

81

Not used.

—

82

Transmission control module (TCM) power.

15A

1

83

Not used.

—

84

348

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

Not used.

—

85

USB smart charger #5.

5A

1

86

USB smart charger #3.

5A

1

87

Multi contour seats relay.

10A

1

88

Power running boards.

40A

2

89

Power liftgate module.

30A

2

91

Heated mirrors.

15A

1

93

USB smart charger #1.

5A

1

94

USB smart charger #2.

10A

1

95

Rear wiper motor relay

30A

2

96

Intercooler puller fan relay.

40A

2

97

Transmission oil pump.

15A

2

98

349

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse Number

Heated backlight.

40A

2

99

Power point #5.

20A

2

100

Electric fan 2.

25A

2

101

Not used.

—

102

Not used.

—

103

Not used.

—

104

Not used.

—

105

1

Micro 2 fuse.

2

Slotted M case fuse.

Protected Component

Relay

Powertrain control module.

R02

Electric fan 2.

R05

350

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

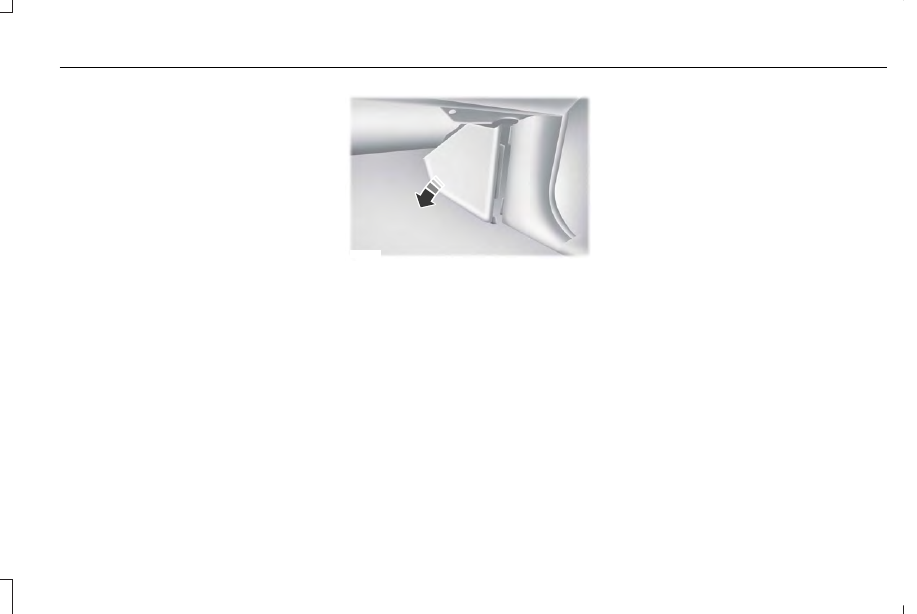

Passenger Compartment Fuse Panel

The fuse panel is under the right-hand side
of the instrument panel.

E205347

To remove the trim panel for access to the
fuse box, pull the panel toward you and
swing it out away from the side and remove
it. To reinstall it, line up the tabs with the
grooves on the panel, then push it shut.

351

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

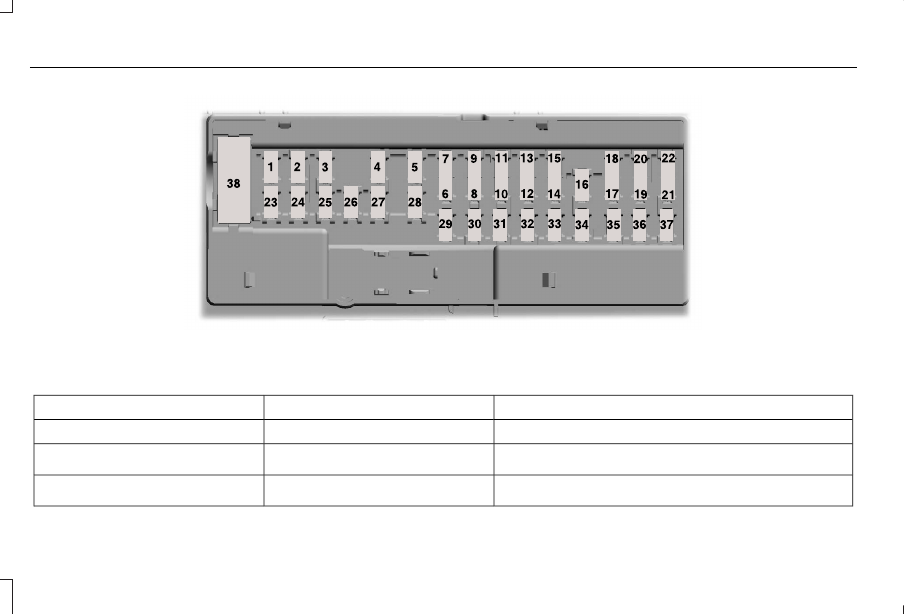

E145984

The fuses are coded as follows:

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

—

1

Driver seat switch.

7.5A

1

2

Driver door unlock.

20A

1

3

352

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Trailer brake controller (TBM).

5A

1

4

Revel II amplifier.

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Rear seat entertainment module (RSEM).

10A

2

9

Automatic heads up display.

Wireless accessory charger module (WACM).

5A

2

10

Hands free liftgate module.
Power liftgate module Logic (PLGM).

Combined sensor module (CSM).

5A

2

11

Keypad.

Cluster.

7.5A

2

12

Smart datalink connector Logic (SDLC).
Electronic control panel (ECP).

Steering column control module (SCCM) (Logic).

7.5A

2

13

Gear shift module (GSM).

353

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Extended power mode module (EPM).

10A

2

14

Brake Switch.

Smart datalink connector Power (SDLC).

10A

2

15

Liftglass release relay.

15A

1

16

Telematics control unit - modem.

5A

2

17

Push-button start switch.

5A

2

18

Not used (spare).

7.5A

2

19

Headlamp control module (HCM).

7.5A

2

20

In-car temperature and humidity sensor.

5A

2

21

Electrochromic (EC)mirror.

5A

2

22

2nd row heated seat module.

Moonroof (logic).

10A

1

23

Inverter (LIN logic).
Power window switch.
Power mirror switch.
DVD player (if equipped).

354

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Central lock relay.

20A

1

24

Central unlock relay.

Left front door zone module (DZM).

30A

1

25

Right front door zone module (DZM).

30A

1

26

Moonroof - Tilt, Vent. Slide.

30A

1

27

Revel II Amp.

20A

1

28

Left rear door zone module (DZM).

30A

1

29

Right rear door zone module (DZM).

30A

1

30

Adjustable column and pedal memory module (CAPM).

15A

1

31

Accessory protocol interface module (APIM) (Media Gateway
Module or SYNC).

10A

1

32

Drive mode switch module (DMSM) (if equipped).
Radio frequency transceiver module (RTM).
Rear heating, ventilation and air conditioning (HVAC) control.

Audio control module (ACM).

20A

1

33

Rear audio control module (RACM).
Remote CD mechanism (if equipped).

355

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Run/start relay.

30A

1

34

Extended power mode module (EPM).

5A

1

35

Image processing module A (IPMA).

15A

1

36

Automated Park Assist Module
Continuous control damping module (CCD Module).

Heated steering wheel.

20A

1

37

Left rear power window.

30A Circuit Breaker

38

Right rear power window.

1

Micro 2 fuse.

2

Micro 3 fuse

356

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

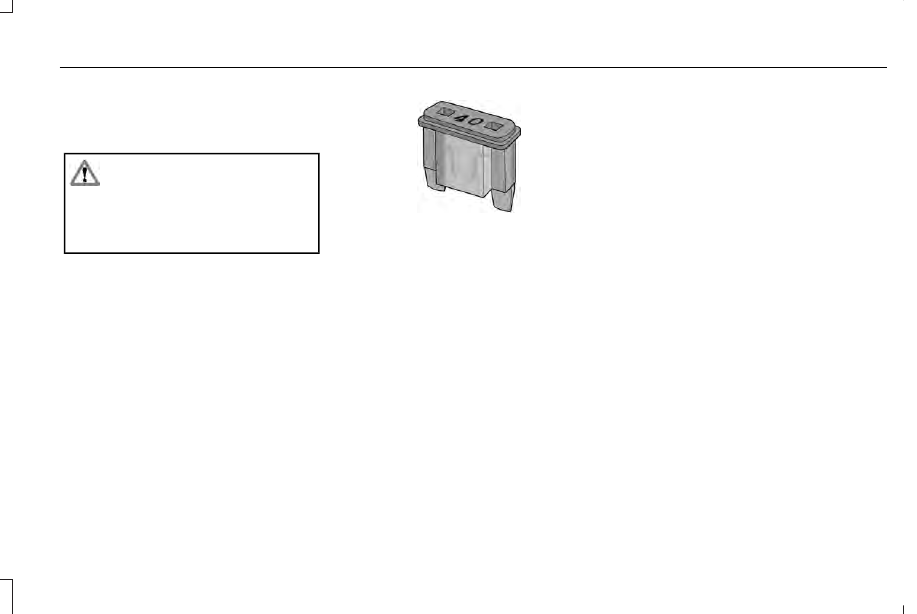

CHANGING A FUSE

Fuses

WARNING: Always replace a fuse

with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

357

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Fuses

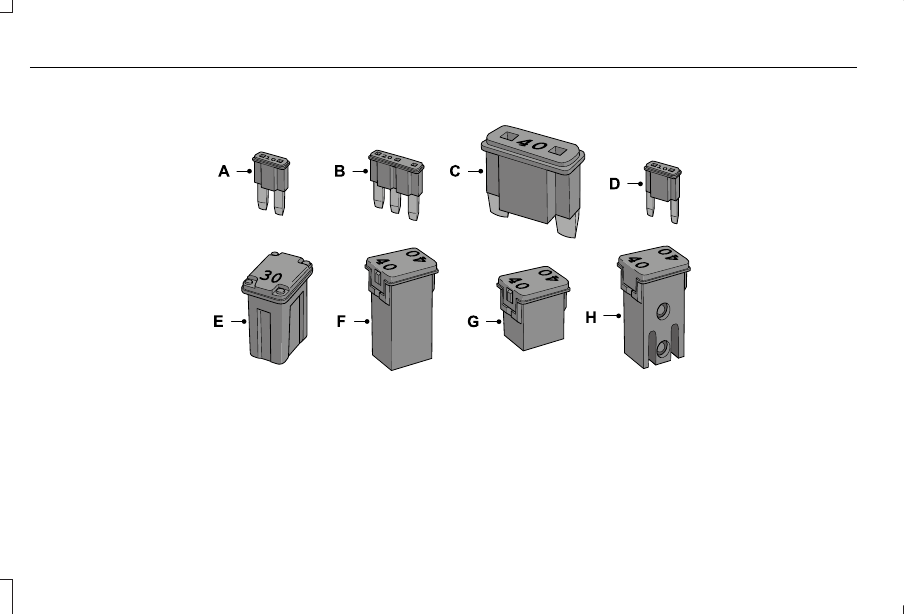

Fuse Types

E267379

Micro 2.

A

Micro 3.

B

Maxi.

C

Mini.

D

M Case.

E

J Case.

F

J Case Low Profile.

G

Slotted M Case.

H

358
