Switching to Normal Cruise Control

WARNING: Normal cruise control will

not brake when your vehicle is approaching
slower vehicles. Always be aware of which
mode you have selected and apply the
brakes when necessary.

E71340

The cruise control indicator light
replaces the adaptive cruise
control indicator light if you select

normal cruise control. The gap setting does
not display, and the system does not respond
to lead vehicles. Automatic braking remains
active to maintain set speed.

You can change from adaptive cruise control
to normal cruise control through the
information display.

Switching to ECO Cruise

Using cruise control with ECO Cruise
switched on may change the operation of
the system.  This feature saves vehicle
energy by relaxing acceleration compared
to standard cruise control.  For example, your
vehicle may temporarily lose speed when
going uphill.

For Energi vehicles, you can switch on ECO
Cruise using the information display.

For Hybrid vehicles, press ECO on the center
console.

For additional information, refer to ECO
Cruise and EcoSelect.  See EcoSelect (page
173).

231

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Cruise Control

DRIVER ALERT

 (If Equipped)

PRINCIPLE OF OPERATION

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to drive
with due care and attention. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING: The system may not

function if the sensor is blocked.

WARNING: Take regular rest breaks if

you feel tired. Do not wait for the system to
warn you.

WARNING: Certain driving styles may

result in the system warning you even if you
are not feeling tired.

WARNING: In cold and severe weather

conditions the system may not function. Rain,
snow and spray can all limit sensor
performance.

WARNING: The system will not operate

if the sensor cannot track the road lane
markings.

WARNING: If damage occurs in the

immediate area surrounding the sensor, have
your vehicle checked as soon as possible.

WARNING: The system may not

correctly operate if your vehicle is fitted with
a suspension kit not approved by us.

Note: The system may not operate correctly
if you modify the ride height.

Note: Keep the windshield free from
obstructions. For example, bird droppings,
insects, snow or ice.

Note: If the camera is blocked or if the
windshield is damaged, the system may not
function.

Note: If enabled in the menu, the system
activates at speeds above 40 mph (64 km/h).
When below the activation speed, the
information display informs the driver that
the system is unavailable.

E249505

The system automatically monitors your
driving behavior using various inputs
including the front camera sensor.

If the system detects that your driving
alertness is reduced below a certain
threshold, the system alerts you using a
chime and a message in the information
display.

232

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

USING DRIVER ALERT

Switching the System On and Off

Switch the system on or off using the
information display. See General Information
(page 110).

When active, the system monitors your
alertness level based upon your driving
behavior in relation to the lane markings and
other factors.

System Warnings

Note: The system does not issue warnings
below approximately 40 mph (64 km/h).

The warning system has two stages. First,
the system issues a temporary warning that
you need to take a rest. This message only
appears for a short time. If the system
detects further reduction in driving alertness,
it may issue another warning that remains in
the information display for a longer time. You
can press OK on the steering wheel control
to clear the warning.

System Display

When active, the system runs automatically
in the background and only issues a warning
if required. You can view the status at any
time using the information display. See
General Information (page 110).

The alertness level is shown by six steps in
a colored bar.

E131358

The current assessment of your alertness is
within a typical range.

E131359

The current assessment of your alertness
indicates that you should rest as soon as
safely possible.

The status bar travels from left to right as the
calculated alertness level decreases. As the
meter approaches the rest icon, the color
turns from green to yellow to red.

The yellow position indicates the first
warning is active and the red position
indicates the second warning is active.

Note: If you have recently received a
warning, you should consider resting, even
if the current assessment is within the typical
range.

Note: If the camera sensor cannot track the
road lane markings, or if your vehicle speed
drops below approximately 40 mph
(64 km/h), the alertness level changes to
grey for a short time and the information
display informs you that the system is
unavailable.

Resetting the System

You can reset the system by either:

233

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

•

Switching the ignition off and on.

•

Stopping the vehicle and then opening
and closing the driver’s door.

LANE KEEPING SYSTEM

 (If Equipped)

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to drive
with due care and attention. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING: Always drive with due care

and attention when using and operating the
controls and features on your vehicle.

WARNING: In cold and severe weather

conditions the system may not function. Rain,
snow and spray can all limit sensor
performance.

WARNING: The system will not operate

if the sensor cannot track the road lane
markings.

WARNING: The sensor may incorrectly

track lane markings as other structures or
objects. This can result in a false or missed
warning.

WARNING: Large contrasts in outside

lighting can limit sensor performance.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

WARNING: If damage occurs in the

immediate area surrounding the sensor, have
your vehicle checked as soon as possible.

WARNING: The system may not

correctly operate if your vehicle is fitted with
a suspension kit not approved by us.

Note: The system works above 40 mph
(64 km/h).

Note: The system works as long as the
camera can detect one lane marking.

Note: When aid mode is on and the system
detects no steering activity for a short period,
the system alerts you to put your hands on
the steering wheel. The system may detect
a light grip or touch on the steering wheel
as hands off driving.

Note: The system may not function if the
camera is blocked, or if the windshield is
damaged or dirty.

E249505

234

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

When you switch the system on and it
detects an unintentional drift out of your lane
is likely to occur, the system notifies or
assists you to stay in your lane through the
steering system and information display.
Depending on the feature operation mode
you select, the system provides a warning
by vibrating the steering wheel or a steering
assistance by gently counter steering your
vehicle back into the lane.

Switching the System On and Off

Note: The system on or off setting is stored
until it is manually changed, unless a MyKey™
is detected. If the system detects a MyKey™,
it defaults to on and the mode is set to alert.

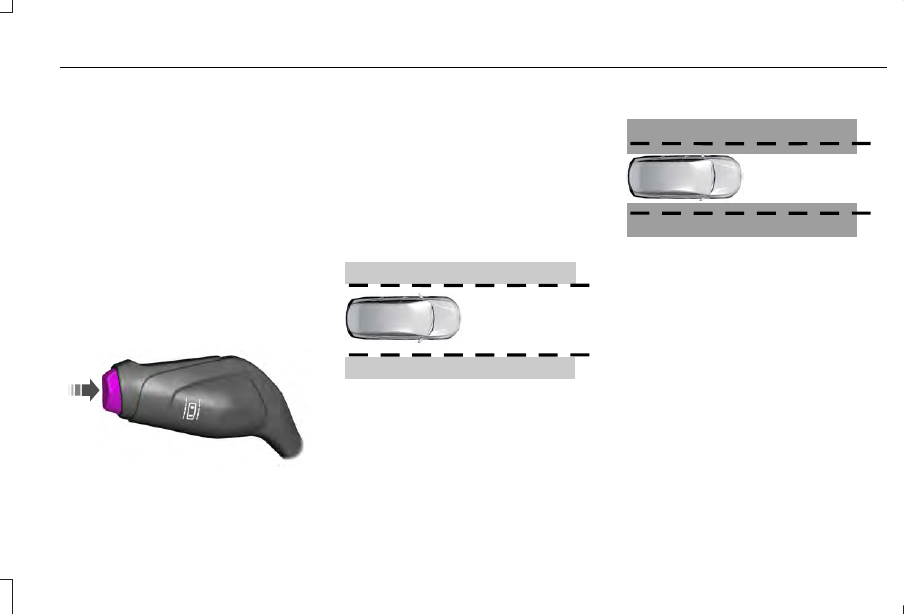

E132099

Press the button on the direction indicator
stalk to switch the system on or off.

System Settings

The system has optional setting menus
available. The system stores the last-known
selection for each of these settings. You do
not need to readjust your settings each time
you switch on the system.

Mode: This setting allows you to select which
of the system features you can enable.

E165515

Alert only – Provides a steering wheel
vibration when the system detects an
unintended lane departure.

E165516

Aid only – Provides steering assistance
toward the lane center when the system
detects an unintended lane departure.

235

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

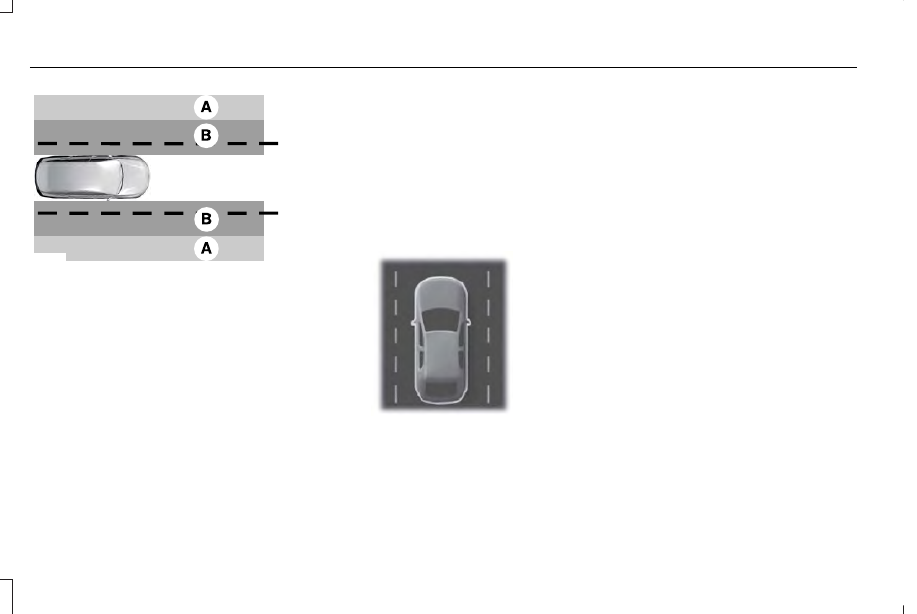

E165517

Alert

A

Aid

B

Alert + Aid – Provides steering assistance
toward the lane center.

If your vehicle continues drifting out of the
lane after the lane keeping aid corrects the
vehicle, the system provides a steering
wheel vibration.

Note: The alert and aid diagrams illustrate
general zone coverage. They do not provide
exact zone parameters.

Intensity: This setting affects the intensity of
the steering wheel vibration used for the alert
and alert + aid modes. This setting does not
affect the aid mode.

•

Low

•

Normal

•

High

System Display

E151660

If you switch the system on in alert mode, an
overhead graphic of a vehicle with lane
markings appears in the information display.

If you switch the system on in aid or alert and
aid mode, a separate white icon also
appears, or in some vehicles, arrows display
with the lane markings.

When you switch the system off, the lane
marking graphics do not display.

While the system is on, the color of the lane
markings change to indicate the system
status.

Gray: Indicates that the system is temporarily
unable to provide a warning or intervention
on the indicated side. This may be because:

•

Your vehicle is under the activation
speed.

•

The direction indicator is active.

•

Your vehicle is in a dynamic maneuver.

236

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

•

The road has no or poor lane markings
in the camera field of view.

•

The camera is obscured or unable to
detect the lane markings due to
environmental, traffic or vehicle
conditions. For example, significant sun
angles, shadows, snow, heavy rain or fog,
following a large vehicle that is blocking
or shadowing the lane, poor headlamp
illumination.

See Troubleshooting for additional
information.

Green: Indicates that the system is available
or ready to provide a warning or intervention,
on the indicated side.

Yellow: Indicates that the system is providing
or has just provided a lane keeping aid
intervention.

Red: Indicates that the system is providing
or has just provided a lane keeping alert
warning.

The system can be temporarily suppressed
at any time by the following:

•

Quick braking.

•

Fast acceleration.

•

Using the turn signal indicator.

•

Evasive steering maneuver.

•

Driving too close to the lane marking.

Troubleshooting

Why is the feature not available (line markings are gray) when I can see the lane markings on the road?

Your vehicle speed is outside the operational range of the feature.

The sun is shining directly into the camera lens.

A quick intentional lane change has occurred.

Your vehicle stays too close to the lane markings.

Driving at high speeds in curves.

The last alert warning or aid intervention occurred a short time ago.

Ambiguous lane markings, for example in construction zones.

237

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

Why is the feature not available (line markings are gray) when I can see the lane markings on the road?

Rapid transition from light to dark, or from dark to light.

Sudden offset in lane markings.

ABS or AdvanceTrac™ is active.

There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.

You are driving too close to the vehicle in front of you.

Transitioning between no lane markings to lane markings or vice versa.

There is standing water on the road.

Faint lane markings, for example partial yellow lane markings on concrete roads.

Lane width is too narrow or too wide.

The camera has not been calibrated after a windshield replacement.

Driving on tight roads or on uneven roads.

238

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

Why does the vehicle not come back toward the middle of the lane, as expected, in the Aid or Aid + Alert mode?

High cross winds are present.

There is a large road crown.

Rough roads, grooves or shoulder drop-offs.

Heavy uneven loading of the vehicle or improper tire inflation pressure.

The tires have been changed, or the suspension has been modified.

BLIND SPOT INFORMATION
SYSTEM

 (If Equipped)

WARNING: Do not use the blind spot

information system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before changing
lanes. The blind spot information system is
not a replacement for careful driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy rain
and spray. Always drive with due care and
attention. Failure to take care may result in
a crash.

A

A

E124788

239

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

The system is designed to detect vehicles
that may have entered the blind spot zone
(A). The detection area is on both sides of
your vehicle, extending rearward from the
exterior mirrors to approximately 13 ft (4 m)
beyond the rear bumper.

Note: The system does not prevent contact
with other vehicles. It is not designed to
detect parked vehicles, pedestrians, animals
or other infrastructures.

Using the Blind Spot Information
System

Vehicles with Automatic Transmission

The system turns on when all of the following
occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than 6 mph
(10 km/h).

Note: The system does not operate in park
(P) or reverse (R).

Vehicles with Manual Transmission

The system turns on when all of the following
occur:
•

You start your vehicle.

•

The vehicle speed is greater than 6 mph
(10 km/h).

Note: The system does not operate in
reverse (R).

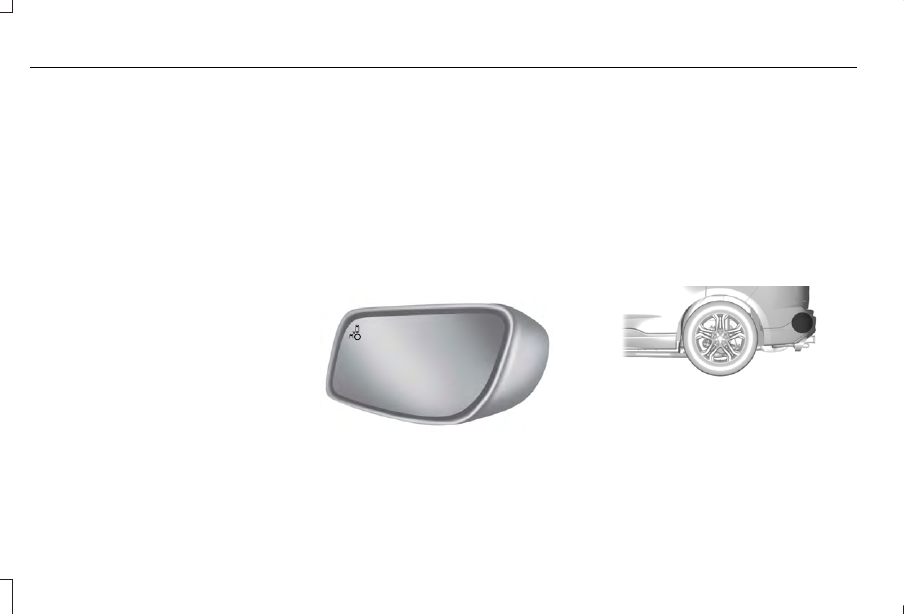

System Lights and Messages

E142442

When the system detects a vehicle, an alert
indicator illuminates in the exterior mirror on
the side the approaching vehicle is coming
from. If you turn the direction indicator on for
that side of your vehicle, the alert indicator
flashes.

Note: The system may not alert you if a
vehicle quickly passes through the detection
zone.

Blocked Sensors

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

240

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

Note: Blocked sensors could affect system
performance.

If the sensors are blocked, a message may
appear in the information display.  See
Information Messages (page 121).  The alert
indicators remain illuminated but the system
does not alert you.

System Errors

If the system detects a fault, a warning lamp
illuminates and a message displays.  See
Information Messages (page 121).

Switching the System Off and On

You can switch the system off using the
information display.  See General
Information (page 110).  When you switch the
system off, a warning lamp illuminates and
a message displays. When you switch the
system on or off, the alert indicators flash
twice.

Note: The system remembers the last setting
when you start your vehicle.

Note: The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved by
us, the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

To permanently switch the system off,
contact an authorized dealer.

CROSS TRAFFIC ALERT

 (If Equipped)

WARNING: Do not use the cross traffic

alert system as a replacement for using the
interior and exterior mirrors or looking over
your shoulder before reversing out of a
parking space. The cross traffic alert system
is not a replacement for careful driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy rain
and spray. Always drive with due care and
attention. Failure to take care may result in
a crash.

The system is designed to alert you of
vehicles approaching from the sides when
you shift into reverse (R).

Using the Cross Traffic Alert System

The system is designed to detect vehicles
that approach with a speed up to 37 mph
(60 km/h). Coverage decreases when the
sensors are partially, mostly or fully
obstructed. Slowly reversing helps increase
the coverage area and effectiveness.

The system turns on when you start the
engine and you shift into reverse (R). The
system turns off when you shift out of reverse
(R).

241

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

E142440

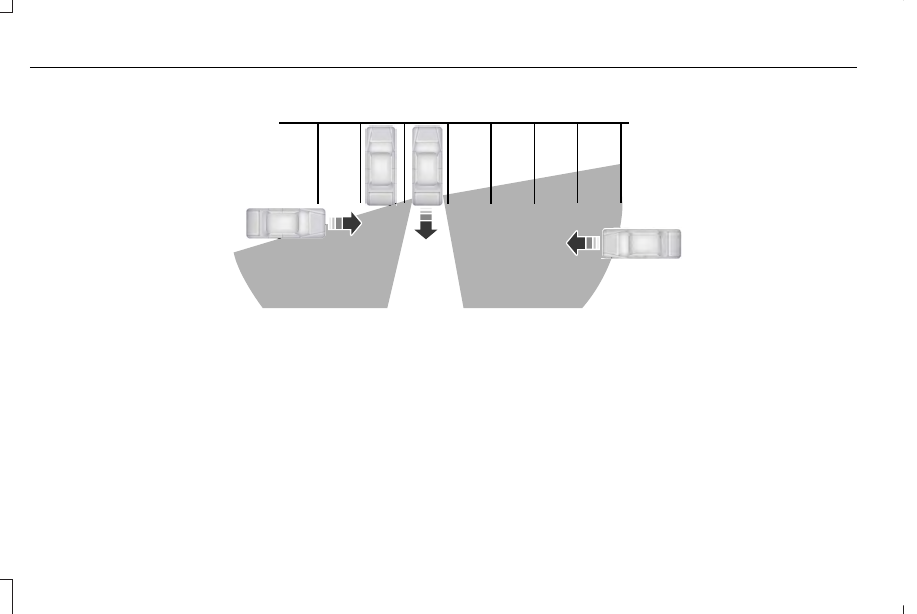

The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.

242

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

E142441

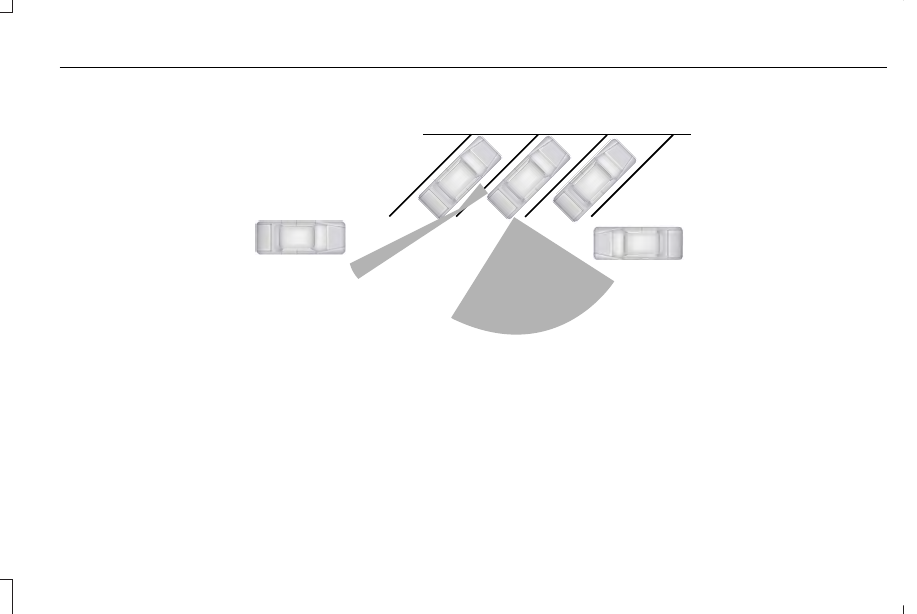

Zone coverage also decreases when parking
at narrow angles. The sensor on the left-hand
side is mostly obstructed and zone coverage
on that side is severely reduced.

243

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

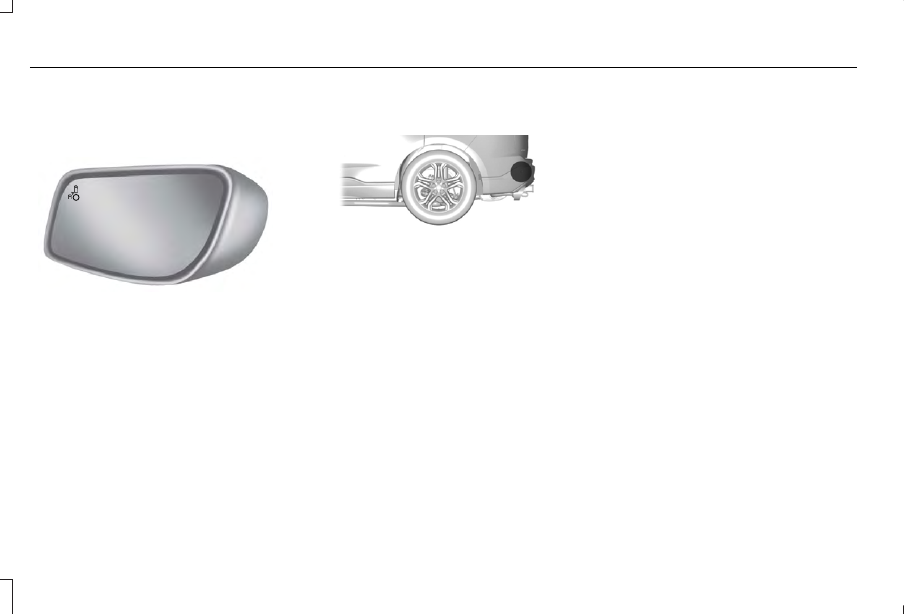

System Lights, Messages and Audible
Alerts

E142442

When the system detects a vehicle, an
indicator illuminates in the exterior mirror on
the side the approaching vehicle is coming
from.  A tone sounds and a message appears
in the information display.

Note: In exceptional conditions, the system
could alert you even when there is nothing
in the detection zone, for example a vehicle
passing in the distance.

Blocked Sensors

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

Note: Blocked sensors could affect system
performance.

If the sensors are blocked, a message may
appear in the information display when you
shift into reverse (R).  See Information
Messages (page 121).

System Limitations

The system may not correctly operate when
any of the following occur:
•

The sensors are blocked.

•

Adjacently parked vehicles or objects are
obstructing the sensors.

•

Vehicles approach at speeds greater
than 37 mph (60 km/h).

•

The vehicle speed is greater than 7 mph
(12 km/h).

•

You reverse out of an angled parking
space.

System Errors

If the system detects a fault a message
displays.  See Information Messages (page
121).

Switching the System Off and On

You can temporarily switch the system off
using the information display.  See
Information Messages (page 121).  When you
switch system off, a message displays. See
Information Messages (page 121).

244

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

Note: The system turns on each time you
switch the ignition on and you shift into
reverse (R). If you temporarily switch the
system off, it turns on the next time you
switch the ignition on.

Note: The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved by
us, the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

To permanently switch the system off,
contact an authorized dealer.

STEERING

Electric Power Steering

WARNING: The electric power steering

system has diagnostic checks that
continuously monitor the system. If a fault is
detected, a message displays in the
information display. Stop your vehicle as
soon as it is safe to do so. Switch the ignition
off. After at least 10 seconds, switch the
ignition on and watch the information display
for a steering system warning message. If a
steering system warning message returns,
have the system checked by an authorized
dealer.

WARNING: If the system detects an

error, you may not feel a difference in the
steering, however a serious condition may
exist. Obtain immediate service from an
authorized dealer, failure to do so may result
in loss of steering control.

Your vehicle has an electric power steering
system. There is no fluid reservoir. No
maintenance is required.

If your vehicle loses electrical power while
you are driving, electric power steering
assistance is lost. The steering system still
operates and you can steer your vehicle
manually. Manually steering your vehicle
requires more effort.

Extreme continuous steering may increase
the effort required for you to steer your
vehicle. This increased effort prevents
overheating and permanent damage to the
steering system. You do not lose the ability
to steer your vehicle manually. Typical
steering and driving maneuvers allow the
system to cool and return to normal
operation.

Steering Tips

If the steering wanders or pulls, check for:
•

Correct tire pressures.

•

Uneven tire wear.

•

Loose or worn suspension components.

•

Loose or worn steering components.

•

Improper vehicle alignment.

245

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids

Note: A high crown in the road or high
crosswinds may also make the steering
seem to wander or pull.

Adaptive Learning

The electronic power steering system
adaptive learning helps correct road
irregularities and improves overall handling
and steering feel. It communicates with the
brake system to help operate advanced
stability control and accident avoidance
systems. Additionally, whenever the battery
is disconnected or a new battery installed,
you must drive your vehicle a short distance
before the system relearns the strategy and
reactivates all systems.

PRE-COLLISION ASSIST

 (If Equipped)

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to drive
with due care and attention. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING: The system does not detect

vehicles that are driving in a different
direction, pedestrians at night, cyclists or
animals. Failure to take care may result in
the loss of control of your vehicle, serious
personal injury or death.

WARNING: The system does not

operate during hard acceleration or steering.
Failure to take care may lead to a crash or
personal injury.

WARNING: The system may fail or

operate with reduced function during cold
and severe weather conditions. Snow, ice,
rain, spray and fog can adversely affect the
system. Keep the front camera and radar free
of snow and ice. Failure to take care may
result in the loss of control of your vehicle,
serious personal injury or death.

WARNING: In situations where the

vehicle camera has limited detection
capability, this may reduce system
performance. These situations include but
are not limited to direct or low sunlight,
vehicles at night without tail lights,
unconventional vehicle types, pedestrians
with complex backgrounds, running
pedestrians, partly obscured pedestrians, or
pedestrians that the system cannot
distinguish from a group. Failure to take care
may result in the loss of control of your
vehicle, serious personal injury or death.

246

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Driving Aids
