In the CAMVAP program, impartial third-party
arbitrators conduct hearings at mutually
convenient times and places in an informal
environment. These impartial arbitrators
review the positions of the parties, make
decisions and, when appropriate, render
awards to resolve disputes. CAMVAP
decisions are fast, fair, and final as the
arbitrator’s award is binding on both you and
Ford of Canada.

CAMVAP services are available in all
Canadian territories and provinces. For more
information, without charge or obligation, call
your CAMVAP Provincial Administrator
directly at 1-800-207-0685 or visit
www.camvap.ca.

GETTING ASSISTANCE OUTSIDE
THE U.S. AND CANADA

Before exporting your vehicle to a foreign
country, contact the appropriate foreign
embassy or consulate. These officials can
inform you of local vehicle registration
regulations and where to find unleaded fuel
or petrol/gas engines or the proper sulfur
fuel for diesel engines.

If you cannot find the proper fuel
recommended for your vehicle, contact our
Customer Relationship Center.

The use of improper fuels in your vehicle
without proper conversion may damage the
effectiveness of your emission control system
and may cause engine knocking or serious
engine damage. Ford Motor Company or
Ford of Canada is not responsible for any
damage caused by use of improper fuel.
Using improper fuels may also result in
difficulty importing your vehicle back into the
United States.

If your vehicle must be serviced while you
are traveling or living in Asia-Pacific Region,
Sub-Saharan Africa, U.S. Virgin Islands and/or
Puerto Rico, Central America, the Caribbean,
and Israel and the Middle East, contact the
nearest authorized dealer. If the authorized
dealer cannot help you, contact the
corresponding Ford Customer Assistance
Center:

FORD MOTOR COMPANY

Customer Relationship Centers in:

263

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Customer Assistance

E-mail

Fax

Phone

Customer Relationship Center

apemcrc@ford.com

N/A

N/A

Asia Pacific

expcac@ford.com

-

+1 313 594 4857

Caribbean and Central America

menacac@ford.com

971 4 3327 266

Ford

Middle East

80004443673

Lincoln

80004441066

UAE

80004441066

Saudi Arabia

8008443673

Mobily and Zain cell phone users

in Saudi

800850078

nafcrc@ford.com

N/A

N/A

North Africa

prcac@ford.com

N/A

+1-800-841-3673

Puerto Rico and U.S. Virgin Islands

ssacrc@ford.com

N/A

+1-313-594-4857

Sub-Saharan Africa

infokr1@ford.com or

infokr@lincoln.com

N/A

+82-02-1600-6003

South Korea

264

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Customer Assistance

If you buy your vehicle in North America and
then relocate to any of the above locations,
register your vehicle identification number
(VIN) and new address with Ford Global
Trade Services by emailing,
expcso@ford.com.

If you are in another foreign country, contact
the nearest authorized dealer. In the event
your inquiry is unresolved, communicate your
concern with the dealership’s Sales Manager,
Service Manager or Customer Relations
Manager. If you require additional assistance
or clarification, please contact the respective
Customer Relationship Center as previously
listed.

Customers in the U.S. should call
1-800-392-3673.

ORDERING ADDITIONAL OWNER'S
LITERATURE

To order the publications in this portfolio,
contact Helm, Incorporated at:

HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service

Or to order a free publication catalog, call
toll free: 1-800-782-4356

Monday-Friday 8:00 a.m. - 6:00 p.m. EST

Helm, Incorporated can also be reached by
their website:

www.helminc.com

(Items in this catalog may be purchased by
credit card, check or money order.)

Obtaining a French Owner’s Manual

French Owner’s Manual can be obtained
from your authorized dealer or by contacting
Helm, Incorporated using the contact
information listed previously in this section.

REPORTING SAFETY DEFECTS
(U.S. ONLY)

E142557

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying Ford
Motor Company.

If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
Ford Motor Company.

265

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Customer Assistance

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue, Southeast

Washington, D.C. 20590

You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada
and Ford of Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)

Website

1–800–333–0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

266

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Customer Assistance

FUSE SPECIFICATION CHART

Pre-Fuse Box

The pre-fuse box is in the engine
compartment attached to the positive battery
post. This box contains several high current
fuses. If you need to replace one of these
high current fuses, see an authorized dealer.

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

To reduce risk of electrical shock,
always replace the cover to the power

distribution box before reconnecting the
battery or refilling fluid reservoirs.

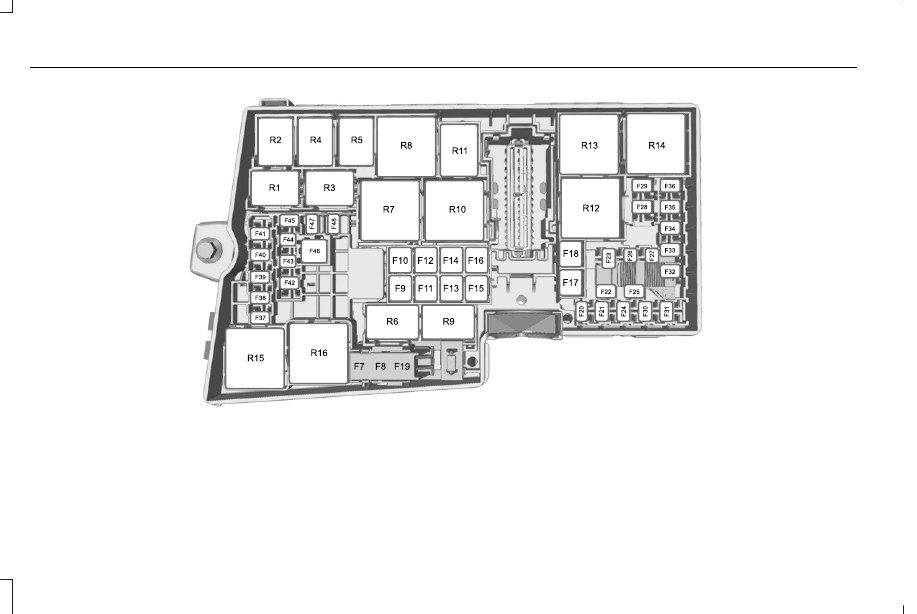

The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.

You will need to reset some features if you
disconnect and reconnect the battery.  See
Changing the 12V Battery (page 296).

Lift the release lever at the rear of the cover
to remove it.

267

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

E157389

268

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Anti-lock brake system module.

50A

1

F7

Anti-lock brake system module.

30A

1

F8

Fuel pump relay.

20A

1

F9

Blower motor relay.

40A

1

F10

Run start relay.

30A

1

F11

Powertrain control module relay.

40A

1

F12

Starter relay.

30A

1

F13

Memory seat.

30A

1

F14

Wipers and washers relay.

30A

1

F15

Cooling fan.

25A

1

F16

Cooling fan 1 (600W).

40A

1

F17

Cooling fan 1 (750W).

50A

1

269

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Cooling fan 2 (600W).

40A

1

F18

Cooling fan 2 (750W).

50A

1

Anti-lock brake system module run/start.

5A

2

F19

Horn relay.

7.5A

2

F20

Brake pedal switch.

10A

2

F21

Windshield wipers and washer.

25A

2

F22

Run/start relay coil.

5A

2

F23

Transmission range control module.

20A

2

F24

Air conditioning clutch.

10A

2

F25

Powertrain control module relay coil.

5A

2

F26

Washer pump relay.

10A

2

F27

Alternator sensor.

10A

2

F28

270

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Rain sensor.

15A

2

F29

Rear wiper.
Rear washer pump relay coil.

Not used.

—

F30

Not used.

—

F31

Vehicle power 1 (powertrain control module).

15A

2

F32

Vehicle power 2 (canister vent solenoid, universal exhausted
gas oxygen sensor, variable camshaft timing, catalyst monitor
sensor, canister purge solenoid).

15A

2

F33

Vehicle power 3 (A/C clutch control relay coil, variable A/C
compressor, fan control relay coil, engine charge air bypass
valve solenoid, active grill shutters).

15A

2

F34

Vehicle power 4 (ignition coils).

15A

2

F35

Not used.

—

F36

Not used.

—

F37

Voltage quality module run/start (vehicles equipped with
stop/start).

15A

2

F38

Powertrain control ignition start power - run.

5A

2

F39

271

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Electronic power assist steering run/start.

10A

2

F40

Extended power module run/start.

10A

2

F41

Adaptive cruise control.

10A

2

F42

Blind spot information system.
Heads-up display.
Rear video camera.
(vehicles with stop/start)

Not used (spare).
(vehicles without stop/start)

Not used.

—

F43

Heated rear window relay coil.

5A

2

F44

Heated wiper park.
Electronic transmission pump run/stop feed (vehicles
equipped with stop/start).

Transmission range control module run/start.

5A

2

F45

Heated rear window relay.

40A

1

F46

Heated wiper park.

272

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Electronic transmission pump B+ feed (vehicles equipped
with stop/start).

30A

2

F47

Not used.

—

F48

1

J-case fuse.

2

Mini fuse.

Circuits switched

Relay

Run start.

R1

Horn.

R2

Fuel pump.

R3

Rear window washer pump.

R4

Cooling fan relay 3 (750W).

R5

Spare (600W).

Windshield wipers.

R6

Cooling fan relay 1 (600W).

R7

Cooling fan relay 5 (750W).

Starter.

R8

273

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Circuits switched

Relay

Not used.

R9

Cooling fan relay 4 (750W).

R10

Spare (600W).

Air conditioning clutch.

R11

Cooling fan relay 1 (750W).

R12

Cooling fan relay 3 (600W).

Cooling fan relay 2.

R13

Powertrain control module.

R14

Heated rear window.

R15

Heated wiper park.

Blower motor.

R16

Passenger Compartment Fuse Box

The fuse panel is behind the lower end of
the glove box.

274

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

E145984

Protected Components

Fuse Rating

Fuse Number

Demand lamp battery saver.

10A

1

1

Memory seats.

7.5A

1

2

Driver door unlock.

20A

1

3

275

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

THX amplifier.

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Not used (spare).

10A

2

9

Keypad.

5A

2

10

Power liftgate logic.

Not used (spare).

5A

2

11

Climate control.

7.5A

2

12

Gear shift control.
Push-button ignition.

Cluster.

7.5A

2

13

Datalink module logic.
Steering column module logic.

276

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Extended Power Module (supplies power for Restraint
Control Module and Occupant Classification System).

10A

2

14

Datalink module.

10A

2

15

Not used (spare).

15A

1

16

Cellphone passport module.

5A

2

17

Not used (spare).

5A

2

18

Not used (spare).

7.5A

2

19

Not used (spare).

7.5A

2

20

Humidity and in-car temperature.

5A

2

21

Not used (spare).

5A

2

22

Delayed accessory (driver window switch, moonroof logic,
power inverter logic).

10A

1

23

Central lock and unlock.

20A

1

24

Driver door (window, mirror).

30A

1

25

277

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses

Protected Components

Fuse Rating

Fuse Number

Front passenger door (window, mirror).

30A

1

26

Moonroof.

30A

1

27

THX amplifier.

20A

1

28

Rear driver side door (window).

30A

1

29

Rear passenger side door (window).

30A

1

30

Not used (spare).

15A

1

31

Display.

10A

1

32

GPS.
Radio frequency receiver.
Voice control.

Radio and active noise control.

20A

1

33

Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).

30A

1

34

Not used (spare).

5A

1

35

Auto-dimming rear view mirror.

15A

1

36

Continuous control damping suspension.

278

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuses
