2. The indicator light will begin to flash after

20 seconds. Without releasing the
button, follow Step 1 in the Programming
section.

For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.

Programming to a Genie Intellicode 2
Garage Door Opener

Note: The Genie Intellicode 2 transmitter
must already be programmed to operate
with the garage door opener.

Note: To program HomeLink to the
transmitter you must first put the transmitter
into programming mode.

B

A

E142661

Red indicator light

A.

Green indicator light

B.

1. Press and hold one of the buttons on the

hand-held transmitter for 10 seconds. The
indicator light will change from green to
red and green.

2. Press the same button twice to confirm

the change to programming mode. If
done properly the indicator light will
appear red.

3. Hold the transmitter within 1–3 inches

(2–8 centimeters) of the button on the
visor you want to program.

4. Press and hold both the programmed

Genie button on the hand-held
transmitter and the button you want to
program. The indicator light on the visor
will flash rapidly when the programming
is successful.

Note: The Genie transmitter will transmit for
up to 30 seconds. If HomeLink does not
program within 30 seconds the Genie
transmitter will need to be pressed again. If
the Genie transmitter indicator light displays
green and red, release the button until the
indicator light turns off before pressing the
button again.

Once HomeLink has been programmed
successfully, the Genie transmitter must be
changed out of program mode. To do this:

1. Press and hold the previously

programmed Genie button on the
hand-held transmitter for 10 seconds. The
indicator light will change from red to red
and green.

2. Press the same button twice to confirm

the change. If done correctly the indicator
light will turn green.

151

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Universal Garage Door Opener

 (If Equipped)

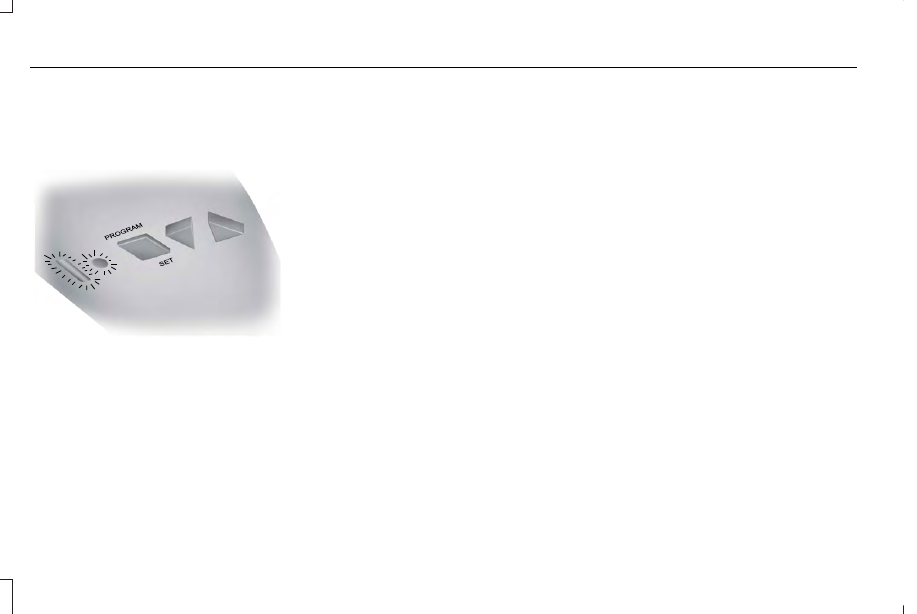

Programming HomeLink to the Genie
Intellicode Garage Door Opener Motor

Note: You may need a ladder to access the
garage door opener motor.

E142662

1. Press and hold the program button on

the garage door opener motor until both
blue indicator lights turn on.

2. Release the program button. Only the

smaller round indicator light should be
on.

3. Press and release the program button.

The larger purple indicator light will flash.

Note: The next two steps must be completed
in 30 seconds.

4. Press and release the Genie Intellicode

2 hand-held transmitter’s previously
programmed button. Both indicator lights
on the garage door opener motor unit
should now flash purple.

5. Press and hold the previously

programmed button on the visor for 2
seconds. Repeat this step up to 3 times
until the garage door moves.

Programming is now complete.

Clearing a HomeLink Device

To erase programming from the three
HomeLink buttons press and hold the two
outer HomeLink buttons until the indicator
light begins to flash. The indicator light will
begin flashing in 10 to 20 seconds, at which
time both buttons should be released.
Programming has now been erased, and the
indicator light should blink slowly to indicate
the device is in train mode when any of the
three HomeLink buttons are pressed.

FCC and RSS-210 Industry Canada
Compliance

This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

Changes or modifications to your device not
expressly approved by the party responsible
for compliance can void the user’s authority
to operate the equipment.

152

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Universal Garage Door Opener

 (If Equipped)

12 Volt DC Power Point

WARNING

Do not plug optional electrical
accessories into the cigar lighter

socket. Incorrect use of the cigar lighter can
cause damage not covered by the vehicle
warranty, and can result in fire or serious
injury.

Note: When you switch the ignition on, you
can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

If the power supply does not work after you
switch the ignition off, switch the ignition on.
Note: Do not hang any accessory from the
accessory plug.

Note: Do not use the power point over the
vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note: Always keep the power point caps
closed when not in use.

Do not insert objects other than an accessory
plug into the power point. This damages the
power point and may blow the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the engine is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

USB Port and Power Point Locations

USB Ports and Power Points may be in the
following locations:
•

On the lower instrument panel.

•

Inside the center console.

•

On the front of the center console.

•

On the rear of the center console.

•

In the cargo area.

•

On the passenger side floor panel.

•

3rd row on the quarter trim panels.

Note: Some of the USB ports may not have
data transfer capabilities.

110 Volt AC Power Point

 (If Equipped)

WARNING

Do not keep electrical devices plugged
in the power point whenever the

device is not in use. Do not use any
extension cord with the 110 volt AC power
point, since it will defeat the safety protection
design. Doing so may cause the power point
to overload due to powering multiple devices
that can reach beyond the 150 watt load limit
and could result in fire or serious injury.

Note: The power point turns off when you
switch off the ignition, when the vehicle is
not in accessory mode or when the battery
voltage drops below 11 volts.

You can use the power point for electric
devices that require up to 150 watts. It is on
the rear of the center console.

153

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

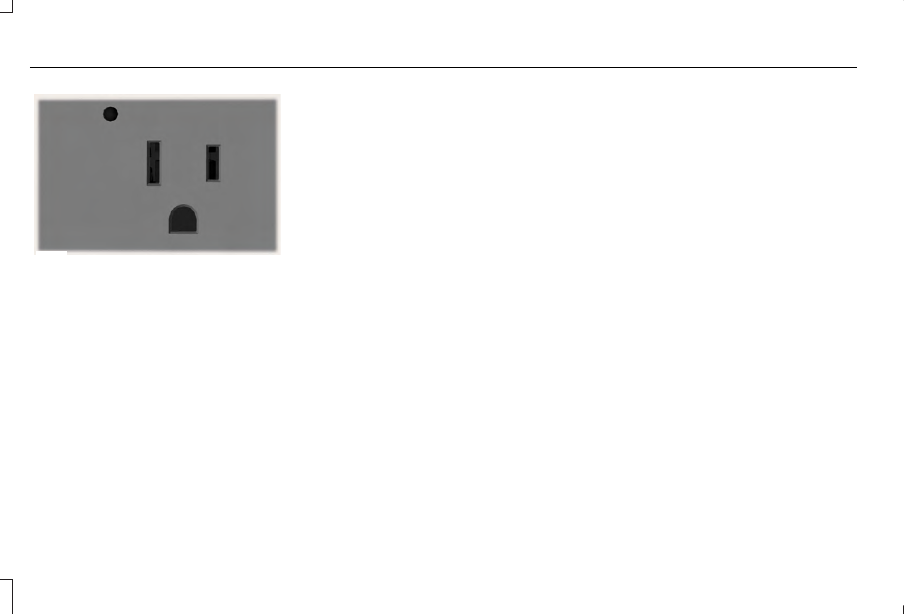

Auxiliary Power Points

E247586

When the indicator light on the power point
is:
•

On: The power point is working, the
ignition is ON or the vehicle is in
accessory mode.

•

Off: The power point is OFF, the ignition
is OFF or the vehicle is not in accessory
mode.

•

Flashing: The power point is in fault
mode.

Due to the different technologies used on
its construction, some devices may exceed
the capacity shown on its label when they
are initially plugged-in.

The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit.  Unplug your device and
switch the ignition off.  Switch the ignition
back on, but do not plug your device back
in.  Let the system cool off and switch the
ignition off to reset the fault mode.  Switch
the ignition back on and make sure the
indicator light remains on.

Do not use the power point for certain
electric devices, including:
•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven refrigerators.

•

Measuring devices, which process
precise data, such as medical equipment
or measuring equipment.

•

Other appliances requiring an extremely
stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

154

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Auxiliary Power Points

CENTER CONSOLE

Stow items in the cup holder carefully as
items may become loose during hard
braking, acceleration or crashes, including
hot drinks which may spill.

Available console features include:

A B

C

D

E266753

Front storage bin with auxiliary
power point and USB port.

A

Cup holder.

B

Storage compartment with auxiliary
power point.

C

USB ports and AC power outlet (if
equipped).

D

OVERHEAD CONSOLE

E224352

Press near the rear edge of the door to open
it.

155

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Storage Compartments

GENERAL INFORMATION

WARNINGS

Extended idling at high engine speeds
can produce very high temperatures

in the engine and exhaust system, creating
the risk of fire or other damage.

Do not park, idle or drive your vehicle
on dry grass or other dry ground cover.

The emission system heats up the engine
compartment and exhaust system, creating
the risk of fire.

Do not start the engine in a closed
garage or in other enclosed areas.

Exhaust fumes can be toxic. Always open
the garage door before you start the engine.

Exhaust leaks may result in entry of
harmful and potentially lethal fumes

into the passenger compartment. If you smell
exhaust fumes inside your vehicle, have your
vehicle inspected immediately. Do not drive
if you smell exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 mi (8 km)
after you reconnect it.  This is because the
engine management system must realign
itself with the engine.  You can disregard any
unusual driving characteristics during this
period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the engine.

KEYLESS STARTING

Note: The keyless starting system may not
function if the key is close to metal objects
or electronic devices such as cellular
phones.

Note: A valid key must be located inside
your vehicle to switch the ignition on and
start the engine.

Ignition Modes

E191075

The keyless starting system has three
modes:

Off: Turns the ignition off.

•

Without applying the brake pedal, press
and release the button once when the
ignition is in the on mode, or when the
engine is running but the vehicle is not
moving.

On: All electrical circuits are operational and
the warning lamps and indicators illuminate.

•

Without applying the brake pedal, press
and release the button once.

156

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Starting and Stopping the Engine

Note: You may have to press the push
button ignition switch twice to switch the
ignition on.

Start: Starts the engine.

•

Press the brake pedal, and then press
the button for any length of time. An
indicator light on the button illuminates
when then ignition is on and when the
engine starts.

STARTING A GASOLINE ENGINE

When you start the engine, the idle speed
increases, this helps to warm up the engine.
If the engine idle speed does not slow down
automatically, have your vehicle checked by
an authorized dealer.

Note: If your vehicle is equipped with remote
start, you can start your vehicle with the
remote, and then drive away by pressing the
brake pedal and pushing a button on the
transmission. This allows you to drive away
without pressing the engine start button.

Before starting the engine, check the
following:
•

Make sure all occupants have fastened
their safety belts.

•

Make sure the headlamps and electrical
accessories are off.

•

Make sure the parking brake is on.

•

Put the transmission in P.

Note: Do not touch the accelerator pedal.

1. Fully press the brake pedal.
2. Press the button.

The system does not function if:
•

The key frequencies are jammed.

•

The key battery has no charge.

If you are unable to start the engine, do the
following:

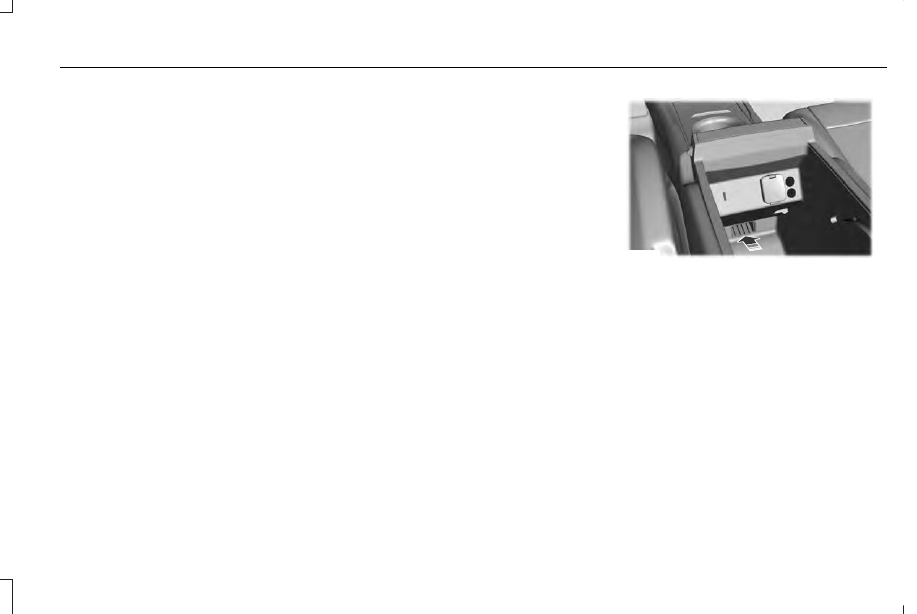

E170454

1. Open the center console lid.

2. Slide the remote into the back-up slot.

3. With the key in this position, press the

brake pedal, then the START button to
switch the ignition on and start your
vehicle.

Fast Restart

The fast restart feature allows you to restart
the engine within 20 seconds of switching it
off, even if a valid key is not present.

157

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Starting and Stopping the Engine

Within 20 seconds of switching the engine
off, press the brake pedal and press the
button. After 20 seconds have expired, you
can no longer restart the engine without the
key present inside your vehicle.

Once the engine has started, it remains
running until you press the button, even if
the system does not detect a valid key. If you
open and close a door while the engine is
running, the system searches for a valid key.
You cannot restart the engine if the system
does not detect a valid key within 20
seconds.

Failure to Start

If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:

1. Fully press the brake pedal.

2. Fully press the accelerator pedal and

hold it there.

3. Start the engine.

Note: You can crank the engine for a total
of 60 seconds (without the engine starting)
before the starting system temporarily
disables. The 60 seconds does not have to
be all at once. For example, if you crank the
engine three times for 20 seconds each time,
without the engine starting, you reached the
60-second time limit. A message appears in
the information display alerting you that you
exceeded the cranking time. You cannot
attempt to start the engine for at least 15
minutes. After 15 minutes, you are limited to
a 15-second engine cranking time. You need
to wait 60 minutes before you can crank the
engine for 60 seconds again.

Automatic Engine Shutdown

If your vehicle is equipped with a keyless
ignition, it has a feature that automatically
shuts down the engine if it has been idling
for an extended period. The ignition also
turns off in order to save battery power.
Before the engine shuts down, a message
appears in the information display showing
a timer counting down from 30 seconds. If

you do not intervene within 30 seconds, the
engine shuts down. Another message
appears in the information display to inform
you that the engine has shut down in order
to save fuel. Start your vehicle as you
normally do.

Automatic Engine Shutdown Override

Note: You cannot permanently switch off the
automatic engine shutdown feature. When
you switch it off temporarily, it turns on at
the next ignition cycle.

You can stop the engine shutdown, or reset
the timer, at any point before the 30-second
countdown has expired by doing any of the
following:

158

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Starting and Stopping the Engine

•

You can reset the timer by interacting
with your vehicle (such as pressing the
brake pedal or accelerator pedal).

•

You can temporarily switch off the
shutdown feature any time the ignition is
on (for the current ignition cycle only).
Use the information display to do so.  See
Information Displays (page 108).

•

During the countdown before engine
shutdown, you are prompted to press OK
or RESET (depending on your type of
information display) to temporarily switch
the feature off (for the current ignition
cycle only).

Stopping the Engine When Your
Vehicle is Stationary

1. Put the transmission in position P.
2. Press the button once.

3. Apply the parking brake.

Note: This switches off the ignition, all
electrical circuits, warning lamps and
indicators.

Note: If the engine is idling for 30 minutes,
the ignition and engine automatically shut
down.

Stopping the Engine When Your
Vehicle is Moving

WARNING

Switching off the engine when the
vehicle is still moving will result in a

loss of brake and steering assistance. The
steering will not lock, but higher effort will
be required. When the ignition is switched
off, some electrical circuits, including air
bags, warning lamps and indicators may also
be off. If the ignition was turned off
accidentally, you can shift into neutral (N) and
re-start the engine.

1. Put the transmission in position N and

use the brakes to bring your vehicle to a
safe stop.

2. When your vehicle has stopped, put the

transmission in position P.

3. Press and hold the button for one

second, or press it three times within two
seconds.

4. Apply the parking brake.

Guarding Against Exhaust Fumes

WARNING

If you smell exhaust fumes inside your
vehicle, have your vehicle checked by

your authorized dealer immediately. Do not
drive your vehicle if you smell exhaust fumes.
Carbon monoxide is present in exhaust
fumes. Take precautions to avoid its
dangerous effects.

Important Ventilating Information

If you stop your vehicle and the leave the
engine idling for long periods, we
recommend that you do one of the following:

•

Open the windows at least 1 in (2.5 cm).

•

Set your climate control to outside air.

159

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Starting and Stopping the Engine

ENGINE BLOCK HEATER

 (If Equipped)

WARNINGS

Failure to follow engine block heater
instructions could result in property

damage or serious personal injury.

Do not use your heater with
ungrounded electrical systems or

two-pronged adapters. There is a risk of
electrical shock.

Do not fully close the hood, or allow it
to drop under its own weight when

using the engine block heater. This could
damage the power cable and may cause an
electrical short resulting in fire, injury and
property damage.

Note: The heater is most effective when
outdoor temperatures are below 0°F (-18°C).

The heater acts as a starting aid by warming
the engine coolant. This allows the climate
control system to respond quickly. The
equipment includes a heater element
(installed in the engine block) and a wire
harness. You can connect the system to a
grounded 120-volt AC electrical source.

We recommend that you do the following for
a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by Underwriter’s
Laboratory (UL) or Canadian Standards
Association (CSA). This extension cord
must be suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord plug
connections are free and clear of water.
This could cause an electric shock or fire.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the electrical
hookup once the system has been
operating for approximately 30 minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is checked
for proper operation before winter.

Using the Engine Block Heater

Make sure the receptacle terminals are clean
and dry prior to use. Clean them with a dry
cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours of
energy per hour of use. The system does not
have a thermostat. It achieves maximum
temperature after approximately three hours
of operation. Using the heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity.

160

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Starting and Stopping the Engine

AUTO-START-STOP

 (If Equipped)

WARNINGS

Always fully apply the parking brake.
Make sure you shift into park (P) for

vehicles with an automatic transmission.
Switch the ignition off and remove the key
whenever you leave your vehicle.

Before opening the hood or performing
any maintenance, fully apply the

parking brake, shift into park (P) or neutral
(N) and switch the ignition off.

Always switch the ignition off before
leaving the vehicle. If the ignition is

switched on an automatic restart may occur
at any time.

The system may require the engine to
automatically restart when the

auto-start-stop indicator illuminates green or
flashes amber. Failure to follow this
instruction could result in personal injury.

The system helps reduce fuel consumption
by automatically shutting off and restarting
the engine while your vehicle is stopped.
The engine will restart automatically when
you release the brake pedal. In some
situations, your vehicle may restart
automatically, for example:

•

To maintain interior comfort

•

To recharge the battery

Note: Power assist steering is turned off
when the engine is off.

The Auto-Start-Stop system status is
available at a glance within the information
display.  See Information Displays (page
108).

Enabling Auto-Start-Stop

The system is automatically enabled every
time you start your vehicle if the following
conditions are met:

•

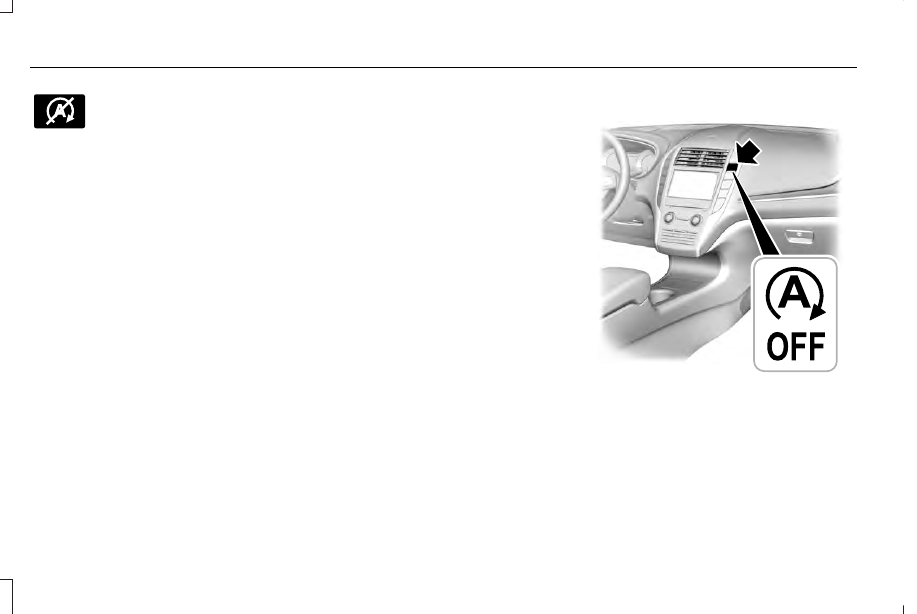

The Auto-Start-Stop button is not pressed
(not illuminated).

•

Your vehicle exceeds an initial speed of
3 mph (5 km/h) after the vehicle has been
initially started.

•

Your vehicle is stopped.

•

Your foot is on the brake pedal.

•

The transmission is in drive (D).

•

The driver's door is closed.

•

There is adequate brake vacuum.

•

The interior compartment has been
cooled or warmed to an acceptable level.

•

The front windshield defroster is off.

•

The steering wheel is not turned rapidly
or is not at a sharp angle.

•

The vehicle is not on a steep road grade.

•

The battery is within optimal operating
conditions (battery state of charge and
temperature in range).

•

The engine coolant is at operating
temperature.

•

Elevation is below approximately
10,000 ft (3,048 m).

•

Ambient temperature is moderate.

The green Auto-Start-Stop
indicator light on the instrument
cluster will illuminate to indicate

when the automatic engine stop occurs.

161

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Unique Driving Characteristics

E146361

If the instrument cluster is
equipped with a grey
Auto-Start-Stop indicator light, it is

illuminated when automatic engine stop is
not available due to one of the above noted
conditions not being met.

Automatic Engine Restart

Any of the following conditions will result in
an automatic restart of the engine:

•

Your foot is removed from the brake
pedal.

•

You press the accelerator pedal.

•

You press the accelerator and the brake
pedal at the same time.

•

The driver safety belt becomes
unfastened or the driver door is ajar.

•

The transmission is moved from drive (D).

•

Your vehicle is moving.

•

The interior compartment does not meet
customer comfort when air conditioning
or heat is on.

•

Fogging of the windows could occur and
the air conditioning is on.

•

The battery is not within optimal
operating conditions.

•

The maximum engine off time is
exceeded.

•

When you press the Auto-Start-Stop
button while the engine is stopped
automatically.

•

The heated windshield is turned on.

Any of the following conditions may result in
an automatic restart of the engine:

•

The blower fan speed is increased or the
climate control temperature is changed.

•

An electrical accessory is turned on or
plugged in.

Disabling Auto-Start-Stop

E223639

Press the Auto-Start-Stop button located on
the center console to switch the system off.
The button will illuminate. The system will
only be deactivated for the current ignition
cycle. Press the button again to restore
Auto-Start-Stop function.

162

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Unique Driving Characteristics

If your vehicle is in an Auto-Start-Stop state
and you shift the transmission to reverse
while the brake is not depressed, a message
telling you to press the brake will appear.
You must press the brake pedal within 10
seconds, or a shift to park and a manual
restart will be required.

Note: If the Shift to P, Restart Engine
message appears and the amber
Auto-Start-Stop indicator light is flashing,
automatic restart is not available. The
vehicle must be restarted manually.  See
Information Displays (page 108).

163

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Unique Driving Characteristics

SAFETY PRECAUTIONS

WARNINGS

Do not overfill the fuel tank. The
pressure in an overfilled tank may

cause leakage and lead to fuel spray and
fire.

The fuel system may be under
pressure. If you hear a hissing sound

near the fuel filler inlet, do not refuel until the
sound stops. Otherwise, fuel may spray out,
which could cause serious personal injury.

Fuels can cause serious injury or death
if misused or mishandled.

Fuel may contain benzene, which is a
cancer-causing agent.

When refueling always shut the engine
off and never allow sparks or open

flames near the fuel tank filler valve. Never
smoke or use a cell phone while refueling.
Fuel vapor is extremely hazardous under
certain conditions. Avoid inhaling excess
fumes.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and any
open flames before refueling your
vehicle.

•

Always switch the engine off before
refueling.

•

Automotive fuels can be harmful or fatal
if swallowed. Fuel is highly toxic and if
swallowed can cause death or permanent
injury. If fuel is swallowed immediately
call a physician, even if no symptoms are
immediately apparent. The toxic effects
of fuel may not be apparent for hours.

•

Avoid inhaling fuel vapors.  Inhaling fuel
vapor can lead to eye and respiratory
tract irritation.  In severe cases, excessive
or prolonged breathing of fuel vapor can
cause serious illness and permanent
injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses (if worn), flush with
water for 15 minutes and seek medical
attention.  Failure to seek proper medical
attention could lead to permanent injury.

•

Fuels can be harmful if absorbed through
the skin. If you splash fuel on your skin,
clothing or both, promptly remove
contaminated clothing and thoroughly
wash your skin with soap and water.
Repeated or prolonged skin contact
causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram for
the treatment of alcoholism. Breathing
fuel vapors could cause an adverse
reaction, serious personal injury or
sickness. Immediately call a physician if
you experience any adverse reactions.

FUEL QUALITY

Choosing the Right Fuel

E161513

164

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuel and Refueling

Your vehicle is designed to operate on
regular unleaded gasoline with a minimum
pump (R+M)/2 octane rating of 87.

Some fuel stations, particularly those in high
altitude areas, offer fuels posted as regular
unleaded gasoline with an octane rating
below 87.

For best overall vehicle and engine
performance, premium fuel with an octane
rating of 91 or higher is recommended. The
performance gained by using premium fuel
is most noticeable in hot weather as well as
other conditions, for example when towing
a trailer.  See Towing (page 244).

Do not be concerned if the engine
sometimes knocks lightly.  However, if the
engine knocks heavily while using fuel with
the recommended octane rating, contact an
authorized dealer to prevent any engine
damage.

We recommend Top Tier detergent
gasolines, where available to help minimize
engine deposits and maintain optimal vehicle
and engine performance. For additional
information, refer to www.toptiergas.com.

Note: Use of any fuel for which the vehicle
was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuel containing more than 15% ethanol
or E85 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based additives,
including manganese-based compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

The use of fuels with metallic compounds
such as methylcyclopentadienyl manganese
tricarbonyl (commonly known as MMT), which
is a manganese-based fuel additive, will
impair engine performance and affect the
emission control system.

FUEL FILLER FUNNEL LOCATION

The fuel filler funnel is under the luggage
compartment floor covering.

RUNNING OUT OF FUEL

Running out of fuel can cause damage not
covered by the vehicle Warranty.

If your vehicle runs out of fuel:
•

Add a minimum of 1.3 gal (5 L) of fuel to
restart the engine.

•

You may need to switch the ignition from
off to on several times after refueling to
allow the fuel system to pump the fuel
from the tank to the engine.  When
restarting, cranking time takes a few
seconds longer than normal.

Note: If your vehicle is on a steep slope,
more fuel may be required.

165

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuel and Refueling

Filling a Portable Fuel Container

WARNING

Flow of fuel through a fuel pump nozzle
can produce static electricity. This can

cause a fire if you are filling an ungrounded
fuel container.

Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an ungrounded
fuel container:
•

Only use an approved fuel container to
transfer fuel to your vehicle.  Place the
container on the ground when filling it.

•

Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).

•

Keep the fuel pump nozzle in contact
with the fuel container when filling it.

•

Do not use a device that holds the fuel
pump nozzle lever in the fill position.

Adding Fuel From a Portable Fuel
Container

WARNINGS

Do not insert the nozzle of a fuel
container or an aftermarket funnel into

the fuel filler neck. This may damage the fuel
system filler neck or its seal and cause fuel
to run onto the ground.

Do not try to pry open or push open
the capless fuel system with foreign

objects. This could damage the fuel system
and its seal and cause injury to you or others.

Do not dispose of fuel in the household
refuse or the public sewage system.

Use an authorized waste disposal facility.

When refueling the vehicle fuel tank from a
fuel container, use the fuel filler funnel
included with your vehicle.  See Fuel Filler
Funnel Location (page 165).

Note: Do not use aftermarket funnels as they
may not work with the capless fuel system
and can damage it.

When refueling the vehicle fuel tank from a
fuel container, do the following:

1. Fully open the fuel filler door.

2. Fully insert the fuel filler funnel into the

fuel filler inlet.

E157452

3. Add fuel to your vehicle from the fuel

container.

4. Remove the fuel filler funnel.

5. Fully close the fuel filler door.

6. Clean the fuel filler funnel and place it

back in your vehicle or correctly dispose
of it.

166

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Fuel and Refueling
