3. Press the push button ignition switch

once and wait a few seconds.

4. Press the push button ignition switch

again and remove the key.

5. Within 10 seconds, place a second

programmed intelligent access key in the
backup slot and press the push button
ignition switch.

The factory-set code appears in the
information display for a few seconds.

Note: The code may not display until after
any other warning messages first display.

71

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Doors and Locks

POWER LIFTGATE

WARNINGS

It is extremely dangerous to ride in a
cargo area, inside or outside of a

vehicle. In a crash, people riding in these
areas are more likely to be seriously injured
or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with
seats and seatbelts. Make sure everyone in
your vehicle is in a seat and properly using
a seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

Make sure to close and latch the
liftgate to prevent drawing exhaust

fumes into your vehicle. This will also prevent
passengers and cargo from falling out. If you
must drive with the liftgate open, keep the
vents or windows open so outside air comes
into your vehicle. Failure to follow this
warning could result in serious personal
injury.

WARNINGS

Keep keys out of reach of children. Do
not allow children to operate or play

near an open or moving power liftgate. You
should supervise the operation of the power
liftgate at all times.

Note:  Make sure that you close the liftgate
before operating or moving your vehicle,
especially in an enclosure, like a garage or
a parking structure.  This could damage the
liftgate and its components.

Note:  Do not hang anything, for example a
bike rack, from the glass or liftgate.  This
could damage the liftgate and its
components.

The liftgate only operates with the
transmission in park (P).

Three warning tones sound as the liftgate
begins to power close. One short chime
indicates a problem with the open or close
request, caused by:
•

The ignition is on and the transmission
is not in park (P).

•

The battery voltage is below the
minimum operating voltage.

•

The vehicle speed is at or above 3 mph
(5 km/h).

If the liftgate starts to close after it has fully
opened, this indicates there may be
excessive weight on the liftgate or a possible
strut failure.  A repetitive chime sounds and
the liftgate closes under control. Remove any
excessive weight from the liftgate.  If the
liftgate continues to close after opening,
have the system checked by an authorized
dealer.

Opening and Closing the Liftgate

WARNING

Make sure all persons are clear of the
power liftgate area before using the

power liftgate control.

72

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Liftgate

Note:  Make sure the area behind your
vehicle is free from obstruction and that
there is enough room for you to operate the
liftgate.  Objects too close to your vehicle,
for example a wall, garage door or another
vehicle may come into contact with the
moving liftgate.  This could damage the
liftgate and its components.

Note: Be careful when opening or closing
the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:  Do not leave the liftgate open while
driving.  This could damage the liftgate and
its components.

From the Instrument Panel

E138633

With the transmission in park (P),
press the button on the instrument
panel.

Remote Control

E138630

Press the button twice within three
seconds.

Outside Control Button

Opening the Liftgate

1. Unlock the liftgate with the remote

control or power door unlock control.  If
an intelligent access key is within 3 ft
(1 m)of the liftgate, the liftgate unlocks
when you press the liftgate release
button.

E180684

2. Press the button to unlatch the liftgate.

73

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Liftgate

Note: Allow the power system to open the
liftgate. Manually pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction. Manually
interfering with the liftgate motion may also
replicate a strut failure.

Closing the Liftgate

WARNING

Keep clear of the liftgate when using
the rear switch.

E138636

Press and release the liftgate control button.

Stopping the Liftgate Movement

Note:  Do not apply sudden excessive force
to the liftgate while it is in motion.  This could
damage the power liftgate and its
components.

You can stop the liftgate movement by doing
any of the following:
•

Pressing the liftgate control button.

•

Pressing the liftgate button on the remote
control twice.

•

Pressing the liftgate button on the
instrument panel.

•

Moving your foot under and away from
the center rear bumper in a single-kick
motion.

*

*

This method only works for vehicles with the

hands-free liftgate feature.

Setting the Liftgate Open Height

1. Open the liftgate.

2. Stop the liftgate movement by pressing

the control button on the liftgate when it
reaches the desired height.

Note: Once the liftgate has stopped moving,
you can also manually move it to the desired
height.

3. Press and hold the liftgate control button

on the liftgate until you hear a chime,
indicating programming is complete.

Note: You can only use the liftgate control
button to program the height.

Note: You cannot program the height if the
liftgate position is too low.

The new open liftgate height is recalled
when the power liftgate is opened.  To
change the programmed height, repeat the
above procedure.  Once you open the power
liftgate, you can manually move it to a
different height.

Note: The system recalls the new
programmed height, even if you disconnect
the battery.

When operating the power liftgate after you
have programmed a lower height than fully
open, you can fully open the liftgate by
manually pushing it upward to the maximum
open position.

74

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Liftgate

Obstacle Detection

When Closing

The system stops when it detects an
obstacle.  Three tones sound and the system
reverses to open.  Once you remove the
obstacle, you can power close the liftgate

Note: Entering your vehicle while the liftgate
is closing can cause your vehicle to bounce
and activate obstacle detection. To prevent
this, let the power liftgate close completely
before you enter your vehicle. Before driving
off, check the instrument cluster for a liftgate
or door ajar message or warning indicator.
Failure to do this could result in
unintentionally leaving the liftgate open
while driving.

When Opening

The system stops when it detects an
obstacle and three tones sound.  Once you
remove the obstacle, you can continue to
operate the liftgate.

Hands-Free Feature

 (If Equipped)

Make sure you have an intelligent access
transmitter within 3 ft (1 m) of the liftgate.

E239081

1. Move your foot under and away from the

rear bumper detection area in a
single-kick motion.  Do not move your
foot sideways or the sensors may not
detect the motion.  Kick between the
exhaust and hitch if your vehicle is
equipped with a hitch.

2. The liftgate will power open or close.

Note: Allow the power system to open the
liftgate. Manually pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction, replicate
a strut failure, or damage mechanical
components.

Note:  Splashing water may cause the
hands-free liftgate to open.  Keep the
intelligent access key away from the rear
bumper detection area when washing your
vehicle.

75

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Liftgate

PASSIVE ANTI-THEFT SYSTEM

Note:  The system is not compatible with
non-Lincoln aftermarket remote start
systems.  Use of these systems may result
in engine starting problems and a loss of
security protection.

Note:  Metallic objects, electronic devices
or a second coded key on the same key
chain may result in vehicle starting problems,
especially if they are too close to the key
when starting your vehicle.  Prevent these
objects from touching the coded key when
starting your vehicle.  Switch the ignition off,
move all objects on the key chain away from
the coded key and restart your vehicle if a
problem occurs.

Note:  Do not leave a duplicate coded key
in your vehicle.  Always take your keys and
lock all doors when leaving your vehicle.

SecuriLock®

The system helps prevent the engine from
starting unless you use a coded key
programmed to your vehicle.  Using the
wrong key may prevent your vehicle from
starting.  A message may appear in the
information display.

If you are unable to start your vehicle with a
coded key, it is not operating correctly.  A
message may appear in the information
display.

Automatic Arming

The system arms when you switch the
ignition off.

Automatic Disarming

The system disarms when you switch the
ignition on with a coded key.

Replacement Keys

Note: Your vehicle comes with two keys.

The intelligent access key functions as a
programmed key that operates the driver
door lock and turns on the intelligent access
with push button start system, as well as a
remote control.

If your programmed transmitters are lost or
stolen and you do not have an extra coded
key, you will need to have your vehicle
towed to an authorized dealer to program
new coded keys.

Store a spare intelligent access key away
from your vehicle in a safe place.  You can
purchase replacement keys or remote
controls from an authorized dealer.

Programming a Spare Key

Note: You can program a maximum of four
keys to your vehicle.

You must have two previously programmed
intelligent access keys inside your vehicle
and the new unprogrammed intelligent
access keys readily accessible. Contact an
authorized dealer to have the spare key
programmed if two previously programmed
keys are not available.

76

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Security

Make sure that the ignition is switched off
before beginning this procedure.  Make sure
that you close all the doors before beginning
and that they remain closed throughout the
procedure.  Carry out all steps within 30
seconds of starting the sequence.  Stop and
wait for at least one minute before starting
again if you carry out any steps out of
sequence.

Read and understand the entire procedure
before you begin.

1. Open the center console lid.

E170454

2. Insert the first programmed key in the

backup slot.

3. Press the push button ignition switch.

4. Wait five seconds and then press the

push button ignition switch again.

5. Remove the intelligent access key.

6. Within 10 seconds, place a second

programmed intelligent access key in the
backup slot and press the push button
ignition switch.

7. Wait five seconds and then press the

push button ignition switch again.

8. Remove the intelligent access key.

9. Wait five seconds, then place the

unprogrammed intelligent access key in
the backup slot and press the push
button ignition switch.

Programming is now complete.  Check that
the remote control functions operate and
your vehicle starts with the new intelligent
access key.

If programming was unsuccessful, wait 10
seconds and repeat Steps 1 through 7. If
programming remains unsuccessful, contact
an authorized dealer.

ANTI-THEFT ALARM

The system will warn you of an unauthorized
entry to your vehicle. It will be triggered if
any door, the luggage compartment or the
hood is opened without using the key,
remote control or keyless entry keypad.

The direction indicators will flash and the
horn will sound if unauthorized entry is
attempted while the alarm is armed.

Take all remote controls to an authorized
dealer if there is any potential alarm problem
with your vehicle.

Arming the Alarm

The alarm is ready to arm when there is not
a key in your vehicle. Electronically lock your
vehicle to arm the alarm.

Disarming the Alarm

Disarm the alarm by any of the following
actions:

77

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Security

•

Unlock the doors or luggage
compartment with the remote control or
keyless entry keypad.

•

Switch your vehicle on or start your
vehicle.

•

Use a key in the driver door to unlock
your vehicle, then switch your vehicle on
within 12 seconds.

Note: Pressing the panic button on the
remote control will stop the horn and signal
indicators, but will not disarm the system.

78

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Security

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: MANUAL
ADJUSTABLE STEERING COLUMN

WARNING

Do not adjust the steering wheel when
your vehicle is moving.

Note: Make sure that you are sitting in the
correct position.  See Sitting in the Correct
Position (page 137).

E259854

1. Unlock the steering column.

2. Adjust the steering wheel to the desired

position.

E259855

3. Lock the steering column.

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: POWER
ADJUSTABLE STEERING COLUMN

WARNING

Do not adjust the steering wheel when
your vehicle is moving.

Note:  Make sure that you are sitting in the
correct position.   See Sitting in the Correct
Position (page 137).

79

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Steering Wheel

E261582

Use the control on the side of the steering
column to adjust the position.

To adjust:
•

Tilt: Press the top or bottom of the
control.

•

Telescope: Press the front or rear of the
control.

End of Travel Position

The steering column sets a stopping position
just short of the end of the column position
to prevent damage to the steering column.
A new stopping position sets if the steering
column encounters an object when tilting or
telescoping.

To reset the steering column to its normal
stopping position:

1. Confirm there is nothing obstructing the

motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control again.

Note: The steering column may begin to
move again.

4. When the steering column stops,

continue holding the control for a few
seconds.

5. Repeat for each direction as necessary.

A new stopping position sets. The next time
you tilt or telescope the steering column, it
stops just short of the end of the column
position.

Memory Feature

You can save and recall the steering column
position with the memory function.  See
Memory Function (page 142).

Pressing the adjustment control during a
memory recall cancels the operation.

Easy Entry and Exit Feature

The column moves up when you switch the
ignition off. Switch the ignition on to return
the system to its previous settings. You can
switch this feature on or off in the information
display.  See Information Displays (page
108).

Note: Depending on your vehicle, the column
may move up and in.

80

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Steering Wheel

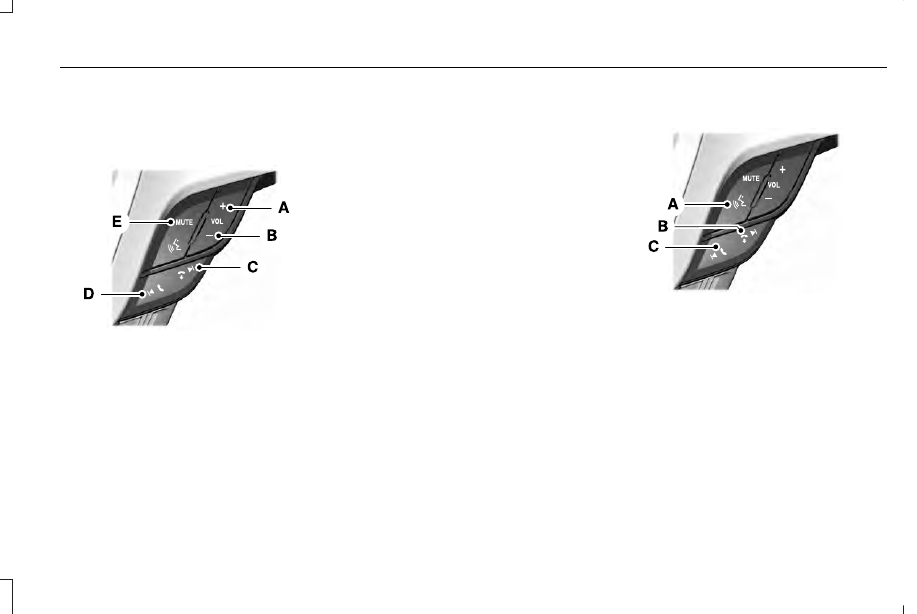

AUDIO CONTROL

You can operate the following functions with
the control:

E145979

Volume up.

A

Volume down.

B

Seek up or next.

C

Seek down or previous.

D

Mute.

E

Seek, Next or Previous

Press the seek button to:
•

Tune the radio to the next or previous
stored preset.

•

Play the next or the previous track.

Press and hold the seek button to:
•

Tune the radio to the next station up or
down the frequency band.

•

Seek through a track.

VOICE CONTROL

E145980

Voice recognition.

A

End call.

B

Answer call.

C

See your SYNC information.

81

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Steering Wheel

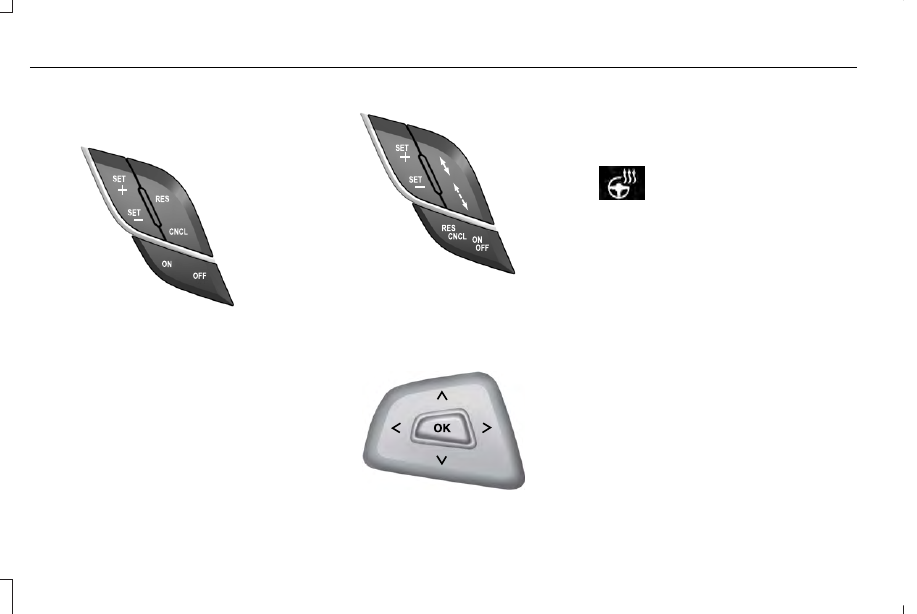

CRUISE CONTROL

Type One

E145976

See Using Cruise Control (page 209).

Type Two

E195438

See Using Adaptive Cruise Control (page
210).

INFORMATION DISPLAY CONTROL

E145981

See Information Displays (page 108).

HEATED STEERING WHEEL

 (If Equipped)

Switch the heated steering wheel on and off
using the touchscreen.

Touch the button to switch the
heated steering wheel on and off.

Note: You can use the heated steering
wheel only when the engine is running.

Note: The system uses a sensor and is
designed to control the temperature of the
steering wheel and to prevent it from
overheating.

Note: In warm temperatures, the steering
wheel quickly reaches its maximum
temperature and the system reduces the
current to the heating element. This could
cause you to think that the system has
stopped working but it has not. This is
normal.

82

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Steering Wheel

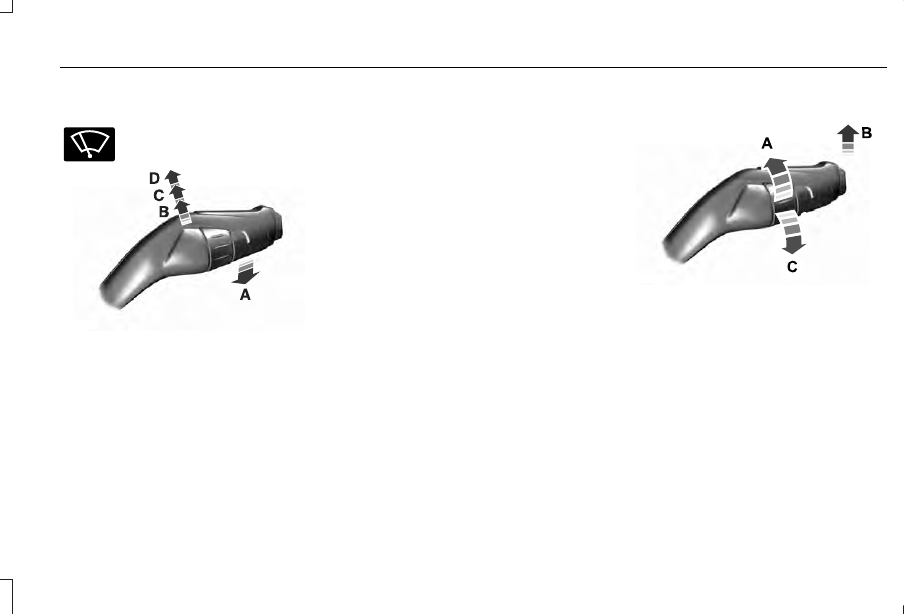

WINDSHIELD WIPERS

E270969

Push the lever up or down to
operate the windshield wiper.

E197525

Single wipe.

A

Intermittent wipe.

B

Normal wipe.

C

High speed wipe.

D

Note: Fully defrost the windshield before you
switch the windshield wipers on.

Note: Make sure that you switch the
windshield wipers off before entering a car
wash.

Note:  If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades.  If that does not resolve the
issue, install new wiper blades.

Note:  Do not operate the wipers on a dry
windshield.  This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out.  Always use the
windshield washers before wiping a dry
windshield.

Intermittent Wipe

E197526

Shortest wipe interval.

A

Intermittent wipe.

B

Longest wipe interval.

C

Use the rotary control to adjust the
intermittent wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the
interval between wipes decreases.

83

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Wipers and Washers

AUTOWIPERS

 (If Equipped)

Note: Fully defrost the windshield before you
switch the windshield wipers on.

Note: Make sure you switch the windshield
wipers off before entering a car wash.

Note:  If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades.  If that does not resolve the
issue, install new wiper blades.

Note: If you switch autolamps and
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.

Wet or winter driving conditions with ice,
snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing.

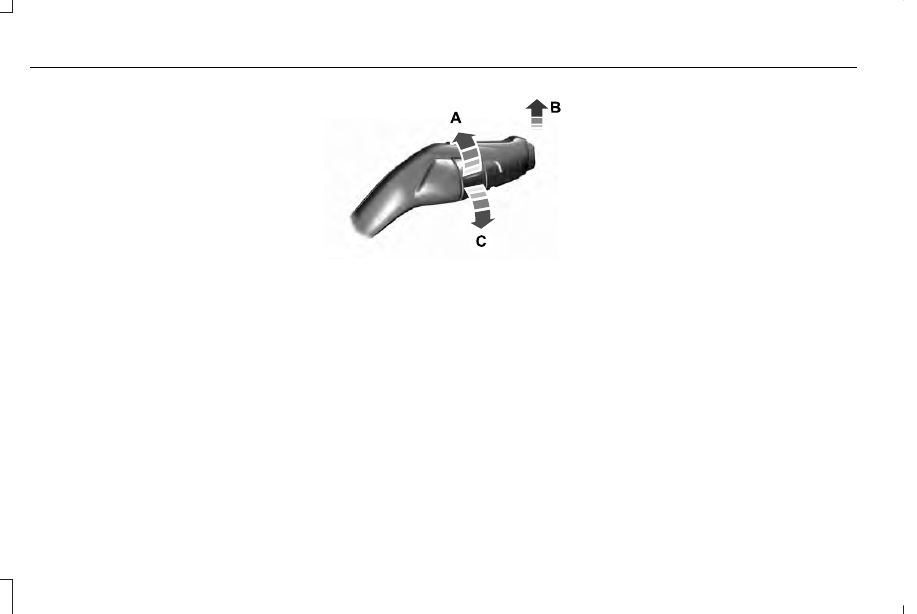

E197526

High sensitivity.

A

On.

B

Low sensitivity.

C

Use the rotary control to adjust the sensitivity
of the autowipers.  When you select low
sensitivity, the wipers operate when the
sensor detects a large amount of water on
the windshield.  When you select high
sensitivity, the wipers operate when the
sensor detects a small amount of water on
the windshield.

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects hit
the windshield.

In these conditions, you can do the following:
•

Lower the sensitivity of the autowipers
to reduce the amount of smearing on the
windshield.

•

Switch to normal or high-speed wipe.

•

Switch autowipers off.

Autowipers Settings

Autowipers default to on and remain on until
you switch it off in the information display.
When you switch off autowipers, the wipers
operate in intermittent mode.

84

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Wipers and Washers

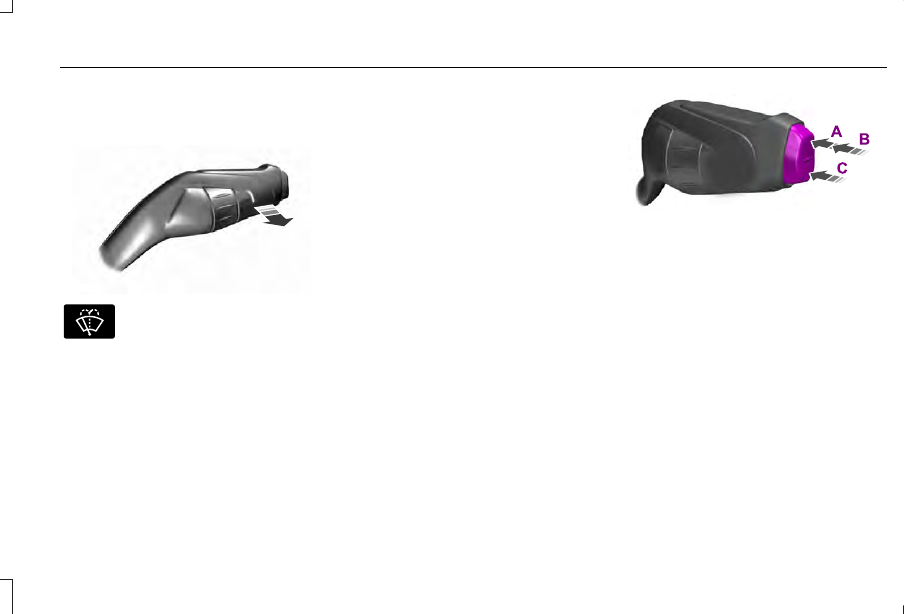

WINDSHIELD WASHERS

E197528

E270967

Pull the lever toward you to
operate the windshield washers.

When you release the lever, the wipers
operate for a short time. When activated, a
courtesy wipe occurs a short time after the
wipers stop to clear any remaining washer
fluid.

Note: You can switch courtesy wipe on or
off in the information display See
Information Messages (page 113).

Note:  Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

Front Camera Washer

 (If Equipped)

Operating the windshield washer also turns
on the front camera washer.

REAR WINDOW WIPER AND
WASHERS

Note: Make sure you switch the windshield
wipers off before entering a car wash.

E171615

Intermittent wipe.

A

Low speed wipe.

B

Off.

C

Depending on your vehicle, when you switch
on the front wipers and move the gearshift
lever to reverse (R), the rear intermittent wipe
may turn on.

85

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Wipers and Washers

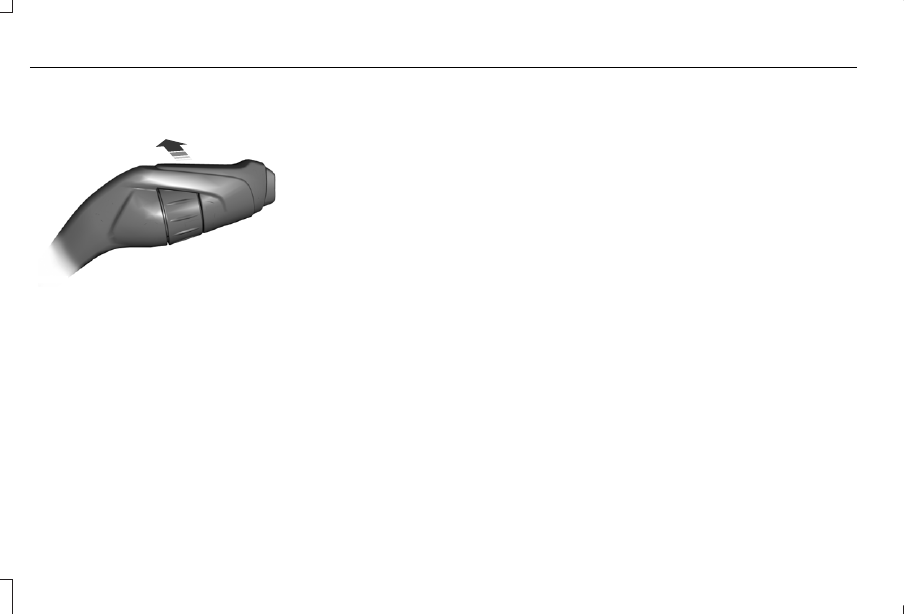

Rear Window Washer

E167407

Push the lever away from you to operate the
rear window washer.

When you release the lever, wiping
continues for a short period of time.

86

MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, First Printing

Wipers and Washers
