The upper storage compartment may also be lifted for-
ward. Push in the release button located on the back of the
lid.

CAUTION!

Remove any items stored in the console cupholders or
devices with cords routing through upper storage area.
Damage may occur to upper console lid and device
cables when upper storage compartment is lifted for-
ward.

When lifted forward there is access to the lower storage
compartment.

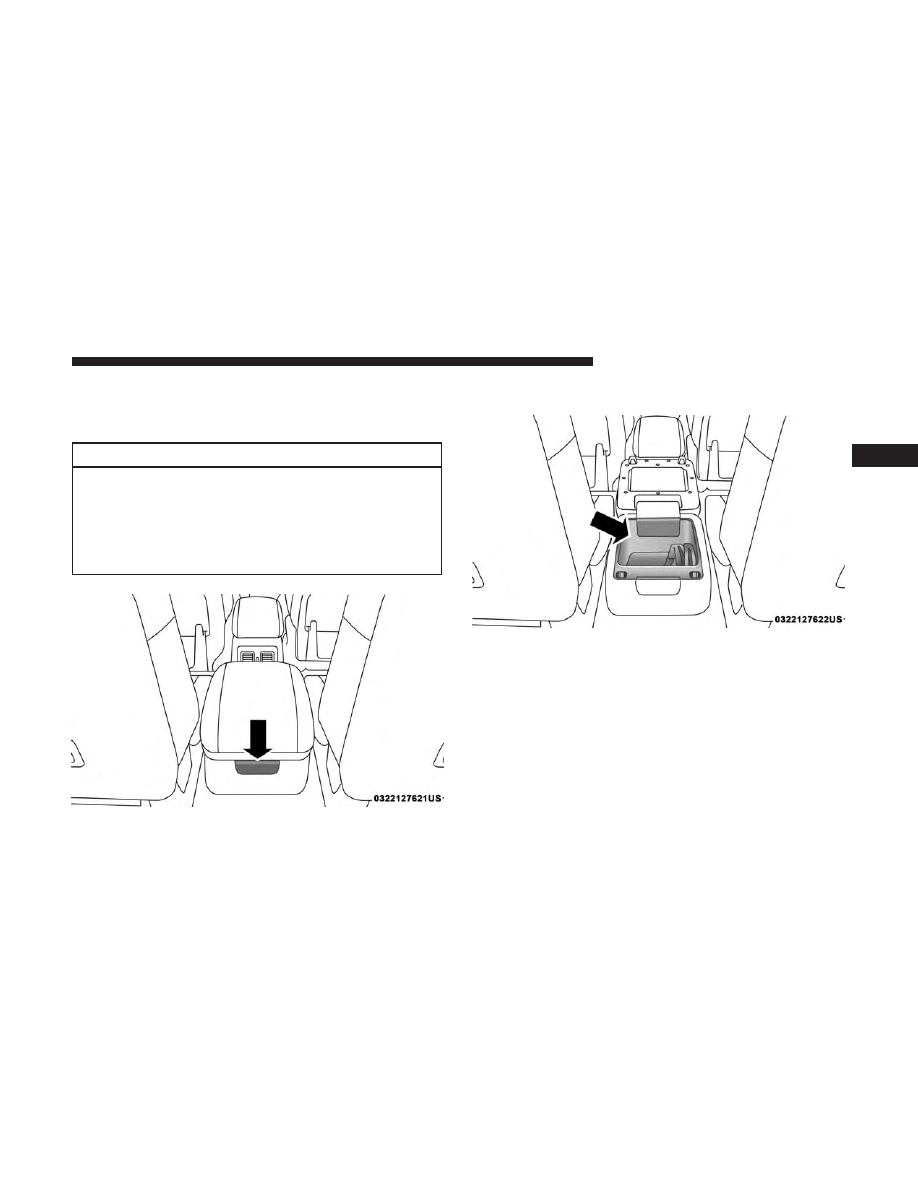

Storage Compartment Rear Push Button

Lower Storage Compartment

GETTING TO KNOW YOUR VEHICLE

125

NOTE:

When the lower storage compartment is accessed,

it allows the armrest to flip forward for “fold flat mode”.
Fold flat mode allows the console armrest to be lowered
below the fold flat seat plane and protect the armrest vinyl
from damage when using the vehicle to haul cargo.

Open storage areas, or cubby bins with removable liners,
are located rearward of the cupholders and in the lower
front of the console.

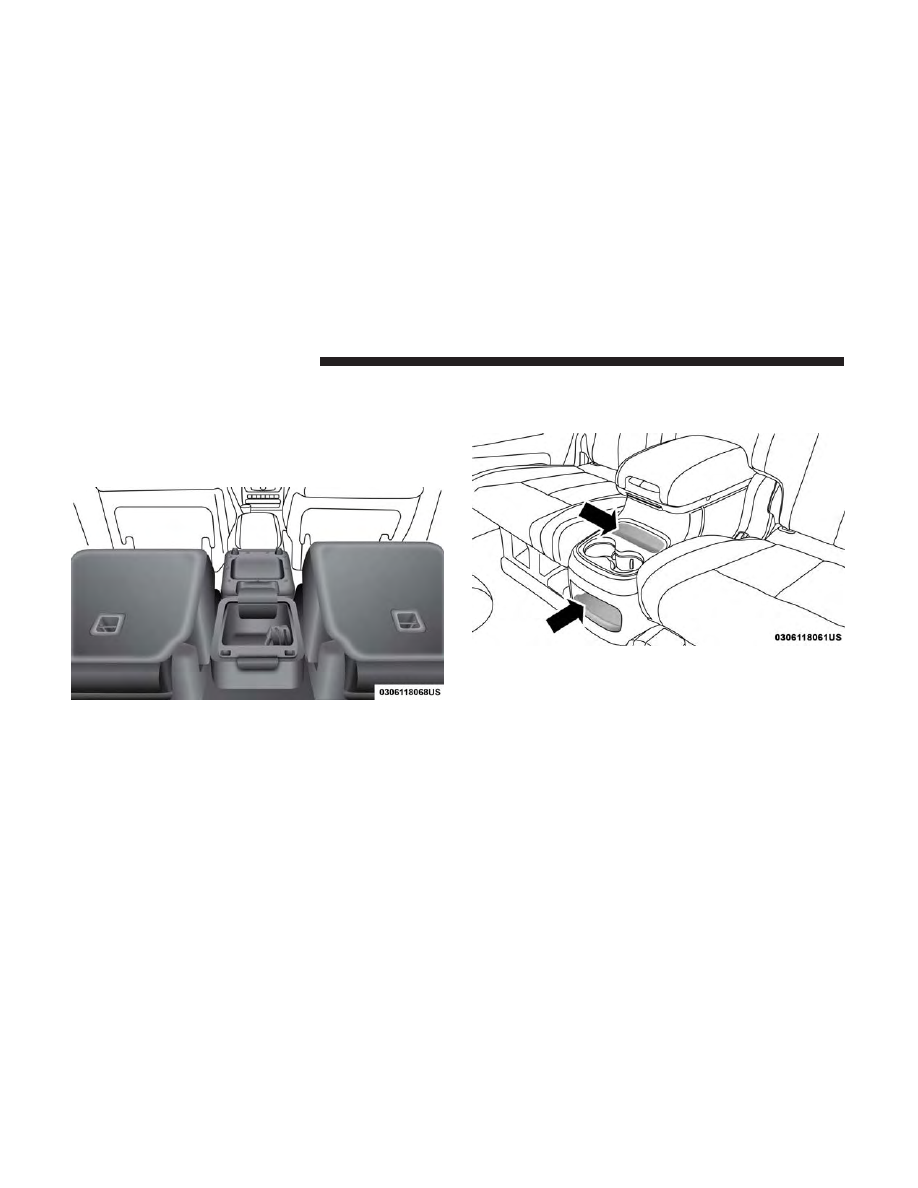

Fold Flat Mode

Console Cubby Bins

126

GETTING TO KNOW YOUR VEHICLE

Rear Mini Center Console — If Equipped

An open storage area, or cubby bin with removable liner, is
located in the front of the console.

Cupholders

Front Seat Cupholders

There are two cupholders for the front seat passengers
located in the center console.

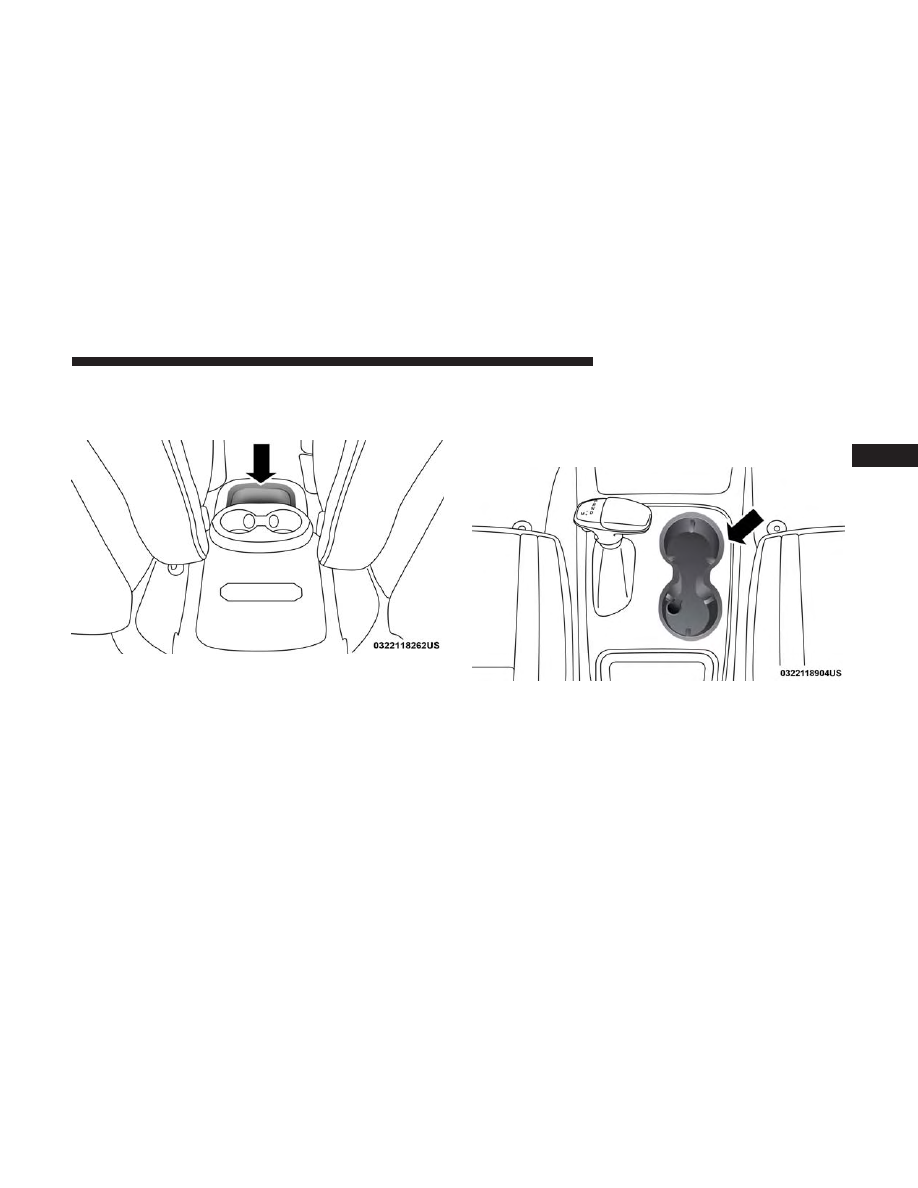

Console Cubby Bin

Front Cupholder Location

GETTING TO KNOW YOUR VEHICLE

127

Rear Cupholders

Rear Center Arm Rest Cupholders — If Equipped

There are two cupholders for the rear seat passengers
located in the fold-down center armrest.

Rear Full Console Cupholders — If Equipped

There are two cupholders for the rear seat passengers
located in the front of the rear full console.

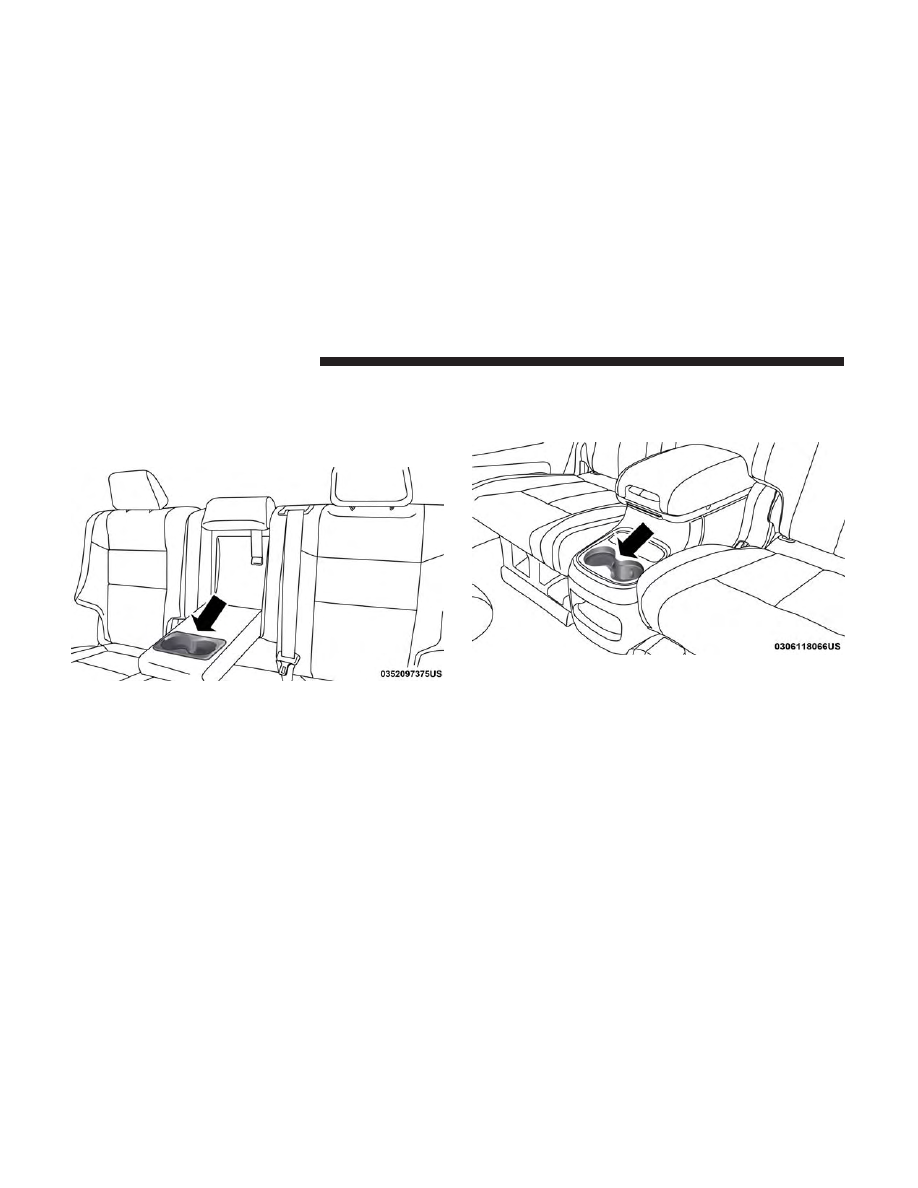

Rear Center Arm Rest Cupholders

Rear Full Console Cupholders

128

GETTING TO KNOW YOUR VEHICLE

The rear full console cupholders are equipped with a light
ring that illuminates the cupholders for the rear passen-
gers. The light ring is controlled by the Dimmer Control.
Refer to “Interior Lights” in “Getting To Know Your
Vehicle” for further information.

Rear Mini Console Cupholders — If Equipped

There are two cupholders for the rear seat passengers
located in the front of the rear mini console.

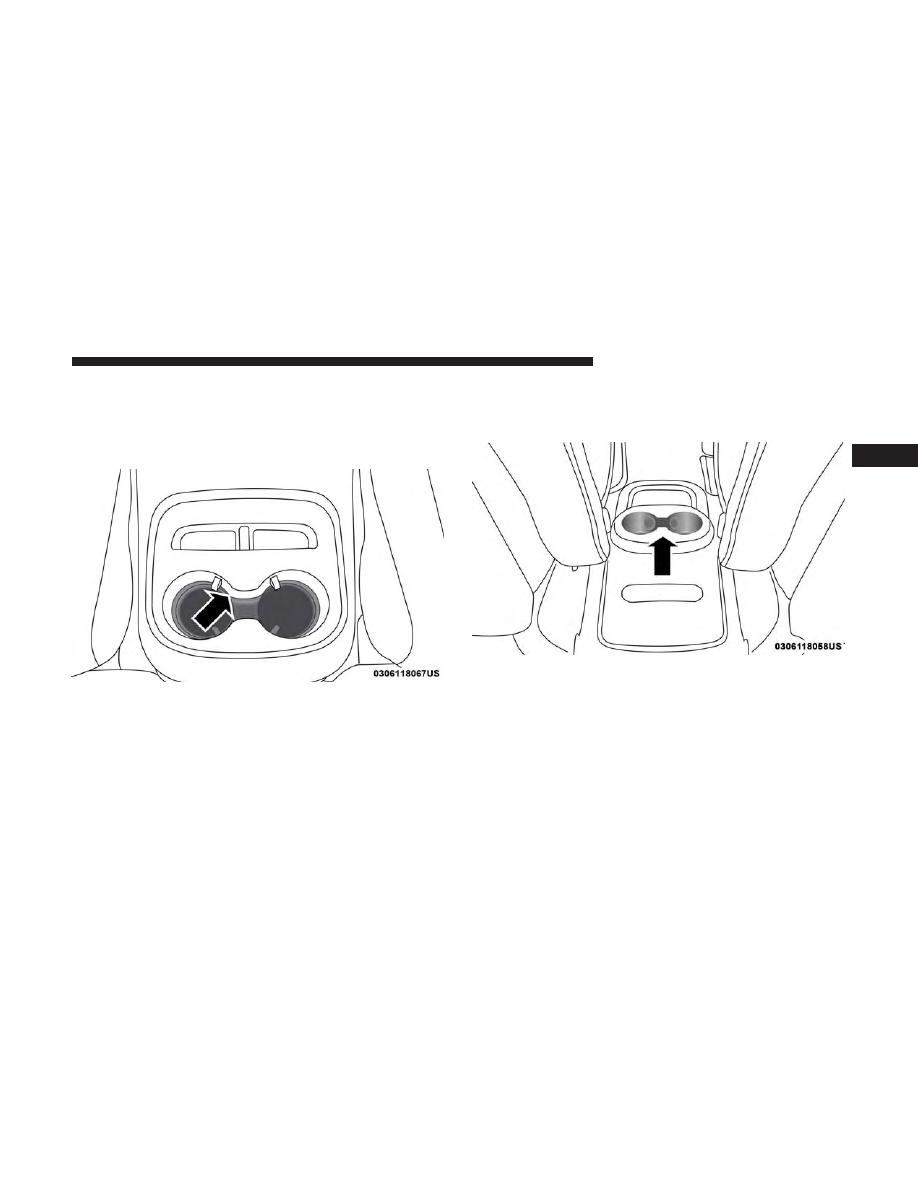

Light Ring In Rear Full Console Cupholders

Rear Mini Console Cupholders

GETTING TO KNOW YOUR VEHICLE

129

Electrical Power Outlets

Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” are powered when the
ignition switch is in the ON or ACC position, while the
outlets labeled with a “battery” are connected directly to
the battery and powered at all times.

NOTE:
• All accessories connected to the “battery” powered

outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.

• Do not exceed the maximum power of 160 Watts (13

Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating
is exceeded the fuse protecting the system needs to be
replaced.

• Power outlets are designed for accessory plugs only. Do

not insert any other object in the power outlets as this
will damage the outlet and blow the fuse. Improper use
of the power outlet can cause damage not covered by
your New Vehicle Limited Warranty.

The front power outlet is located inside the storage area on
the center stack of the instrument panel.

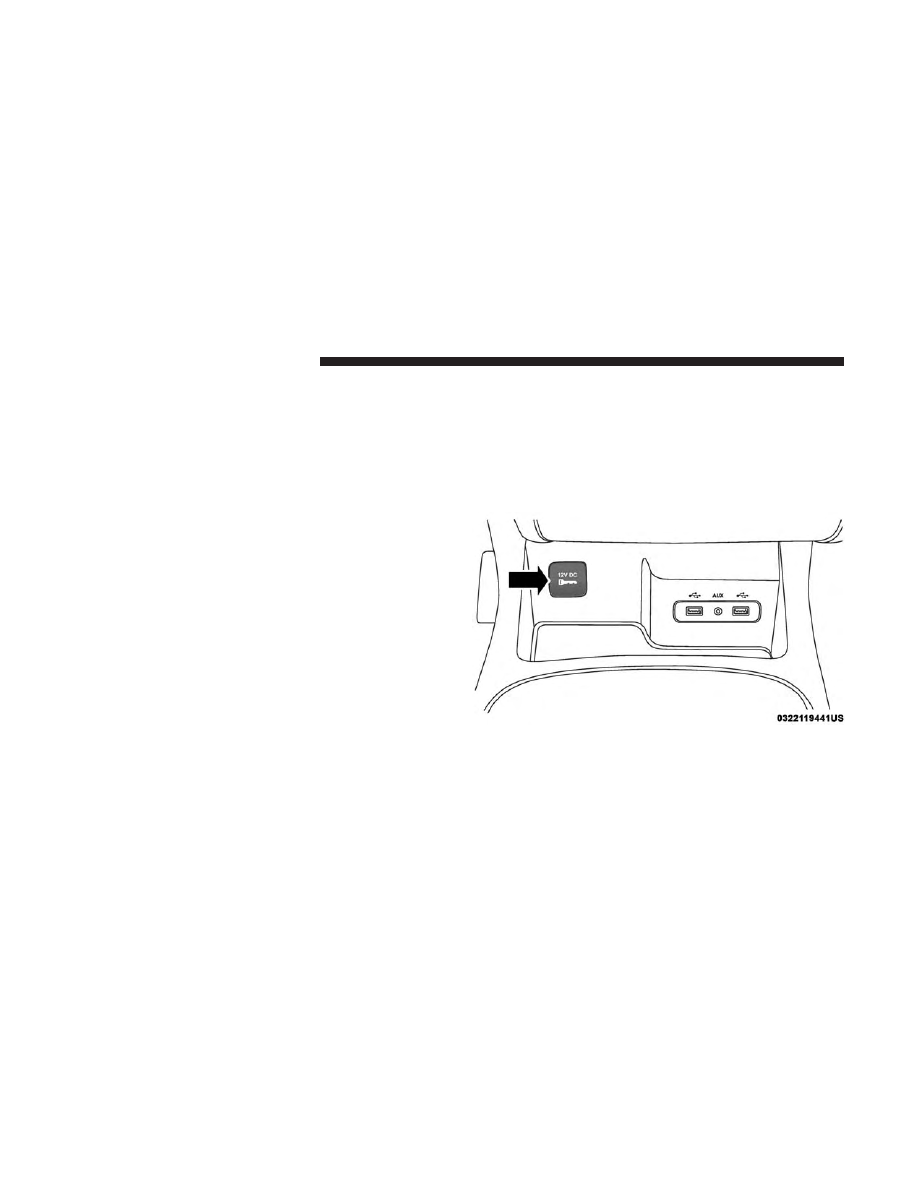

Front Power Outlet

130

GETTING TO KNOW YOUR VEHICLE

In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.

If your vehicle is equipped with a rear full center console,
there is also a power outlet located in the lower storage
area of the rear full center console.

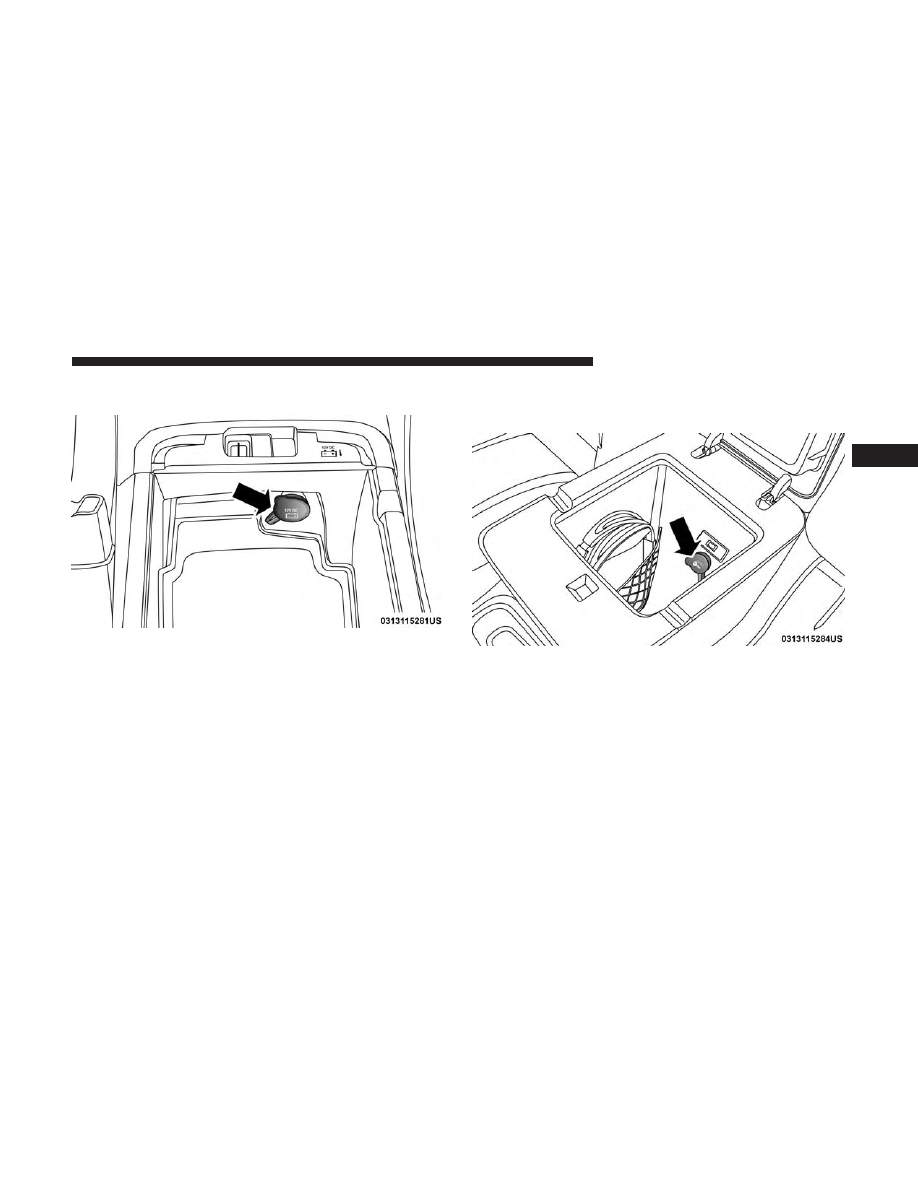

Front Center Console Outlet

Rear Full Center Console Outlet

GETTING TO KNOW YOUR VEHICLE

131

The rear cargo power outlet is located in the right rear
cargo area.

NOTE:

The rear cargo power outlet can be changed to

“battery” powered all the time by switching the power
outlet right rear quarter panel fuse in the fuse panel from
fuse location F90 to F91.

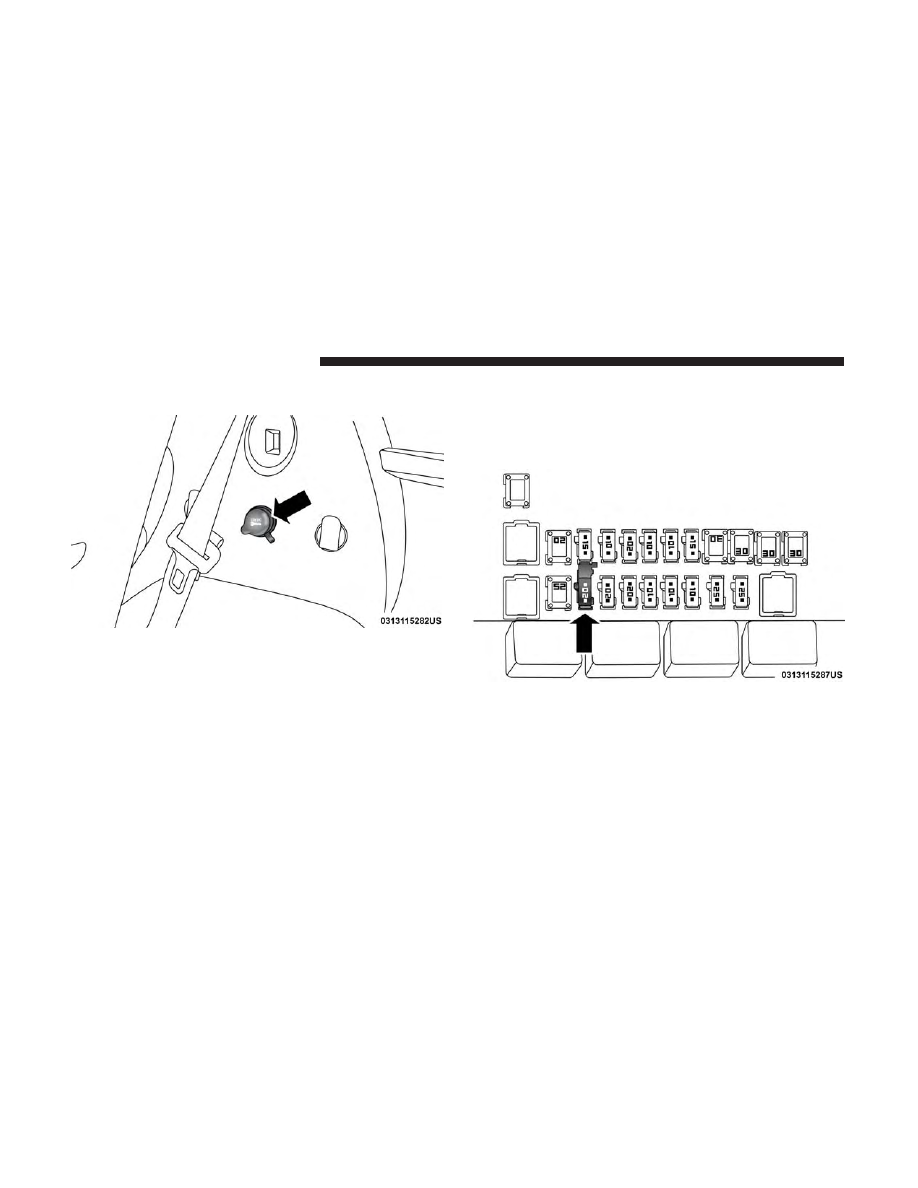

Rear Cargo Power Outlet

Rear Cargo Power Outlet Fuse

132

GETTING TO KNOW YOUR VEHICLE

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

(Continued)

WARNING! (Continued)

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the generator to
recharge the vehicle’s battery.

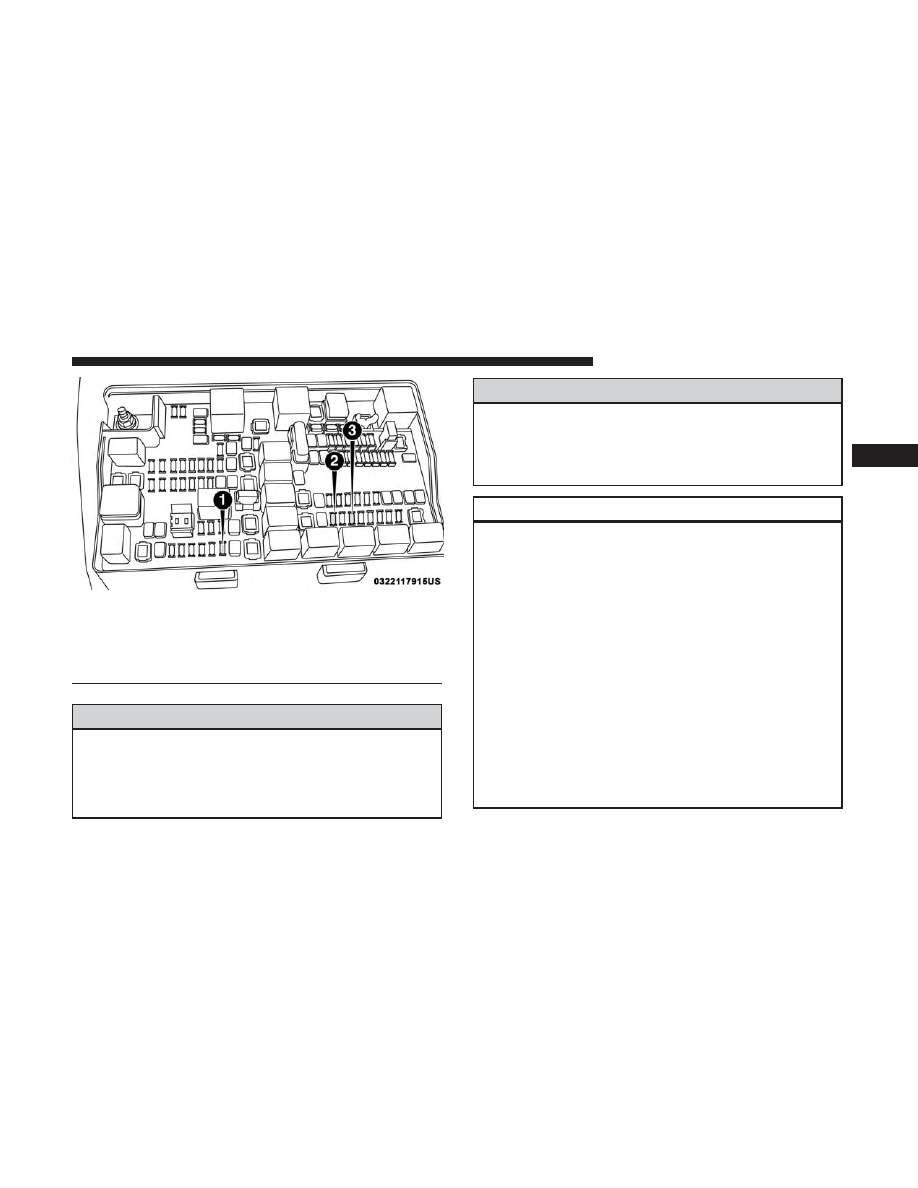

Power Outlet Fuse Locations

1 — F104 Fuse 20 A Yellow Power Outlet Console Bin
2 — F90–F91 Fuse 20 A Yellow Power Outlet Right Rear Quarter
Panel
3 — F93 Fuse 20 A Yellow Cigar Lighter Instrument Panel

GETTING TO KNOW YOUR VEHICLE

133

Power Inverter — If Equipped

There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end video game consoles exceed this
power limit, as will most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, the
power inverter automatically shuts down. Once the elec-
trical device has been removed from the outlet the inverter
should automatically reset. To avoid overloading the cir-
cuit, check the power ratings on electrical devices prior to
using the inverter.

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

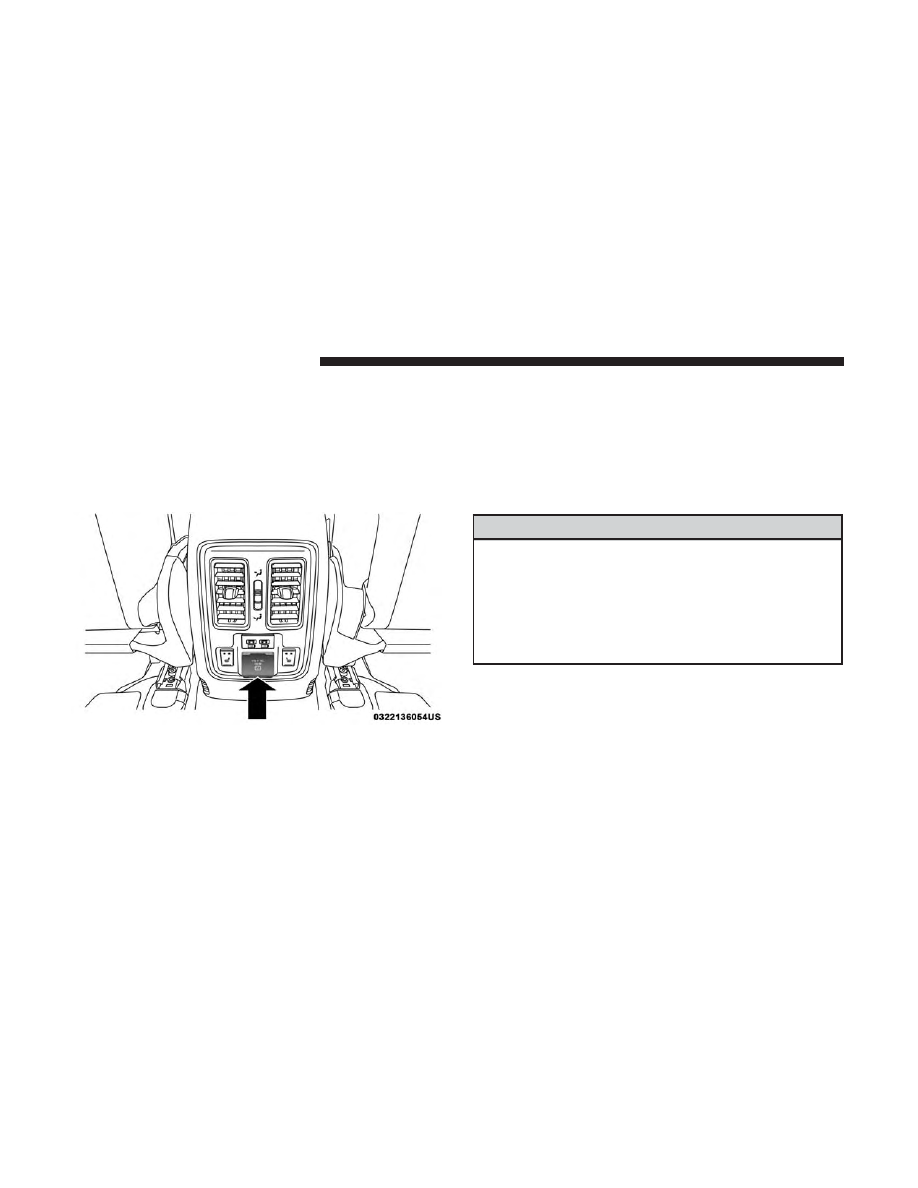

Power Inverter

134

GETTING TO KNOW YOUR VEHICLE

Sunglasses Bin Door

At the front of the console a compartment is provided for
the storage of a pair of sunglasses. The storage compart-
ment access is a “push/push” design. Push the chrome pad
on the door to open. Push the chrome pad on the door to
close.

ROOF LUGGAGE RACK — IF EQUIPPED

The crossbars and side rails are designed to carry weight
on vehicles equipped with a luggage rack. The load must
not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.

The crossbars on your vehicle are delivered stowed within
the roof rack side rails. Crossbars should always be used
whenever cargo is placed on the roof rack. Check the straps
frequently to be sure that the load remains securely at-
tached.

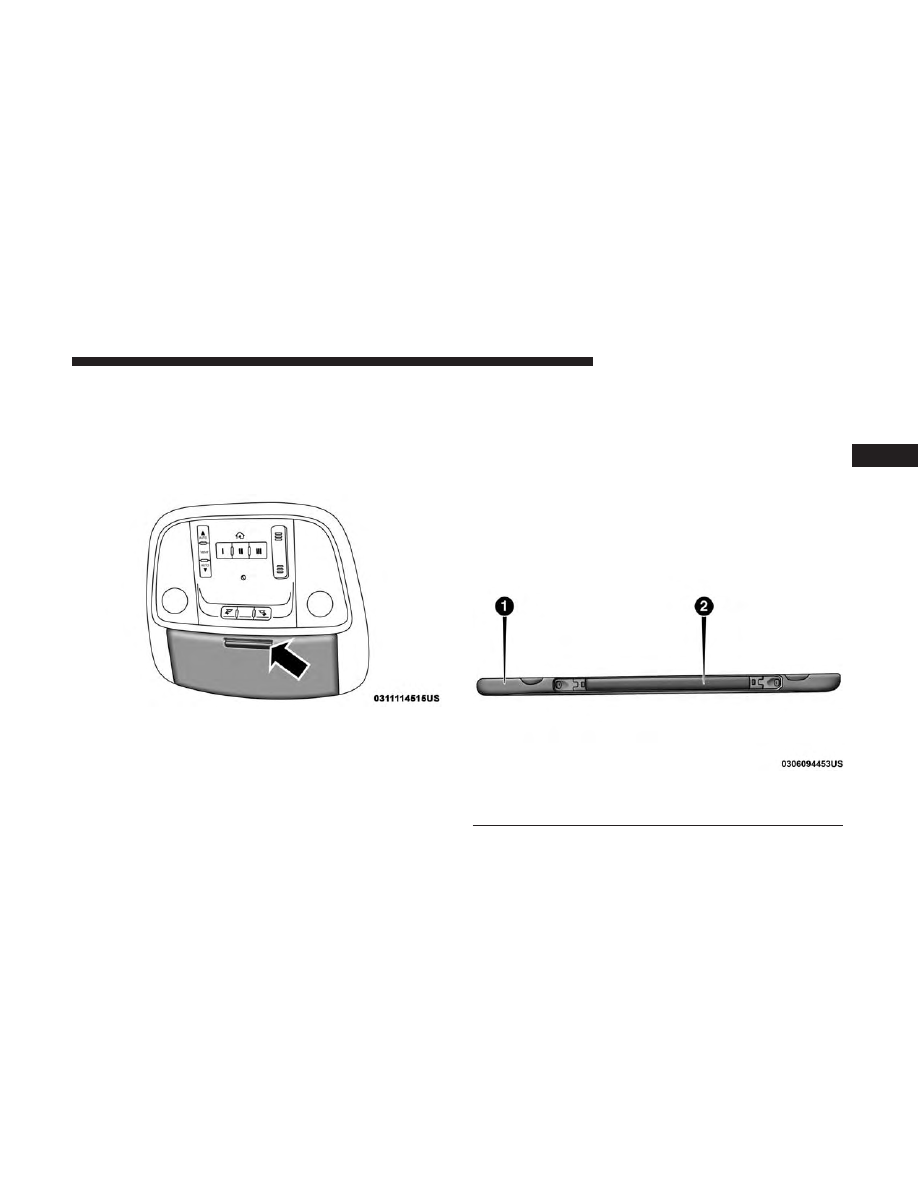

Sunglasses Bin Door

Roof Rack

1 — Side Rail
2 — Crossbar

GETTING TO KNOW YOUR VEHICLE

135

The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo inside
the vehicle plus that on the external rack does not exceed
the maximum vehicle load capacity.

Deploying The Crossbars

1. Starting with one crossbar, completely loosen the thumb

screws at both ends of the crossbar.

NOTE:

The thumb screws cannot be fully removed.

2. Remove the crossbar from the stowed position by slid-

ing the crossbar towards the center of the roof. Repeat
with crossbar on the opposite side.

CAUTION!

Use care when removing and handling the crossbars to
prevent damage to the vehicle.

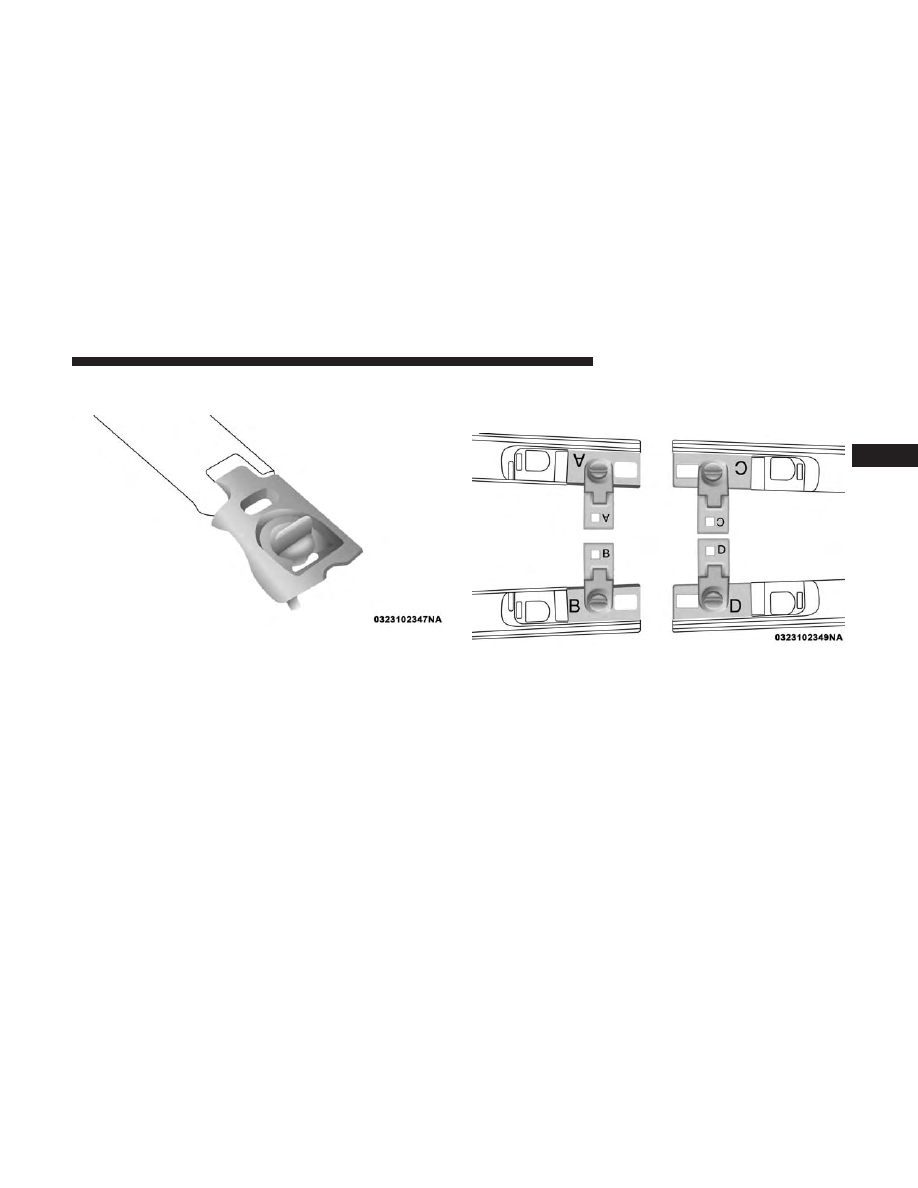

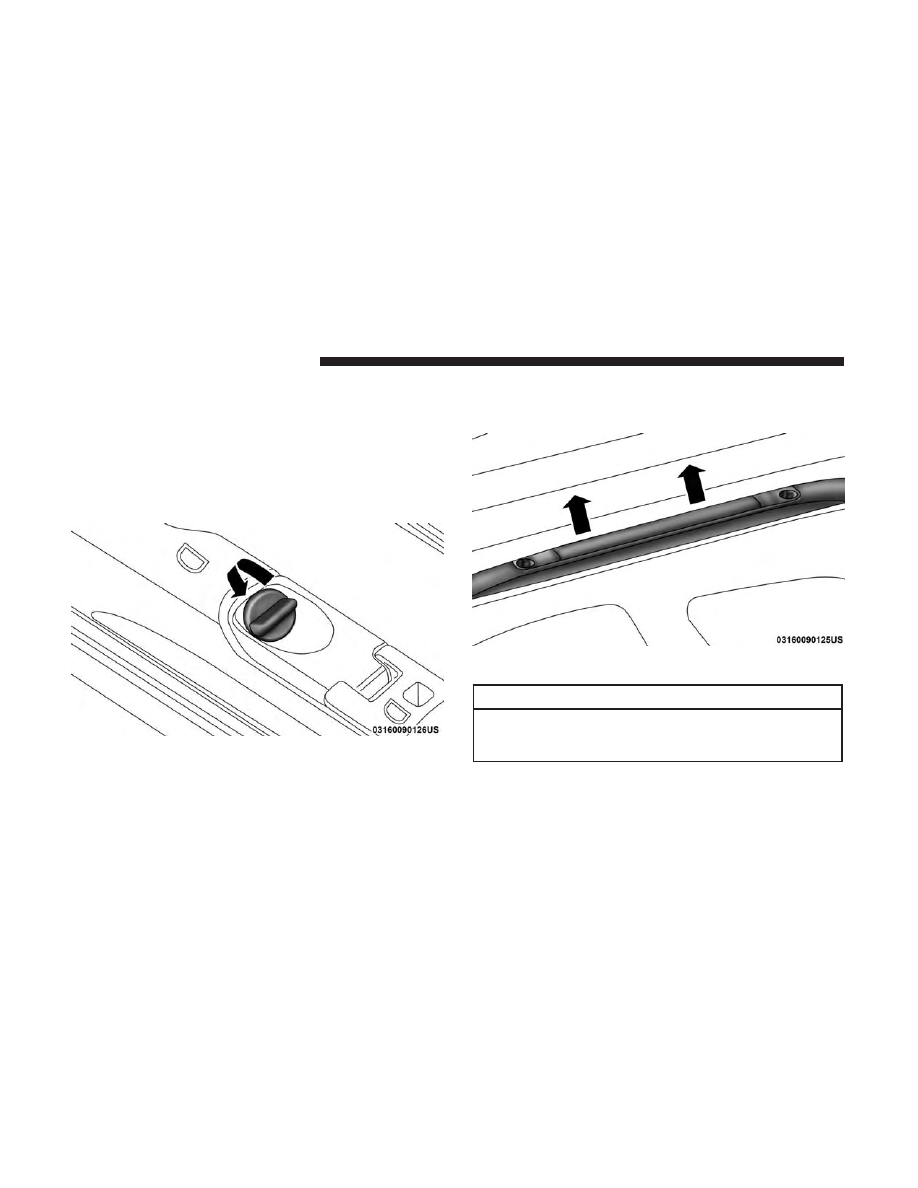

Thumb Screw

Removing Crossbars

136

GETTING TO KNOW YOUR VEHICLE

3. Starting with one crossbar, bend down the pivot sup-

ports at each end.

4. Position the crossbars across the roof making sure the

letters on the crossbars align with the matching letters
on the side rail.

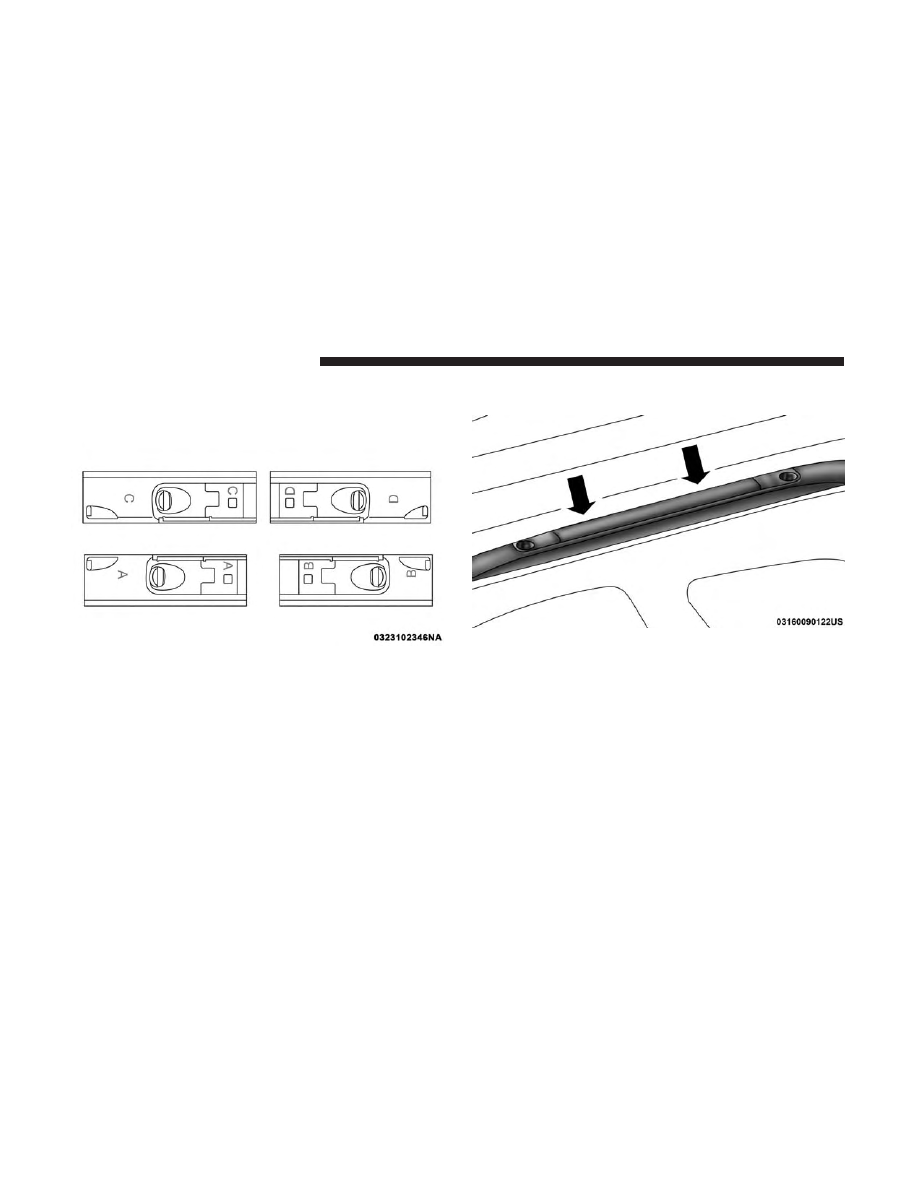

Bending Pivot

Positioning Crossbars

GETTING TO KNOW YOUR VEHICLE

137

5. Slide the cross bar into to the deploy position by moving

it towards the matching letter in the side rail. Be sure the
crossbar is fully deployed with the crossbar pushed as
far into the slot as possible. Once the crossbar is in place,
tighten both thumb screws completely.

6. Deploy and tighten the second crossbar to complete the

deployment of the crossbars.

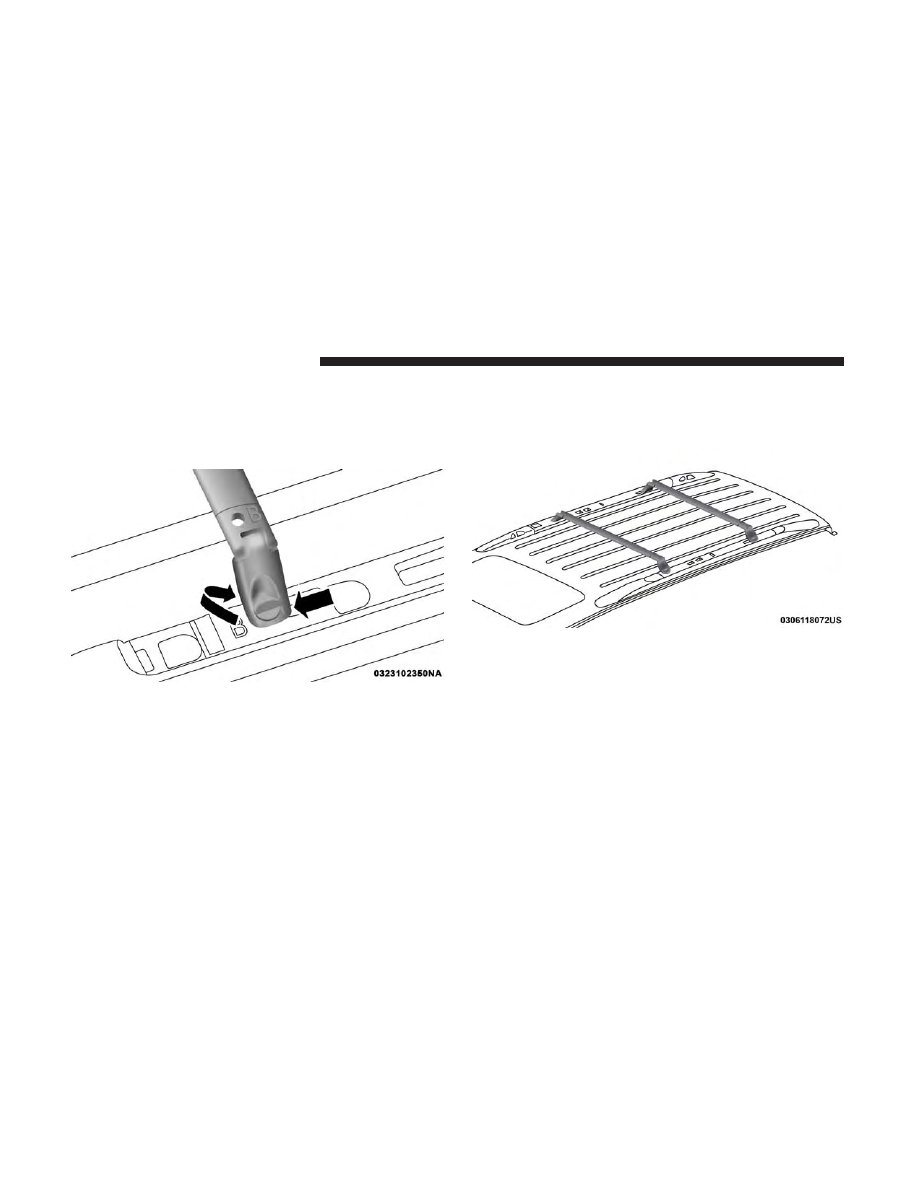

Installing Crossbars

Deployed Crossbars

138

GETTING TO KNOW YOUR VEHICLE

Stowing The Crossbars

1. Starting with one crossbar, completely loosen the thumb

screws at both ends. Slide the crossbar away from the
matching letter to remove it from the deployed position.
Repeat with the other crossbar.

CAUTION!

Use care when removing and handling the crossbars to
prevent damage to the vehicle.

2. Starting with the one crossbar, bend up the pivot

supports at each end.

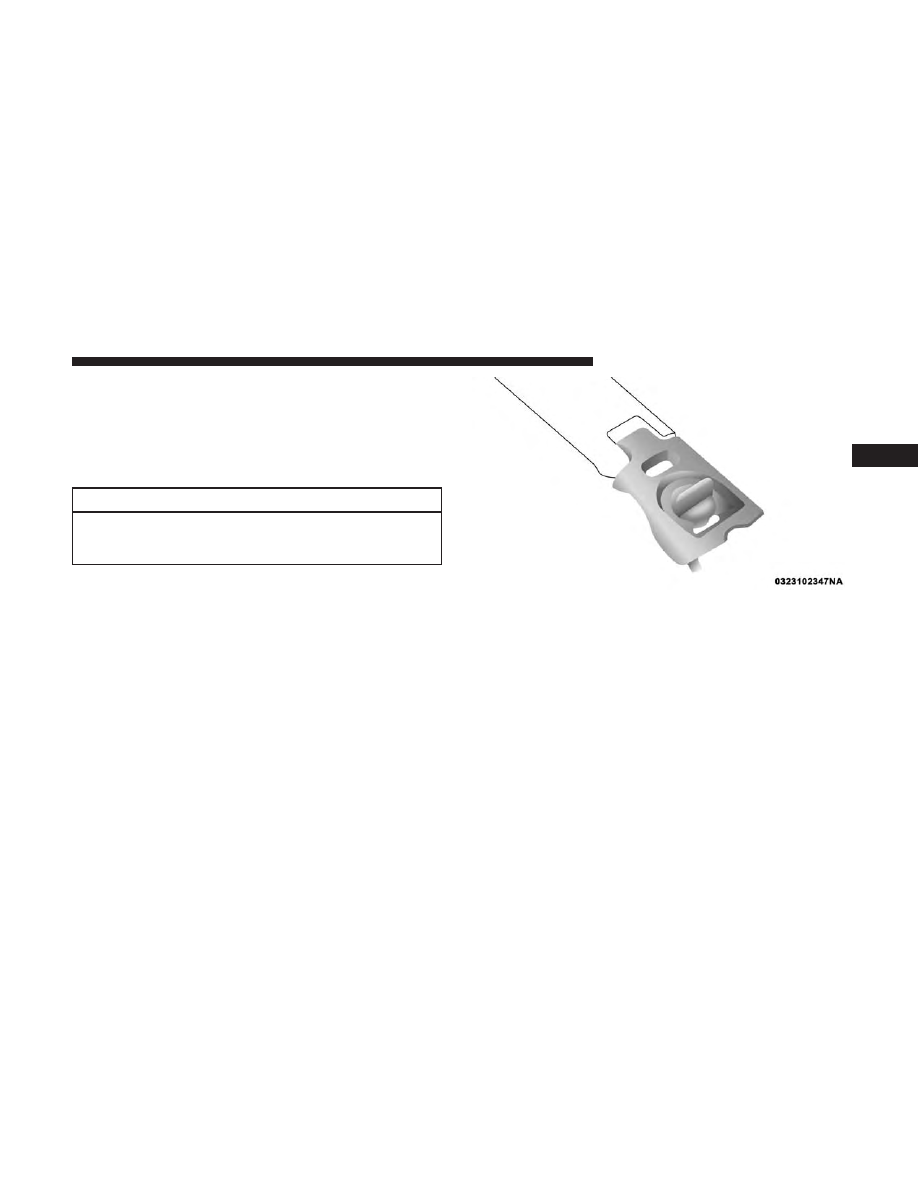

Crossbar Pivot

GETTING TO KNOW YOUR VEHICLE

139

3. Position the crossbar along the correct side rail. Make

sure the letters on the crossbar align with the matching
letters on the side rail.

4. Slide the crossbar outward, away from the center of the

roof. The crossbar will nest fully within the side rail.

Stowing Crossbars

Crossbar To Side Rail

140

GETTING TO KNOW YOUR VEHICLE
