Dodge Durango (2019 year). Manual - part 7

partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

NOTE:

The sunshade cannot be closed if the sunroof is

open.

Pinch Protect Feature

This feature will detect an obstruction in the closing of the
sunroof during the Express Close operation. If an obstruc-
tion in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs.

NOTE:

If three consecutive sunroof close attempts result in

Pinch Protect reversals, Pinch Protect will disable and the
sunroof must be closed in Manual Mode.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.

Ignition Off Operation

NOTE:
• The power sunroof switch can remain active in Acces-

sory Delay for up to approximately 10 minutes after the
vehicle’s ignition is placed to the OFF position. Opening
either front door will cancel this feature.

• This feature is programmable using the Uconnect Sys-

tem. Refer to “Uconnect Settings” in “Multimedia” for
further information.

Calibration Procedure

If the sunroof Express Operation feature is no longer
functioning, or the sunroof is auto reversing while attempt-
ing to Express Close but no obstruction is in the roof
opening, the sunroof can be re-calibrated per the following
steps:

1. Set the ignition to ACC or the ON/RUN.

2. Close the sunroof glass.

GETTING TO KNOW YOUR VEHICLE

109

3. With the sunroof in the closed position, push and hold

the close switch.

4. After 10 seconds of holding the switch, the sunroof glass

will cycle into the vent position and stop.

5. Release the close switch, then within five seconds, push

and hold the close switch again. The sunroof will cycle
open and back to closed as the switch is held.

6. Once the sunroof has stopped in the full closed position,

release the close switch. The sunroof is now reset and
ready to use.

HOOD

Opening The Hood

To open the hood, two latches must be released.

1. Pull the release lever located below the instrument panel

and in front of the driver’s door.

2. Reach under the hood from outside the vehicle, move

the safety latch to the left and lift the hood.

Hood Release

110

GETTING TO KNOW YOUR VEHICLE

Closing The Hood

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.

LIFTGATE

Power Liftgate — If Equipped

The power liftgate may be opened by pushing
the electronic liftgate release (refer to “Keyless
Enter-N-Go — Passive Entry” located in “Get-
ting To Know Your Vehicle”) or by pushing the

liftgate button on the key fob. Push the liftgate button on
the key fob twice within five seconds to open the power
liftgate. Once the liftgate is open, pushing the button twice
within five seconds a second time will close the liftgate.

Safety Latch Location

GETTING TO KNOW YOUR VEHICLE

111

The power liftgate may also be opened or closed by
pushing the liftgate button located on the front overhead
console. If the liftgate is fully open, the liftgate can be
closed by pushing the liftgate button located on left rear
trim panel, near the liftgate opening. If the liftgate is in
motion, pushing the liftgate button located on left rear trim
panel will reverse the liftgate.

When the liftgate button on the key fob is pushed two
times, the turn signals will flash to signal that the liftgate is
opening or closing (if

⬙Flash Lamps with Lock⬙ is enabled

in the Uconnect settings), and the liftgate chime will be
audible. For further information, refer to

⬙Uconnect Set-

tings

⬙ in ⬙Multimedia.⬙

NOTE:
• In the event of a power malfunction to the liftgate, an

emergency liftgate latch release can be used to open the
liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the liftgate
trim panel.

• If liftgate is left open for an extended period of time, the

liftgate may need to be closed manually to reset power
liftgate functionality.

WARNING!

During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.

NOTE:
• The power liftgate buttons will not operate if the vehicle

is in gear or the vehicle speed is above 0 MPH (0 km/h).

• The power liftgate will not operate in temperatures

below −22° F (−30° C) or temperatures above 150° F
(65° C). Be sure to remove any buildup of snow or ice
from the liftgate before pushing any of the power liftgate
switches.

• If anything obstructs the power liftgate while it is

closing or opening, the liftgate will automatically re-
verse to the closed or open position, provided it meets
sufficient resistance.

• There are also pinch sensors attached to the side of the

liftgate. Light pressure anywhere along these strips will
cause the liftgate to return to the open position.

• If the liftgate is not fully open, push the liftgate button

on the key fob twice to operate the liftgate.

112

GETTING TO KNOW YOUR VEHICLE

• If the electronic liftgate release is pushed while the

power liftgate is closing, the liftgate will reverse to the
full open position.

• If the electronic liftgate release is pushed while the

power liftgate is opening, the liftgate motor will disen-
gage to allow manual operation.

• If the power liftgate encounters multiple obstructions

within the same cycle, the system will automatically
stop and the liftgate must be opened or closed manually.

WARNING!

• Driving with the liftgate open can allow poisonous

exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.

• If you are required to drive with the liftgate open,

make sure that all windows are closed, and the
climate control blower switch is set at high speed. Do
not use the recirculation mode.

Cargo Area Features

Cargo Storage

There is a removable storage bin located on the left side of
the rear cargo area.

Additional storage can be found in the load floor. To access
the lower storage, lift the handle and raise the storage lid.

Load Floor Handle

GETTING TO KNOW YOUR VEHICLE

113

Retractable Cargo Area Cover — If Equipped

NOTE:

The purpose of this cover is for privacy, not to

secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.

To cover the cargo area:

1. Grasp the cover at the center handle. Pull it over the

cargo area.

2. Insert the pins on the ends of the cover into the slots in

the pillar trim cover.

3. The liftgate may be opened with the cargo cover in

place.

WARNING!

In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.

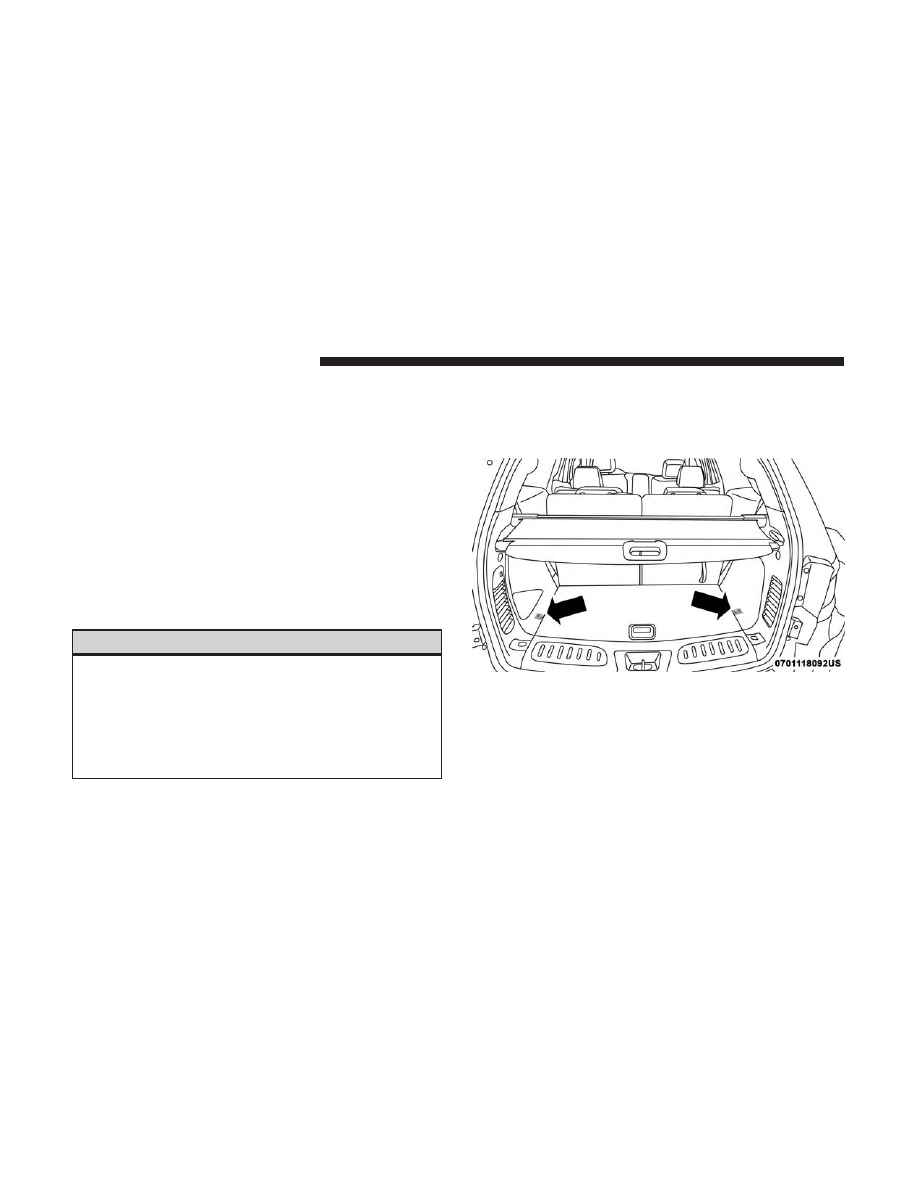

Cargo Tie-Down Hooks

The cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle is
moving.

Tie-Down Hooks

114

GETTING TO KNOW YOUR VEHICLE

WARNING!

• Cargo tie-downs are not safe anchors for a child seat

tether strap. In a sudden stop or accident, a tie-down
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.

• To help protect against personal injury, passengers

should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your ve-
hicle:
• Do not carry loads that exceed the load limits de-

scribed on the label attached to the left door or left
door center pillar.

• Always place cargo evenly on the cargo floor. Put

heavier objects as low and as far forward as possible.

(Continued)

WARNING! (Continued)

• Place as much cargo as possible in front of the rear

axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the vehicle to
sway.

• Do not pile luggage or cargo higher than the top of

the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or accident.

GARAGE DOOR OPENER — IF EQUIPPED

HomeLink replaces up to three remote controls (handheld
transmitters) that operate devices such as garage door
openers, motorized gates, lighting or home security sys-
tems. The HomeLink unit operates off your vehicle’s
battery.

GETTING TO KNOW YOUR VEHICLE

115

The HomeLink buttons, located on either the overhead
console, or sunvisor, designate the three different
HomeLink channels. The HomeLink indicator is located
above the center button.

NOTE:

HomeLink is disabled when the Vehicle Security

Alarm is active.

Before You Begin Programming HomeLink

Be sure that your vehicle is parked outside of the garage
before you begin programming.

For more efficient programming and accurate transmission
of the radio-frequency signal, it is recommended that a new
battery be placed in the hand-held transmitter of the device
that is being programmed to the HomeLink system.

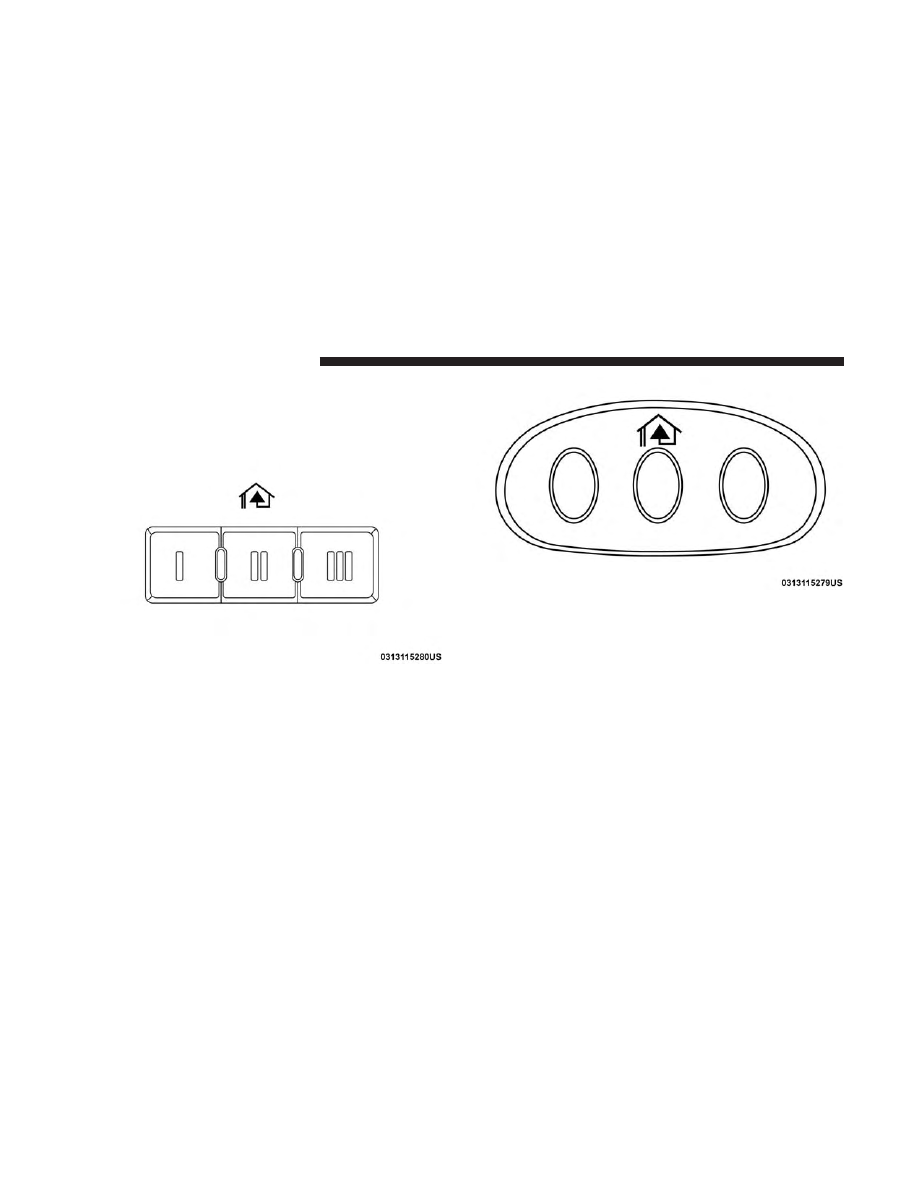

HomeLink Buttons/Overhead Consoles

HomeLink Buttons/Sunvisor

116

GETTING TO KNOW YOUR VEHICLE

To erase the channels, place the ignition in the ON/RUN
position and push and hold the two outside HomeLink
buttons (I and III) for up 20 seconds or until the red
indicator flashes.

NOTE:
• Erasing all channels should only be performed when

programming HomeLink for the first time. Do not erase
channels when programming additional buttons.

• If you have any problems, or require assistance, please

call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.

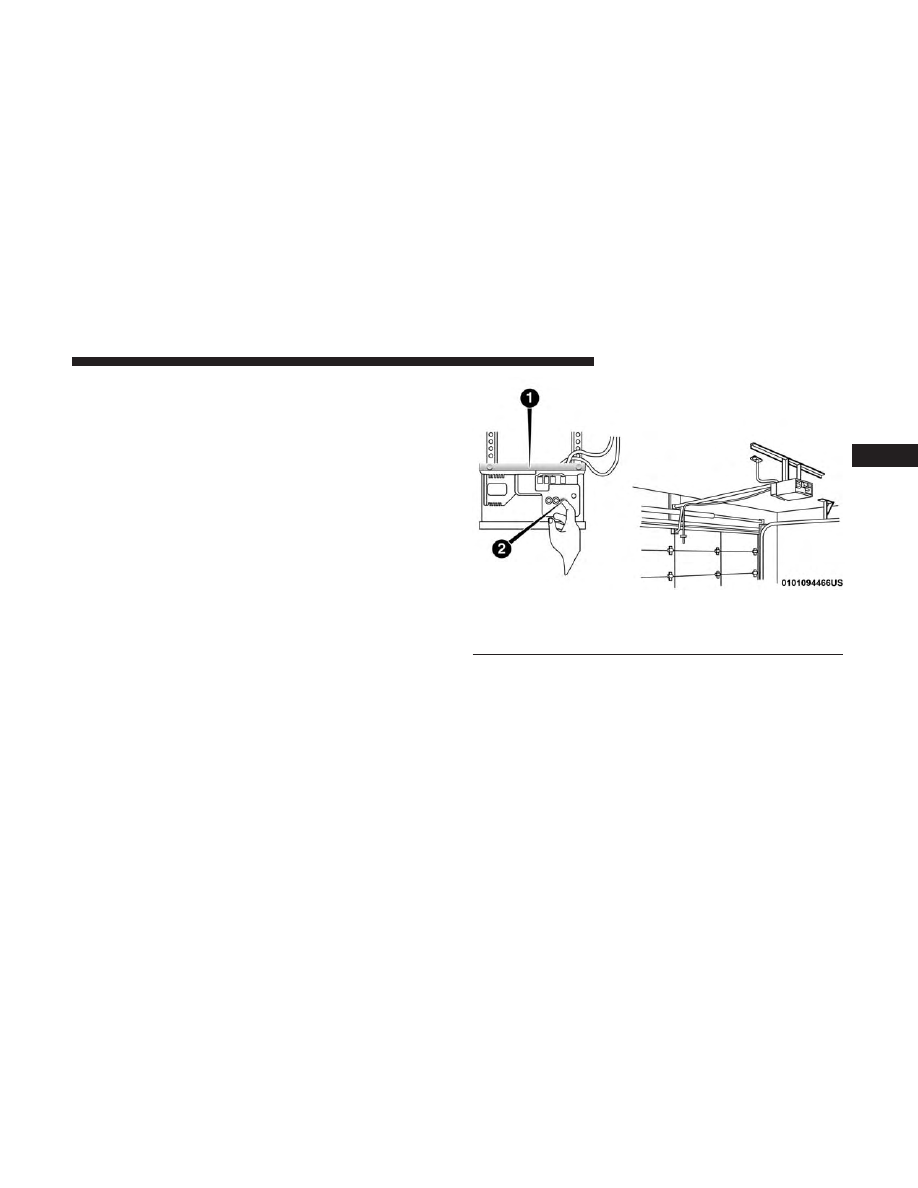

Programming A Rolling Code

For programming garage door openers that were manufac-
tured after 1995:

These garage door openers can be identified by the
“LEARN” or “TRAIN” button located where the hanging
antenna is attached to the garage door opener. It is NOT the
button that is normally used to open and close the door.
The name and color of the button may vary by manufac-
turer.

1. Place the ignition in the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

place the ignition in the RUN position with the engine ON.
Make sure while programming HomeLink with the engine
ON that your vehicle is outside of your garage, or that the
garage door remains open at all times.

Training The Garage Door Opener

1 — Door Opener
2 — Training Button

GETTING TO KNOW YOUR VEHICLE

117

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Push and hold the HomeLink button you want to

program while you push and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. At the garage door opener motor (in the garage), locate

the “LEARN” or “TRAINING” button. This can usually
be found where the hanging antenna wire is attached to
the garage door opener/device motor. Firmly push and
release the “LEARN” or “TRAINING” button. On some
garage door openers/devices there may be a light that
blinks when the garage door opener/device is in the
LEARN/TRAIN mode.

NOTE:

You have 30 seconds in which to initiate the next

step after the LEARN button has been pushed.

6. Return to the vehicle and push the programmed

HomeLink button twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.

NOTE:

If the garage door opener/device does not activate,

push the button a third time (for two seconds) to complete
the training.

To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.

Programming A Non-Rolling Code

For programming Garage Door Openers manufactured
before 1995:

1. Place the ignition in the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

118

GETTING TO KNOW YOUR VEHICLE

3. Push and hold the Homelink button you want to

program while you push and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. The Homelink indicator will flash slowly and then
rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. Push and hold the programmed HomeLink button and

observe the indicator light.

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pushed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission:

Canadian radio frequency laws require transmitter signals
to time-out (or quit) after several seconds of transmission,
which may not be long enough for HomeLink to pick up
the signal during programming. Similar to this Canadian
law, some U.S. gate operators are designed to time-out in
the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage door
or gate motor.

1. Cycle the ignition to the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Continue to push and hold the HomeLink button while

you push and release (“cycle”) your hand-held trans-
mitter every two seconds until HomeLink has success-
fully accepted the frequency signal. The indicator light
will flash slowly and then rapidly when fully trained.

GETTING TO KNOW YOUR VEHICLE

119

4. Watch for the HomeLink indicator to change flash rates.

When it changes, it is programmed. It may take up to 30
seconds or longer in rare cases. The garage door may
open and close while you are programming.

5. Push and hold the programmed HomeLink button and

observe the indicator light.

NOTE:

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pushed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Using HomeLink

To operate, switch the ignition to the ON/RUN position
and the press and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e., garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.,). The
hand-held transmitter of the device may also be used at

any time. If the ignition is switched to the OFF position,
HomeLink will remain active for three minutes. During
this time, if the vehicle is locked, HomeLink is disabled.

Security

It is advised to erase all channels before you sell or turn in
your vehicle.

To do this, push and hold the two outside buttons for 20
seconds until the red indicator flashes.

NOTE:

All channels will be erased. Individual channels

cannot be erased.

The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-

held transmitter.

• Push the LEARN button on the Garage Door Opener to

complete the training for a Rolling Code.

• Did you unplug the device for programming and re-

member to plug it back in?

120

GETTING TO KNOW YOUR VEHICLE

If you have any problems, or require assistance, please call
toll-free

1-800-355-3515

or,

the

Internet

HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a danger-

ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com for safety information or assis-
tance.

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is sub-
ject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

GETTING TO KNOW YOUR VEHICLE

121

INTERNAL EQUIPMENT

Storage

Glove Compartment

The glove compartment is located on the passenger side of
the instrument panel.

To open the glove compartment, pull the release handle.

Door Storage

Large storage areas are built into the door panels for easy
access.

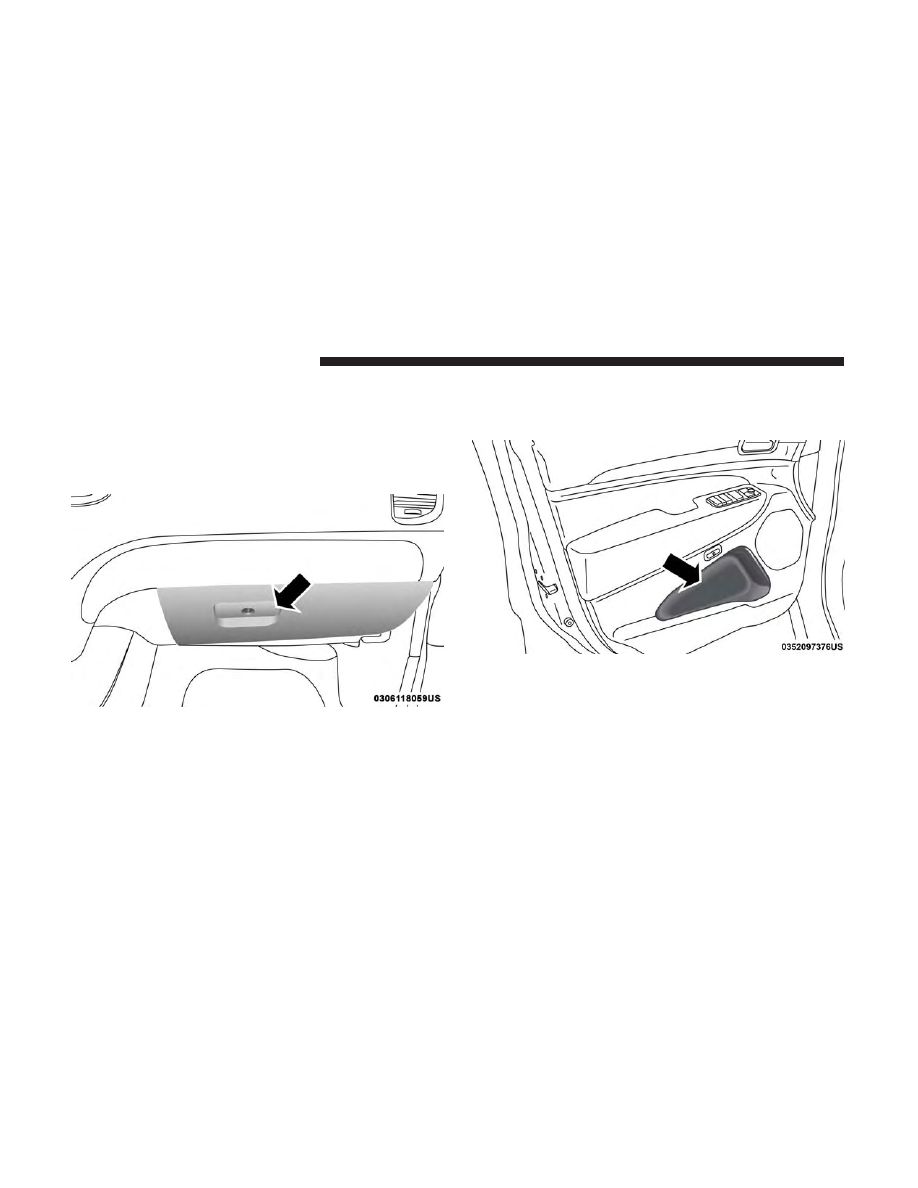

Glove Compartment

Door Panel Storage

122

GETTING TO KNOW YOUR VEHICLE

Front Center Console

The front center console contains both an upper and a
lower storage area.

To open the upper storage compartment, pull upward on
the small latch located on the lid.

Lift upward on the larger of the latches to access the lower
storage compartment.

Rear Full Center Console — If Equipped

The rear full center console contains both an upper and a
lower storage area.

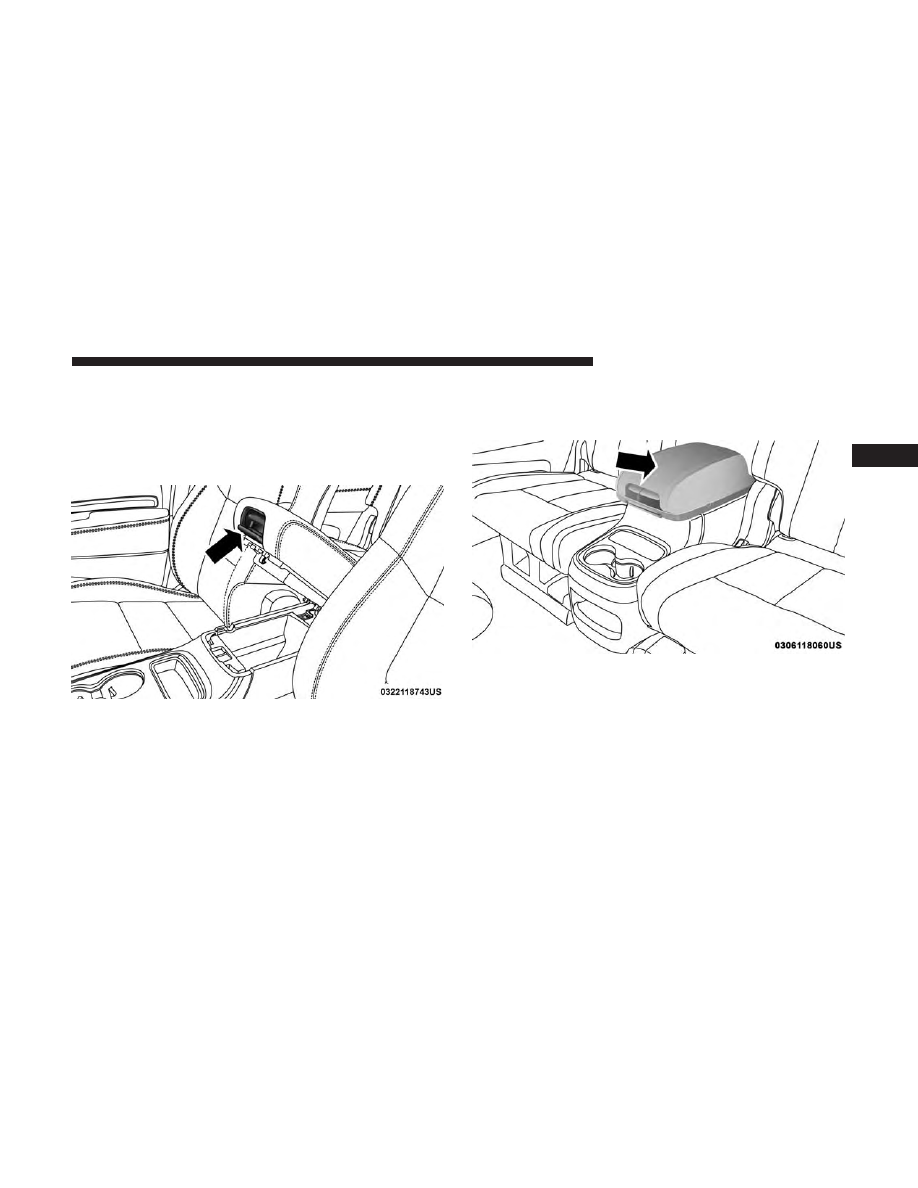

Storage Compartment Latches

Storage Compartment

GETTING TO KNOW YOUR VEHICLE

123

To open the upper storage compartment, pull upward on
the small latch located on the front of the lid.

Lift upward on the larger of the latches to access the lower
storage compartment.

NOTE:

Lower storage compartment light is always on with

ignition in the ON/RUN position.

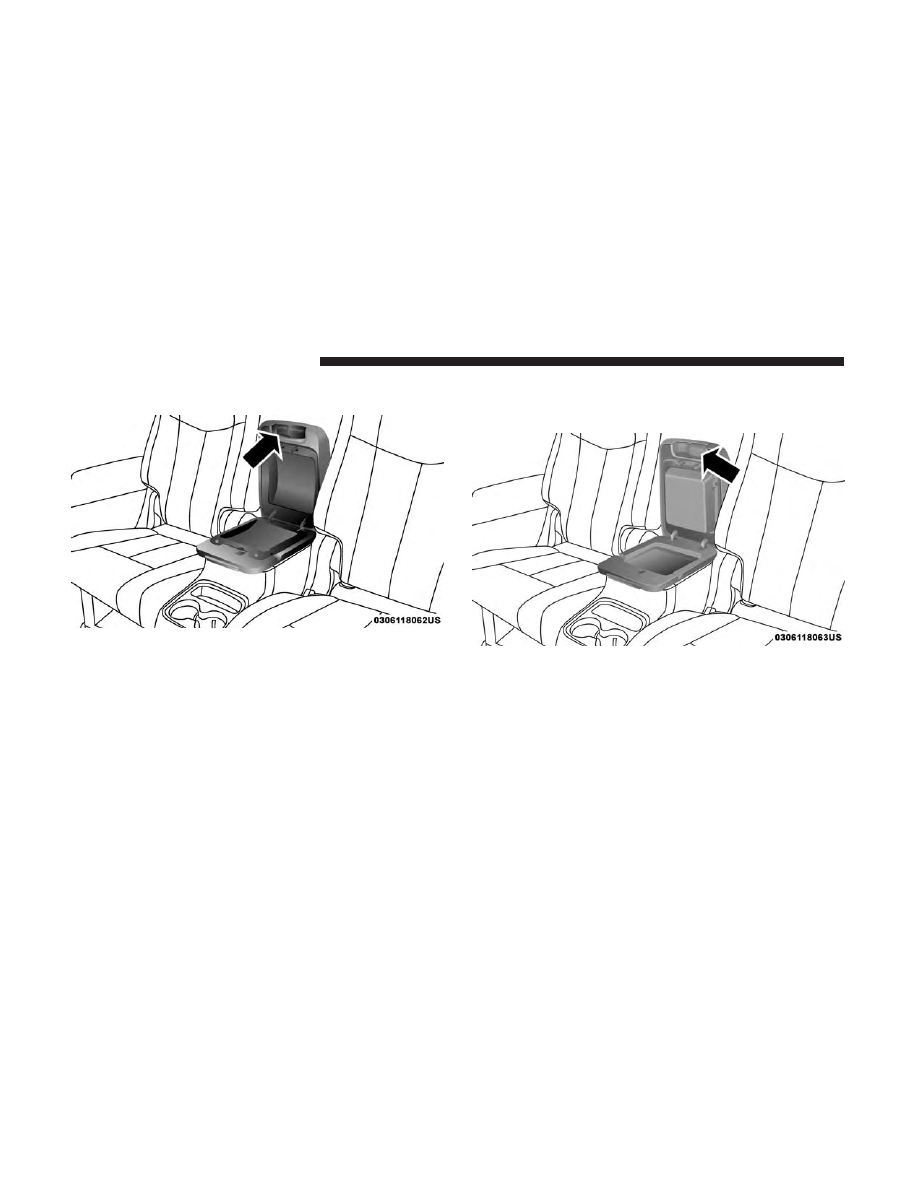

Upper Storage Compartment

Lower Storage Compartment

124

GETTING TO KNOW YOUR VEHICLE

Content .. 5 6 7 8 ..
