Dodge Charger (2019 year). Manual

Using ACC On Hills

When driving on hills, ACC may not detect a vehicle in
your lane. Depending on the speed, vehicle load, traffic
conditions, and the steepness of the hills, ACC perfor-
mance may be limited.

Lane Changing

ACC may not detect a vehicle until it is completely in the
lane in which you are traveling. In the illustration shown,
ACC has not yet detected the vehicle changing lanes and it
may not detect the vehicle until it’s too late for the ACC
system to take action. ACC may not detect a vehicle until it
is completely in the lane. There may not be sufficient
distance to the lane-changing vehicle. Always be attentive
and ready to apply the brakes if necessary.

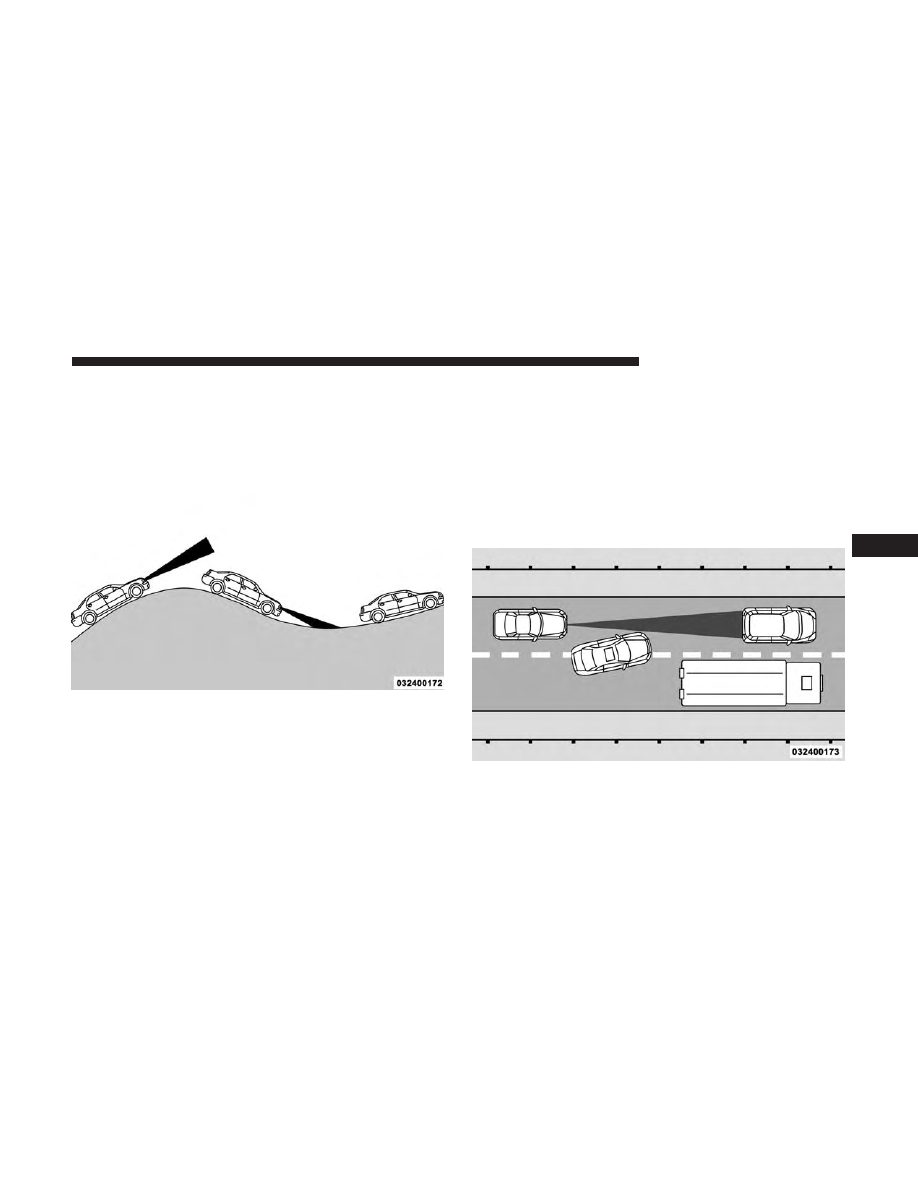

ACC Hill Example

Lane Changing Example

STARTING AND OPERATING

269

Narrow Vehicles

Some narrow vehicles traveling near the outer edges of the
lane or edging into the lane are not detected until they have
moved fully into the lane. There may not be sufficient
distance to the vehicle ahead.

Stationary Objects And Vehicles

ACC does not react to stationary objects and stationary
vehicles. For example, ACC will not react in situations
where the vehicle you are following exits your lane and the
vehicle ahead is stopped in your lane. Always be attentive
and ready to apply the brakes if necessary.

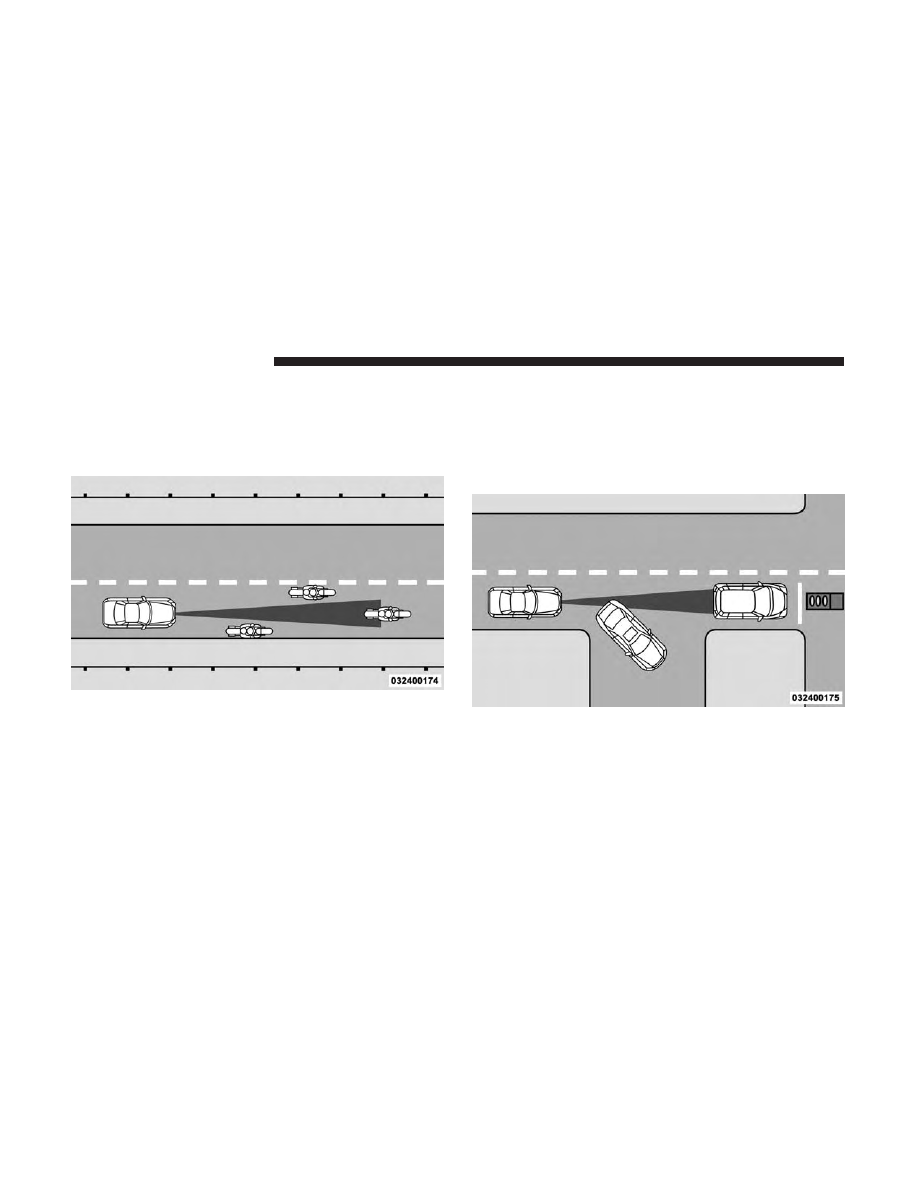

Narrow Vehicle Example

Stationary Object And Stationary Vehicle Example

270

STARTING AND OPERATING

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

Normal (Fixed Speed) Cruise Control Mode

In addition to Adaptive Cruise Control mode, a Normal
(Fixed Speed) Cruise Control mode is available for cruising
at fixed speeds. The Normal (Fixed Speed) Cruise Control
mode is designed to maintain a set cruising speed without
requiring the driver to operate the accelerator. Cruise
Control can only be operated if the vehicle speed is above
20 mph (32 km/h).

To change between the different control modes, push the
Adaptive Cruise Control (ACC) on/off button which turns
the ACC and the Normal (Fixed Speed) Cruise Control off.
Pushing the Normal (Fixed Speed) Cruise Control on/off
button will result in turning on (changing to) the Normal
(Fixed Speed) Cruise Control mode.

WARNING!

In the Normal (Fixed Speed) Cruise Control mode, the
system will not react to vehicles ahead. In addition, the
proximity warning does not activate and no alarm will
sound even if you are too close to the vehicle ahead since
neither the presence of the vehicle ahead nor the vehicle-
to-vehicle distance is detected. Be sure to maintain a safe
distance between your vehicle and the vehicle ahead.
Always be aware which mode is selected.

To Set A Desired Speed

Turn the Normal (Fixed Speed) Cruise Control
on. When the vehicle has reached the desired
speed, push the SET (+) or SET (-) button and
release. Release the accelerator and the vehicle

will operate at the selected speed. Once a speed has been

STARTING AND OPERATING

271

set a message “CRUISE CONTROL SET TO MPH (km/h)”
will appear indicating what speed was set. This light will
turn on when the system is turned on via the on/off
control. It turns green when the cruise control is set.

To Vary The Speed Setting

To Increase Speed

When the Normal (Fixed Speed) Cruise Control is set, you
can increase speed by pushing the SET (+) button.

The driver’s preferred units can be selected through the
instrument cluster display. Refer to “Getting To Know Your
Instrument Panel” for more information. The speed incre-
ment shown is dependant on the speed of U.S. (mph) or
Metric (km/h) units:

U.S. Speed (mph)
• Pushing the SET (+) button once will result in a 1 mph

increase in set speed. Each subsequent tap of the button
results in an increase of 1 mph.

• If the button is continually pushed, the set speed will

continue to increase in 5 mph increments until the
button is released. The increase in set speed is reflected
in the instrument cluster display.

Metric Speed (km/h)
• Pushing the SET (+) button once will result in a 1 km/h

increase in set speed. Each subsequent tap of the button
results in an increase of 1 km/h.

• If the button is continually pushed, the set speed will

continue to increase in 10 km/h increments until the
button is released. The increase in set speed is reflected
in the instrument cluster display.

To Decrease Speed

When the Normal (Fixed Speed) Cruise Control is set, you
can decrease speed by pushing the SET (-) button.

The driver’s preferred units can be selected through the
instrument cluster display. Refer to “Getting To Know Your
Instrument Panel” for more information. The speed decre-
ment shown is dependant on the speed of U.S. (mph) or
Metric (km/h) units:

U.S. Speed (mph)
• Pushing the SET (-) button once will result in a 1 mph

decrease in set speed. Each subsequent tap of the button
results in a decrease of 1 mph.

272

STARTING AND OPERATING

• If the button is continually pushed, the set speed will

continue to decrease in 5 mph decrements until the
button is released. The decrease in set speed is reflected
in the instrument cluster display.

Metric Speed (km/h)
• Pushing the SET (-) button once will result in a 1 km/h

decrease in set speed. Each subsequent tap of the button
results in a decrease of 1 km/h.

• If the button is continually pushed, the set speed will

continue to decrease in 10 km/h decrements until the
button is released. The decrease in set speed is reflected
in the instrument cluster display.

To Cancel

The following conditions will cancel the Normal (Fixed
Speed) Cruise Control without clearing the memory:
• The brake pedal is applied.
• The CANC button is pushed.
• The Electronic Stability Control/Traction Control Sys-

tem (ESC/TCS) activates.

• The vehicle parking brake is applied.
• The braking temperature exceeds normal range (over-

heated).

• The gear selector is removed from the DRIVE position.

To Resume Speed

To resume a previously set speed, push the RES button and
release. Resume can be used at any speed above 20 mph
(32 km/h).

To Turn Off

The system will turn off and erase the set speed in memory
if:
• The Normal (Fixed Speed) Cruise Control on/off button

is pushed.

• The ignition is turned OFF.
• The Adaptive Cruise Control (ACC) on/off button is

pushed.

STARTING AND OPERATING

273

PARKSENSE REAR PARK ASSIST — IF EQUIPPED

The ParkSense Rear Park Assist system provides visual and
audible indications of the distance between the rear fascia
and a detected obstacle when backing up, e.g. during a
parking maneuver.

Refer to “ParkSense System Usage Precautions” in this
section for limitations of this system and recommenda-
tions.

ParkSense will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the ON/RUN position.

ParkSense can be active only when the gear selector is in
REVERSE. If ParkSense is enabled at this gear selector
position, the system will remain active until the vehicle
speed is increased to approximately 7 mph (11 km/h) or
above. The system will become active again if the vehicle
speed is decreased to speeds less than approximately
6 mph (9 km/h).

ParkSense Sensors

The four ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is within
the sensors’ field of view. The sensors can detect obstacles
from approximately 12 inches (30 cm) up to 79 inches
(200 cm) from the rear fascia/bumper in the horizontal
direction, depending on the location, type and orientation
of the obstacle.

ParkSense Warning Display

The ParkSense Warning screen will only be displayed if
“Sound and Display” is selected from the Customer -
Programmable Features section of the Uconnect System.
Refer to

⬙Uconnect Settings” in “Multimedia” for further

information.

The ParkSense Warning screen is located within the instru-
ment cluster display. It provides visual warnings to indi-
cate the distance between the rear fascia/bumper and the
detected obstacle. Refer to “Instrument Cluster Display” in
“Getting To Know Your Instrument Panel” for further
information.

274

STARTING AND OPERATING

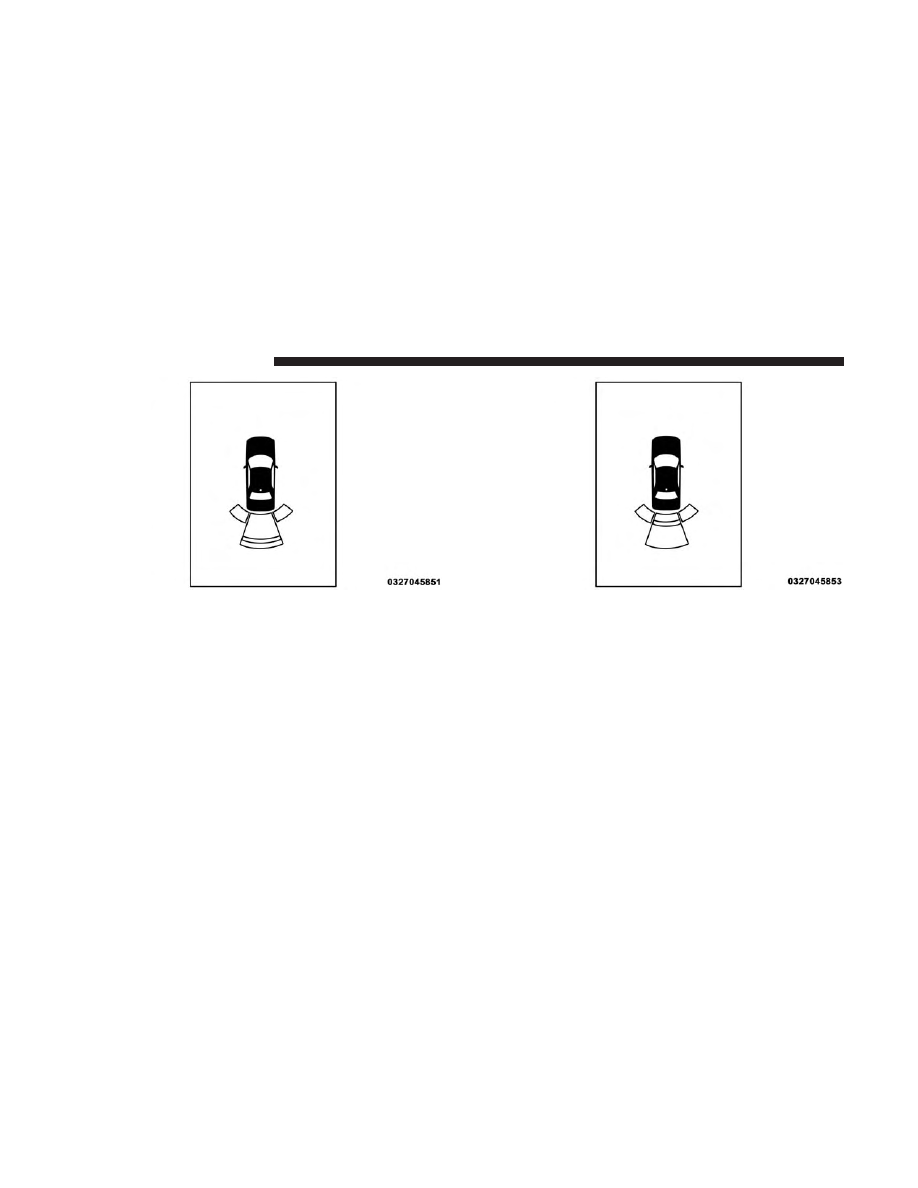

ParkSense Display

When the vehicle is in REVERSE, the warning display will
turn on indicating the system status.

The system will indicate a detected obstacle by showing a
single arc in one or more regions based on the obstacle’s
distance and location relative to the vehicle.

If an obstacle is detected in the center rear region, the
display will show a single solid arc in the center rear region
and will produce a one-half second tone. As the vehicle
moves closer to the obstacle, the display will show the
single arc moving closer to the vehicle and the sound tone
will change from slow, to fast, to continuous.

If an obstacle is detected in the left and/or right rear region,
the display will show a single flashing arc in the left and/or
right rear region and will produce a fast sound tone. As the
vehicle moves closer to the obstacle, the display will show
the single arc moving closer to the vehicle and the sound
tone will change from fast to continuous.

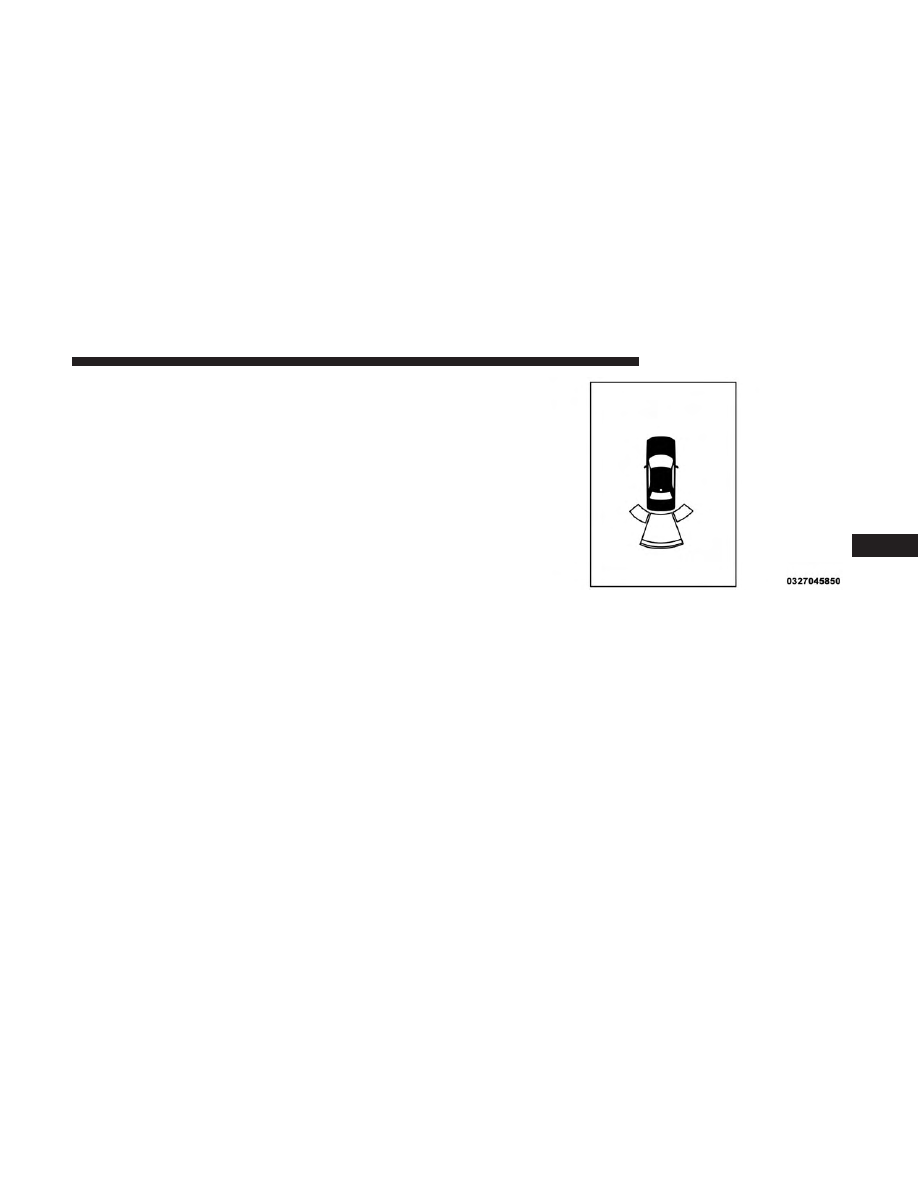

Single 1/2 Second Tone/Solid Arc

STARTING AND OPERATING

275

The vehicle is close to the obstacle when the warning
display shows one flashing arc and sounds a continuous
tone. The following chart shows the warning alert opera-
tion when the system is detecting an obstacle:

WARNING ALERTS

Rear

Distance

(in/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Audible

Alert

Chime

None

Single 1/2-

Second

Tone

(for rear

center only)

Slow

(for rear

center only)

Slow

(for rear

center only)

Fast

(for rear

center only)

Fast

Continuous

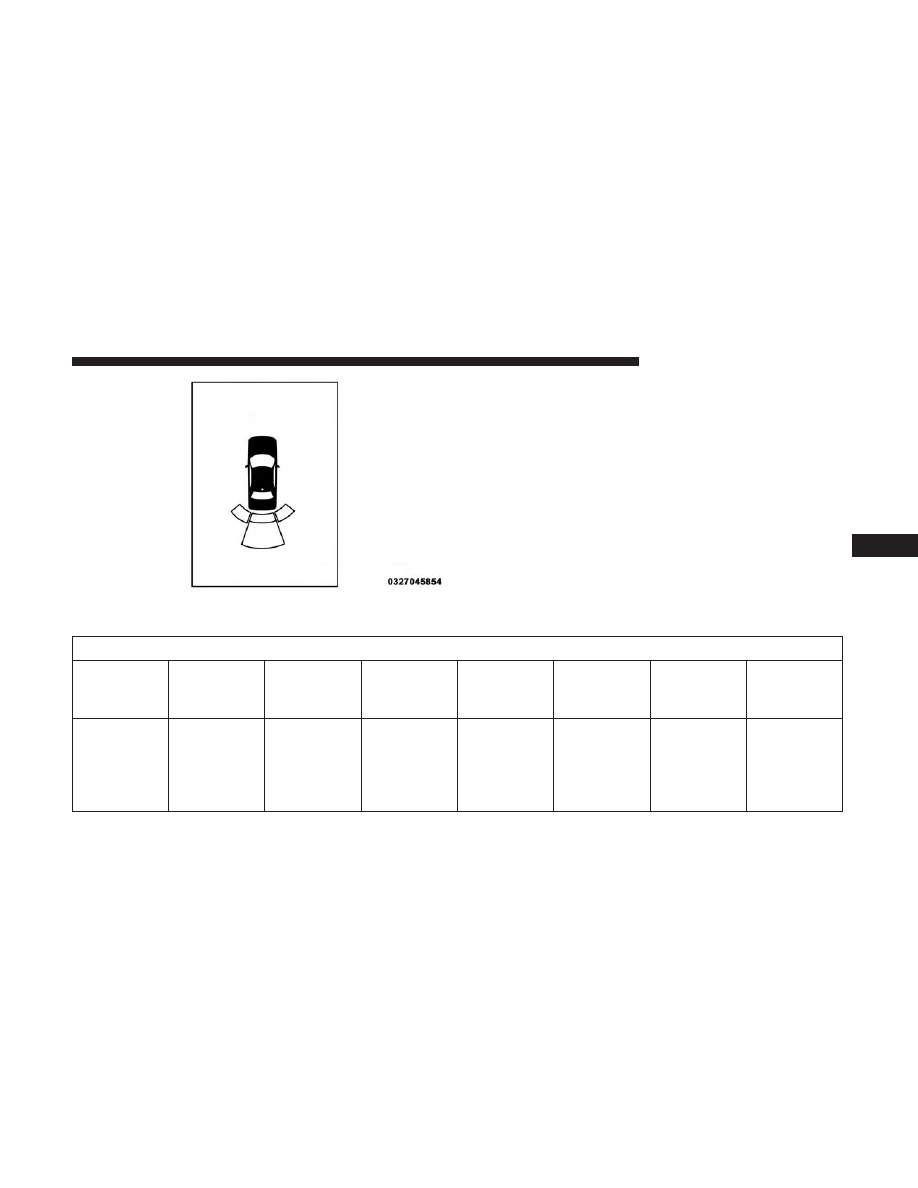

Continuous Tone/Flashing Arc

STARTING AND OPERATING

277

WARNING ALERTS

Rear

Distance

(in/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Arc —

Left Rear

None

2nd Flash-

ing

1st Flashing

Arc —

Center Rear

None

6th Solid

5th Solid

4th Solid

3rd Flash-

ing

2nd Flash-

ing

1st Flashing

Arc —

Right Rear

None

2nd Flash-

ing

1st Flashing

Radio

Volume

Reduced

Yes

Enabling And Disabling ParkSense

ParkSense can be enabled and disabled with the ParkSense
switch, located on the switch panel below the Uconnect
display.

When the ParkSense switch is pushed to disable
the system, the instrument cluster will display
the “ParkSense Off” message for approximately
five seconds. When the gear selector is moved to

REVERSE and the system is disabled, the instrument
cluster display will display the “ParkSense Off” message
for as long as the vehicle is in REVERSE.

Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.

The ParkSense switch LED will be on when ParkSense is
disabled or defective. The ParkSense switch LED will be off
when the system is enabled. If the ParkSense switch is

278

STARTING AND OPERATING

pushed and the system is disabled or requires service, the
ParkSense switch LED will blink momentarily and then the
LED will be on.

Service The ParkSense Rear Park Assist System

During vehicle start up, when the ParkSense Rear Park
Assist System has detected a faulted condition, the instru-
ment cluster display will actuate a single chime, once per
ignition cycle, and it will display the “PARKSENSE UN-
AVAILABLE WIPE REAR SENSORS” or the “PARKSENSE
UNAVAILABLE SERVICE REQUIRED” message. Refer to
“Instrument Cluster Display”. When the gear selector is
moved to REVERSE and the system has detected a faulted
condition, the instrument cluster display will show the

⬙PARKSENSE UNAVAILABLE WIPE REAR SENSORS⬙ or

⬙PARKSENSE UNAVAILABLE SERVICE REQUIRED⬙ mes-
sage for as long as the vehicle is in REVERSE. Under this
condition, ParkSense will not operate.

If “PARKSENSE UNAVAILABLE WIPE REAR SENSORS”
appears in the instrument cluster display, make sure the
outer surface and the underside of the rear fascia/bumper
is clean and clear of snow, ice, mud, dirt or other obstruc-
tion and then cycle the ignition. If the message continues to
appear, see an authorized dealer.

If “PARKSENSE UNAVAILABLE SERVICE REQUIRED”
appears in the instrument cluster display, see an autho-
rized dealer.

Cleaning The ParkSense System

Clean the Rear Park Assist sensors with water, car wash
soap and a soft cloth. Do not use rough or hard cloths. In
washing stations, clean sensors quickly keeping the vapor
jet/high pressure washing nozzles at least 4 inches (10 cm)
from the sensors. Do not scratch or poke the sensors.
Otherwise, you could damage the sensors.

ParkSense System Usage Precautions

NOTE:
• Ensure that the rear bumper is free of snow, ice, mud,

dirt and debris to keep the ParkSense system operating
properly.

• Jackhammers, large trucks, and other vibrations could

affect the performance of ParkSense or render the sys-
tem temporarily unavailable.

• When you turn ParkSense off in DRIVE, the instrument

cluster will display

⬙PARKSENSE OFF⬙ for five seconds.

Furthermore, once you turn ParkSense off, it remains off
until you turn it on again, even if you cycle the ignition.

STARTING AND OPERATING

279

• When you move the gear selector to the REVERSE

position and ParkSense is turned off, the instrument
cluster display will show the “PARKSENSE OFF” mes-
sage for as long as the vehicle is in REVERSE.

• ParkSense will reduce the volume of the radio when it is

sounding an audio tone.

• Clean the ParkSense sensors regularly, taking care not to

scratch or damage them. The sensors must not be
covered with ice, snow, slush, mud, dirt or debris.
Failure to do so can result in the system not working
properly. The ParkSense system might not detect an
obstacle behind the fascia/bumper, or it could provide a
false indication that an obstacle is behind the fascia/
bumper.

• Ensure the ParkSense system is off if objects such as

bicycle carriers, trailer hitches, etc., are placed within
12 inches (30 cm) from the rear fascia/bumper. Failure to
do so can result in the system misinterpreting a close
object as a sensor problem, causing the “PARKSENSE
UNAVAILABLE SERVICE REQUIRED” message to be
shown in the instrument cluster display.

WARNING!

Drivers must be careful when backing up even when
using the Rear Park Assist system. Always check
carefully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
blind spots before backing up. You are responsible for
the safety of your surroundings and must continue to
pay attention while backing up. Failure to do so can
result in serious injury or death.

CAUTION!

• ParkSense is only a parking aid and it is unable to

recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.

• The vehicle must be driven slowly when using

ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the driver
looks over his/her shoulder when using ParkSense.

280

STARTING AND OPERATING

LANESENSE — IF EQUIPPED

LaneSense Operation

The LaneSense system is operational at speeds above
37 mph (60 km/h) and below 112 mph (180 km/h). The
LaneSense system uses a forward looking camera to detect
lane markings and measure vehicle position within the
lane boundaries.

When both lane markings are detected and the driver
unintentionally drifts out of the lane (no turn signal
applied), the LaneSense system provides a haptic warning
in the form of torque applied to the steering wheel to
prompt the driver to remain within the lane boundaries. If
the driver continues to unintentionally drift out of the lane,
the LaneSense system provides a visual warning through
the instrument cluster display to prompt the driver to
remain within the lane boundaries.

The driver may manually override the haptic warning by
applying torque into the steering wheel at any time.

When only a single lane marking is detected and the driver
unintentionally drifts across the lane marking (no turn
signal applied), the LaneSense system provides visual
warnings through the instrument cluster display to prompt

the driver to remain within the lane. When only a single
lane marking is detected, a haptic (torque) warning will not
be provided.

NOTE:

When operating conditions have been met, the

LaneSense system will monitor if the driver’s hands are on
the steering wheel and provides an audible warning to the
driver when the driver’s hands are not detected on the
steering wheel. The system will cancel if the driver does
not return their hands to the wheel.

Turning LaneSense On Or Off

The default status of LaneSense is off.

The LaneSense button is located on the center stack below
the Uconnect display.

To turn the LaneSense system on, push the
LaneSense button (LED turns off). A “LaneSense
On” message is shown in the instrument cluster
display.

To turn the LaneSense system off, push the LaneSense
button once (LED turns on).

NOTE:

The LaneSense system will retain the last system

state, on or off, from the last ignition cycle when the
ignition is changed to the ON/RUN position.

STARTING AND OPERATING

281

LaneSense Warning Message

The LaneSense system will indicate the current lane drift
condition through the instrument cluster display.

Premium Instrument Cluster Display Screen —
If Equipped

When the LaneSense system is on; the lane lines are gray
when both of the lane boundaries have not been detected
and the LaneSense telltale is solid white.

Left Lane Departure — Only Left Lane Detected
• When the LaneSense system is on, the LaneSense telltale

is solid white when only the left lane marking has been
detected and the system is ready to provide visual
warnings in the instrument cluster display if an unin-
tentional lane departure occurs.

• When the LaneSense system senses the lane has been

approached and is in a lane departure situation, the left
thick lane line flashes yellow (on/off), the left thin line
remains solid yellow and the LaneSense telltale changes
from solid white to flashing yellow.

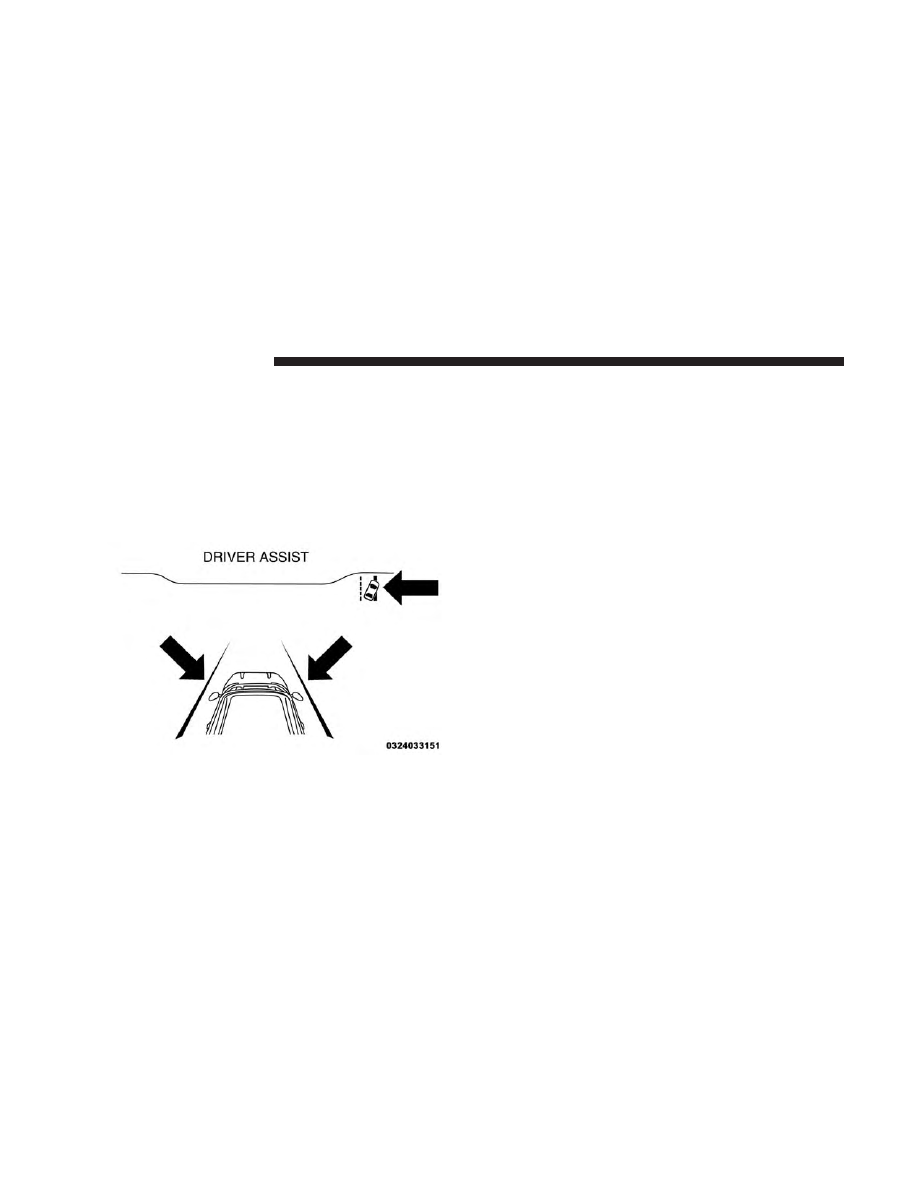

System On (Gray Lines/White Telltale)

282

STARTING AND OPERATING

NOTE:

The LaneSense system operates with the similar

behavior for a right lane departure when only the right
lane marking has been detected.

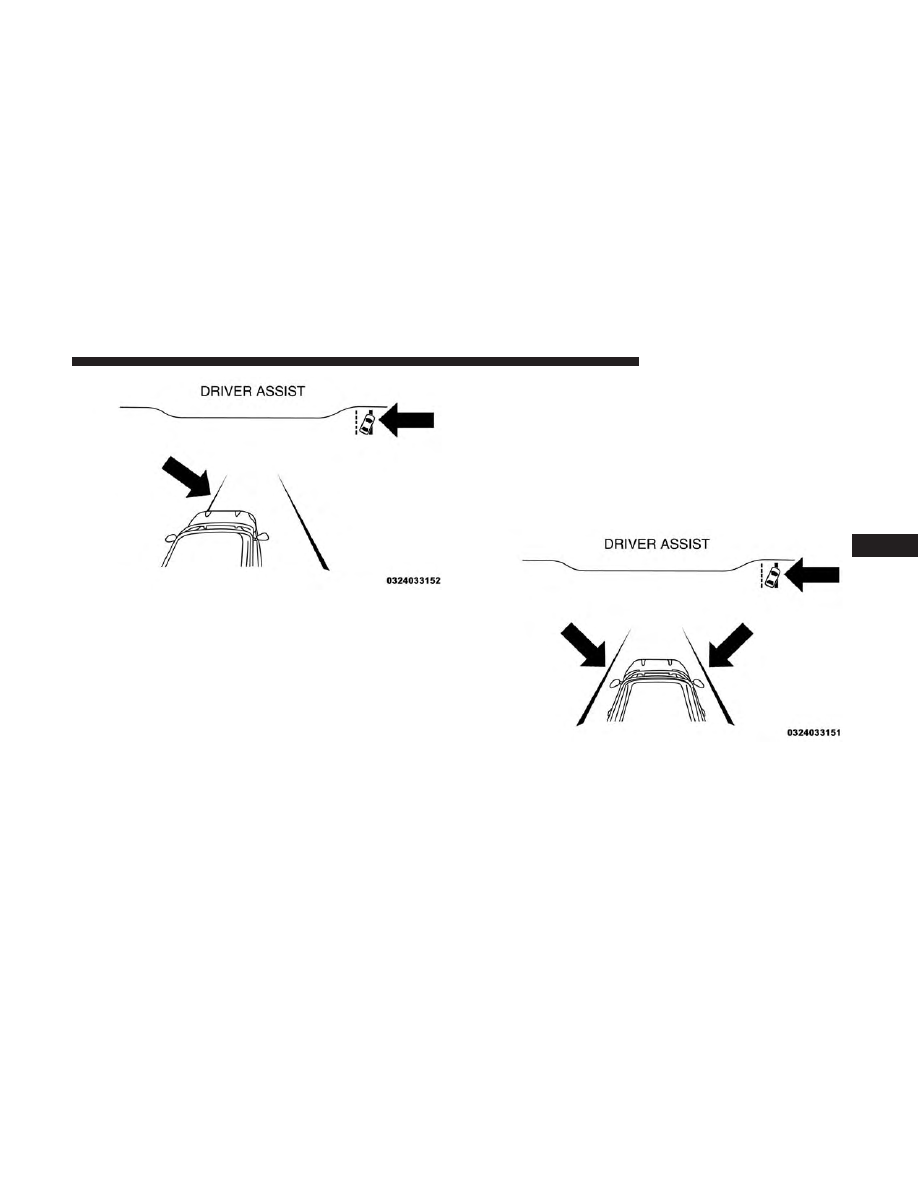

Left Lane Departure — Both Lanes Detected
• When the LaneSense system is on, the lane lines turn from

gray to white to indicate that both of the lane markings
have been detected. The LaneSense telltale is solid green
when both lane markings have been detected and the
system is “armed” to provide visual warnings in the
instrument cluster display and a torque warning in the
steering wheel if an unintentional lane departure occurs.

Lane Approached (Flashing Yellow Thick Line, Solid

Yellow Thin Line/Flashing Yellow Telltale)

Lanes Sensed (White Lines/Green Telltale)

STARTING AND OPERATING

283

• When the LaneSense system senses a lane drift situation,

the left thick lane line and left thin line turn solid yellow.
The LaneSense telltale changes from solid green to solid
yellow. At this time torque is applied to the steering
wheel in the opposite direction of the lane boundary.

• For example, if approaching the left side of the lane the

steering wheel will turn to the right.

• When the LaneSense system senses the lane has been

approached and is in a lane departure situation, the left
thick lane line flashes yellow (on/off) and the left thin

line remains solid yellow. The LaneSense telltale changes
from solid yellow to flashing yellow. At this time torque
is applied to the steering wheel in the opposite direction
of the lane boundary.

• For example, if approaching the left side of the lane the

steering wheel will turn to the right.

NOTE:

The LaneSense system operates with the similar

behavior for a right lane departure.

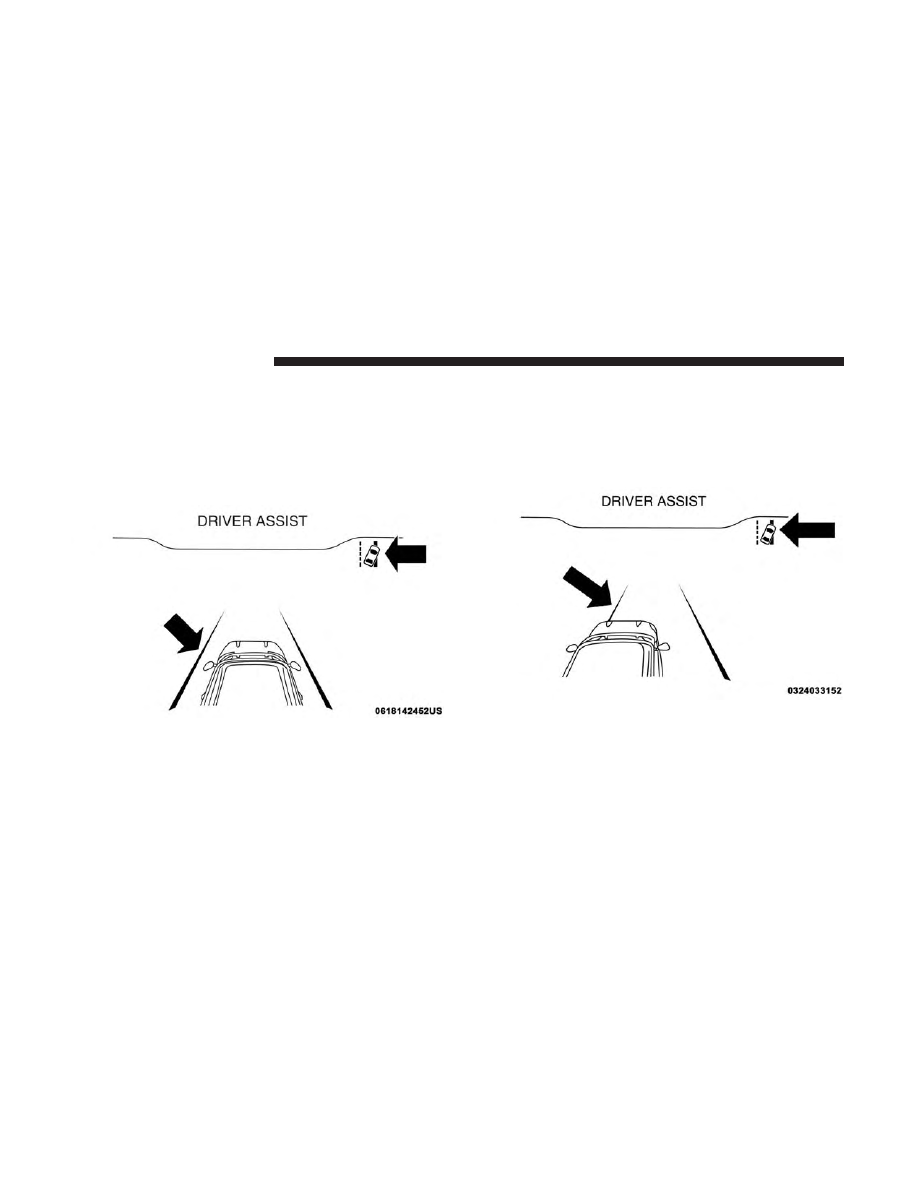

Lane Sensed (Solid Yellow Lines/Solid Yellow Telltale)

Lane Approached (Flashing Yellow Thick Line, Solid

Yellow Thin Line/Flashing Yellow Telltale)

284

STARTING AND OPERATING

Dodge Charger (2019 year). Manual - part 17
