5. Remove the Speed Limit sticker from the instrument

panel after the tire has been repaired.

6. Replace the Sealant Bottle (4) and Sealant Hose (3)

assembly at an authorized dealer as soon as possible.
Refer to “(F) Sealant Bottle And Hose Replacement”.

NOTE:

When having the tire serviced, advise the autho-

rized dealer or service center that the tire has been sealed
using the Tire Service Kit.

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (3) (clear in color).

2. Locate the red colored round Sealant Bottle release

button at the lower right hand corner of the kit.

3. Push and hold the Sealant Bottle release button, then

pull out the bottle holding the button.

4. Clean any remaining sealant from the Tire Service Kit

housing.

5. Position the new Sealant Bottle (4) in the housing so that

the Sealant Hose (3) aligns with the hose slot in the front
of the housing. Push and hold the Sealant Bottle release
button, then push the bottle into the housing by holding
the button. An audible click will be heard indicating the
bottle is locked into place. Release the button.

6. Verify that the cap is installed on the fitting at the end of

the Sealant Hose (3) and return the hose to its storage
area (located on top of the housing).

7. Return the Tire Service Kit to its storage location in the

vehicle.

JUMP STARTING

If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in another
vehicle, or by using a portable battery booster pack. Jump
starting can be dangerous if done improperly, so please
follow the procedures in this section carefully.

WARNING!

Do not attempt jump starting if the battery is frozen. It
could rupture or explode and cause personal injury.

CAUTION!

Do not use a portable battery booster pack or any other
booster source with a system voltage greater than
12 Volts or damage to the battery, starter motor, alter-
nator or electrical system may occur.

IN CASE OF EMERGENCY

317

NOTE:

When using a portable battery booster pack, follow

the manufacturer’s operating instructions and precautions.

Preparations For Jump Start

The battery is stored under an access cover in the trunk.
Remote battery posts are located on the right side of the
engine compartment for jump starting.

NOTE:

The remote battery posts are viewed by standing

on the right side of the vehicle looking over the fender.

WARNING!

• Take care to avoid the radiator cooling fan whenever

the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.

• Remove any metal jewelry such as rings, watch

bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your

skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

1. Apply the parking brake, shift the automatic transmis-

sion into PARK and place the ignition in the OFF
position.

2. Turn off the heater, radio, and all unnecessary electrical

accessories.

3. If using another vehicle to jump start the battery, park

the vehicle within the jumper cable’s reach, apply the
parking brake and make sure the ignition is OFF.

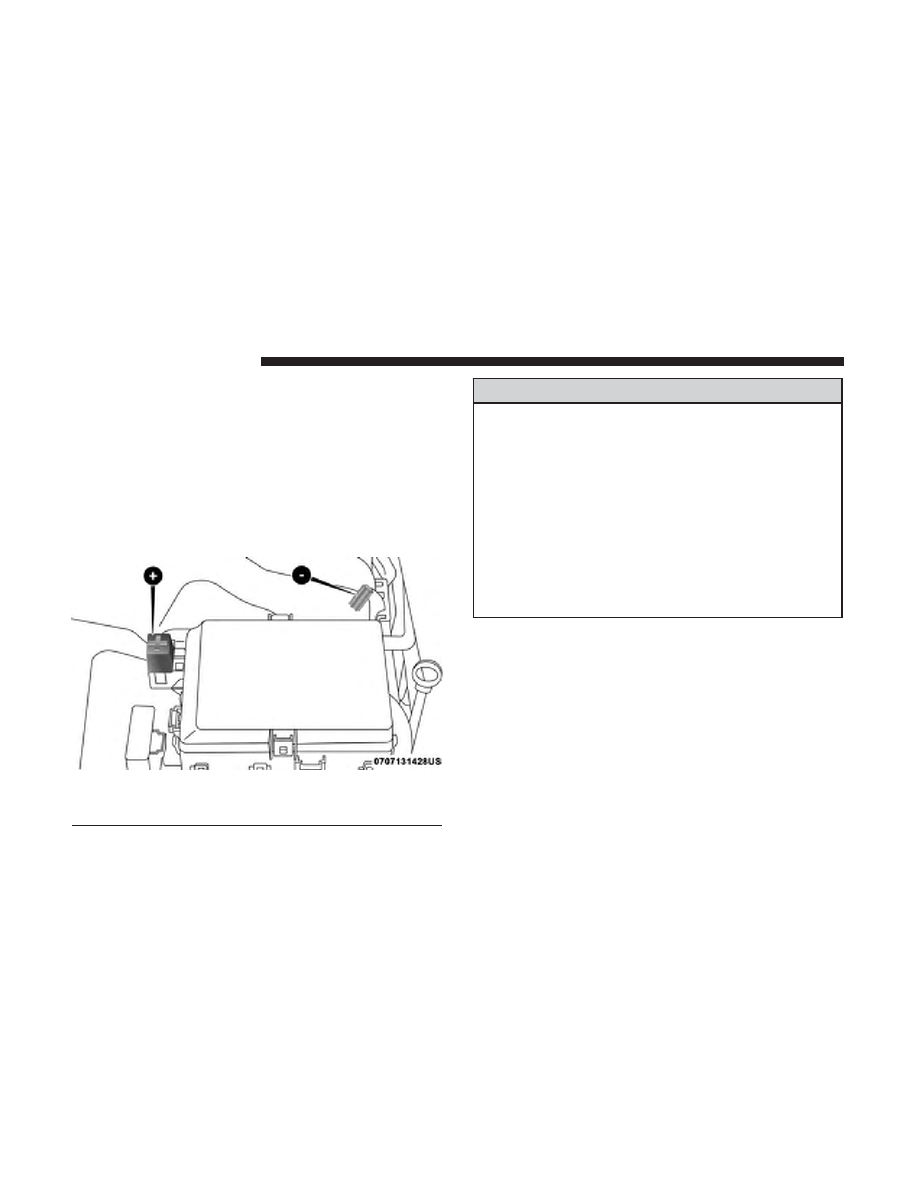

Jump Starting Locations

(+) — Remote Positive Post
(-) — Remote Negative Post

318

IN CASE OF EMERGENCY

WARNING!

Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.

Jump Starting Procedure

WARNING!

Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.

CAUTION!

Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.

Connecting The Jumper Cables

1. Connect the positive (+) end of the jumper cable to the

remote positive (+) post of the vehicle with the dis-
charged battery.

2. Connect the opposite end of the positive (+) jumper

cable to the positive (+) post of the booster battery.

3. Connect the negative (-) end of the jumper cable to the

negative (-) post of the booster battery.

4. Connect the opposite end of the negative (-) jumper

cable to the remote negative (-) post of the vehicle with
the discharged battery.

WARNING!

Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.

IN CASE OF EMERGENCY

319

6. Once the engine is started, remove the jumper cables in

the reverse sequence:

Disconnecting The Jumper Cables

1. Disconnect the negative (-) end of the jumper cable from

the remote negative (-) post of the vehicle with the
discharged battery.

2. Disconnect the opposite end of the negative (-) jumper

cable from the negative (-) post of the booster battery.

3. Disconnect the positive (+) end of the jumper cable from

the positive (+) post of the booster battery.

4. Disconnect the opposite end of the positive (+) jumper

cable from the remote positive (+) post of the vehicle
with the discharged battery.

If frequent jump starting is required to start your vehicle
you should have the battery and charging system in-
spected at an authorized dealer.

CAUTION!

Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged

(Continued)

CAUTION! (Continued)

in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On highways — slow down.
• In city traffic — while stopped, place the transmission in

NEUTRAL, but do not increase the engine idle speed.

NOTE:

There are steps that you can take to slow down an

impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C

system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum

heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.

320

IN CASE OF EMERGENCY

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.

CAUTION!

Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads 240°F (116°C) or
greater pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range 200–230°F (93–110°C).
If the pointer remains at 240°F (116°C) or greater and
you hear a chime, turn the engine off immediately and
call for service.

MANUAL PARK RELEASE — 8–SPEED
TRANSMISSION

WARNING!

Always secure your vehicle by fully applying the
parking brake before activating the Manual Park Re-
lease. In addition, you should be seated in the driver’s
seat with your foot firmly on the brake pedal when
activating the Manual Park Release. Activating the
Manual Park Release will allow your vehicle to roll
away if it is not secured by the parking brake, or by
proper connection to a tow vehicle. Activating the
Manual Park Release on an unsecured vehicle could
lead to serious injury or death for those in or around
the vehicle.

In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery), a
Manual Park Release is available.

IN CASE OF EMERGENCY

321

Follow these steps to use the Manual Park Release:

1. Firmly apply the parking brake.

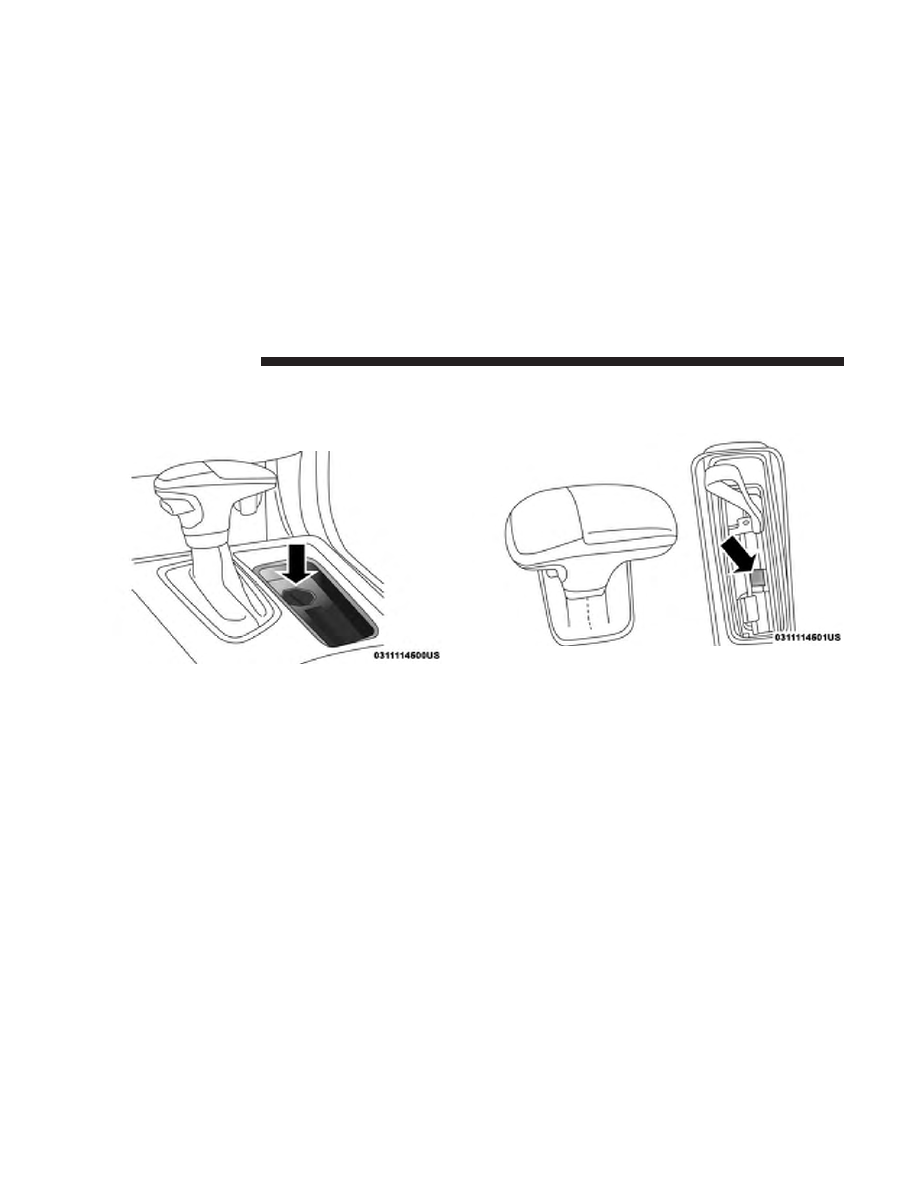

2. Remove the console storage bin.

3. Remove the plastic cover under the bin by using the slot

provided to access the Manual Park Release lever.

4. Using a small screwdriver or similar tool, fish the tether

strap up through the opening in the console base.

5. Press and maintain firm pressure on the brake pedal.

6. Insert the screwdriver into the slot in the center of the

lever, and disengage the lever locking tab by pushing it
to the right.

7. While holding the locking tab in the disengaged posi-

tion, pull the tether strap to rotate the lever up and
rearward, until it locks in place in the vertical position.
The vehicle is now out of PARK and can be moved.
Release the parking brake only when the vehicle is
securely connected to a tow vehicle.

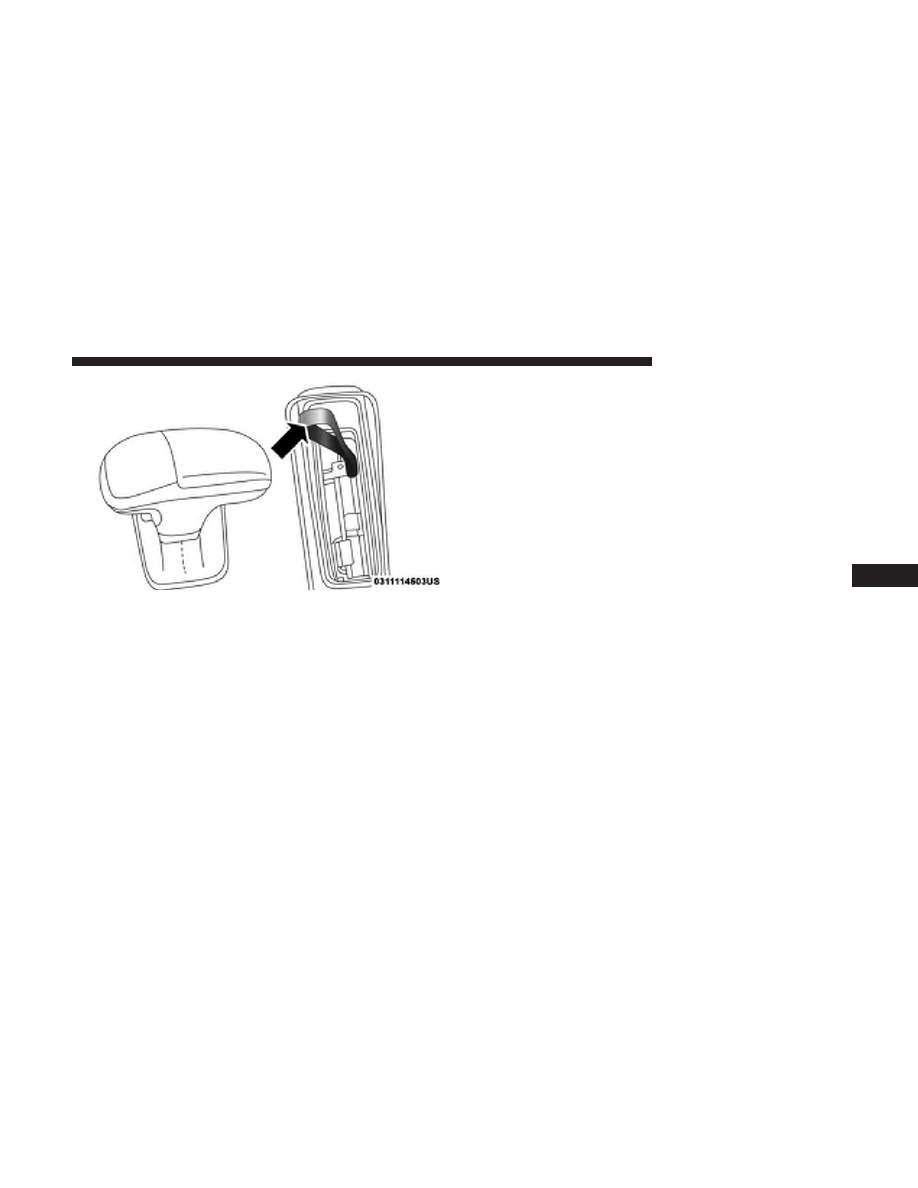

Console Storage Bin

Locking Tab

322

IN CASE OF EMERGENCY

To Reset The Manual Park Release:

1. Push the latch (at the base of the lever, on the rear side)

rearward (away from the lever) to unlatch the lever.

2. Rotate the Manual Park Release lever forward and

down, to its original position, until the locking tab snaps
into place to secure the lever.

3. Pull up gently on the tether strap to confirm that the

lever is locked in its stowed position.

4. Tuck the tether strap into the base of the console.

Reinstall the Manual Park Release cover and the console
storage bin.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand, or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Push and hold the lock button on the gear selector.
Then, shift back and forth between DRIVE and REVERSE
while gently pressing the accelerator. Use the least amount
of accelerator pedal pressure that will maintain the rocking
motion, without spinning the wheels or racing the engine.

NOTE:
• Shifts between DRIVE and REVERSE can only be

achieved at wheel speeds of 5 mph (8 km/h) or less.
Whenever the transmission remains in NEUTRAL for
more than two seconds, you must press the brake pedal
to engage DRIVE or REVERSE.

• Push the ⬙ESC Off⬙ switch, to place the Electronic

Stability Control (ESC) system in

⬙Partial Off⬙ mode,

before rocking the vehicle. Refer to “Electronic Brake
Control System” in “Safety” for further information.
Once the vehicle has been freed, push the

⬙ESC Off⬙

switch again to restore

⬙ESC On⬙ mode.

Tether Strap

IN CASE OF EMERGENCY

323

WARNING!

Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.

CAUTION!

• Racing the engine or spinning the wheels may lead

to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL

(Continued)

CAUTION! (Continued)

for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of transmission failure during pro-
longed efforts to free a stuck vehicle.

• When “rocking” a stuck vehicle by shifting between

DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may
result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).

324

IN CASE OF EMERGENCY

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled
vehicle using a commercial towing service.

Towing Condition

Wheels OFF The Ground

Automatic Transmission

Flat Tow

NONE

If transmission is operable:

• Transmission in NEUTRAL

• 30 mph (48 km/h) max speed

• 30 miles (48 km) max distance

Wheel Lift Or Dolly Tow

Front

NOT ALLOWED

Rear

NOT RECOMMENDED

Flatbed

ALL

BEST METHOD

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed.

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.

If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to

⬙Manual Park Release⬙ in this section

for instructions on shifting the transmission out of PARK
for towing.

IN CASE OF EMERGENCY

325

CAUTION!

• DO NOT use sling-type equipment when towing.

Vehicle damage may occur.

• When securing the vehicle to a flatbed truck, do not

attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.

• The manufacturer does not recommend towing this

vehicle using a tow dolly. Vehicle damage may occur.

The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed. If flatbed
equipment is not available, and the transmission is oper-
able, the vehicle may be flat towed (with all four wheels on
the ground) under the following conditions:
• The transmission must be in NEUTRAL. Refer to ⬙Manual

Park Release

⬙ in this section for instructions on shifting the

transmission to NEUTRAL when the engine is off.

• The towing distance must not exceed 30 miles (48 km).
• The towing speed must not exceed 30 mph (48 km/h).

If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 30
miles (48 km), then the only acceptable method of towing
is with a flatbed truck.

CAUTION!

Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Damage
from improper towing is not covered under the New
Vehicle Limited Warranty.

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)

This vehicle is equipped with an Enhanced Accident
Response System.

Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Enhanced Accident Re-
sponse System (EARS) function.

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data that
will assist in understanding how a vehicle’s systems per-
formed under certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle.

Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Event Data Recorder (EDR).

326

IN CASE OF EMERGENCY

SERVICING AND MAINTENANCE

CONTENTS

䡵 SCHEDULED SERVICING . . . . . . . . . . . . . . . . .329

▫ 6.2L Supercharged Engine . . . . . . . . . . . . . . . . .329

䡵 ENGINE COMPARTMENT . . . . . . . . . . . . . . . . .333

▫ 6.2L Supercharged Engine . . . . . . . . . . . . . . . .333
▫ Checking Oil Level . . . . . . . . . . . . . . . . . . . . .334
▫ Adding Washer Fluid . . . . . . . . . . . . . . . . . . .334
▫ Maintenance-Free Battery . . . . . . . . . . . . . . . . .335

䡵 DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . .336

▫ Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . .336
▫ Engine Oil Filter . . . . . . . . . . . . . . . . . . . . . . .338
▫ Engine Air Cleaner Filter . . . . . . . . . . . . . . . . .338
▫ Air Conditioner Maintenance . . . . . . . . . . . . . .339
▫ Accessory Drive Belt Inspection . . . . . . . . . . . .342
▫ Body Lubrication . . . . . . . . . . . . . . . . . . . . . .343

▫ Windshield Wiper Blades . . . . . . . . . . . . . . . . .343
▫ Exhaust System . . . . . . . . . . . . . . . . . . . . . . . .346
▫ Cooling System . . . . . . . . . . . . . . . . . . . . . . . .348
▫ Brake System . . . . . . . . . . . . . . . . . . . . . . . . .352
▫ Automatic Transmission . . . . . . . . . . . . . . . . . .354
▫ Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . .355

䡵 RAISING THE VEHICLE . . . . . . . . . . . . . . . . . .356
䡵 TIRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .356

▫ Tire Safety Information . . . . . . . . . . . . . . . . . .356
▫ Tires — General Information . . . . . . . . . . . . . .365
▫ Tire Types . . . . . . . . . . . . . . . . . . . . . . . . . . . .371
▫ Spare Tires — If Equipped . . . . . . . . . . . . . . . .372
▫ Wheel And Wheel Trim Care . . . . . . . . . . . . . .375
▫ Tire Chains (Traction Devices) . . . . . . . . . . . . .376

▫ Tire Rotation Recommendations. . . . . . . . . . . . .376

䡵 DEPARTMENT OF TRANSPORTATION UNIFORM

TIRE QUALITY GRADES . . . . . . . . . . . . . . . . . .377

▫ Treadwear . . . . . . . . . . . . . . . . . . . . . . . . . . . .377
▫ Traction Grades . . . . . . . . . . . . . . . . . . . . . . . .377
▫ Temperature Grades . . . . . . . . . . . . . . . . . . . . .378

䡵 VEHICLE STORAGE . . . . . . . . . . . . . . . . . . . . .378

▫ Battery Storage Mode . . . . . . . . . . . . . . . . . . . .379

䡵 BODYWORK . . . . . . . . . . . . . . . . . . . . . . . . . . .379

▫ Protection From Atmospheric Agents . . . . . . . .379
▫ Body And Underbody Maintenance . . . . . . . . . .380
▫ Preserving The Bodywork . . . . . . . . . . . . . . . . .380

䡵 INTERIORS . . . . . . . . . . . . . . . . . . . . . . . . . . . .381

▫ Seats And Fabric Parts . . . . . . . . . . . . . . . . . . .381
▫ Plastic And Coated Parts. . . . . . . . . . . . . . . . . .382
▫ Leather Parts . . . . . . . . . . . . . . . . . . . . . . . . . .382
▫ Glass Surfaces . . . . . . . . . . . . . . . . . . . . . . . . .383

328

SERVICING AND MAINTENANCE

SCHEDULED SERVICING

6.2L Supercharged Engine

The scheduled maintenance services listed in this manual
must be done at the times or mileages specified to protect
your vehicle warranty and ensure the best vehicle perfor-
mance and reliability. More frequent maintenance may be
needed for vehicles in severe operating conditions, such as
dusty areas and very short trip driving. Inspection and
service should also be done anytime a malfunction is
suspected.

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.

A “Oil Change Required” message will be displayed in the
instrument cluster and a single chime will sound, indicat-
ing that an oil change is necessary.

Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Have your vehicle serviced as
soon as possible, within the next 500 miles (800 km).

NOTE:
• The oil change indicator message will not monitor the

time since the last oil change. Change your vehicle’s oil
if it has been six months since your last oil change, even
if the oil change indicator message is NOT illuminated.

• Change your engine oil more often if you drive your

vehicle off-road/track usage for an extended period of
time.

• Under no circumstances should oil change intervals

exceed 6,000 miles (10,000 km) or six months, whichever
comes first.

An authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Cluster
Display” in “Getting To Know Your Instrument Panel” for
further information.

At Each Stop For Fuel
• Check the engine oil level. Refer to “Engine Compart-

ment” in this chapter for further information.

• Check the windshield washer solvent and add if re-

quired.

SERVICING AND MAINTENANCE

329

Once A Month
• Check tire pressure and look for unusual wear or

damage.

• Inspect the battery, and clean and tighten the terminals

as required.

• Check the fluid levels of the coolant reservoir, brake

master cylinder, and power steering (6.2L only), and add
as needed.

• Check all lights and other electrical items for correct

operation.

At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.

CAUTION!

Failure to perform the required maintenance items
may result in damage to the vehicle.

Maintenance Plan

Miles:

6,000

12,000

18,000

24,000

30,000

36,000

42,000

48,000

54,000

60,000

66,000

72,000

78,000

84,000

90,000

96,000

102,000

108,000

14,000

120,000

126,000

132,000

138,000

144,000

150,000

Or Months:

18 24 30 36 42 48 54 60 66

72 78 84 90 96 102 108 114 120 126 132 138 144 150

Or Kilometers:

10,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

10,000

120,000

130,000

140,000

150,000

160,000

170,000

180,000

190,000

200,000

210,000

220,000

230,000

240,000

250,000

Change the engine oil and engine oil filter.

Rotate the tires, rotate at the first sign of irregu-
lar wear, even if it occurs before scheduled
maintenance.

If using your vehicle for any of the following:
dusty or off-road conditions. Inspect the engine
air cleaner filter; replace if necessary.

330

SERVICING AND MAINTENANCE

Miles:

6,000

12,000

18,000

24,000

30,000

36,000

42,000

48,000

54,000

60,000

66,000

72,000

78,000

84,000

90,000

96,000

102,000

108,000

14,000

120,000

126,000

132,000

138,000

144,000

150,000

Or Months:

18 24 30 36 42 48 54 60 66

72 78 84 90 96 102 108 114 120 126 132 138 144 150

Or Kilometers:

10,000

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

10,000

120,000

130,000

140,000

150,000

160,000

170,000

180,000

190,000

200,000

210,000

220,000

230,000

240,000

250,000

Inspect the brake linings; replace if necessary.

Inspect the CV joints.

Inspect the exhaust system.

Adjust the parking brake on vehicles equipped
with four wheel disc brakes.

Change the rear axle fluid if using your vehicle
for any of the following: police, taxi, fleet or fre-
quent trailer towing.

Inspect the rear axle fluid.

Inspect front suspension, tie rod ends, and boot
seals, for cracks or leaks and all parts for dam-
age, wear, improper looseness or end play; re-
place if necessary.

Replace the engine air cleaner filter.

Replace the air conditioning filter.

Inspect and replace the PCV Valve if necessary

Replace the spark plugs – 6.2L Supercharged
Engine **

Flush and replace the engine coolant/intercooler
at 120 months if not done at 150,000 miles
(240,000 km).

SERVICING AND MAINTENANCE

331

** The spark plug change interval is mileage based only,
yearly intervals do not apply.

WARNING!

• You can be badly injured working on or around a

motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If you
have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.

• Failure to properly inspect and maintain your vehicle

could result in a component malfunction and effect
vehicle handling and performance. This could cause
an accident.

332

SERVICING AND MAINTENANCE

Content .. 18 19 20 21 ..
