Setting Name

Selectable Options

Channel Skip

List of Channels

NOTE:
SiriusXM can be programmed to designate a group of channels that are the most desirable to listen to or to exclude
undesirable channels while scanning. This feature allows you to select the channels you would like to skip.

Subscription Info

Sirius ID

NOTE:
New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your
radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription
Information screen to re-subscribe.
1. Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.
2. Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the

screen or visit the provider online.

SiriusXM Travel Link is a separate subscription and is available for U.S. residents only.

Restore Settings

After pressing the “Restore Settings” button on the touch-
screen the following settings will be available:

Setting Name

Selectable Options

Restore Settings

Cancel

NOTE:
When this feature is selected it will reset all settings to their default settings.

UNDERSTANDING YOUR INSTRUMENT PANEL

153

Clear Personal Data

After pressing the “Clear Personal Data” button on the
touchscreen, the following settings will be available:

Setting Name

Selectable Options

Clear Personal Data

Cancel

NOTE:
When the “Clear Personal Data” feature is selected it will remove all personal data including Bluetooth devices and
presets.

System Information

After pressing the “System Information” button on the
touchscreen, the following settings will be available:

Setting Name

Selectable Options

System Information

System Software Information Screen

NOTE:
When the “System Information” feature is selected, a “System Software Information” screen will appear, displaying
the system software version.

154

UNDERSTANDING YOUR INSTRUMENT PANEL

SRT Performance Pages

To access the SRT Performance Pages, press the “Apps”
button on the touchscreen then select the “SRT Perfor-
mance Pages” App from the list. Press the up or down
buttons on the touchscreen to cycle through the list.

WARNING!

Measurement of vehicle statistics with the SRT Perfor-
mance Pages is intended for off-highway or off-road
use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the limits
of the law. The capabilities of the vehicle as measured
by the Performance Pages must never be exploited in a
reckless or dangerous manner, which can jeopardize
the user’s safety or the safety of others. Only a safe,
attentive, and skillful driver can prevent accidents.

CAUTION!

Check engine oil level at every fuel fill-up. Running an
engine with a low oil level can cause severe engine
damage. Engine oil level must be maintained within
the safe zone on the engine oil dipstick or severe
engine damage may occur. Refer to the “Maintenance
Schedule” for further information.

The SRT Performance Pages include the following:

• Home
• Timers
• G-Force
• Gauges 1
• Gauges 2
• Engine
• Options

UNDERSTANDING YOUR INSTRUMENT PANEL

155

The following describes each feature and its operation:

Timers

When the Timers Page is selected you will be able to select
from following “Tickets”:
• Current

Pressing the “Current” button displays a “real time” sum-
mary of performance timers.
• Last

Pressing the “Last” button displays the last recorded run of
performance timers.
• Best

Pressing the “Best” button displays the best recorded run
of performance timers, except for braking data.
• Save

Pressing the “Save” button will let you save the last run.
Any saved run over 10, will overwrite the last saved run
for Uconnect System storage. The operation of the Save
feature is listed below:

• With a USB jump drive installed, press the “USB” button

to save runs to the jump drive.

• With an SD Card installed, press the “SD Card” to save

runs to the SD Card.

• Press the “Uconnect” button to save the runs to the

Owner web page.

• Press the “Cancel” button to view the last timer “Ticket.”

The “Tickets” contain the timers listed below:
• 0-60 MPH (0-100 km/h)

Displays the time it takes for the vehicle to go from 0 to
60 mph (0 to 100 km/h).
• ⅛ Mile (200 meter)

Displays the time it takes for the vehicle to go an ⅛ Mile
(200 meters).
• ¼ mile (400 meter)

Displays the time it takes for the vehicle to go an ¼ mile
(400 meters).
• Brake Distance

Displays the distance it takes the vehicle to make a full
stop. Contains current and last data for distance and start
– from speed.

156

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

The distance measurement will be aborted if the

brake pedal is released before the vehicle comes to a
complete stop.
• Brake Speed

Displays the speed the vehicle is traveling when the brake
pedal is depressed.

NOTE:

Brake distance and speed timers will only display

⬙ready⬙ when vehicle is traveling at greater than 30 MPH
(48 km/h).

G-Force

When selected, this screen displays all four G-Force values
(two lateral and two longitudinal) as well as steering angle.

When a G-Force greater than zero is measured, the display
will update the value real-time.

Gauges 1

When selected, this screen displays the following values:
• Oil Temperature

Displays the actual oil temperature.

• Oil Pressure

Displays the actual oil pressure.
• Battery Voltage

Displays the actual battery voltage.

Gauges 2

When selected, this screen displays the following values:
• Coolant Temperature

Displays the actual coolant temperature.
• Oil Temperature

Displays the actual oil temperature.
• Intake Air Temperature

Displays the actual intake air temperature.
• Oil Pressure

Displays the actual oil pressure.
• Battery Voltage

Displays the actual battery voltage.

UNDERSTANDING YOUR INSTRUMENT PANEL

157

Engine

When selected, this screen displays the following values:
• Speed (mph)

Displays the actual speed.
• Horsepower (hp)

Displays the actual horsepower.
• Torque (ft-lb)

Displays the actual torque.
• Oil Pressure (psi)

Displays the actual oil pressure.

Options

When selected, this screen allows you to set your SRT
home page picture, and configure the vehicle color shown
in the G-Force screen.

UCONNECT RADIOS — IF EQUIPPED

For detailed information about your Uconnect radio, refer
to your Uconnect Owner’s Manual Supplement.

IPOD/USB/MP3 CONTROL — IF EQUIPPED

Located at the rear area of the center console, this feature
allows an iPod or external USB device to be plugged into
the USB port.

SD Card Slot, AUX Jack, And USB Port

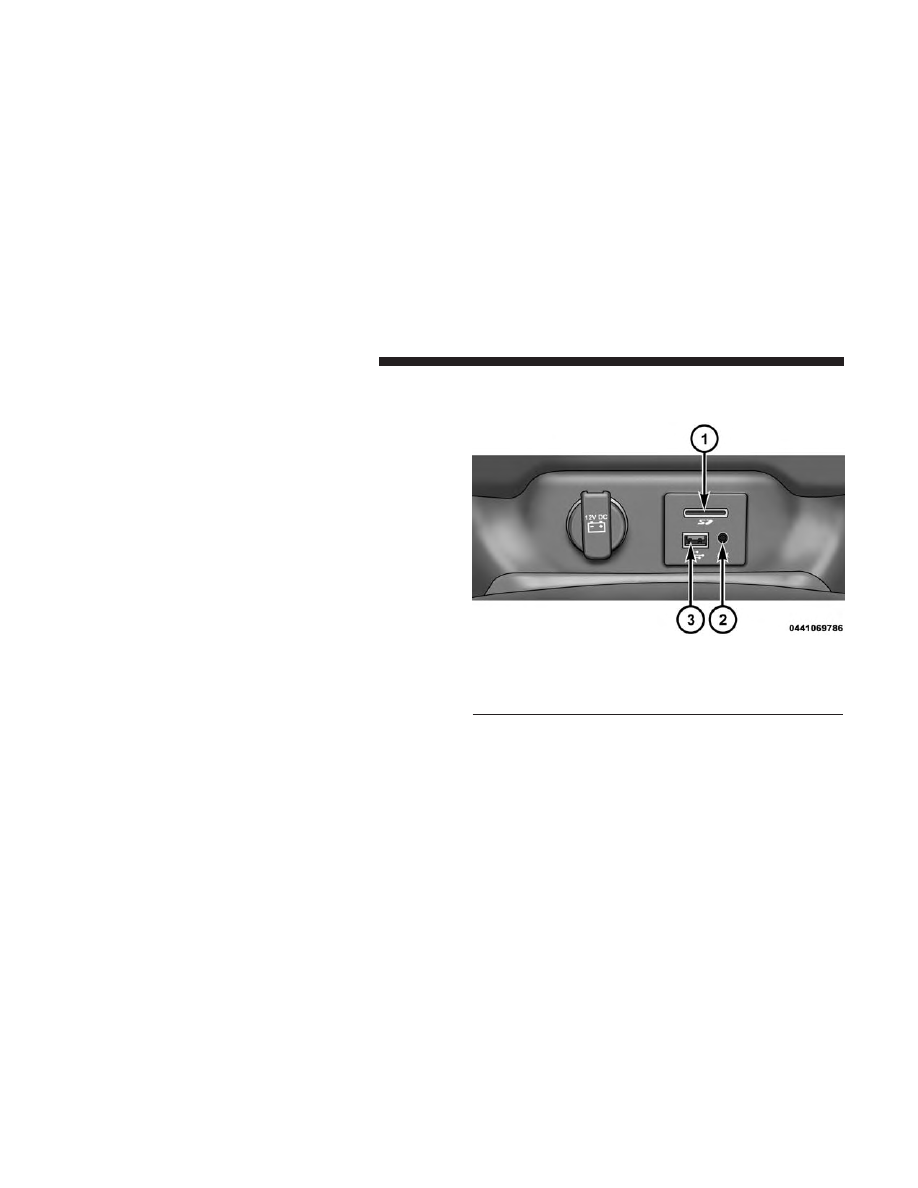

1 — SD Card Slot
2 — AUX Jack
3 — USB Port

158

UNDERSTANDING YOUR INSTRUMENT PANEL

iPod control supports Mini, 4G, Photo, Nano, 5G iPod and
iPhone devices. Some iPod software versions may not fully
support the iPod control features. Please visit Apple’s
website for software updates.

For further information, refer to the Uconnect Owner’s
Manual Supplement.

STEERING WHEEL AUDIO CONTROLS

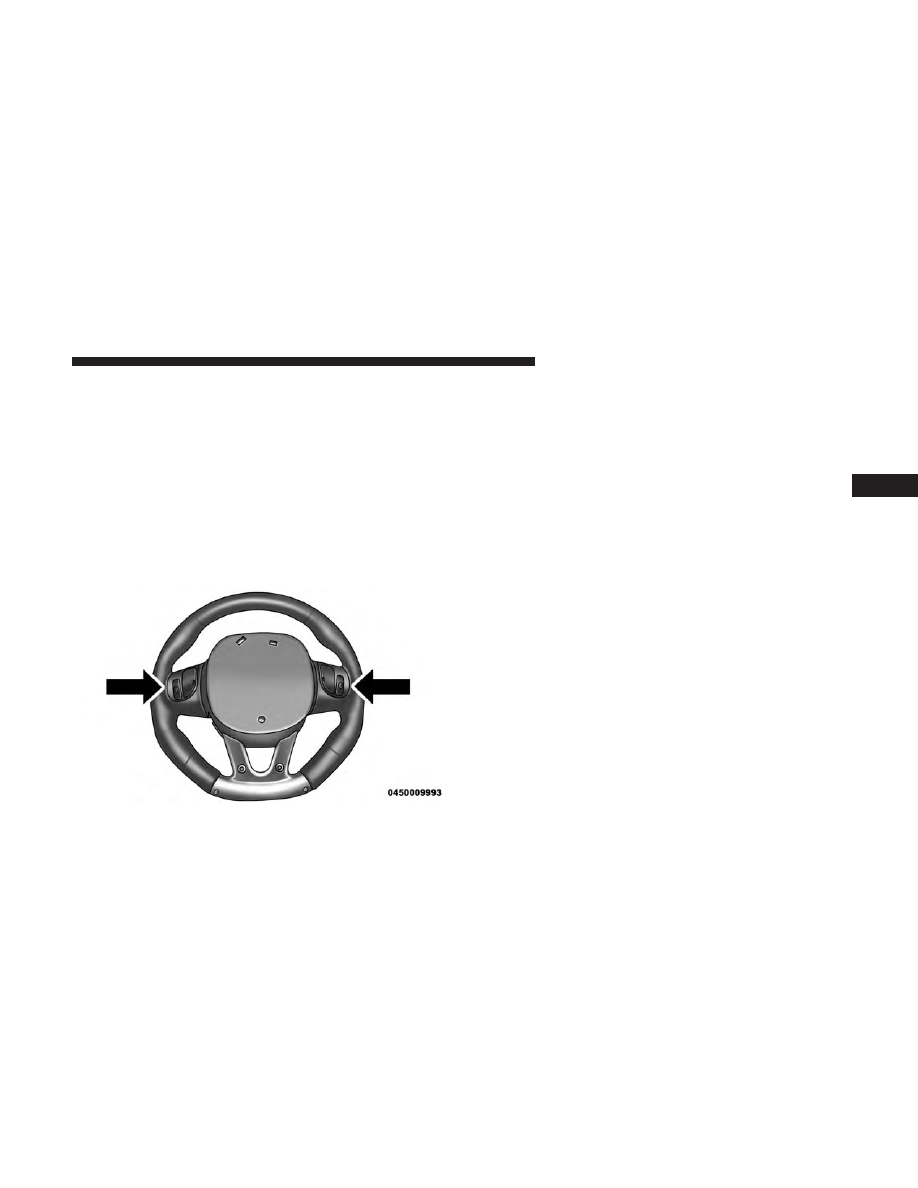

The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.

The right hand control is a rocker type switch with a
push-button in the center. Pushing the top of the switch
will increase the volume, and pushing the bottom of the
switch will decrease the volume.

The button located in the center of the right hand control
will switch modes to Radio or other valid audio source.

The left hand control is a rocker type switch with a
push-button in the center. The function of the left hand
control is different depending on which mode you are in.

The following describes the left hand control operation in
each mode.

Radio Operation

Pushing the top of the switch will SEEK up for the next
listenable station and pushing the bottom of the switch will
SEEK down for the next listenable station.

The button located in the center of the left hand control will
tune to the next pre-set station that you have programmed
in the radio pre-set buttons.

Remote Sound System Controls

(Back View Of Steering Wheel)

UNDERSTANDING YOUR INSTRUMENT PANEL

159

RADIO ANTENNA

The am/fm radio antenna is located in the windshield.

The Satellite/Navigation antenna is located in the rear
liftgate, while the cellular phone antenna is on the wind-
shield behind the interior rearview mirror.

RADIO OPERATION AND MOBILE DEVICES

Under certain conditions, an “on” mobile device in your
vehicle can cause erratic or noisy performance from your
radio. This condition may be lessened or eliminated by
relocating the mobile device antenna. This condition is not
harmful to the radio. If your radio performance does not
satisfactorily “clear” by the repositioning of the antenna, it
is recommended that the radio volume be turned down or
off during mobile device operation when not using
Uconnect (if equipped).

General Information

This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be

received including interference that may cause unde-
sired operation.

NOTE:

• The transmitter has been tested and it complies with

FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user’s authority to operate the
device.

• The term IC before the certification/registration number

only signifies that Industry Canada technical specifica-
tions were met.

160

UNDERSTANDING YOUR INSTRUMENT PANEL

CLIMATE CONTROLS

The Climate Control System allows you to regulate the
temperature, amount, and direction of air circulating
throughout the vehicle. The controls are located on the
instrument panel below the radio.

Overview

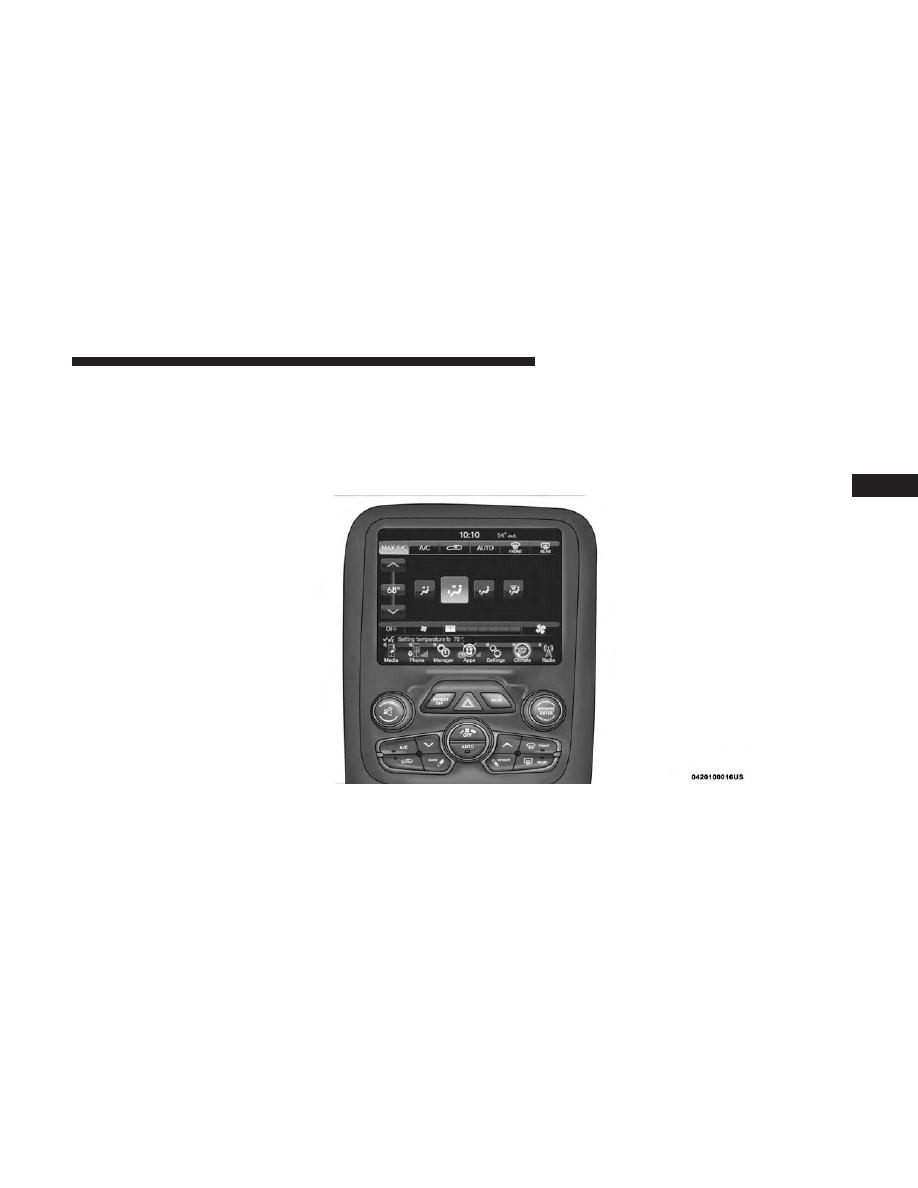

8.4 NAV Temperature Controls

UNDERSTANDING YOUR INSTRUMENT PANEL

161

Control Descriptions

Icon

Description

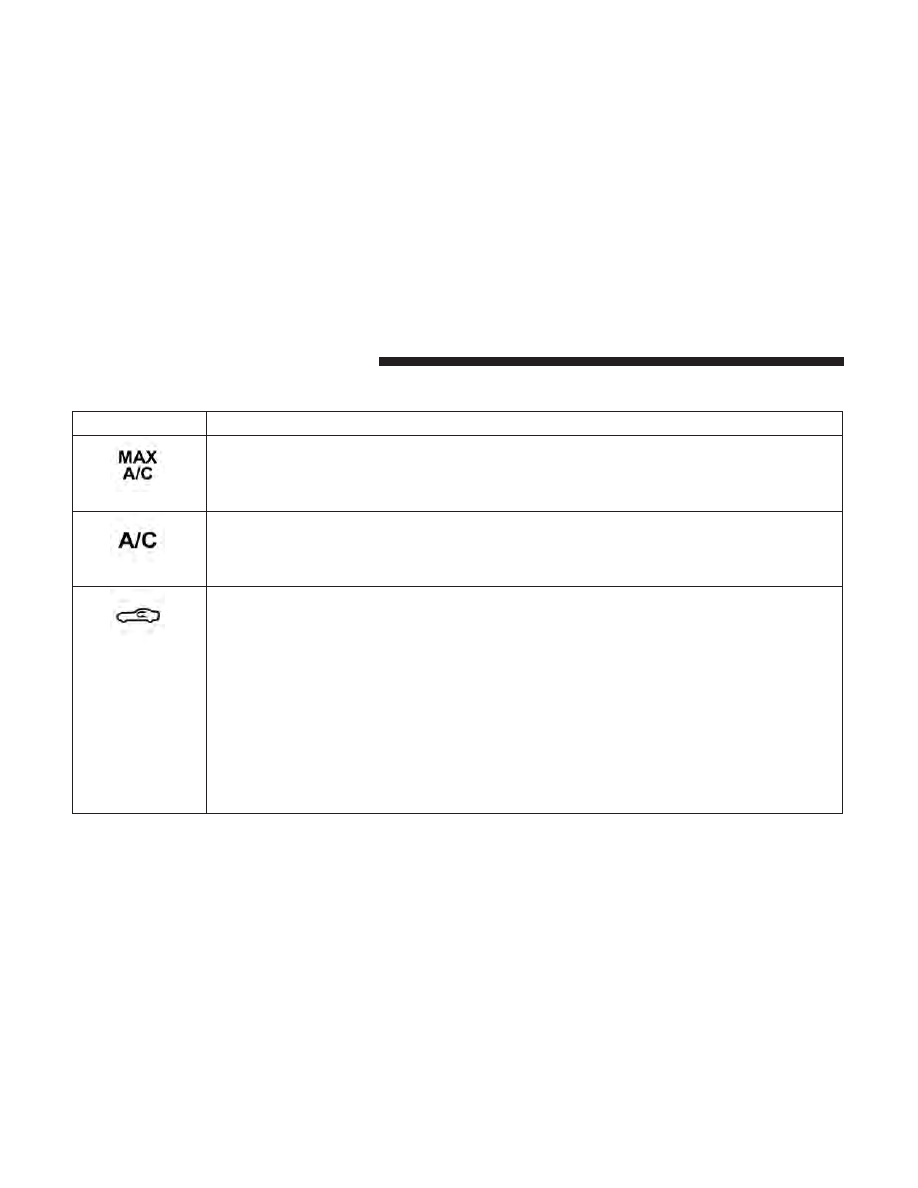

MAX A/C Button
Press and release to change the current setting, the indicator illuminates when MAX A/C is on.
Performing this function again will cause the MAX A/C operation to switch into manual mode
and the MAX A/C indicator will turn off.
A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is on. Per-
forming this function again will cause the A/C operation to switch into manual mode and the
A/C indicator will turn off.
Recirculation Button
Press and release this button to change the system between recirculation mode and outside air
mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high
humidity are present.

NOTE:

• Continuous use of the Recirculation mode may make the inside air stuffy and window fog-

ging may occur. Extended use of this mode is not recommended.

• The use of the Recirculation mode in cold or damp weather could cause windows to fog on

the inside, because of moisture buildup inside the vehicle. Select the outside air position for
maximum defogging.

• Recirculation can be used in all modes except for Defrost.

• The A/C can be deselected manually without disturbing the mode control selection.

162

UNDERSTANDING YOUR INSTRUMENT PANEL

Icon

Description

AUTO Button — If Equipped
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Performing this function will cause the system to switch between manual mode and
automatic modes. Refer to “Automatic Operation” for more information.
Front Defrost Button
Press and release to change the current airflow setting to Defrost mode. The indicator illumi-
nates when this feature is on. Air comes from the windshield and side window demist outlets.
When the defrost button is selected, the blower level will increase. Use Defrost mode with maxi-
mum temperature settings for best windshield and side window defrosting and defogging.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn ON the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 10 minutes.

UNDERSTANDING YOUR INSTRUMENT PANEL

163

Icon

Description

Faceplate Knob

Touchscreen

Buttons

Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There
are seven blower speeds available. Adjusting the blower will cause automatic mode to switch to
manual operation. The speeds can be selected using either the blower control knob on the face-
plate or the buttons on the touchscreen.

• Faceplate: The blower speed increases as you turn the blower control knob clockwise from

the lowest blower setting. The blower speed decreases as you turn the blower control knob
counterclockwise.

• Touchscreen: Use the small blower icon to reduce the blower setting and the large blower

icon to increase the blower setting. Blower can also be selected by pressing the blower bar
area between the icons.

164

UNDERSTANDING YOUR INSTRUMENT PANEL

Icon

Description

Panel Mode

Bi-Level Mode

Floor Mode

Mix Mode

Panel Mode

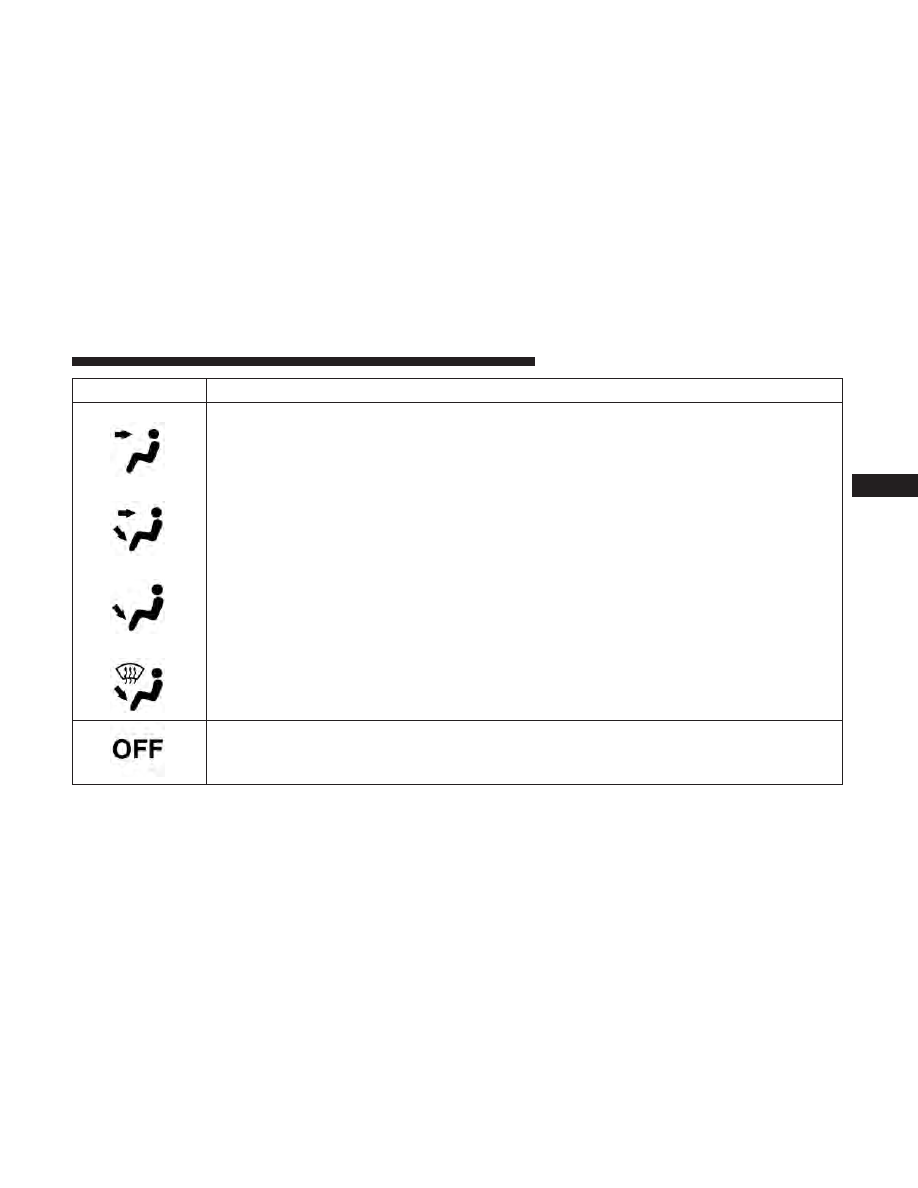

Air comes from the outlets in the instrument panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be
moved up and down or side to side to regulate airflow direction. There is a shut off wheel lo-
cated below the air vanes to shut off or adjust the amount of airflow from these outlets.
Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets.

NOTE:

BI-LEVEL mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.
Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.
Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works
best in cold or snowy conditions that require extra heat to the windshield. This setting is good
for maintaining comfort while reducing moisture on the windshield.

Climate Control OFF Button
Press and release this button to turn the Climate Control on/off.

UNDERSTANDING YOUR INSTRUMENT PANEL

165

Icon

Description

Driver Temperature Up And Down Button

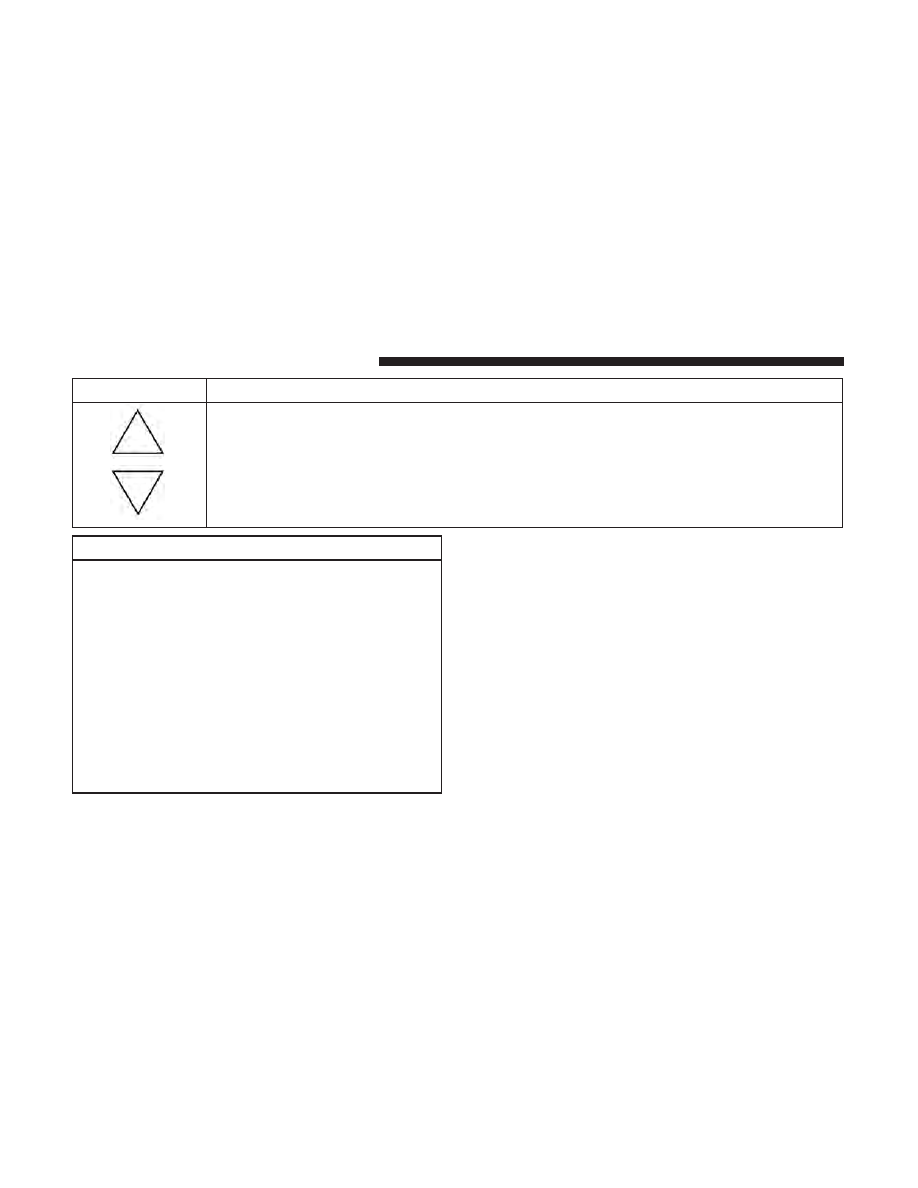

Provides the driver with temperature control. Push the up button on the faceplate for warmer
temperature settings or on the touchscreen, press and slide the temperature bar button towards
the red arrow for warmer temperature settings. Push the down button on the faceplate for
cooler temperature settings or on the touchscreen, press and slide the temperature bar button
towards the blue arrow for cooler temperature settings.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the win-
dow.

• Keep all objects a safe distance from the window.

Climate Control Functions

A/C (Air Conditioning)

The Air Conditioning (A/C) button allows the operator to
manually activate or deactivate the air conditioning sys-
tem. When the air conditioning system is turned on, cool
dehumidified air will flow through the outlets into the
cabin. For improved fuel economy, press the A/C button to
turn off the air conditioning and manually adjust the
blower and airflow mode settings. Also, make sure to select
only Panel, Bi-Level or Floor modes.

NOTE:

• For Manual Climate Controls, if the system is in Mix,

Floor or Defrost Mode, the A/C can be turned off, but
the A/C system shall remain active to prevent fogging of
the windows.

166

UNDERSTANDING YOUR INSTRUMENT PANEL

• If fog or mist appears on the windshield or side glass,

select Defrost mode and adjust blower speed if needed.

• If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (located
in front of the radiator), for an accumulation of dirt or
insects. Clean with a gentle water spray from the front of
the radiator and through the condenser.

MAX A/C

MAX A/C sets the control for maximum cooling perfor-
mance.

Press and release to toggle between MAX A/C and the
prior settings. The button illuminates when MAX A/C is
on.

In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the selected
setting and MAX A/C to exit.

Recirculation

When outside air contains smoke, odors, or high humidity,
or if rapid cooling is desired, you may wish to recirculate
interior air by pressing the Recirculation control button.
The recirculation indicator will illuminate when this button

is selected. Press the button a second time to turn off the
Recirculation mode and allow outside air into the vehicle.

NOTE:

In cold weather, use of recirculation mode may lead

to excessive window fogging. The recirculation feature
may be unavailable (button on the touchscreen greyed out)
if conditions exist that could create fogging on the inside of
the windshield. On systems with Manual Climate Controls,
the Recirculation mode is not allowed in Defrost mode to
improve window clearing operation. Recirculation will be
disabled automatically if this mode is selected. Attempting
to use Recirculation while in this mode will cause the LED
in the control button to blink and then turn off.

Automatic Temperature Control (ATC) — If
Equipped

Automatic Operation

1. Push the AUTO button on the faceplate, or the AUTO

button on the touchscreen on the Automatic Tempera-
ture Control (ATC) Panel.

2. Adjust the temperature you would like the system to

maintain by adjusting the driver and passenger tem-
perature control buttons. Once the desired temperature
is displayed, the system will achieve and automatically
maintain that comfort level.

UNDERSTANDING YOUR INSTRUMENT PANEL

167

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.

NOTE:

• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric units

by selecting the US/Metric customer-programmable fea-
ture. Refer to “Uconnect Settings” in this section of the
manual.

To provide you with maximum comfort in the Automatic
mode during cold start-ups, the blower fan will remain on
low until the engine warms up. The blower will increase in
speed and transition into Auto mode.

Manual Operation Override

This system offers a full complement of manual override
features. The AUTO symbol in the front ATC display will
be turned off when the system is being used in the manual
mode.

NOTE:

The system will not automatically sense the pres-

ence of fog, mist or ice on the windshield. DEFROST mode
must be manually selected to clear the windshield and side
glass.

Operating Tips

NOTE:

Refer to the chart at the end of this section for

suggested control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corrosion
protection and to protect against engine overheating. OAT
coolant (conforming to MS.90032) is recommended. Refer
to “Maintenance Procedures” in “Maintaining Your Ve-
hicle” for proper coolant selection.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is functioning
properly and the proper amount, type, and concentration
of coolant is used. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for proper coolant selection.
Use of the air Recirculation mode during Winter months is
not recommended because it may cause window fogging.

168

UNDERSTANDING YOUR INSTRUMENT PANEL

Content .. 8 9 10 11 ..
