Dodge Viper (2017 year). Manual

Trip A

Push and release the up or down arrow button
until the Trip A icon is highlighted. The Trip A
information will display the following:

• Distance
• Average Speed
• Elapsed Time

Hold the right arrow button to reset all the information.

Trip B — If Equipped

Push and release up or down arrow button until
the Trip B icon is highlighted. The Trip B infor-
mation will display the following:

• Distance
• Average Speed
• Elapsed Time

Hold the right arrow button to reset all the information.

Audio

Push and release the up or down arrow button
until the Audio display icon is highlighted. Push
and release the right arrow button to display the
active source.

Stored Messages

Push and release the up or down arrow button
until the Messages Menu item is highlighted.
This feature shows the number of stored warning
messages. Pushing the right arrow button will

allow you to see what the stored messages are.

When no messages are present, main menu icon will be a
closed envelope.

Screen Setup Driver Selectable Items

Upper Left

• None
• Compass
• Temperature
• Range To Empty (RTE)

UNDERSTANDING YOUR INSTRUMENT PANEL

137

• Average Fuel
• Current Fuel
• Trip A
• Trip B
• Elapsed Time
• Oil Pressure
• Oil Temperature
• Battery
• Coolant Temperature

Upper Right

• None
• Compass
• Temperature
• Range To Empty (RTE)
• Average Fuel
• Current Fuel
• Trip A

• Trip B
• Elapsed Time
• Oil Pressure
• Oil Temperature
• Battery
• Coolant Temperature
• Right Arrow Button

Restore To Defaults (Restores All Settings To Default
Settings)

Push and release the right arrow button to confirm.

Digital Speed

• On
• Off

138

UNDERSTANDING YOUR INSTRUMENT PANEL

SRT Performance

WARNING!

Measurement of vehicle statistics with the Perfor-
mance Features is intended for off-highway or off-road
use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the limits
of the law. The capabilities of the vehicle as measured
by the performance pages must never be exploited in a
reckless or dangerous manner, which can jeopardize
the user’s safety or the safety of others. Only a safe,
attentive, and skillful driver can prevent accidents.

Push and release the up or down arrow button until the
SRT icon is highlighted. Push and release the right arrow
button, and 0–60 MPH Duration will be displayed. Push
and release the left and right arrow button to scroll
through the following information sub-menus:

0–60 Time

Push and release the left or right arrow button until the
last 0–60 MPH information is displayed.

Braking Distance

Push and release the left or right arrow button until the
last Braking Distance information is displayed.

1/4 Mile Elapsed Time

Push and release the left or right arrow button until the
last 1/4 Mile Top Speed & Duration information is dis-
played.

1/8 Mile Elapsed Time

Push and release the left or right arrow button until the
last 1/8 Mile Top Speed & Duration information is dis-
played.

G-Force Instant

Push and release the left or right arrow button until the
Current G-Forces are displayed.

G-Force Peak

Push and release the left or right arrow button until the
Peak G-Forces are displayed.

UNDERSTANDING YOUR INSTRUMENT PANEL

139

Diagnostic Codes

Push and release the up or down arrow button
until the Diagnostic Code icon is highlighted.
Push and release the right arrow button to
display any present diagnostic trouble codes

along with a brief definition.

Vehicle Hibernation

To Activate Hibernation Mode

1. Cycle the ignition switch to (ACC).

2. Select Hibernation mode within the instru-

ment cluster display.

3. Push the right arrow button on the steering wheel

controls for one second. Vehicle will countdown from
ten seconds and enter Hibernation Mode.

NOTE:

You may push the right arrow button on the

steering wheel controls during the countdown to abort
Hibernation Mode.

To Deactivate Hibernation Mode

1. Push the key fob unlock button to unlock the vehicle.

2. Push the Keyless Push Button Ignition to the ON/RUN

position.

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.

Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.

140

UNDERSTANDING YOUR INSTRUMENT PANEL

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.

• As always, if you experience unusual vehicle behav-

ior, take your vehicle to your nearest authorized
dealer immediately.

NOTE:

• FCA or your dealer may contact you directly regarding

software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com/software-

update to learn about available Uconnect software
updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Privacy Practices – If
Equipped with Uconnect 8.4 radio” in “All About
Uconnect Access” in your Uconnect Owner’s Manual
Supplement and “Onboard Diagnostic System (OBD II)
Cybersecurity”.

UNDERSTANDING YOUR INSTRUMENT PANEL

141

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on the
touchscreen and buttons on the faceplate located on the
center of the instrument panel that allow you to access and
change the customer programmable features.

NOTE:

Features can vary by vehicle, depending on vehicle

configuration.

Buttons On The Faceplate

Buttons on the faceplate are located below the Uconnect
system in the center of the instrument panel. In addition,
there is a Scroll/Enter control knob located on the right
side of the Climate Controls in the center of the instrument
panel. Turn the control knob to scroll through menus and
change settings (i.e., 30, 60, 90), push the center of the
control knob one or more times to select or change a setting
(i.e., ON, OFF).

Buttons On The Touchscreen

Buttons on the touchscreen are accessible on the Uconnect
display.

Customer Programmable Features/Personal
Settings — Uconnect 8.4 NAV System Settings

Press the “Apps” button on the touchscreen, then press the
“Settings” button on the touchscreen to display the menu
setting screen. In this mode the Uconnect system allows
you to access programmable features that may be
equipped such as Display, Voice, Clock, Safety & Driving
Assistance, Lights, Doors & Locks, Engine Off Options,
Audio, Phone/Bluetooth, SiriusXM Setup, Restore Set-
tings, Clear Personal Data, and System Information.

NOTE:

Only one category may be selected at a time.

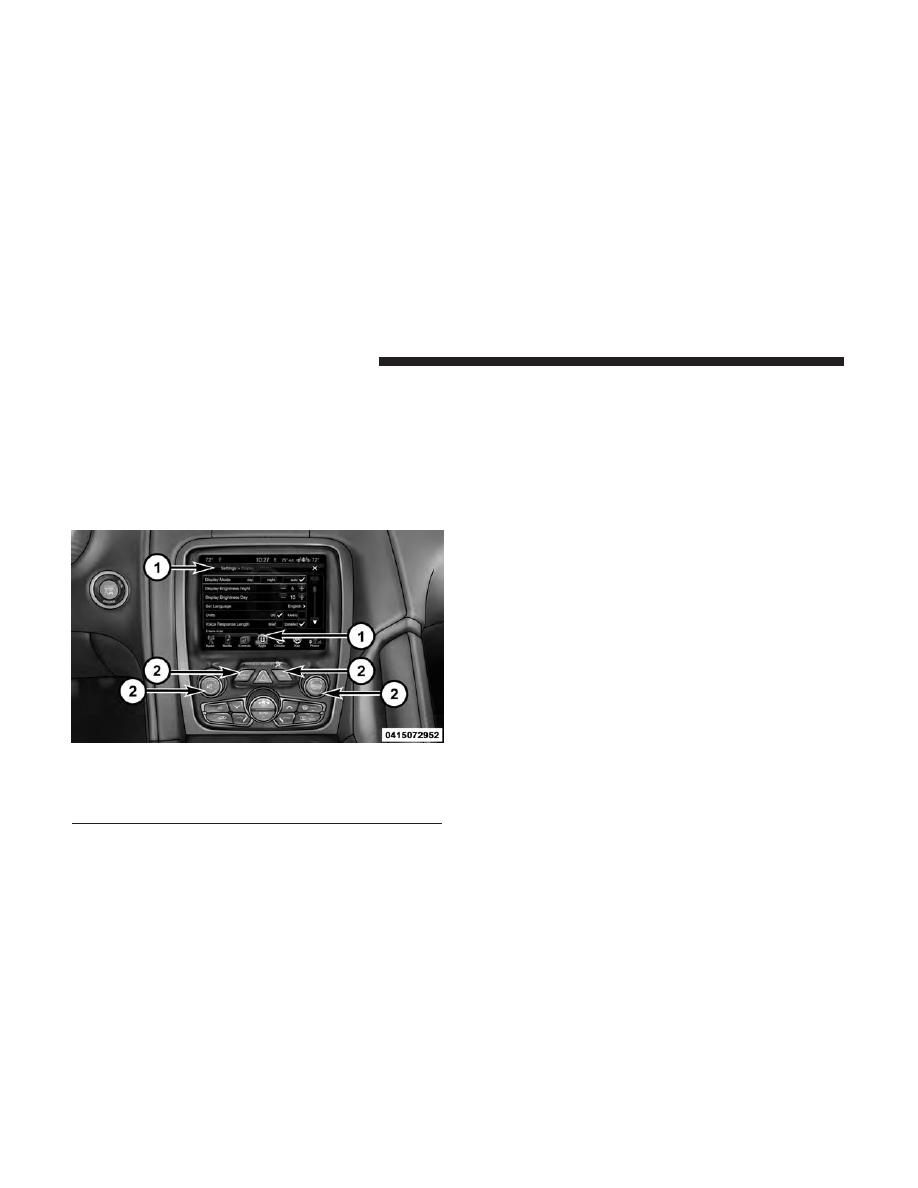

Uconnect 8.4 NAV Buttons On The Touchscreen And

Buttons On The Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

142

UNDERSTANDING YOUR INSTRUMENT PANEL

To adjust the setting of a programmable feature, press the
desired setting option. Once in the desired setting option,
press and release the preferred setting until a check-mark
appears next to the setting, showing that the setting has
been selected.

Once the setting is complete, press the Back Arrow button
on the touchscreen to return to the previous menu or press
the X button on the touchscreen to close out of the settings

screen. Pressing the Up or Down Arrow button on the right
side of the screen will allow you to toggle up or down
through the list of available settings.

Display

After pressing the Display button on the touchscreen the
following settings will be available.

Setting Name

Selectable Options

Display Mode

Manual

Auto

Display Brightness With

Headlights ON

NOTE:
To make changes to the

⬙Display Brightness with Headlights ON⬙ setting, the headlights must be on and the interior

dimmer switch must not be in the

⬙party⬙ or ⬙parade⬙ positions.

Display Brightness With

Headlights OFF

NOTE:
To make changes to the

⬙Display Brightness with Headlights OFF⬙ setting, the headlights must be off and the interior

dimmer switch must not be in the

⬙party⬙ or ⬙parade⬙ positions.

UNDERSTANDING YOUR INSTRUMENT PANEL

143

Setting Name

Selectable Options

Set Theme

NOTE:
When the “Set Theme” feature is selected, you may select the theme for the display screen. To make your selection,
press the

⬙Set Theme⬙ button on the touchscreen, then select the desired theme option button until a check-mark ap-

pears showing that the setting has been selected.

Set Language

NOTE:
When the “Set Language” feature is selected, you may select one of multiple languages (English / Français / Espa-
ñol) for all display nomenclature, including the trip functions and the navigation system (if equipped). Press the “Set
Language” button on the touchscreen, then press the desired language button on the touchscreen until a check-mark
appears next to the language, showing that setting has been selected.

Units

Metric

Touchscreen Beep

Control Screen Time-Out —

If Equipped

NOTE:
When the “Control Screen Time-Out” feature is selected, the Controls Screen will stay open for five seconds before
the screen times out. With the feature deselected, the screen will stay open until it is manually closed.

144

UNDERSTANDING YOUR INSTRUMENT PANEL

Setting Name

Selectable Options

Navigation Turn-By-Turn In

Cluster — If Equipped

NOTE:
When the “Navigation Turn-By-Turn In Cluster” feature is selected, the turn-by-turn directions will appear in the in-
strument cluster display as the vehicle approaches a designated turn within a programmed route.

Voice

After pressing the “Voice” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Always

With Help

Never

UNDERSTANDING YOUR INSTRUMENT PANEL

145

Clock

After pressing the “Clock” button on the touchscreen the
following settings will be available:

Setting Name

Selectable Options

Sync Time With GPS — If Equipped

Set Time Hours

NOTE:
The “Set Time Hours” feature will allow you to adjust the hours. The “Sync time with GPS” button on the touch-
screen must be unchecked.

Set Time Minutes

NOTE:
The “Set Time Minutes” feature will allow you to adjust the minutes. The “Sync time with GPS” button on the touch-
screen must be unchecked.

Time Format

12hrs

24hrs

146

UNDERSTANDING YOUR INSTRUMENT PANEL

Safety & Driving Assistance — If Equipped

After pressing the Safety & Driving Assistance button on
the touchscreen the following settings will be available:

Setting Name

Selectable Options

ParkView Backup Camera Delay

Off

NOTE:
The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image
with dynamic grid lines for up to 10 seconds after the vehicle is shifted out of REVERSE. This delay will be canceled
if the vehicle’s speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to
the OFF position.

Hill Start Assist — If Equipped

Lights

After pressing the Lights button on the touchscreen the
following settings will be available:

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut off.

UNDERSTANDING YOUR INSTRUMENT PANEL

147

Setting Name

Selectable Options

Headlights With Wip-

ers — If Equipped
Headlight Illumi-

nated On Approach

0 sec

30 sec

60 sec

90 sec

NOTE:
When the “Headlight Illumination On Approach” feature is selected, it allows the adjustment of the amount of time
the headlights remain on after the doors are unlocked with the key fob.

Daytime Running

Lights

Yes

Flash Lights With

Lock

Off

Doors & Locks

After pressing the Doors & Locks button on the touch-
screen the following settings will be available:

Setting Name

Selectable Options

Auto Door Locks

Off

NOTE:
When the “Auto Door Locks” feature is selected, all doors will lock automatically when the vehicle reaches a speed of
5 mph (8 km/h).

148

UNDERSTANDING YOUR INSTRUMENT PANEL

Setting Name

Selectable Options

Auto Unlock On Exit

NOTE:
When the “Auto Unlock On Exit” feature is selected, all doors will unlock when the vehicle is stopped, the transmis-
sion is in the PARK or NEUTRAL position and the driver’s door is opened.

Flash Lights With Lock
Sound Horn With Lock

Off

1st Press

2nd Press

1st Press Of Key Fob Unlocks

Driver Door

All Doors

NOTE:
When

⬙Driver Door⬙ is selected with 1st Press Of Key Fob Unlocks, only the driver’s door will unlock with the first

press of the key fob unlock button. You must press the key fob unlock button twice to unlock the passenger’s doors.
When

⬙All Doors⬙ is selected for 1st Press Of Key Fob Unlocks, all doors will unlock on the first press of the key fob

unlock button. If the vehicle is programmed 1st Press Of Key Fob Unlocks “All Doors,” all doors will unlock no mat-
ter which Passive Entry equipped door handle is grasped. If 1st Press Of Key Fob Unlocks “Driver Door” is pro-
grammed, only the driver’s door will unlock when the driver’s door is grasped. With Passive Entry, if 1st Press Of
Key Fob Unlocks “Driver Door” is programmed, touching the handle more than once will result in only the driver’s
door opening. If “Driver Door” is selected, once the driver door is opened, the interior door lock/unlock switch can
be used to unlock all doors (or use key fob).

Passive Entry — If Equipped

Off

NOTE:
The “Passive Entry” feature allows you to lock and unlock the vehicles door(s) without having to push the key fob
lock or unlock buttons.

UNDERSTANDING YOUR INSTRUMENT PANEL

149

Engine Off Options

After pressing the Engine Off Options button on the
touchscreen the following settings will be available:

Setting Name

Selectable Options

Engine Off Power De-

lay — If Equipped

0 sec

45 sec

5 minutes

10 minutes

NOTE:
When the “Engine Off Power Delay” feature is selected, the power window switches, radio, Uconnect phone system
(if equipped), DVD video system (if equipped), power sunroof (if equipped), and power outlets will remain active for
up to 10 minutes after the ignition is cycled to OFF. Opening either front door will cancel this feature.

Headlight Off Delay

NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut off.

150

UNDERSTANDING YOUR INSTRUMENT PANEL

Audio

After pressing the Audio button on the touchscreen the
following settings will be available:

Setting Name

Selectable Options

Balance/Fade

Speaker Icon

NOTE:
When in this display you may adjust the “Balance/Fade” of the audio by pressing and dragging the “Speaker Icon”
toward any location in the box.

Equalizer

Bass

Mid

Treble

NOTE:
When in this display you may adjust the “Bass”, “Mid” and “Treble” settings. Adjust the settings with the “+” and
“–” setting buttons on the touchscreen or by selecting any point on the scale between the “+” and “–” buttons on the
touchscreen. Bass/Mid/Treble also allow you to simply slide your finger up or down to change the setting as well as
press directly on the desired setting.

Speed Adjusted Volume

Off

Surround Sound — If Equipped

Off

AUX Volume Offset — If Equipped

NOTE:
This feature provides the ability to tune the audio level for portable devices connected through the AUX input

Loudness — If Equipped

UNDERSTANDING YOUR INSTRUMENT PANEL

151

Phone/Bluetooth
After pressing the “Phone/Bluetooth” button on the touch-
screen, the following settings will be available:

Setting Name

Selectable Options

Paired Phones

List Of Paired Phones

NOTE:
The “Paired Phones” feature shows which phones are paired to the Phone/Bluetooth system. For further information,
refer to the Uconnect Owner’s Manual Supplement.

Paired Audio Sources

List Of Paired Audio Sources

NOTE:
The “Paired Audio Sources” feature shows which Audio Sources are paired to the Phone/Bluetooth system. For fur-
ther information, refer to the Uconnect Owner’s Manual Supplement.

SiriusXM Setup — If Equipped
After pressing the “SiriusXM Setup” button on the touch-
screen, the following settings will be available:

Setting Name

Selectable Options

Tune Start

Off

NOTE:
The “Tune Start” feature begins playing the current song from the beginning when you tune to a music channel using
one of the twelve presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected
during that current song. Tune Start works in the background, so you will not even realize it’s on, except that you
will miss the experience of joining your favorite song with only a few seconds left to play.

152

UNDERSTANDING YOUR INSTRUMENT PANEL

Dodge Viper (2017 year). Manual - part 9
