Dodge Viper (2017 year). Manual

Windshield Washers

To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to the
second detent. Washer fluid will be sprayed and the wiper
will operate for two to three cycles after the washer knob is
released from this position.

If the washer knob is depressed while in the delay range,
the wiper will operate for several seconds after the washer
knob is released. It will then resume the intermittent
interval previously selected. If the washer knob is pushed
while in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is released.

To prevent freeze-up of your windshield washer system in
cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This rating
information can be found on most washer fluid containers.

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Headlights On With Wipers

When this feature is active, the headlights will turn on after
the wipers are turned on if the headlight switch is placed in
the AUTO position and programmable feature is set to on.
In addition, the headlights will turn off when the wipers
are turned off if they were turned on by this feature.

NOTE:

The “Headlights On With Wipers” feature can be

turned on or off using the Uconnect System. Refer to
“Uconnect Settings/Customer Programmable Features” in
“Understanding Your Instrument Panel” for further infor-
mation.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

TILT STEERING COLUMN

The tilt release lever is located below the multifunction
lever on the left side of the steering column. To tilt the
column, simply pull the release lever rearward toward you
and then move the steering wheel upward or downward as
desired. When the column is in the desired position, push
the release lever forward to lock the column firmly in place.

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.

ADJUSTABLE PEDALS

The adjustable pedals system is designed to allow a greater
range of driver comfort for steering wheel tilt and seat
position. This feature allows the brake, accelerator, and
clutch pedal to move toward or away from the driver to
provide improved position with the steering wheel.

The adjustable pedal switch is located to the left side of the
steering column.

Tilt Steering Column Lever

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Push the switch forward to move the pedals forward
(toward the front of the vehicle).

Push the switch rearward to move the pedals rearward
(toward the driver).

NOTE:

• The pedals can be adjusted with the ignition OFF.
• Always adjust the pedals to a position that allows full

pedal travel.

• Further small adjustments may be necessary to find the

best possible seat/pedal position.

WARNING!

Do not adjust the pedals while the vehicle is moving.
You could lose control and have an accident. Always
adjust the pedals while the vehicle is parked.

CAUTION!

Do not place any article under the adjustable pedals or
impede its ability to move as it may cause damage to
the pedal controls. Pedal travel may become limited if
movement is stopped by an obstruction in the adjust-
able pedal’s path.

Adjustable Pedals Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Adjustable Foot Rest

This feature allows the driver to adjust the foot rest
forward or backward and to rotate it upward or downward
to allow for greater driving comfort.

To adjust the pedal:

1. Adjust the seat and steering column to a comfortable

position.

2. Using a socket wrench, loosen the nut on the pedal.

3. Slide the pedal either forward or backward and rotate it

upward or downward as desired.

4. Tighten the nut, being careful not to over tighten it.

SPEED CONTROL

When engaged, the Speed Control takes over accelerator
operations at speeds greater than 25 mph (40 km/h).

The Speed Control buttons are located on the right side of
the steering wheel.

Adjustable Foot Rest

Speed Control Buttons

1 — ON/OFF

2 — RES +

4 — CANCEL

3 — SET -

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

In order to ensure proper operation, the Speed

Control System has been designed to shut down if multiple
speed control buttons are pushed at the same time. If this
occurs, the Speed Control System can be reactivated by
pushing the Speed Control ON/OFF button and resetting
the desired vehicle set speed.

WARNING!

Speed Control can be dangerous where the system
cannot maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control and have an accident. Do not use Speed Control
in heavy traffic or on roads that are winding, icy,
snow-covered or slippery.

To Activate

Push the ON/OFF button to activate the Speed Control.
The Cruise Indicator Light in the instrument cluster dis-
play will illuminate. To turn the system off, push the
ON/OFF button a second time. The Cruise Indicator Light
will turn off. The system should be turned off when not in
use.

WARNING!

Leaving the Speed Control system on when not in use
is dangerous. You could accidentally set the system or
cause it to go faster than you want. You could lose
control and have an accident. Always leave the system
off when you are not using it.

To Set A Desired Speed

Turn the Speed Control on. When the vehicle has reached
the desired speed, push the SET (-) button and release.
Release the accelerator and the vehicle will operate at the
selected speed.

NOTE:

The vehicle should be traveling at a steady speed

and on level ground before pushing the SET (-) button.

To Deactivate

A soft tap on the brake pedal, pushing the CANCEL
button, manually accelerating 10 mph (16 km/h) above the
set speed or normal brake pressure while slowing the
vehicle will deactivate the Speed Control without erasing
the set speed memory.

Pushing the ON/OFF button, or turning the ignition
switch OFF, erases the set speed memory.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Resume Speed

To resume a previously set speed, push the RES button and
release. Resume can be used at any speed above 20 mph
(32 km/h).

To Vary The Speed Setting

To Increase Speed

When the Speed Control is set, you can increase speed by
pushing the RES (+) button.

The driver’s preferred units can be selected through the
Uconnect settings if equipped. Refer to ”Uconnect Set-
tings” in Understanding Your Instrument Panel” for more
information. The speed increment shown is dependent on
the selected speed unit of U.S. (mph) or Metric (km/h):

U.S. Speed (mph)

• Pushing the RES (+) button once will result in a 1 mph

increase in set speed. Each subsequent tap of the button
results in an increase of 1 mph.

• If the button is continually pushed, the set speed will

continue to increase until the button is released, then the
new set speed will be established.

Metric Speed (km/h)

• Pushing the RES (+) button once will result in a 1 km/h

increase in set speed. Each subsequent tap of the button
results in an increase of 1 km/h.

• If the button is continually pushed, the set speed will

continue to increase until the button is released, then the
new set speed will be established.

To Decrease Speed

When the Speed Control is set, you can decrease speed by
pushing the SET (-) button.

The driver’s preferred units can be selected through the
Uconnect settings if equipped. Refer to

⬙Uconnect Settings”

in Understanding Your Instrument Panel” for more infor-
mation. The speed decrement shown is dependant on the
selected speed unit of U.S. (mph) or Metric (km/h):

U.S. Speed (mph)

• Pushing the SET (-) button once will result in a 1 mph

decrease in set speed. Each subsequent tap of the button
results in a decrease of 1 mph.

• If the button is continually pushed, the set speed will

continue to decrease until the button is released, then the
new set speed will be established.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Metric Speed (km/h)

• Pushing the SET (-) button once will result in a 1 km/h

decrease in set speed. Each subsequent tap of the button
results in a decrease of 1 km/h.

• If the button is continually pushed, the set speed will

continue to decrease until the button is released, then the
new set speed will be established.

To Accelerate For Passing

Push the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.

NOTE:

If the accelerated speed goes above 10 mph

(16 km/h) of the set speed, the Speed Control will deacti-
vate.

PARKVIEW REAR BACK UP CAMERA

Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see an on-screen image
of the rear surroundings of your vehicle whenever the gear
selector is put into REVERSE. The ParkView camera is
located on the rear of the vehicle above the rear license
plate. The image will be displayed in the touchscreen

display along with a caution note to “check entire sur-
roundings” across the top of the screen. After five seconds
this note will disappear.

NOTE:

The ParkView Rear Back Up Camera has program-

mable modes of operation that may be selected through the
Uconnect System. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.

If your vehicle is equipped with the Camera Delay feature
and it is turned ON, the rear camera image will be
displayed for up to 10 seconds when the vehicle is shifted
out of REVERSE unless the forward vehicle speed exceeds
8 mph (13 km/h), the transmission is shifted into

⬙PARK⬙

or the vehicle’s ignition is cycled to the OFF position.

When the Vehicle is shifted out of REVERSE (with camera
delay turned OFF) the rear camera mode is exited and the
last touchscreen appears again.

The active guide lines are overlaid on the image to illus-
trate the width of the vehicle and its projected backup path
based on the steering wheel position.

Different colored zones indicate the distance to the rear of
the vehicle.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The following table shows the approximate distances for
each zone:

Zone

Distance to the rear of the vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft (30 cm - 2 m)

Green

6.5 ft or greater (2 m or greater)

WARNING!

Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, obstruc-
tions, or blind spots before backing up. You are re-
sponsible for the safety of your surroundings and must
continue to pay attention while backing up. Failure to
do so can result in serious injury or death.

CAUTION!

• To avoid vehicle damage, ParkView should only be

used as a parking aid. The ParkView camera is unable
to view every obstacle or object in your drive path.

• To avoid vehicle damage, the vehicle must be driven

slowly when using ParkView to be able to stop in
time when an obstacle is seen. It is recommended
that the driver look frequently over his/her shoulder
when using ParkView.

NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with water, and
dry with a soft cloth. Do not cover the lens.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

GARAGE DOOR OPENER — IF EQUIPPED

HomeLink replaces up to three hand-held transmitters that
operate devices such as garage door openers, motorized
gates, lighting or home security systems. The HomeLink
unit is powered by your vehicles 12 volt battery.

The HomeLink buttons, located on the sunvisor, designate
the three different HomeLink channels. The HomeLink
indicator is located above the center button.

NOTE:

HomeLink is disabled when the Vehicle Security

Alarm is active.

Before You Begin Programming HomeLink

Ensure your vehicle is parked outside of the garage before
you begin programming.

For more efficient programming and accurate transmission
of the radio-frequency signal it is recommended that a new
battery be placed in the hand-held transmitter of the device
that is being programmed to the HomeLink system.

To erase the channels place the ignition in the ON/RUN
position and push and hold the two outside HomeLink
buttons (I and III) for up 20 seconds, or until the red
indicator flashes.

NOTE:

• Erasing all channels should only be performed when

programming HomeLink for the first time. Do not erase
channels when programming additional buttons.

• If you have any problems, or require assistance, please

call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.

HomeLink Buttons Sunvisor

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Programming A Rolling Code

For programming garage door openers that were manufac-
tured after 1995. These garage door openers can be identi-
fied by the “LEARN” or “TRAIN” button located where
the hanging antenna is attached to the garage door opener.
It is NOT the button that is normally used to open and
close the door. The name and color of the button may vary
by manufacturer.

1. Place the ignition in the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Push and hold the HomeLink button you want to

program while you push and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

5. At the garage door opener motor (in the garage), locate

the “LEARN” or “TRAINING” button. This can usually
be found where the hanging antenna wire is attached to
the garage door opener/device motor. Firmly push and
release the “LEARN” or “TRAINING” button. On some
garage door openers/devices there may be a light that
blinks when the garage door opener/device is in the
LEARN/TRAIN mode.

NOTE:

You have 30 seconds in which to initiate the next

step after the LEARN button has been pushed.

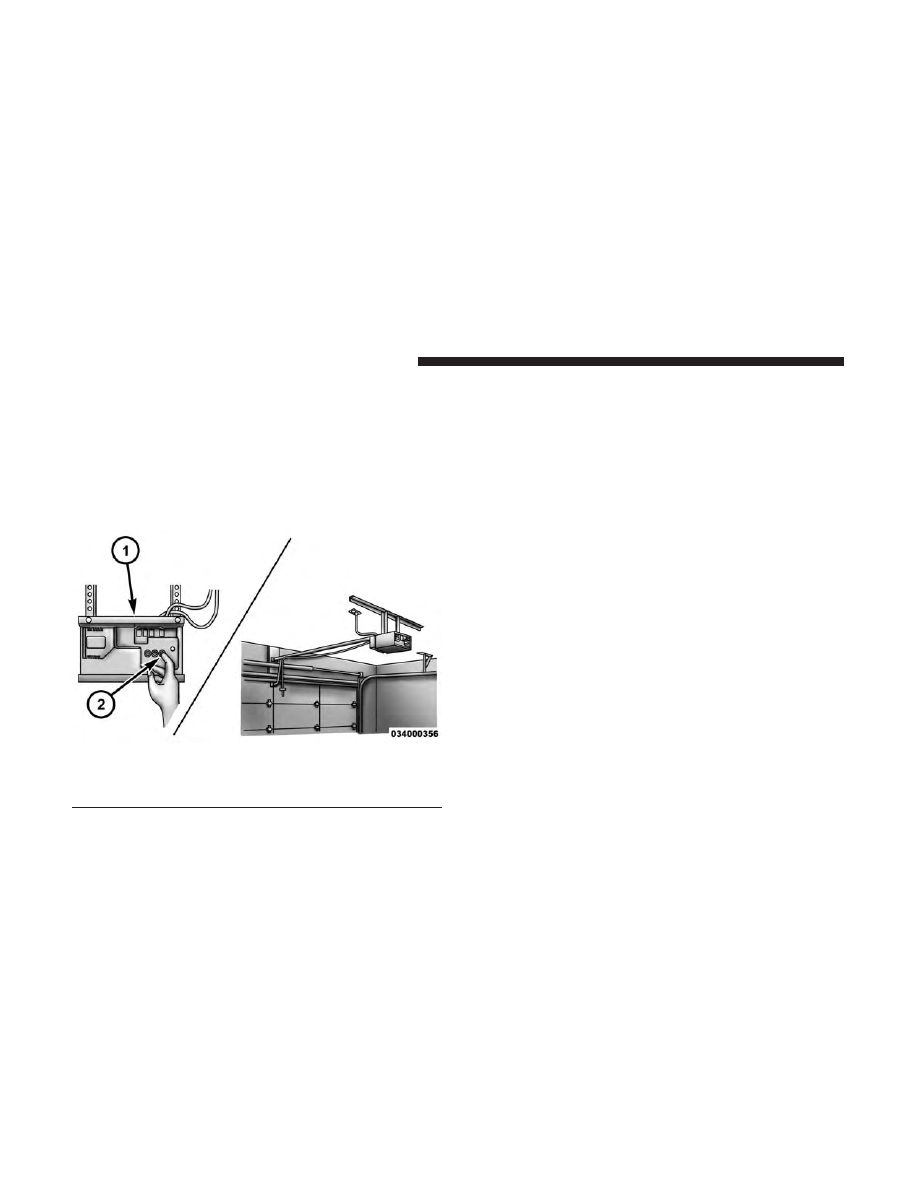

Training The Garage Door Opener

1 — Door Opener
2 — Training Button

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

6. Return to the vehicle and push the programmed

HomeLink button twice (holding the button until the
light stops blinking). If the garage door opener/device
activates, programming is complete.

NOTE:

If the garage door opener/device does not activate,

push the button a third time (for two seconds) to complete
the training.

To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.

Reprogramming A Single HomeLink Button (Rolling
Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

place the ignition in the RUN position with the engine ON.
Make sure while programming HomeLink with the engine
ON that your vehicle is outside of your garage, or that the
garage door remains open at all times.

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Program-

ming A Rolling Code” step two and follow all remaining
steps.

Programming A Non-Rolling Code

For programming Garage Door Openers manufactured
before 1995.

1. Cycle the ignition to the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you would like to pro-
gram while keeping the HomeLink indicator light in view.

3. Push and hold the HomeLink button you want to

program while you push and hold the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indicator

light. HomeLink indicator will flash slowly and then
rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Push and hold the programmed HomeLink button and

observe the indicator light.

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pressed.

• To program the remaining two HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Reprogramming A Single HomeLink Button
(Non-Rolling Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button proceed with “Program-

ming A Non-Rolling Code” step 2 and follow all remain-
ing steps.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.

Canadian radio frequency laws require transmitter signals
to time-out (or quit) after several seconds of transmission –
which may not be long enough for HomeLink to pick up
the signal during programming. Similar to this Canadian
law, some U.S. gate operators are designed to time-out in
the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage door
or gate motor.

1. Cycle the ignition to the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.

3. Continue to push and hold the HomeLink button, while

you press and release (“cycle”) your hand-held trans-
mitter every two seconds until HomeLink has success-
fully accepted the frequency signal. The indicator light
will flash slowly and then rapidly when fully trained.

100

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Watch for the HomeLink indicator to change flash rates.

When it changes, it is programmed. It may take up to 30
seconds or longer in rare cases. The garage door may
open and close while you are programming.

5. Push and hold the programmed HomeLink button and

observe the indicator light.

NOTE:

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pushed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink Button
(Canadian/Gate Operator)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

NOTE:

For vehicles equipped with Keyless Enter-N-Go,

2. Push and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without

releasing

the

button

proceed

with

“Canadian/Gate Operator Programming” step 2 and
follow all remaining steps.

Using HomeLink

To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e. garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.) The
hand-held transmitter of the device may also be used at
any time.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

101

Security

It is advised to erase all channels before you sell or turn in
your vehicle.

To do this, push and hold the two outside buttons for 20
seconds until the red indicator flashes.

NOTE:

All channels will be erased. Individual channels

cannot be erased.

The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-

held transmitter.

• Push the LEARN button on the Garage Door Opener to

complete the training for a Rolling Code.

• Did you unplug the device for programming and re-

member to plug it back in?

If you have any problems, or require assistance, please call
toll-free

1-800-355-3515

or,

the

Internet

HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a danger-

ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com for safety information or assis-
tance.

102

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

General Information

This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

• The transmitter has been tested and it complies with

FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user’s authority to operate the
device.

• The term IC before the certification/registration number

only signifies that Industry Canada technical specifica-
tions were met.

ELECTRICAL POWER OUTLETS

Your vehicle is equipped with two 12 volt (13 amp) power
outlet that can be used to power cellular phones, small
electronics and other low powered electrical accessories.

One power outlet is located on the center console to the
right of the shifter. Push down on the power outlet to
access the opening. Push down on it again to close. This
power outlet is powered when the ignition is in the ON or
ACC position.

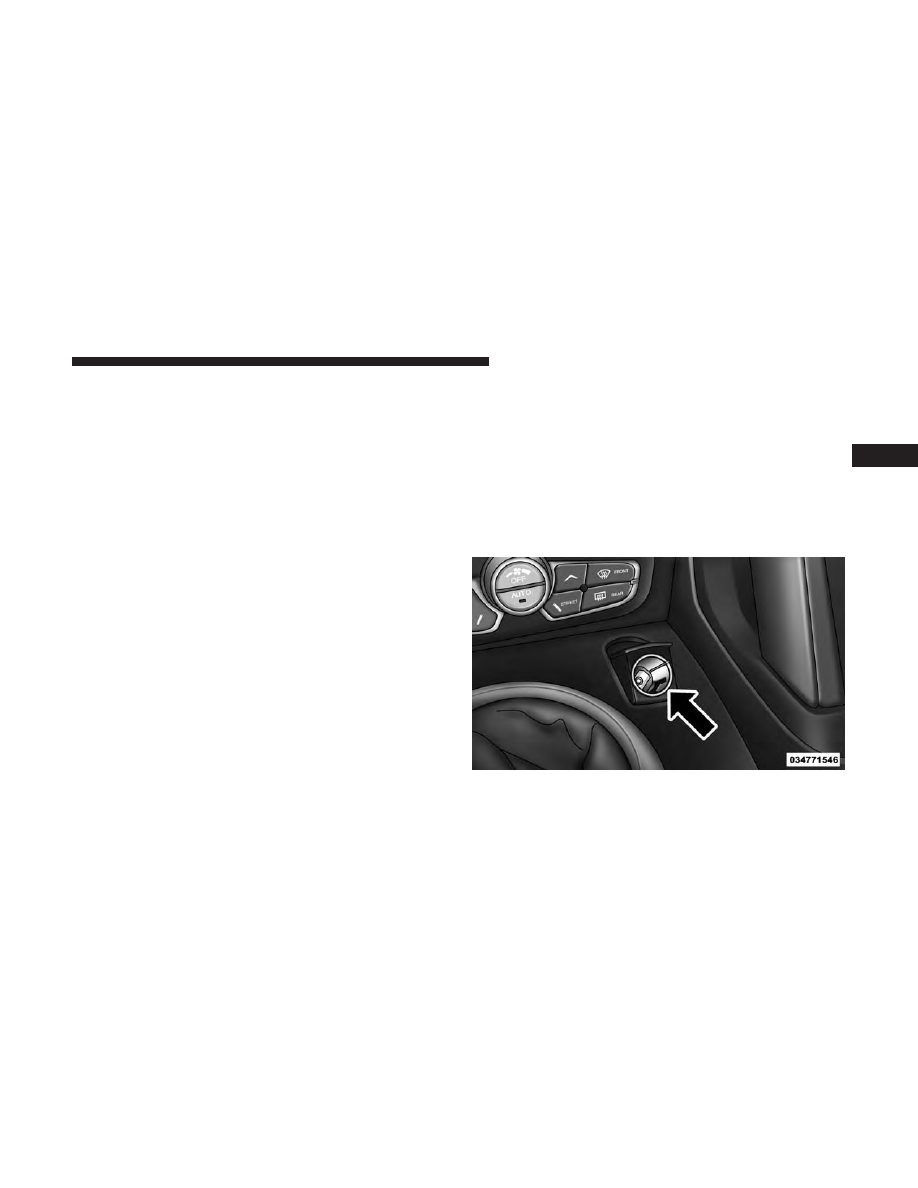

Front Power Outlet

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

103

The second power outlet is located between the seat backs
above the cup holders. This power outlet is connected
directly by the battery and powered at all times.

NOTE:

Do not exceed the maximum power of 160 watts

(13 amps) at 12 volts. If the 160 watt (13 amp) power rating
is exceeded the fuse protecting the system will need to be
replaced.

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

(Continued)

Center Console Outlet

104

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Dodge Viper (2017 year). Manual - part 6
