Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.

NOTE:

The passenger-side convex outside mirror will

give a much wider view to the rear, and especially of the
lane next to your vehicle.

WARNING!

Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger-side convex mirror.

Outside Mirrors Folding Feature
All models have exterior mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions: full
forward, full rearward, and normal.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Mirrors
The power mirror switch is located on the driver’s door
trim panel next to the power door lock switch. A rotary
knob selects the left mirror, right mirror or off position.

After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.

Heated Mirrors — If Equipped

These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear

window defroster. Refer to “Rear Window Features” in
this section, for further information.

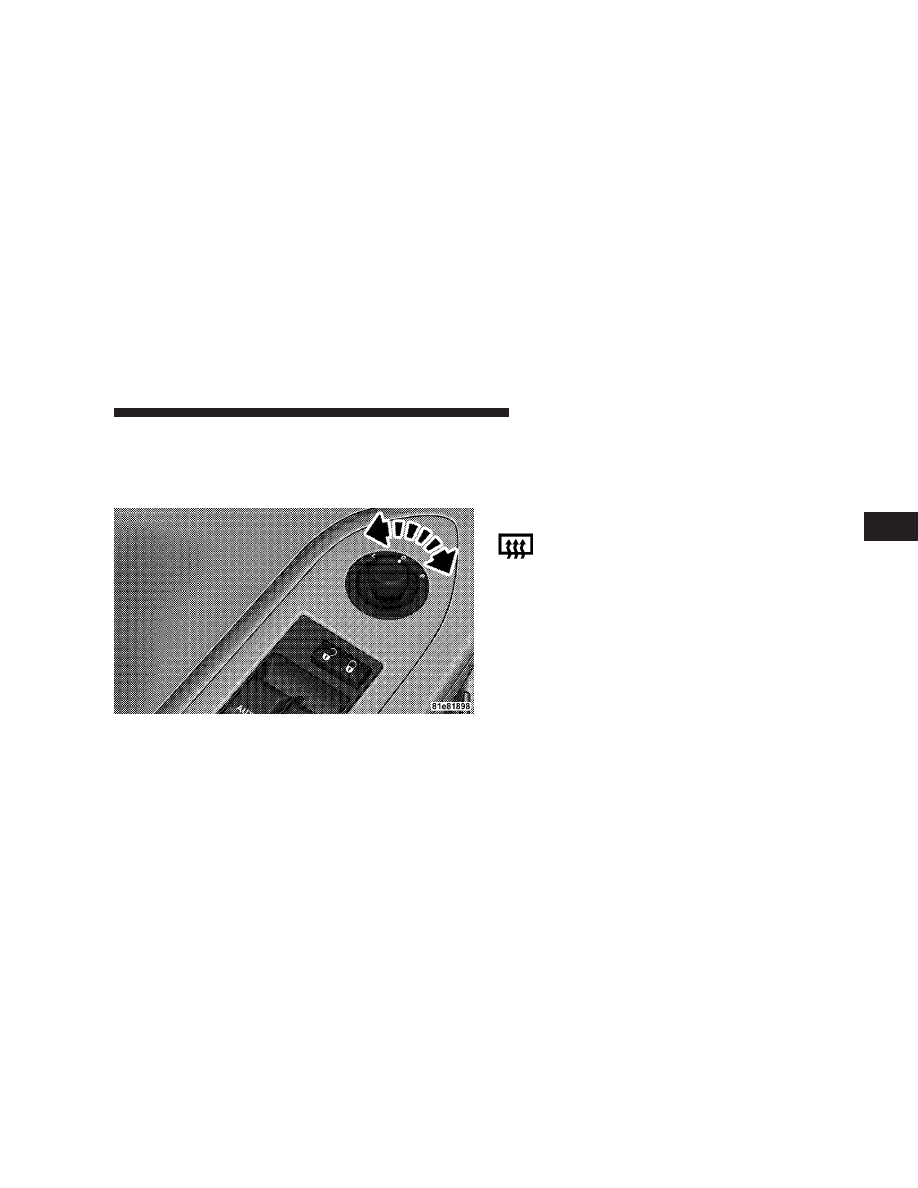

Power Mirror Control

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Illuminated Vanity Mirrors
An illuminated vanity mirror is located on the sun visor.
To use the mirror, rotate the sun visor downward and
swing the mirror cover upward. The light turns on
automatically. Close the mirror cover to turn off the light.

Slide-On-Rod and Extender Features of Sun Visor
To use the slide-on-rod feature of the sun visor, rotate the
sun visor downward and swing the sun visor so it is
parallel to the side window, grabbing the sun visor with
your left hand pull rearwards until the sun visor is in the
desired position. To use the extender feature of the sun
visor, grab the extender which is located at the rear of the
visor and pull rearward.

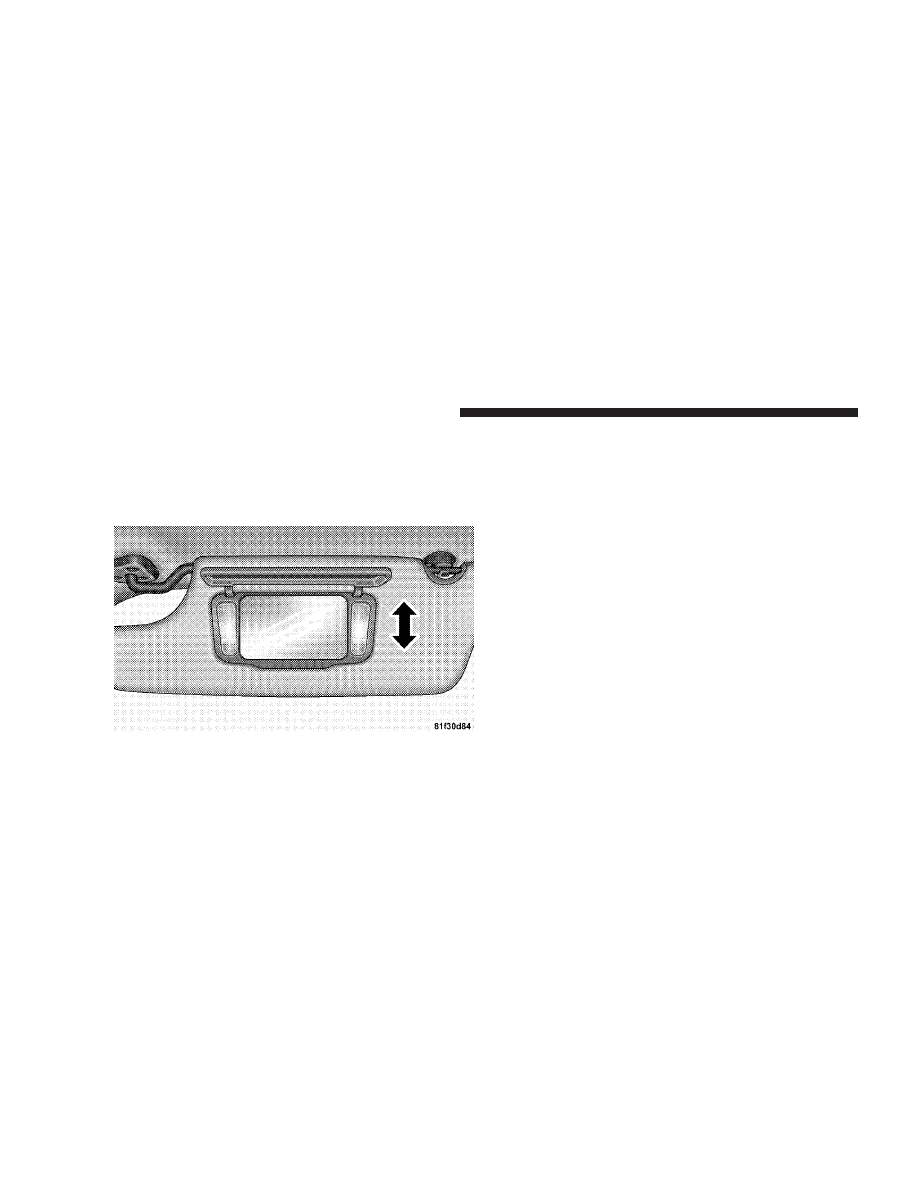

Illuminated Vanity Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

uconnect

姞 phone — IF EQUIPPED

NOTE: The sales code RER and REU radios contain an
integrated uconnect

威 phone. Refer to your “Navigation

User’s Manual” for uconnect

威 phone operating instruc-

tions for these radios. Radio sales code can be located
on the lower right corner of the Radio faceplate.

uconnect

威 phone is a voice-activated, hands-free, in-

vehicle communications system. uconnect

威 allows you to

dial a phone number with your cellular phone using
simple voice commands (e.g.,

⬙Call” ѧ “Mike” ѧ”Work⬙ or

⬙Dial” ѧ “248-555-1212⬙). Your cellular phone’s audio is
transmitted through your vehicle’s audio system; the
system will automatically mute your radio when using
the uconnect

威 phone.

NOTE:

The uconnect

威 phone requires a cellular phone

equipped with the Bluetooth

威 ⬙Hands-Free Profile,⬙ Ver-

sion 0.96 or higher. See the uconnect

威 website for sup-

ported phones.
For uconnect

威 customer support, visit the following

websites:
• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect
• or call 1–877–855–8400

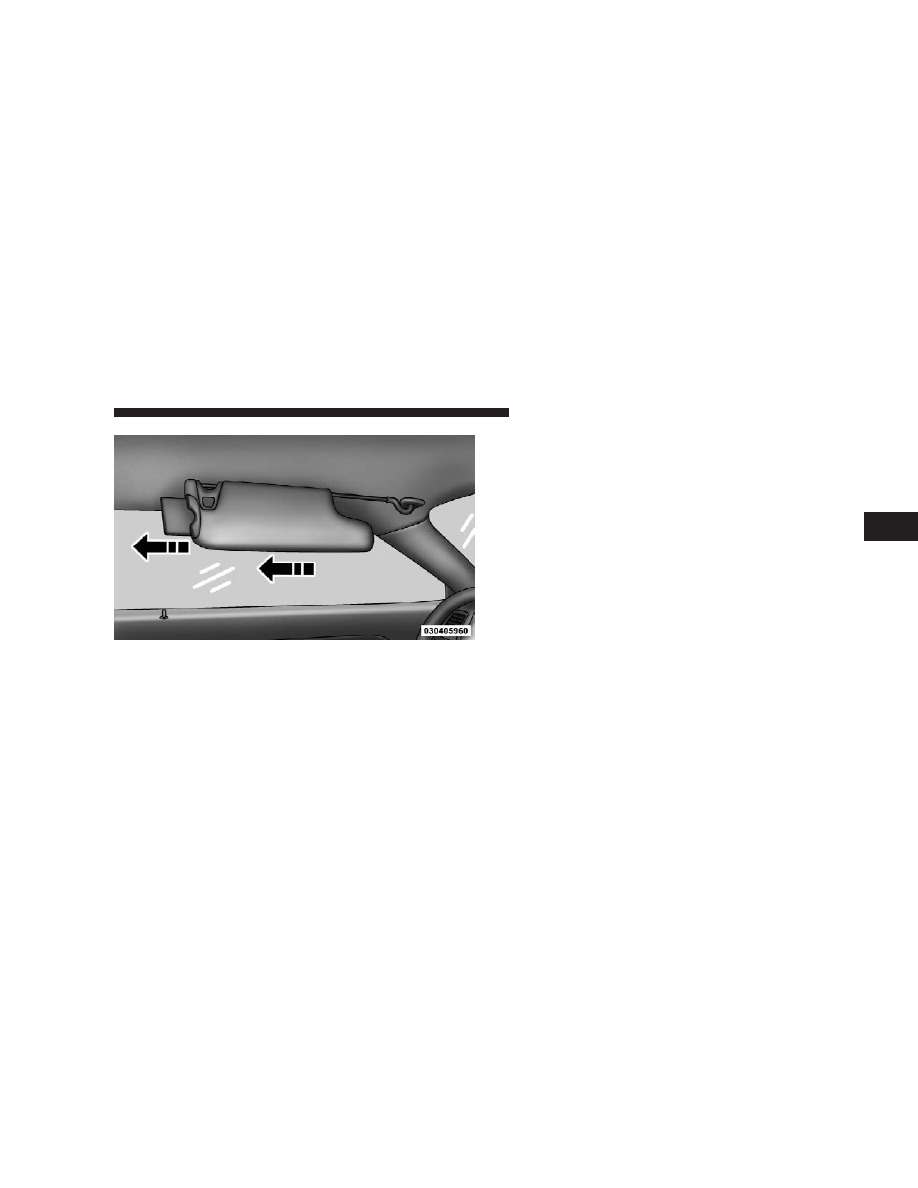

Slide-On-Rod Extender

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

uconnect

威 allows you to transfer calls between the sys-

tem and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.

The uconnect

威 phone is driven through your Bluetooth威

“Hands-Free Profile” cellular phone. uconnect

威 features

Bluetooth

威 technology - the global standard that enables

different electronic devices to connect to each other
without wires or a docking station, so uconnect

威 phone

works no matter where you stow your cellular phone (be
it your purse, pocket, or briefcase), as long as your phone
is turned on and has been paired to the vehicle’s
uconnect

威 phone. The uconnect威 phone allows up to

seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages.

Phone Button

The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons

(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.

Voice Recognition Button

Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.

The uconnect

威 phone can be used with any Hands-Free

Profile certified Bluetooth

威 cellular phone. See the

uconnect

威 website for supported phones. If your cellular

phone supports a different profile (e.g., Headset Profile)
you may not be able to use any uconnect

威 phone

features. Refer to your cellular service provider or the
phone manufacturer for details.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The uconnect

威 phone is fully integrated with the vehi-

cle’s audio system. The volume of the uconnect

威 phone

can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.

The radio display will be used for visual prompts from
the uconnect

威 phone such as ⬙CELL⬙ or caller ID on

certain radios.

Operation
Voice commands can be used to operate the uconnect

威

phone and to navigate through the uconnect

威 phone

menu structure. Voice commands are required after most
uconnect

威 phone prompts. You will be prompted for a

specific command and then guided through the available
options.

• Prior to giving a voice command, one must wait for

the beep, which follows the

⬙Ready⬙ prompt or another

prompt.

• For certain operations, compound commands can be

used. For example, instead of saying

⬙Setup⬙ and then

⬙Phone Pairing,⬙ the following compound command
can be said:

⬙Setup Phone Pairing.⬙

• For each feature explanation in this section, only the

combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mand

⬙Phonebook New Entry,⬙ or you can break the

combined form command into two voice commands:

⬙Phonebook⬙ and ⬙New Entry.⬙ Please remember, the
uconnect

威 phone works best when you talk in a

normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.

Voice Command Tree
Refer to “Voice Tree” in this section.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say

⬙Help⬙ following

the beep. The uconnect

威 phone will play all the options at

any prompt if you ask for help.

To activate the uconnect

威 phone from idle, simply press

the PHONE button and follow the audible prompts for
directions. All uconnect

威 phone sessions begin with a

press of the PHONE button on the radio control head.

Cancel Command
At any prompt, after the beep, you can say

⬙Cancel⬙ and

you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.

Pair (Link) uconnect

威 phone to a Cellular Phone

To begin using your uconnect

威 phone, you must pair

your compatible Bluetooth

威 enabled cellular phone.

To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
uconnect

威 website may also provide detailed instructions

for pairing.

The following are general phone to uconnect

威 phone

pairing instructions:

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Setup Phone Pairing.⬙

• When prompted, after the beep, say ⬙Pair a Phone⬙ and

follow the audible prompts.

• You will be asked to say a four-digit Personal Identi-

fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• For identification purposes, you will be prompted to

give the uconnect

威 phone a name for your cellular

phone. Each cellular phone that is paired should be
given a unique phone name.

• You will then be asked to give your cellular phone a

priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your uconnect

威 phone. However, at any

given time, only one cellular phone can be in use,
connected to your uconnect

威 phone. The priority

allows the uconnect

威 phone to know which cellular

phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
uconnect

威 phone will use the priority three cellular

phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to

⬙Advanced Phone Connectivity⬙ in this section).

Dial by Saying a Number

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Dial.⬙

• The system will prompt you to say the number you

want to call.

• For example, you can say ⬙234-567-8901⬙.
• The uconnect威 phone will confirm the phone number

and then dial. The number will appear in the display
of certain radios.

Call by Saying a Name

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

“Call.

⬙

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• The system will prompt you to say the name of the

person you want to call.

• After the ⬙Ready⬙ prompt and the following beep, say

the name of the person you want to call. For example,
you can say

⬙John Doe,⬙ where John Doe is a previ-

ously stored name entry in the uconnect

威 phonebook

or downloaded phonebook. To learn how to store a
name in the phonebook, refer to

⬙Add Names to Your

uconnect

威 Phonebook,⬙ in the phonebook.

• The uconnect威 system will confirm the name and then

dial the corresponding phone number, which may
appear in the display of certain radios.

Add Names to Your uconnect

威 Phonebook

NOTE:

Adding names to the uconnect

威 phonebook is

recommended when the vehicle is not in motion.

• Press the PHONE button to begin.

• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook New Entry.⬙

• When prompted, say the name of the new entry. Use of

long names helps the voice recognition and it is
recommended. For example, say

⬙Robert Smith⬙ or

⬙Robert⬙ instead of ⬙Bob.⬙

• When prompted, enter the number designation (e.g.,

⬙Home,⬙ ⬙Work,⬙ ⬙Mobile,⬙ or ⬙Pager⬙). This will allow
you to store multiple numbers for each phonebook
entry, if desired.

• When prompted, recite the phone number for the

phonebook entry that you are adding.

After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The uconnect

威 phone will allow you to enter up to 32

names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, uconnect

威 phone automati-

cally downloads your cellular phone’s phonebook.

Phonebook Download – Automatic Phonebook
Transfer From Cellular Phone
If equipped and specifically supported by your phone,
uconnect

威 phone automatically downloads names (text

names) and number entries from the cellular phone’s
phonebook. Specific Bluetooth

威 Phones with Phone Book

Access Profile may support this feature. See uconnect

威

website for supported phones.

• To call a name from downloaded (or uconnect威)

Phonebook, follow the procedure in “Call by Saying a
Name” section.

• Automatic download and update, if supported, begins

as soon as the Bluetooth

威 wireless phone connection is

made to the uconnect

威 phone, for example, after you

start the vehicle.

• A maximum of 1000 entries per phone will be down-

loaded and updated every time a phone is connected
to the uconnect

威 phone.

• Depending on the maximum number of entries down-

loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.

• Only the phonebook of the currently connected cellu-

lar phone is accessible.

• Only the cellular phone’s phonebook is downloaded.

SIM card phonebook is not part of the Mobile phone-
book.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• This downloaded phonebook cannot be edited or

deleted on the uconnect

威 phone. These can only be

edited on the cellular phone. The changes are trans-
ferred and updated to uconnect

威 phone on the next

phone connection.

Phonebook Download — Single Entry
If equipped and supported by your phone, uconnect

威

phone allows the user to download entries from their
phone via Bluetooth

威. To use this feature, press the

PHONE button and say “Phonebook Download.” The
system prompts, “Ready to accept “V” card entry via
Bluetooth

威…” The system is now ready to accept phone-

book entries from your phone using the Bluetooth

威

Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.

NOTE:

• The phone handset must support Bluetooth威 OBEX

transfers of phonebook entries to use this feature.

• Some phones cannot send phonebook entries if they

are already connected to any system via Bluetooth

威,

and you may see a message on the phone display that
the Bluetooth

威 link is busy. In this case, the user must

first disconnect or drop the Bluetooth

威 connection to

the uconnect

威 phone, and then send the address book

entry via Bluetooth

威. Please see your phone Owner’s

Manual for specific instructions on how to drop the
Bluetooth

威 connection.

• If the phonebook entry is longer than 24 characters, it

will only use the first 24 characters.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Edit uconnect

威 Phonebook Entries

NOTE:

• Editing names in the phonebook is recommended

when the vehicle is not in motion.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook Edit.⬙

• You will then be asked for the name of the phonebook

entry that you wish to edit.

• Next, choose the number designation (home, work,

cellular, or pager) that you wish to edit.

• When prompted, recite the new phone number for the

phonebook entry that you are editing.

After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.

⬙Phonebook Edit⬙ can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
cellular and a home number, but you can add ”John
Doe’s” work number later using the

⬙Phonebook Edit⬙

feature.

Delete uconnect

威 Phonebook Entry

NOTE:

Editing phonebook entries is recommended

when the vehicle is not in motion.

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook Delete.⬙

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• After you enter the Phonebook Delete menu, you will

then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say

⬙List

Names

⬙ to hear a list of the entries in the phonebook

from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the uconnect

威 phone is playing the desired entry

and say

⬙Delete.⬙

• After you enter the name, the uconnect威 phone will

ask you which designation you wish to delete: home,
work, cellular, pager, or all. Say the designation you
wish to delete.

• Note that only the phonebook entry in the current

language is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

Delete/Erase “All” uconnect

威 Phonebook Entries

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook Erase All.⬙

• The uconnect威 phone will ask you to verify that you

wish to delete all the entries from the phonebook.

• After confirmation, the phonebook entries will be

deleted.

• Note that only the phonebook in the current language

is deleted.

• Automatic downloaded phonebook entries cannot be

deleted or edited.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

List All Names in the uconnect

威 Phonebook

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Phonebook List Names.⬙

• The uconnect威 phone will play the names of all the

phonebook entries, including the downloaded phone-
book entries, if available.

• To call one of the names in the list, press the VOICE

RECOGNITION button during the playing of the
desired name, and say

⬙Call.⬙

NOTE:

The user can also exercise

⬙Edit⬙ or ⬙Delete⬙

operations at this point.

• The uconnect威 phone will then prompt you as to the

number designation you wish to call.

• The selected number will be dialed.

Phone Call Features
The following features can be accessed through the
uconnect

威 phone if the feature(s) are available on your

cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the uconnect

威 phone. Check with your

cellular service provider for the features that you have.

Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
uconnect

威 phone will interrupt the vehicle audio system,

if on, and will ask if you would like to answer the call.
Press the PHONE button to accept the call. To reject the
call, press and hold the PHONE button until you hear a
single beep, indicating that the incoming call was
rejected.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
cellular phone. Press the PHONE button to place the
current call on hold and answer the incoming call.

NOTE:

The uconnect

威 phone compatible phones in the

market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.

Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the VOICE RECOGNITION button and say

⬙Dial⬙

⬙Call⬙ followed by the phone number or phonebook

entry you wish to call. The first call will be on hold while
the second call is in progress. To go back to the first call,

refer to

⬙Toggling Between Calls⬙ in this section. To

combine two calls, refer to

⬙Conference Call⬙ in this

section.

Place/Retrieve a Call From Hold
To put a call on hold, press the PHONE button until you
hear a single beep. This indicates that the call is on hold.
To bring the call back from hold, press and hold the
PHONE button until you hear a single beep.

Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the PHONE button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Conference Call
When two calls are in progress (one active and one on
hold), press and hold the PHONE button until you hear
a double beep indicating that the two calls have been
joined into one conference call.

Three-Way Calling
To initiate three-way calling, press the VOICE RECOG-
NITION button while a call is in progress, and make a
second phone call, as described under

⬙Making a Second

Call While Current Call is in Progress.

⬙ After the second

call has established, press and hold the PHONE button
until you hear a double beep, indicating that the two calls
have been joined into one conference call.

Call Termination
To end a call in progress, momentarily press the PHONE
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the far end, a call on
hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the PHONE button until you hear a single beep.

Redial

• Press the PHONE button to begin.
• After the ⬙Ready⬙ prompt and the following beep, say

⬙Redial.⬙

• The uconnect威 phone will call the last number that

was dialed from your cellular phone.

NOTE:

This may not be the last number dialed from the

uconnect

威 phone.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Dodge Challenger SRT8 (2009 year). Manual - part 5
