40-20-40 Front Seat

As the name implies, the seat is divided into three
segments. The outboard seat portions are each 40% of the
total width of the seat. The back of the center portion
(20%) easily folds down to provide an armrest/center
storage compartment (if equipped).

Each outboard seat is independently adjustable forward
or rearward and is equipped with a back recliner. The
manual forward or rearward seat adjustment handle is
found at the front edge of each seat cushion. Pull up on
the handle and slide the seat to get the most comfortable
position.

WARNING!

Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.

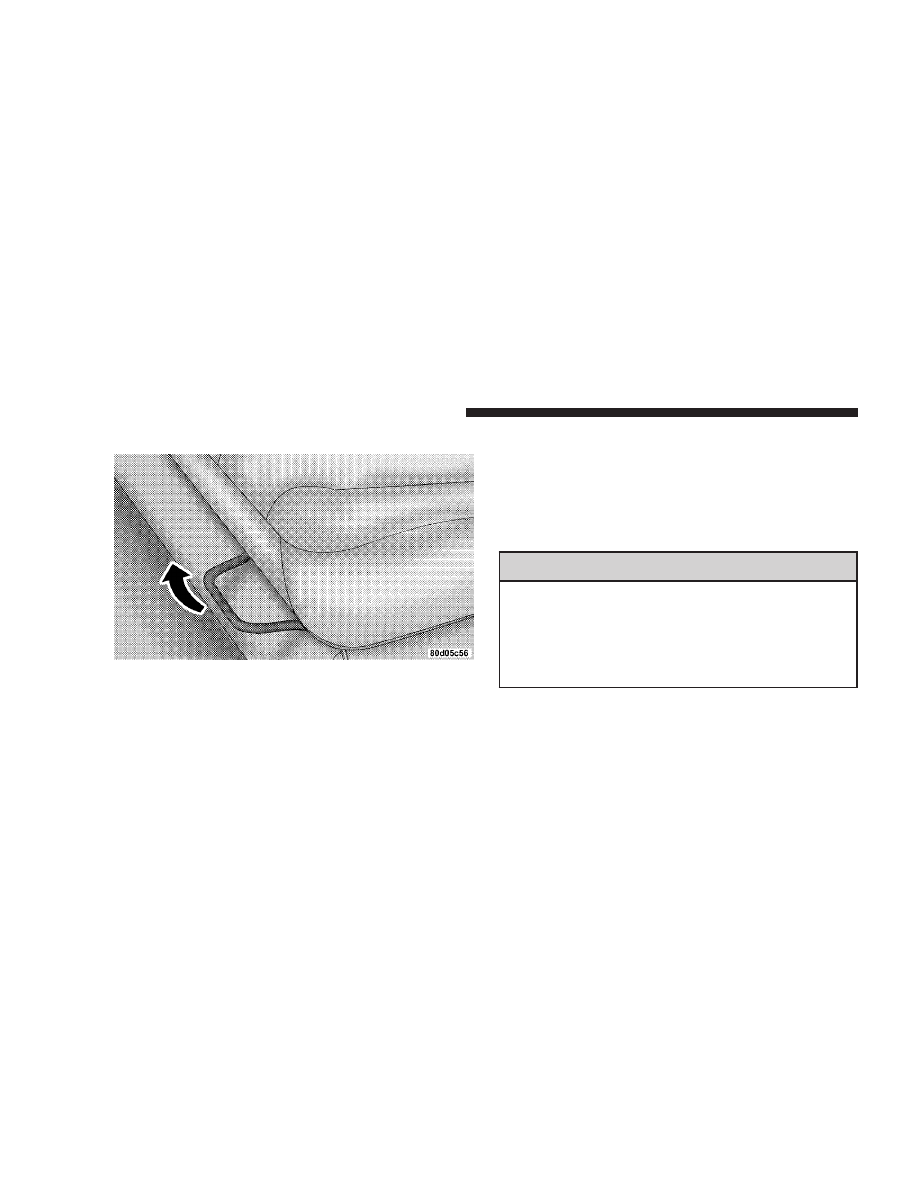

Manual Seat Adjuster

116

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Reclining Seats

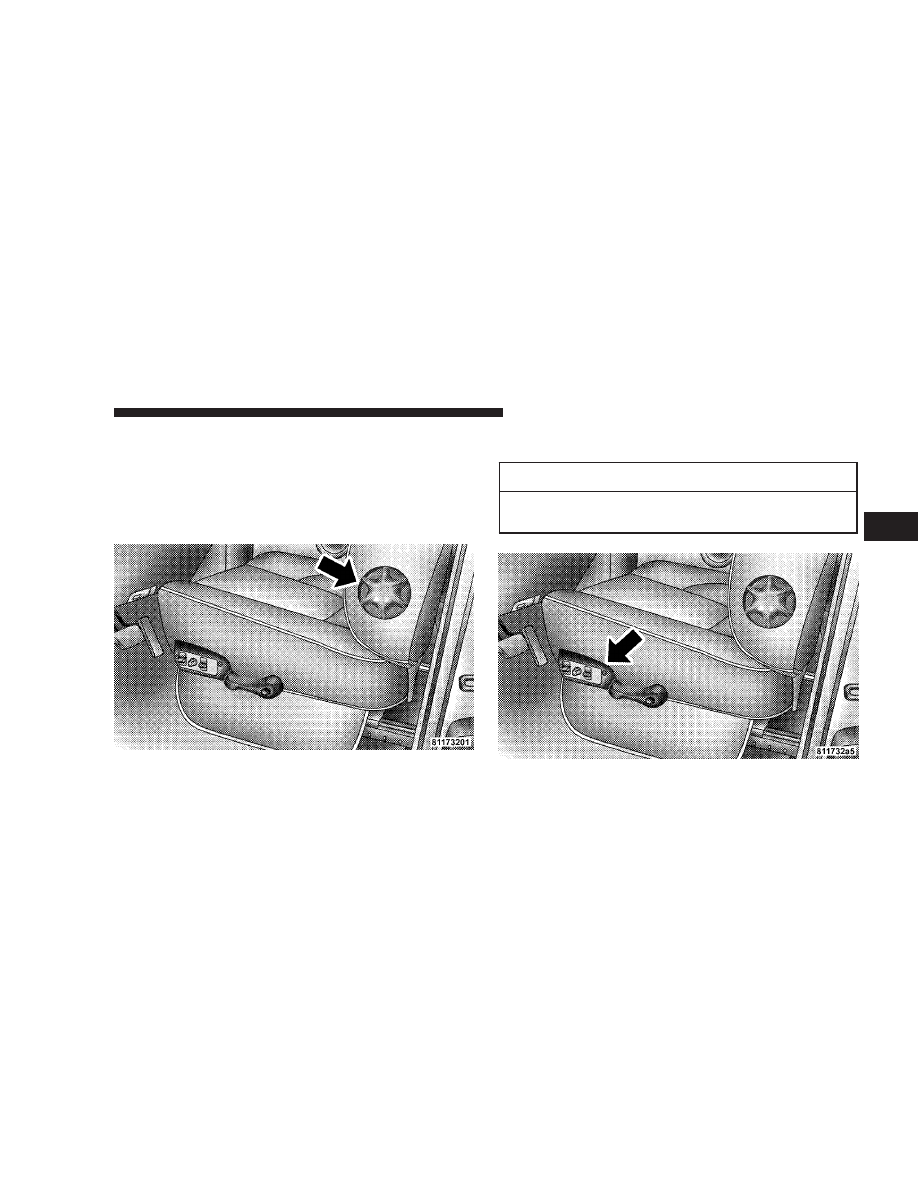

The recliner handle is on the outside of the seat cushion.
Pull up on the handle, as shown, to release the seatback
and adjust for comfort.

WARNING!

You can be seriously, even fatally, injured riding in a
seat with the seatback reclined. Do not ride with the
seatback reclined so that the shoulder belt is no
longer resting against your chest. If you ride in this
position, the shoulder harness will no longer be
restraining you. In a collision you could slide under
the seat belt and receive serious or fatal injuries.
Recline in a seat only when the vehicle is parked.

Seat Recliner Handle

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

117

3

Adjustable Head Restraints

Head restraints can reduce the risk of neck injury in the
event of impact from the rear. Pull up or push down on
the restraints so that the upper edge is as high as
practical, at least to the level of the ears.

To lower the head restraint, push in the button and then
push down on the head restraint.

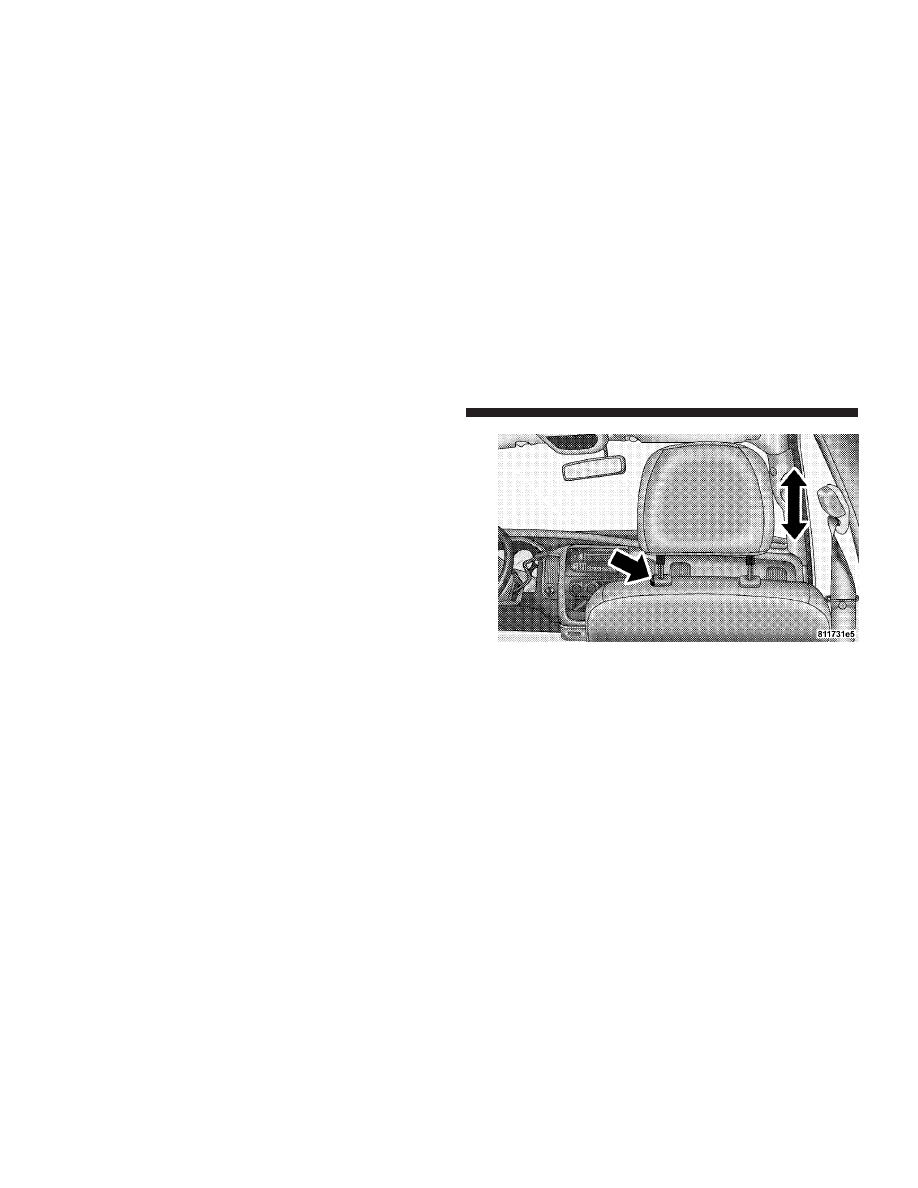

Head Restraints

118

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Manual Rotary Lumbar Support Adjustment — If
Equipped

Rotating the lumbar control knob on the left side of the
driver’s seatback and on the right side of the passenger’s
seatback increases or decreases the lumbar (lower back)
support.

Power Seats — If Equipped

CAUTION!

Don’t put anything under a power seat. It may cause

damage to the seat controls.

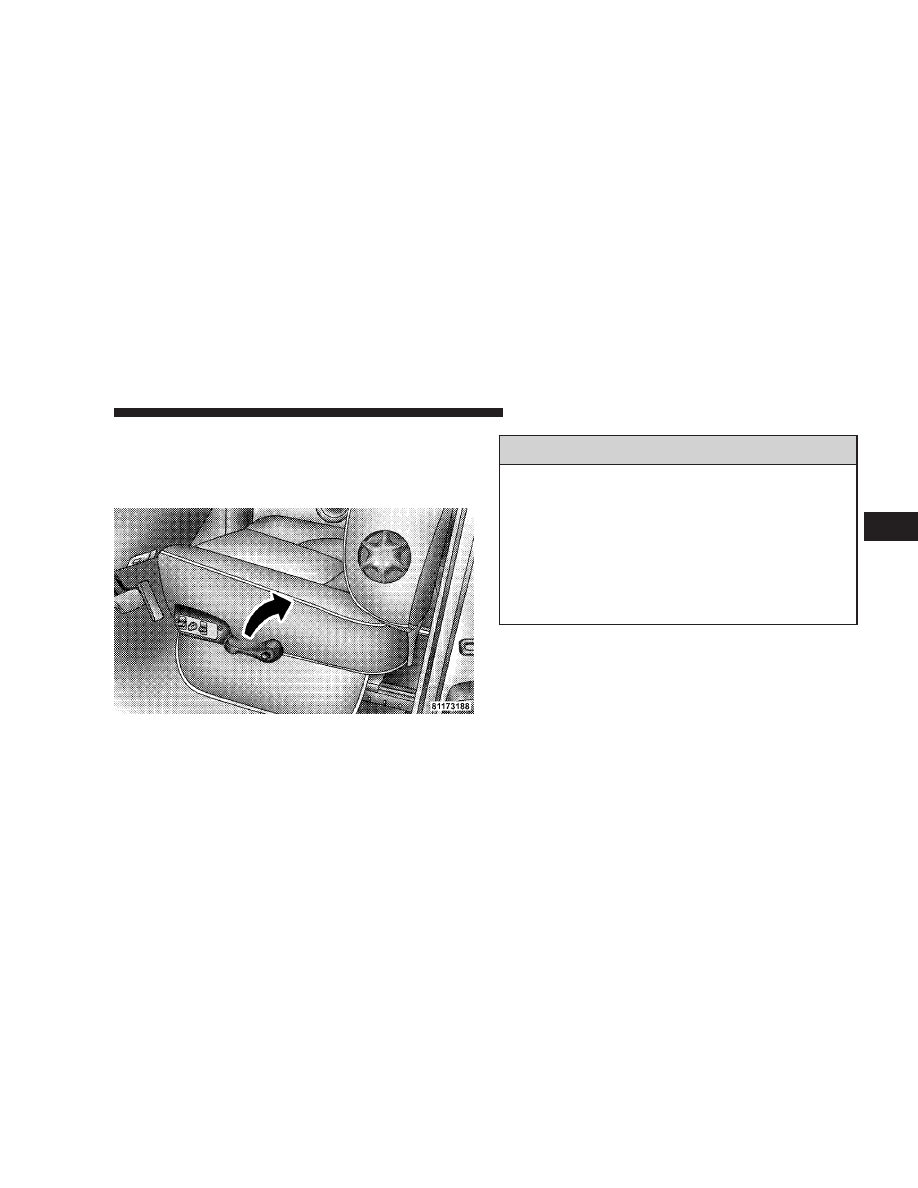

Manual Lumbar Adjustment

Power Seat Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

119

3

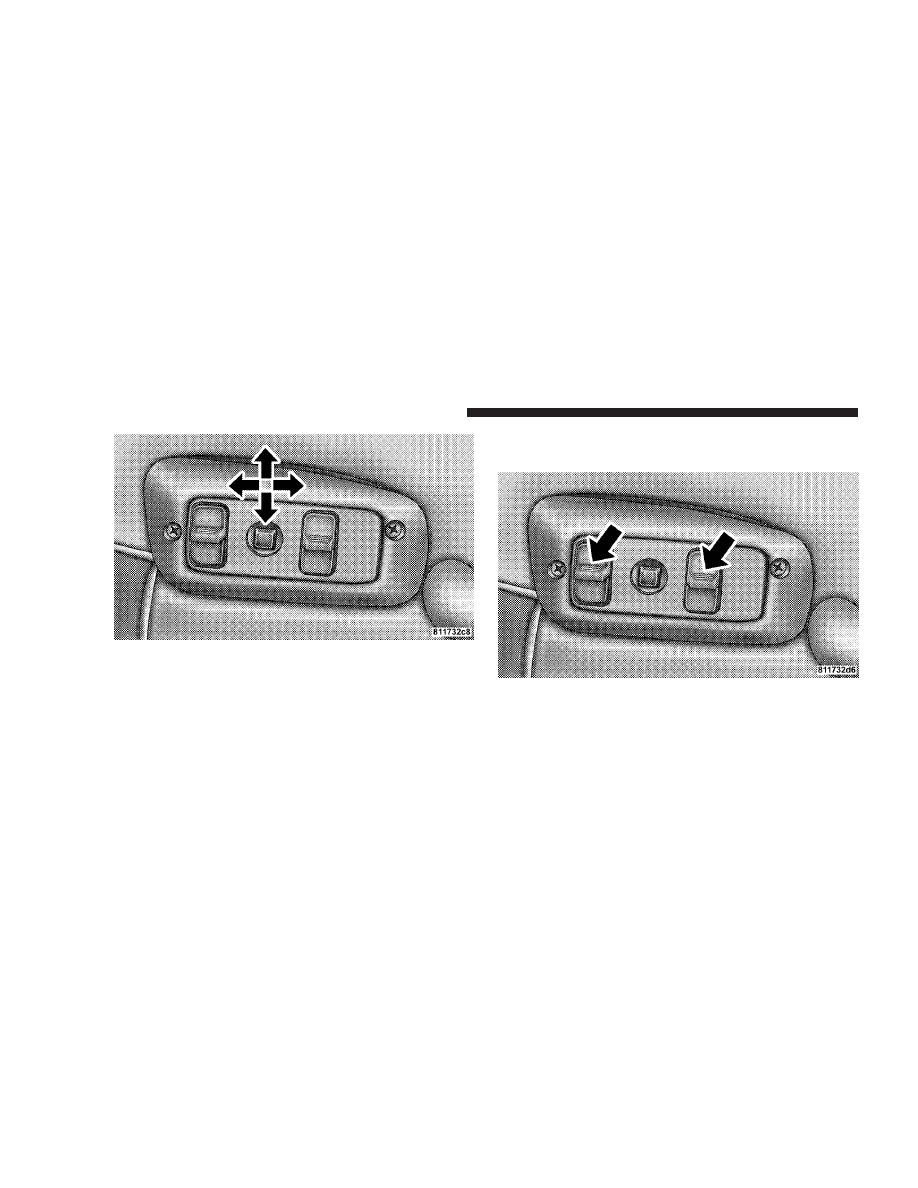

The power seat controls are on the outboard side of the
front seat cushions. Three switches control the seat move-
ment. The four-way switch in the center can be moved
forward or backwards to get the most comfortable posi-
tion. The same switch can be moved up and down to

control seat height. Change the seat angle by using the
two toggle switches, tilting it up or down.

Up, Down, Forward, and Rearward

Tilt Adjustment

120

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Seat Features — Mega Cab Models

Reclining Rear Seats — Mega Cab Models

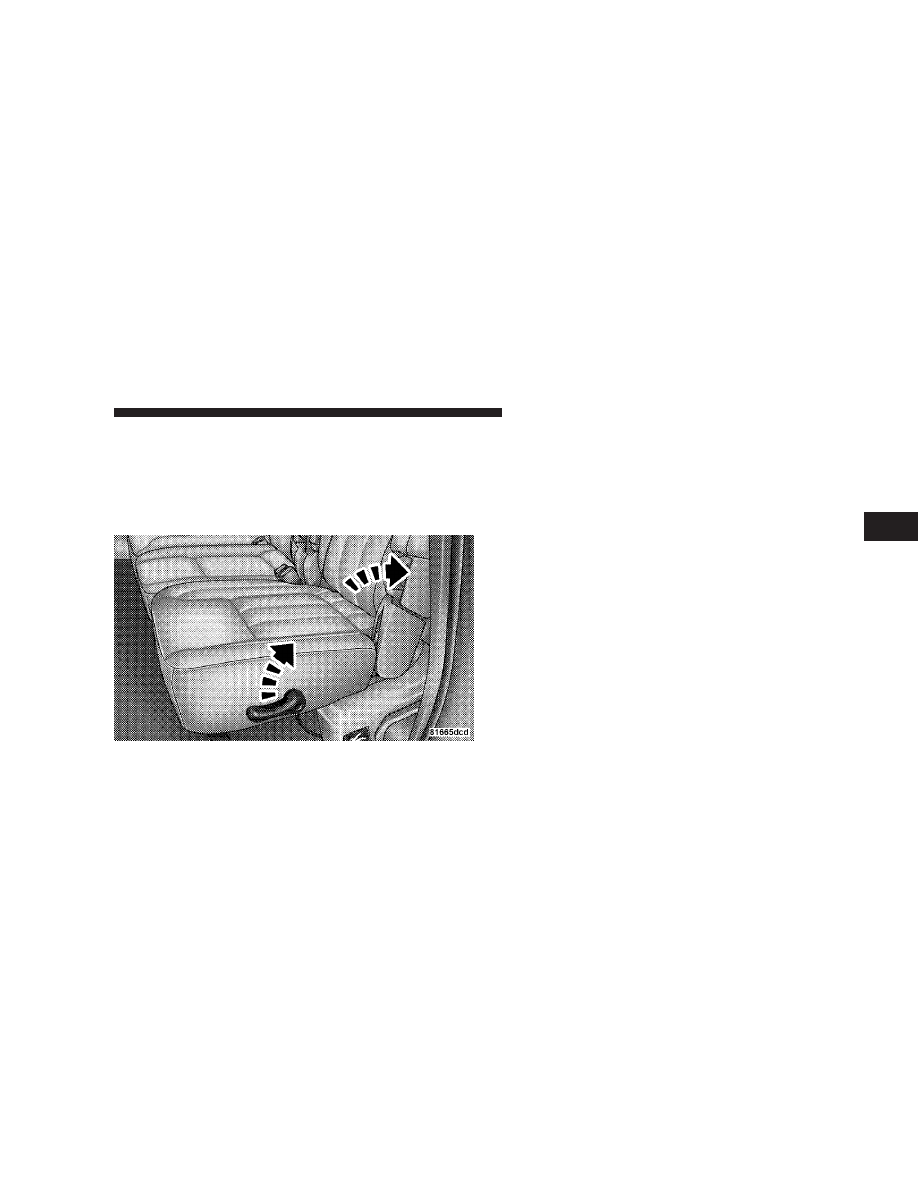

The recliner handle is on the outside of the seat cushion.
Pull up on the handle, as shown, to release the seatback
and adjust for comfort.

Folding Rear Seat (Table Mode) — Mega Cab
Models
Both the left and right rear sea backs can be folded down
and used as a table.

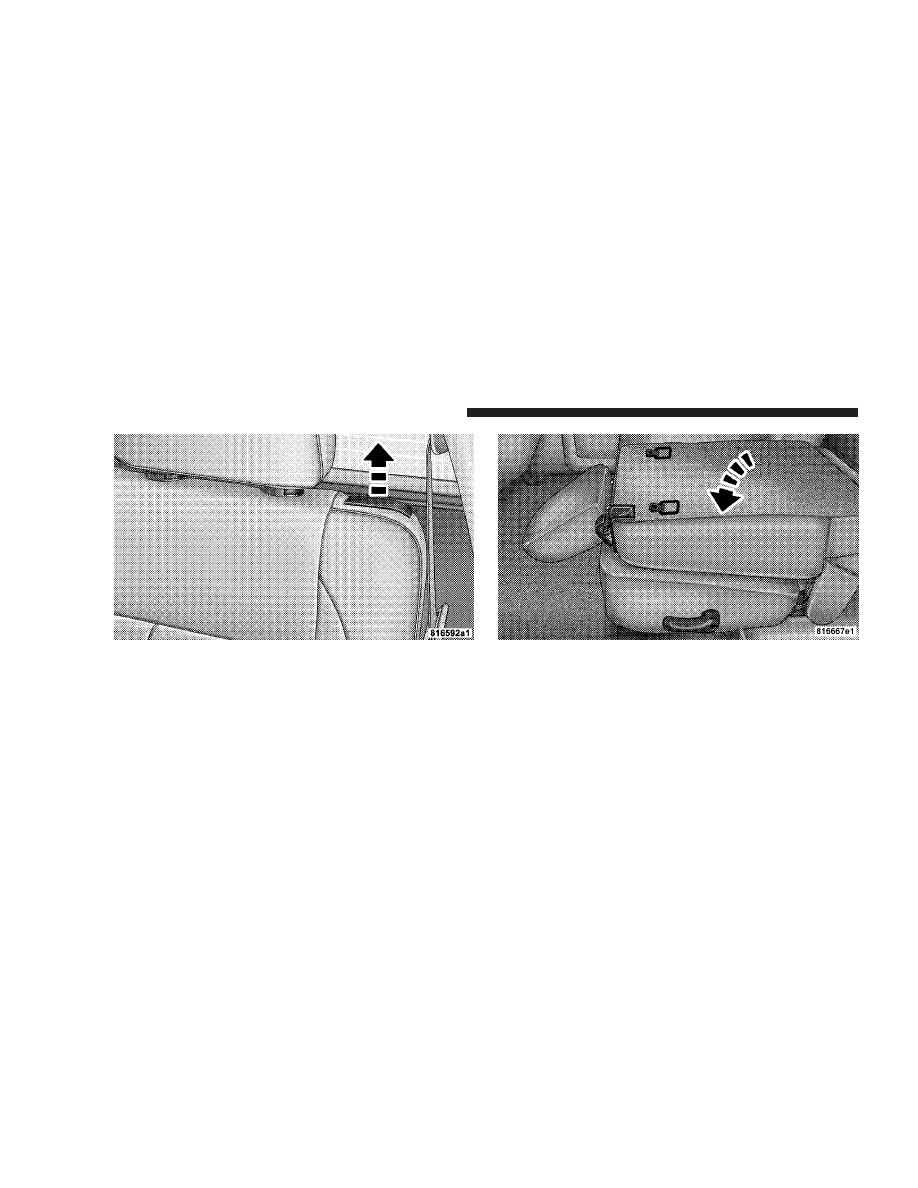

To fold either rear seatback down (Table Mode), lift the
handle and fold the seatback forward. Simply lift the
seatback to return the seat to the upright position. Verify
that it is locked in place.

Rear Seat Recliner Handle

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

121

3

Table Mode Handle

Table Mode

122

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Folding Rear Seat (Kneel Mode) — Mega Cab
Models
Both the left and right rear seats can be folded flat (Kneel
Mode) and used for carrying cargo. Each of the rear
seatbacks provide two D-rings and each of the rear
storage bin lids provide two slotted cutouts. Use a cargo
tie down to secure cargo in the cargo carrying area.

WARNING!

• It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

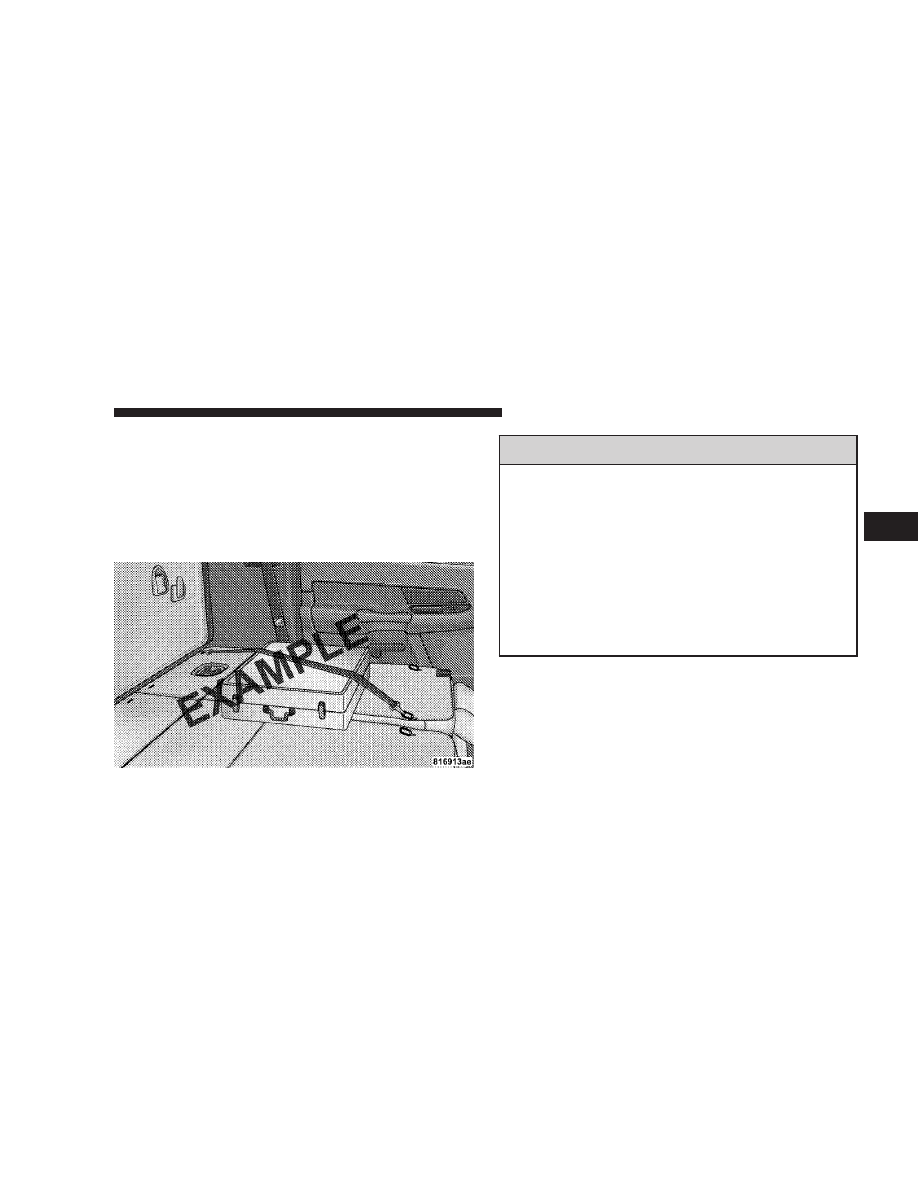

Securing Cargo

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

123

3

WARNING!

Cargo must be securely tied down before driving
your vehicle. Improperly secured cargo can fly
around in a sudden stop and strike someone in the
vehicle, causing serious injury or possible death.
Secure cargo with a cargo tie down using the D-Rings
provided on the back of the seats and the slotted
cutouts in the rear storage bin lid.

NOTE:

The rear seat will drop and move forward in

Kneel Mode.

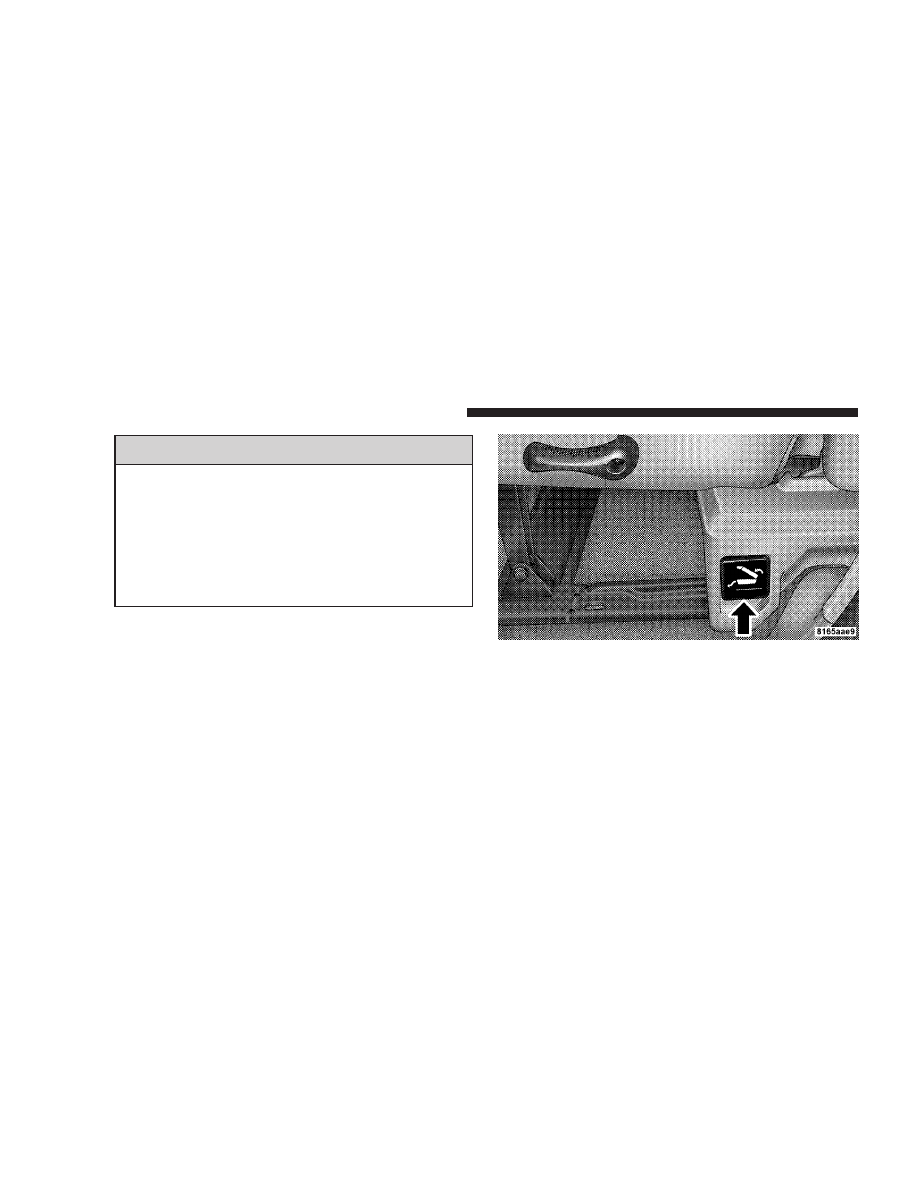

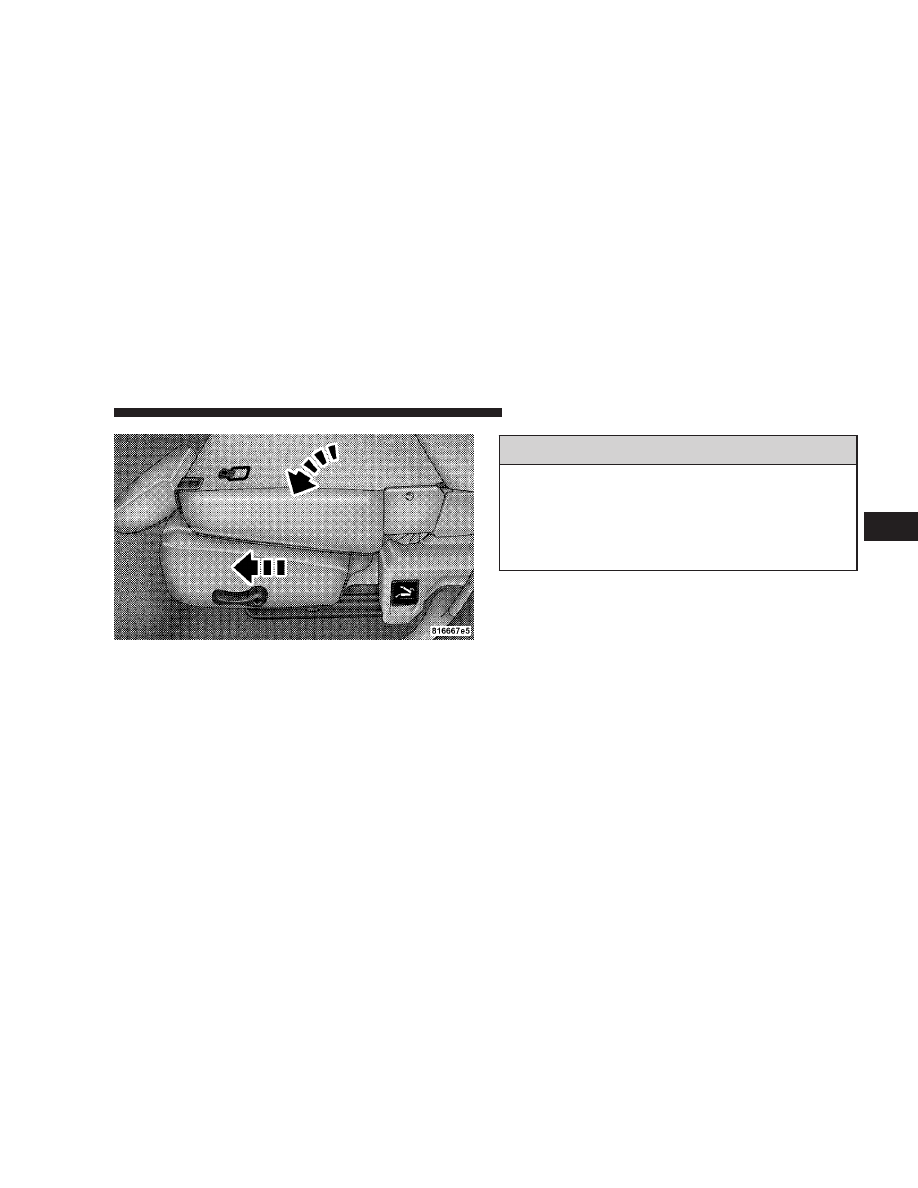

To fold either rear seat flat (Kneel Mode), lift the handle
and fold the seat forward. Simply lift the seatback to
return the seat to the upright position. Verify that it is
locked in place.

Kneel Mode Handle

124

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.

Kneel Mode

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

125

3

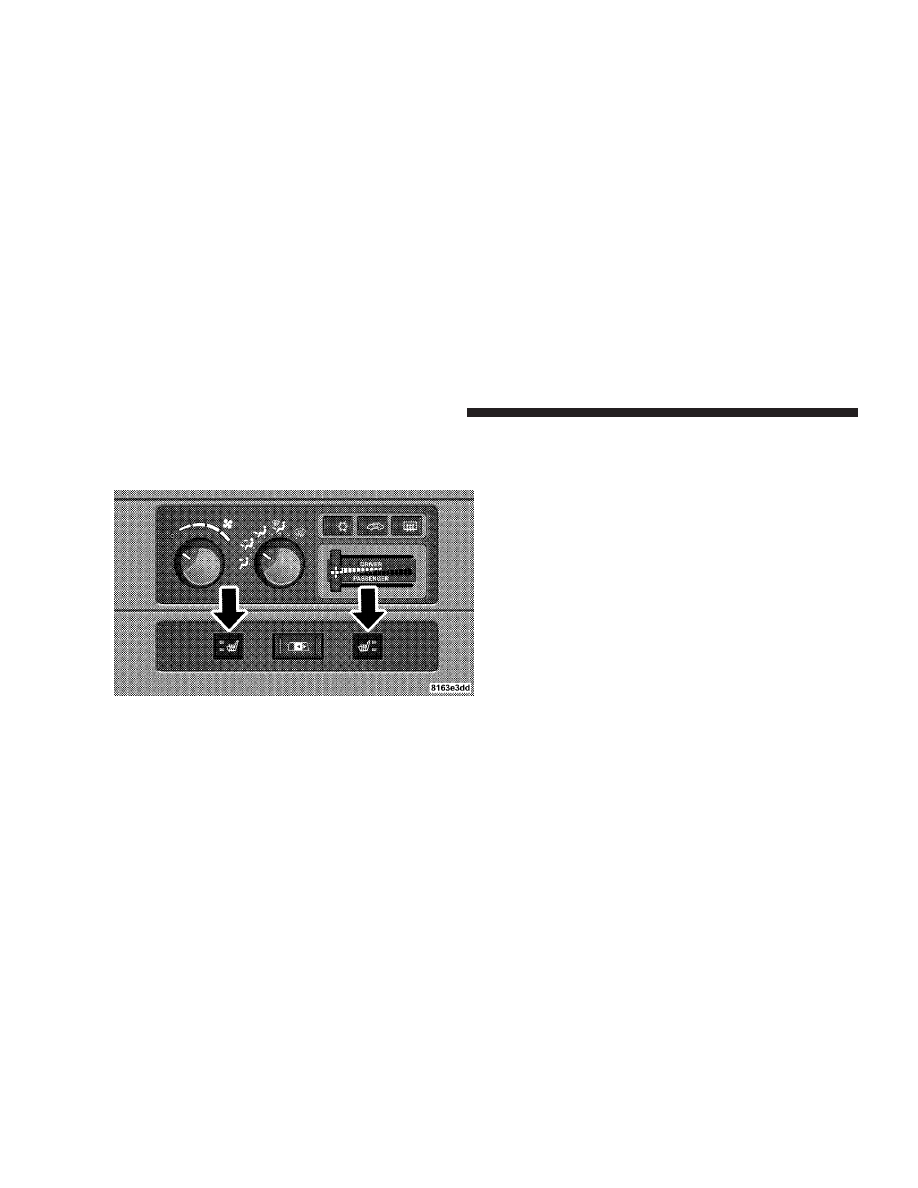

Heated Seats — If Equipped

The heated seat switches are located in the instrument
panel under the climate controls.

Each heated seat switch has two settings (HI and LOW).
Press the switch once to obtain High heat level, then
press the switch again to obtain Low heat level. Pressing
the switch a third time will turn the heated seats OFF. If
you do not purposefully turn the switch OFF, the seat
heating level will automatically change to the next lower
level, or OFF. The High heat level operates for 30 minutes
(approximate), the Low heat level operates for 30 min-
utes (approximate). The seat heat will also turn OFF
when the ignition is turned OFF. Both of the indicators
ON identifies High heat level. The lower indicator On
only, identifies Low heat level. Flashing indicator lights
on the switch indicate that the Heated Seat System needs
servicing.

Heated Seat Switches

126

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.

Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This may
cause the seat heater to overheat.

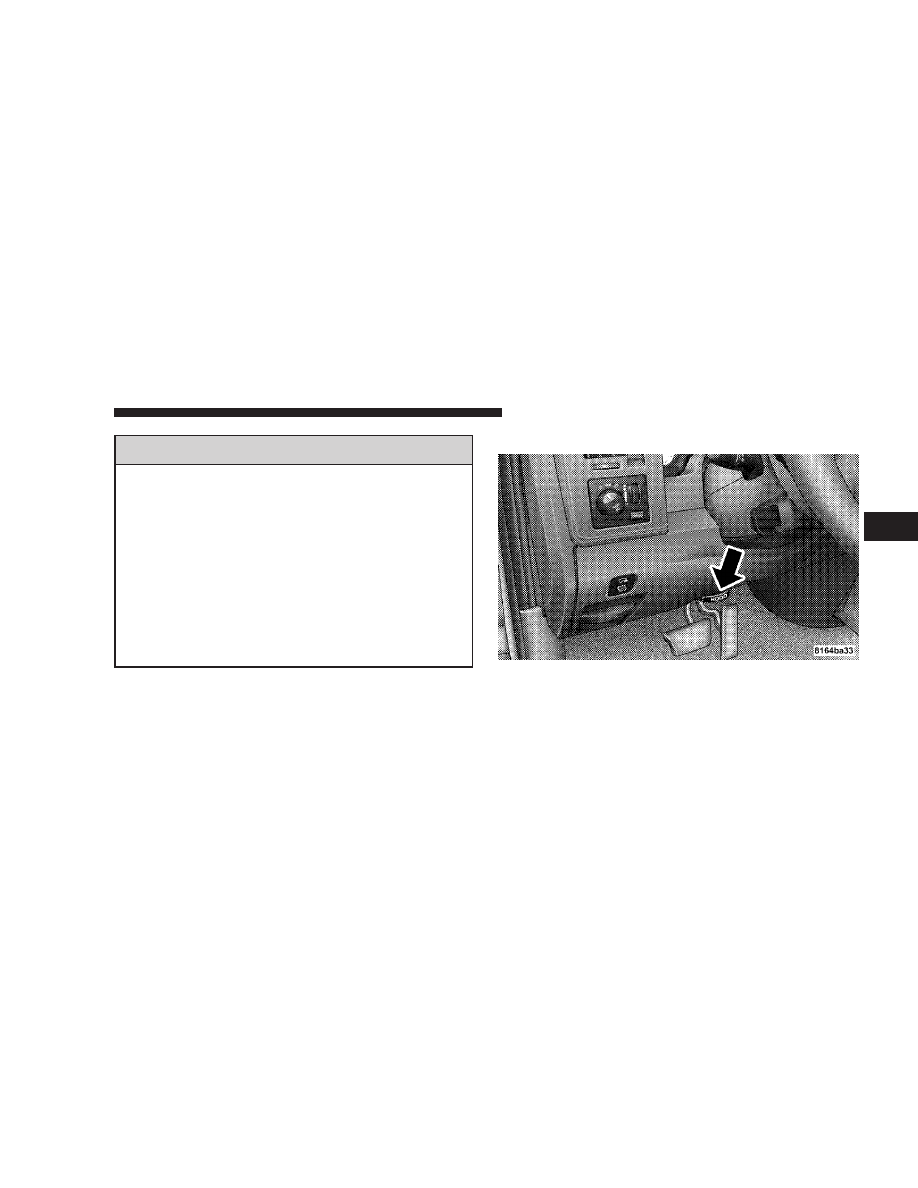

TO OPEN AND CLOSE THE HOOD

Hood Release Lever

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

127

3

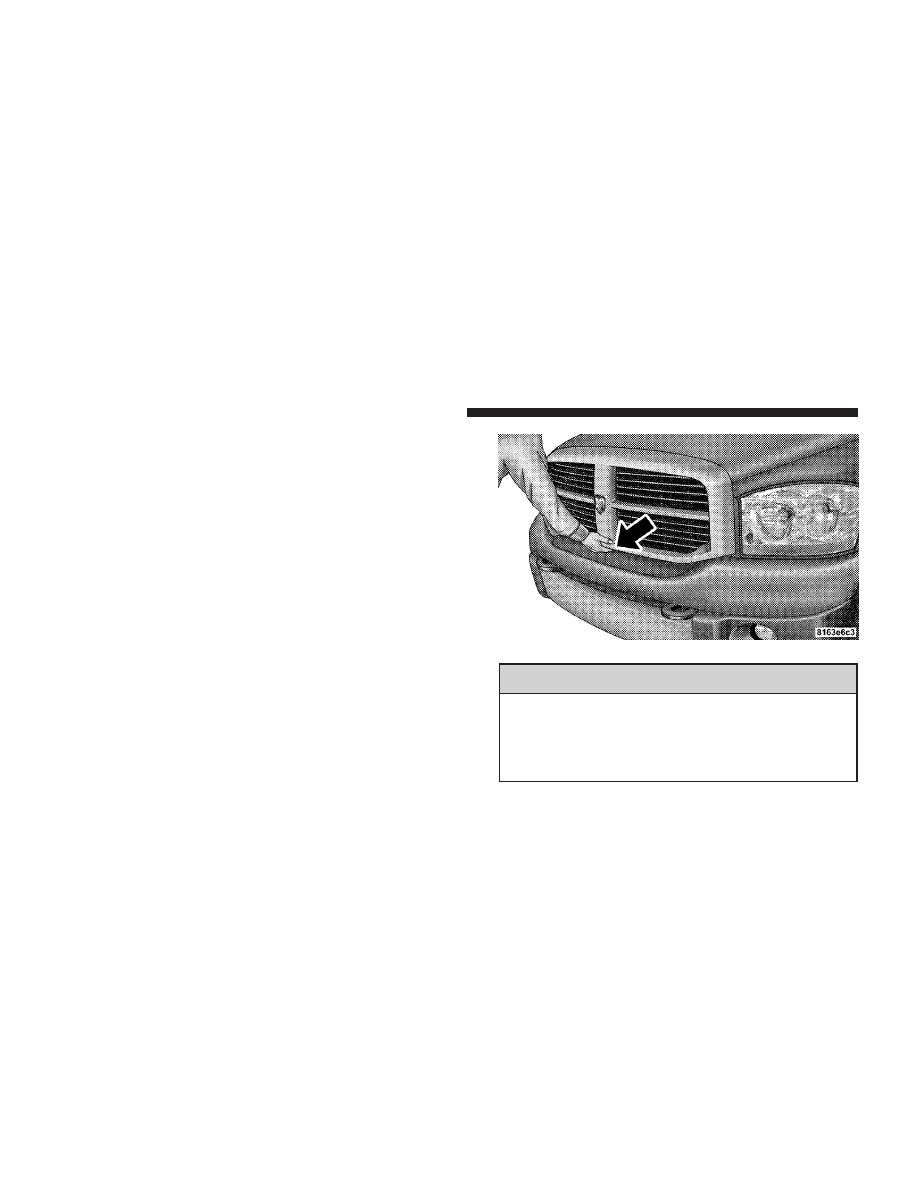

To open the hood, two latches must be released. First pull
the hood release lever located below the steering wheel at
the base of the instrument panel. Once the hood is
released you must reach into the opening beneath the
center of the grille and push up the latch to release the
safety catch before raising the hood.

To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the front center of
the hood to ensure that both latches engage.

WARNING!

If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are latched fully before
driving.

Secondary Latch

128

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

LIGHTS

Interior Lights

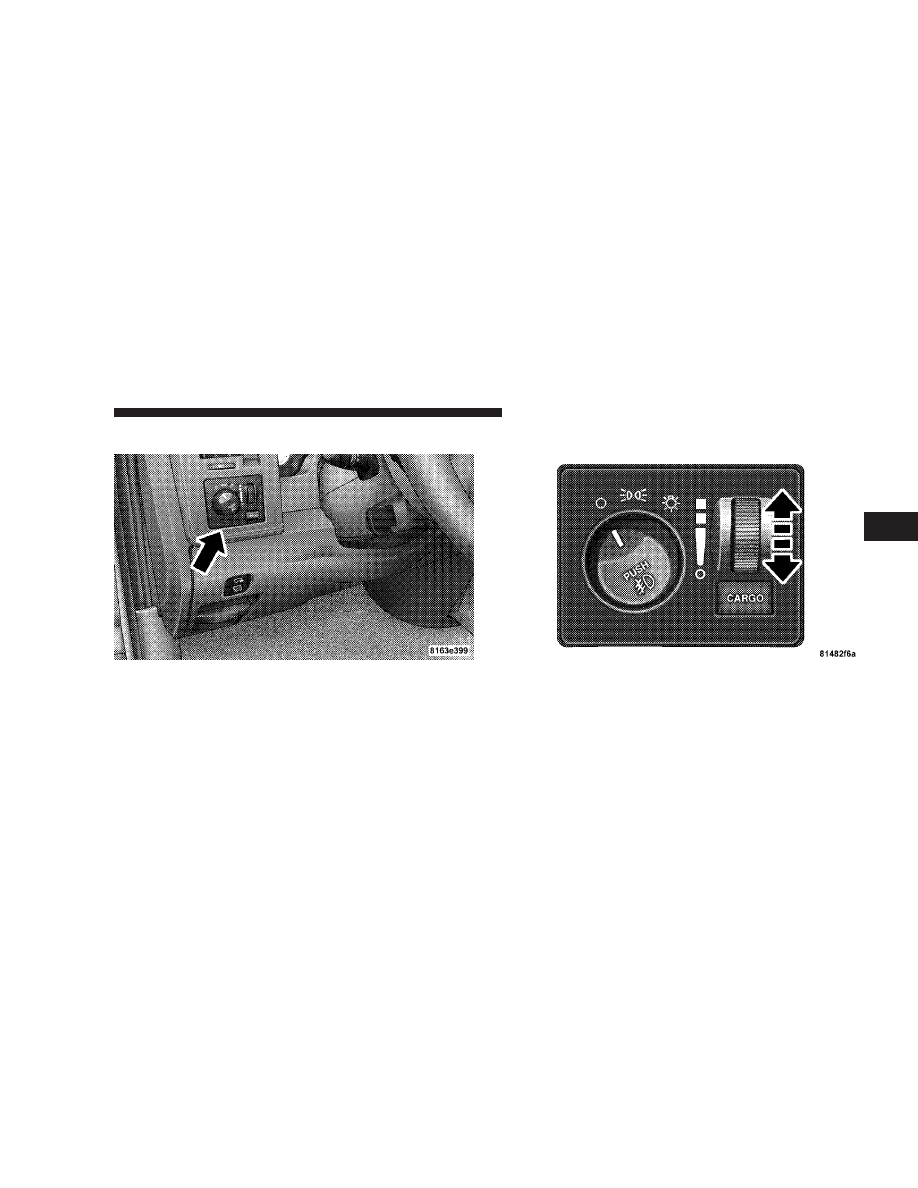

Headlight Switch Location

Dimmer Control

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

129

3

Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotating
wheel on the right side of the switch) is rotated to the
upward detent position, or if equipped, when the UN-
LOCK button is pressed on the key fob. When a door is
open and the interior lights are on, rotating the dimmer
control all the way down to the OFF detent will cause all
the interior lights to go out. This is also known as the

9Party9 mode because it allows the doors to stay open for
extended periods of time without discharging the vehi-
cle’s battery.

The brightness of the instrument panel lighting can be
regulated by rotating the dimmer control up (brighter) or
down (dimmer). When the headlights are ON you can
supplement the brightness of the odometer, trip odom-
eter, radio and overhead console by rotating the control
up until you hear a click. This feature is termed the
“Parade” mode and is useful when headlights are re-
quired during the day.

Mega Cab

t/Quad Cabt models may have an optional

switched dome lamp that may be operated by pressing
the lens.

Battery Saver

To protect the life of your vehicle’s battery, load shedding
is provided for both the interior and exterior lights.

If the ignition is OFF and any door is left ajar for 10
minutes or the dimmer control is rotated upwards for 10
minutes, the interior lights will automatically turn off.

If the headlamps remain on while the ignition is cycled
OFF, the exterior lights will automatically turn off after
eight minutes. If the headlamps are turned on and left on
for eight minutes while the ignition is OFF, the exterior
lights will automatically turn off.

NOTE:

Battery saver mode is cancelled if the ignition is

ON.

130

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Headlamp Delay

To aid in your exit, your vehicle is equipped with a
headlamp delay that will leave the headlamps on for 90
seconds. This delay is initiated when the ignition is
turned OFF while the headlamp switch is ON, and then
the headlamp switch is cycled OFF. Headlamp delay can
be cancelled by either turning the headlamp switch ON
then OFF, or by turning the ignition ON.

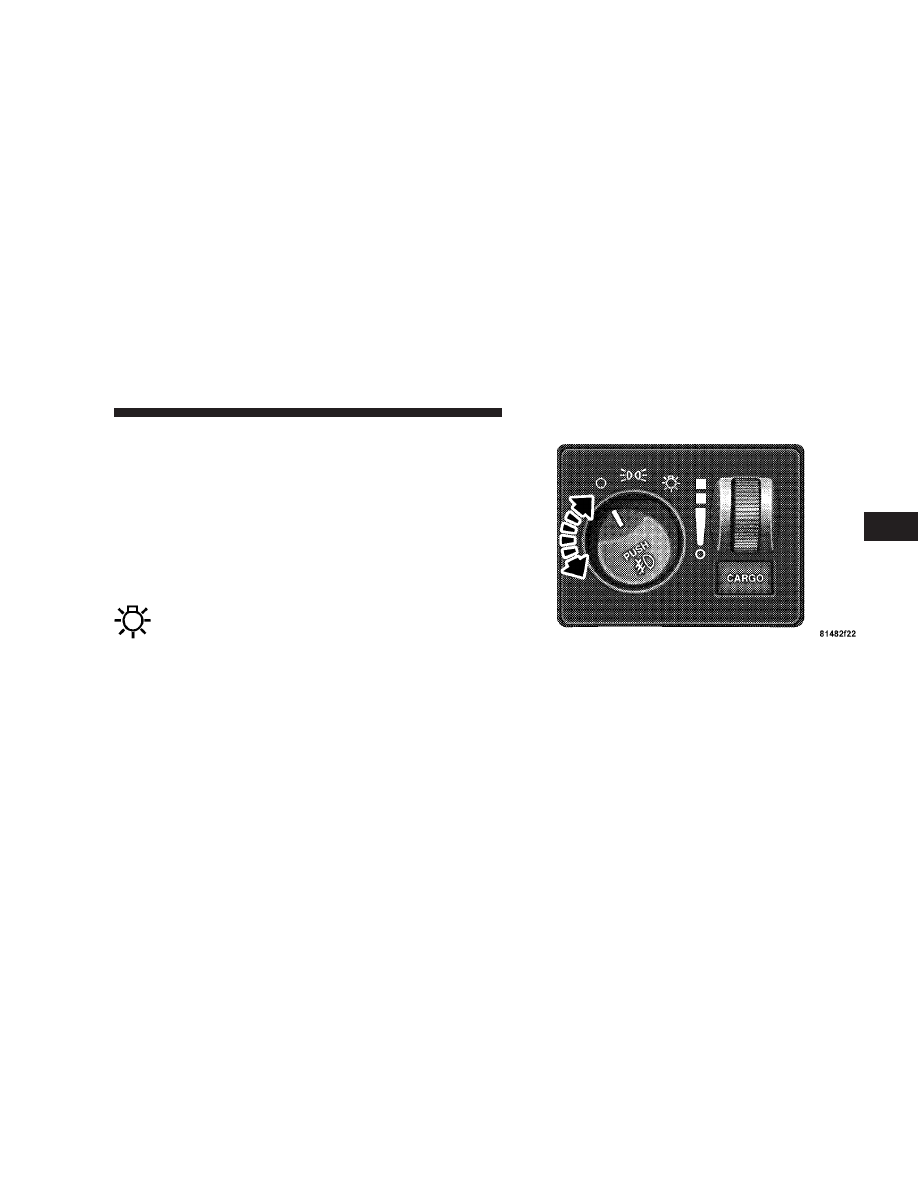

Headlights, Parking Lights, Panel Lights

When the headlight switch is rotated to the first
position, the parking lights, taillights, side marker
lights, license plate light and instrument panel

lights are all turned on. The headlights will turn ON
when the switch is rotated to the second position.

Your vehicle is equipped with plastic headlight lenses
that are lighter and less susceptible to stone breakage
than glass headlights.

Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.

Light Switch Rotation

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

131

3
