Dodge Intrepid (2004 year). Manual

Driver and Right Front Passenger Supplemental
Restraint System (SRS) - Airbag

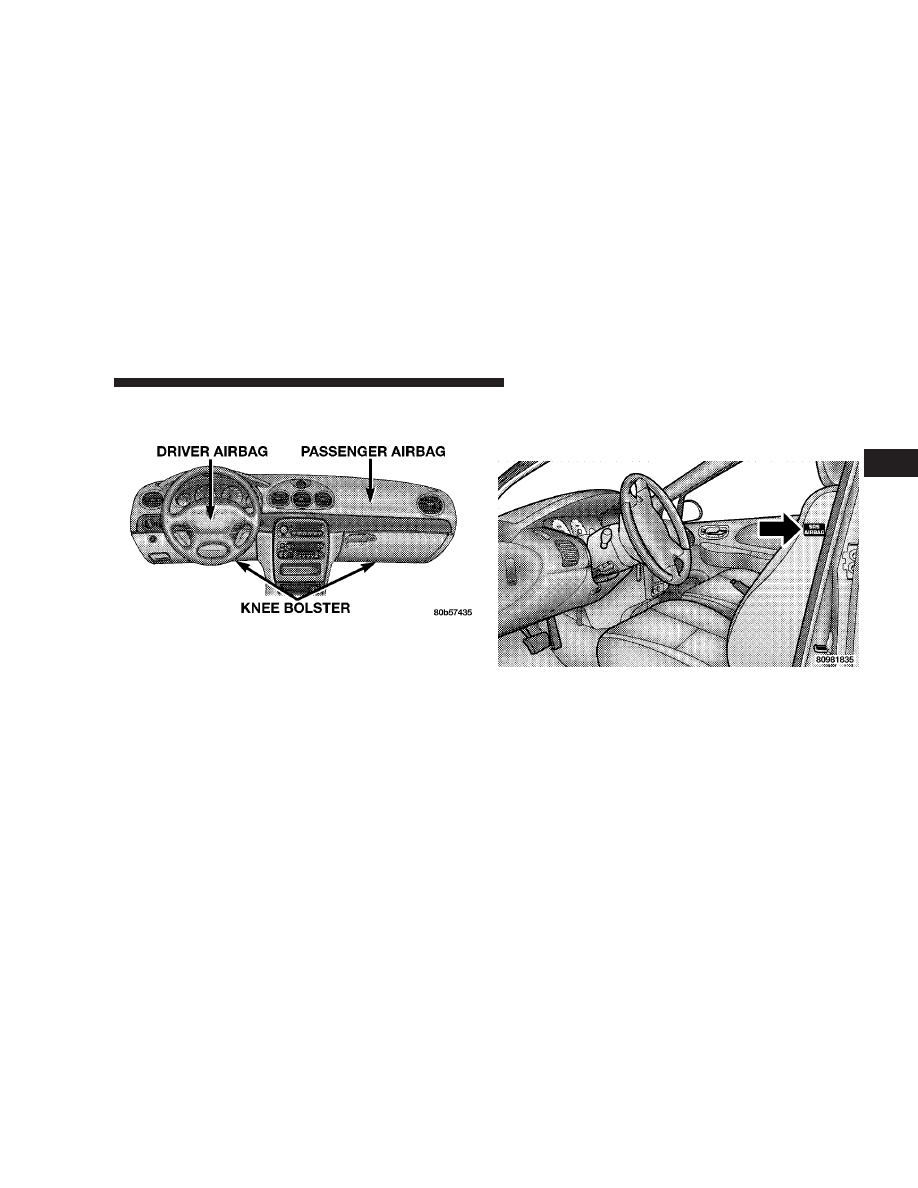

This vehicle has front airbags for both the driver and
front passenger as a supplement to the seat belt restraint
systems. The driver’s front airbag is mounted in the
center of the steering wheel. The passenger’s front airbag
is mounted in the instrument panel, above the glove
compartment. The words SRS AIRBAG are embossed on
the airbag covers.

If the vehicle is equipped with side airbags, they are
located inside the driver and front passenger seats, and
their covers are also labeled SRS AIRBAG.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• Do not put anything on or around the front airbag

covers or attempt to manually open them. You
may damage the airbags and you could be injured
because the airbags are not there to protect you.
These protective covers are designed to open only
when the airbags are inflated.

• If your vehicle is equipped with side airbags, do

not use accessory seat covers or place objects
between you and the side airbags; the perfor-
mance could be adversely affected and/or objects
could be pushed into you, causing serious injury.

• If your vehicle is equipped with side airbags, do

not attach cup holders or any other objects on or
around the door. The inflating side airbag could
drive the objects into occupants, causing serious
injury.

Airbags inflate in moderate to high speed impacts. Along
with the seat belts, front airbags work with the instru-
ment panel knee bolsters to provide improved protection

for the driver and front passenger. Side airbags also work
with seat belts to improve occupant protection.

The seat belts are designed to protect you in many types
of collisions. The front airbags deploy only in moderate
to severe frontal collisions. In certain types of collisions,
both the front and side airbags may be triggered. But
even in collisions where the airbags work, you need the
seat belts to keep you in the right positon for the airbags
to protect you properly.

Here are some simple steps you can take to minimize
the risk of harm from a deploying airbag.

1. Children 12 years old and under should always ride
buckled up in the rear seat.

Infants in rear-facing child restraints (designed for chil-
dren up to 20 lbs. [9kg.] and at least one year old) should
NEVER

ride in the front seat of a vehicle with a passen-

ger front airbag. An airbag deployment could cause
serious injury or death to an infant in that position.

Children that are not big enough to properly wear the
vehicle seat belt (see section on “Child Restraint”) should

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

be secured in the rear seat in child restraints or belt-
positioning booster seats appropriate for the size and age
of the child.

Older children who do not use child restraints or belt-
positioning booster seats should ride properly buckled
up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arm.

If a child from 1 to 12 years old must ride in the front
passenger seat because the vehicle is crowded, move the
seat as far back as possible, and use the proper child
restraint. See the section on “Child Restraint”.

You should read the instructions provided with your
child restraint to make sure that you are using it properly.

2. All occupants should wear their lap and shoulder belts
properly.

3. The driver and front passenger seats should be moved
back as far as practical to allow the front airbags room to
inflate.

4. If your vehicle has side airbags, do not lean against the
door, airbags will inflate forcefully into the space be-
tween you and the door.

WARNING!

• Relying on the airbags alone could lead to more

severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you
have airbags.

• Being too close to the steering wheel or instru-

ment panel during airbag deployment could cause
serious injury.

• Airbags need room to inflate. Sit back, comfort-

ably extending your arms to reach the steering
wheel or instrument panel.

• If the vehicle has side airbags, they also need

room to inflate. Do not lean against the door. Sit
upright in the center of the seat.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Airbag System Components
The airbag system consists of the following:

• ACM (Airbag Control Module)
• AIRBAG Readiness Light
• Driver and Passenger Front Airbags
• Optional Driver and Passenger Side Airbags.
• Steering Wheel and Column
• Instrument Panel
• Interconnecting Wiring
• Crash Sensors
• Knee Impact Bolsters

The side airbag system, on vehicles so equipped, consists
of the following:

• AIRBAG Readiness Light
• Side Airbag in the Driver’s Seat
• Side Airbag in the Passenger’s Seat

• ACM (Airbag Control Module)
• SIACM (Side Impact Airbag Control Module)
• Interconnecting Wiring

How the Frontal Airbag System Works

• The front airbag control module determines if a frontal

collision is severe enough to require the airbags to
inflate.

• The airbag control module will not detect side, roll

over, or rear collisions.

• The airbag control module also monitors the readiness

of the electronic parts of the system whenever the
ignition switch is in the START or RUN positions.
These include all of the items listed above except the
knee bolsters, the instrument panel, and the steering
wheel and column. If the key is in the OFF position, in
the ACC position, or not in the ignition, the airbags are
not on and will not inflate.

• The airbag control module also turns on the

AIRBAG light in the instrument panel for 6 to
8 seconds when the ignition is first turned on,

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

then turns the light off. If it detects a malfunction in
any part of the system, it turns on the light either
momentarily or continuously.

WARNING!

Ignoring the AIRBAG light in your instrument panel
could mean you won’t have the airbags to protect
you in a collision. If the light does not come on, stays
on after you start the vehicle, or if it comes on as you
drive, have the airbag system checked right away.

• When the airbag control module detects an impact

requiring the front airbags, it signals the inflator units.
A large quantity of nontoxic gas is generated to inflate
the airbags. The airbag covers separate and fold out of
the way as the airbags inflate to their full size. The
airbags fully inflate in about 60 milliseconds. This is
only about half of the time it takes you to blink your
eyes. The airbags then quickly deflate while helping to
restrain the driver and right front passenger. The
driver’s front airbag gas is vented towards the instru-
ment panel. The passenger’s front airbag gas is vented

through vent holes in the sides of the airbag. In this
way the airbags do not interfere with your control of
the vehicle.

• The Knee Impact Bolsters help protect the knees and

position you for the best interaction with the airbags.

If A Deployment Occurs
The airbag system is designed to deploy when the airbag
control module detects a moderate-to-severe frontal col-
lision, to help restrain the driver and right front passen-
ger, and then to immediately deflate.

NOTE:

A frontal collision that is not severe enough to

need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.

If you do have a collision which deploys the airbags, any
or all of the following may occur:

• The nylon airbag material may sometimes cause abra-

sions and/or skin reddening to the driver and right
front passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.

• As the airbags deflate you may see some smoke-like

particles. The particles are a normal by-product of the
process that generates the nontoxic gas used for airbag
inflation. These airborne particles may irritate the skin,
eyes, nose, or throat. If you have skin or eye irritation,
rinse the area with cool water. For nose or throat
irritation, move to fresh air. If the irritation continues,
see your doctor. If these particles settle on your
clothing, follow the garment manufacturer’s instruc-
tions for cleaning.

• It is not advisable to drive your vehicle after the

airbags have been deployed. If you are involved in
another collision, the airbags will not be in place to
protect you.

WARNING!

Deployed airbags can’t protect you in another colli-
sion. Have the airbags replaced by an authorized
dealer as soon as possible.

How the Side Airbag System Works

• The side impact airbag control module determines if a

side collision is severe enough to require the airbag to
inflate. The ACM will not detect rollover, front or rear
impacts.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• The side impact airbag control module monitors the

readiness of the electronic parts of the system when-
ever the ignition switch is in the “START” or “RUN”
positions. These include all of the items listed above
except for the AIRBAG light (which is controlled by
the frontal airbag system).

• In moderate to severe side collisions, the side airbag

inflator on the crash side of the vehicle is triggered,
releasing a quantity of nontoxic gas. The inflating side
airbag exits through the seat seam into the space
between the occupant and the door. The side airbag
moves at a very high speed and with such a high force,
that it could injure you if you are not seated properly,
or if items are positioned in the area where the side
airbag inflates. This especially applies to children.

Maintaining Your Airbag System

WARNING!

• Modifications to any part of the airbag system

could cause it to fail when you need it. You could
be injured because the airbag is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the airbag covers. Do not modify the
front bumper or vehicle body structure.

• You need proper knee impact protection in a

collision. Do not mount or locate any aftermarket
equipment on or behind the knee impact bolsters.

• It is dangerous to try to repair any part of the

airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Airbag Light

You will want to have the airbags ready for your
protection in an impact. While the airbag system
is designed to be maintenance free, if any of the

following occurs, have an authorized dealer service the
system immediately.

• The AIRBAG light does not come on or flickers during

the 6 to 8 seconds when the ignition switch is first
turned on.

• The light remains on or flickers after the 6 to 8 second

interval.

• The light flickers or comes on and remains on while

driving.

Child Restraint

Everyone in your vehicle needs to be buckled up all the
time– babies and children too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.

Children 12 years and under should ride properly buck-
led up in a rear seat. According to crash statistics,
children are safer when properly restrained in the rear
seat rather than the front.

WARNING!

In a collision, an unrestrained child, even a tiny
baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap
could become so great that you could not hold the
child, no matter how strong you are. The child and
others could be badly injured. Any child riding in
your vehicle should be in a proper restraint for the
child’s size.

There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat owner’s manual to ensure you have the right seat for
your child. Use the restraint that is correct for your child:

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Infants and Child Restraints

• Safety experts recommend that children ride

rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and “convertible” child seats.

• The infant carrier is only used rearward-facing in the

vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). “Convertible” child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old. Both types of child restraints are
held in the vehicle by the lap/shoulder belt or the
LATCH anchorage system. (See the LATCH — Child
Seat Anchorage System section for greater explana-
tion.)

• Rearward-facing child seats must NEVER be used in

the front seat of a vehicle with a front passenger

airbag. An airbag deployment could cause severe
injury or death to infants in this position.

WARNING!

• A rearward facing infant restraint should only be

used in a rear seat. A rearward facing infant
restraint in the front seat may be struck by a
deploying passenger airbag which may cause se-
vere or fatal injury to the infant.

• Improper installation can lead to failure of an

infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.

Here are some tips on getting the most out of your child
restraint:

• Before buying any restraint system, make sure that it

has a label certifying that it meets all applicable Safety

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Standards. We also recommend that you try a child
restraint in the vehicle seats where you will use it
before you buy it.

• The restraint must be appropriate for your child’s

weight and height. Check the label on the restraint for
weight and height limits.

• Carefully follow the instructions that come with the

restraint. If you install the restraint improperly, it may
not work when you need it.

• Buckle the child into the seat according to the seat

manufacturer’s directions.

• When your child restraint is not in use, secure it in the

vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.

NOTE:

For

additional

information,

refer

www.seatcheck.org or call 1–866–SEATCHECK.

Older Children and Child Restraints
Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who weigh 20 to 40 lbs (9 to 18 kg) and who are older
than one year. These child seats are also held in the
vehicle by the lap/shoulder belt or the LATCH anchor-
age system. (See the LATCH — Child Seat Anchorage
System Section.)

The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
the vehicle’s seat belts properly. If the child cannot sit
with knees bent over the vehicle’s seat cushion while the
child’s back is against the seat back, they should use a
belt-positioning booster seat. The child and belt-
positioning booster seat are held in the vehicle by the
lap/shoulder belt.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Children Too Large For Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback, should use the lap/shoulder belt in the rear
seat.

• Make sure that the child is upright in the seat.
• The lap portion should be low on the hips and as snug

as possible.

• Check belt fit periodically. A child’s squirming or

slouching can move the belt out of position.

• If the shoulder belt contacts the face or neck, move the

child closer to the center of the vehicle. Never allow a
child to put the shoulder belt behind their back or
under their arm.

LATCH – Child Seat Anchorage System (Lower
Anchors and Tether for CH ildren)
Your vehicle’s rear seat is equipped with the child
restraint anchorage system called LATCH. The LATCH
system provides for the installation of the child restraints
without using the vehicle’s seat belts, instead securing

the child restraint using lower anchorages and upper
tether straps from the child restraint to the vehicle
structure.

LATCH-compatible child restraint systems are now avail-
able. However, because the lower anchorages are to be
introduced over a period of years, child restraint systems
having attachments for those achorages will continue to
also have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
connection tot he top tether anchorages have been avail-
able for some time. For some older child restraints, many
child restraint manufacturers offer add-on tether strap
kits or retro-fit kits. You are urged to take advantage of all
the available attachments provided with your child re-
straint in any vehicle.

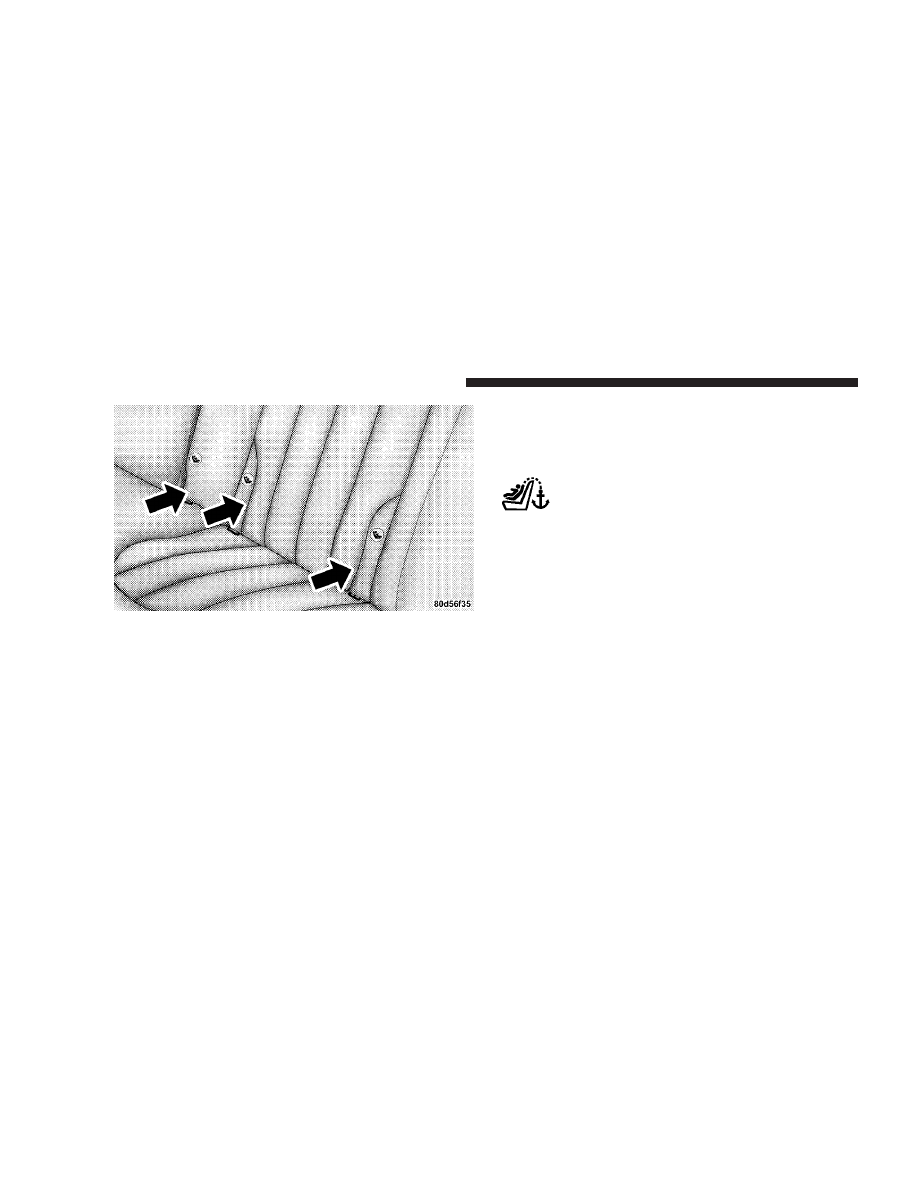

All three rear seating positions have lower
anchorages that are capable of accomodating
LATCH-compatible child seats. These are
round bars, located at the lower area of the seat

back. Install your child seat as per child seat manufac-
turer recommendations.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Installing the LATCH-Compatible Child Restraint
System
We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Not all
child restraint systems will be installed as described here.
Again, carefully follow the installation instructions that
were provided with the child restraint system.

The rear seat lower anchorages are round bars, located at
the rear of the seat cushion where it meets the seat back,
and are just visible when you lean into the rear seat to

install the child restraint. You will easily feel them if you
run your finger alon the intersection of the seatback and
seat cushion surfaces.

In addition, there are tether strap anchorages
behind each rear seating position located in the
panel between the rear seat back and the rear
window. These tether strap anchorages are

under a hinged plastic cover with this symbol on it.

Many, but not all restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector for attachment to the lower anchorage and a
means of adjusting the tension in the strap. Forward-
facing toddler restraints and some rear-facing infant
restraints will also be equipped with a tether strap, a
hook for attachment to the tether strap anchorage and a
means of adjusting the tension of the strap.

You will first loosen the adjusters on the lower straps and
on the tether strap so that you can more easily attach the
hooks or connectors over the top of the anchorage bars,
pushing aside the seat cover material. Then lift the tether
anchorage cover directly behind the seat where you are
placing the child restraint and attach the tether strap to

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

the anchorage, being careful to route the tether strap to
provide the most direct path between the anchor and the
child restraint. If your vehicle is equipped with adjust-
able rear head restraints, raise the head restraint and,
where possible, route the tether strap under the head
restraint and between the two posts. If not possible,
lower the head restraint and route the tether strap around
the outboard side of the head restraint. Finally, tighten all
three straps as you push the child restraint rearward and
downward into the seat, removing slack in the straps
according to the child restraint manufacturer’s instruc-
tions.

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

Installing Child Restraints Using the Vehicle Seat
Belts
The passenger seat belts are equipped with cinching latch
plates which are designed to keep the lap portion of the
lap/shoulder belt tight around the child restraint so that
it is not necessary to use a locking clip. Pull up on the
shoulder portion of the lap/shoulder belt to tighten the
belt. The cinching latch plate will keep the belt tight,
however, any seat belt system will loosen with time, so
check the belt occasionally and pull it tight if necessary.

In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path opening
on the restraint. Disconnect the latch plate from the
buckle and twist the short buckle-end belt several times
to shorten it. Insert the latch plate into the buckle with the
release button facing out.

If the belt still can’t be tightened, or if by pulling and
pushing on the restraint loosens the belt, you may need
to do something more. Disconnect the latch plate from
the buckle, turn the buckle around, and insert the latch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

plate into the buckle again. If you still can’t make the
child restraint secure, try a different seating position.

To attach a child restraint tether strap:

1. Lift the cover over the anchor directly behind the seat
where you are placing the child restraint.

2. Route the tether strap to provide the most direct path
for the strap between the anchor and the child seat. If
your vehicle is equipped with adjustable rear head
restraints, raise the head restraint and route the tether
strap under the head restraint and between the two posts.

If not possible, lower the head restraint and pass the
tether strap around the outboard side of the head re-
straint.

3. Attach the tether strap hook (A) of the child restraint to
the anchor (B) and remove slack in the tether strap
according to the child restraint manufacturer’s instruc-
tions.

WARNING!

An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.

Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.

ENGINE BREAK-IN RECOMMENDATIONS

The engine in your new vehicle does not require a long
break-in period.

Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or 55
mph (80 or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.

Wide open throttle acceleration in low gear can be
detrimental and should be avoided.

The crankcase oil installed in the engine at the factory is
a high quality energy conserving type lubricant. Oil
changes should be consistent with expected climate con-
ditions under which vehicle operations will occur. The
recommended viscosity and quality grades are in Section
7 of this manual.

Do not use non-detergent or straight mineral oils.

A new engine may consume some oil during its first few
thousand miles of operation. This is a normal part of the
break-in and not an indication of a problem.

SAFETY TIPS

Exhaust Gas

WARNING!

Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow the safety tips below.

• Do not run the engine in a closed garage or in confined

areas any longer than needed to move your vehicle in
or out of the area.

• If it is necessary to sit in a parked vehicle with the

engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the blower
at high speed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• To avoid drawing exhaust gases into the vehicle, close

the trunk while driving. However, if for some reason it
must remain open, close all windows. Adjust the
heating or cooling system to force outside air into the
vehicle. Set the blower at high speed.

Safety Checks You Should Make Inside the
Vehicle

Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Safety belt assemblies must be replaced after an accident
if they have been damaged (bent retractor, torn webbing,
etc.). If there is any question regarding belt or retractor
condition, replace the belt.
Airbag Light

The light should come on and remain on for 6 to
8 seconds as a bulb check when the ignition
switch is first turned ON. If the bulb is not lit

during starting, have it replaced. If the light stays on or
comes on while driving, have the system checked by an
authorized dealer.

Defrosters
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.

Periodic Safety Checks You Should Make Outside
the Vehicle

Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness and tires (includ-
ing spare) for proper pressure.

Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.

Fluid Leaks
Check area under vehicle after overnight parking for
brake fluid, fuel, water, oil, or other fluid leaks. Also, if
gasoline fumes are present, the cause should be corrected
immediately.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge Intrepid (2004 year). Manual - part 3
