(2) Remove the nut attaching the support to the

front of dash panel.

(3) Using a heat gun, heat attachment area to at

least 121°C (250°F) to soften adhesive attaching
fender support to frame.

(4) Using a flat blade scraper, cut adhesive from

between fender support and frame.

(5) Remove the fender support.

INSTALLATION

Fender Support

CAUTION: Clean only the area of the frame where
the old adhesive is present or corrosion resistance
may be compromised.

(1) Using a 3M

t Purple Scotch-Brite™ Clean &

Strip XT Disc or equivalent, clean adhesive residue
from frame.

NOTE: Do not apply adhesive close to the inboard
edge of the fender support when installed. Avoid
unsightly “squeeze out”.

(2) Using a structural adhesive suitable for bond-

ing carbon fiber to steel, apply adhesive bead 10 - 15
mm (3/8 in. to 5/8 in.) to the bonding surfaces on
frame from front to rear in the locations indicated
(Fig. 36).

NOTE: Adhesive will begin to harden in approxi-
mately 3

1

2

minutes of first application.

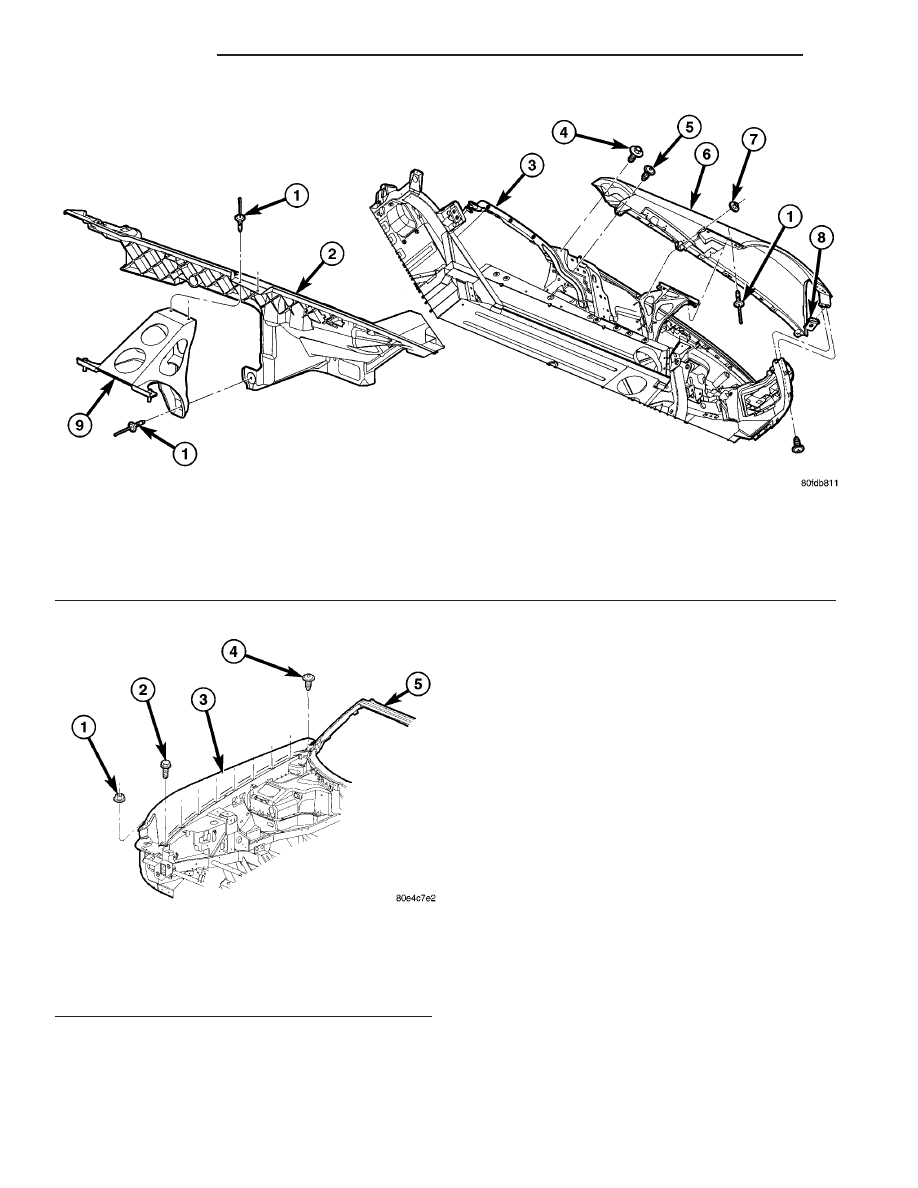

Fig. 33 NEW FRONT FENDER

1 - RIVETS
2 - FENDER SUPPORT
3 - WINDSHIELD SURROUND
4 - BOLTS
5 - SCREWS

6 - FENDER
7 - NUTS
8 - U-NUTS
9 - SILL/FENDER BRACKET

Fig. 34 FENDER PANEL

1 - NUTS
2 - BOLTS (8)
3 - FENDER
4 - SCREWS
5 - WINDSHIELD SURROUND

23 - 56

EXTERIOR

ZB

FRONT FENDER - EXPORT (Continued)

(3) Install the fender support and align with

marks made previously.

(4) Install and tighten the nut to 17 N·m (13 ft.

lbs.).

(5) Install the center screw and tighten to 17 N·m

(13 ft. lbs.).

(6) Install the front screw and tighten to 17 N·m

(13 ft. lbs.).

(7) Check for air gaps in adhesive.

Fender

(1) Install the fender and loosely install the fasten-

ers.

(2) Tighten the upper bolts to 5 N·m (45 in. lbs.)

using the sequence shown (Fig. 37).

(3) Install new rivets securing the fender to the

support bracket.

(4) Tighten

the

fender

to

headlamp

support

screws.

(5) Tighten the screw securing the fender to the

cowl.

(6) Tighten the nuts attaching the fender to the

front of dash panel to 5 N·m (45 in. lbs.).

(7) Tighten the rear fender to sill bolt to 5 N·m (45

in. lbs.).

(8) Tighten the rear fender screw.
(9) Install the fender grille and install the upper

screw attaching the grille to the fender.

(10) Install the lower grille screw at the sill.
(11) Install the sill panel (Refer to 23 - BODY/EX-

TERIOR/ROCKER PANEL COVER - INSTALLA-
TION).

FRONT STRUT TOWER TO
TOWER BRACE

REMOVAL

(1) Remove air cleaner housing (Refer to 9 -

ENGINE/AIR

INTAKE

SYSTEM/AIR

CLEANER

HOUSING - REMOVAL).

(2) Remove front strut tower to tower brace

mounting bolts (Fig. 38).

NOTE: The use of a rubber mallet may aid removal
of the front strut tower to tower brace.

(3) Remove front strut tower to tower brace (Fig.

38).

INSTALLATION

(1) Position front strut tower to tower brace into

mounting position (Fig. 38).

NOTE: The use of a rubber mallet may aid align-
ment of front strut tower to tower brace.

(2) Align brace to allow mounting bolt installation.

Hand start all mounting bolts (Fig. 38).

(3) Tighten the two inboard mounting bolts to 41

N·m (30 ft. lbs.).

(4) Tighten the two front mounting bolts to 41 N·m

(30 ft. lbs.).

(5) Install air cleaner housing (Refer to 9 -

ENGINE/AIR

INTAKE

SYSTEM/AIR

CLEANER

HOUSING - INSTALLATION).

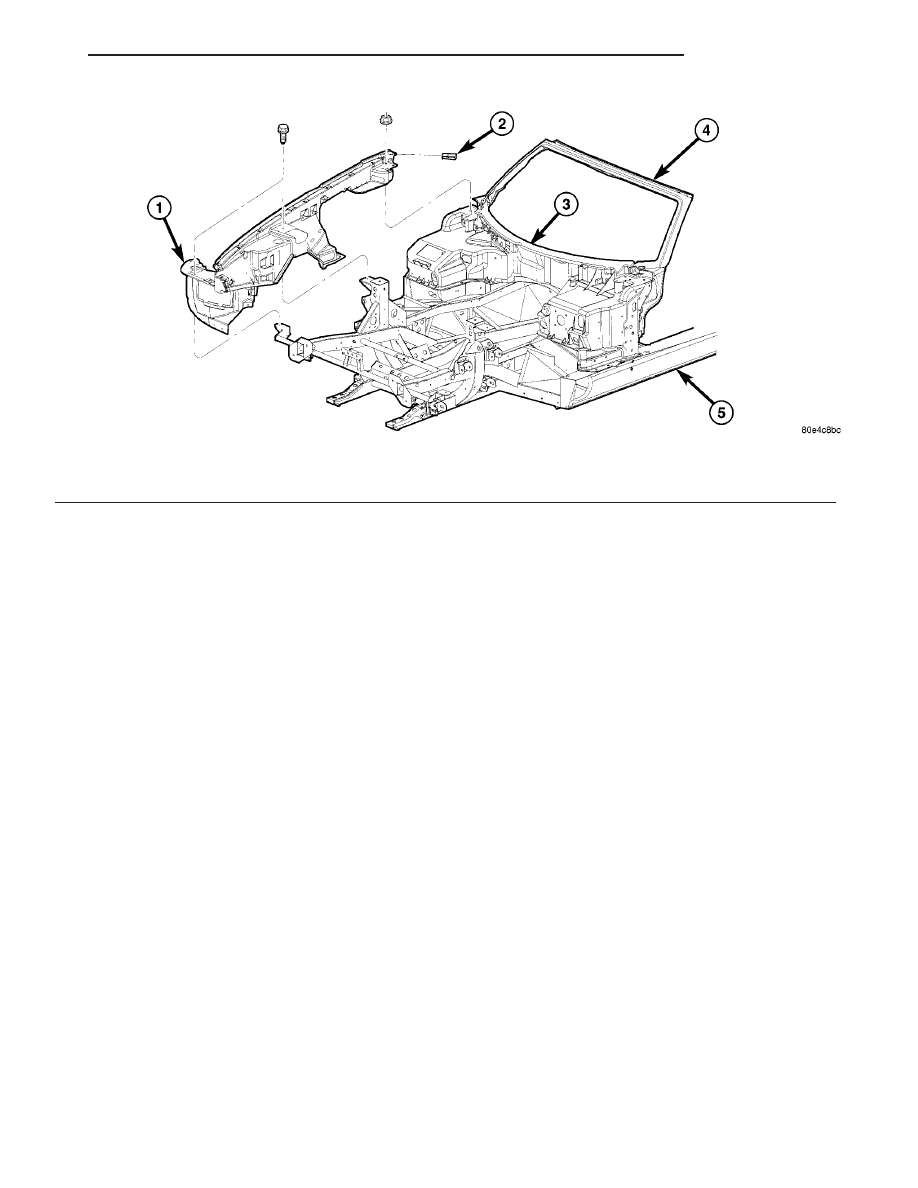

Fig. 35 FENDER INNER SUPPORT ASSEMBLY

1 - FENDER INNER SUPPORT ASSEMBLY
2 - SPRING NUT
3 - FRONT OF DASH PANEL

4 - WINDSHIELD SURROUND COMPLETE FRAME
5 - FRAME ASSEMBLY

ZB

EXTERIOR

23 - 57

FRONT FENDER - EXPORT (Continued)

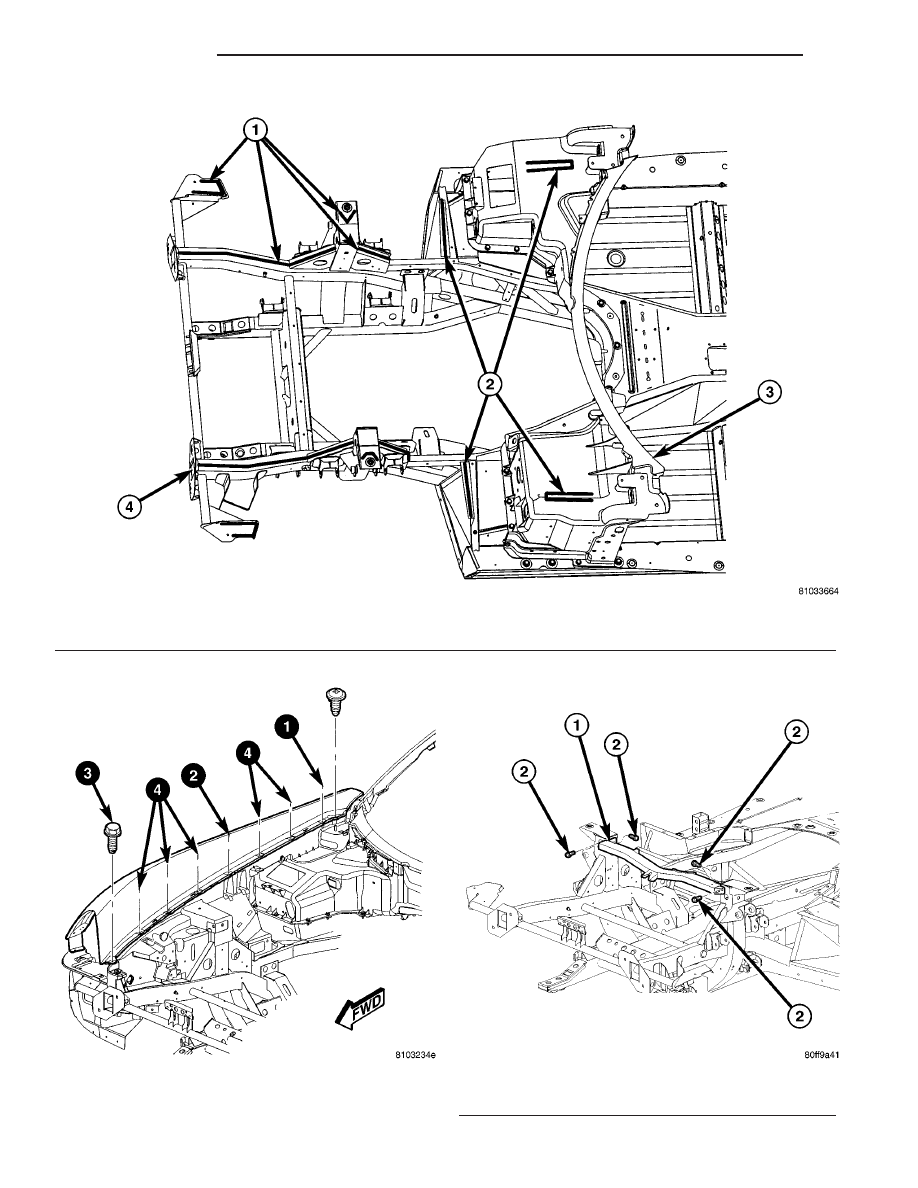

Fig. 36 ADHESIVE LOCATIONS

1 - SEALER LOCATIONS - FRAME
2 - SEALER LOCATIONS - FRAME/FRONT OF DASH PANEL

3 - FRONT OF DASH PANEL
4 - FRAME

Fig. 37 FENDER TIGHTENING SEQUENCE

Fig. 38 Front Strut Tower to Tower Brace

1 - FRONT STRUT TOWER TO TOWER BRACE
2 - MOUNTING BOLTS

23 - 58

EXTERIOR

ZB

FRONT STRUT TOWER TO TOWER BRACE (Continued)

HOOD

TABLE OF CONTENTS

page

page

ADJUSTMENT BUMPER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

HINGE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

HOOD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 60

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 60

HOOD AIR CLEANER SEAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 60

HOOD LATCH AND SAFETY CATCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

LATCH RELEASE HANDLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

SILENCER PAD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 62

GAS PROP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 63

ADJUSTMENT BUMPER

REMOVAL

(1) Release hood latch and open hood.
(2) Rotate adjustment bumper counterclockwise.

(Fig. 1)

(3) Remove adjustment bumper from fender sup-

port.

INSTALLATION

(1) Position adjustment bumper to hood latch.
(2) Rotate adjustment bumper clockwise.
(3) Verify hood alignment and adjust as necessary.

(Refer to 23 - BODY/HOOD/HOOD - ADJUST-
MENTS)

HINGE

REMOVAL

NOTE: It is not necessary to remove the hood to
replace one or both hinges. The hinges can be
replaced one at a time.

(1) Raise and support hood.
(2) Remove the cowl screen. (Refer to 23 - BODY/

EXTERIOR/COWL GRILLE SCREEN - REMOVAL)

(3) Using a grease pencil or equivalent, mark posi-

tion of hinge on the body.

(4) Remove hood support cylinder. (Refer to 23 -

BODY/HOOD/SUPPORT CYLINDER - REMOVAL)

(5) Remove nuts attaching hinge to hood. (Fig. 2)
(6) Remove bolts attaching hinge to body.
(7) Separate hinge from vehicle.

INSTALLATION

(1) Position hinge on vehicle and fit to the molded

features using the marks made previously for refer-
ence.

(2) Install nuts attaching hinge to hood 12 N·m (9

ft. lbs.).

(3) Install bolts attaching hinge to body and

tighten to 28 N·m (21 ft. lbs.).

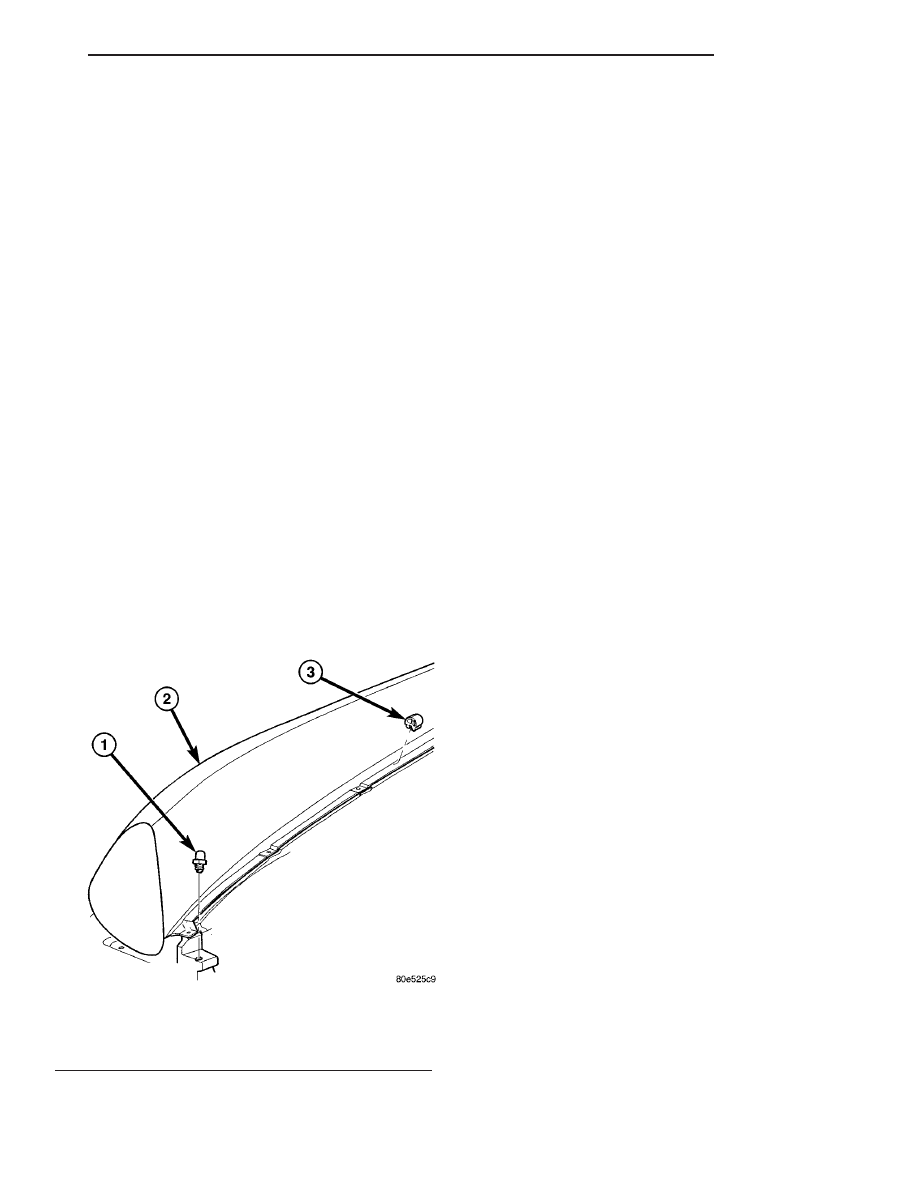

Fig. 1 ADJUSTMENT BUMPER

1 - ADJUSTMENT BUMPER
2 - FRONT FENDER
3 - HOOD OVERSLAM BUMPER

ZB

HOOD

23 - 59
