Dodge Sprinter. Manual - part 182

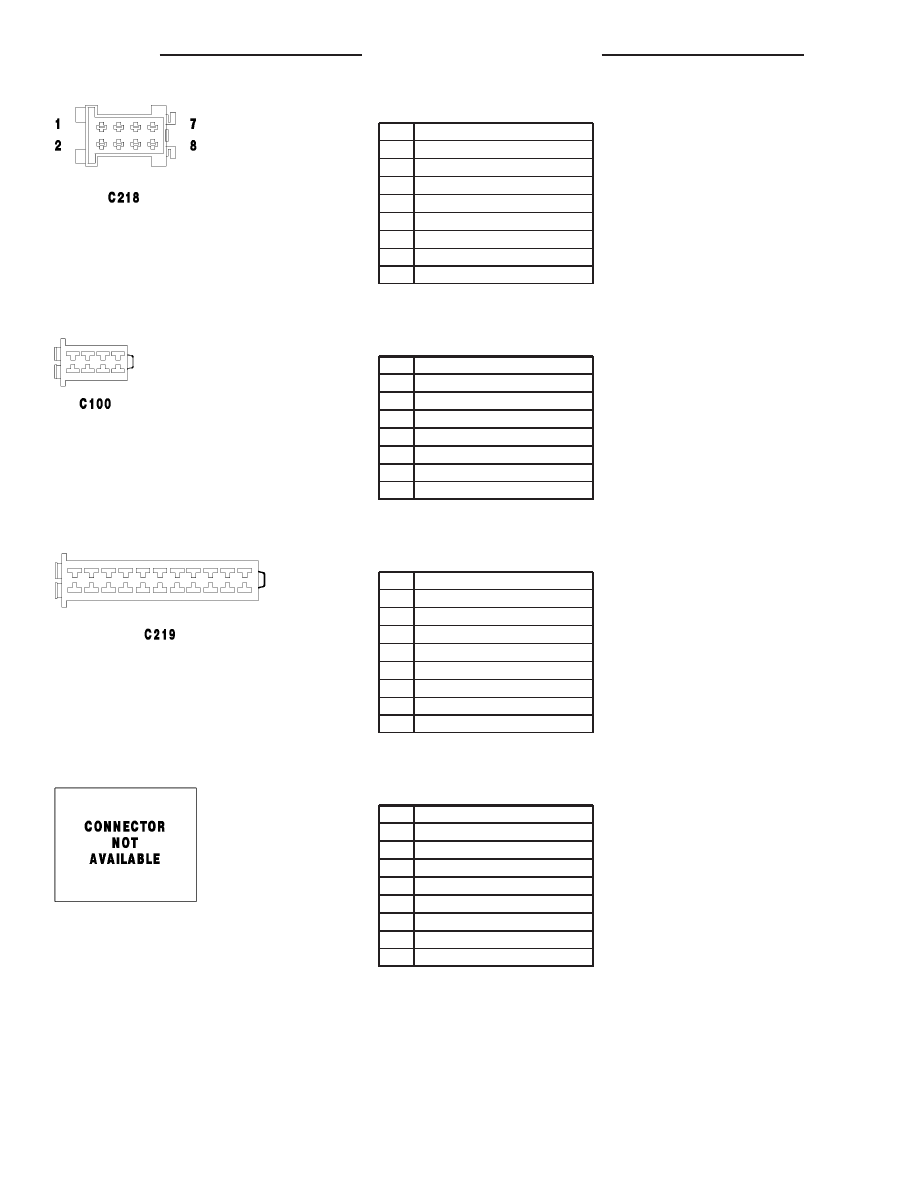

C218 - (CABIN SIDE)

CAV

CIRCUIT

1

16BR/WT

2

16BR/YL

3

16RD/DG

4

16DG/YL

5

20DG/BK

6

20GY/BK

7

20DG/WT/BL

8

-

C218 - (MAIN BODY SIDE)

CAV

CIRCUIT

1

16BR/WT

2

16BR/YL

3

16RD/DG

4

16DG/YL

5

20DG/BK

6

20GY/BK

7

20DG/WT/BL

C219 - (MAIN BODY SIDE)

CAV

CIRCUIT

5

16BK/RD

6

16BL/RD

7

16YL/WT

8

16DG/BK

9

16BK/RD

10

16BL/RD

11

16YL/RD

12

16DG/YL

C219 - BLACK (CABIN SIDE)

CAV

CIRCUIT

5

16BK/RD

6

16BL/RD

7

16YL/WT

8

16DG/BK

9

16BK/RD

10

16BL/RD

11

16YL/RD

12

16DG/YL

8W - 80 - 24

8W-80 CONNECTOR PIN-OUTS

VA

C220 - (CIGARETTE SIDE)

CAV

CIRCUIT

1

16RD/YL

2

16BR

3

16GY/DG/RD

C220 - (DASH SIDE)

CAV

CIRCUIT

1

16RD/YL

2

16BR

3

16GY/DG/RD

C221 - (MAIN BODY SIDE)

CAV

CIRCUIT

1

16BL/WT

2

16BK/YL/DG

3

16BK/WT

C221 - (PASSENGER DOOR SIDE)

CAV

CIRCUIT

1

16BL/WT

2

16BK/YL/DG

3

16BK/WT

C224 - (BLOWER MOTOR/SOLENOID SIDE)

CAV

CIRCUIT

1

12RD

2

12BK

2

16BK

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 25

C224 - (MAIN BODY SIDE)

CAV

CIRCUIT

1

12RD

2

12BR

C225 - (BLOWER MOTOR/SOLENOID SIDE)

CAV

CIRCUIT

1

12RD

2

12RD/BL

3

16RD

C225 - (DASH SIDE)

CAV

CIRCUIT

1

12RD/BL

2

12BL

3

16RD

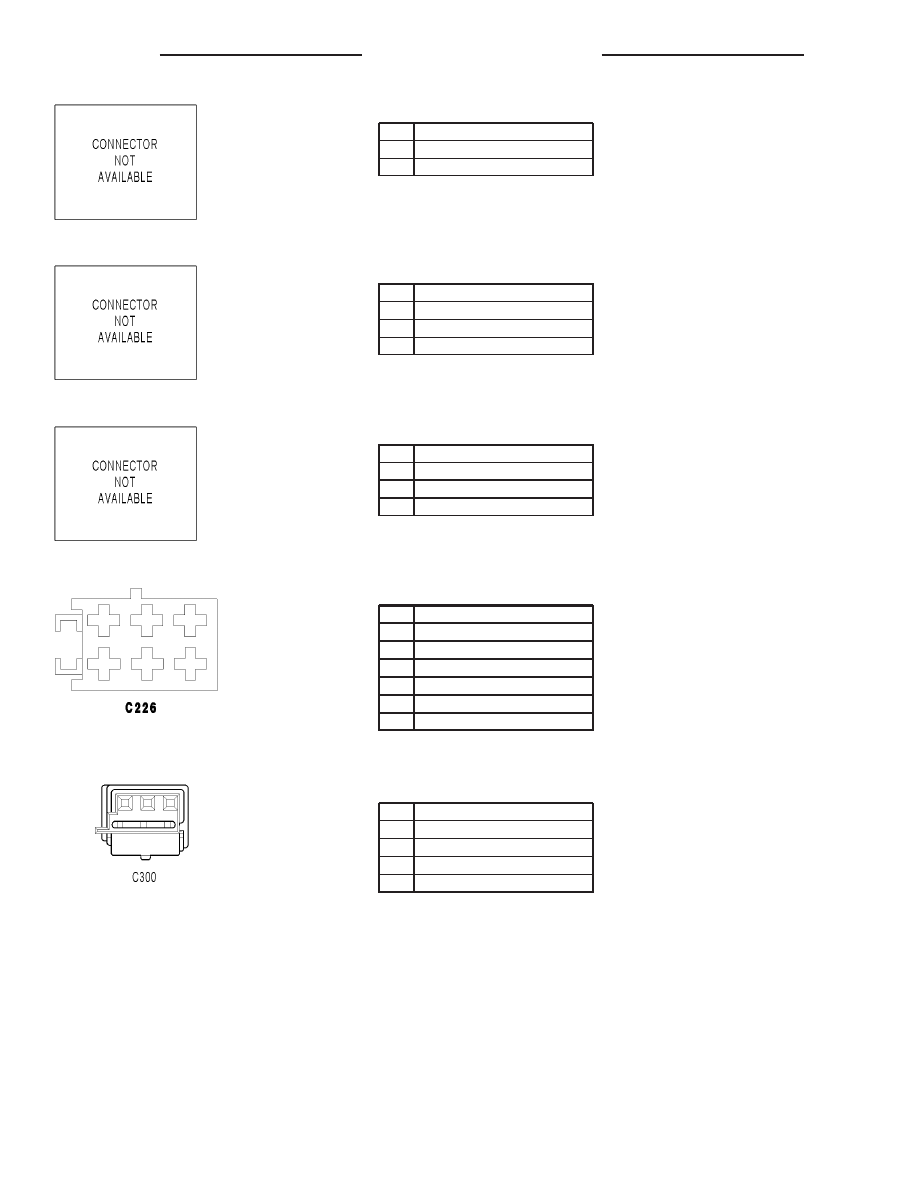

C226 - (CABIN SIDE)

CAV

CIRCUIT

1

16GY

2

-

3

16RD/DG

4

16RD/BL

5

16BK

6

16BR

C300 - (BODY SIDE)

CAV

CIRCUIT

1

16RD/YL

1

20RD

2

20YL

3

20WT

8W - 80 - 26

8W-80 CONNECTOR PIN-OUTS

VA

C300 - (RAIN SENSOR SIDE)

CAV

CIRCUIT

1

20DG

2

20BR

3

20BK/DG

4

16RD/YL

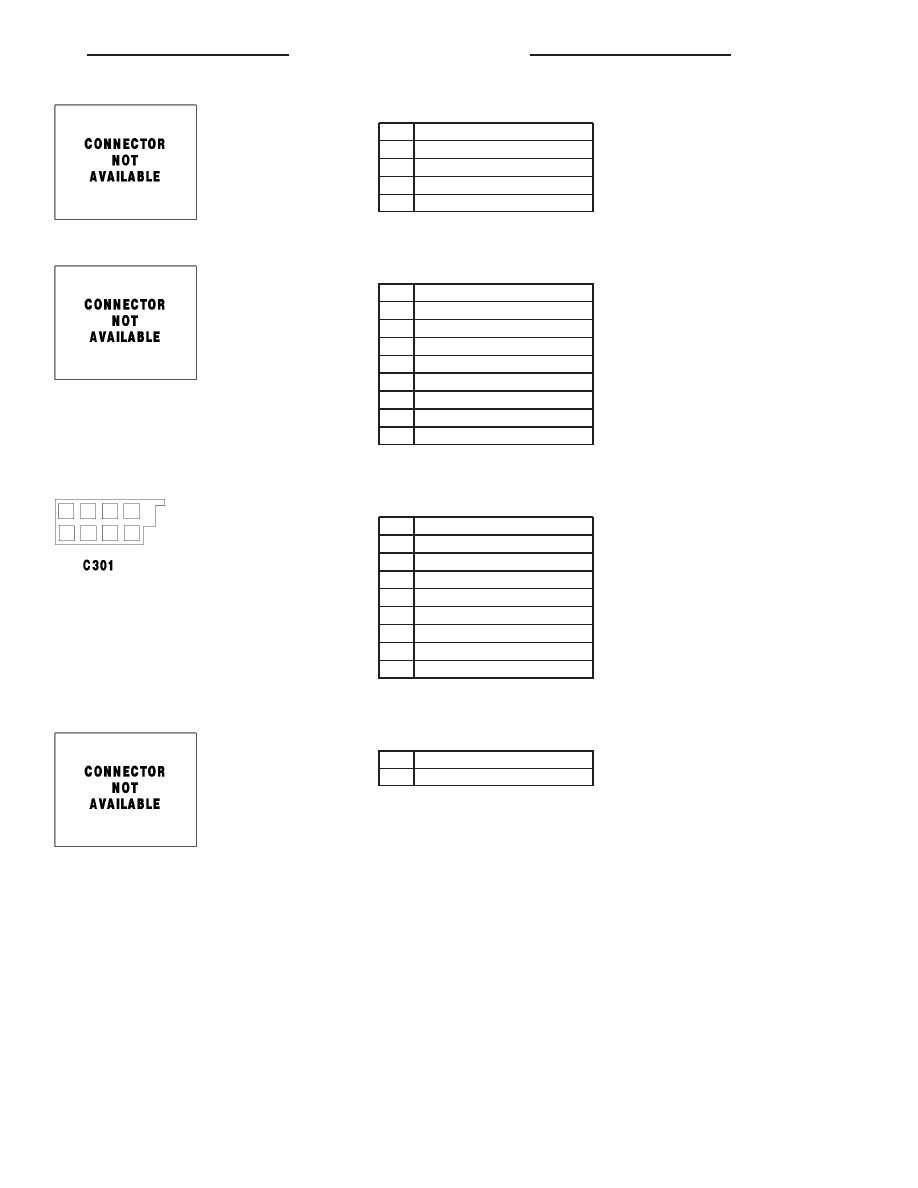

C301 - (BODY SIDE)

CAV

CIRCUIT

1

20RD

2

20YL

3

20WT

4

-

5

-

6

-

7

-

8

-

C301 - (CABIN SIDE)

CAV

CIRCUIT

1

20RD

2

20YL

3

20WT

4

-

5

-

6

-

7

-

8

-

C306 - (ROOF SIDE)

CAV

CIRCUIT

2

14BR

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 27
