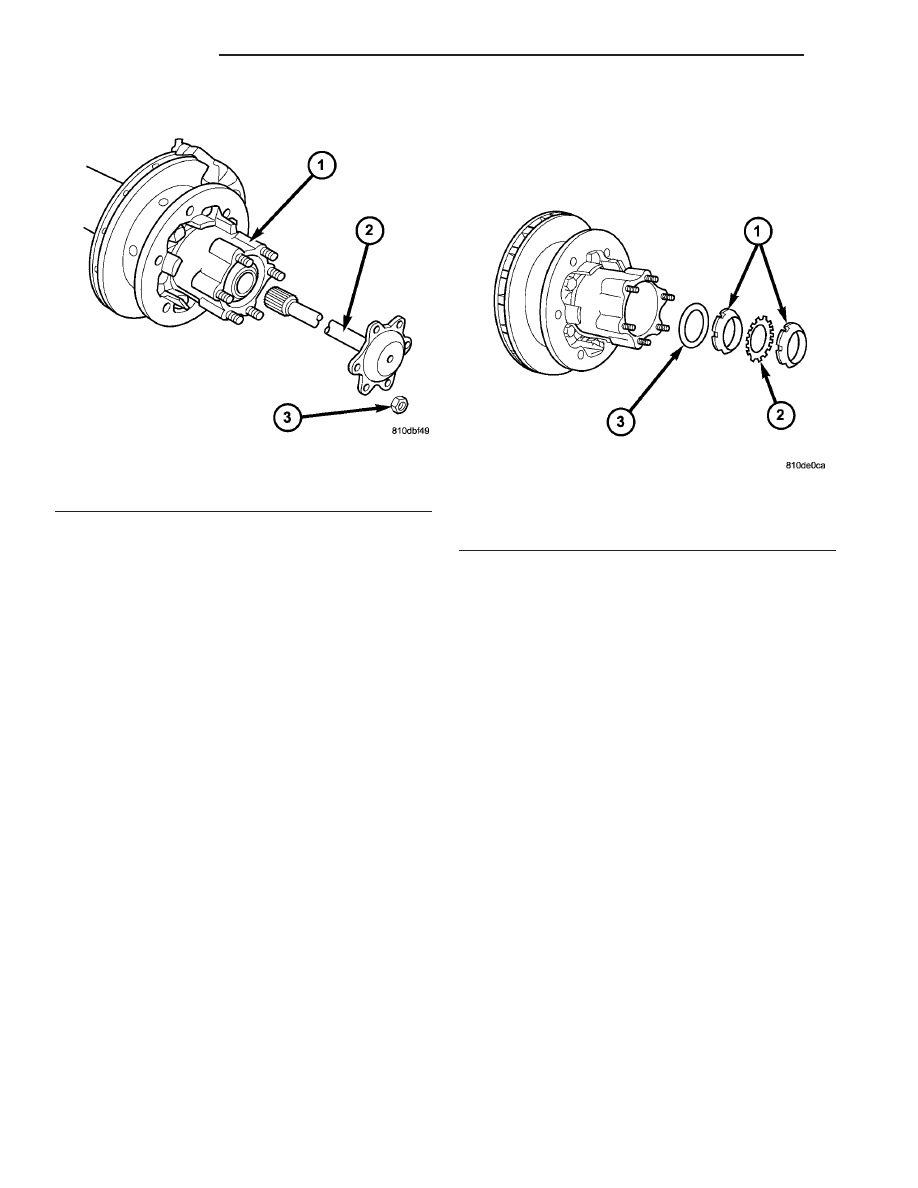

INSTALLATION - DUAL REAR WHEEL (1) Coat axle shaft flange with Mopar Metal Assembly Paste. (2) Slide axle shaft (2) into axle tube. to N·m 65 (48 ft. lbs.) (Fig. 21). (4) Install wheels. BEARING / SEAL - AXLE HUB REMOVAL (1) Remove brake caliper with support. (Fig. 22). (5) Remove locking plate (2), inner hub nut (1) and thrust washer (3) (Fig. 22). CAUTION: Thrust washer is designed for left or (6) Pull hub off axle tube. Fig. 21 AXLE SHAFT 1 - WHEEL HUB Fig. 22 HUB NUTS 1 - NUTS 3 - 28 REAR AXLE VA |
