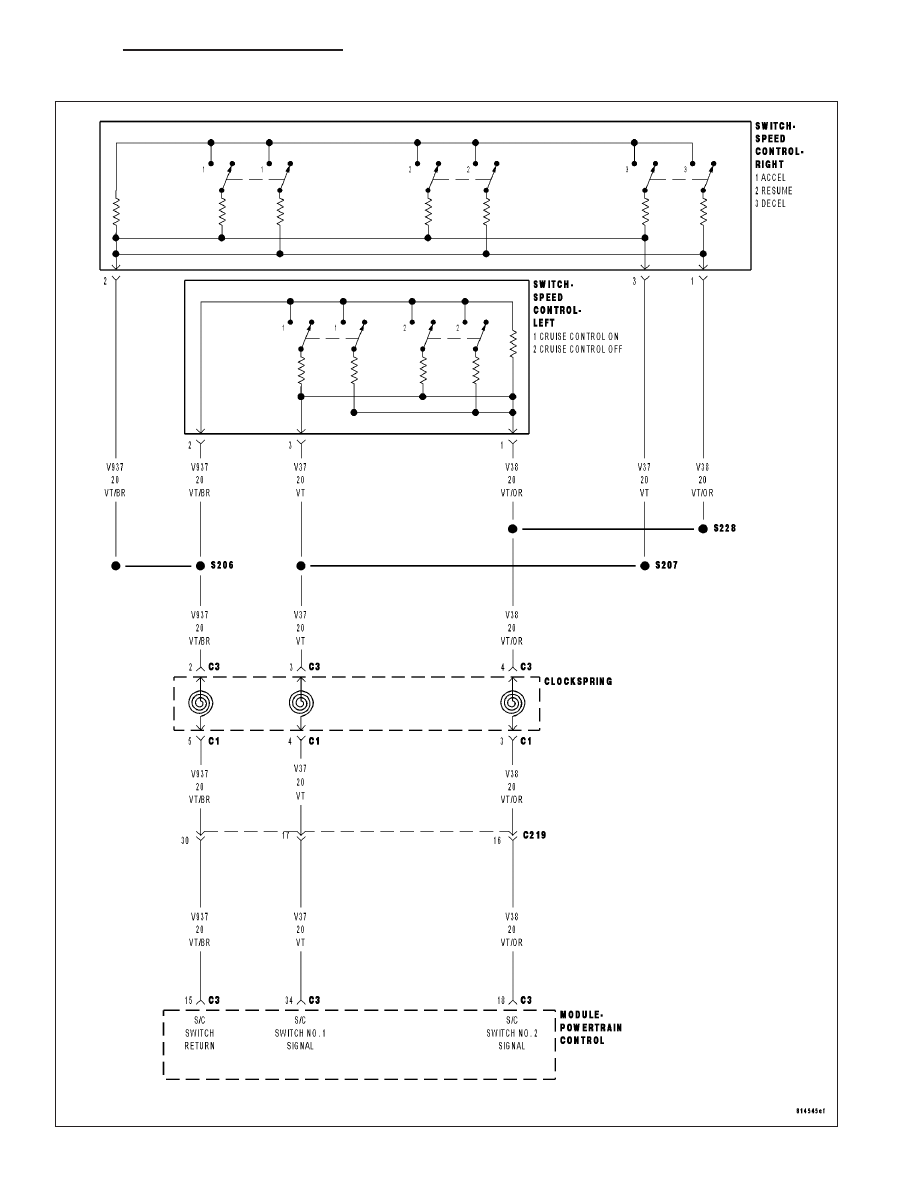

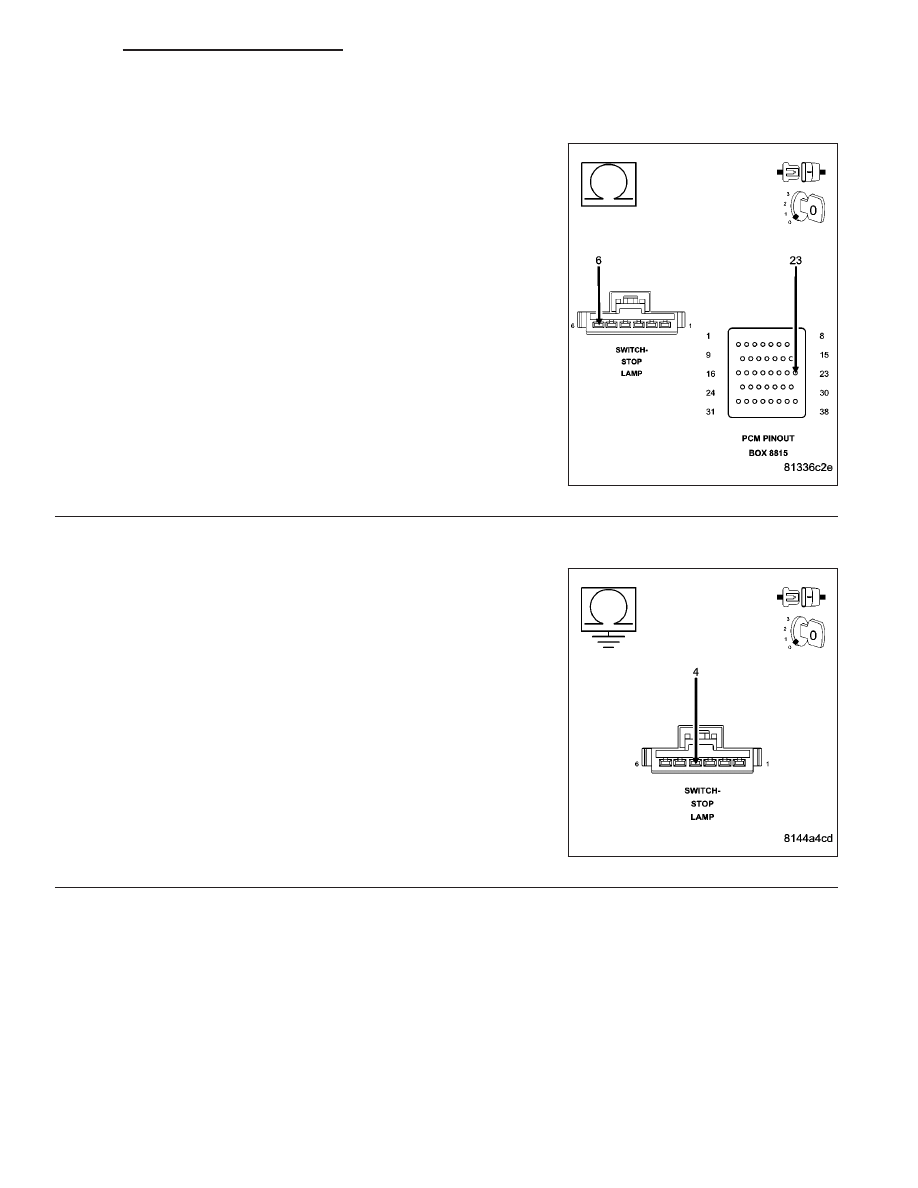

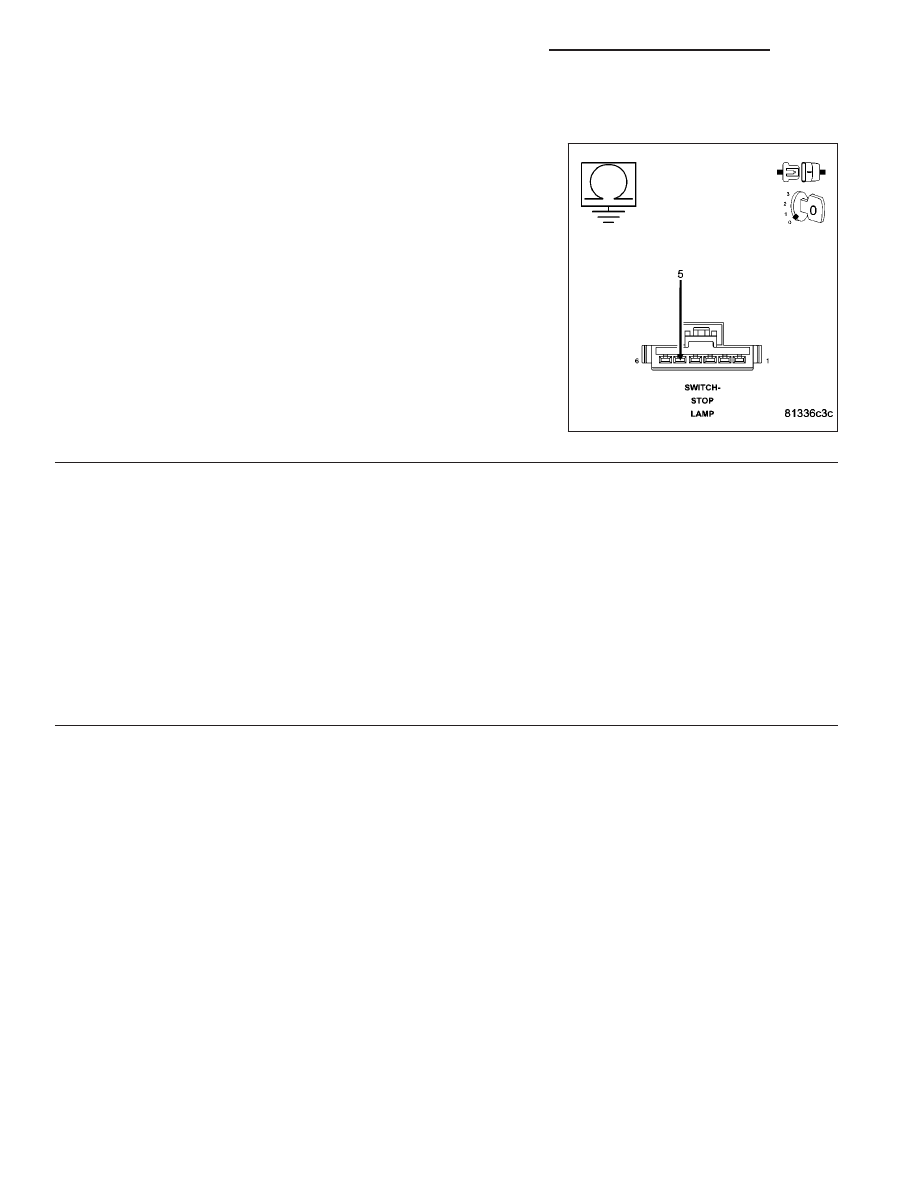

P0573-BRAKE SWITCH 1 STUCK OFF (CONTINUED) For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (B29) BRAKE SWITCH NO.1 SIGNAL CIRCUIT OPEN (V32) BRAKE SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO GROUND (5.7L ONLY) (Z429) GROUND CIRCUIT OPEN STOP LAMP SWITCH PCM Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - Diagnostic Test 1. ACTIVE DTC Ignition on, engine not running. With a scan tool, read DTCs. Is the DTC active at this time? Yes >> Go To 2 No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 2. STOP LAMP SWITCH Turn the ignition off. Disconnect the Stop Lamp Switch harness connector. Measure the resistance between the (Z429) Ground circuit terminal and the (B29) Brake Switch No.1 Signal circuit Apply and release the Stop Lamp Switch while monitoring the ohmmeter. Does the resistance change from below 5.0 ohms to an open circuit? Yes >> Go To 3 No >> Replace the Stop Lamp Switch. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 9 - 602 ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L DR/DH |
