Dodge Ram Truck 1500-2500-3500. Manual - part 590





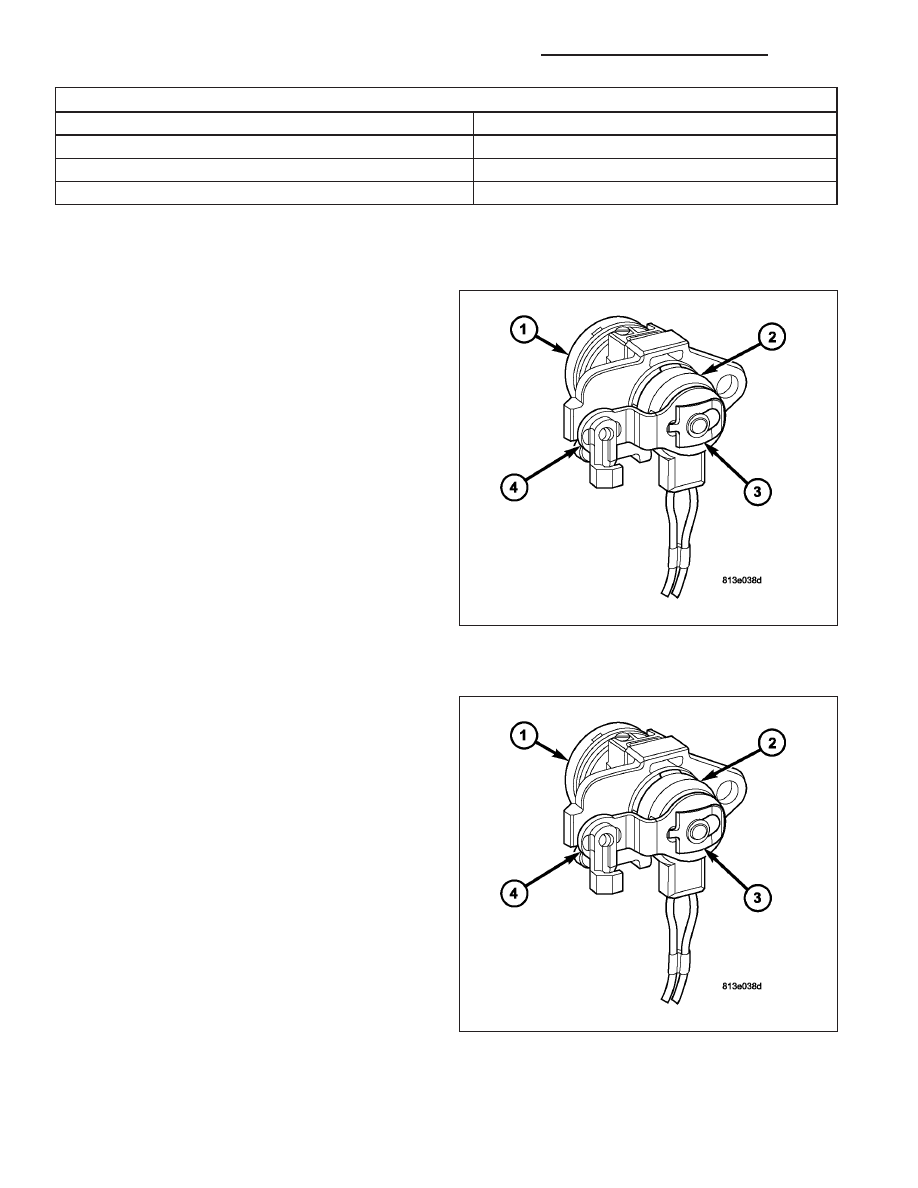

DOOR CYLINDER LOCK SWITCH TESTS

SWITCH POSITION

RESISTANCE

Neutral

12 Kilohms

Lock (Counterclockwise)

644 Ohms

Unlock (Clockwise)

1565 Ohms

4. If the switch fails any of the resistance tests, replace the faulty door cylinder lock switch as required.

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the exterior handle and lock cylinder (1)

from the outside of the driver side front door as a
unit. (Refer to 23 - BODY/DOOR - FRONT/EXTE-
RIOR HANDLE - REMOVAL).

3. Remove the bowed clip (3) that secures the lever

arm (4) to the shaft on the back of the lock cylin-
der.

4. Remove the lever arm from the lock cylinder shaft.

5. Remove the door cylinder lock switch (2) from the

back of the lock cylinder.

INSTALLATION

1. Position the door cylinder lock switch (2) over the

shaft on the back of the lock cylinder (1).

2. Position the lever arm (4) onto the shaft over the

switch.

3. Install the bowed clip (3) that secures the lever arm

to the shaft.

4. Reinstall the exterior handle and lock cylinder onto

the outside of the driver side front door as a unit.
(Refer to 23 - BODY/DOOR - FRONT/EXTERIOR
HANDLE - INSTALLATION).

5. Reconnect the battery negative cable.

8Q - 62

VEHICLE THEFT SECURITY - SERVICE INFORMATION

DR/DH

WIPERS/WASHERS

TABLE OF CONTENTS

page

page

WIPERS/WASHERS - ELECTRICAL

DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

WIPERS/WASHERS - SERVICE INFORMATION . . 45

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

TABLE OF CONTENTS

page

page

WIPERS/WASHERS - ELECTRICAL

DIAGNOSTICS
DIAGNOSIS AND TESTING

FCM-WASHER FLUID LEVEL SENSOR

CIRCUIT FAILURE . . . . . . . . . . . . . . . . . . . . . . 2

FCM-WASHER PUMP OUTPUT CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

FCM-WASHER PUMP OUTPUT CIRCUIT

OPEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FCM-WIPER ON-OFF RELAY OUTPUT

CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . 13

FCM-WIPER ON-OFF RELAY OUTPUT

CIRCUIT OPEN . . . . . . . . . . . . . . . . . . . . . . . 16

FCM-WIPER ON-OFF RELAY OUTPUT

CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . 19

FCM-WIPER PARK SWITCH INPUT

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . 22

FCM-WIPER SPEED RELAY OUTPUT

CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . 26

FCM-WIPER SPEED RELAY OUTPUT

CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . 29

FCM-WIPER SPEED RELAY OUTPUT

CIRCUIT OPEN . . . . . . . . . . . . . . . . . . . . . . . 32

MIC-WASH-BEAM INPUT CIRCUIT

SHORTED . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

MIC-WIPER SWITCH INPUT CIRCUIT OPEN

. 38

MIC-WIPER SWITCH INPUT CIRCUIT

SHORTED . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

SCHEMATICS AND DIAGRAMS

. . . . . . . . . . . . 44

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

DR/DH

WIPERS/WASHERS

8R - 1

FCM-WASHER FLUID LEVEL SENSOR CIRCUIT FAILURE

8R - 2

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

DR/DH

FCM-WASHER FLUID LEVEL SENSOR CIRCUIT FAILURE (CONTINUED)

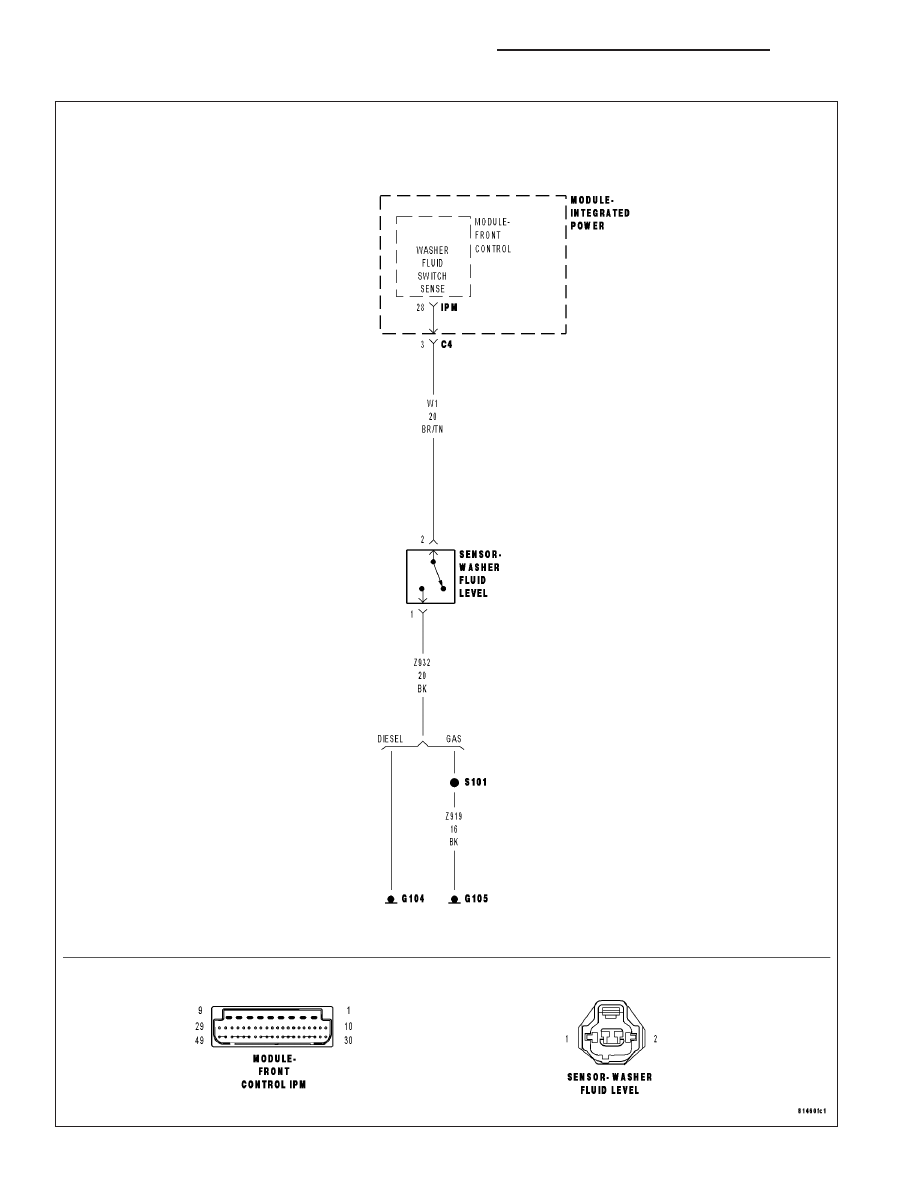

For the Wiper Washer system circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuous with the ignition on.

Set Condition:
The FCM detects the Washer Fluid Level Switch circuit voltage is below 0.05 volts or above 5.0 volts.

Possible Causes

WASHER FLUID LEVEL SWITCH

WASHER FLUID LEVEL SENSOR SIGNAL CIRCUIT OPEN

WASHER FLUID LEVEL SWITCH GROUND CIRCUIT OPEN

WASHER FLUID LEVEL SWITCH SIGNAL CIRCUIT SHORT TO GROUND

FRONT CONTROL MODULE

Diagnostic Test

1.

WASHER FLUID LEVEL SWITCH

Turn the ignition off.

Disconnect the Washer Fluid Level Switch harness
connector.

Connect a jumper wire between cavity 1 and cavity
2.

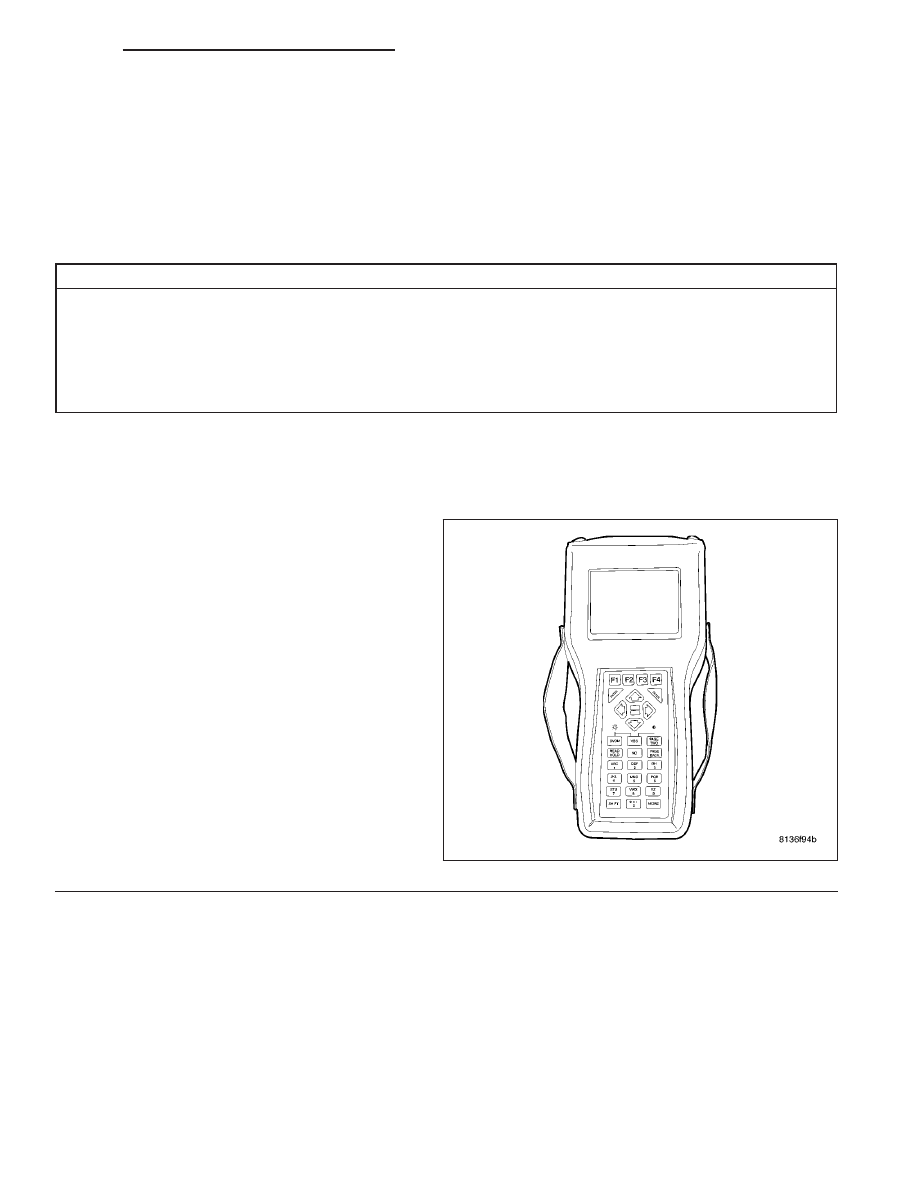

With the DRBIII

T

, in Sensors, read the Washer

Fluid Level Switch Volts.

Does the DRBIII

T

read below 1 volt?

Yes

>> Replace the Washer Fluid Level Switch

in accordance with the Service Informa-
tion.

Perform BODY VERIFICATION TEST -
VER 1.

No

>> Go To 2

DR/DH

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 3
