An occupant restraint system is standard factory-installed safety equipment on this model. Available occupant
restraints for this model include both active and passive types. Active restraints are those which require the vehicle
occupants to take some action to employ, such as fastening a seat belt; while passive restraints require no action
by the vehicle occupants to be employed.

ACTIVE RESTRAINTS

The active restraints for this model include:

•

Front Seat Belts - Both outboard front seating positions are equipped with three-point seat belt systems
employing a lower B-pillar mounted inertia latch-type emergency locking retractor, height-adjustable upper
B-pillar mounted turning loops, a fixed lower seat belt anchor secured to the lower B-pillar (standard cab) or
floor panel adjacent to the B-pillar (quad cab), and a traveling end-release seat belt buckle secured to the
inboard seat track. The driver side retractor for standard cab models includes an electrically actuated seat belt
tension reducer. The passenger side front seat retractor for all models is also switchable from an emergency
locking retractor to an automatic locking retractor. The front seat belt buckle for the driver side of all models
includes an integral seat belt switch that detects whether its seat belt has been fastened. The center front
seating position for standard cab models is also equipped with a three-point seat belt employing a floor panel
mounted inertia latch-type retractor, a routing bracket and bezel near the top of the cab back panel, and two
fixed end-release buckles secured to the center seat cushion frame. The center front seating position for quad
cab models is equipped with a fixed lap belt and an end-release buckle secured to the center seat cushion
frame.

•

Rear Seat Belts - All three rear seating positions are equipped with three-point seat belt systems. The out-
board seating position belts employ a lower C-pillar mounted inertia latch-type emergency locking retractor, a
fixed position upper C-pillar mounted turning loop, and a fixed lower seat belt anchor secured to the lower
C-pillar. The rear seat center seating position belt has a rear floor panel mounted inertia latch-type emergency
locking retractor and a routing bracket and bezel on the top of the cab back panel. The end-release buckle
units for the right outboard seating position and the center seating position lower anchor are integral to the
center retractor mounting bracket on the rear floor panel. The end-release buckle units for the center and left
outboard seating positions are individually secured to the rear floor panel on models with the standard equip-
ment rear bench seat, or secured with the rear seat mounting hardware on models with the optional 60/40 split
rear bench seat.

•

Child Restraint Anchors - All standard cab models are equipped with two, fixed-position, child seat upper
tether anchors that are integral to the upper cab back panel reinforcement and concealed behind individual
trim cover and bezel units that are integral to the cab back trim panel. All quad cab models are equipped with
three child seat upper tether anchor straps that are secured to the upper cab back panel reinforcement, behind
the upright rear seat back. Two lower anchors are also provided for the front outboard seating position of stan-
dard cab models, and for each rear outboard seating position on quad cab models. These lower anchors are
accessed from the front of the seat where the seat back meets the seat cushion. The child seat tether and
lower anchors for the front seat are deleted on quad cab models.

8O - 246

RESTRAINTS - SERVICE INFORMATION

DR/DH

PASSIVE RESTRAINTS

The passive restraints available for this model include
the following:

•

Dual Front Airbags - Multistage driver and front
passenger airbags are available for this model.
This airbag system is a passive, inflatable, Sup-
plemental Restraint System (SRS) and vehicles
with this equipment can be readily identified by

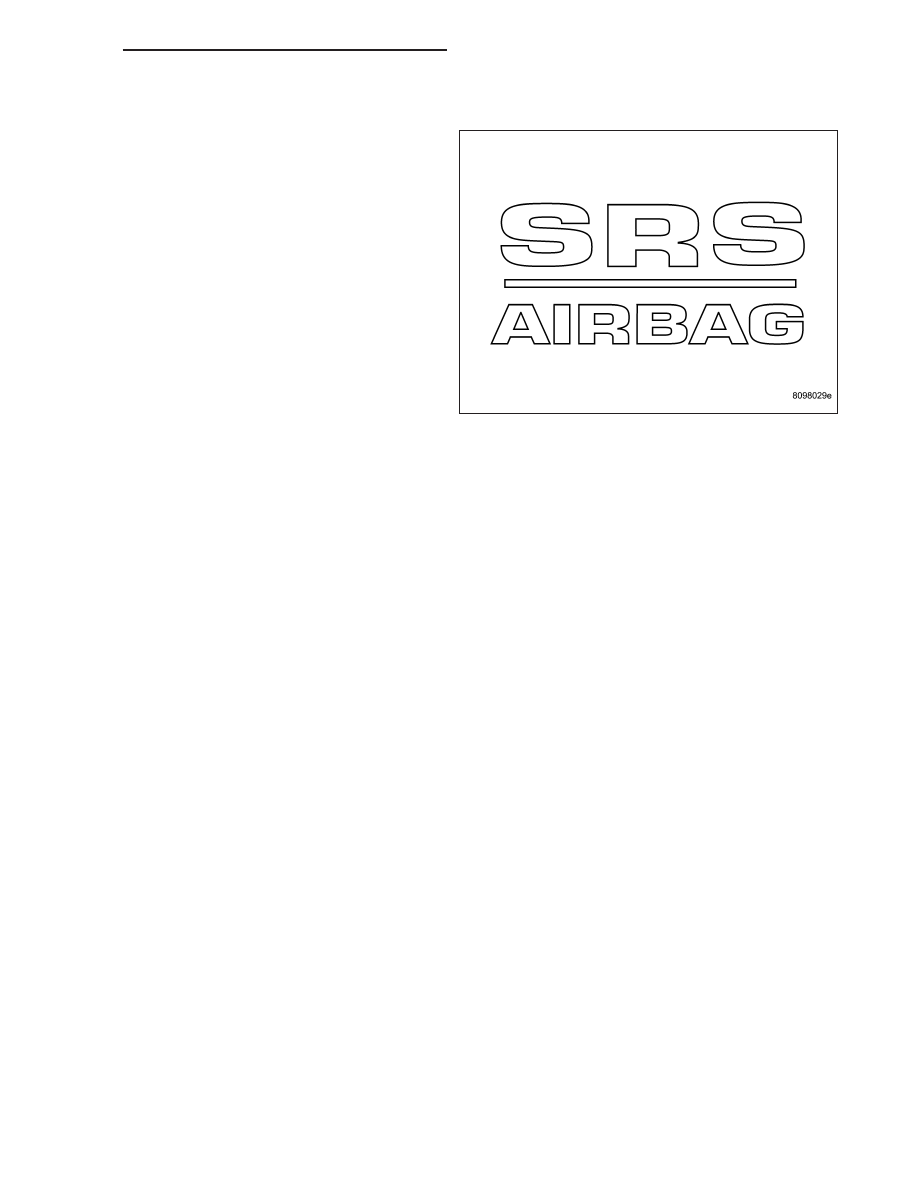

the “SRS - AIRBAG” logo molded into the driver
airbag trim cover in the center of the steering
wheel and also into the passenger airbag door
on the instrument panel above the glove box.
Vehicles with the airbag system can also be
identified by the airbag indicator, which will illumi-
nate in the instrument cluster for about six sec-
onds as a bulb test each time the ignition switch
is turned to the On position. A pyrotechnic-type
seat belt tensioner is integral to the front out-
board seat belt retractors mounted on each lower B-pillar of all models equipped with dual front airbags.

•

Side Curtain Airbags - Optional side curtain airbags are available for this model when it is also equipped with
dual front airbags. This airbag system is a passive, inflatable, Supplemental Restraint System (SRS) and vehi-
cles with this equipment can be readily identified by a molded identification trim button with the “SRS - AIR-
BAG” logo located on the headliner above each B-pillar.

DR/DH

RESTRAINTS - SERVICE INFORMATION

8O - 247

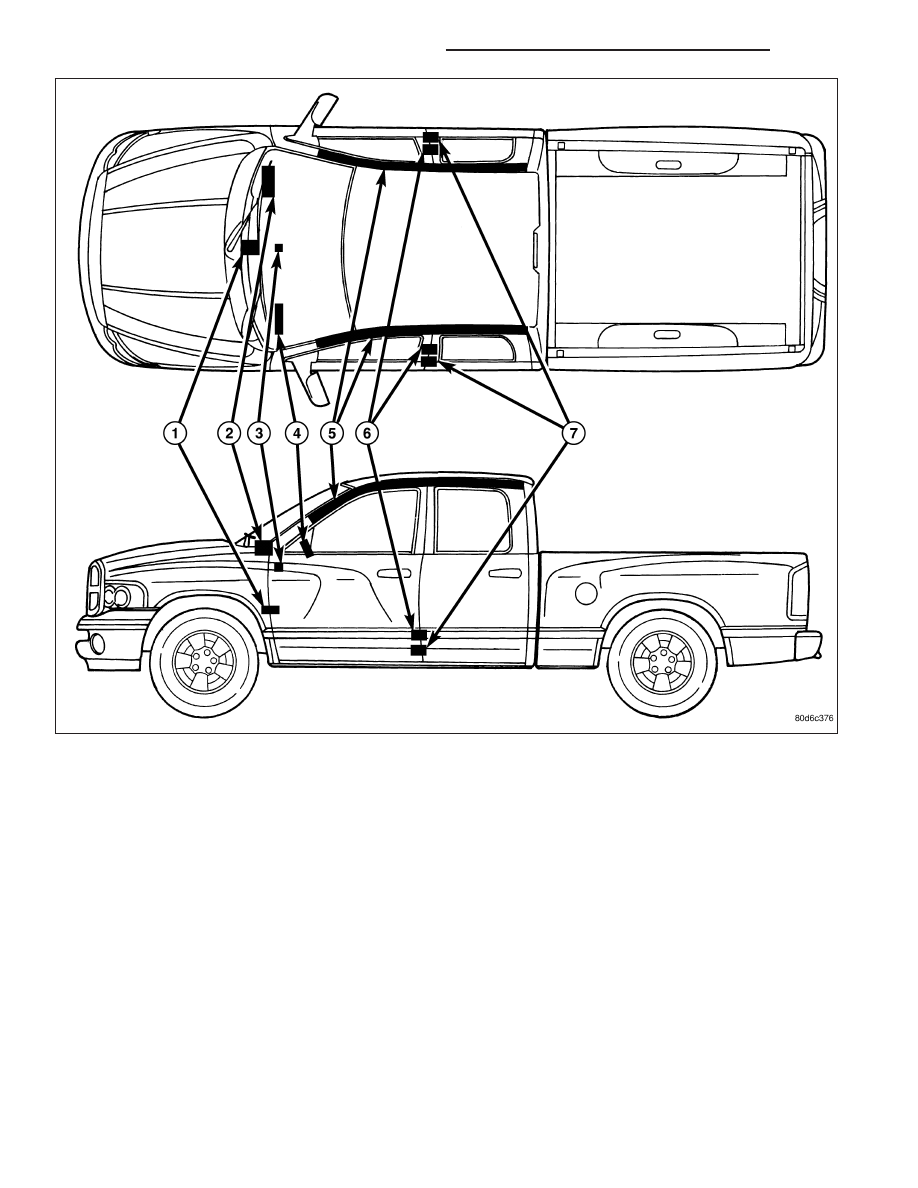

The supplemental restraint system includes the following major components, which are described in further detail
elsewhere in this service information:

•

Airbag Control Module (1) - The Airbag Control Module (ACM) is also sometimes referred to as the Occupant
Restraint Controller (ORC). The ACM is located on a mount on the floor panel transmission tunnel, below the
center of the instrument panel.

•

Airbag Indicator - The airbag indicator is integral to the ElectroMechanical Instrument Cluster (EMIC), which
is located on the instrument panel in front of the driver.

•

Clockspring - The clockspring is located near the top of the steering column, directly beneath the steering
wheel.

•

Driver Airbag (4) - The driver airbag is located in the center of the steering wheel, beneath the driver airbag
trim cover.

•

Driver Knee Blocker - The driver knee blocker is a structural unit secured to the back side of and integral to
the instrument panel steering column opening cover.

•

Passenger Airbag (2) - The passenger airbag is located on the instrument panel, beneath the passenger air-
bag door on the instrument panel above the glove box on the passenger side of the vehicle.

•

Passenger Airbag On/Off Switch (3) - Standard cab models without a rear seat are equipped with a pas-
senger airbag on/off switch, which is located on the right side of the instrument panel center bezel.

•

Passenger Knee Blocker - The passenger knee blocker is a structural reinforcement that is integral to and
concealed within the glove box door.

•

Seat Belt Tensioner (7) - The seat belt tensioner is integral to the front outboard seat belt retractor units on
vehicles equipped with dual front airbags.

8O - 248

RESTRAINTS - SERVICE INFORMATION

DR/DH

•

Side Impact Sensor (6) - Two side impact sensors are used on vehicles equipped with the optional side cur-
tain airbags, one left side and one right side. One sensor is located behind the B-pillar trim near the base of
each B-pillar.

•

Side Curtain Airbag (5) - In vehicles equipped with this option, a side curtain airbag is located on each inside
roof side rail above the headliner, and extends from the A-pillar to the B-pillar on standard cab models, and
from the A-pillar to the C-pillar on quad cab models.

The ACM and the EMIC each contain a microprocessor and programming that allow them to communicate with
each other using the Programmable Communications Interface (PCI) data bus. This method of communication is
used by the ACM for control of the airbag indicator in the EMIC on all models equipped with dual front airbags.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/COMMUNICATION - DESCRIPTION).

Hard wired circuitry connects the supplemental restraint system components to each other through the electrical
system of the vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout
the vehicle and retained by many different methods. These circuits may be connected to each other, to the vehicle
electrical system, and to the supplemental restraint system components through the use of a combination of sol-
dered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators.
Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and con-
nector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views
for the various wire harness connectors, splices and grounds.

OPERATION

ACTIVE RESTRAINTS

The primary passenger restraints in this or any other vehicle are the standard equipment factory-installed seat belts
and child restraint anchors. Seat belts and child restraint anchors are referred to as an active restraint because the
vehicle occupants are required to physically fasten and properly adjust these restraints in order to benefit from them.
See the owner’s manual in the vehicle glove box for more information on the features, use and operation of all of
the factory-installed active restraints.

PASSIVE RESTRAINTS

The passive restraints are referred to as a supplemental restraint system because they were designed and are
intended to enhance the protection for the occupants of the vehicle only when used in conjunction with the seat
belts. They are referred to as passive restraints because the vehicle occupants are not required to do anything to
make them operate; however, the vehicle occupants must be wearing their seat belts in order to obtain the maxi-
mum safety benefit from the factory-installed supplemental restraint system.

The supplemental restraint system electrical circuits are continuously monitored and controlled by a microprocessor
and software contained within the Airbag Control Module (ACM). An airbag indicator in the ElectroMechanical Instru-
ment Cluster (EMIC) illuminates for about six seconds as a bulb test each time the ignition switch is turned to the
On or Start positions. Following the bulb test, the airbag indicator is turned on or off by the ACM to indicate the
status of the supplemental restraint system. If the airbag indicator comes on at any time other than during the bulb
test, it indicates that there is a problem in the supplemental restraint system electrical circuits. Such a problem may
cause airbags not to deploy when required, or to deploy when not required.

Deployment of the supplemental restraints depends upon the angle and severity of an impact. Deployment is not
based upon vehicle speed; rather, deployment is based upon the rate of deceleration as measured by the forces of
gravity (G force) upon the impact sensors. When an impact is severe enough, the microprocessor in the ACM sig-
nals the inflator of the appropriate airbag units to deploy their airbag cushions. The outboard front seat belt ten-
sioners are provided with a deployment signal by the ACM in conjunction with the front airbags.

During a frontal vehicle impact, the knee blockers work in concert with properly fastened and adjusted seat belts to
restrain both the driver and the front seat passenger in the proper position for an airbag deployment. The knee
blockers also absorb and distribute the crash energy from the driver and the front seat passenger to the structure
of the instrument panel. The seat belt tensioners remove the slack from the outboard front seat belts to provide
further assurance that the driver and front seat passenger are properly positioned and restrained for an airbag
deployment.

Typically, the vehicle occupants recall more about the events preceding and following a collision than they do of an
airbag deployment itself. This is because the airbag deployment and deflation occur very rapidly. In a typical 48
kilometer-per-hour (30 mile-per-hour) barrier impact, from the moment of impact until the airbags are fully inflated

DR/DH

RESTRAINTS - SERVICE INFORMATION

8O - 249
