Dodge Ram Truck 1500-2500-3500. Manual - part 552
*AIRBAG INDICATOR ON WITHOUT ACTIVE TROUBLE CODES

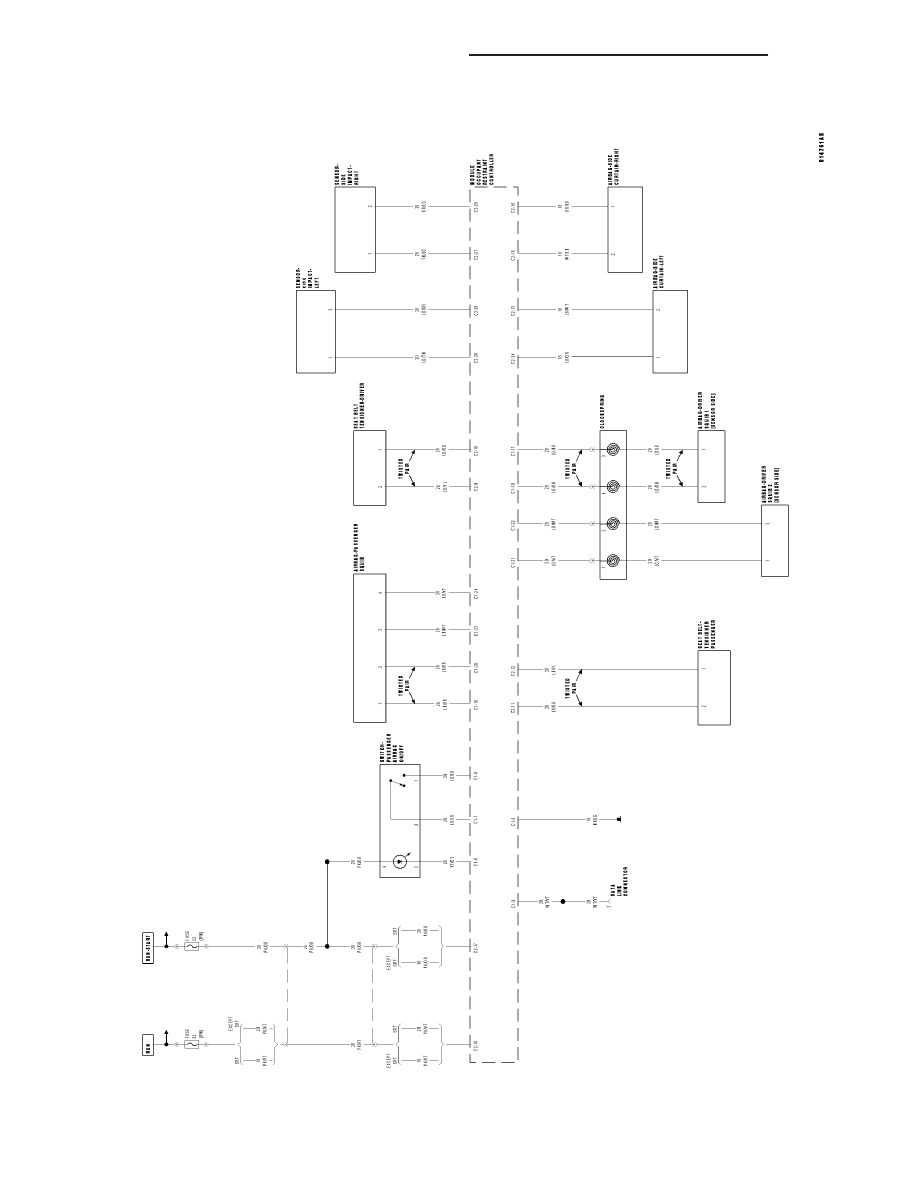

For a complete wiring diagram Refer to Section 8W.
Possible Causes
AIRBAG WARNING INDICATOR ON WITHOUT ACTIVE TROUBLE CODES
INSTRUMENT CLUSTER PROBLEMS
Diagnostic Test
1.
AIRBAG WARNING INDICATOR ON WITHOUT ACTIVE TROUBLE CODES
NOTE: Ensure the battery is fully charged.
Turn the ignition on.
Make sure that all active DTC’s have been repaired before performing this procedure.
With the DRBIII
T
read the WARNING LAMP STATES.
With no active DTCs, Does the LAMP REQ by ACM monitor show ON?
Yes
>> Go To 2
No
>> (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - DIAGNOSIS AND TESTING) for problems
related to Instrument Cluster.
Perform ORC VERIFICATION TEST - VER 1.
2.
REPLACE THE ORC
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to
take the proper precautions can result in accidental airbag deployment and personal injury or death.
NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.
Repair
Replace the ORC in accordance with the Service Information.
Perform ORC VERIFICATION TEST - VER 1
NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
8O - 242
RESTRAINTS - ELECTRICAL DIAGNOSTICS
DR/DH
