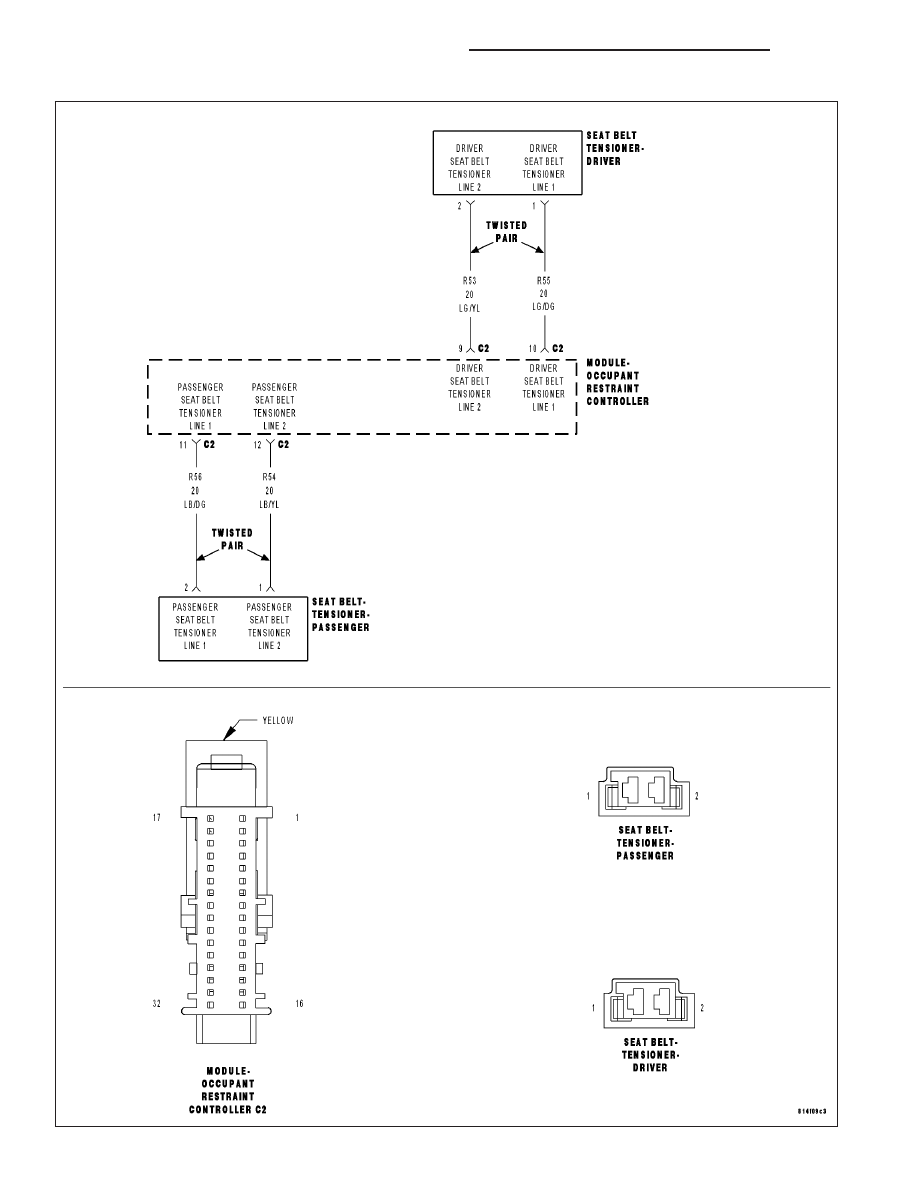

PASSENGER SEAT BELT TENSIONER CIRCUIT SHORT (CONTINUED) 2. CHECK FOR SHORTED PASSENGER SEAT BELT PRETENSIONER WARNING: To avoid personal injury or death, turn the ignition off, NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on Does the scan tool display: PASSENGER SEAT BELT TEN- Yes >> Go To 3 No >> Replace the Passenger Seat Belt Pretensioner in accor- dance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 3. CHECK (R56) PASSENGER SEAT BELT TENSIONER LINE 1 CIRCUIT FOR A SHORT TO THE (R54) WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance between the (R56) Passenger Seat Belt Ten- Is the resistance below 10K ohms? Yes >> Repair the (R56) Passenger Seat Belt Tensioner Line 1 circuit for a short to the (R54) Passenger Seat Belt Ten- Perform ORC VERIFICATION TEST - VER 1 No >> Go to 4 8O - 170 RESTRAINTS - ELECTRICAL DIAGNOSTICS DR/DH |
