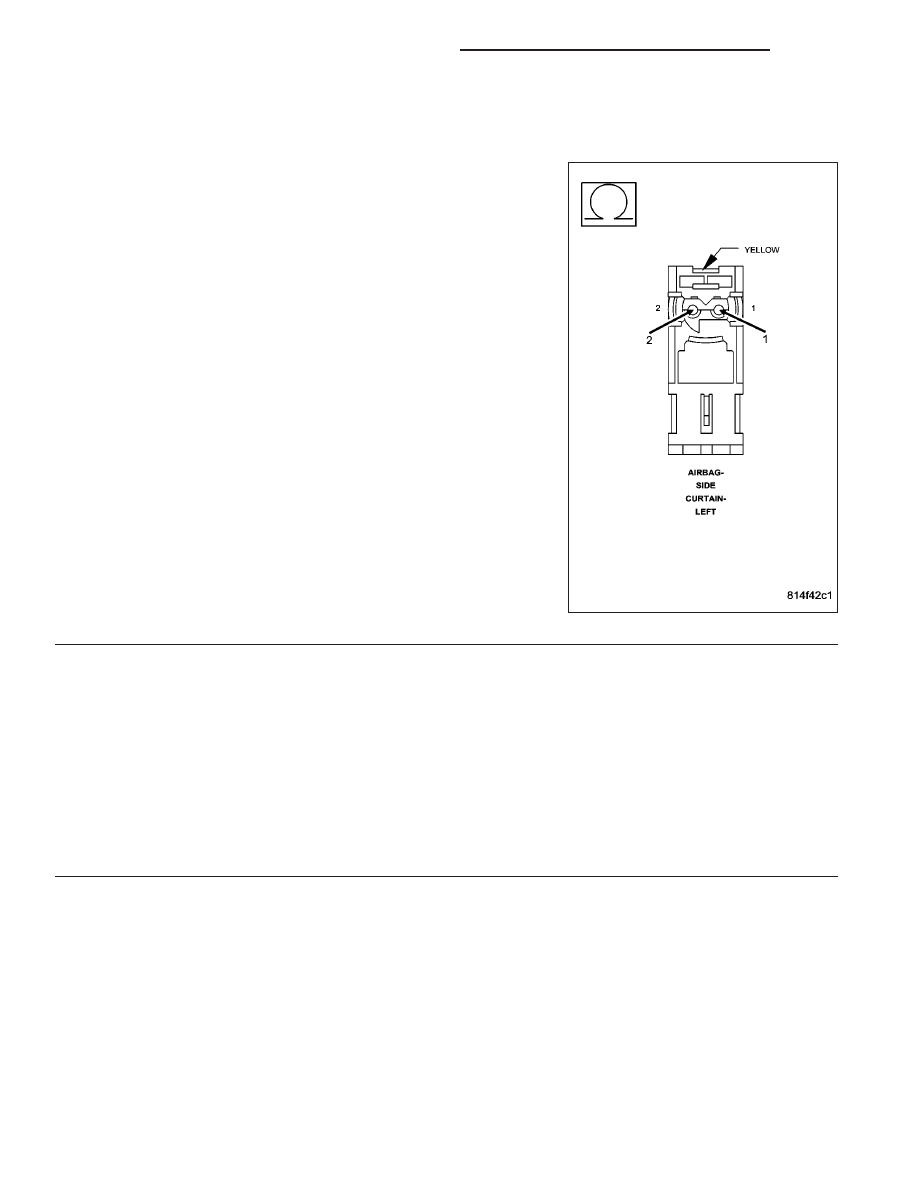

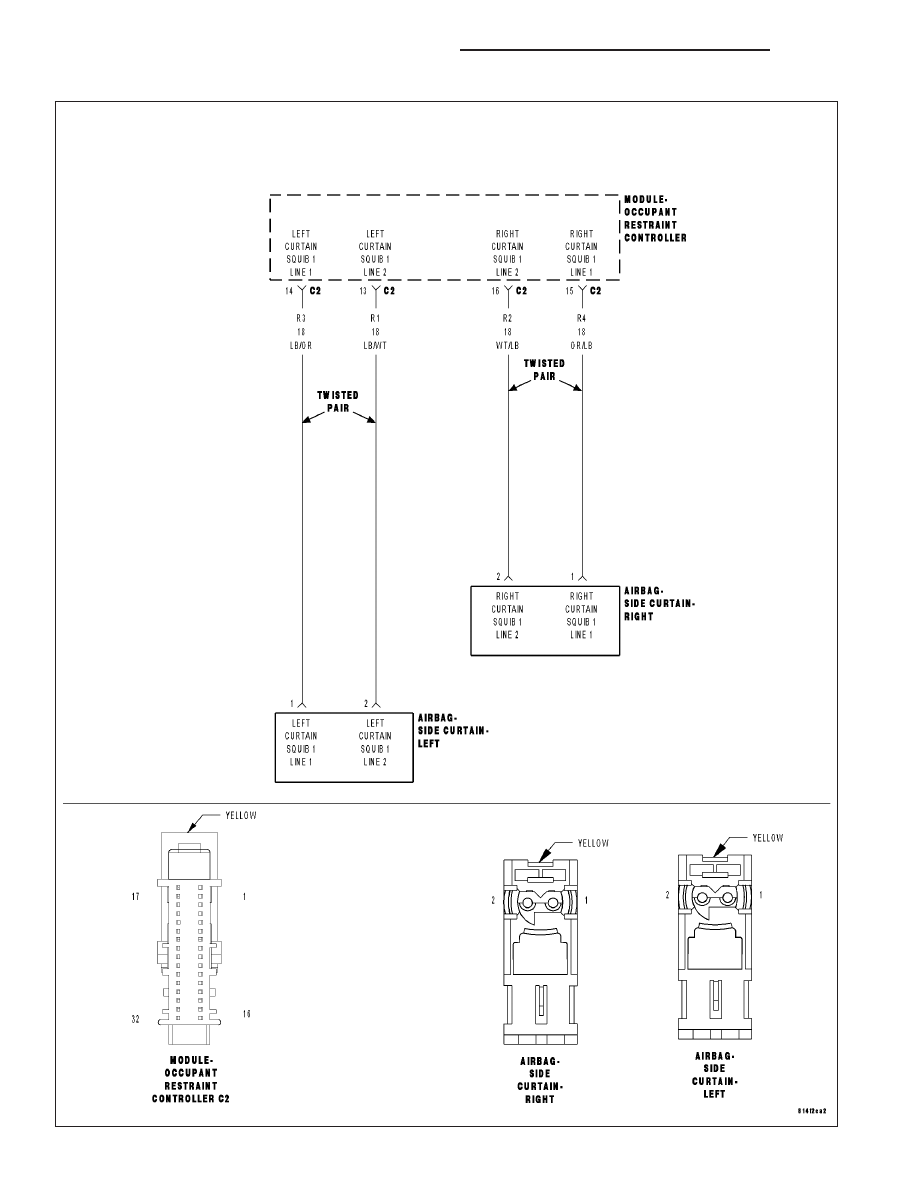

LEFT CURTAIN SQUIB 1 CIRCUIT SHORT (CONTINUED) 3. CHECK (R3) LEFT CURTAIN SQUIB 1 LINE 1 CIRCUIT FOR A SHORT TO (R1) LEFT CURTAIN SQUIB 1 WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance between the (R3) Left Curtain Squib 1 Line 1 Is the resistance below 10K ohms? Yes >> Repair the (R3) Left Curtain Squib 1 Line 1 circuit for a short to the (R1) Left Curtain Squib 1 Line 2 circuit. Perform ORC VERIFICATION TEST - VER 1 No >> Go To 4 4. REPLACE THE ORC WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must Repair Replace the ORC in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 8O - 82 RESTRAINTS - ELECTRICAL DIAGNOSTICS DR/DH |
