Dodge Ram Truck 1500-2500-3500. Manual - part 383





*SEAT BELT WARNING INDICATOR ALWAYS ON - STANDARD CAB

8J - 92

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

DR/DH

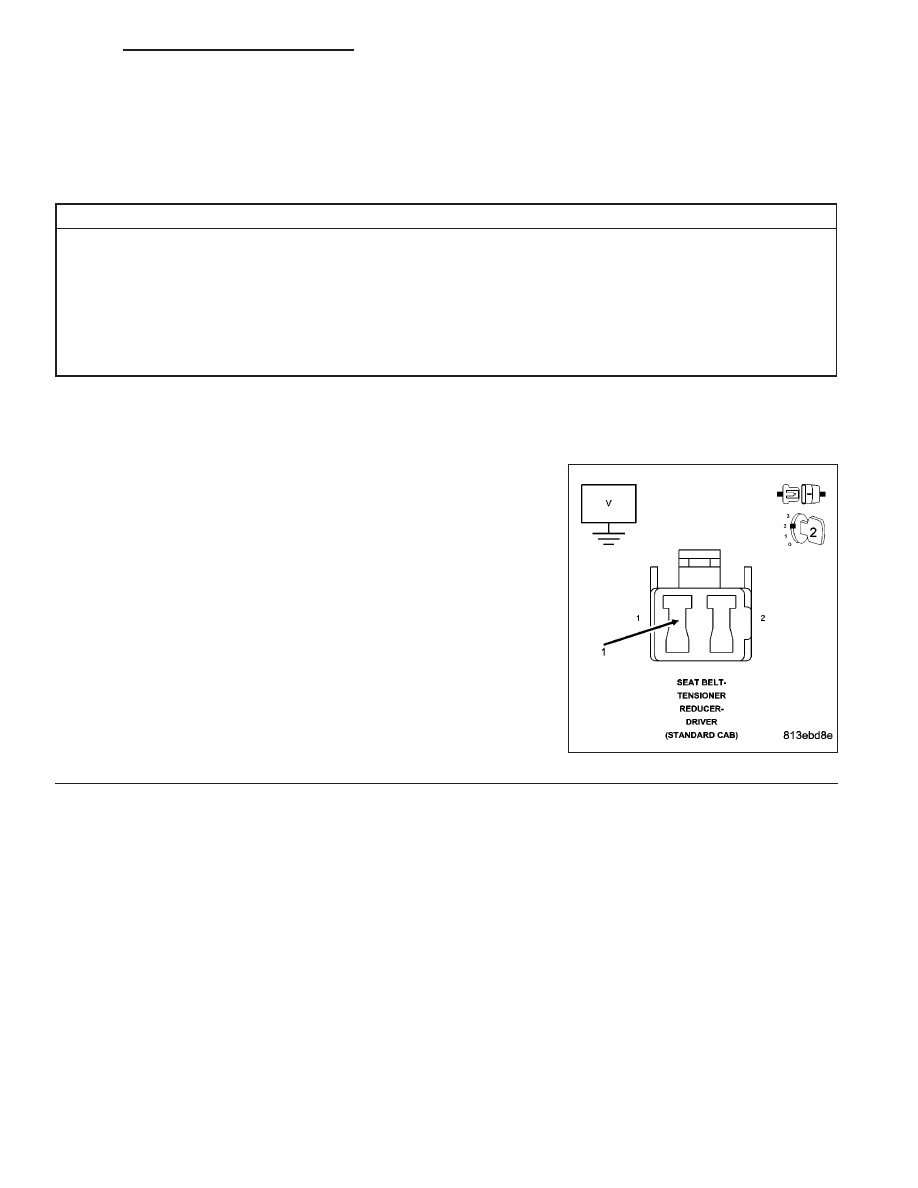

*SEAT BELT WARNING INDICATOR ALWAYS ON - STANDARD CAB (CONTINUED)

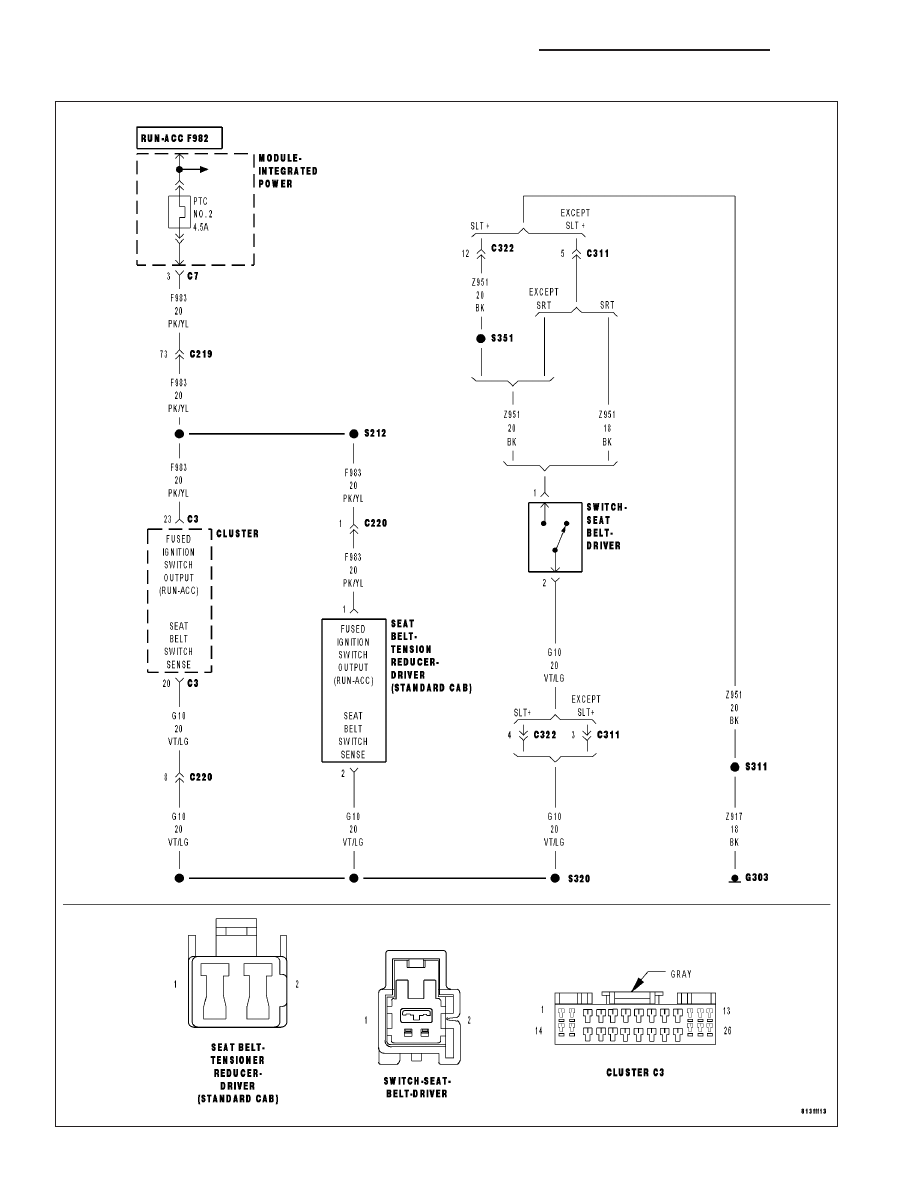

For the Instrument Cluster circuit diagram (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - SCHEMATICS
AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(F983) FUSED IGNITION SWITCH OUTPUT (RUN-ACC) CIRCUIT OPEN

(Z951) SEAT BELT SWITCH GROUND CIRCUIT OPEN

(G10) SEAT BELT SWITCH SENSE CIRCUIT OPEN

SEAT BELT TENSIONER REDUCER

SEAT BELT SWITCH

INSTRUMENT CLUSTER

1.

(F983) FUSED IGNITION SWITCH OUTPUT (RUN-ACC) CIRCUIT OPEN

Turn the ignition off.

Disconnect the Seat Belt Tensioner Reducer harness connector.

Turn the ignition on.

Measure the voltage between the (F983) Fused Ignition Switch Output
(Run-Acc) circuit and ground in the Tensioner Reducer harness con-
nector.

Is the voltage above 10.5 volts?

Yes

>> Go To 2

No

>> Repair the (F983) Fused Ignition Switch Output (Run-Acc)

circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1.)

DR/DH

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 93

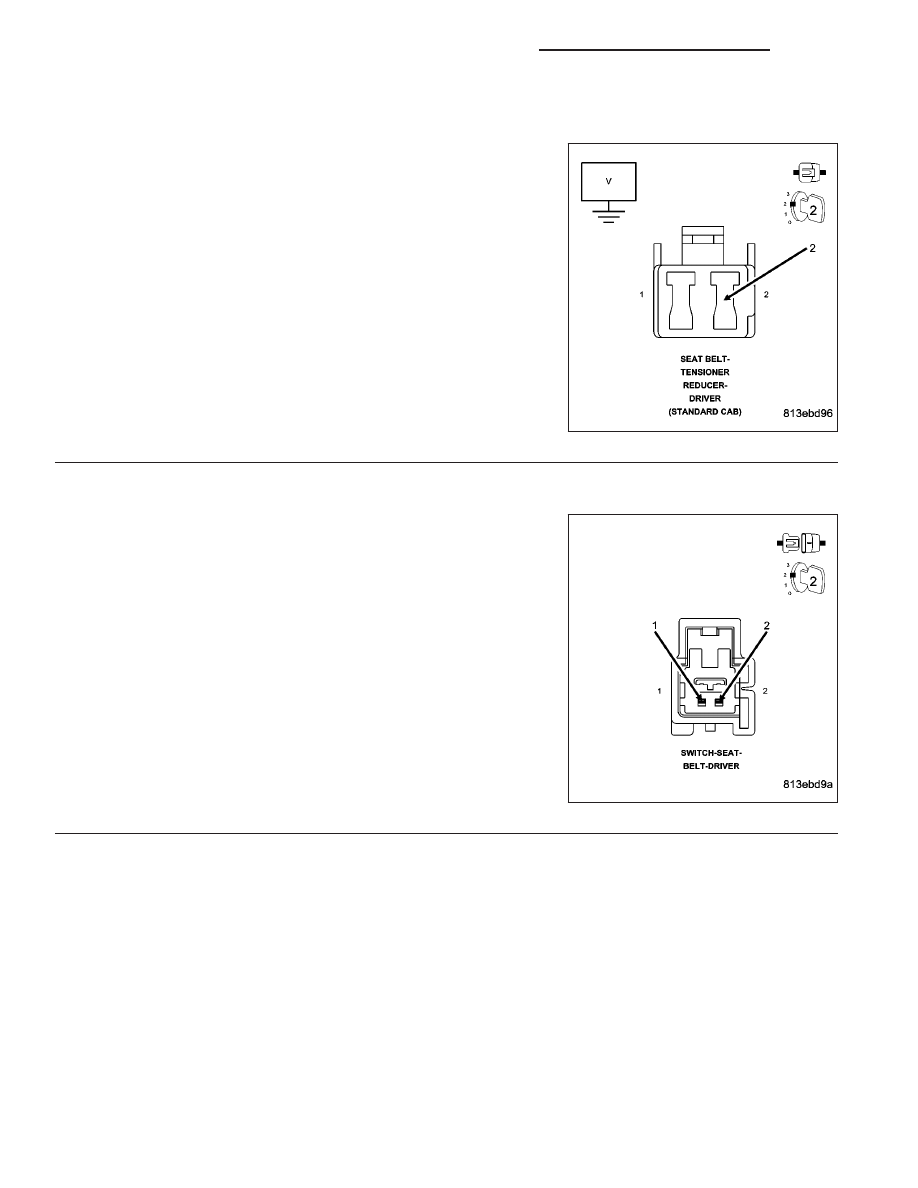

*SEAT BELT WARNING INDICATOR ALWAYS ON - STANDARD CAB (CONTINUED)

2.

SEAT BELT TENSIONER REDUCER

Ensure that the Seat Belt Tensioner Reducer harness connector is
connected.

Measure the voltage between the (G10) Seat Belt Switch Sense circuit
and ground in the Seat Belt Tensioner Reducer harness connector
(cavity 2).

Is there any voltage present?

Yes

>> Go To 3

No

>> Replace the Seat Belt Tensioner Reducer in accordance

with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1.)

3.

SEAT BELT SWITCH

Turn the ignition off.

Disconnect the Seat Belt Switch harness connector.

Connect a jumper wire between cavity 1 and cavity 2.

Turn the ignition on.

Observe the Seat Belt Warning Indicator.

Did the Seat Belt Warning Indicator illuminate?

Yes

>> Replace the Seat Belt Switch in accordance with the Ser-

vice Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1.)

No

>> Go To 4

8J - 94

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

DR/DH

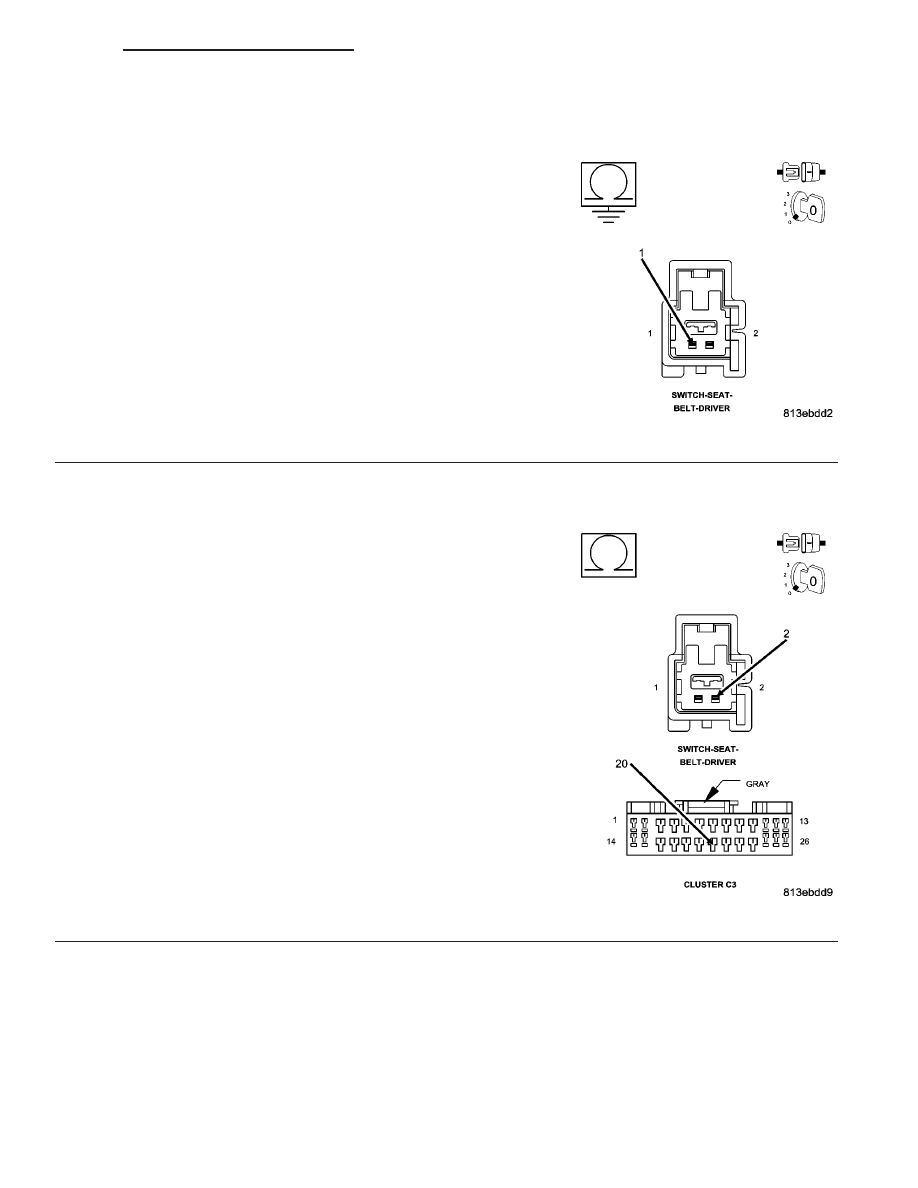

*SEAT BELT WARNING INDICATOR ALWAYS ON - STANDARD CAB (CONTINUED)

4.

CHECK THE (Z951) SEAT BELT SWITCH GROUND CIRCUIT FOR AN OPEN

Turn the ignition off.

Measure the resistance between ground and the (Z951) Seat Belt
Switch circuit.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the (Z951) Seat Belt Switch Ground circuit for an

open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1.)

5.

CHECK THE (G10) SEAT BELT SWITCH SENSE CIRCUIT FOR AN OPEN

Disconnect the Instrument Cluster C3 harness connector.

Measure the resistance of the (G10) Seat Belt Switch Sense circuit
between the Seat Belt Switch connector and the Instrument Cluster C3
connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (G10) Seat Belt Switch Sense circuit for an

open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1.)

No

>> Replace and configure the Instrument Cluster in accor-

dance with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1.)

DR/DH

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 95
