Dodge Ram Truck 1500-2500-3500. Manual - part 249

4.7L ENGINE

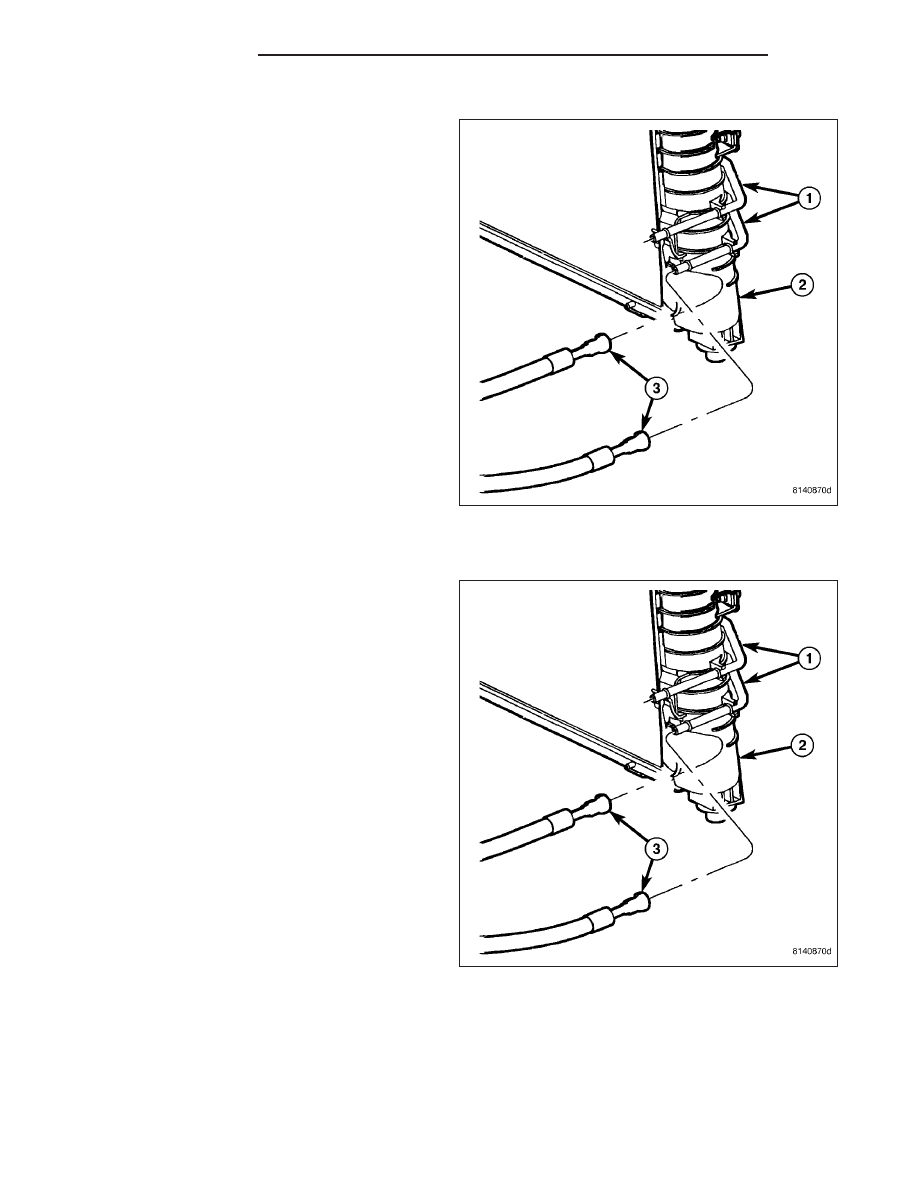

1. Position the transmission cooler tubes to the front

of the radiator by sliding brackets into slots on radi-
ator inlet tank.

2. Snap the transmission cooler tubes into the clips

on the side of the radiator tank.

3. Install

the

transmission

cooler

attaching

bolt.

Tighten the bolt to 16 N·m (140 in. lbs.).

4. Inspect the quick connect fittings for debris and

install the quick connect fitting on the cooler tube
until an audible “click” is heard. Pull apart the con-
nection to verify proper installation and install the
secondary latches (Refer to 7 - COOLING/TRANS-
MISSION - STANDARD PROCEDURE).

5. Start the engine and check all fittings for leaks.

6. Check the fluid level in the automatic transmission.

Refer

the

appropriate

transmission

section

(Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 45RFE/545RFE/FLUID - STANDARD
PROCEDURE) or (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 46RE/FLUID - STAN-
DARD PROCEDURE).

5.7L ENGINE

1. Position the transmission cooler tubes to the front

of the radiator by sliding brackets into slots on radi-
ator inlet tank.

2. Snap the transmission cooler tubes into the clips

on the side of the radiator tank.

3. Install

the

transmission

cooler

attaching

bolt.

Tighten the bolt to 16 N·m (140 in. lbs.).

4. Inspect the quick connect fittings for debris and

5. Start the engine and check all fittings for leaks.

6. Check the fluid level in the automatic transmission.

Refer

the

appropriate

transmission

section

(Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 45RFE/545RFE/FLUID - STANDARD
PROCEDURE) or (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 46RE/FLUID - STAN-
DARD PROCEDURE).

7 - 102

TRANSMISSION

DR/DH

AIR TO OIL COOLER - 5.9L DIESEL

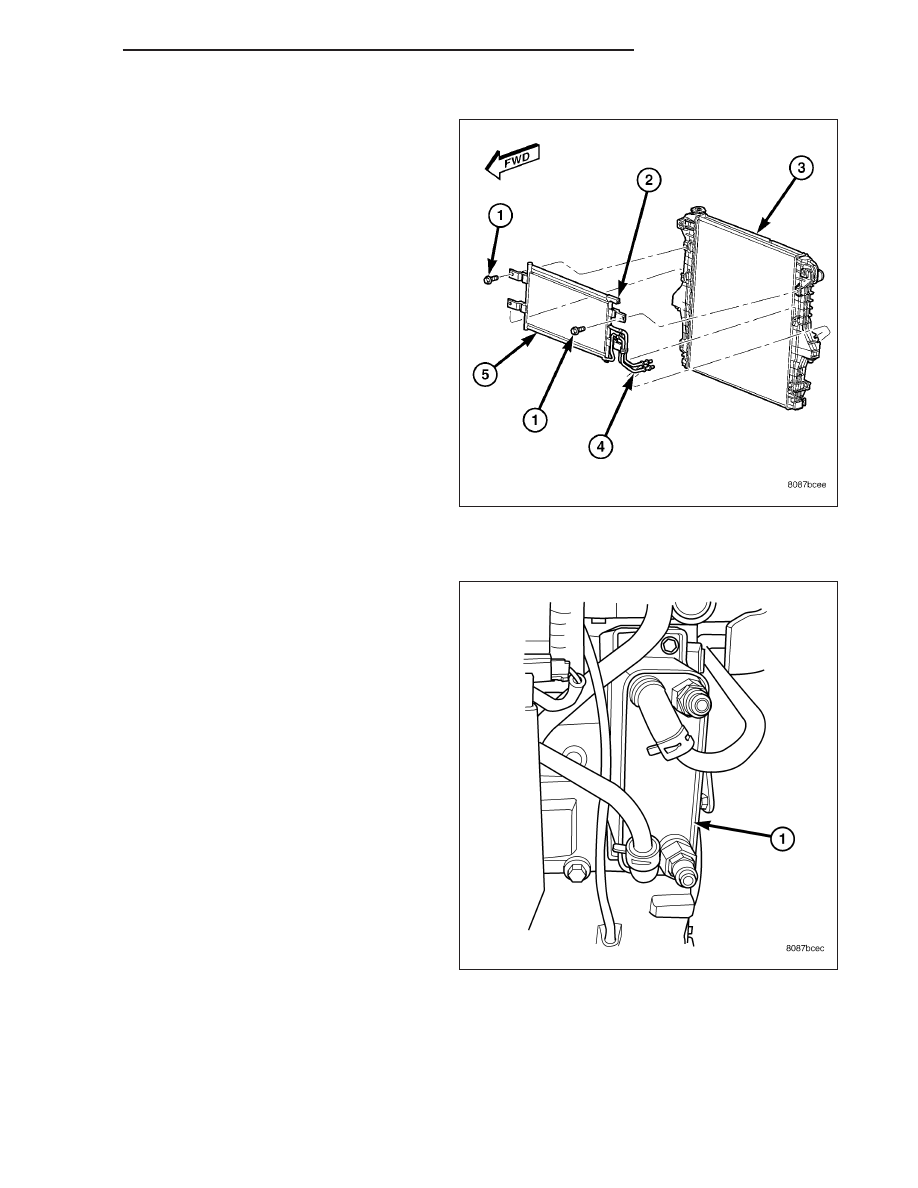

1. Carefully position the oil cooler assembly to the

vehicle.

2. Install two nuts and one bolt. Tighten to 11 N·m (95

in. lbs.) torque.

3. Connect the quick-connect fittings to the transmis-

sion cooler lines.

4. Install Charge Air Cooler (Refer to 11 - EXHAUST

SYSTEM/TURBOCHARGER

SYSTEM/CHARGE

AIR COOLER AND PLUMBING - INSTALLATION).

5. Start the engine and check all fittings for leaks.

6. Check the fluid level in the automatic transmission

(Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC

47RE/FLUID

STANDARD

PROCEDURE).

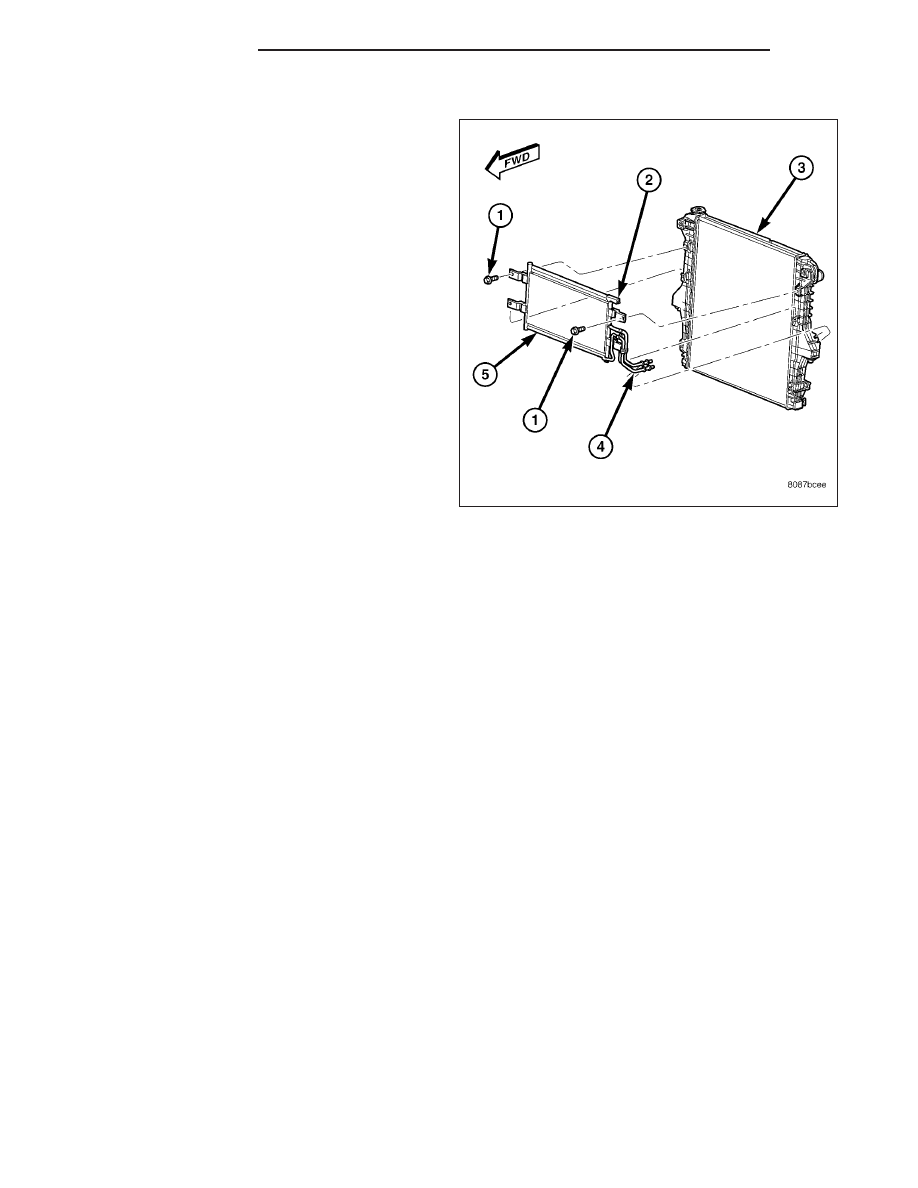

INSTALLATION - WATER-TO-OIL COOLER

1. Position oil cooler on cylinder block.

2. Install lower mounting bolt to cooler at the cylinder

block. Torque bolt to 77 N·m (57 ft. lbs.)

3. Install upper mounting bolt at the cylinder block.

Torque bolt to 24 N·m (18 ft. lbs.)

4. Install cooler bracket to transmission adapter bolt.

Tighten to 24 N·m (18 ft. lbs.).

NOTE: Use a back-up wrench on the transmission
cooler fittings to prevent damage to the cooler.

5. Connect transmission oil lines to cooler.

6. Connect coolant hoses to cooler.

7. Install starter motor (Refer to 8 - ELECTRICAL/

STARTING/STARTER MOTOR - INSTALLATION).

8. Connect battery negative cables.

9. Fill cooling system (Refer to 7 - COOLING - STAN-

DARD PROCEDURE).

10. Check transmission oil level and fill as necessary

(Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC

47RE/FLUID

STANDARD

PROCEDURE).

DR/DH

TRANSMISSION

7 - 103

8.3L ENGINE

1. Carefully position the oil cooler assembly to the

vehicle.

2. Install two nuts and one bolt. Tighten to 11 N·m (95

in. lbs.) torque.

3. Connect the quick-connect fittings to the transmis-

sion cooler lines.

4. Start the engine and check all fittings for leaks.

5. Check the fluid level in the automatic transmission

(Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC

47RE/FLUID

STANDARD

PROCEDURE).

7 - 104

TRANSMISSION

DR/DH
