RADIATOR FAN

REMOVAL

3.7L/4.7L/5.7L ENGINE

1. Do Not attempt to remove the fan/viscous fan drive

assembly from the vehicle at this time.

CAUTION: If the viscous fan drive is replaced
because of mechanical damage, the cooling fan
blades should also be inspected. Inspect for
fatigue cracks, loose blades, or loose rivets that
could have resulted from excessive vibration.
Replace fan blade assembly if any of these condi-
tions are found. Also inspect water pump bearing
and shaft assembly for any related damage due to
a viscous fan drive malfunction.

2. Disconnect negative battery cable from battery.

3. Remove coolant reserve/overflow container from

fan shroud and lay aside. Do Not disconnect the
hoses or drain coolant from the container.

4. The thermal viscous fan drive/fan blade assembly

is attached (threaded) to the water pump hub shaft.

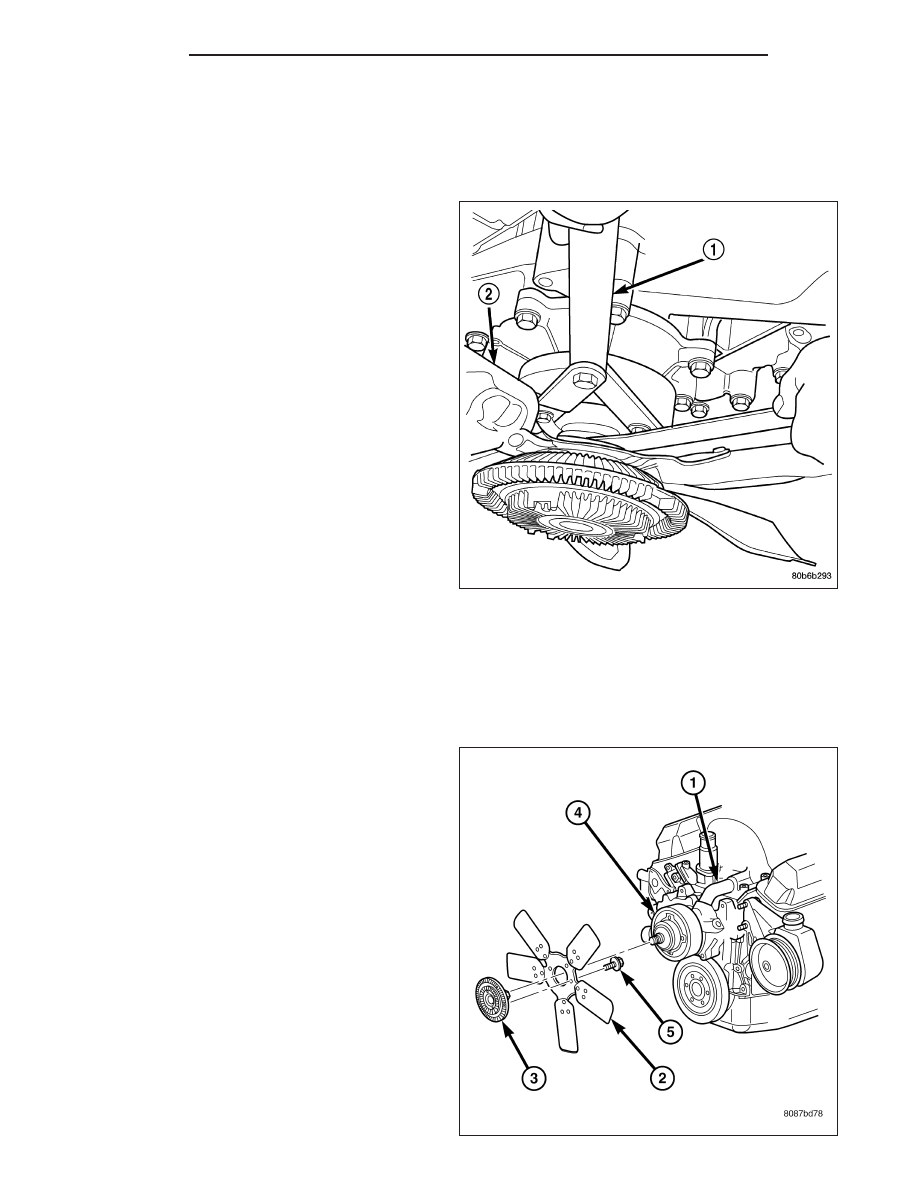

Remove the fan blade/viscous fan drive assembly
from the water pump by turning the mounting nut
counterclockwise as viewed from the front. Threads
on the viscous fan drive are RIGHT-HAND. A 36
MM Fan Wrench should be used to prevent pulley from rotating .

5. Do Not unbolt the fan blade assembly from viscous fan drive at this time.

6. Remove the fan shroud-to-radiator mounting bolts.

7. Pull the lower shroud mounts out of the radiator tank clips.

8. Remove the fan shroud and fan blade/viscous fan drive assembly as a complete unit from vehicle.

9. After removing the fan blade/viscous fan drive

assembly, do not place the viscous fan drive in a
horizontal position. If stored horizontally, silicone
fluid in the viscous fan drive could drain into its
bearing assembly and contaminate lubricant.

CAUTION: Do not remove water pump pulley-to-
water pump bolts. This pulley is under spring ten-
sion.

10. Remove four bolts securing fan blade assembly to

viscous fan drive.

CAUTION: Some engines equipped with serpentine
drive belts have reverse rotating fans and viscous
fan

drives.

They

are

marked

with

the

word

REVERSE to designate their usage. Installation of
the wrong fan or viscous fan drive can result in
engine overheating.

7 - 46

ENGINE

DR/DH

5.9L DIESEL

CAUTION: If the electronically controlled viscous
fan drive is replaced because of mechanical dam-
age, the cooling fan blades should also be
inspected. Inspect for fatigue cracks, or chipped
blades that could have resulted from excessive
vibration. Replace fan blade assembly if any of
these conditions are found. Also inspect wiring
harness and connectors for damage.

1. Disconnect the battery negative cables.

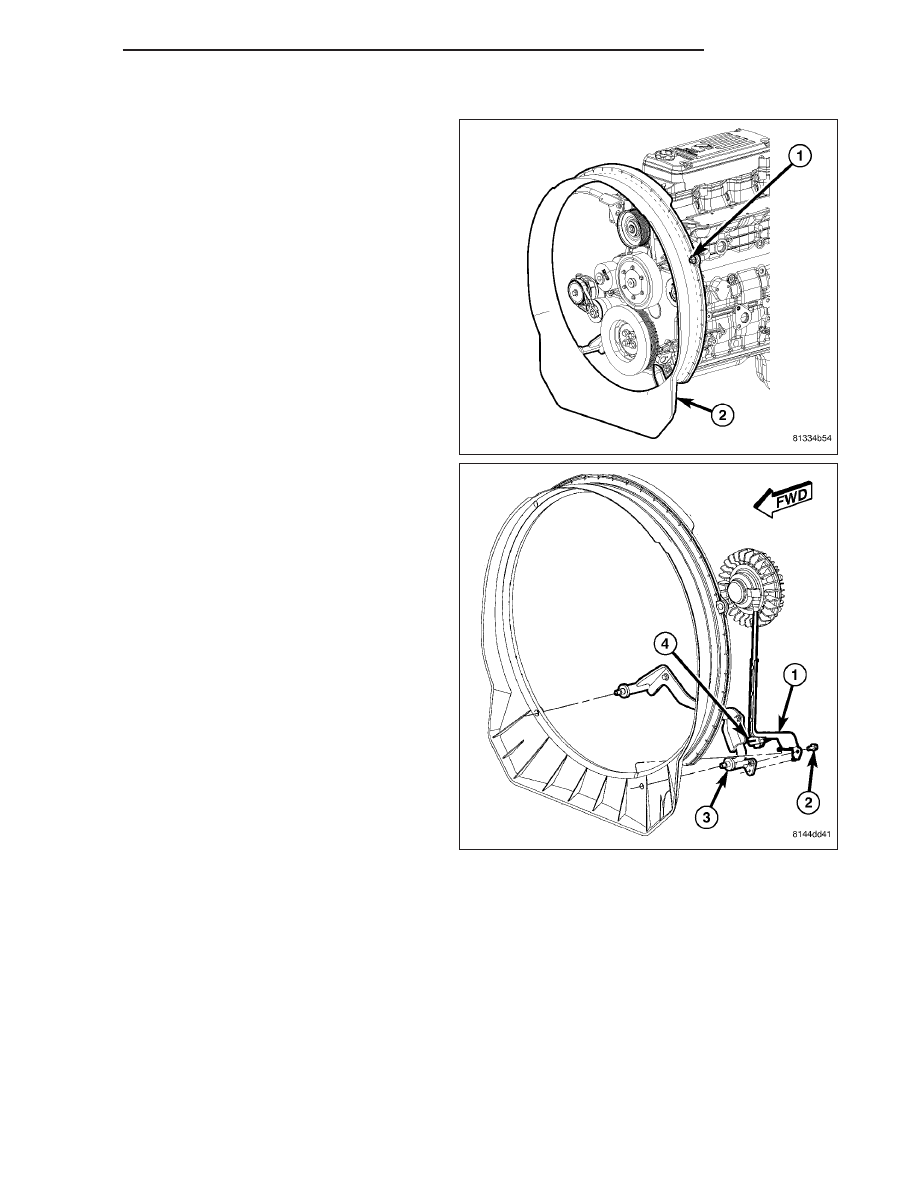

2. Remove fan shroud-to-engine bracket nuts (1).

3. Disconnect electronically controlled viscous fan

electrical connector (4) at lower fan shroud bracket.

4. Remove

wiring

bracket

-to-lower

fan

shroud

bracket mounting bolt (2).

5. Remove fan drive wire harness support from fan

sharoud.

CAUTION: Do not remove the fan pulley bolts.
This pulley is under spring tension.

6. The electronically controlled viscous fan drive/fan

blade assembly is attached (threaded) to the fan
pulley shaft. Remove the fan blade/fan drive
assembly from fan pulley by turning the mounting
nut

counterclockwise

(as

viewed

from

front).

Threads on the viscous fan drive are RIGHT-
HAND.
A 36 MM Fan Wrench can be used. Place a
bar or screwdriver between the fan pulley bolts to
prevent pulley from rotating.

NOTE: It may be necessary to loosen the top two
fan shroud brackets. Removal of the engine mounted fan shroud brackets is not necessary unless removing
or installing the engine.

7. Collapse fan shroud toward front of vehicle and remove fan drive/fan blade and fan shroud as an assembly.

DR/DH

ENGINE

7 - 47

CAUTION: The electronically controlled viscous
fan drive is vibration and impact sensitive, espe-
cially at the electrical connectors. Do not drop the
unit.

8. Remove the six fan blade-to-viscous fan drive

mounting bolts.

9. Inspect the fan for cracked, chipped or damaged

fan blades.

8.3L ENGINE

1. Disconnect the battery negative cables.

2. Drain the cooling system (Refer to 7 - COOLING -

STANDARD PROCEDURE).

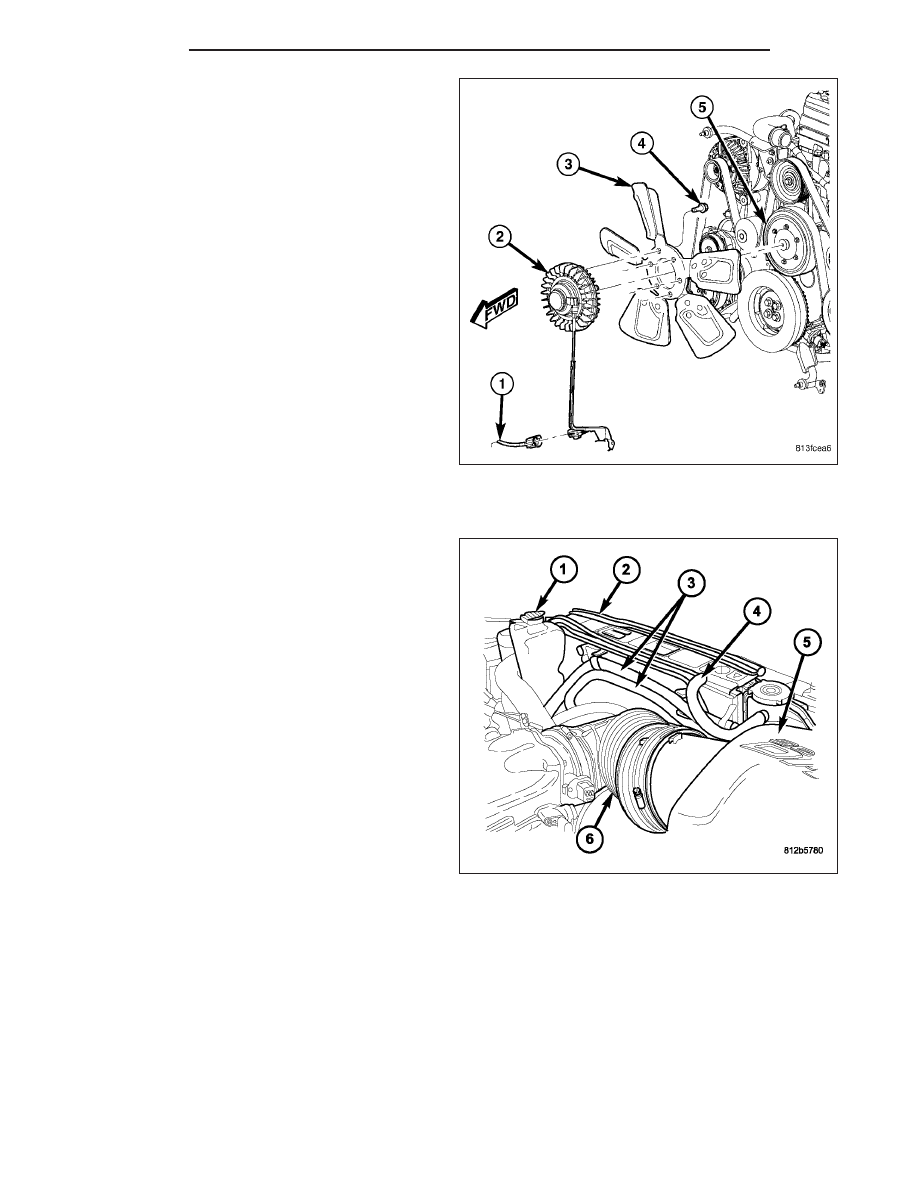

3. Remove air intake tube between intake manifold

and air filter assembly.

4. Unclip A/C lines from radiator fan shroud, and posi-

tion out of the way

5. Remove coolant recover bottle and coolant con-

tainer tube.

6. Remove upper radiator hose from radiator and

position out of the way.

7 - 48

ENGINE

DR/DH

7. Raise vehicle on hoist.

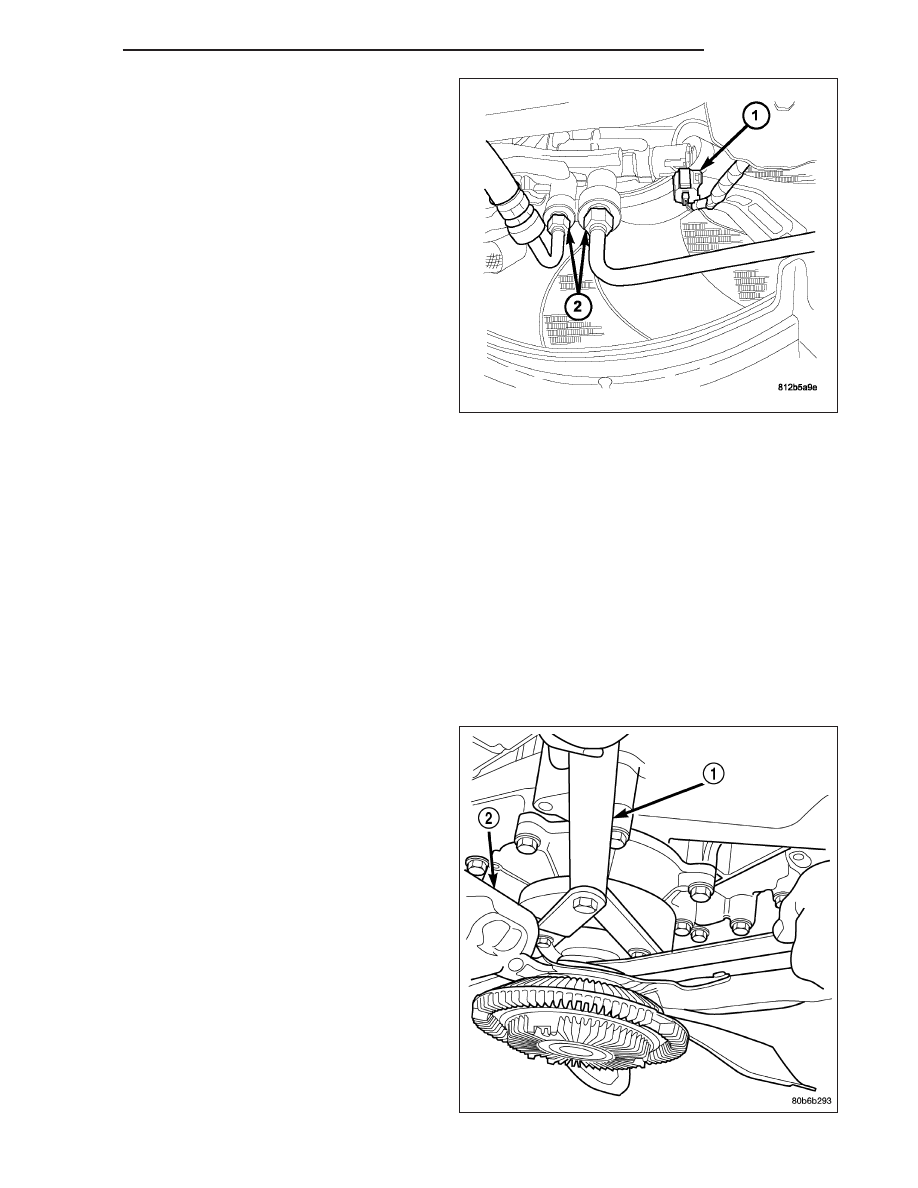

8. Disconnect the high and low pressure hydraulic

hoses at the hydraulic fan motor.

9. Disconnect solenoid electrical connector (1).

10. Lower vehicle

11. Remove the four fan shroud retaining bolts.

12. Remove the fan motor and shroud assembly from

the vehicle.

CLEANING

Clean the fan blades using a mild soap and water. Do not use an abrasive to clean the blades.

INSPECTION

WARNING: DO NOT ATTEMPT TO BEND OR STRAIGHTEN FAN BLADES IF FAN IS NOT WITHIN SPECIFI-
CATIONS.

CAUTION: If fan blade assembly is replaced because of mechanical damage, water pump and viscous fan
drive should also be inspected. These components could have been damaged due to excessive vibration.

INSTALLATION

3.7L/4.7L/5.7L ENGINE

NOTE: Viscous Fan Drive Fluid Pump Out Require-
ment: After installing a new viscous fan drive,
bring the engine speed up to approximately 2000
rpm and hold for approximately two minutes. This
will ensure proper fluid distribution within the
drive.

1. Install fan blade assembly to the viscous fan drive.

Tighten the bolts to 24 N·m (18 ft. lbs.) torque.

2. Position the fan shroud and the fan blade/viscous

fan drive assembly to the vehicle as a complete
unit.

3. Install the fan shroud.

4. Install the fan blade/viscous fan drive assembly to

the water pump shaft. Tighten mounting nut to 50
N·m (37 ft. lbs.).

5.

Install the coolant reserve/overflow container to

the fan shroud.

6. Connect the negative battery cable.

DR/DH

ENGINE

7 - 49
