MODE 1 CIRCUIT SHORTED TO IGN OR BATT

For a complete wiring diagram Refer to Section 8W.

•

When Monitored:
When the Actuator Circuit Test is executed.

•

Set Condition:
If the A/C Heater Control detects a short to voltage on the (C801) Mode Door 1 Driver circuit.

Possible Causes

DOOR DRIVER CIRCUIT(S) SHORTED TO VOLTAGE

DOOR DRIVER CIRCUITS SHORTED TOGETHER

DOOR ACTUATOR(S)

A/C HEATER CONTROL

For Single-Zone HVAC systems, refer to *ACTUATOR CIRCUIT TEST DIAGNOSTICS (SINGLE-ZONE) in this
Section for the diagnostic test procedure. For Dual-Zone HVAC systems, refer to *ACTUATOR CIRCUIT TEST
DIAGNOSTICS (DUAL-ZONE) in this Section for the diagnostic test procedure.

24 - 64

HVAC - ELECTRICAL DIAGNOSTICS

DR/DH

MODE 1 OVERCURRENT (DUAL-ZONE)

DR/DH

HVAC - ELECTRICAL DIAGNOSTICS

24 - 65

MODE 1 OVERCURRENT (DUAL-ZONE) (CONTINUED)

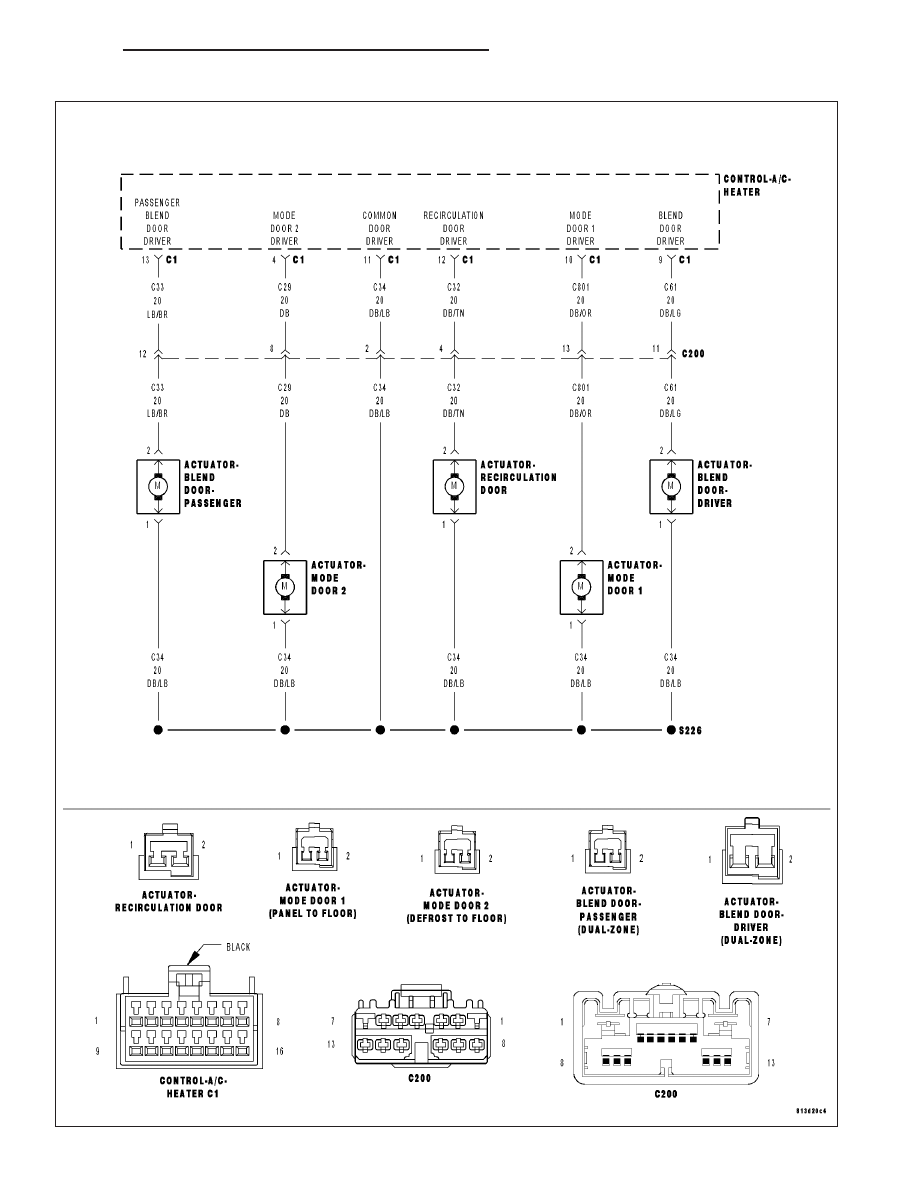

For the Manual Temperature Control circuit diagrams (Refer to 24 - HEATING & AIR CONDITIONING - SCHEMAT-
ICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

Theory of Operation

NOTE: Diagnose and repair all Actuator Circuit Test faults before diagnosing Overcurrent DTCs.

The A/C Heater Control monitors the door driver circuits during actuator operation for shorts to ground, shorts to
battery, and shorts to other door driver circuits. If detected, the A/C Heater Control reports these types of faults as
Overcurrent DTCs. It is important to note that Overcurrent DTCs do not indicate where or what type of short is
present and that additional system testing is necessary to provide more details about the reported fault.

•

When Monitored:
When actuator movement is requested.

•

Set Condition:
If the A/C Heater Control detects an excessive current draw on any of the door driver circuits while attempting
to drive the Mode Door Actuator 1. Note that only one overcurrent DTC can set per ignition cycle.

Possible Causes

(C32) RECIRCULATION DOOR DRIVER CIRCUIT / (C61) BLEND DOOR DRIVER CIRCUIT / (C801) MODE
DOOR 1 DRIVER CIRCUIT / (C29) MODE DOOR 2 DRIVER CIRCUIT / (C33) PASSENGER BLEND DOOR
DRIVER CIRCUIT SHORTED TO GROUND

DRIVER BLEND DOOR ACTUATOR / PASSENGER BLEND DOOR ACTUATOR / MODE DOOR ACTUATOR 1 /
MODE DOOR ACTUATOR 2 / RECIRCULATION DOOR ACTUATOR

A/C HEATER CONTROL

NOTE: The Overcurrent DTC must be active for the result of this test to be valid. Do not perform this test
if the Overcurrent DTC is stored. Refer to HVAC System Test for stored DTC test procedures.

Diagnostic Test

RUN THE ACTUATOR CIRCUIT TEST

Turn the ignition on.

With the DRBIII

in HVAC, select System Tests and then select Actuator Circuit Test. Allow the test to run to com-

pletion before proceeding.

Does the DRBIII

display any Actuator Circuit Test fault messages?

Yes

>> Diagnose and repair the fault(s). Refer to *ACTUATOR CIRCUIT TEST DIAGNOSTICS (DUAL-ZONE) in

this section.

>> Go To 2

24 - 66

HVAC - ELECTRICAL DIAGNOSTICS

DR/DH

MODE 1 OVERCURRENT (DUAL-ZONE) (CONTINUED)

CHECK THE (C32) RECIRCULATION DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C61) BLEND
DOOR DRIVER CIRCUIT, THE (C801) MODE DOOR 1 DRIVER CIRCUIT, THE (C29) MODE DOOR 2
DRIVER CIRCUIT, & THE (C33) PASSENGER BLEND DOOR DRIVER CIRCUIT

Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

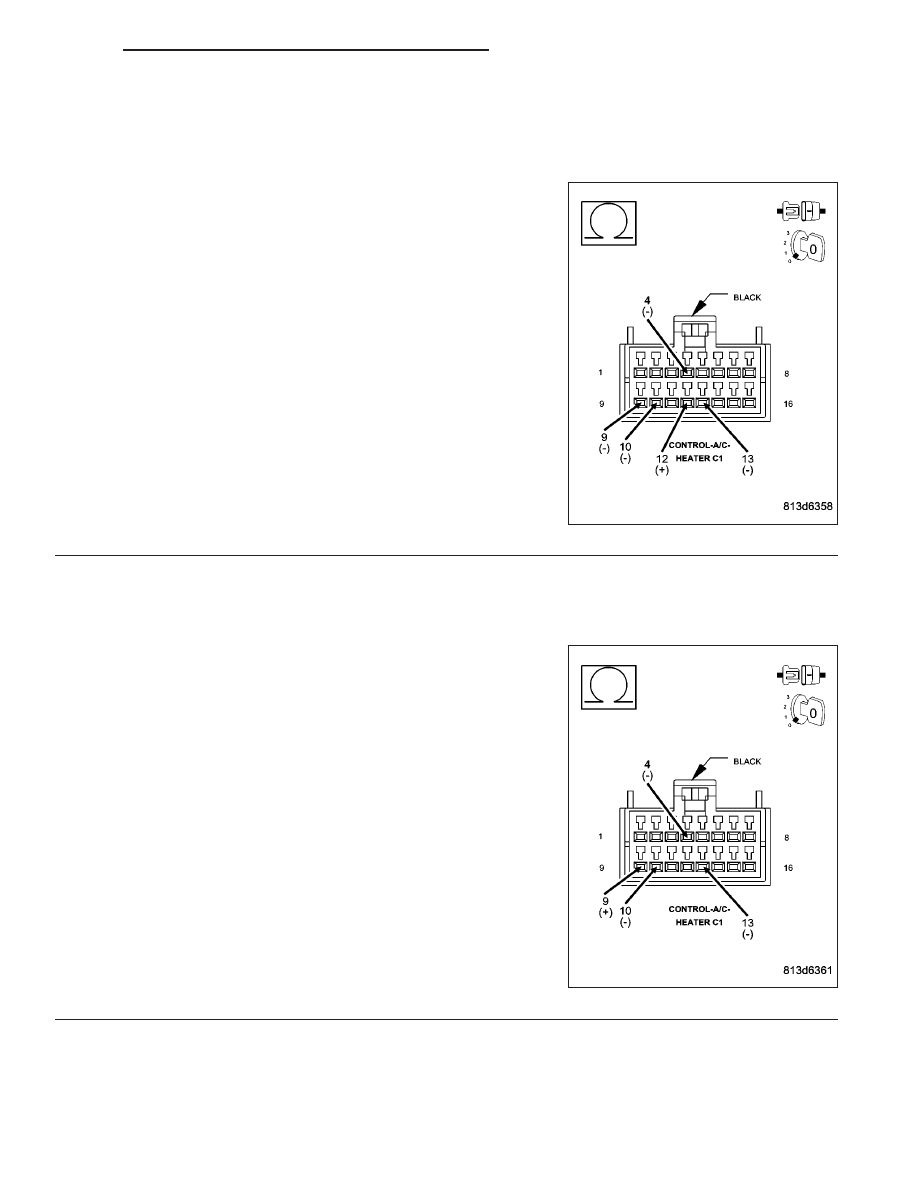

Measure the resistance between the (C32) Recirculation Door Driver
circuit and the (C61) Blend Door Driver circuit, the (C801) Mode Door
1 Driver circuit, the (C29) Mode Door 2 Driver circuit, and the (C33)
Passenger Blend Door Driver circuit in the A/C Heater Control C1 har-
ness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C32) Recirculation Door Driver circuit.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

>> Go To 3

CHECK THE (C61) BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C801) MODE DOOR 1
DRIVER CIRCUIT, THE (C29) MODE DOOR 2 DRIVER CIRCUIT, & THE (C33) PASSENGER BLEND DOOR
DRIVER CIRCUIT

Measure the resistance between the (C61) Blend Door Driver circuit
and the (C801) Mode Door 1 Driver circuit, the (C29) Mode Door 2
Driver circuit, and, the (C33) Passenger Blend Door Driver circuit in
the A/C Heater Control C1 harness connector.

Is the resistance below 10k ohms on any of the circuits?

Yes

>> Repair all circuits with a resistance below 10k ohms for a

short to the (C61) Blend Door Driver circuit.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

>> Go To 4

DR/DH

HVAC - ELECTRICAL DIAGNOSTICS

24 - 67
