Dodge Ram Truck 1500-2500-3500. Manual - part 1976
NOTE: All measurements are in mm. O/F = Over Flush. U/F = Under Flush.
DIMENSION
DESCRIPTION
GAP
FLUSH
*
1
Bumper to grille
19.0 ± 3.0
—
*
2
Hood to grille
1.5 ± 1.0
Parallel within 2.0
U/F 0.75 ± 1.75
*
3
Fender to hood
6.0 ± 2.0
Parallel within 1.0
U/F 3.2 ± 1.5
(Underflush from front of
hood to start of hockey stick
area only)
*
4
Fender to hood
(Up/Down surface only)
6.0 ± 1.5
Parallel within 1.0
0.0 ± 1.5
*
5
Front door to windshield
—
O/F 20.5 ± 1.5
(Base of windshield)
O/F 9.0 ± 1.5
(Top of windshield)
*
6
Roof to front door
—
U/F 6.0 ± 1.5
Parallel within 1.5
7
Quarter to front door
5.0 ± 1.5
Parallel within 1.0
0.0 ± 1.5
8
Front door to quarter character line
alignment
—
Up/Down 0.0 ± 1.5
*
9
Front door to fender character line
alignment
—
Up/Down 0.0 ± 1.5
*
10
Front door to fender
5.0 ± 1.5
Parallel within 1.0
0.0 ± 1.5
*
11
Bumper to fender
19.0 ± 3.0
Parallel within 3.0
O/F 5.0 ± 5.0 (SLT)
O/F 14.0 ± 5.0 (SPORT)
*
12
Bumper to headlamp
19.0 ± 4.0
—
* ALL MODELS

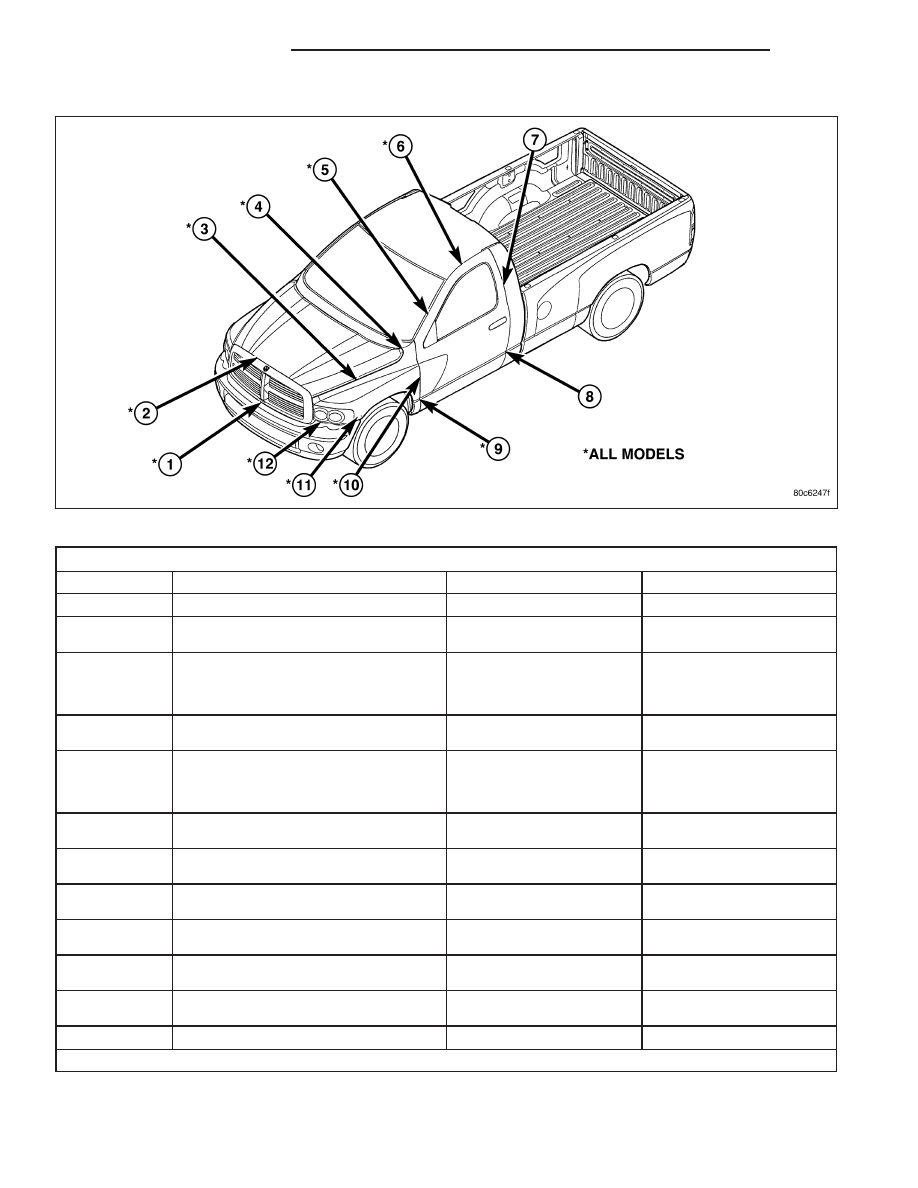

Fig. 1 GAP & FLUSH - STANDARD CAB
23 - 258
BODY STRUCTURE
DR/DH
