Dodge Ram Truck 1500-2500-3500. Manual - part 1964
6. Locate NEW support spacers (3) on support brack-
ets and adjust to lowest height.

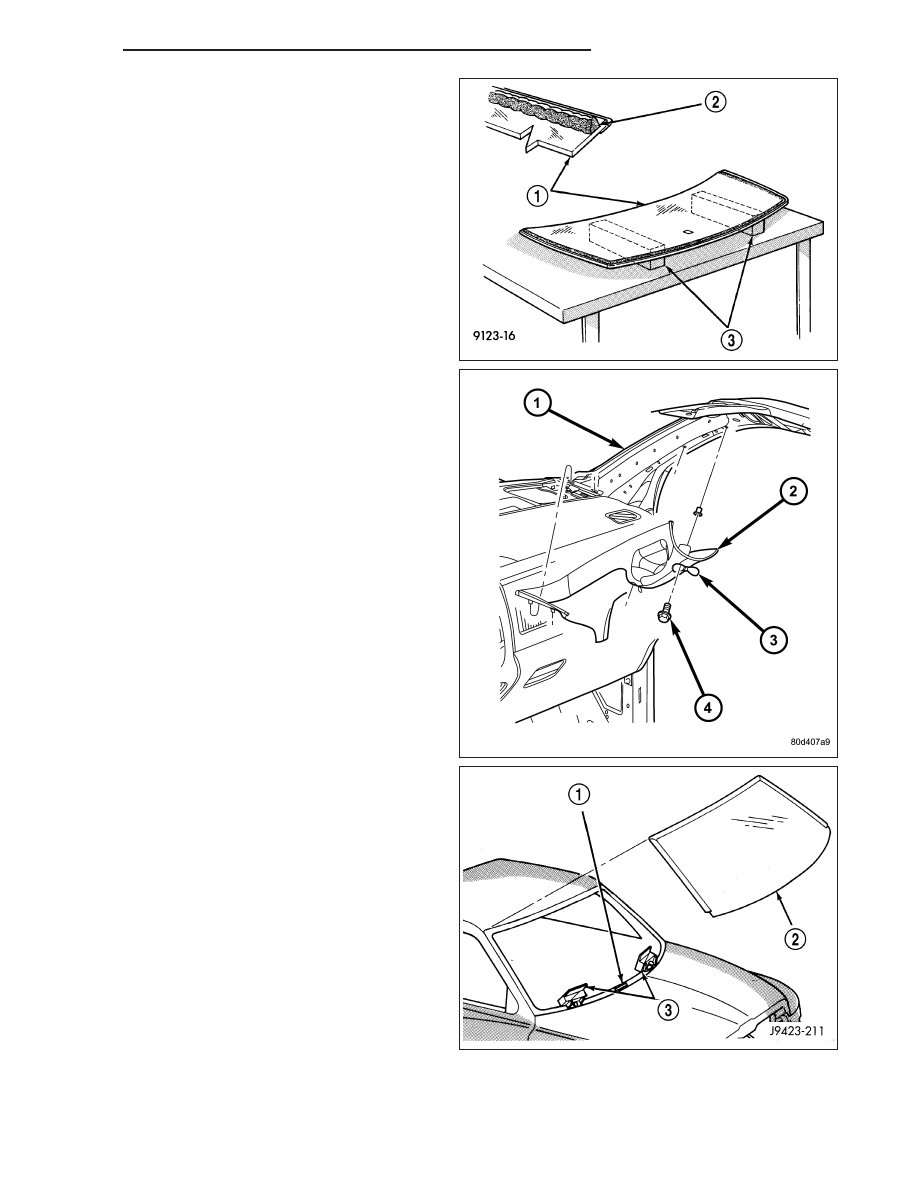

7. Position seven new foam spacers (4 and 3) on the
inside surface of the windshield, flush with the
lower and side edges.
8. Position three new foam spacers (1) on the inside
surface of the windshield, at a minimum distance of
3 mm (0.12 in.) from the top edge of the
windshield.

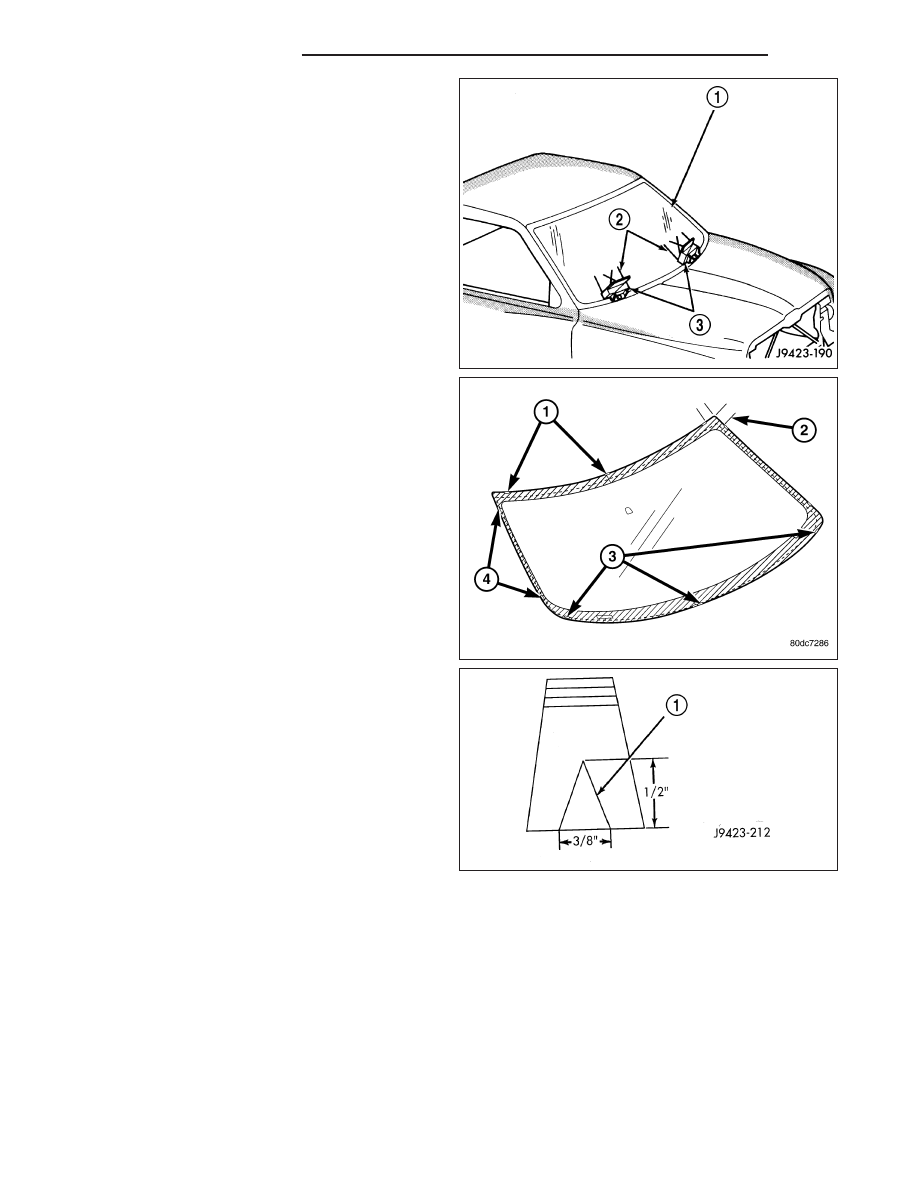

9. The urethane bead should be shaped in a triangu-
lar cross-section, this can be achieved by notching
the tip of the applicator.
23 - 210
STATIONARY GLASS
DR/DH
