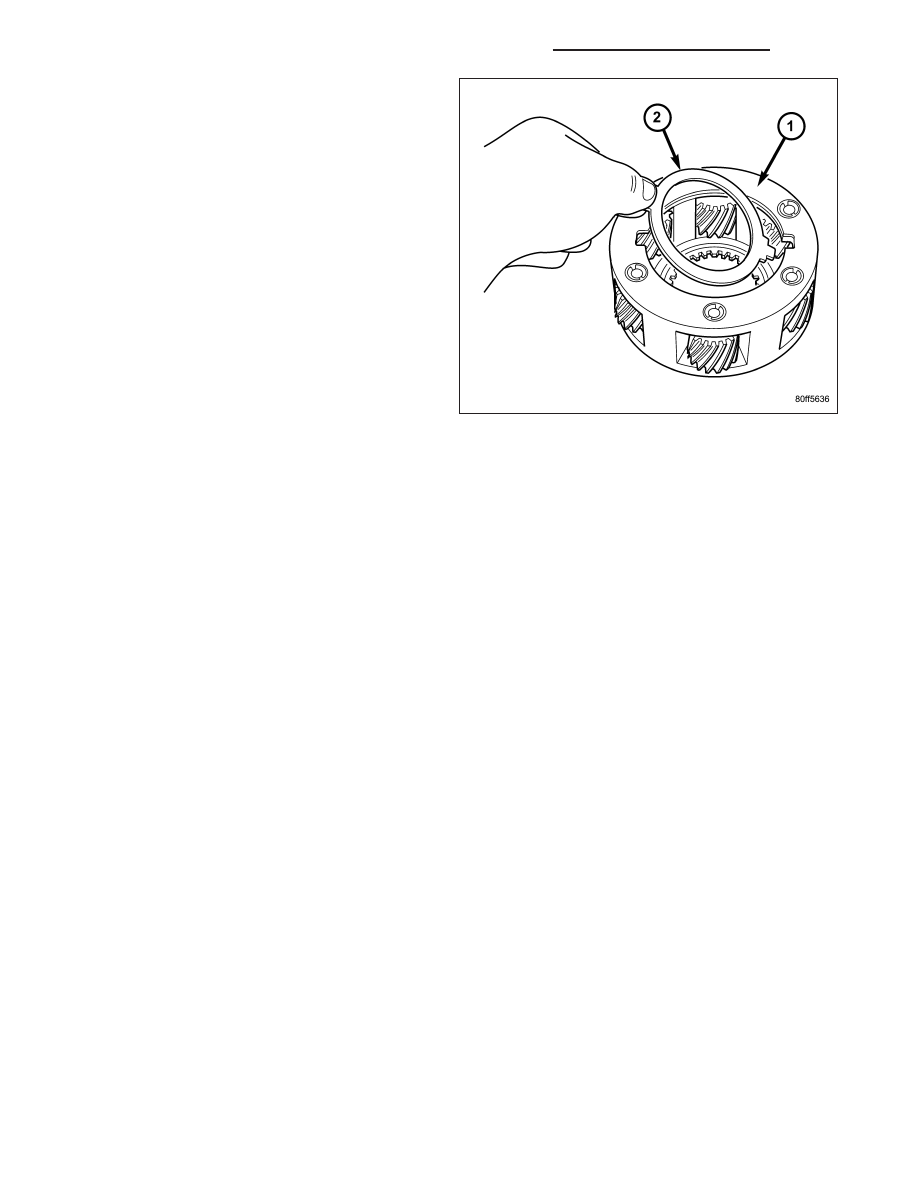

8. Remove bottom tabbed thrust washer (2) from low range planetary (1). CLEANING Clean the transfer case parts with a standard parts cleaning solvent. Remove all traces of sealer from the cases INSPECTION MAINSHAFT/SPROCKET/HUB INSPECTION Inspect the splines on the hub and shaft and the teeth on the sprocket. Minor nicks and scratches can be smoothed Check the contact surfaces in the sprocket bore and on the mainshaft. Minor nicks and scratches can be smoothed 21 - 1524 TRANSFER CASE - NV273 - SERVICE INFORMATION DR/DH |
