Dodge Ram Truck 1500-2500-3500. Manual - part 1812





4. Remove timing valve cover.

5. Remove 3-4 timing valve and spring.

6. Remove 3-4 quick fill valve, spring and plug.

7. Remove 3-4 shift valve and spring.

8. Remove converter clutch valve, spring and plug.

9. Remove converter clutch timing valve, retainer and

valve spring.

CLEANING

Clean the valve housings, valves, plugs, springs, and separator plates with a standard parts cleaning solution only.
Do not use gasoline, kerosene, or any type of caustic solution.

Do not immerse any of the electrical components in cleaning solution. Clean the governor solenoid and sensor and
the dual solenoid and harness assembly by wiping them off with dry shop towels only.

Dry all except the electrical parts with compressed air. Make sure all passages are clean and free from obstructions.
Do not use rags or shop towels to dry or wipe off valve body components. Lint from these materials can
stick to valve body parts, interfere with valve operation, and clog filters and fluid passages.

Wipe the governor pressure sensor and solenoid valve with dry, lint free shop towels only. The O-rings on the sen-
sor and solenoid valve are the only serviceable components. Be sure the vent ports in the solenoid valve are open
and not blocked by dirt or debris. Replace the valve and/or sensor only when DRB scan tool diagnosis indicates this
is necessary. Or, if either part has sustained physical damage (dented, deformed, broken, etc.).

CAUTION: Do not turn the small screw at the end of the solenoid valve for any reason. Turning the screw
in either direction will ruin solenoid calibration and result in solenoid failure. In addition, the filter on the
solenoid valve is NOT serviceable. Do not try to remove the filter as this will damage the valve housing.

INSPECTION

Inspect the throttle and manual valve levers and shafts. Do not attempt to straighten a bent shaft or correct a loose
lever. Replace these components if worn, bent, loose or damaged in any way.

Inspect all of the valve body mating surfaces for scratches, nicks, burrs, or distortion. Use a straightedge to check
surface flatness. Minor scratches may be removed with crocus cloth using only very light pressure.

Minor distortion of a valve body mating surface may be corrected by smoothing the surface with a sheet of crocus
cloth. Position the crocus cloth on a surface plate, sheet of plate glass or equally flat surface. If distortion is severe
or any surfaces are heavily scored, the valve body will have to be replaced.

CAUTION: Many of the valves and plugs, such as the throttle valve, shuttle valve plug, 1-2 shift valve and
1-2 governor plug, are made of coated aluminum. Aluminum components are identified by the dark color of
the special coating applied to the surface (or by testing with a magnet). Do not sand aluminum valves or
plugs under any circumstances. This practice could damage the special coating causing the valves/plugs to
stick and bind.

Inspect the valves and plugs for scratches, burrs, nicks, or scores. Minor surface scratches on steel valves and
plugs can be removed with crocus cloth but do not round off the edges of the valve or plug lands.Maintaining
sharpness of these edges is vitally important. The edges prevent foreign matter from lodging between the valves
and plugs and the bore.

21 - 1180

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

DR/DH

Inspect all the valve and plug bores in the valve body. Use a penlight to view the bore interiors. Replace the valve
body if any bores are distorted or scored. Inspect all of the valve body springs. The springs must be free of dis-
tortion, warpage or broken coils.

Check the two separator plates for distortion or damage of any kind. Inspect the upper housing, lower housing, 3-4
accumulator housing, and transfer plate carefully. Be sure all fluid passages are clean and clear. Check condition of
the upper housing and transfer plate check balls as well. The check balls and ball seats must not be worn or dam-
aged.

Trial fit each valve and plug in its bore to check freedom of operation. When clean and dry, the valves and plugs
should drop freely into the bores.

Valve body bores do not change dimensionally with use. If the valve body functioned correctly when new, it will
continue to operate properly after cleaning and inspection. It should not be necessary to replace a valve body
assembly unless it is damaged in handling.

The only serviceable valve body components are listed below. The remaining valve body components are serviced
only as part of a complete valve body assembly. Serviceable parts are:

dual solenoid and harness assembly

solenoid gasket

solenoid case connector O-rings and shoulder bolt

switch valve and spring

pressure adjusting screw and bracket assembly

throttle lever

manual lever and shaft seal

throttle lever shaft seal, washer, and E-clip

fluid filter and screws

detent ball and spring

valve body screws

governor pressure solenoid

governor pressure sensor and retaining clip

park lock rod and E-clip

ASSEMBLY

CAUTION: Do not force valves or plugs into place during reassembly. If the valve body bores, valves and
plugs are free of distortion or burrs, the valve body components should all slide into place easily. In addi-
tion, do not overtighten the transfer plate and valve body screws during reassembly. Overtightening can
distort the housings resulting in valve sticking, cross leakage and unsatisfactory operation. Tighten valve
body screws to recommended torque only.

DR/DH

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

21 - 1181

LOWER HOUSING

1. Lubricate valves, springs, and the housing valve and plug bores with clean transmission fluid.

2. Install 3-4 timing valve spring and valve (13) in lower housing.

3. Install 3-4 quick fill valve (18) in lower housing.

4. Install 3-4 quick fill valve spring (18) and plug (12) in housing.

5. Install timing valve end plate (11). Tighten end plate screws to 4 N·m (35 in. lbs.) torque.

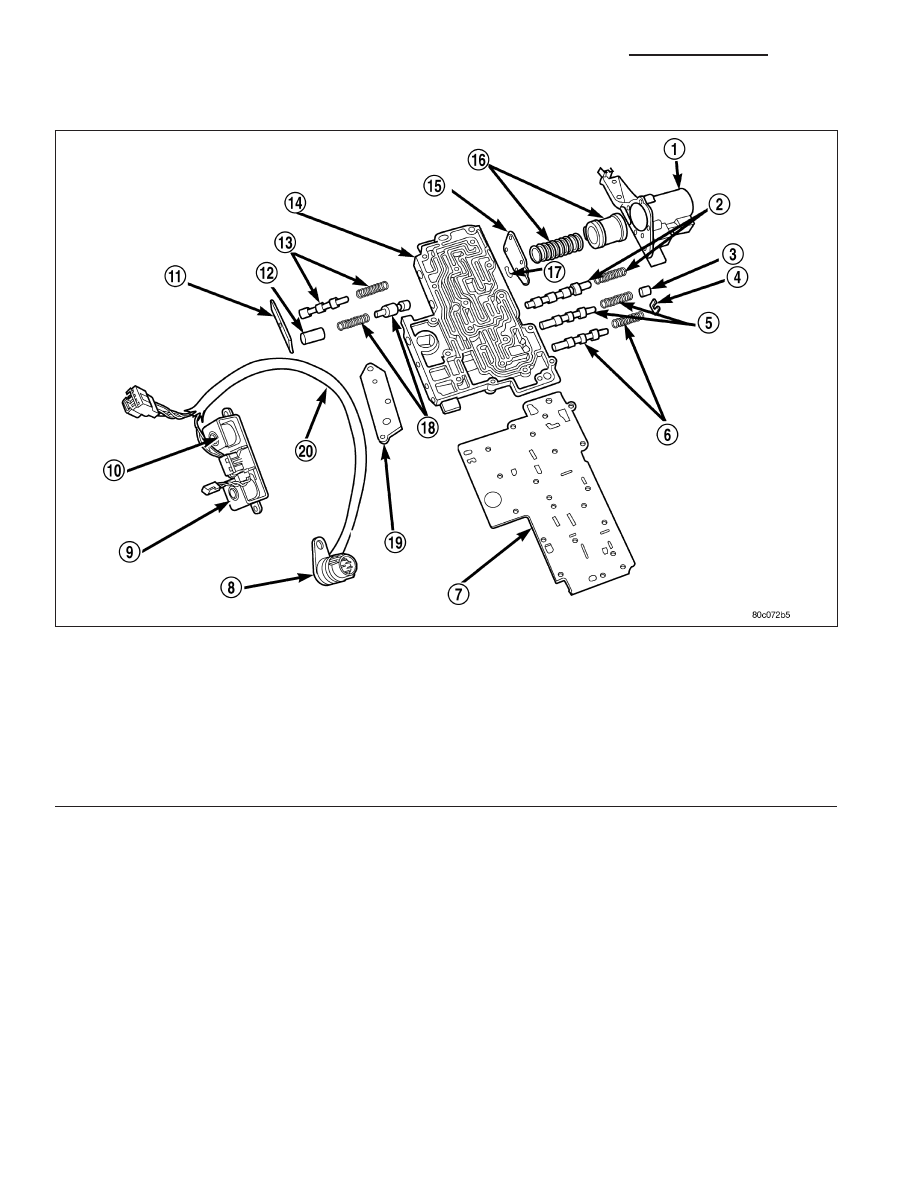

Lower Housing Shift Valves and Springs

1 - 3-4 ACCUMULATOR HOUSING

11 - TIMING VALVE COVER

2 - 3-4 SHIFT VALVE AND SPRING

12 - PLUG

3 - PLUG

13 - 3-4 TIMING VALVE AND SPRING

4 - SPRING RETAINER

14 - LOWER HOUSING

5 - CONVERTER CLUTCH VALVE AND SPRING

15 - ACCUMULATOR END PLATE

6 - CONVERTER CLUTCH TIMING VALVE AND SPRING

16 - 3-4 ACCUMULATOR PISTON AND SPRING

7 - OVERDRIVE SEPARATOR PLATE

17 - E-CLIP

8 - CASE CONNECTOR

18 - 3-4 QUICK FILL SPRING AND VALVE

9 - CONVERTER CLUTCH SOLENOID

19 - SOLENOID GASKET

10 - OVERDRIVE SOLENOID

20 - HARNESS

21 - 1182

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

DR/DH

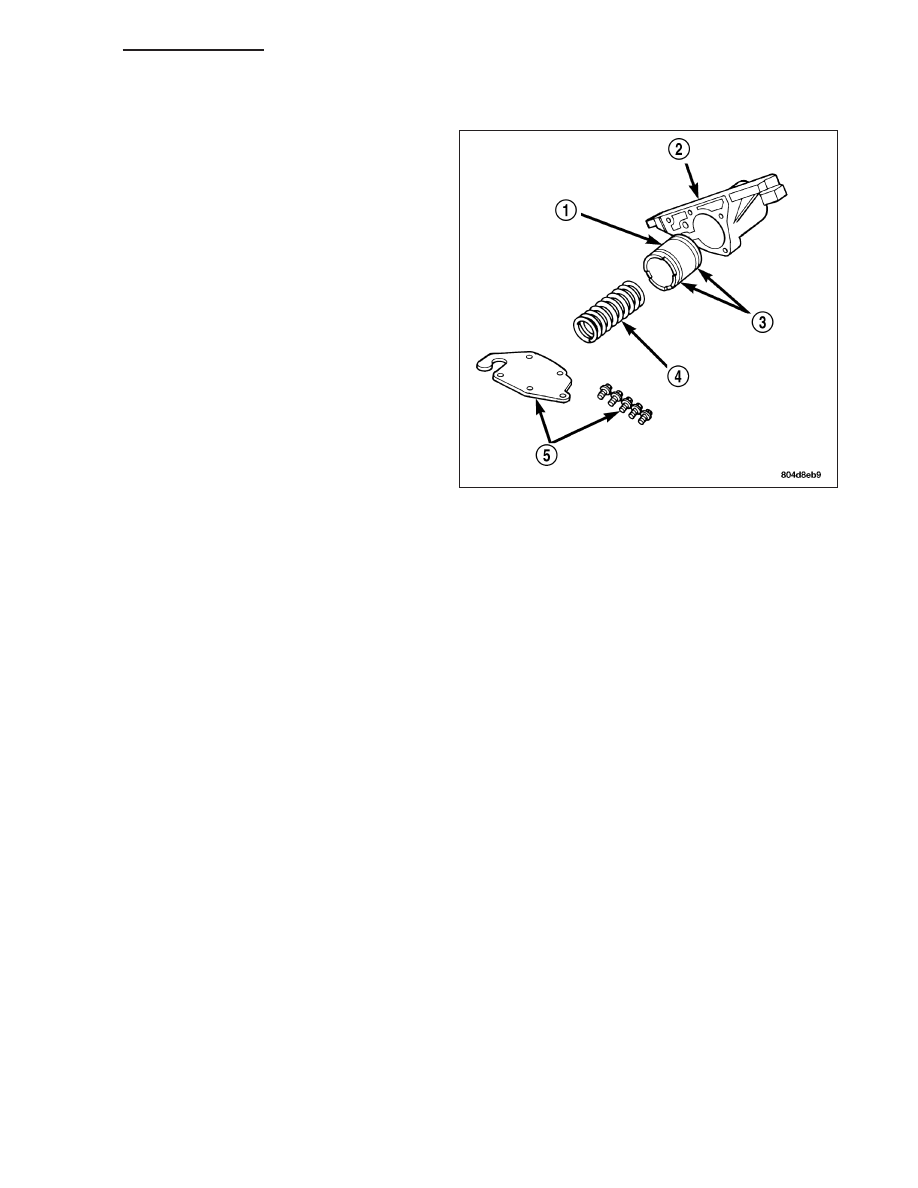

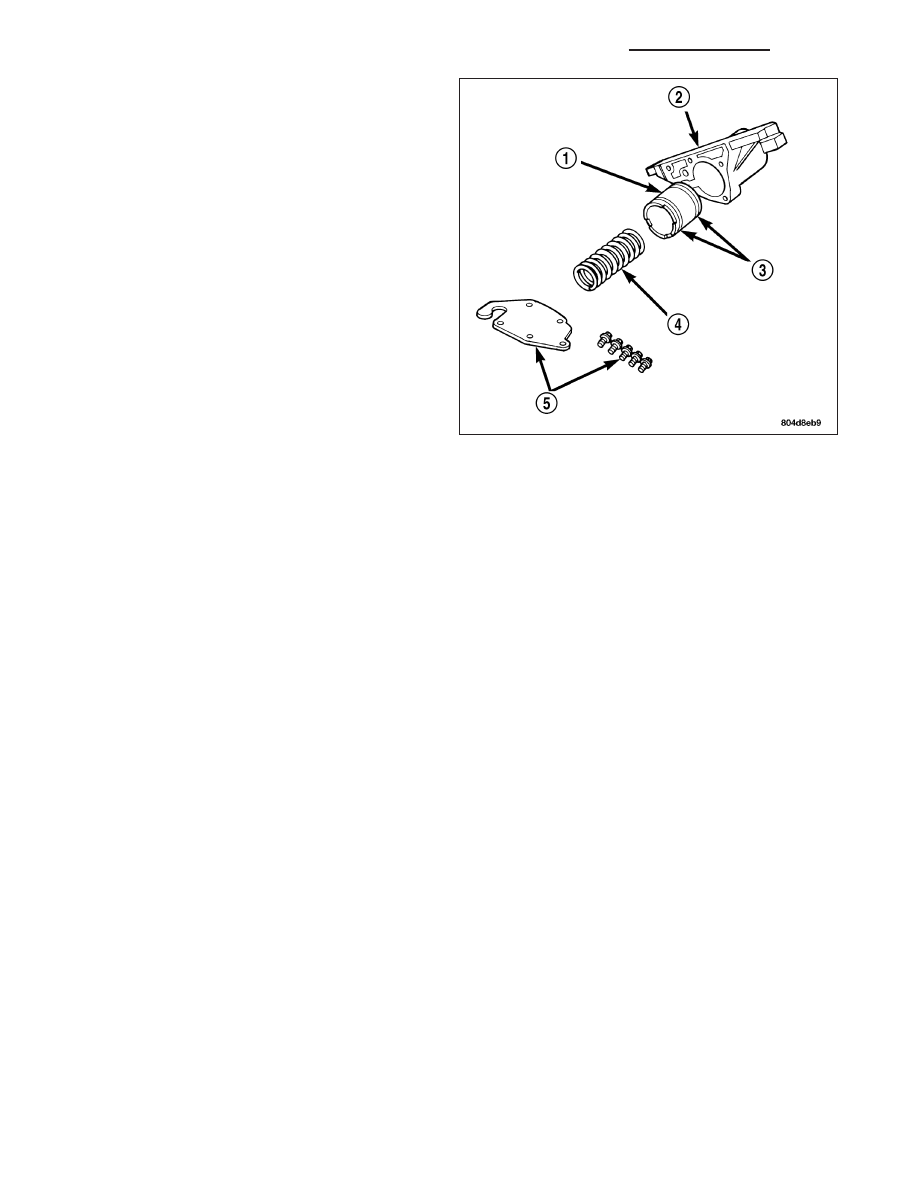

3-4 ACCUMULATOR

1. Lubricate accumulator piston, seals and housing

piston bore with clean transmission fluid.

2. Install new seal rings (3) on accumulator piston.

3. Install piston (1) and spring (4) in housing.

4. Install end plate on housing (5).

DR/DH

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

21 - 1183
